SUSPENSIONS
EngineFrontRear
1.4 Turbo Multi Air Double
wishbone with stabilizer barsMultilink with stabilizer bars
269
Page 272 of 292
STEERING
EngineTurning circle curb to curb, ft (m) Type
1.4 Turbo Multi Air 30.8
(9.4)Double pinion electric power assist system
(DP - EPAS) - rack and pinion
270
TECHNICAL SPECIFICATIONS
Page 273 of 292
DIMENSIONS
Dimensions
Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with
vehicle unloaded.
Trunk Volume: 4.9 cu. ft.
ABCDE F
159.6 90.948.558.968.559.1
10000555-122-333Vehicle Dimension Chart
271
Page 274 of 292
Weights
Curb Weight: 2436 lbs (1105 kg) (if
equipped with manual transmission) /
2476 lbs (1123 kg) (if equipped with
automatic transmission).
272
TECHNICAL SPECIFICATIONS
Page 275 of 292
FLUID CAPACITIES
ItemCapacities
Fuel tank 11.9
(gallons) / 45 (liters)
Engine oil (without oil filter replacement) 3.3 (quarts) / 3.2 (liters)
Engine oil (with oil filter replacement) 4.0 (quarts) / 3.8 (liters)
Coolant (with manual transmission) 7.6 (quarts) / 7.2 (liters)
Coolant (with automatic transmission) 7.5 (quarts) / 7.1 (liters)
Manual transmission oil 2.2 (quarts) / 2.1 (liters)
Automatic transmission fluid 7.8 (quarts) / 7.5 (liters)
Rear differential oil 0.63 (quarts) / 0.6 (liters)
LSD oil 0.63 (quarts) / 0.6 (liters)
Brake fluid (& clutch fluid) 0.57 (quarts) / 0.55 (liters)
273
Page 276 of 292
FLUIDS AND LUBRICANTS
Fluids And Lubricants
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration.
LubricantCharacteristics SpecificationReplacement interval
Engine oil W
e recommend you use API
Certified SAE 5W-40 Full
Synthetic Engine Oil, meeting the requirements of FCA Material
Standard MS-12991. Refer to your engine oil filler cap for correct SAE grade. According to Scheduled
Servicing Plan
Coolant Mopar Long Life Coolant
Concentrate for FIAT Spider According to Scheduled
Servicing Plan
Manual transmission oil MOPAR Manual Transmission
Long Life Gear Oil for FIAT Spider
Automatic transmission fluid MOPAR Automatic Transmission
Long Life Fluid for FIAT Spider
Rear differential oil MOPAR Long Life Hypoid Gear
Oil for FIAT Spider
Limited slip differential oil Mopar Long Life Limited Slip
Additive for FIAT Spider
Brake/Clutch fluid We recommend you use MOPAR
DOT 3. If DOT 3 brake fluid is not available, then DOT 4 is acceptable.
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
274
TECHNICAL SPECIFICATIONS
Page 277 of 292
Caution!
Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in
engine damage and may decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is different and should not be
mixed with Hybrid Organic Additive Technology (HOAT) engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a
non-OAT engine coolant (antifreeze) is introduced into the cooling system in an emergency, the cooling system will need to be drained,
flushed, and refilled with fresh OAT coolant (conforming to MS.90032), by an authorized dealer as soon as possible.
Do not use water alone or alcohol-based engine coolant (antifreeze) products. Do not use additional rust inhibitors or antirust products, as
they may not be compatible with the radiator engine coolant and may plug the radiator.
This vehicle has not been designed for use with propylene glycol-based engine coolant (antifreeze). Use of propylene glycol-based engine
coolant (antifreeze) is not recommended.
275
Page 278 of 292
PERFORMANCE
Performance
Top speed after the initial period of usage of the vehicle.
VersionMPH (km/h)
1.4 Turbo Multi Air 164HP N/A
276
TECHNICAL SPECIFICATIONS
Page 279 of 292

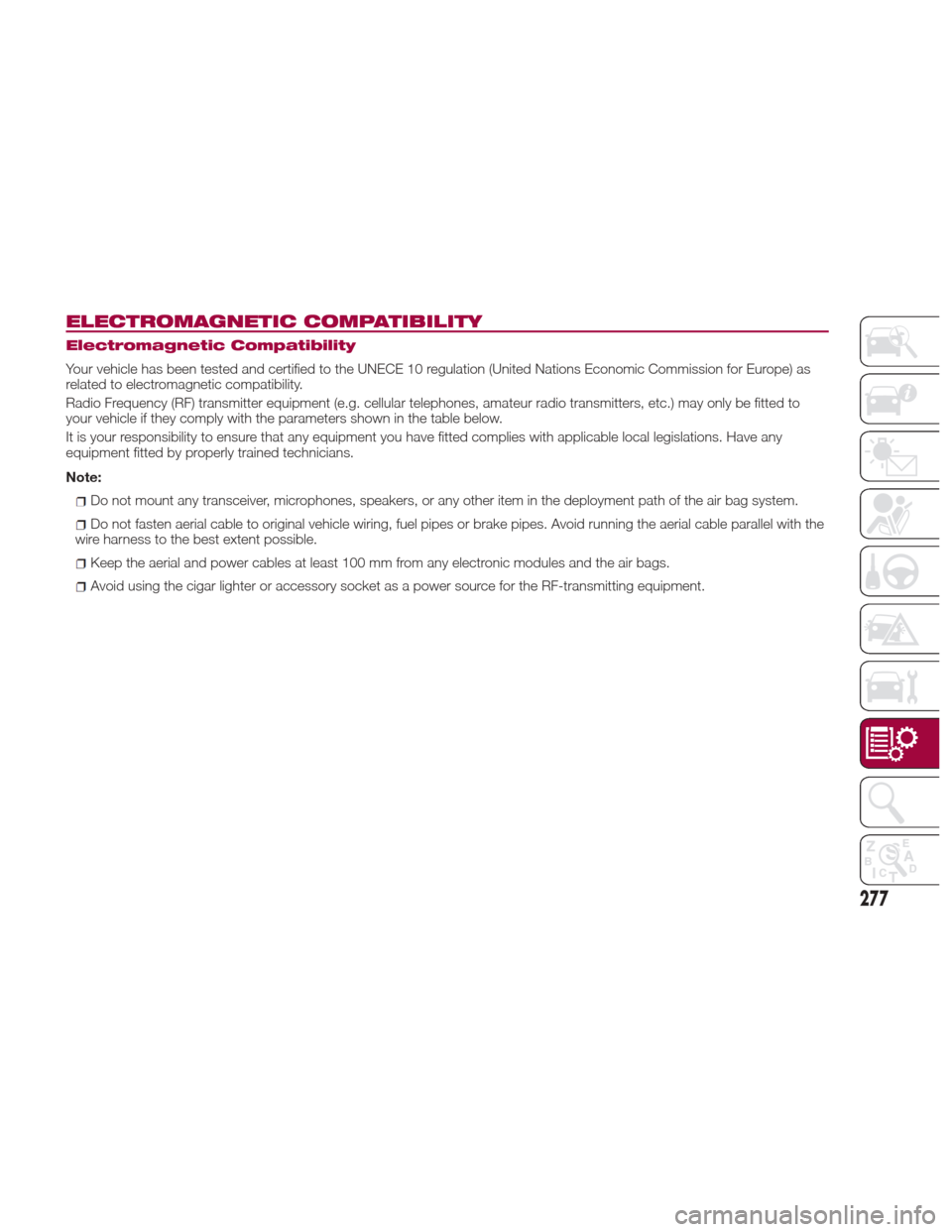

ELECTROMAGNETIC COMPATIBILITY
Electromagnetic Compatibility
Your vehicle has been tested and certified to the UNECE 10 regulation (United Nations Economic Commission for Europe) as
related to electromagnetic compatibility.
Radio Frequency (RF) transmitter equipment (e.g. cellular telephones, amateur radio transmitters, etc.) may only be fitted to
your vehicle if they comply with the parameters shown in the table below.
It is your responsibility to ensure that any equipment you have fitted complies with applicable local legislations. Have any
equipment fitted by properly trained technicians.
Note:
Do not mount any transceiver, microphones, speakers, or any other item in the deployment path of the air bag system.
Do not fasten aerial cable to original vehicle wiring, fuel pipes or brake pipes. Avoid running the aerial cable parallel with the
wire harness to the best extent possible.
Keep the aerial and power cables at least 100 mm from any electronic modules and the air bags.
Avoid using the cigar lighter or accessory socket as a power source for the RF-transmitting equipment.
277
Page 280 of 292

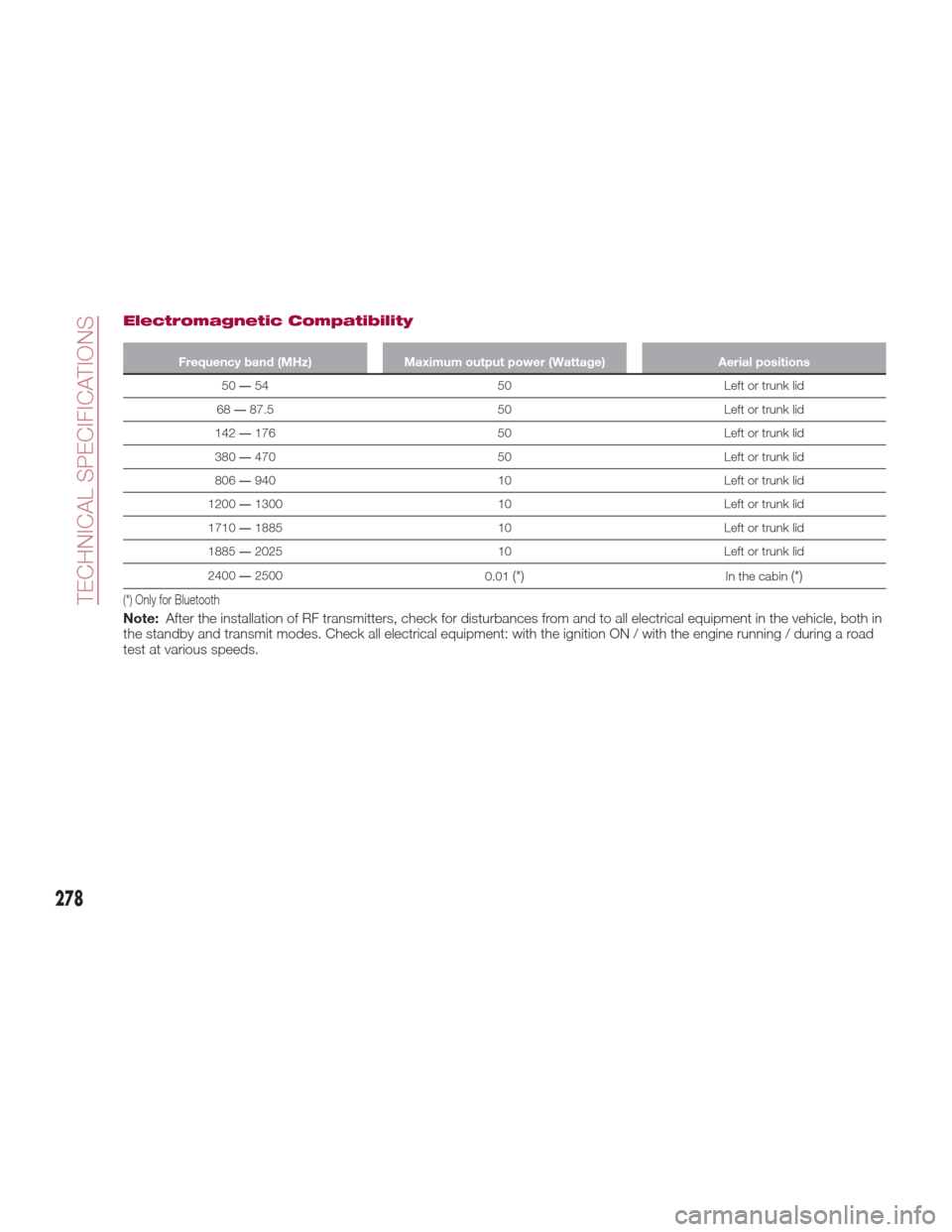

Electromagnetic Compatibility
Frequency band (MHz)Maximum output power (Wattage) Aerial positions
50 ―54
50Left or trunk lid
68 ―87.5 50Left or trunk lid
142 ―176 50Left or trunk lid
380 ―470 50Left or trunk lid
806 ―940 10Left or trunk lid
1200 ―1300 10Left or trunk lid
1710 ―1885 10Left or trunk lid
1885 ―2025 10Left or trunk lid
2400 ―2500
0.01
(*)In the cabin(*)
(*) Only for Bluetooth
Note:After the installation of RF transmitters, check for disturbances from and to all electrical equipment in the vehicle, both in
the standby and transmit modes. Check all electrical equipment: with the ignition ON / with the engine running / during a road
test at various speeds.
278
