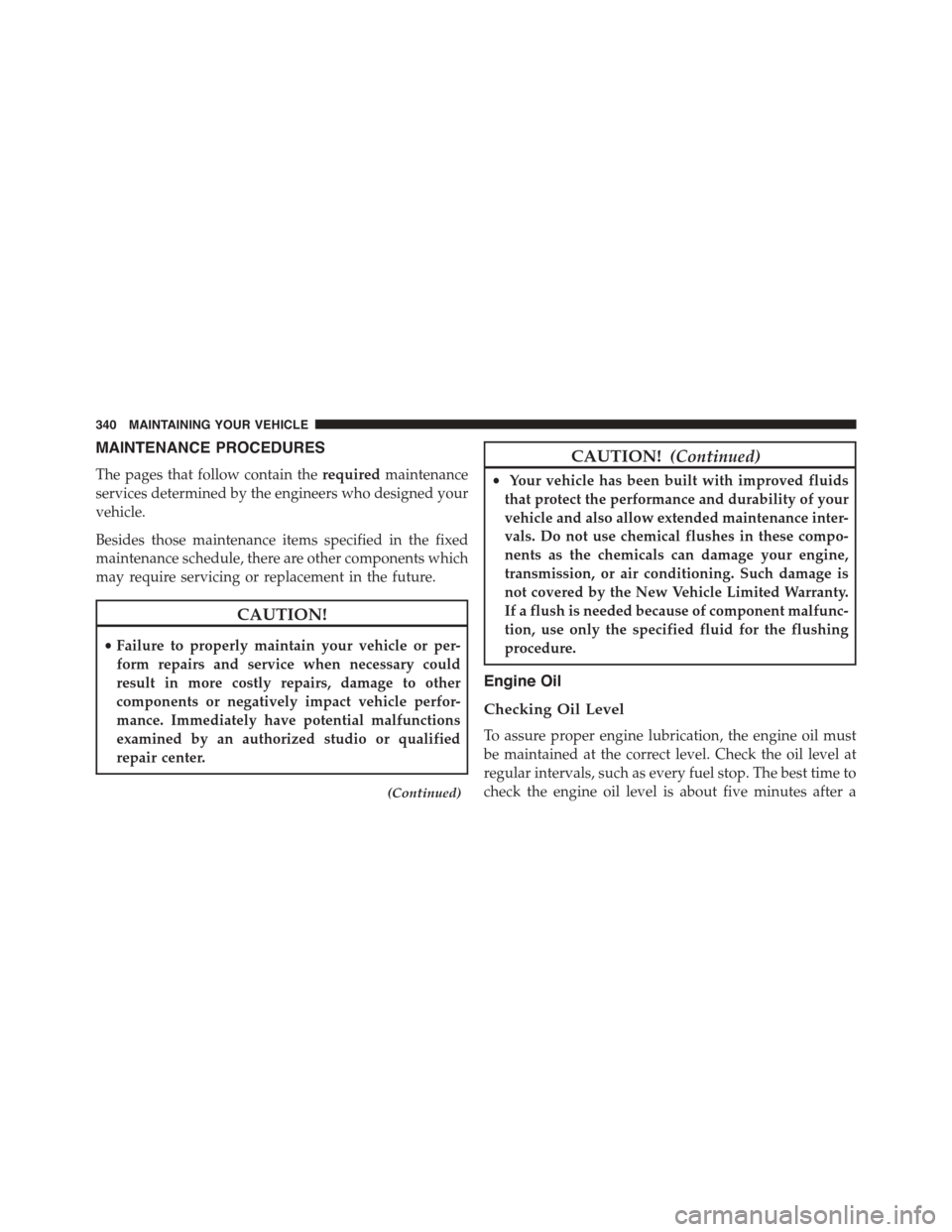

MAINTENANCE PROCEDURES
The pages that follow contain therequiredmaintenance
services determined by the engineers who designed your
vehicle.
Besides those maintenance items specified in the fixed
maintenance schedule, there are other components which
may require servicing or replacement in the future.
CAUTION!
•Failure to properly maintain your vehicle or per-
form repairs and service when necessary could
result in more costly repairs, damage to other
components or negatively impact vehicle perfor-
mance. Immediately have potential malfunctions
examined by an authorized studio or qualified
repair center.
(Continued)
CAUTION!(Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, or air conditioning. Such damage is
not covered by the New Vehicle Limited Warranty.
If a flush is needed because of component malfunc-
tion, use only the specified fluid for the flushing
procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a
340 MAINTAINING YOUR VEHICLE

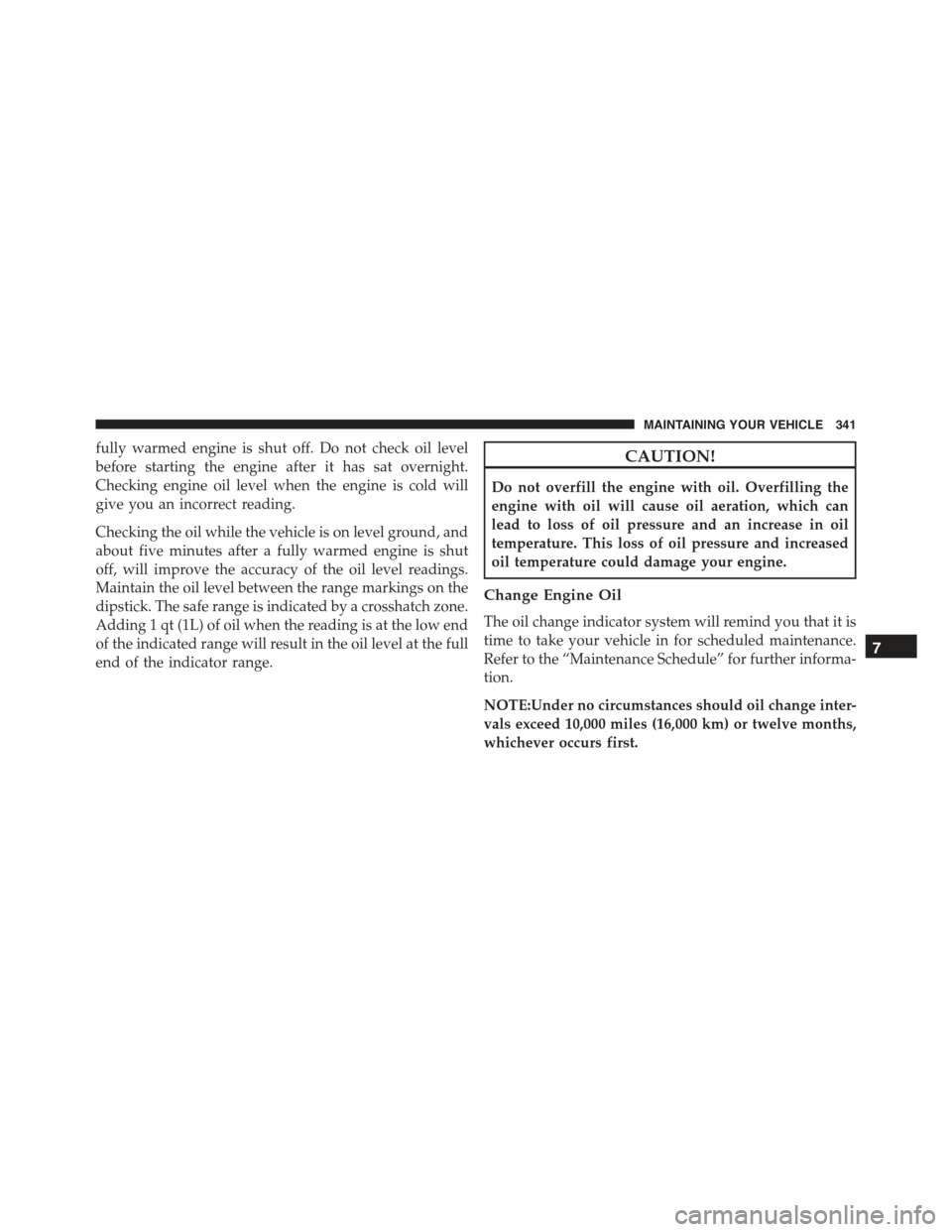

fully warmed engine is shut off. Do not check oil level
before starting the engine after it has sat overnight.
Checking engine oil level when the engine is cold will
give you an incorrect reading.
Checking the oil while the vehicle is on level ground, and
about five minutes after a fully warmed engine is shut
off, will improve the accuracy of the oil level readings.
Maintain the oil level between the range markings on the
dipstick. The safe range is indicated by a crosshatch zone.
Adding 1 qt (1L) of oil when the reading is at the low end
of the indicated range will result in the oil level at the full
end of the indicator range.
CAUTION!
Do not overfill the engine with oil. Overfilling the
engine with oil will cause oil aeration, which can
lead to loss of oil pressure and an increase in oil
temperature. This loss of oil pressure and increased
oil temperature could damage your engine.
Change Engine Oil
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Refer to the “Maintenance Schedule” for further informa-
tion.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever occurs first.
7
MAINTAINING YOUR VEHICLE 341

Battery.................................345
Jump Starting..........................320
Keyless Transmitter Replacement (RKE)........20
Belts, Seat...............................81
Body Mechanism Lubrication.................350
B-Pillar Location..........................263
Brake Assist System.......................250
Brake Fluid.............................387
Brake, Parking...........................244
Brakes.................................362
Brake System............................248
Anti-Lock (ABS)........................248
Master Cylinder........................362
Parking..............................244
Warning Light.........................155
Brake/Transmission Interlock.................231
Bulb Replacement.........................380
Bulbs, Light..............................83
Capacities, Antifreeze (Engine Coolant)..........385
Capacities, Fluid..........................385
Caps, Filler
Fuel.................................291
Oil (Engine)...........................342
Carbon Monoxide Warning...................80
Cargo Area Features.......................139
Car Washes.............................368
CD (Compact Disc) Player...................179
Cellular Phone...........................207
Chains, Tire.............................277
Changing A Flat Tire.......................308
Chart, Tire Sizing.........................258
Check Engine Light (Malfunction Indicator Light) . .153
Checking Your Vehicle For Safety...............79
Checks, Safety............................79
Child Restraint............................59
Clean Air Gasoline........................286
10
INDEX 407

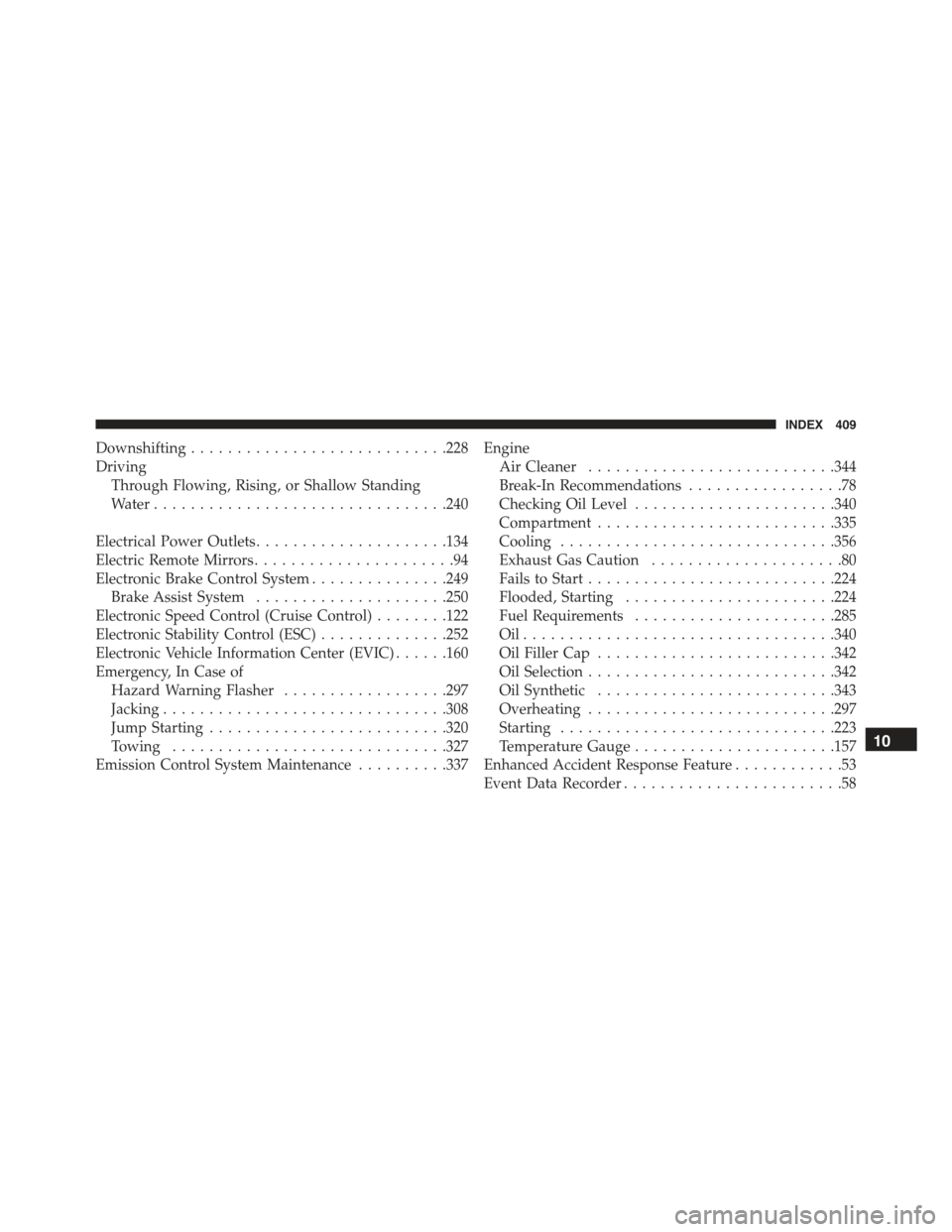

Downshifting............................228
Driving
Through Flowing, Rising, or Shallow Standing
Water................................240
Electrical Power Outlets.....................134
Electric Remote Mirrors......................94
Electronic Brake Control System...............249
Brake Assist System.....................250
Electronic Speed Control (Cruise Control)........122
Electronic Stability Control (ESC)..............252
Electronic Vehicle Information Center (EVIC)......160
Emergency, In Case of
Hazard Warning Flasher..................297
Jacking...............................308
Jump Starting..........................320
Towing..............................327
Emission Control System Maintenance..........337
Engine
Air Cleaner...........................344
Break-In Recommendations.................78
Checking Oil Level......................340
Compartment..........................335
Cooling..............................356
Exhaust Gas Caution.....................80
Fails to Start...........................224
Flooded, Starting.......................224
Fuel Requirements......................285
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..340
Oil Filler Cap..........................342
Oil Selection...........................342
Oil Synthetic..........................343
Overheating...........................297
Starting..............................223
Temperature Gauge......................157
Enhanced Accident Response Feature............53
Event Data Recorder........................58
10
INDEX 409

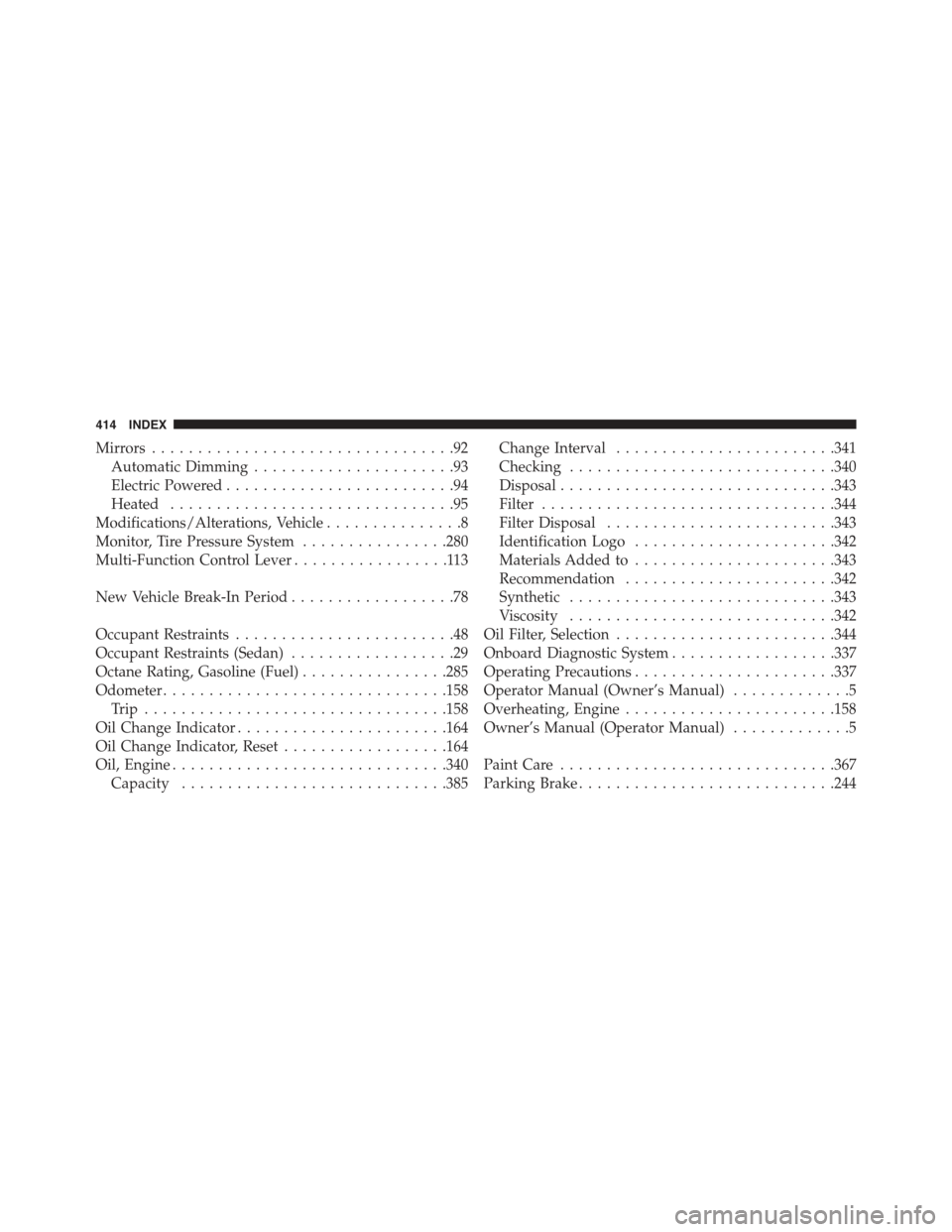

Mirrors.................................92
Automatic Dimming......................93
Electric Powered.........................94
Heated...............................95
Modifications/Alterations, Vehicle...............8
Monitor, Tire Pressure System................280
Multi-Function Control Lever.................113
New Vehicle Break-In Period..................78
Occupant Restraints........................48
Occupant Restraints (Sedan)..................29
Octane Rating, Gasoline (Fuel)................285
Odometer...............................158
Tr i p . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..158
Oil Change Indicator.......................164
Oil Change Indicator, Reset..................164
Oil, Engine..............................340
Capacity.............................385
Change Interval........................341
Checking.............................340
Disposal..............................343
Filter................................344
Filter Disposal.........................343
Identification Logo......................342
Materials Added to......................343
Recommendation.......................342
Synthetic.............................343
Viscosity.............................342
Oil Filter, Selection........................344
Onboard Diagnostic System..................337
Operating Precautions......................337
Operator Manual (Owner’s Manual).............5
Overheating, Engine.......................158
Owner’s Manual (Operator Manual).............5
Paint Care..............................367
Parking Brake............................244
414 INDEX
