keyless FIAT 500 2014 2.G Owners Manual

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............11
▫ Ignition Key Removal ...................11
▫ Locking Doors With A Key ................13
▫ Key-In-Ignition Reminder ................13
 SENTRY KEY® .........................13
▫ Replacement Keys .....................14
▫ General Information ....................15
 REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED ............................15
▫ To Unlock The Doors And Liftgate ..........16▫
Remote Key Unlock, Driver Door/All Doors 1st
Press ...............................16
▫ Opening Power Top Remote Function .......16
▫ To Lock The Doors And Liftgate ............18
▫ Programming Additional Transmitters ........18
▫ Transmitter Battery Replacement ...........18
▫ General Information ....................20
 DOOR LOCKS .........................20
▫ Power Door Locks — If Equipped ..........22
 POWER WINDOWS .....................23
2

A WORD ABOUT YOUR KEYS
The key fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key simply press the mechanical key release button.The vehicle is supplied with a code card containing key
code numbers to order duplicate keys, and the autho-
rized dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys.
Ignition Key Removal
1. Place the shift lever in PARK (if equipped with an
automatic transmission).
2. Rotate the key to the OFF/LOCK position.
3. Remove the key from the ignition switch lock cylinder.
Mechanical Key Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

General Information
The Sentry Key® system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
REMOTE KEYLESS ENTRY (RKE) — IF EQUIPPED
This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system.
Remote Keyless Entry Transmitter With Mechanical Key
Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors And Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver ’s door or twice,
within five seconds, to unlock all doors and the liftgate.
The turn signal lights will flash to acknowledge the
unlock signal. The illuminated entry system will also
turn on.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock either
the driver ’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, refer to “Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
Opening Power Top Remote Function
The remote keyless power top function can only be used
with the engine off.
NOTE: The remote keyless power top function can be
used to open the power top to the spoiler position.
Key Fob
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

second, release, and the window will go down automati-
cally. To cancel the Auto-Down movement, operate the
switch in either the up or down direction and release the
switch.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting or open any window.
LIFTGATE
To unlock the liftgate, use the Remote Keyless Entry
(RKE) transmitter or activate the power door lock
switches located on the driver door handle.To open the liftgate, squeeze the liftgate release handle
and pull the liftgate open with one fluid motion.
Liftgate Handle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

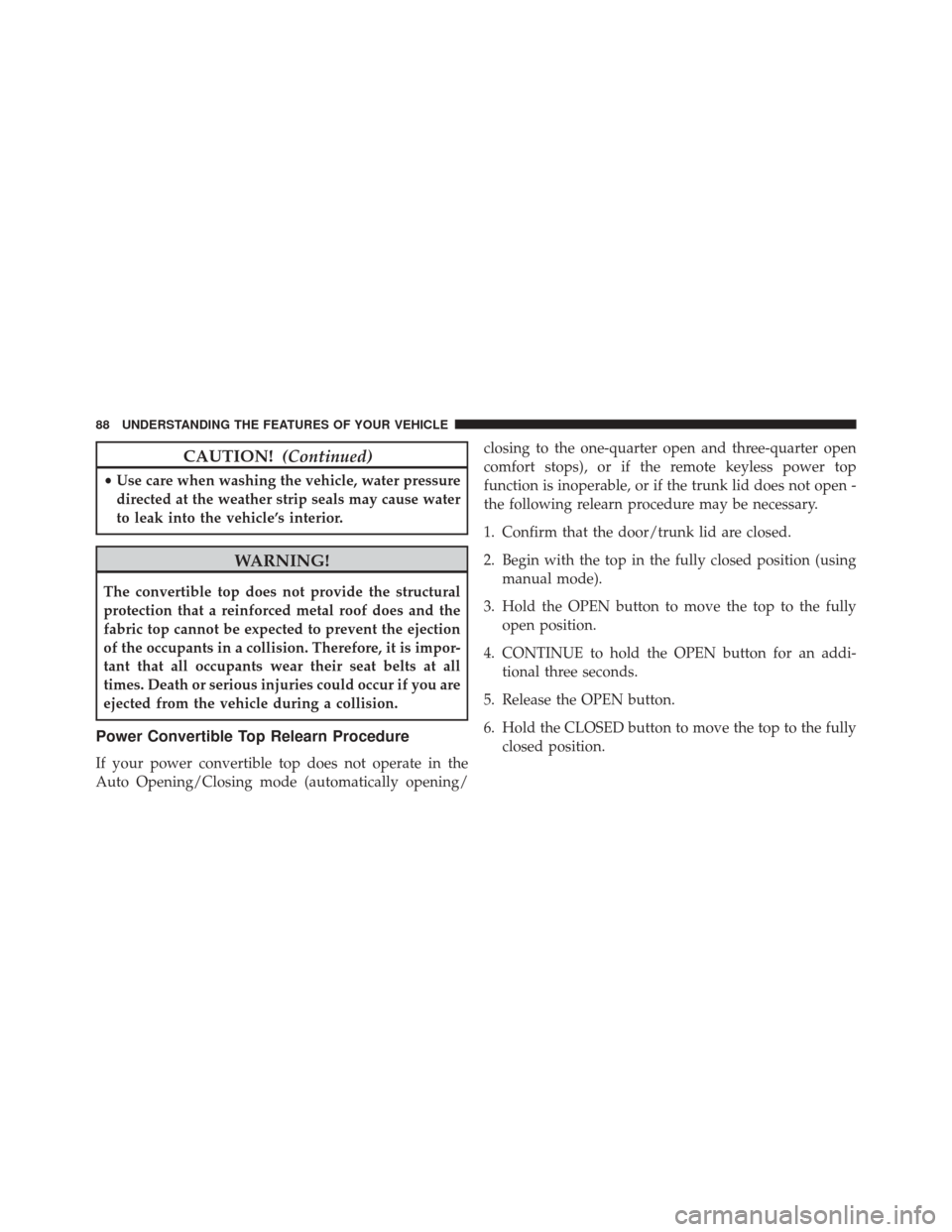

CAUTION!(Continued)
•Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicle’s interior.
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
of the occupants in a collision. Therefore, it is impor-
tant that all occupants wear their seat belts at all
times. Death or serious injuries could occur if you are
ejected from the vehicle during a collision.
Power Convertible Top Relearn Procedure
If your power convertible top does not operate in the
Auto Opening/Closing mode (automatically opening/ closing to the one-quarter open and three-quarter open
comfort stops), or if the remote keyless power top
function is inoperable, or if the trunk lid does not open -
the following relearn procedure may be necessary.
1. Confirm that the door/trunk lid are closed.
2. Begin with the top in the fully closed position (using
manual mode).
3. Hold the OPEN button to move the top to the fully open position.
4. CONTINUE to hold the OPEN button for an addi- tional three seconds.
5. Release the OPEN button.
6. Hold the CLOSED button to move the top to the fully closed position.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

7. CONTINUE to hold the CLOSED button until the topbegins to cycle fully open, then release the CLOSED
button.
At the end of step 7 the top will automatically cycle to the
fully open position, and then close to the 1/4 open
position.
This will confirm that the relearn procedure was success-
ful.
Auto Open/Close will now be functional. Trunk lid
operation will be functional. Remote Keyless Power Top
Function will be functional.
NOTE: DO NOT interrupt this activity.
If the power convertible top does not relearn repeat the
procedure a second time.Wind Stop
The Wind Stop installs in the backseat area of the vehicle.
The Wind Stop will not interfere with power top opera-
tion. Therefore, it can remain installed when the top is up.
MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

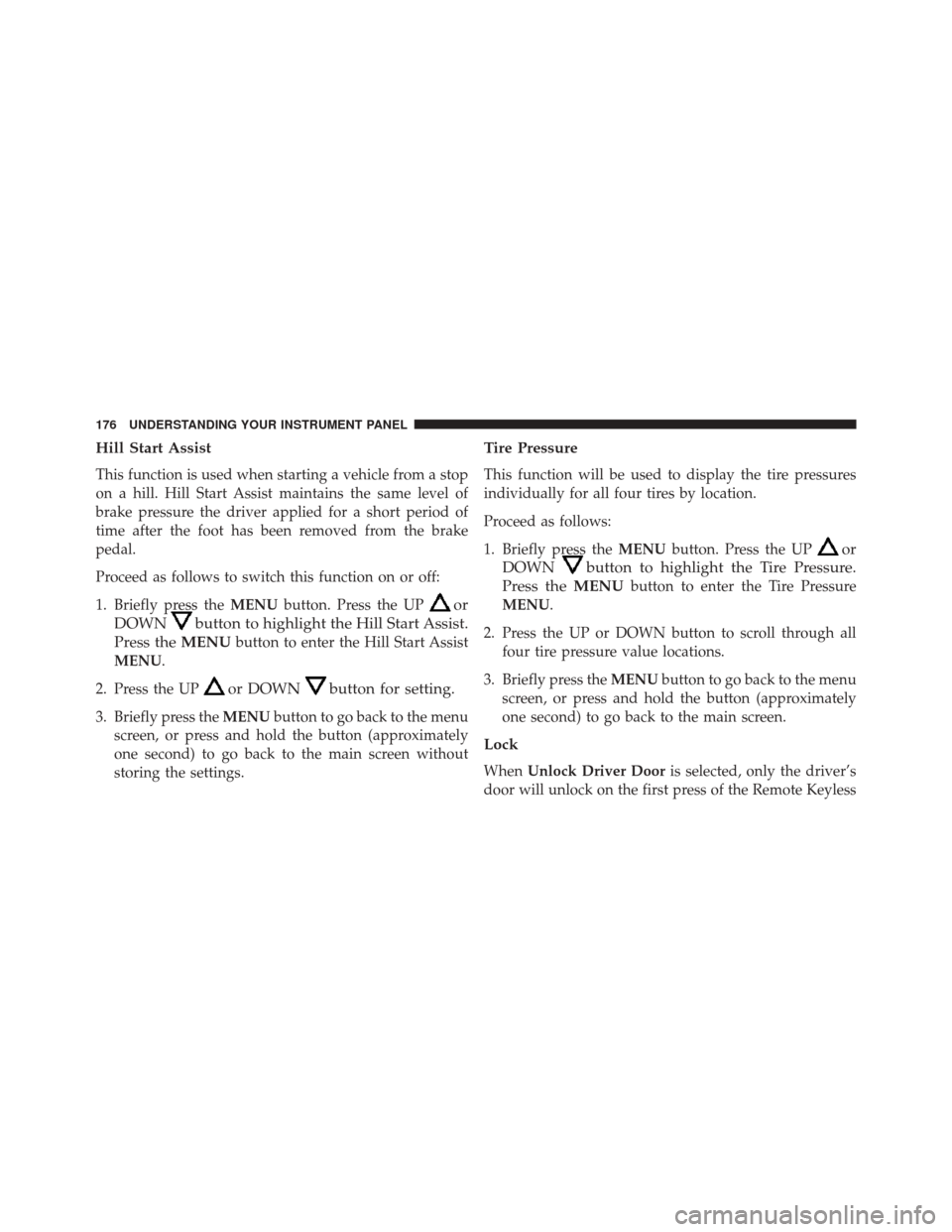

Hill Start Assist
This function is used when starting a vehicle from a stop
on a hill. Hill Start Assist maintains the same level of
brake pressure the driver applied for a short period of
time after the foot has been removed from the brake
pedal.
Proceed as follows to switch this function on or off:
1. Briefly press theMENUbutton. Press the UP
or
DOWN
button to highlight the Hill Start Assist.
Press the MENU
button to enter the Hill Start Assist
MENU.
2. Press the UP
or DOWNbutton for setting.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the button (approximately
one second) to go back to the main screen without
storing the settings.
Tire Pressure
This function will be used to display the tire pressures
individually for all four tires by location.
Proceed as follows:
1. Briefly press the MENUbutton. Press the UP
or
DOWN
button to highlight the Tire Pressure.
Press the MENU
button to enter the Tire Pressure
MENU.
2. Press the UP or DOWN button to scroll through all four tire pressure value locations.
3. Briefly press the MENUbutton to go back to the menu
screen, or press and hold the button (approximately
one second) to go back to the main screen.
Lock
When Unlock Driver Door is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
176 UNDERSTANDING YOUR INSTRUMENT PANEL

Autostick.............................. .238
Battery ................................ .357
Jump Starting ......................... .332
Keyless Transmitter Replacement (RKE) ........18
Belts, Seat ...............................79
Body Mechanism Lubrication .................363
B-Pillar Location ......................... .264
Brake Assist System ...................... .250
Brake Fluid ............................ .401
Brake, Parking .......................... .244
Brakes ................................ .375
Brake System ........................... .248
Anti-Lock (ABS) ....................... .249
Master Cylinder ....................... .375
Parking ............................. .244
Warning Light ........................ .153
Brake/Transmission Interlock .................231
Bulb Replacement ........................ .395Bulbs, Light
..............................82
Capacities, Antifreeze (Engine Coolant) ..........399
Capacities, Fluid ......................... .399
Caps, Filler Fuel ................................ .298
Oil (Engine) .......................... .355
Carbon Monoxide Warning ...................78
Cargo Area Features ...................... .138
Car Washes ............................ .381
CD (Compact Disc) Player ...................177
Cellular Phone .......................... .206
Chains, Tire ............................ .281
Change Oil Indicator ...................... .404
Changing A Flat Tire ...................... .319
Chart, Tire Sizing ........................ .259
Check Engine Light (Malfunction Indicator Light) . .151
Checking Your Vehicle For Safety ...............78
Checks, Safety ............................78
10
INDEX 423

Recorder, Event Data.......................55
Recreational Towing ...................... .300
Reformulated Gasoline .....................294
Refrigerant ............................. .359
Release, Hood ........................... .109
Reminder, Seat Belt .........................37
Remote Keyless Entry (RKE) FCC General Information ..................20
Power Convertible Top Function .............16
Remote Sound System (Radio) Controls .........204
Replacement Bulbs ....................... .395
Replacement Keys .........................14
Replacement Parts ........................ .351
Replacement Tires ........................ .279
Reporting Safety Defects ....................415
Restraints, Child ...........................56
Rotation, Tires .......................... .282
Safety Checks Inside Vehicle ..................79Safety Checks Outside Vehicle
.................82
Safety Defects, Reporting ....................415
Safety, Exhaust Gas .........................78
Safety Information, Tire .....................257
Safety Tips ...............................78
Schedule, Maintenance .....................404
Seat Belt Maintenance ..................... .386
Seat Belt Reminder .........................37
Seat Belts ................................79
And Pregnant Women .....................39
Child Restraint ..........................56
Extender ..............................38
Front Seat .............................29
Inspection .............................79
Pretensioners ...........................37
Rear Seat ..............................29
Untwisting Procedure .....................34
Seat Belts (Sedan) ..........................26
Seats ................................. .101
432 INDEX
