FIAT 500 2016 2.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............11
▫ Ignition Key Removal ...................11
▫ Locking Doors With A Key ................13
▫ Key-In-Ignition Reminder ................13
 SENTRY KEY ..........................13
▫ Replacement Keys .....................14
▫ General Information ....................15
 VEHICLE SECURITY ALARM ..............15
▫ To Arm The System: ....................15
▫ To Disarm The System: ..................15
REMOTE KEYLESS ENTRY (RKE) —
IF EQUIPPED ..........................16
▫ To Unlock The Doors And Liftgate ..........17
▫ Remote Key Unlock, Driver Door/All Doors
1stPress.............................17
▫ Opening Power Top Remote Function .......17
▫ To Lock The Doors And Liftgate ............19
▫ Programming Additional Transmitters ........19
▫ Transmitter Battery Replacement ...........19
▫ General Information ....................21
2

DOOR LOCKS .........................21
▫ Power Door Locks — If Equipped ..........23
▫ Auto Door Locks ......................23
 POWER WINDOWS .....................24
▫ Power Window Switches .................24
▫ Auto-Down ..........................25
▫ Wind Buffeting .......................25
 LIFTGATE ............................26
 OCCUPANT RESTRAINT SYSTEMS ..........27
▫ Important Safety Precautions ..............27
▫ Seat Belt Systems ......................28 ▫
Supplemental Restraint System (SRS) ........40
▫ Child Restraints .......................56
▫ Transporting Pets ......................75
 ENGINE BREAK-IN RECOMMENDATIONS ....75
 SAFETY TIPS ..........................76
▫ Transporting Passengers ..................76
▫ Exhaust Gas ..........................77
▫ Safety Checks You Should Make Inside The
Vehicle .............................78
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ....................80
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
The key fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key, simply push the mechanical key release button.The vehicle is supplied with a code card containing key
code numbers to order duplicate keys, and the autho-
rized dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys.
Ignition Key Removal
1. Place the shift lever in PARK (if equipped with an
automatic transmission).
2. Rotate the key to the OFF/LOCK position.
3. Remove the key from the ignition switch lock cylinder.
Mechanical Key Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

WARNING!
•Before exiting a vehicle, always shift the transmis-
sion into PARK, apply the parking brake, turn the
engine OFF, remove the key fob from the ignition
and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
(Continued)
Ignition Switch Positions
1 — STOP (OFF/LOCK)
2 — MAR (ACC/ON/RUN)
3 — AVV (START) 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

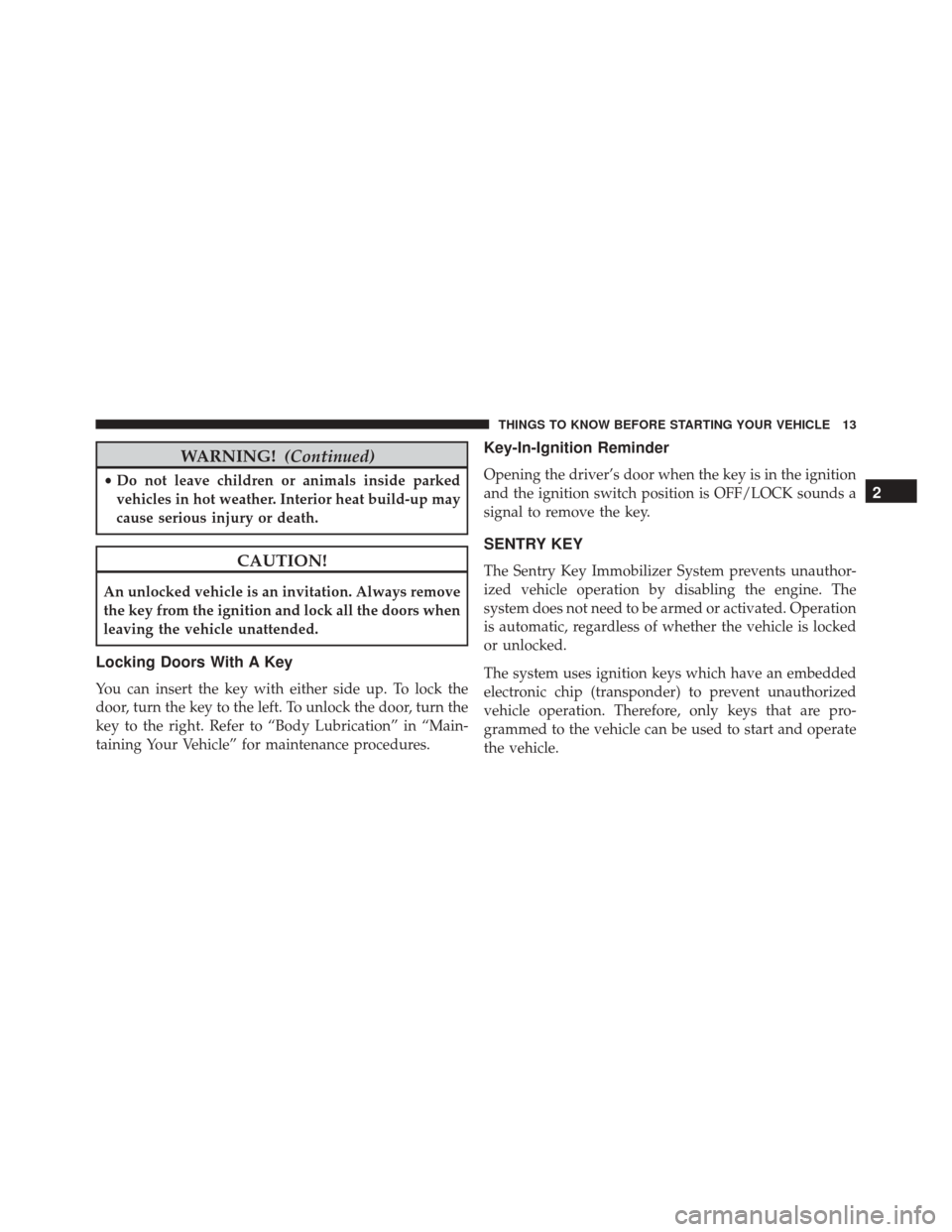

WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all the doors when
leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn the
key to the right. Refer to “Body Lubrication” in “Main-
taining Your Vehicle” for maintenance procedures.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is OFF/LOCK sounds a
signal to remove the key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

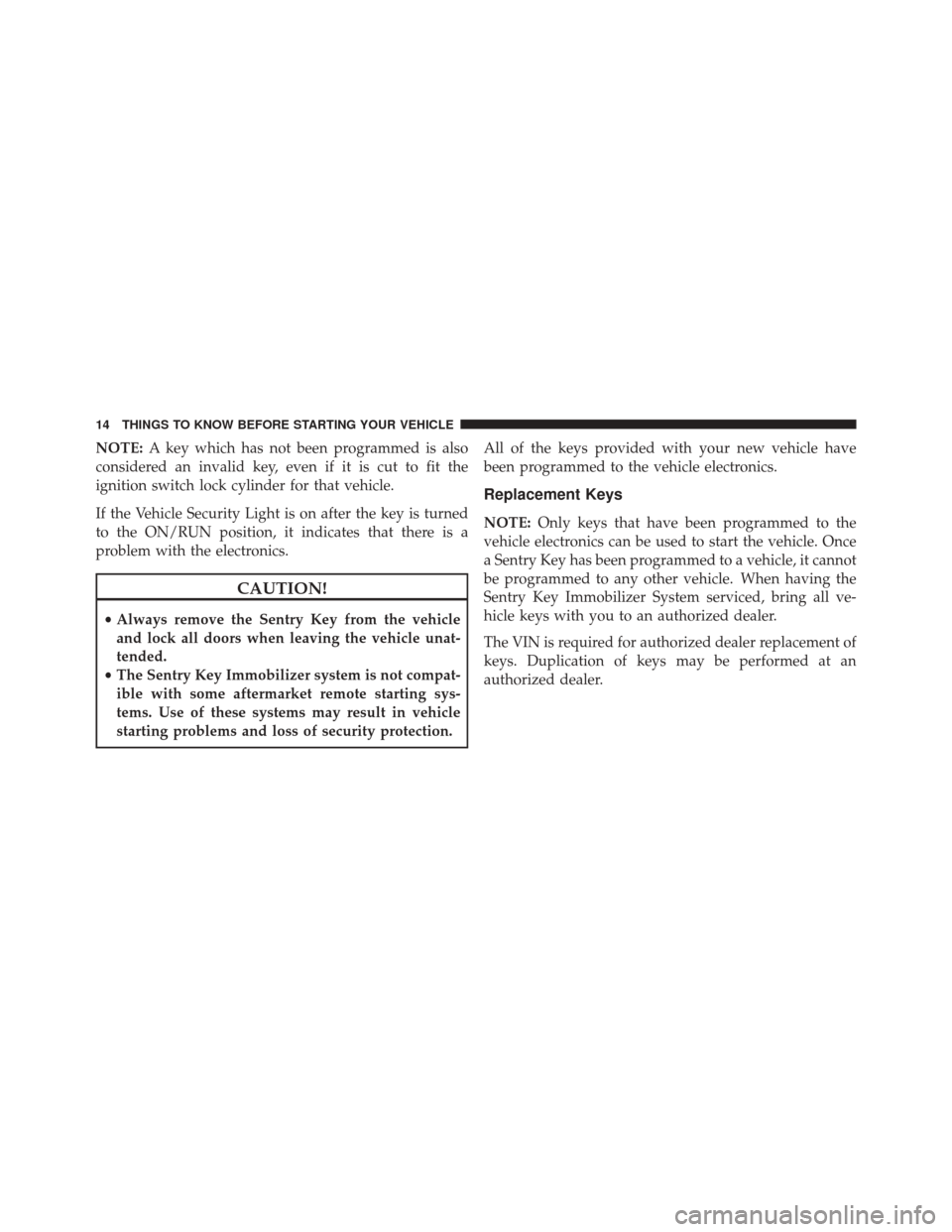

NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection. All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:
Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle. When having the
Sentry Key Immobilizer System serviced, bring all ve-
hicle keys with you to an authorized dealer.
The VIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

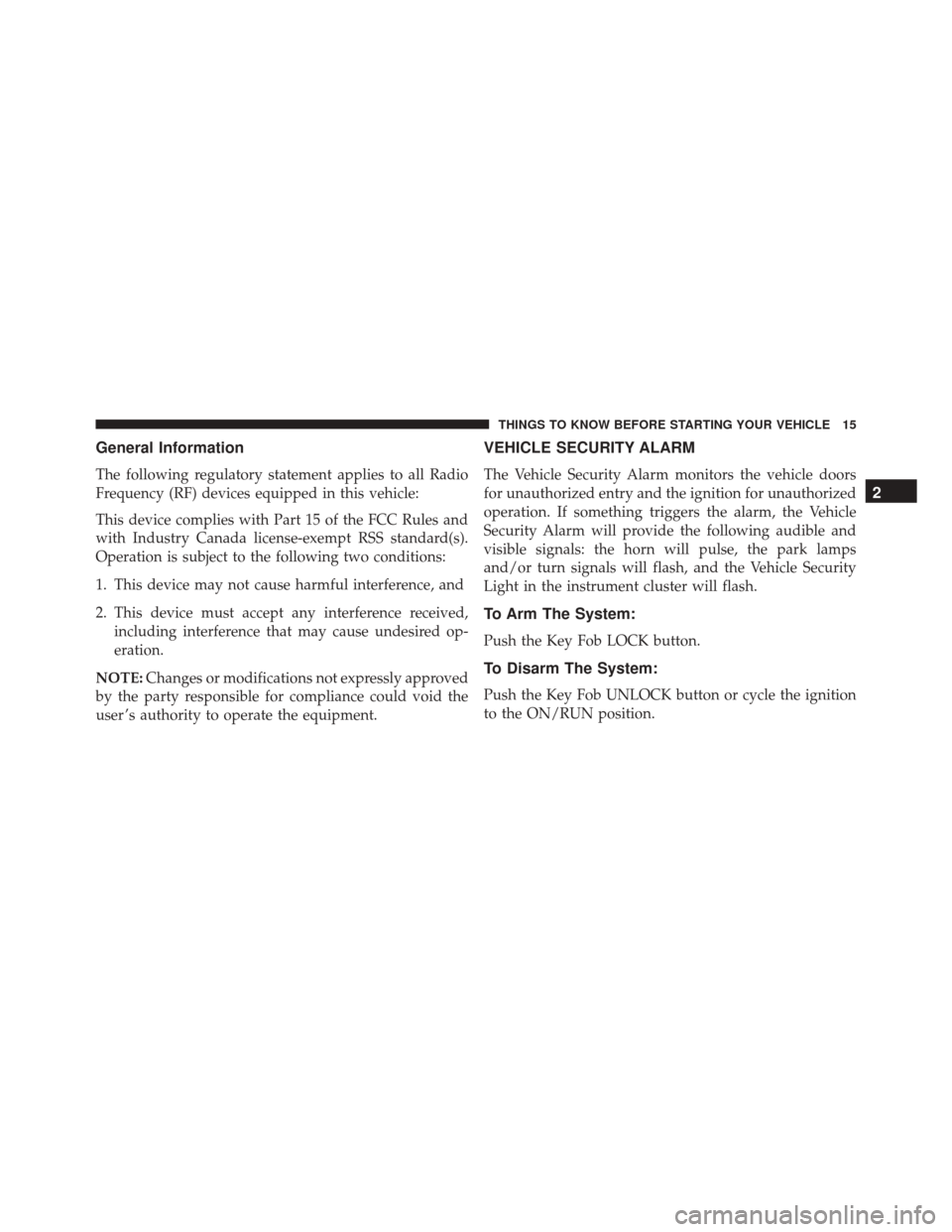

General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition for unauthorized
operation. If something triggers the alarm, the Vehicle
Security Alarm will provide the following audible and
visible signals: the horn will pulse, the park lamps
and/or turn signals will flash, and the Vehicle Security
Light in the instrument cluster will flash.
To Arm The System:
Push the Key Fob LOCK button.
To Disarm The System:
Push the Key Fob UNLOCK button or cycle the ignition
to the ON/RUN position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

The Vehicle Security Alarm is designed to protect your
vehicle. However, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.REMOTE KEYLESS ENTRY (RKE) — IF EQUIPPED
This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system.
Remote Keyless Entry Transmitter
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors And Liftgate
Push and release the UNLOCK button on the RKE trans-
mitter once to unlock the driver ’s door or twice, within five
seconds, to unlock all doors and the liftgate. The turn
signal lights will flash to acknowledge the unlock signal.
The illuminated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock either
the driver ’s door or all doors on the first push of the
UNLOCK button on the RKE transmitter. To change the
current setting, refer to “Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
Opening Power Top Remote Function
The remote keyless power top function can only be used
with the engine off.
NOTE: The remote keyless power top function can be
used to open the power top to the spoiler position.
Key Fob
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

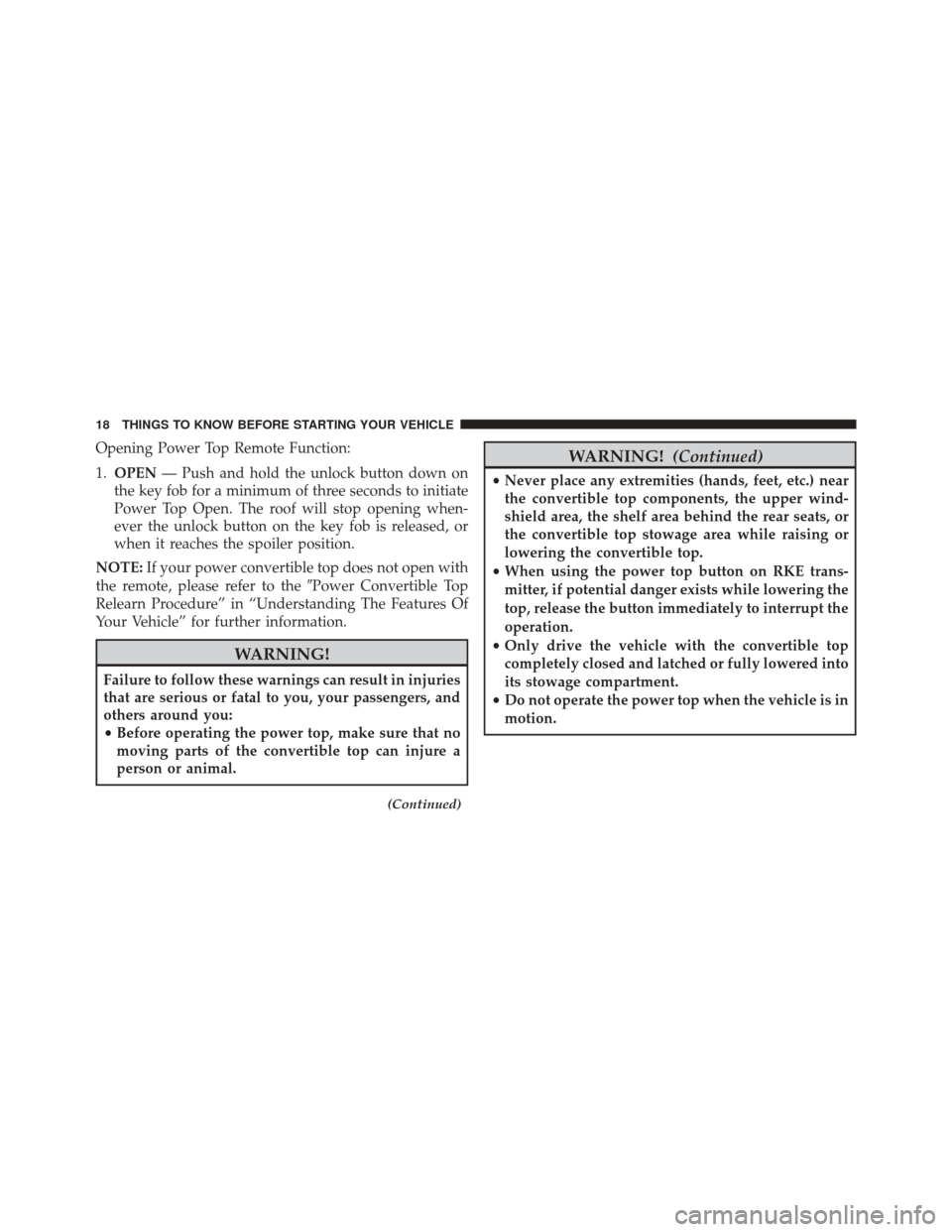

Opening Power Top Remote Function:
1.OPEN — Push and hold the unlock button down on
the key fob for a minimum of three seconds to initiate
Power Top Open. The roof will stop opening when-
ever the unlock button on the key fob is released, or
when it reaches the spoiler position.
NOTE: If your power convertible top does not open with
the remote, please refer to the Power Convertible Top
Relearn Procedure” in “Understanding The Features Of
Your Vehicle” for further information.
WARNING!
Failure to follow these warnings can result in injuries
that are serious or fatal to you, your passengers, and
others around you:
• Before operating the power top, make sure that no
moving parts of the convertible top can injure a
person or animal.
(Continued)
WARNING! (Continued)
•Never place any extremities (hands, feet, etc.) near
the convertible top components, the upper wind-
shield area, the shelf area behind the rear seats, or
the convertible top stowage area while raising or
lowering the convertible top.
• When using the power top button on RKE trans-
mitter, if potential danger exists while lowering the
top, release the button immediately to interrupt the
operation.
• Only drive the vehicle with the convertible top
completely closed and latched or fully lowered into
its stowage compartment.
• Do not operate the power top when the vehicle is in
motion.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
