automatic transmission fluid FIAT 500 2016 2.G Owners Manual

▫Cooling System ..................... .370
▫ Brake System ....................... .376
▫ Manual Transmission — If Equipped .......378
▫ Automatic Transmission — If Equipped .....378
▫ Appearance Care And Protection From
Corrosion .......................... .380
▫ Convertible Top Care — If Equipped .......387
 FUSES ............................. .389
▫ Interior Fuses ....................... .390
▫ Underhood Fuses ..................... .392
 VEHICLE STORAGE ....................395
 REPLACEMENT BULBS .................396
 BULB REPLACEMENT ..................397 ▫
Headlamps Low Beam and High Beam ......397
▫ Front Turn Signal, Parking And Daytime
Running Lamps ...................... .397
▫ Front Fog Lamps ..................... .398
▫ Front/Rear Side Marker Lamps ............398
▫ Rear Tail, Stop, Backup And Turn Signal
Lamps ............................ .398
▫ Center High Mounted Stop Lamp (CHMSL) . . .399
 FLUID CAPACITIES ....................400
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .401
▫ Engine ............................ .401
▫ Chassis ........................... .403
346 MAINTAINING YOUR VEHICLE

CAUTION!
Use of improper brake fluids will affect overall
clutch system performance. Improper brake fluids
may damage the clutch system resulting in loss of
clutch function and the ability to shift the transmis-
sion.
Manual Transmission — If Equipped
Lubricant Selection
Use only the manufacturers recommended transmission
fluid. Refer to “Fluids, Lubricants, And Genuine Parts” in
“Maintaining Your Vehicle” for further information.
Fluid Level Check
Check the fluid level by removing the fill plug. The fluid
level should be between the bottom of the fill hole and a
point not more than 3/16 inch (4.7 mm) below the bottom
of the hole.Add fluid, if necessary, to maintain the proper level.
Please see your authorized dealer for service.
Frequency Of Fluid Change
Under normal operating conditions, the fluid installed at
the factory will give satisfactory lubrication for the life of
the vehicle. Fluid changes are not necessary unless lubri-
cant has become contaminated with water.
NOTE:
If contaminated with water, the fluid should be
changed immediately.
Automatic Transmission — If Equipped
Selection Of Lubricant
It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer ’s specified transmission fluid.
Refer to “Fluids, Lubricants, And Genuine Parts” in this
section for fluid specifications. It is important to maintain
378 MAINTAINING YOUR VEHICLE

the transmission fluid at the correct level using the
recommended fluid. No chemical flushes should be used
in any transmission; only the approved lubricant should
be used.
CAUTION!
Using a transmission fluid other than the manufac-
turer ’s recommended fluid may cause deterioration
in transmission shift quality and/or torque converter
shudder. Refer to “Fluids, Lubricants, And Genuine
Parts” in this section for fluid specifications.
Special Additives
The manufacturer strongly recommends against using
any special additives in the transmission.
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-mental additives. Therefore, do not add any fluid addi-
tives to the transmission. Avoid using transmission seal-
ers as they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
Fluid Level Check
The fluid level is preset at the factory and does not
require adjustment under normal operating conditions.
Routine fluid level checks are not required, therefore the
transmission has no dipstick. Your authorized dealer can
check your transmission fluid level using special service
tools. If you notice fluid leakage or transmission malfunc-
tion, visit your authorized dealer immediately to have
7
MAINTAINING YOUR VEHICLE 379

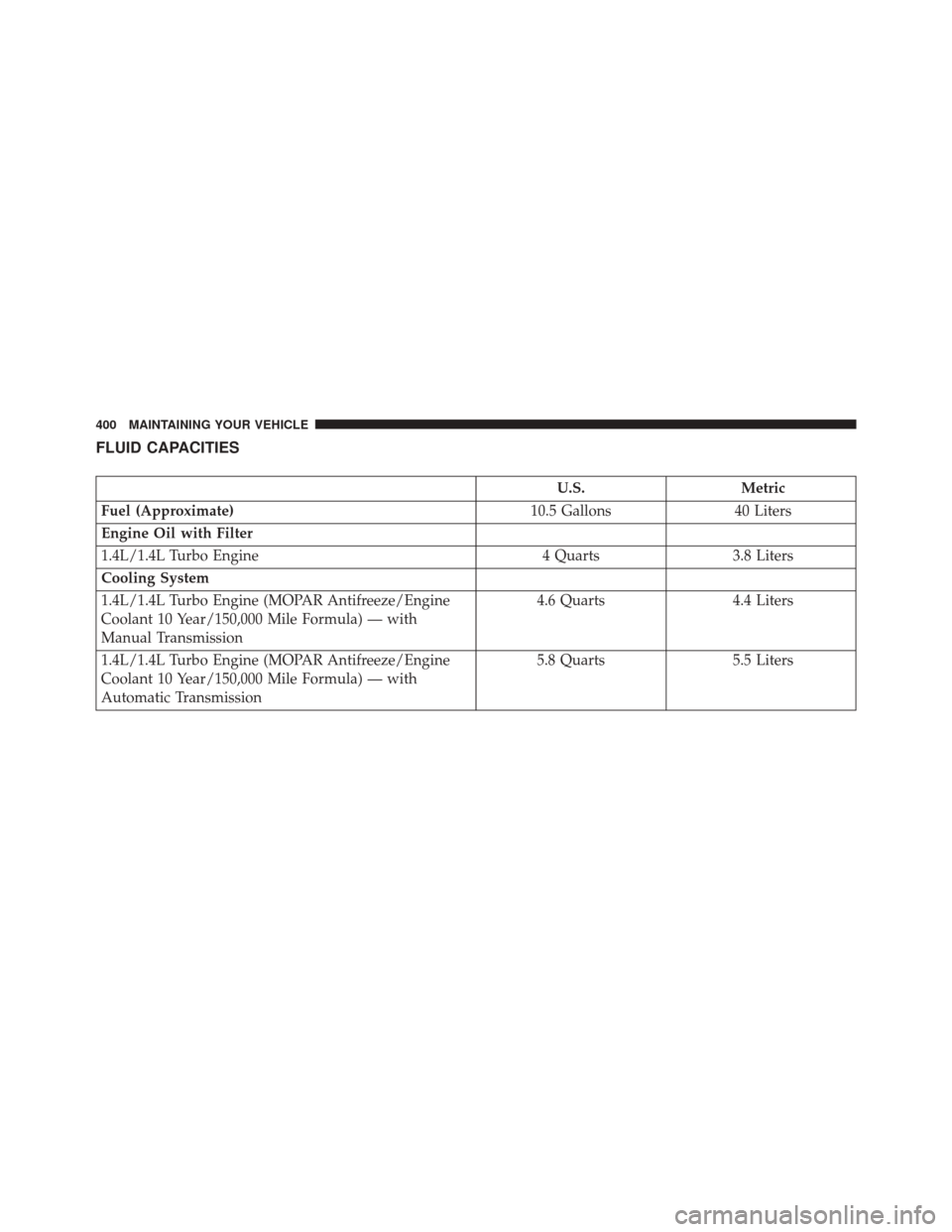

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 10.5 Gallons40 Liters
Engine Oil with Filter
1.4L/1.4L Turbo Engine 4 Quarts3.8 Liters
Cooling System
1.4L/1.4L Turbo Engine (MOPAR Antifreeze/Engine
Coolant 10 Year/150,000 Mile Formula) — with
Manual Transmission 4.6 Quarts
4.4 Liters
1.4L/1.4L Turbo Engine (MOPAR Antifreeze/Engine
Coolant 10 Year/150,000 Mile Formula) — with
Automatic Transmission 5.8 Quarts
5.5 Liters
400 MAINTAINING YOUR VEHICLE

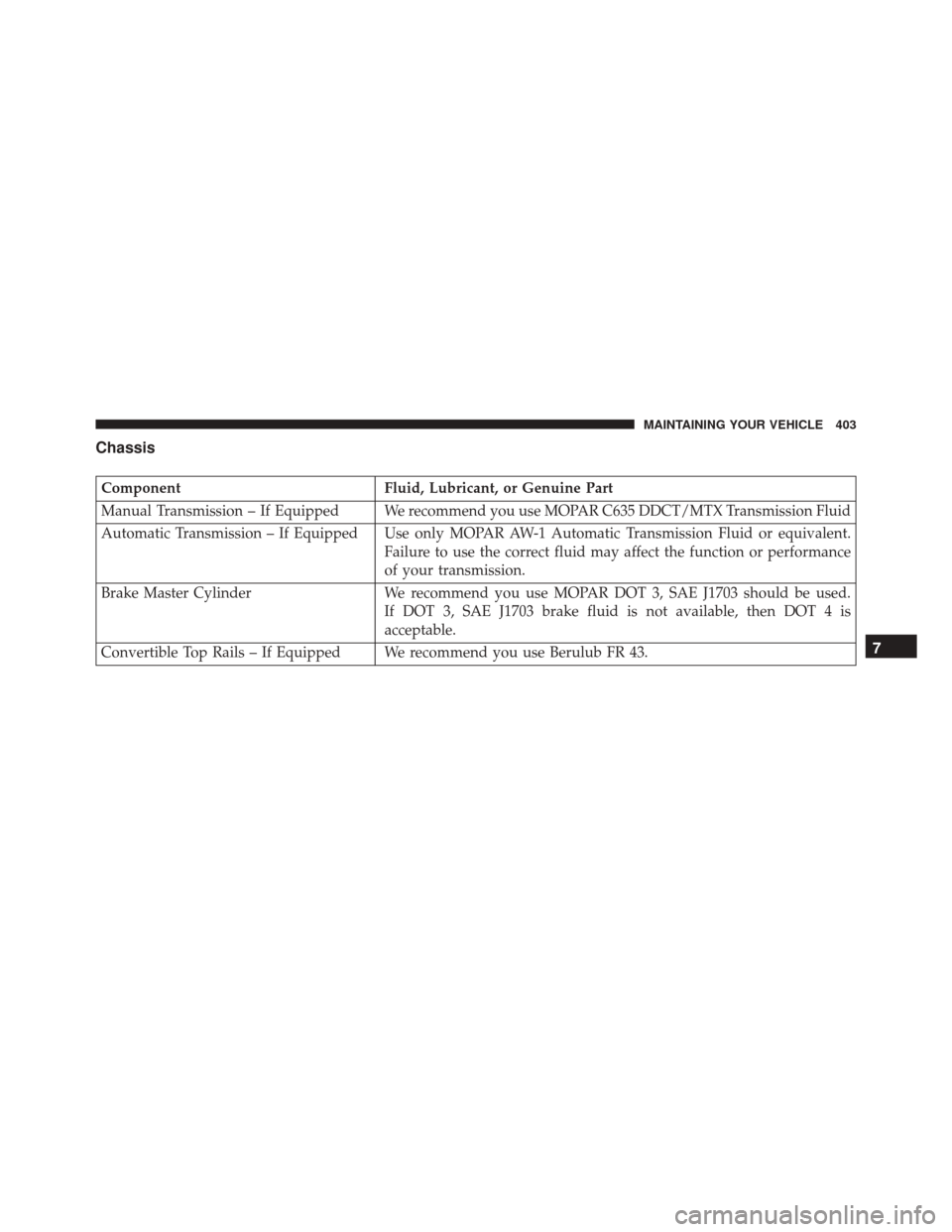

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped We recommend you use MOPAR C635 DDCT/MTX Transmission Fluid
Automatic Transmission – If Equipped Use only MOPAR AW-1 Automatic Transmission Fluid or equivalent. Failure to use the correct fluid may affect the function or performance
of your transmission.
Brake Master Cylinder We recommend you use MOPAR DOT 3, SAE J1703 should be used.
If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is
acceptable.
Convertible Top Rails – If Equipped We recommend you use Berulub FR 43.
7
MAINTAINING YOUR VEHICLE 403

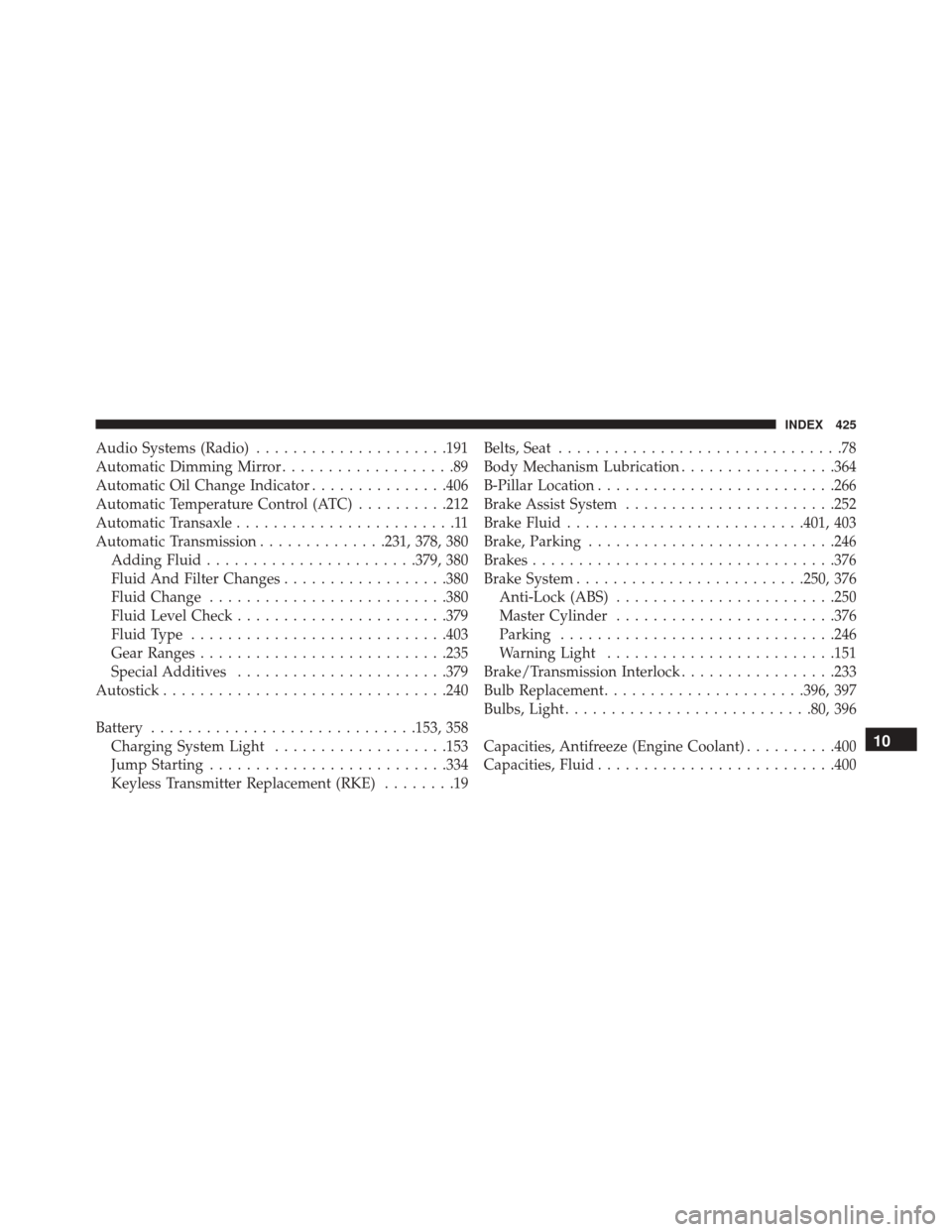

Audio Systems (Radio).....................191
Automatic Dimming Mirror ...................89
Automatic Oil Change Indicator ...............406
Automatic Temperature Control (ATC) ..........212
Automatic Transaxle ........................11
Automatic Transmission ..............231, 378, 380
Adding Fluid ...................... .379, 380
Fluid And Filter Changes ..................380
Fluid Change ......................... .380
Fluid Level Check ...................... .379
Fluid Type ........................... .403
Gear Ranges .......................... .235
Special Additives ...................... .379
Autostick .............................. .240
Battery ............................ .153, 358
Charging System Light ...................153
Jump Starting ......................... .334
Keyless Transmitter Replacement (RKE) ........19Belts, Seat
...............................78
Body Mechanism Lubrication .................364
B-Pillar Location ......................... .266
Brake Assist System ...................... .252
Brake Fluid ......................... .401, 403
Brake, Parking .......................... .246
Brakes ................................ .376
Brake System ........................ .250, 376
Anti-Lock (ABS) ....................... .250
Master Cylinder ....................... .376
Parking ............................. .246
Warning Light ........................ .151
Brake/Transmission Interlock .................233
Bulb Replacement ..................... .396, 397
Bulbs, Light .......................... .80, 396
Capacities, Antifreeze (Engine Coolant) ..........400
Capacities, Fluid ......................... .400
10
INDEX 425

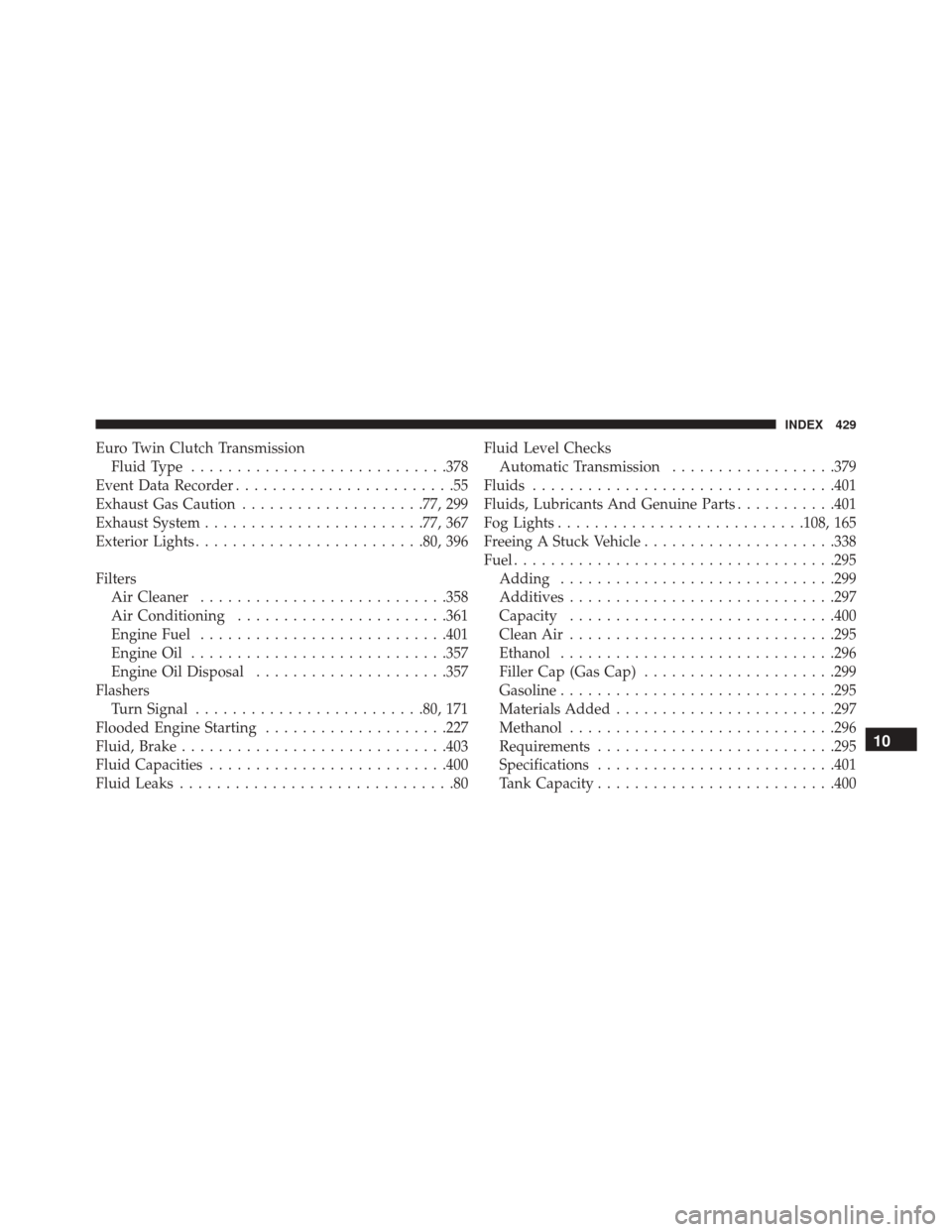

Euro Twin Clutch TransmissionFluid Type ........................... .378
Event Data Recorder ........................55
Exhaust Gas Caution ....................77, 299
Exhaust System ....................... .77, 367
Exterior Lights ........................ .80, 396
Filters Air Cleaner .......................... .358
Air Conditioning ...................... .361
Engine Fuel .......................... .401
Engine Oil ........................... .357
Engine Oil Disposal .....................357
Flashers Turn Signal ........................ .80, 171
Flooded Engine Starting ....................227
Fluid, Brake ............................ .403
Fluid Capacities ......................... .400
Fluid Leaks ..............................80 Fluid Level Checks
Automatic Transmission ..................379
Fluids ................................ .401
Fluids, Lubricants And Genuine Parts ...........401
Fog Lights .......................... .108, 165
Freeing A Stuck Vehicle .....................338
Fuel .................................. .295
Adding ............................. .299
Additives ............................ .297
Capacity ............................ .400
Clean Air ............................ .295
Ethanol ............................. .296
Filler Cap (Gas Cap) .....................299
Gasoline ............................. .295
Materials Added ....................... .297
Methanol ............................ .296
Requirements ......................... .295
Specifications ......................... .401
Tank Capacity ......................... .400
10
INDEX 429

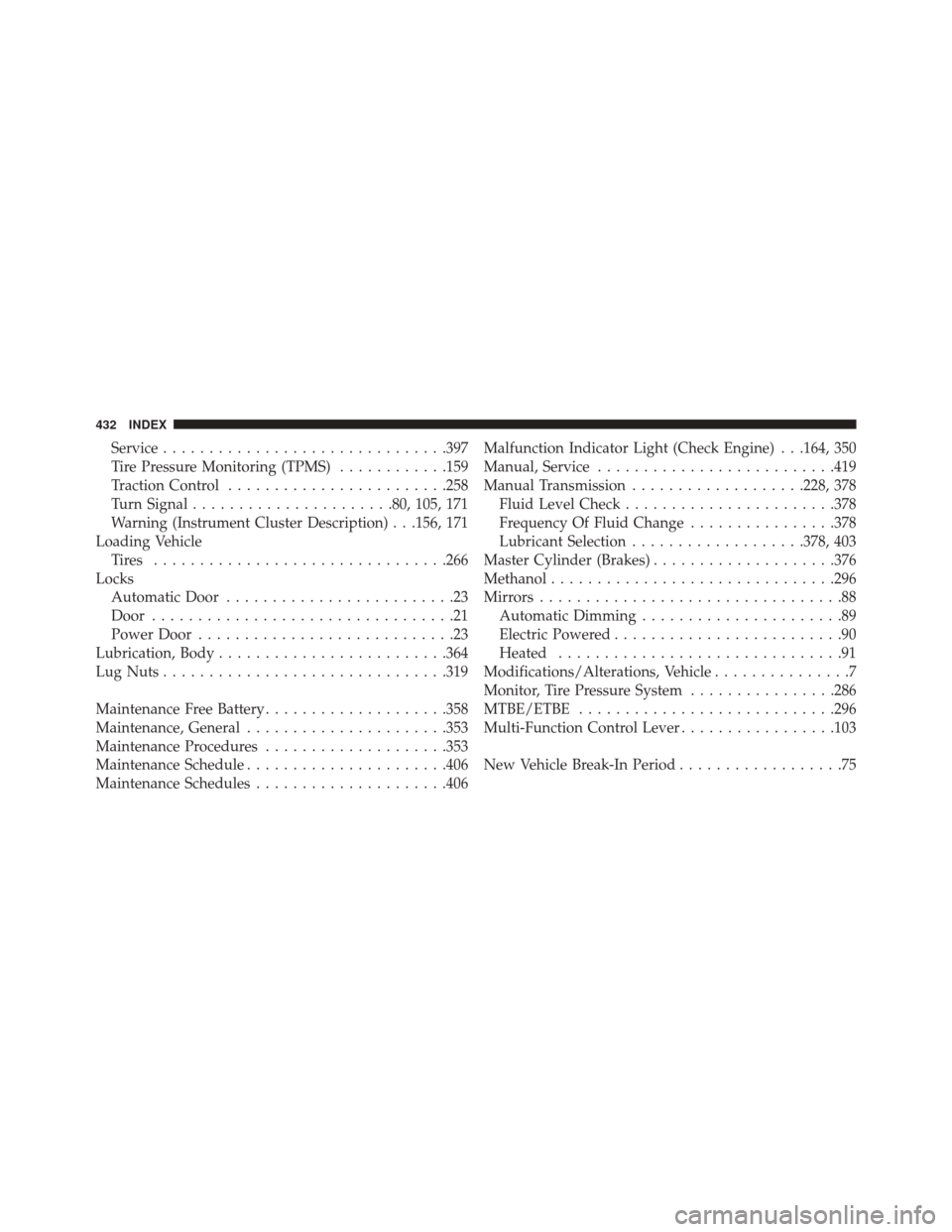

Service.............................. .397
Tire Pressure Monitoring (TPMS) ............159
Traction Control ....................... .258
Turn Signal ..................... .80, 105, 171
Warning (Instrument Cluster Description) . . .156, 171
Loading Vehicle Tires ............................... .266
Locks Automatic Door .........................23
Door .................................21
Power Door ............................23
Lubrication, Body ........................ .364
Lug Nuts .............................. .319
Maintenance Free Battery ....................358
Maintenance, General ..................... .353
Maintenance Procedures ....................353
Maintenance Schedule ..................... .406
Maintenance Schedules .....................406 Malfunction Indicator Light (Check Engine) . . .164, 350
Manual, Service
......................... .419
Manual Transmission ...................228, 378
Fluid Level Check ...................... .378
Frequency Of Fluid Change ................378
Lubricant Selection ...................378, 403
Master Cylinder (Brakes) ....................376
Methanol .............................. .296
Mirrors .................................88
Automatic Dimming ......................89
Electric Powered .........................90
Heated ...............................91
Modifications/Alterations, Vehicle ...............7
Monitor, Tire Pressure System ................286
MTBE/ETBE ........................... .296
Multi-Function Control Lever .................103
New Vehicle Break-In Period ..................75
432 INDEX

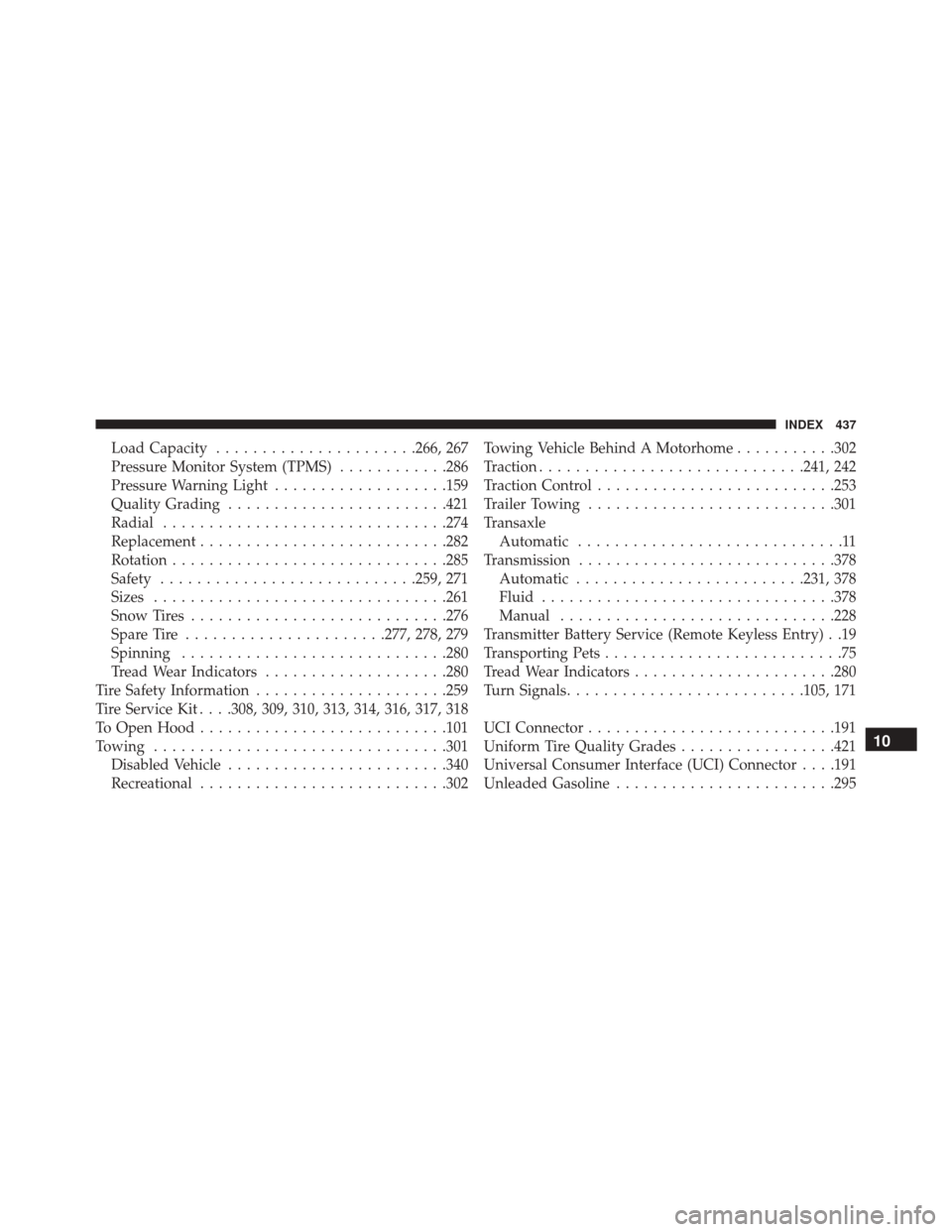

Load Capacity..................... .266, 267
Pressure Monitor System (TPMS) ............286
Pressure Warning Light ...................159
Quality Grading ....................... .421
Radial .............................. .274
Replacement .......................... .282
Rotation ............................. .285
Safety ........................... .259, 271
Sizes ............................... .261
Snow Tires ........................... .276
Spare Tire ..................... .277, 278, 279
Spinning ............................ .280
Tread Wear Indicators ....................280
Tire Safety Information .....................259
Tire Service Kit . . . .308, 309, 310, 313, 314, 316, 317, 318
To Open Hood .......................... .101
Towing ............................... .301
Disabled Vehicle ....................... .340
Recreational .......................... .302Towing Vehicle Behind A Motorhome
...........302
Traction ............................ .241, 242
Traction Control ......................... .253
Trailer Towing .......................... .301
Transaxle Automatic .............................11
Transmission ........................... .378
Automatic ........................ .231, 378
Fluid ............................... .378
Manual ............................. .228
Transmitter Battery Service (Remote Keyless Entry) . .19
Transporting Pets ..........................75
Tread Wear Indicators ..................... .280
Turn Signals ......................... .105, 171
UCI Connector .......................... .191
Uniform Tire Quality Grades .................421
Universal Consumer Interface (UCI) Connector . . . .191
Unleaded Gasoline ....................... .295
10
INDEX 437
