Page 122 of 358
▫Technical Specifications ................ 154
▫ Quick Guide ....................... 155
▫ General Information .................. 158
▫ Functions And Adjustments ............. 159
▫ Radio ............................ 166
▫ Sirius Satellite Radio — If Equipped ...... 168
▫ CD Player ......................... 171
▫ CD MP3 Player ..................... 173
▫ Troubleshooting ..................... 175
iPod/USB/Media Player Control — If
Equipped ............................ 176
Steering Wheel Audio Controls ............ 177▫
Radio Operation ..................... 178
▫ CD Player Operation .................. 178
▫ Operating Instructions — Hands-Free Phone
(If Equipped) ....................... 179
CD/DVD Disc Maintenance .............. 179
Radio Operation And Mobile Phones ....... 179
Climate Controls ...................... 180
▫ Manual Heating And Air Conditioning ..... 180
▫ Operating Tips Chart ................. 183
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 184
▫ Operating Tips ...................... 190
120 UNDERSTANDING YOUR INSTRUMENT PANEL

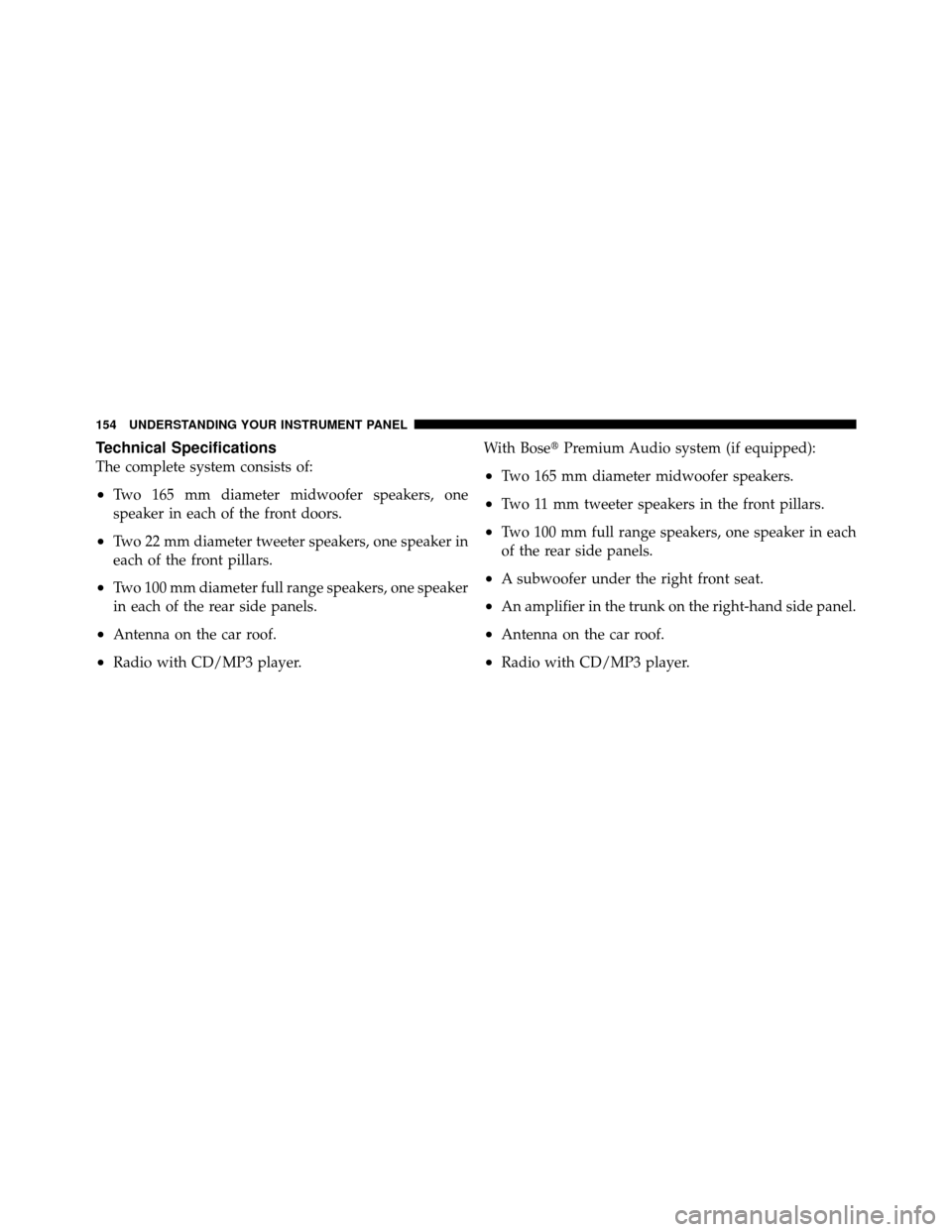

Page 156 of 358
Technical Specifications
The complete system consists of:
•Two 165 mm diameter midwoofer speakers, one
speaker in each of the front doors.
•Two 22 mm diameter tweeter speakers, one speaker in
each of the front pillars.
•Two 100 mm diameter full range speakers, one speaker
in each of the rear side panels.
•Antenna on the car roof.
•Radio with CD/MP3 player.With Bose
Premium Audio system (if equipped):
•Two 165 mm diameter midwoofer speakers.
•Two 11 mm tweeter speakers in the front pillars.
•Two 100 mm full range speakers, one speaker in each
of the rear side panels.
•A subwoofer under the right front seat.
•An amplifier in the trunk on the right-hand side panel.
•Antenna on the car roof.
•Radio with CD/MP3 player.
154 UNDERSTANDING YOUR INSTRUMENT PANEL
