sport mode FIAT 500 ABARTH 2014 2.G Owners Manual

!LIFTGATE............................25
!OCCUPANT RESTRAINTS................26
▫Lap/Shoulder Belts....................29
▫Lap/Shoulder Belt Untwisting Procedure.....34
▫Seat Belts In Passenger Seating Positions......34
▫Automatic Locking Retractor Mode (ALR) — If
Equipped............................35
▫Energy Management Feature..............36
▫Seat Belt Pretensioning And Load Limitation . . .37
▫Enhanced Seat Belt Use Reminder System
(BeltAlert®)..........................37
▫Seat Belt Extender.....................38
▫Seat Belts And Pregnant Women...........39
▫Supplemental Restraint System (SRS) — Air
Bags...............................39
▫Advanced Front Air Bag Features...........42
▫Air Bag Deployment Sensors And Controls....46
▫Event Data Recorder (EDR)...............56
▫Child Restraints.......................57
▫Transporting Pets......................78
!ENGINE BREAK-IN RECOMMENDATIONS....78
!SAFETY TIPS..........................79
▫Transporting Passengers..................79
▫Exhaust Gas..........................80
▫Safety Checks You Should Make Inside The
Vehicle.............................81
▫Periodic Safety Checks You Should Make Outside
The Vehicle..........................83
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

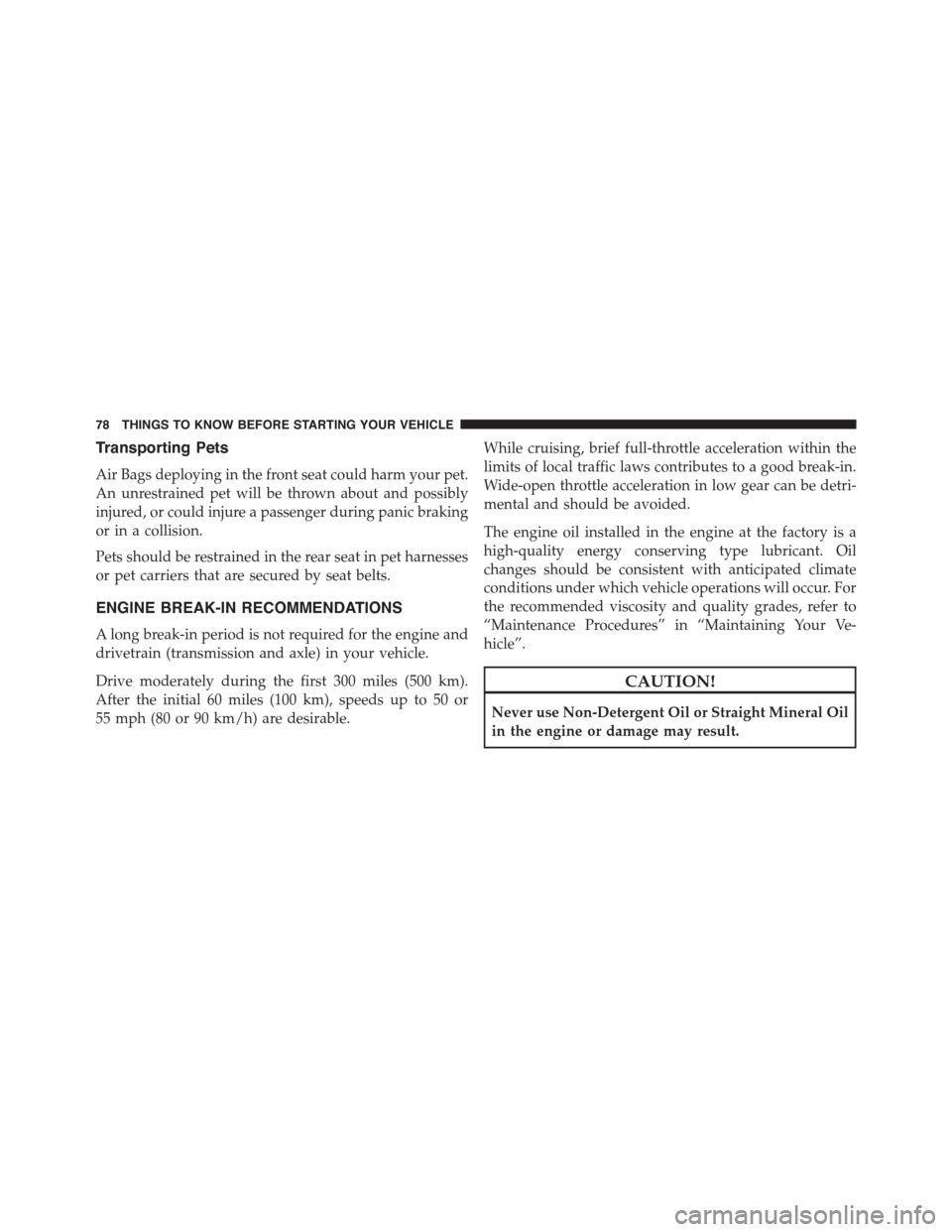

Transporting Pets
Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or could injure a passenger during panic braking
or in a collision.
Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades, refer to
“Maintenance Procedures” in “Maintaining Your Ve-
hicle”.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.
78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

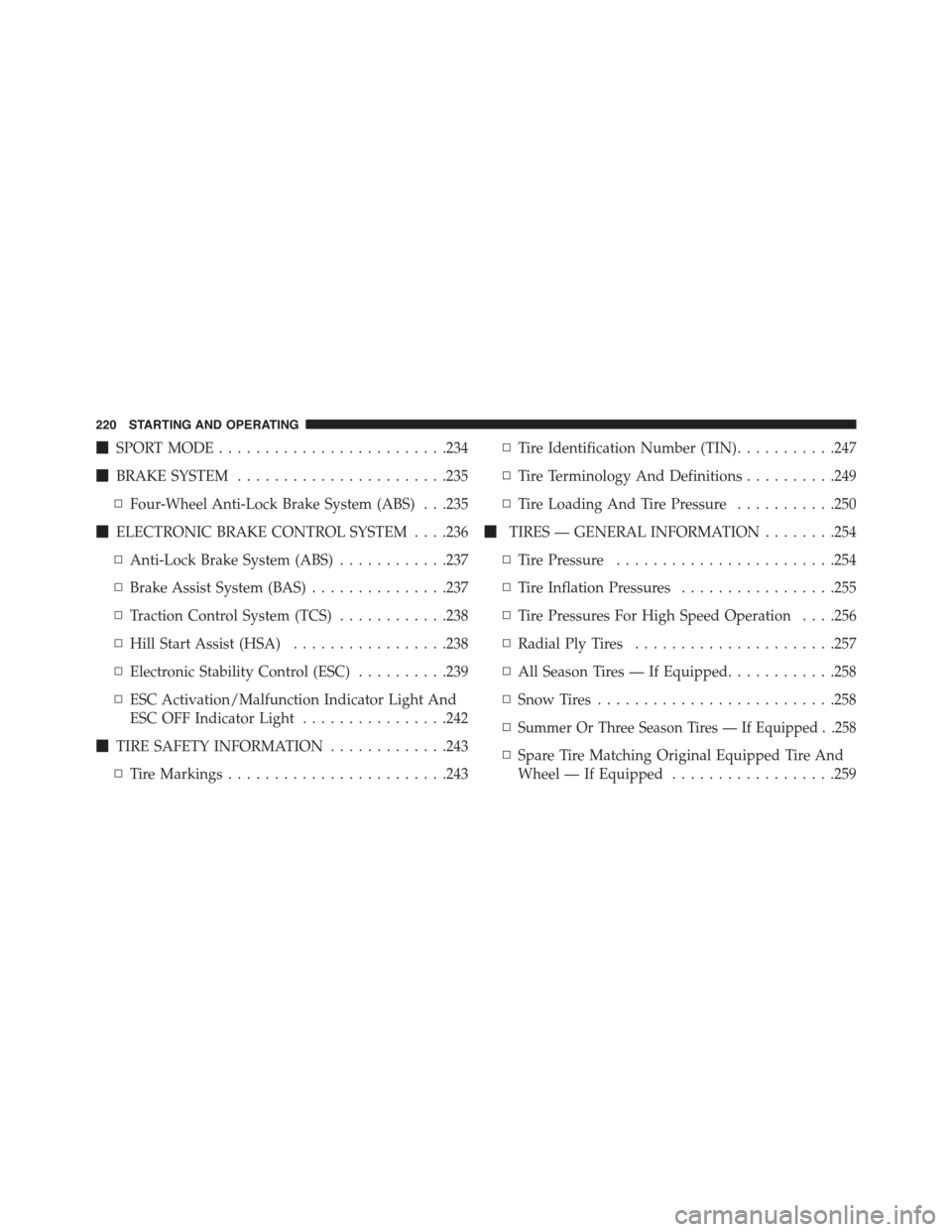

!SPORT MODE.........................234
!BRAKE SYSTEM.......................235
▫Four-Wheel Anti-Lock Brake System (ABS) . . .235
!ELECTRONIC BRAKE CONTROL SYSTEM . . . .236
▫Anti-Lock Brake System (ABS)............237
▫Brake Assist System (BAS)...............237
▫Traction Control System (TCS)............238
▫Hill Start Assist (HSA).................238
▫Electronic Stability Control (ESC)..........239
▫ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light................242
!TIRE SAFETY INFORMATION.............243
▫Tire Markings........................243
▫Tire Identification Number (TIN)...........247
▫Tire Terminology And Definitions..........249
▫Tire Loading And Tire Pressure...........250
!TIRES — GENERAL INFORMATION........254
▫Tire Pressure........................254
▫Tire Inflation Pressures.................255
▫Tire Pressures For High Speed Operation . . . .256
▫Radial Ply Tires......................257
▫All Season Tires — If Equipped............258
▫Snow Tires..........................258
▫Summer Or Three Season Tires — If Equipped . .258
▫Spare Tire Matching Original Equipped Tire And
Wheel — If Equipped..................259
220 STARTING AND OPERATING

CAUTION!
If the Brake Warning Light remains on with the
parking brake released, a brake system malfunction
is indicated. Have the brake system serviced by an
authorized dealer immediately.

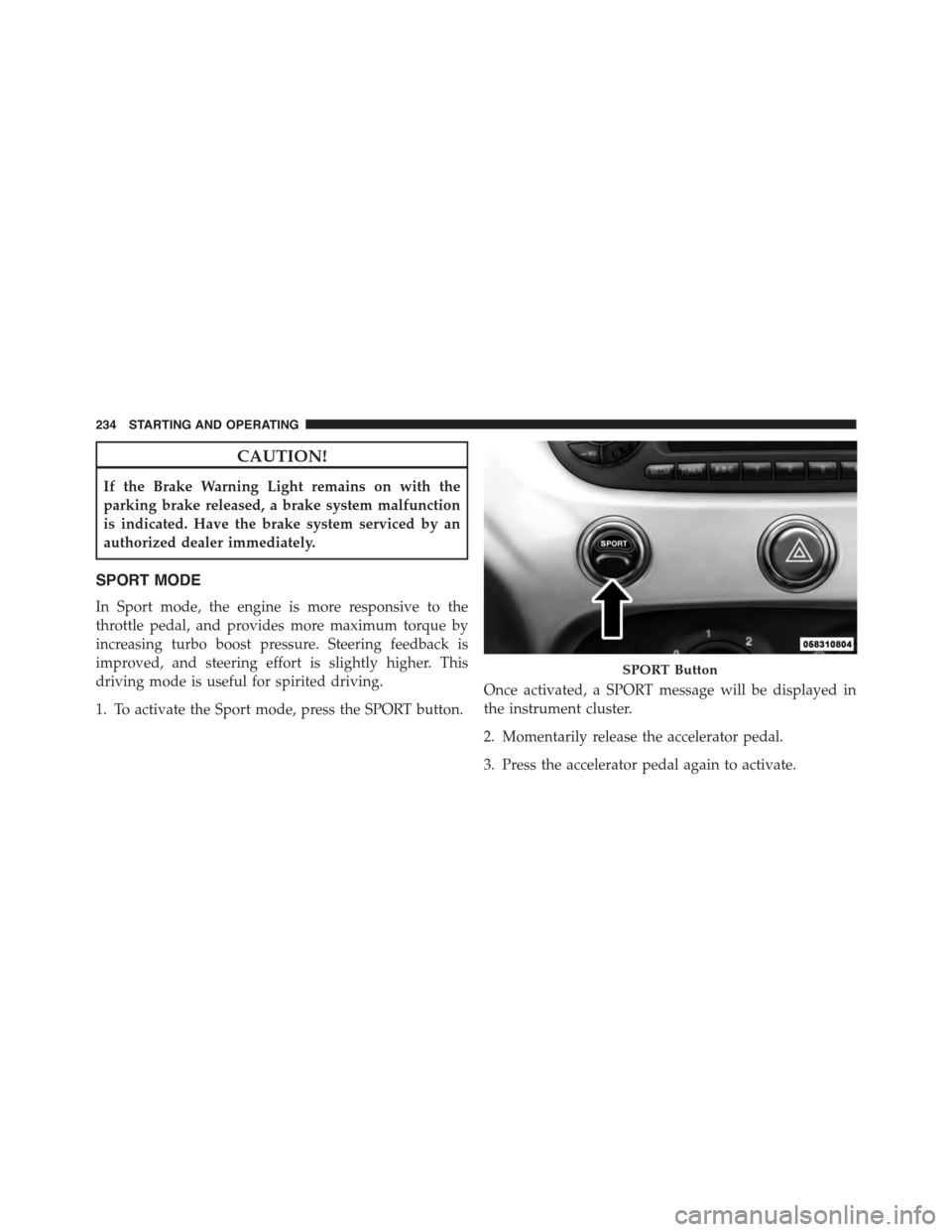

SPORT MODE
In Sport mode, the engine is more responsive to the
throttle pedal, and provides more maximum torque by
increasing turbo boost pressure. Steering feedback is
improved, and steering effort is slightly higher. This
driving mode is useful for spirited driving.
1. To activate the Sport mode, press the SPORT button.
Once activated, a SPORT message will be displayed in
the instrument cluster.
2. Momentarily release the accelerator pedal.
3. Press the accelerator pedal again to activate.
SPORT Button
234 STARTING AND OPERATING

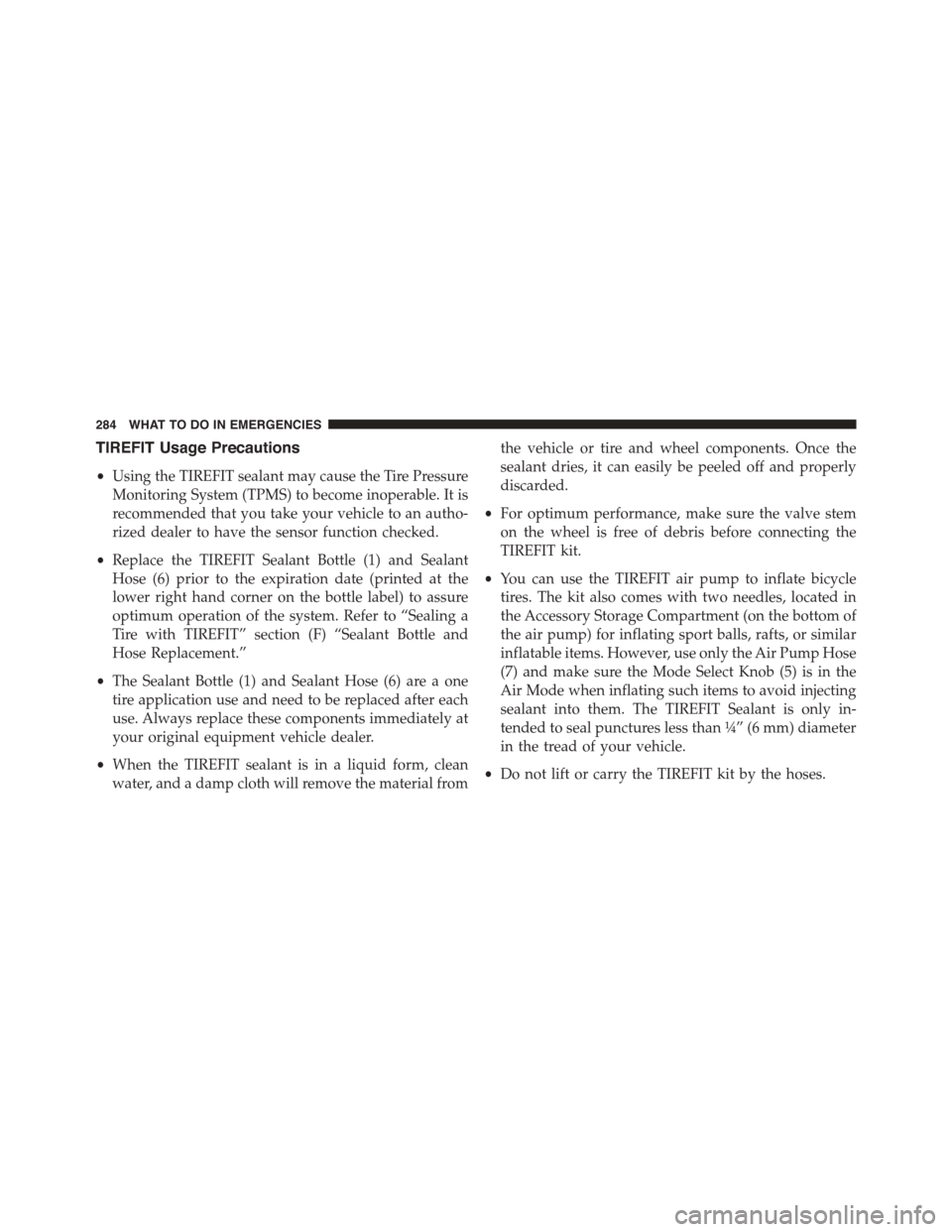

TIREFIT Usage Precautions
•Using the TIREFIT sealant may cause the Tire Pressure
Monitoring System (TPMS) to become inoperable. It is
recommended that you take your vehicle to an autho-
rized dealer to have the sensor function checked.
•Replace the TIREFIT Sealant Bottle (1) and Sealant
Hose (6) prior to the expiration date (printed at the
lower right hand corner on the bottle label) to assure
optimum operation of the system. Refer to “Sealing a
Tire with TIREFIT” section (F) “Sealant Bottle and
Hose Replacement.”
•The Sealant Bottle (1) and Sealant Hose (6) are a one
tire application use and need to be replaced after each
use. Always replace these components immediately at
your original equipment vehicle dealer.
•When the TIREFIT sealant is in a liquid form, clean
water, and a damp cloth will remove the material from
the vehicle or tire and wheel components. Once the
sealant dries, it can easily be peeled off and properly
discarded.
•For optimum performance, make sure the valve stem
on the wheel is free of debris before connecting the
TIREFIT kit.
•You can use the TIREFIT air pump to inflate bicycle
tires. The kit also comes with two needles, located in
the Accessory Storage Compartment (on the bottom of
the air pump) for inflating sport balls, rafts, or similar
inflatable items. However, use only the Air Pump Hose
(7) and make sure the Mode Select Knob (5) is in the
Air Mode when inflating such items to avoid injecting
sealant into them. The TIREFIT Sealant is only in-
tended to seal punctures less than¼” (6 mm) diameter
in the tread of your vehicle.
•Do not lift or carry the TIREFIT kit by the hoses.
284 WHAT TO DO IN EMERGENCIES

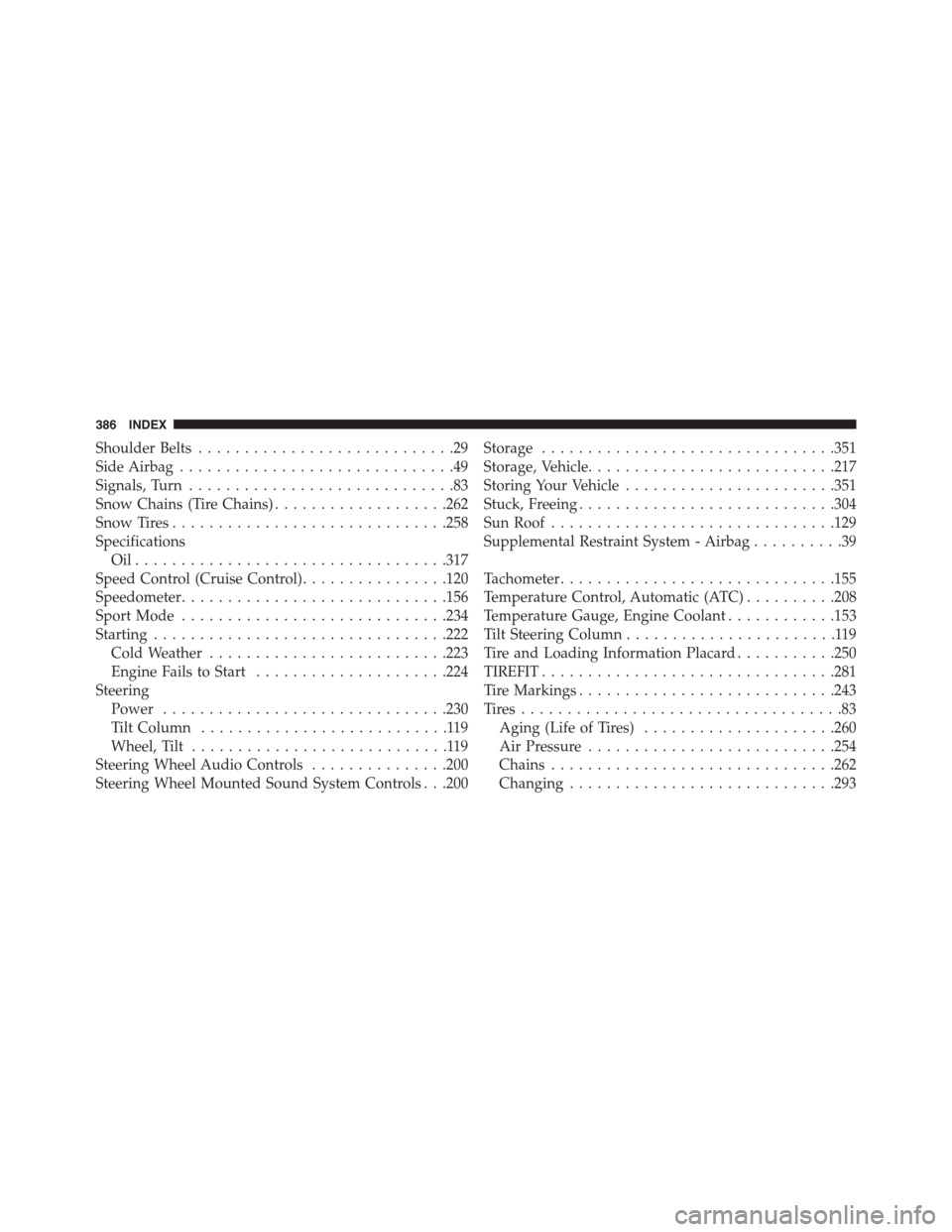

Shoulder Belts............................29
Side Airbag..............................49
Signals, Turn.............................83
Snow Chains (Tire Chains)...................262
Snow Tires..............................258
Specifications
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..317
Speed Control (Cruise Control)................120
Speedometer.............................156
Sport Mode.............................234
Starting................................222
Cold Weather..........................223
Engine Fails to Start.....................224
Steering
Power...............................230
Tilt Column...........................119
Wheel, Tilt............................119
Steering Wheel Audio Controls...............200
Steering Wheel Mounted Sound System Controls . . .200
Storage................................351
Storage, Vehicle...........................217
Storing Your Vehicle.......................351
Stuck, Freeing............................304
Sun Roof...............................129
Supplemental Restraint System - Airbag..........39
Tachometer..............................155
Temperature Control, Automatic (ATC)..........208
Temperature Gauge, Engine Coolant............153
Tilt Steering Column.......................119
Tire and Loading Information Placard...........250
TIREFIT................................281
Tire Markings............................243
Ti re s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3
Aging (Life of Tires).....................260
Air Pressure...........................254
Chains...............................262
Changing.............................293
386 INDEX
