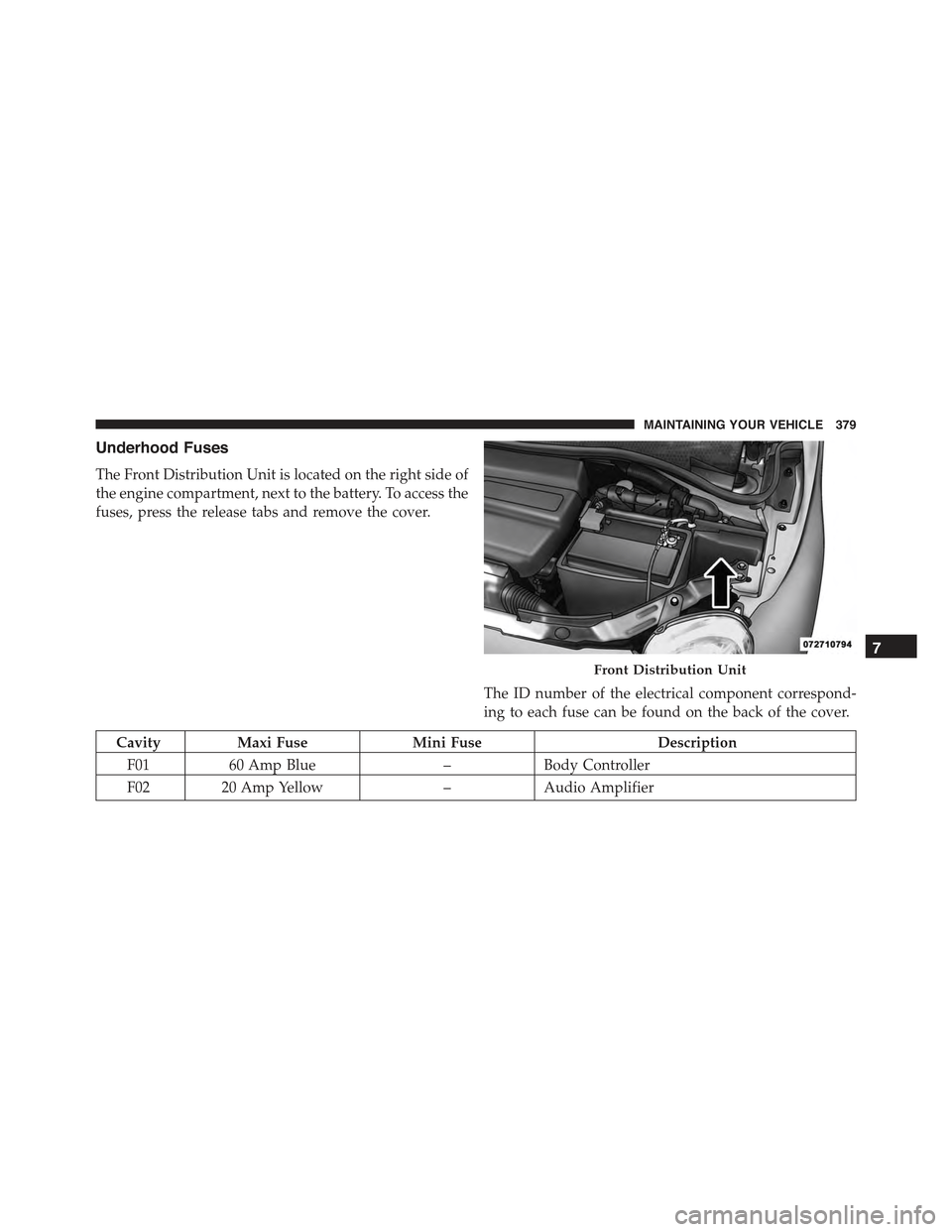

Underhood Fuses
The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, press the release tabs and remove the cover.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
CavityMaxi FuseMini FuseDescription
F0160 Amp Blue–Body Controller
F02 20 Amp Yellow–Audio Amplifier
Front Distribution Unit
7
MAINTAINING YOUR VEHICLE 379

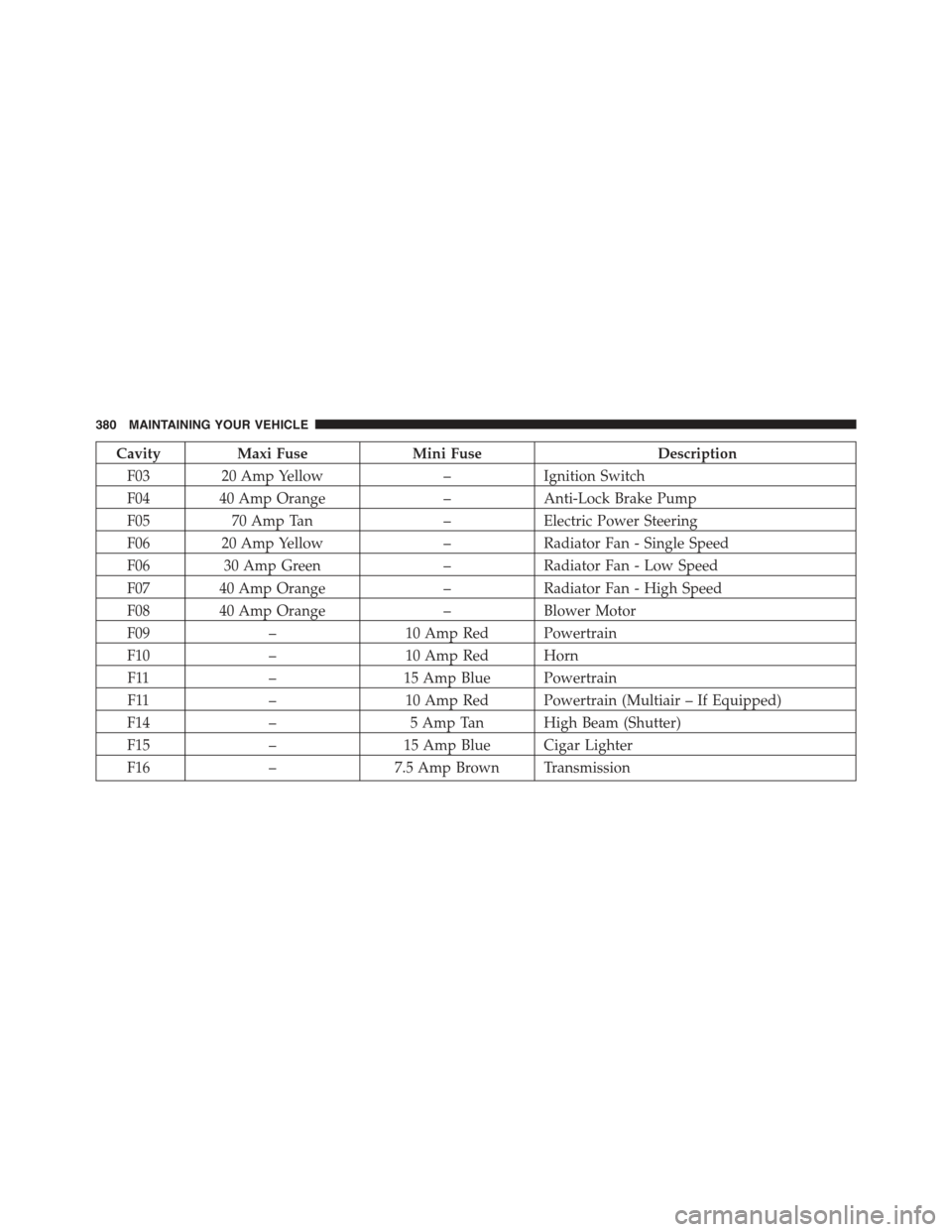

CavityMaxi FuseMini FuseDescription
F03 20 Amp Yellow–Ignition Switch
F04 40 Amp Orange–Anti-Lock Brake Pump
F0570 Amp Tan–Electric Power Steering
F06 20 Amp Yellow–Radiator Fan - Single Speed
F0630 Amp Green–Radiator Fan - Low Speed
F07 40 Amp Orange–Radiator Fan - High Speed
F08 40 Amp Orange–Blower Motor
F09–10 Amp Red Powertrain
F10–10 Amp Red Horn
F11–15 Amp Blue Powertrain
F11–10 Amp Red Powertrain (Multiair – If Equipped)
F14–5 Amp Tan High Beam (Shutter)
F15–15 Amp Blue Cigar Lighter
F16–7.5 Amp Brown Transmission
380 MAINTAINING YOUR VEHICLE

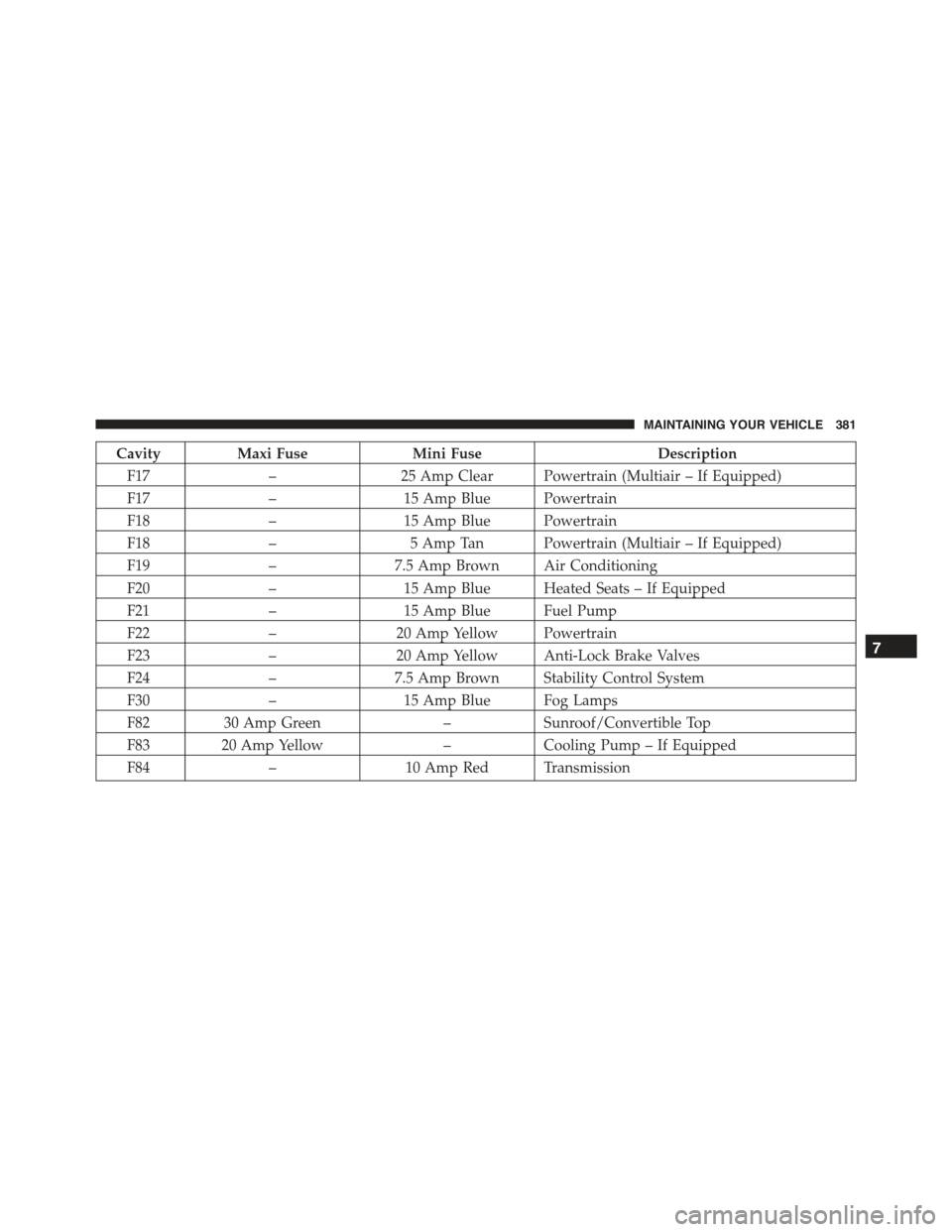

CavityMaxi FuseMini FuseDescription
F17–25 Amp Clear Powertrain (Multiair – If Equipped)
F17–15 Amp Blue Powertrain
F18–15 Amp Blue Powertrain
F18–5 Amp Tan Powertrain (Multiair – If Equipped)
F19–7.5 Amp Brown Air Conditioning
F20–15 Amp Blue Heated Seats – If Equipped
F21–15 Amp Blue Fuel Pump
F22–20 Amp Yellow Powertrain
F23–20 Amp Yellow Anti-Lock Brake Valves
F24–7.5 Amp Brown Stability Control System
F30–15 Amp Blue Fog Lamps
F8230 Amp Green–Sunroof/Convertible Top
F83 20 Amp Yellow–Cooling Pump – If Equipped
F84–10 Amp Red Transmission
7
MAINTAINING YOUR VEHICLE 381

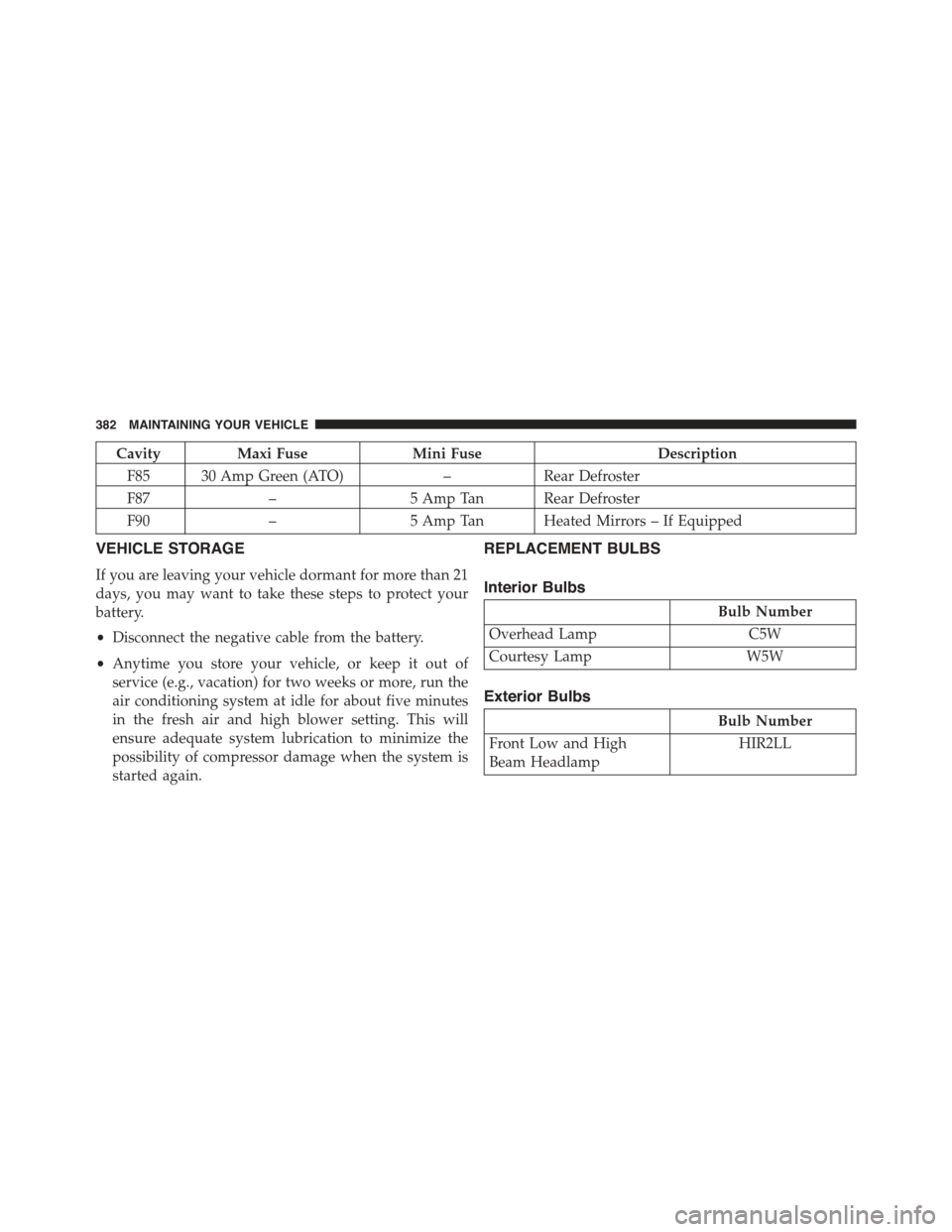

CavityMaxi FuseMini FuseDescription
F85 30 Amp Green (ATO)–Rear Defroster
F87–5 Amp Tan Rear Defroster
F90–5 Amp Tan Heated Mirrors – If Equipped
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead LampC5W
Courtesy LampW5W
Exterior Bulbs
Bulb Number
Front Low and High
Beam Headlamp
HIR2LL
382 MAINTAINING YOUR VEHICLE

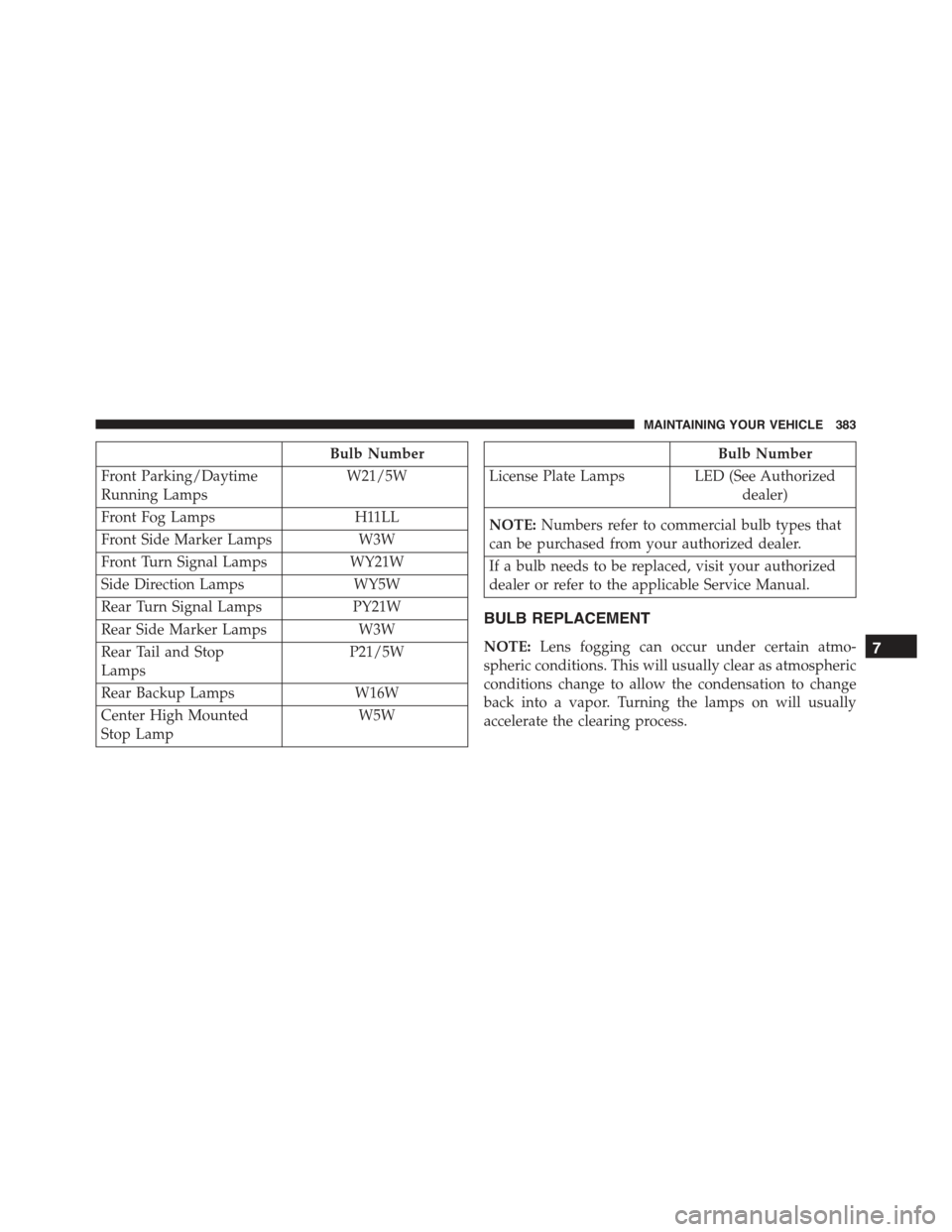

Bulb Number
Front Parking/Daytime
Running Lamps
W21/5W
Front Fog Lamps H11LL
Front Side Marker LampsW3W
Front Turn Signal LampsWY21W
Side Direction LampsWY5W
Rear Turn Signal LampsPY21W
Rear Side Marker LampsW3W
Rear Tail and Stop
Lamps
P21/5W
Rear Backup LampsW16W
Center High Mounted
Stop Lamp
W5W
Bulb Number
License Plate Lamps LED (See Authorized
dealer)
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
7
MAINTAINING YOUR VEHICLE 383

Headlamps Low Beam and High Beam
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.
Front Turn Signal, Parking And Daytime Running
Lamps
1. Turn the steering wheel completely to the left or right.
2. Open the wheel housing access door.
3. Remove the plastic cap from the back of the lamp
housing.
4. Rotate bulb/socket counter-clockwise.
5. Remove the bulb and replace as needed.
Wheel Housing Access Door
384 MAINTAINING YOUR VEHICLE

6. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.
7. Reinstall the plastic cap.
Front Fog Lamps
To replace the front fog lights, see your authorized dealer.
Front/Rear Side Marker Lamps
1. Remove portion of the wheel liner to allow hand
access to side marker lamp.
2. Rotate the bulb socket counterclockwise, and remove
the bulb and socket assembly from the housing.
3. Pull the bulb from the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the wheel liner.
Rear Tail, Stop, Backup And Turn Signal Lamps
1. Open the liftgate.
2. Remove the two screws and remove the tail lamp
assembly.
Tail Lamp Assembly Screws
7
MAINTAINING YOUR VEHICLE 385

3. Remove four screws and separate the backplate from
the lamp housing.
4. Remove the tail, stop, or turn signal bulbs by pushing
them slightly and turning counter-clockwise.
5. Remove the backup lamp bulb by pulling straight out.
6. Replace lamps as required and reinstall lamp.
Center High Mounted Stop Lamp (CHMSL)
1. Remove the two guard caps and the two fastening
screws.
2. Remove the center high mounted stop lamp assembly.
3. Disconnect the electric connector.
4. Press the retaining device and open the bulb holder.
5. Remove the snap-fitted bulb to be replaced and re-
place it.
6. Close the back cap locking it properly.
7. Reinstall the two fastening screws and reinstall the
guard caps.
386 MAINTAINING YOUR VEHICLE

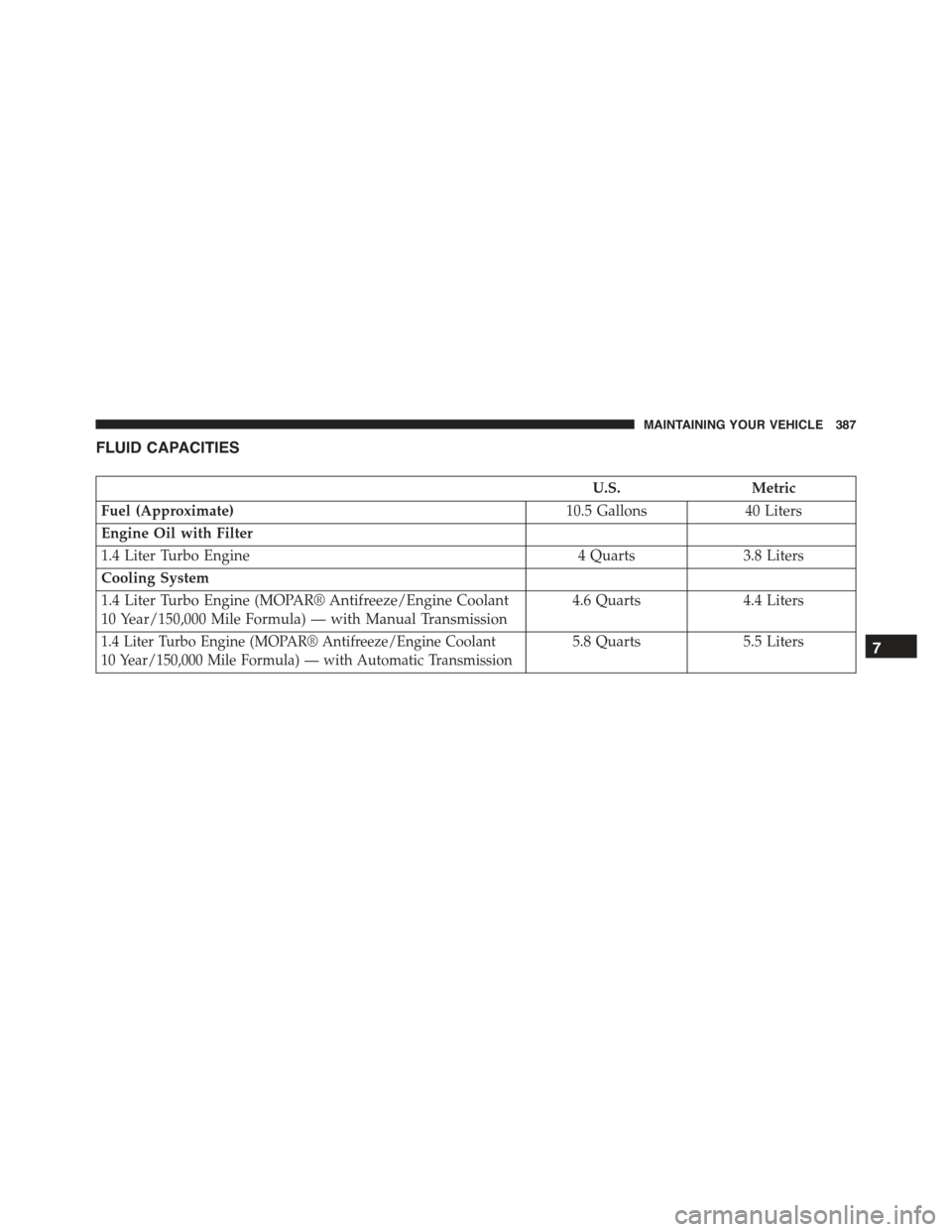

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)10.5 Gallons40 Liters
Engine Oil with Filter
1.4 Liter Turbo Engine4 Quarts3.8 Liters
Cooling System
1.4 Liter Turbo Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) — with Manual Transmission
4.6 Quarts4.4 Liters
1.4 Liter Turbo Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) — with Automatic Transmission
5.8 Quarts5.5 Liters7
MAINTAINING YOUR VEHICLE 387

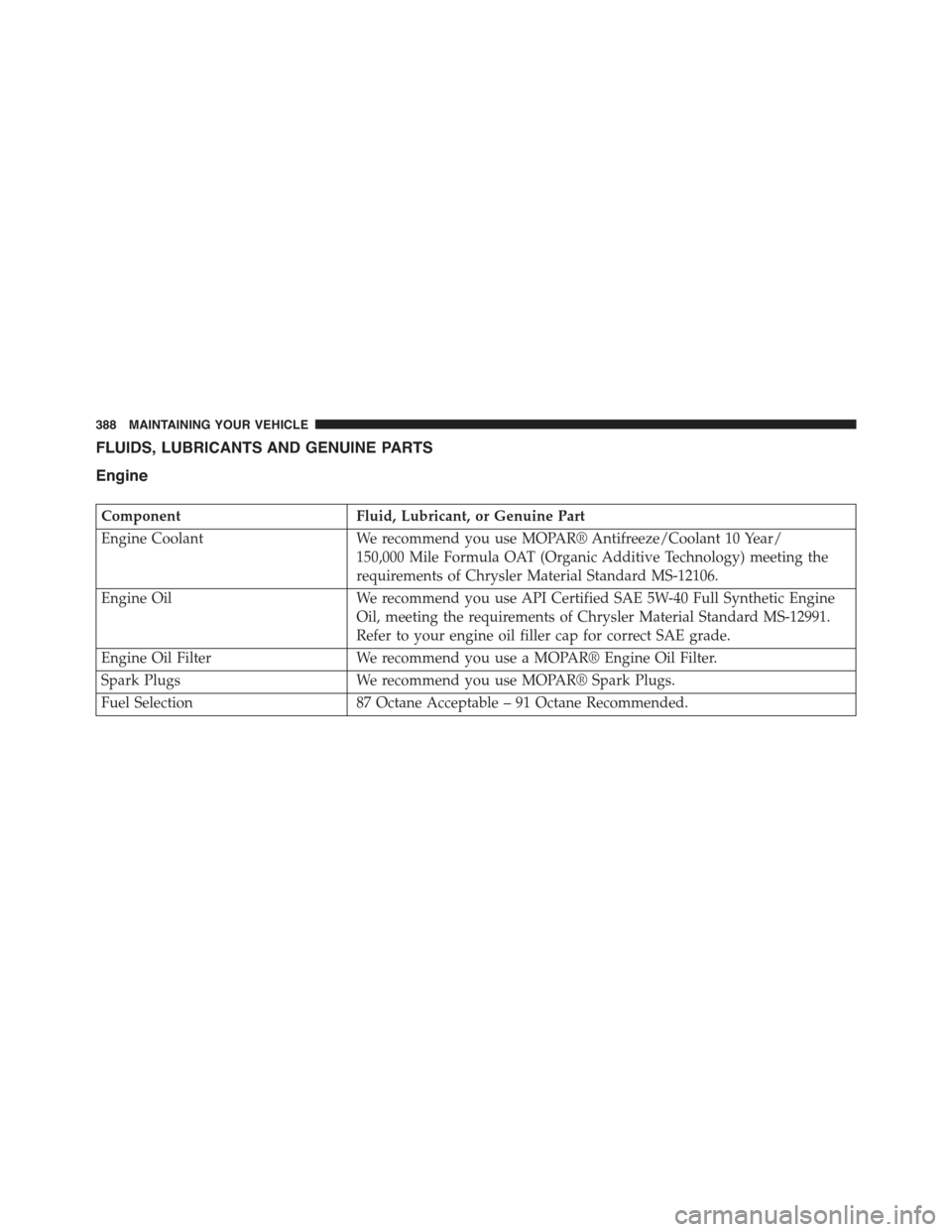

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR® Antifreeze/Coolant 10 Year/
150,000 Mile Formula OAT (Organic Additive Technology) meeting the
requirements of Chrysler Material Standard MS-12106.
Engine OilWe recommend you use API Certified SAE 5W-40 Full Synthetic Engine
Oil, meeting the requirements of Chrysler Material Standard MS-12991.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil FilterWe recommend you use a MOPAR® Engine Oil Filter.
Spark PlugsWe recommend you use MOPAR® Spark Plugs.
Fuel Selection87 Octane Acceptable – 91 Octane Recommended.
388 MAINTAINING YOUR VEHICLE
