Page 3 of 108
INTRODUCTION/WELCOME
WELCOME FROM FIAT............. 2
CONTROLS AT A GLANCE
DRIVER COCKPIT................ 4INSTRUMENT CLUSTER............ 6
GETTING STARTED
KEY FOB . . . . . . . . . . . . . . . . . . . . . 8VEHICLE SECURITY ALARM. . . . . . . . . 10POWER DOOR LOCKS. . . . . . . . . . . . 10SEAT BELT SYSTEMS. . . . . . . . . . . . . 10SUPPLEMENTAL RESTRAINT SYSTEM (SRS)— AIR BAGS. . . . . . . . . . . . . . . . . . 11CHILD RESTRAINTS. . . . . . . . . . . . . . 14HEAD RESTRAINTS. . . . . . . . . . . . . . 19FRONT SEATS. . . . . . . . . . . . . . . . . 20REAR SEATS. . . . . . . . . . . . . . . . . . 22TILT STEERING COLUMN. . . . . . . . . . 23
OPERATING YOUR VEHICLE
ENGINE BREAK-IN RECOMMENDATIONS. . . 24TURN SIGNAL/LIGHTS/HIGH BEAM LEVER. . 25WIPER/WASHER LEVER. . . . . . . . . . . . 26ELECTRONIC SPEED CONTROL. . . . . . 27POWER WINDOWS. . . . . . . . . . . . . . . 29MANUAL CLIMATE CONTROLS. . . . . . . 30AUTOMATIC TEMPERATURE CONTROLS(ATC). . . . . . . . . . . . . . . . . . . . . . . 31SPORT MODE. . . . . . . . . . . . . . . . . . 32MANUAL TRANSMISSION. . . . . . . . . . 32POWER SUNROOF. . . . . . . . . . . . . . . 33POWER CONVERTIBLE TOP. . . . . . . . . 34WIND BUFFETING. . . . . . . . . . . . . . . 37ENGINE BLOCK HEATER. . . . . . . . . . . 37
ELECTRONICS
YOUR VEHICLE'S SOUND SYSTEM. . . . 38AM/FM RADIO WITH CD PLAYER ANDSiriusXM SATELLITE RADIO. . . . . . . . . . 40STEERING WHEEL AUDIO CONTROLS . . 42BLUE&ME™ HANDS-FREECOMMUNICATION. . . . . . . . . . . . . . . 43iPod®/USB/MP3 CONTROL. . . . . . . . . 49ELECTRONIC VEHICLE INFORMATION CEN-TER (EVIC). . . . . . . . . . . . . . . . . . . . 50PROGRAMMABLE FEATURES. . . . . . . . 51TRIP BUTTON. . . . . . . . . . . . . . . . . . 51POWER OUTLET. . . . . . . . . . . . . . . . 53
UTILITY
TRAILER TOWING WEIGHTS (MAXIMUMTRAILER WEIGHT RATINGS). . . . . . . . . 54RECREATIONAL TOWING (BEHIND MOTOR-HOME, ETC.). . . . . . . . . . . . . . . . . . 54
WHAT TO DO IN EMERGENCIES
ROADSIDE ASSISTANCE. . . . . . . . . . . 55INSTRUMENT CLUSTER WARNINGLIGHTS. . . . . . . . . . . . . . . . . . . . . 55INSTRUMENT CLUSTER INDICATORLIGHTS. . . . . . . . . . . . . . . . . . . . . 60IF YOUR ENGINE OVERHEATS. . . . . . . 62TIRE SERVICE KIT. . . . . . . . . . . . . . . 63JUMP-STARTING PROCEDURE. . . . . . . 69TOWING A DISABLED VEHICLE. . . . . . . 72ENHANCED ACCIDENT RESPONSESYSTEM. . . . . . . . . . . . . . . . . . . . . 73FREEING A STUCK VEHICLE. . . . . . . . . 75EVENT DATA RECORDER (EDR). . . . . . . 76
MAINTAINING YOUR VEHICLEOPENING THE HOOD. . . . . . . . . . . . . 77ENGINE COMPARTMENT. . . . . . . . . . 78FLUID CAPACITIES. . . . . . . . . . . . . . . 80FLUIDS, LUBRICANTS AND GENUINEPARTS. . . . . . . . . . . . . . . . . . . . . . 80MAINTENANCE PROCEDURES. . . . . . . 81MAINTENANCE SCHEDULE. . . . . . . . . 82FUSES. . . . . . . . . . . . . . . . . . . . . . 87TIRE PRESSURES. . . . . . . . . . . . . . . 89SUMMER/THREE-SEASON TIRES. . . . . . 90SPARE TIRES — IF EQUIPPED. . . . . . . . 90WHEEL AND WHEEL TRIM CARE. . . . . . 92REPLACEMENT BULBS. . . . . . . . . . . . 92
CONSUMER ASSISTANCEFIAT CUSTOMER CENTER. . . . . . . . . . 93FIAT CANADA CUSTOMER CENTER. . . . 93ASSISTANCE FOR THE HEARINGIMPAIRED. . . . . . . . . . . . . . . . . . . . 93PUBLICATIONS ORDERING. . . . . . . . . 93REPORTING SAFETY DEFECTS INTHE UNITED STATES. . . . . . . . . . . . . 94
MOPAR® ACCESSORIESAUTHENTIC ACCESSORIES BYMOPAR®. . . . . . . . . . . . . . . . . . . . 95
FREQUENTLY ASKED QUESTIONSFREQUENTLY ASKED QUESTIONS. . . . . 96
INDEX. . . . . . . . . . . . . . . . . . . . . 97
TABLE OF CONTENTS
1
Page 55 of 108

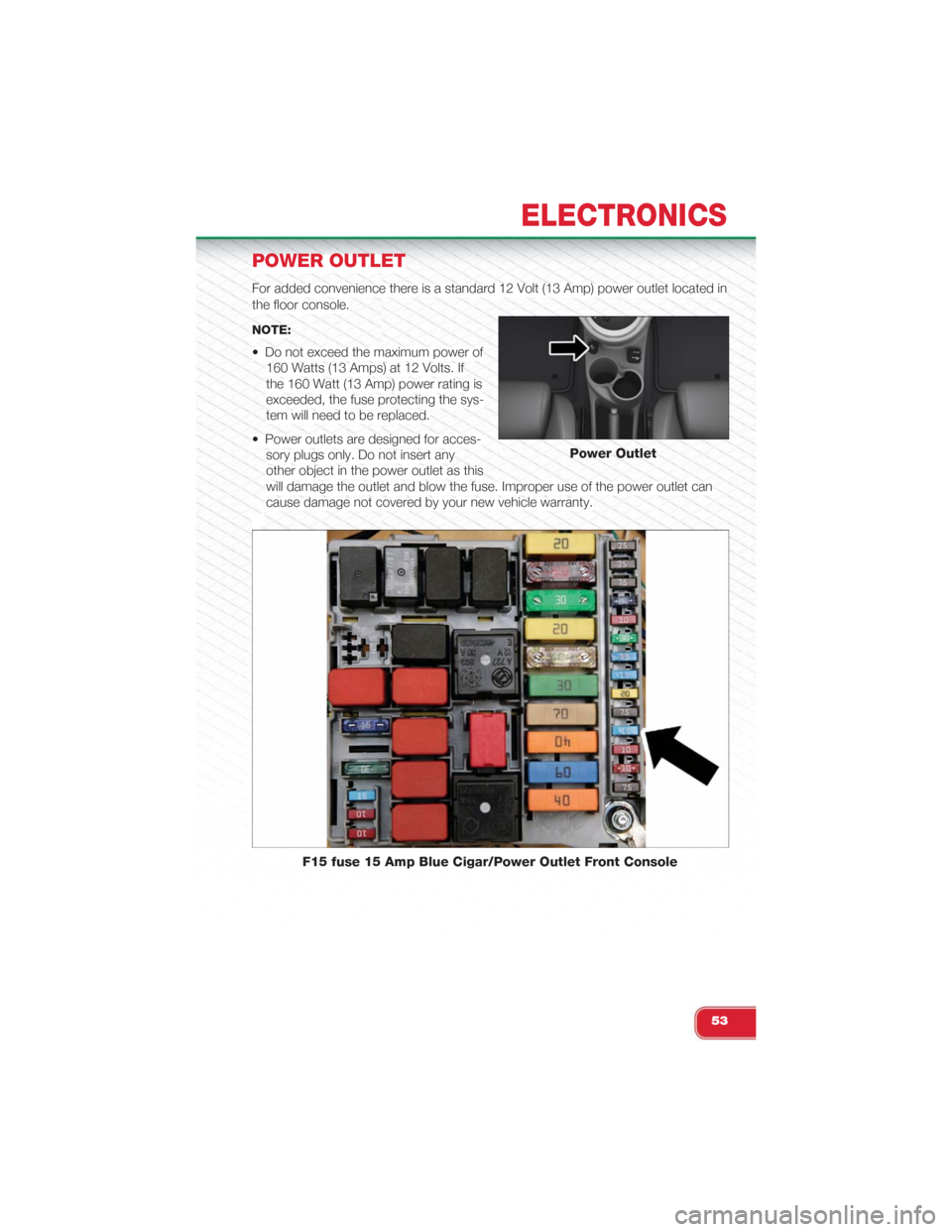

POWER OUTLET
For added convenience there is a standard 12 Volt (13 Amp) power outlet located in
the floor console.
NOTE:
• Do not exceed the maximum power of
160 Watts (13 Amps) at 12 Volts. If
the 160 Watt (13 Amp) power rating is
exceeded, the fuse protecting the sys-
tem will need to be replaced.
• Power outlets are designed for acces-
sory plugs only. Do not insert any
other object in the power outlet as this
will damage the outlet and blow the fuse. Improper use of the power outlet can
cause damage not covered by your new vehicle warranty.
Power Outlet
F15 fuse 15 Amp Blue Cigar/Power Outlet Front Console
ELECTRONICS
53
Page 80 of 108

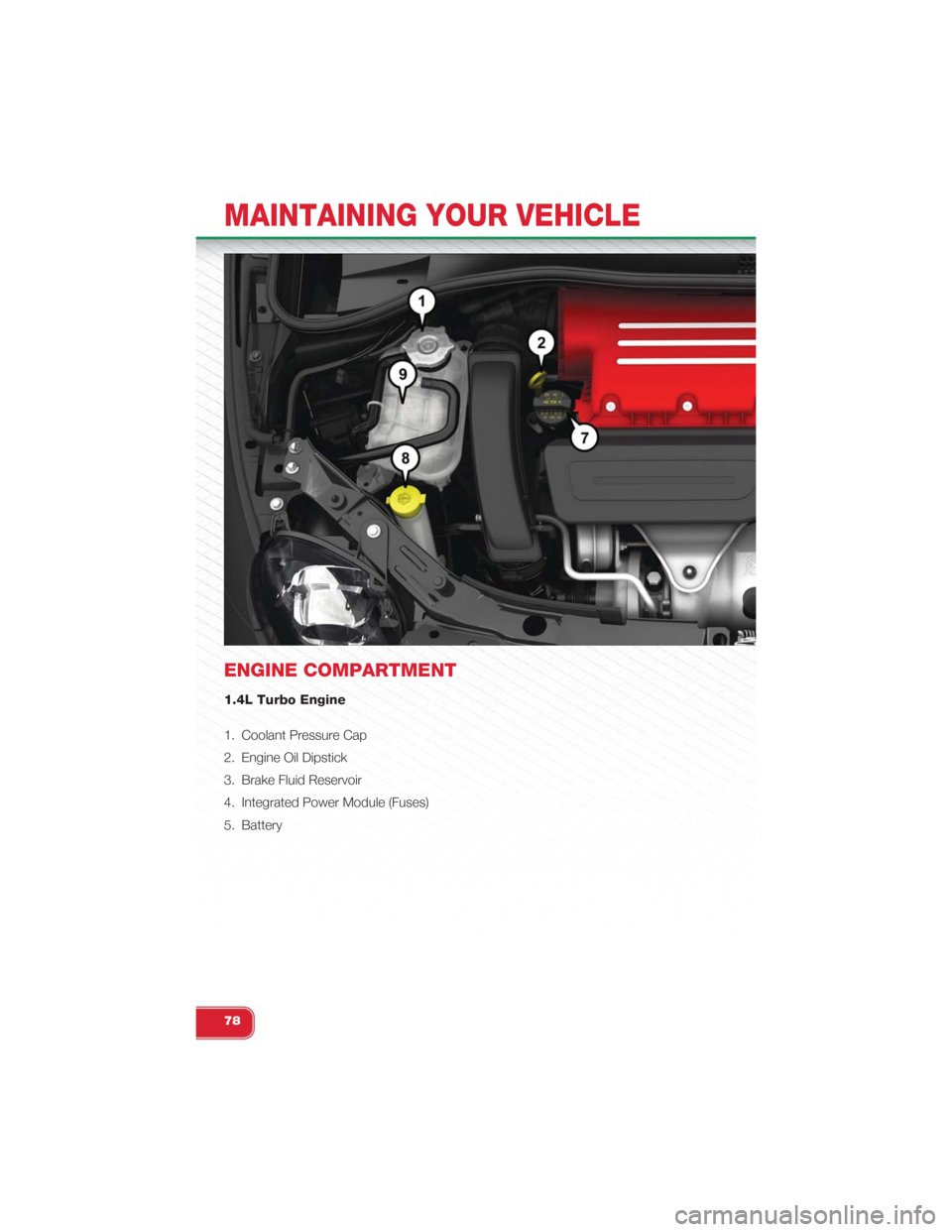

ENGINE COMPARTMENT
1.4L Turbo Engine
1. Coolant Pressure Cap
2. Engine Oil Dipstick
3. Brake Fluid Reservoir
4. Integrated Power Module (Fuses)
5. Battery
MAINTAINING YOUR VEHICLE
78
Page 89 of 108
FUSES
Interior Fuses
The interior fuse panel is part of the Body Control Module (BCM) and is located on
the driver's side under the instrument panel.
CavityVehicle FuseNumberMini Fuse Description
1 F12 7.5 Amp Brown Right Low Beam
2 F32 5 Amp TanFront and Rear Ceiling Lights Trunkand Door Courtesy Lights
3 F53 5 Amp Tan Instrument Panel Node
4 F38 20 Amp Yellow Central Door Locking
5 F36 10 Amp RedDiagnostic Socket, Car Radio, Cli-mate Control System
6 F43 20 Amp Yellow Bi-Directional Washer
7 F48 20 Amp Yellow Passenger Power Window
8 F13 7.5 Amp Brown Left Low Beam, Headlamp Leveling
9 F50 7.5 Amp Brown Airbag
10 F51 5 Amp TanCar Radio Switch, Climate ControlSystem, Stop Light, Clutch
11 F37 5 Amp TanStop Light Switch, Instrument PanelNode
12 F49 5 Amp TanExterior Mirror, GPS, Electric Mirror,Parking Sensor
13 F31 5 Amp Tan Ignition, Climate Control
14 F47 20 Amp Yellow Driver Power Window
MAINTAINING YOUR VEHICLE
87
Page 90 of 108
Underhood Fuses
The Front Distribution Unit is located on the right side of the engine compartment, next to
the battery. To access the fuses, press the release tabs and remove the cover.
The ID number of the electrical component corresponding to each fuse can be
found on the back of the cover.
Cavity Maxi Fuse Mini Fuse Description
F01 60 Amp Blue – Body Controller
F02 20 Amp Yellow – Audio Amplifier
F03 20 Amp Yellow – Ignition Switch
F04 40 Amp Orange – Anti-Lock Brake Pump
F05 70 Amp Tan – Electric Power Steering
F06 20 Amp Yellow – Radiator Fan - Single Speed
F06 30 Amp Green – Radiator Fan - Low Speed
F07 40 Amp Orange – Radiator Fan - High Speed
F08 40 Amp Orange – Blower Motor
F09 – 10 Amp Red Powertrain
F10 – 10 Amp Red Horn
F11 – 15 Amp Blue Powertrain
F11 – 10 Amp RedPowertrain (Multiair – If Equipped)
F14 – 5 Amp Tan High Beam (Shutter)
F15 – 15 Amp Blue Cigar Lighter
F16 –7.5 Amp BrownTransmission
F17 – 25 Amp ClearPowertrain (Multiair – If Equipped)
F17 – 15 Amp Blue Powertrain
F18 – 15 Amp Blue Powertrain
F18 – 5 Amp TanPowertrain (Multiair – If Equipped)
F19 –7.5 Amp BrownAir Conditioning
F20 – 15 Amp Blue Heated Seats – If Equipped
F21 – 15 Amp Blue Fuel Pump
F22 – 20 Amp Yellow Powertrain
F23 – 20 Amp Yellow Anti-Lock Brake Valves
F24 –7.5 Amp BrownStability Control System
F30 – 15 Amp Blue Fog Lamps
F82 30 Amp Green – Sunroof/Convertible Top
F83 20 Amp Yellow – Cooling Pump – If Equipped
F84 – 10 Amp Red Transmission
F8530 Amp Green (ATO)– Rear Defroster
F87 – 5 Amp Tan Rear Defroster
F90 – 5 Amp Tan Heated Mirrors – If Equipped
MAINTAINING YOUR VEHICLE
88
Page 98 of 108
FREQUENTLY ASKED QUESTIONS
GETTING STARTED
• How do I install my LATCH Equipped Child Seat? pg. 16
• How do I fold down my rear seat? pg. 22
ELECTRONICS
• What Sound System do I have? pg. 38
• How do I set the presets on my radio? pg. 41
• How do I connect my portable media player/iPod/MP3? pg. 49
• How do I pair my cell phone via Bluetooth® with the BLUE&ME™ Hands-Free
Communication System? pg. 46
WHAT TO DO IN EMERGENCIES
• What do I do if my TPMS warning light is blinking? pg. 56
• How do I Jump-Start my vehicle? pg. 69
MAINTAINING YOUR VEHICLE
• Where is my underhood fuse block located? pg. 88
• Where is my interior fuse block located? pg. 87
• What type of oil do I use? pg. 80
• How often should I change my engines oil? pg. 82
• What should my tire pressure be set at? pg. 89
FREQUENTLY ASKED QUESTIONS
96
Page 100 of 108
Selection of Coolant
(Antifreeze)............80, 81
Corrosion Protection. . . . . . . . . . .81
Cruise Control (Speed Control). . . . . .27
Cruise Light. . . . . . . . . . . . . . . .27
Customer Assistance. . . . . . . . . . .93
Defects, Reporting. . . . . . . . . . . .94
Disarming, Security System. . . . . . .10
DisposalAntifreeze (Engine Coolant). . . . .81
ElectronicsYour Vehicle's Sound System . .38, 39Electronic Speed Control (CruiseControl). . . . . . . . . . . . . . . . .27Electronic Throttle Control WarningLight. . . . . . . . . . . . . . . . . . .59Electronic Vehicle Information Center(EVIC)................50, 51Emergency, In Case ofTowing. . . . . . . . . . . . . . . . .72Engine. . . . . . . . . . . . . . . . . . .78Air Cleaner. . . . . . . . . . . . . . .81Break-In Recommendations . . . . .24Checking Oil Level. . . . . . . . . . .81Compartment. . . . . . . . . . . . .78Cooling. . . . . . . . . . . . . . . . .81Oil . . . . . . . . . . . . . . . ..80, 81Oil Filler Cap. . . . . . . . . . . . . .81Oil Selection...........80, 81Overheating. . . . . . . . . . . . . .62Temperature Warning Light .. . . .57Enhanced Accident Response Feature. . .73Event Data Recorder. . . . . . . . . . .76Exhaust System. . . . . . . . . . . . . .81Exterior Lights. . . . . . . . . . . . . . .92
FAQ . . . . . . . . . . . . . . . . . . . . .96FiltersAir Cleaner. . . . . . . . . . . . . . .81Engine Oil. . . . . . . . . . . . . . .81Engine Oil Disposal. . . . . . . . . .81FlashersTurn Signal. . . . . . . . . . . . . .60Flash-To-Pass. . . . . . . . . . . . . . .25Fluid, Brake. . . . . . . . . . . . . . . .81Fluid Capacities. . . . . . . . . . . . . .80
Fluids. . . . . . . . . . . . . . . . . . . .80
Fluids, Lubricants and Genuine Parts . .80
Fog Lights. . . . . . . . . . . . . . . . .60
Folding Rear Seat .. . . . . . . . . . . .22
Freeing A Stuck Vehicle . . .. . . . . . .75
Frequently Asked Questions. . . . . . .96
Fuel
Capacity. . . . . . . . . . . . . . . .80
Specifications . . . .. . . . . . . . .80
Tank Capacity . .. . . . . . . . . . .80Fuse . . . .. . . . . . . . . . . . . . . .87Fuses . . . .. . . . . . . . . . . . . . . .87
Gasoline (Fuel). . . . . . . . . . . . . . .80General Maintenance .. . . . . . . . . .81Glass Cleaning . . . .. . . . . . . . . . .81
Hands-Free Communication —BLUE&ME™. . . . . . . . . . . . . .43HeadlightsCleaning. . . . . . . . . . . . . . . .81Heated Mirrors . . . . .. . . . . . . . . .30High Beam Indicator. . . . . . . . . . .60Hood Release . .. . . . . . . . . . . . .77
Instrument Cluster . .. . . . . . . . . . .6Instrument Cluster Warning Lights. . . .55Instrument Panel Cover. . . . . . . . . .81Instrument Panel Lens Cleaning . . . . .81Interior and Instrument Lights. . . . . .4, 5Interior Appearance Care . . .. . . . . .81Introduction. . . . . . . . . . . . . . . . .2iPod®/USB/MP3 Control .. . . . . . . .49
Key Fob . . . . . . . . . . . . . . . . . . .8Disarm The Alarm. . . . . . . . . . .10
Lane Change Assist. . . . . . . . . . . .25Lap/Shoulder Belts. . . . . . . . . . . .10LATCH (Lower Anchors and Tether forCHildren) . . ............15, 18Light Bulbs . . .. . . . . . . . . . . . . .92LightsFog . . . . . . . . . . . . . . . . . . .60High Beam Indicator. . . . . . . . .60Low Fuel . .. . . . . . . . . . . . . .55Seat Belt Reminder. . . . . . . . . .57Security Alarm . . .. . . . . . . . . .60
INDEX
98
