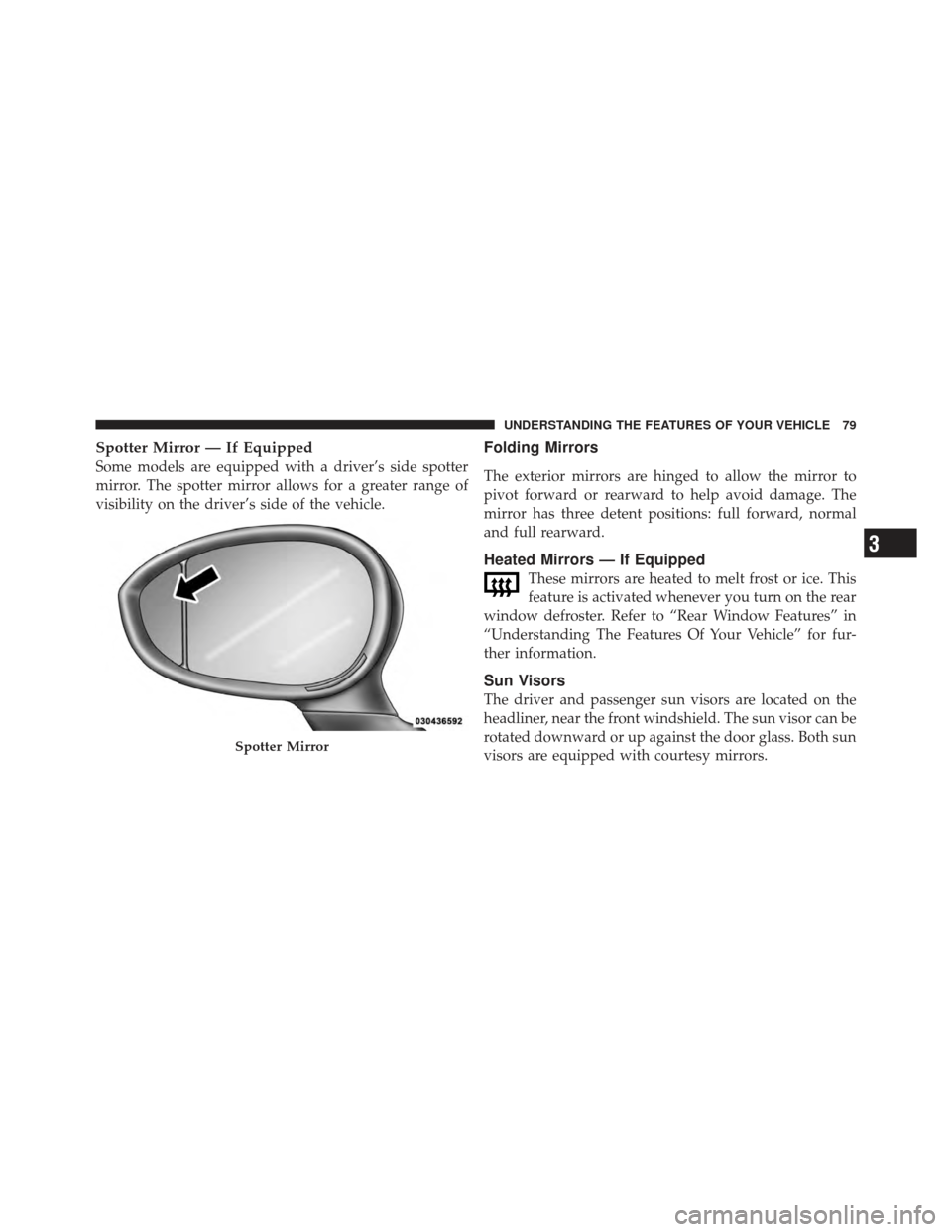

Spotter Mirror — If Equipped
Some models are equipped with a driver’s side spotter
mirror. The spotter mirror allows for a greater range of
visibility on the driver’s side of the vehicle.
Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, normal
and full rearward.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
Sun Visors
The driver and passenger sun visors are located on the
headliner, near the front windshield. The sun visor can be
rotated downward or up against the door glass. Both sun
visors are equipped with courtesy mirrors.
Spotter Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

BLUE&ME™ HANDS-FREE COMMUNICATION —
IF EQUIPPED
Overview
Windows Mobile™-based FIAT BLUE&ME™ is a per-
sonal telematic system enabling you to use communica-
tion and entertainment applications expressly designed
for use in the car.
The BLUE&ME™ system installed on your car is
equipped with a hands-free kit, message reader and
media player, and it is preset for future installation of
additional services.
The BLUE&ME™ system, fully integrated with voice
commands, buttons on the steering wheel and multifunc-
tion display messages, gives you the possibility of inter-
acting with your Bluetoothwireless technology mobile
phone (even if you keep it in your pocket or bag) without
having to take your eyes off the road or remove your
hands from the steering wheel. To use voice commands

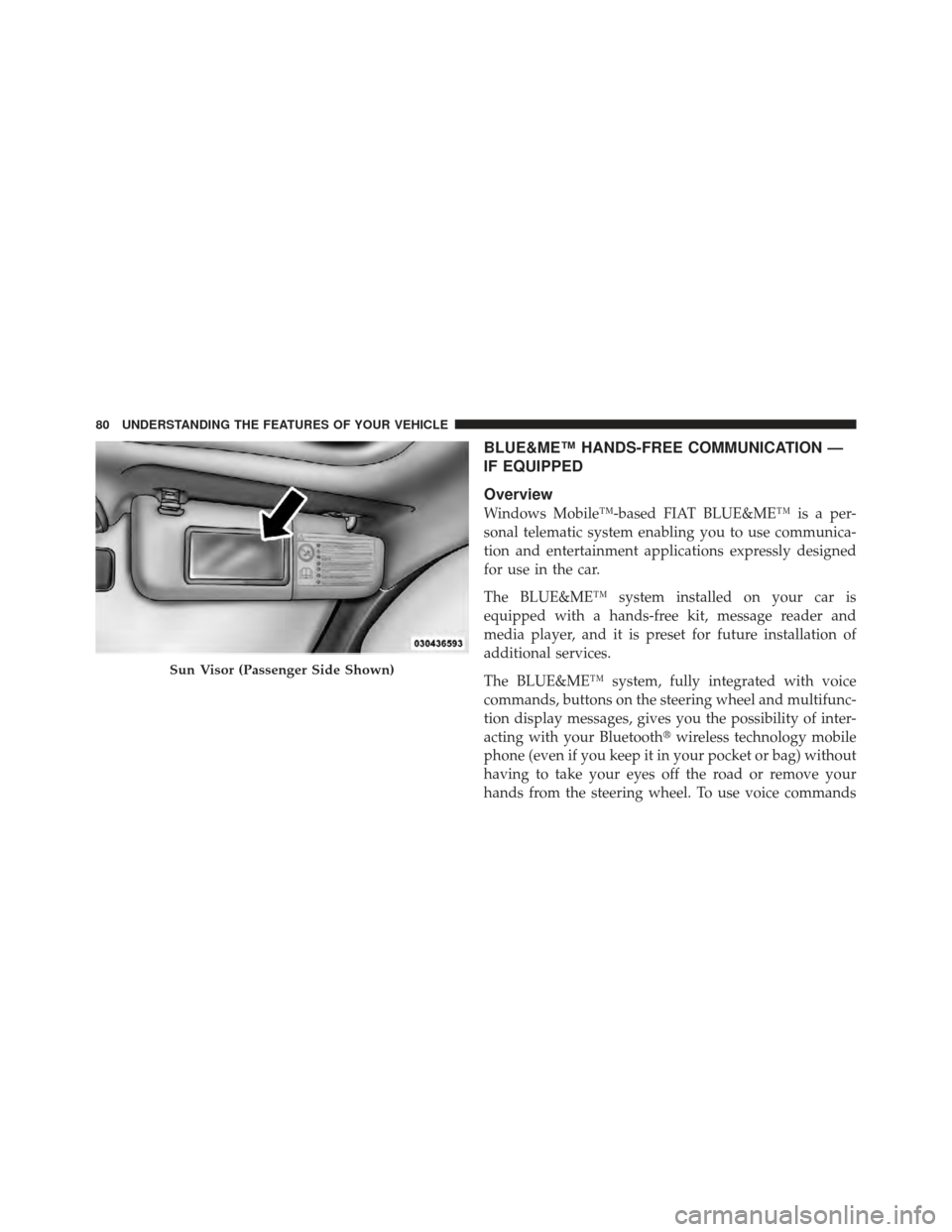

Sun Visor (Passenger Side Shown)
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

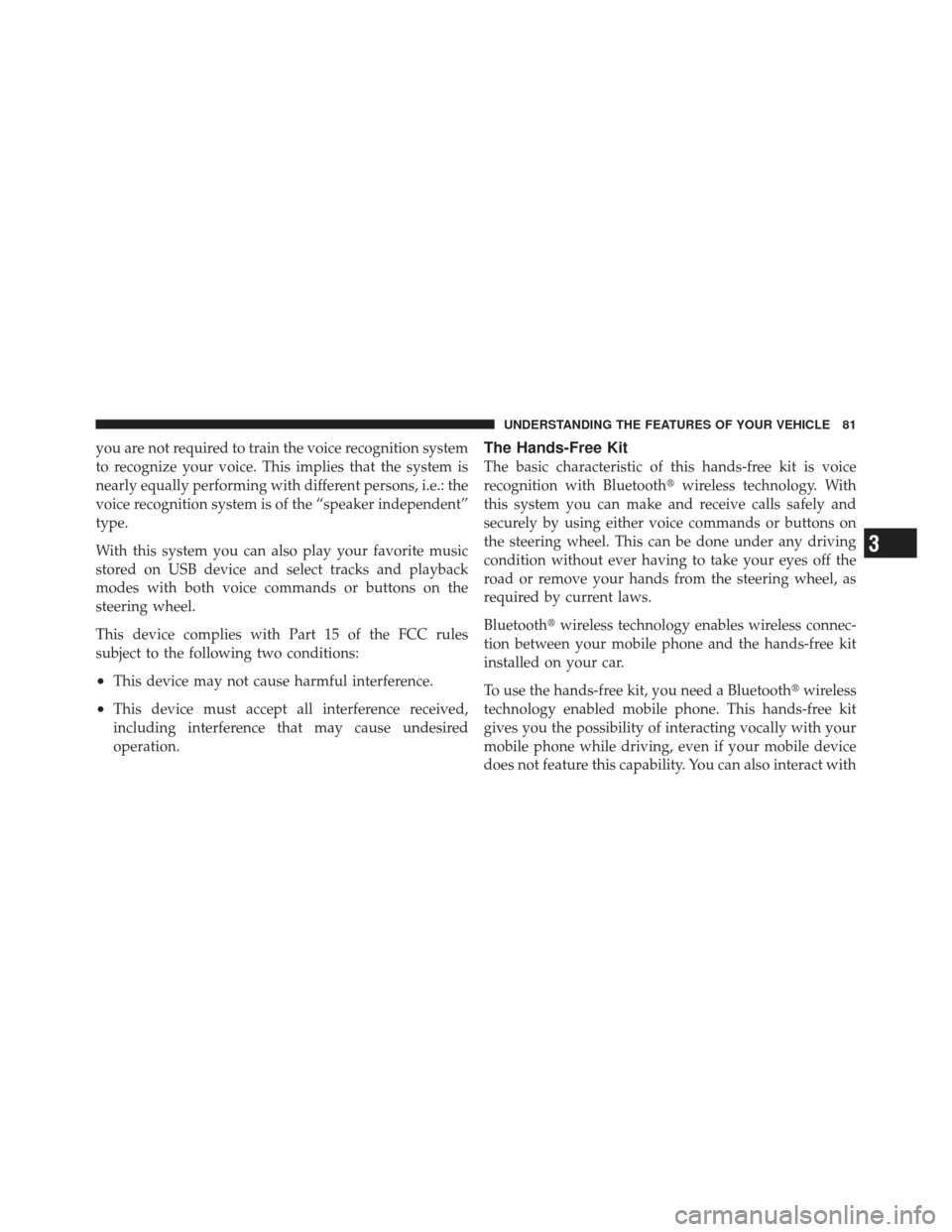

you are not required to train the voice recognition system
to recognize your voice. This implies that the system is
nearly equally performing with different persons, i.e.: the
voice recognition system is of the “speaker independent”
type.
With this system you can also play your favorite music
stored on USB device and select tracks and playback
modes with both voice commands or buttons on the
steering wheel.
This device complies with Part 15 of the FCC rules
subject to the following two conditions:
•This device may not cause harmful interference.
•This device must accept all interference received,
including interference that may cause undesired
operation.
The Hands-Free Kit
The basic characteristic of this hands-free kit is voice
recognition with Bluetoothwireless technology. With
this system you can make and receive calls safely and
securely by using either voice commands or buttons on
the steering wheel. This can be done under any driving
condition without ever having to take your eyes off the
road or remove your hands from the steering wheel, as
required by current laws.
Bluetooth wireless technology enables wireless connec-
tion between your mobile phone and the hands-free kit
installed on your car.
To use the hands-free kit, you need a Bluetooth wireless
technology enabled mobile phone. This hands-free kit
gives you the possibility of interacting vocally with your
mobile phone while driving, even if your mobile device
does not feature this capability. You can also interact with
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

your mobile phone manually and visually using the
steering wheel controls and the instrument panel multi-
function display.For further details on the mobile phones supported by
BLUE&ME™, refer to section BLUE&ME™ SUPPORTED
MOBILE PHONES.
To get started with BLUE&ME™ hands-free kit with
voice recognition, you have to simply pair your
Bluetooth
wireless technology enabled mobile phone
with the system.
Pairing is an operation that has to be made only once.
NOTE:
•During the mobile phone pairing procedure,
BLUE&ME™ attempts to detect a phone equipped
with Bluetooth wireless technology within range and
then establishes the connection using a Personal Iden-
tification Number (PIN).
•Once your phone is paired, you have the option to
transfer your mobile phone contacts to the hands-free
kit, to make a phone call either by using the contacts

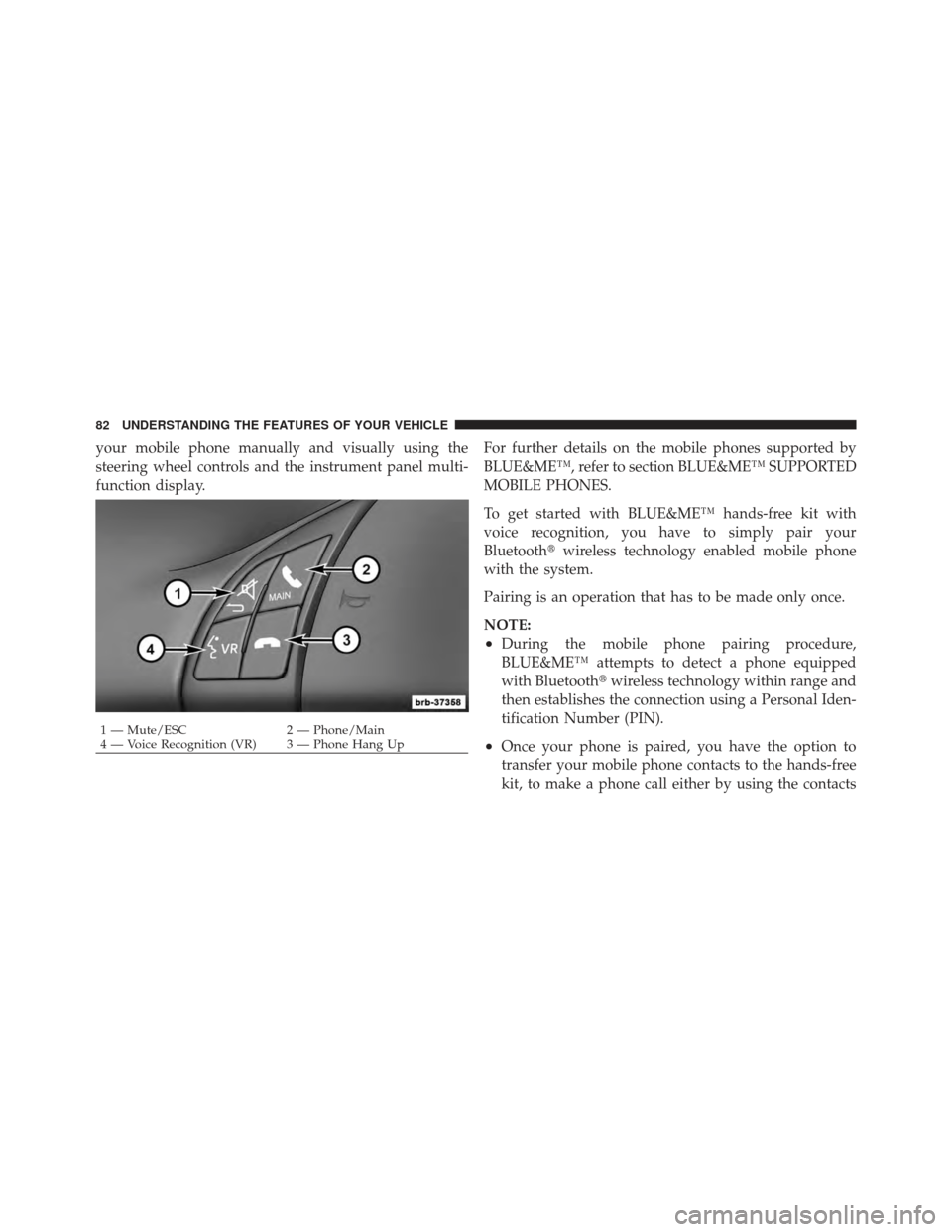

1 — Mute/ESC 2 — Phone/Main
4 — Voice Recognition (VR) 3 — Phone Hang Up
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

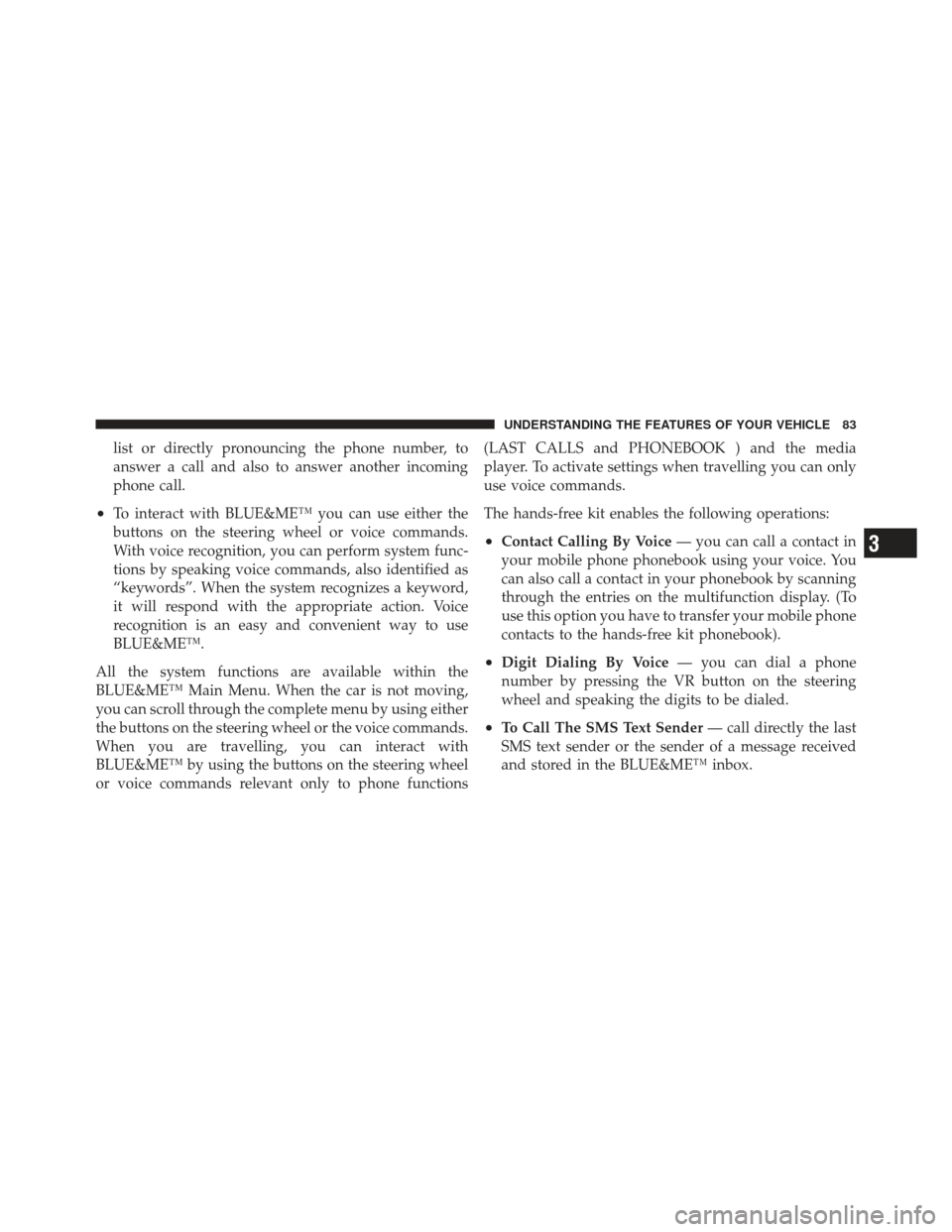

list or directly pronouncing the phone number, to
answer a call and also to answer another incoming
phone call.
•To interact with BLUE&ME™ you can use either the
buttons on the steering wheel or voice commands.
With voice recognition, you can perform system func-
tions by speaking voice commands, also identified as
“keywords”. When the system recognizes a keyword,
it will respond with the appropriate action. Voice
recognition is an easy and convenient way to use
BLUE&ME™.
All the system functions are available within the
BLUE&ME™ Main Menu. When the car is not moving,
you can scroll through the complete menu by using either
the buttons on the steering wheel or the voice commands.
When you are travelling, you can interact with
BLUE&ME™ by using the buttons on the steering wheel
or voice commands relevant only to phone functions (LAST CALLS and PHONEBOOK ) and the media
player. To activate settings when travelling you can only
use voice commands.
The hands-free kit enables the following operations:
•Contact Calling By Voice
— you can call a contact in
your mobile phone phonebook using your voice. You
can also call a contact in your phonebook by scanning
through the entries on the multifunction display. (To
use this option you have to transfer your mobile phone
contacts to the hands-free kit phonebook).
•Digit Dialing By Voice — you can dial a phone
number by pressing the VR button on the steering
wheel and speaking the digits to be dialed.
•To Call The SMS Text Sender — call directly the last
SMS text sender or the sender of a message received
and stored in the BLUE&ME™ inbox.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

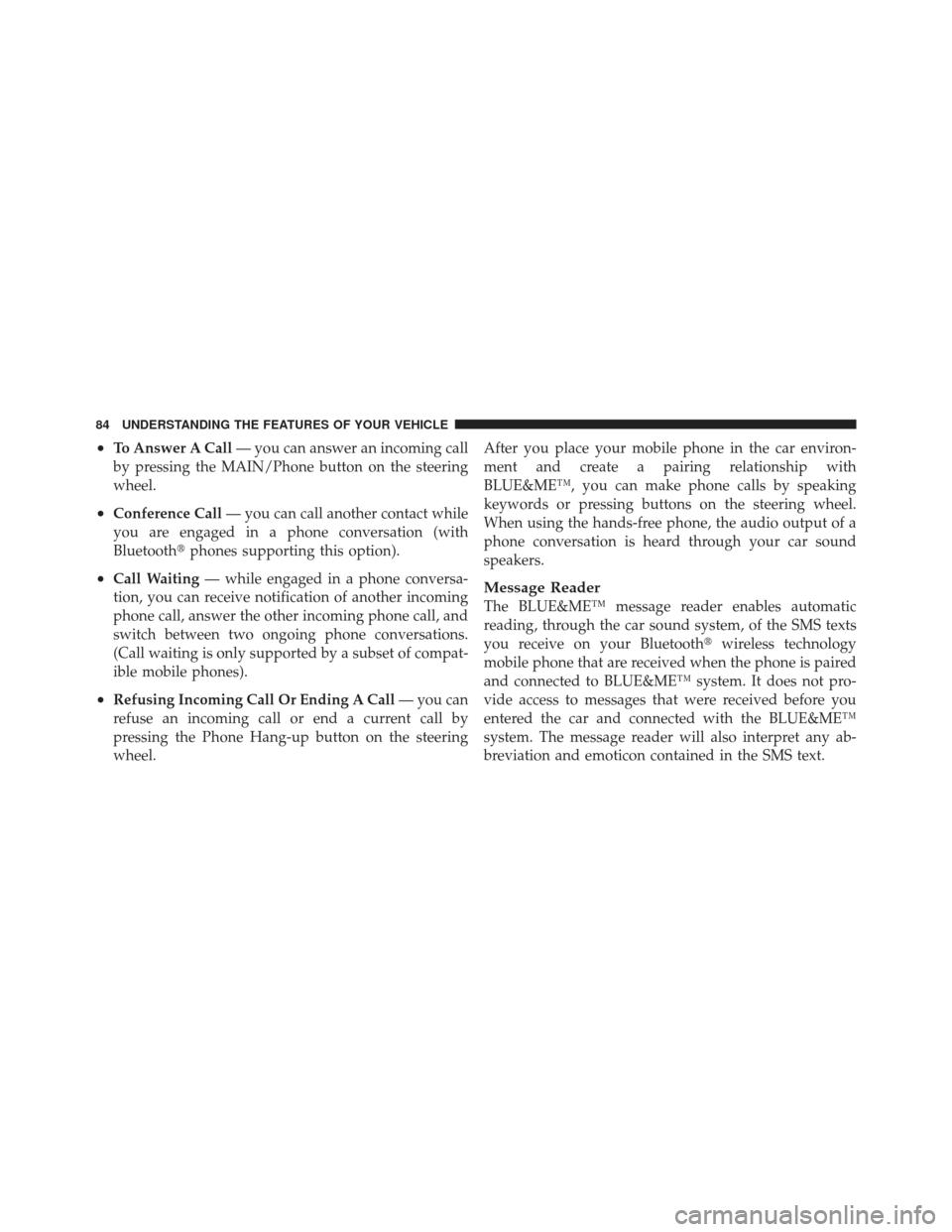

•To Answer A Call— you can answer an incoming call
by pressing the MAIN/Phone button on the steering
wheel.
•Conference Call — you can call another contact while
you are engaged in a phone conversation (with
Bluetooth phones supporting this option).
•Call Waiting — while engaged in a phone conversa-
tion, you can receive notification of another incoming
phone call, answer the other incoming phone call, and
switch between two ongoing phone conversations.
(Call waiting is only supported by a subset of compat-
ible mobile phones).
•Refusing Incoming Call Or Ending A Call — you can
refuse an incoming call or end a current call by
pressing the Phone Hang-up button on the steering
wheel. After you place your mobile phone in the car environ-
ment and create a pairing relationship with
BLUE&ME™, you can make phone calls by speaking
keywords or pressing buttons on the steering wheel.
When using the hands-free phone, the audio output of a
phone conversation is heard through your car sound
speakers.
Message Reader
The BLUE&ME™ message reader enables automatic
reading, through the car sound system, of the SMS texts
you receive on your Bluetooth
wireless technology
mobile phone that are received when the phone is paired
and connected to BLUE&ME™ system. It does not pro-
vide access to messages that were received before you
entered the car and connected with the BLUE&ME™
system. The message reader will also interpret any ab-
breviation and emoticon contained in the SMS text.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

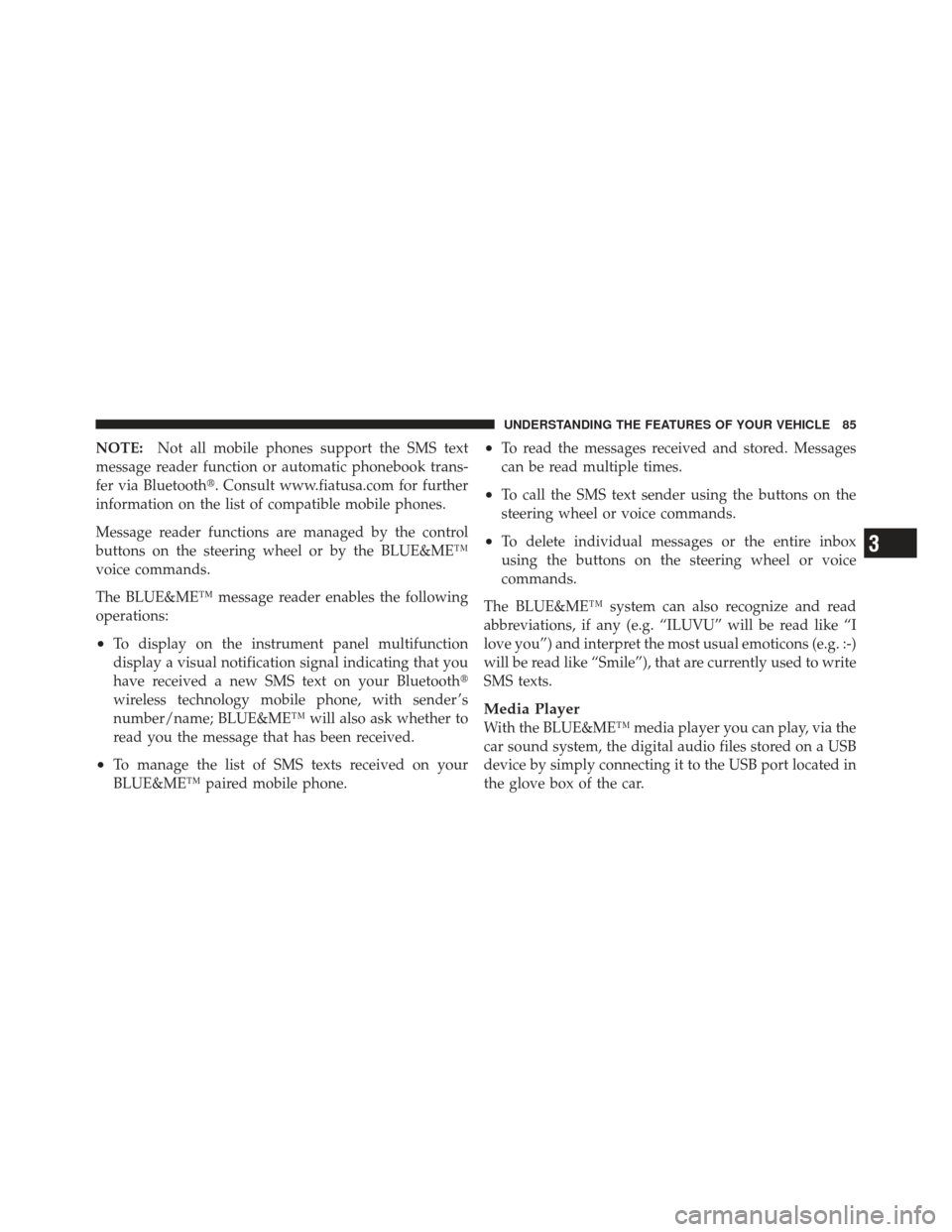

NOTE:Not all mobile phones support the SMS text
message reader function or automatic phonebook trans-
fer via Bluetooth. Consult www.fiatusa.com for further
information on the list of compatible mobile phones.
Message reader functions are managed by the control
buttons on the steering wheel or by the BLUE&ME™
voice commands.
The BLUE&ME™ message reader enables the following
operations:
•To display on the instrument panel multifunction
display a visual notification signal indicating that you
have received a new SMS text on your Bluetooth
wireless technology mobile phone, with sender ’s
number/name; BLUE&ME™ will also ask whether to
read you the message that has been received.
•To manage the list of SMS texts received on your
BLUE&ME™ paired mobile phone.
•To read the messages received and stored. Messages
can be read multiple times.
•To call the SMS text sender using the buttons on the
steering wheel or voice commands.
•To delete individual messages or the entire inbox
using the buttons on the steering wheel or voice
commands.
The BLUE&ME™ system can also recognize and read
abbreviations, if any (e.g. “ILUVU” will be read like “I
love you”) and interpret the most usual emoticons (e.g. :-)
will be read like “Smile”), that are currently used to write
SMS texts.
Media Player
With the BLUE&ME™ media player you can play, via the
car sound system, the digital audio files stored on a USB
device by simply connecting it to the USB port located in
the glove box of the car.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

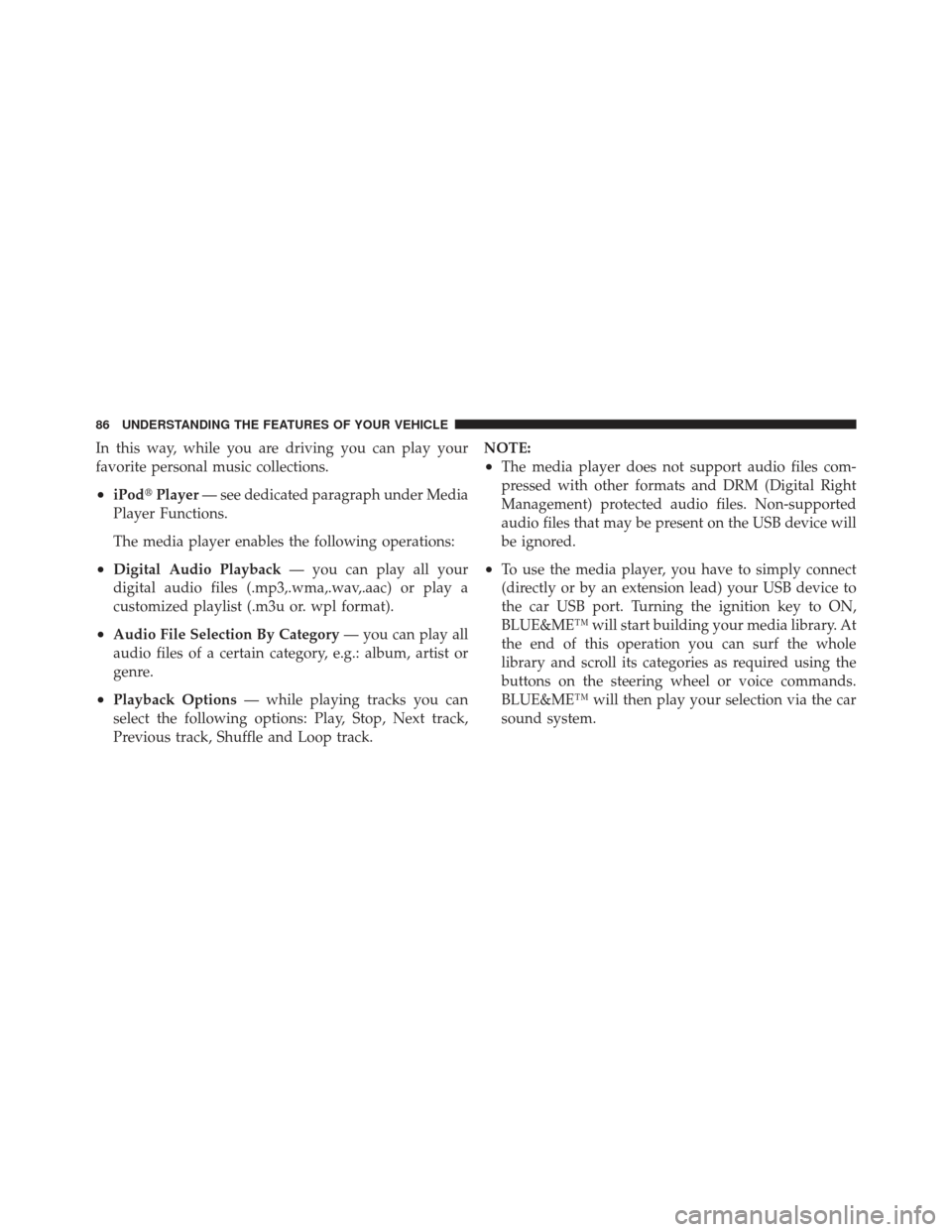

In this way, while you are driving you can play your
favorite personal music collections.
•iPodPlayer — see dedicated paragraph under Media
Player Functions.
The media player enables the following operations:
•Digital Audio Playback — you can play all your
digital audio files (.mp3,.wma,.wav,.aac) or play a
customized playlist (.m3u or. wpl format).
•Audio File Selection By Category — you can play all
audio files of a certain category, e.g.: album, artist or
genre.
•Playback Options — while playing tracks you can
select the following options: Play, Stop, Next track,
Previous track, Shuffle and Loop track. NOTE:
•The media player does not support audio files com-
pressed with other formats and DRM (Digital Right
Management) protected audio files. Non-supported
audio files that may be present on the USB device will
be ignored.
•To use the media player, you have to simply connect
(directly or by an extension lead) your USB device to
the car USB port. Turning the ignition key to ON,
BLUE&ME™ will start building your media library. At
the end of this operation you can surf the whole
library and scroll its categories as required using the
buttons on the steering wheel or voice commands.
BLUE&ME™ will then play your selection via the car
sound system.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

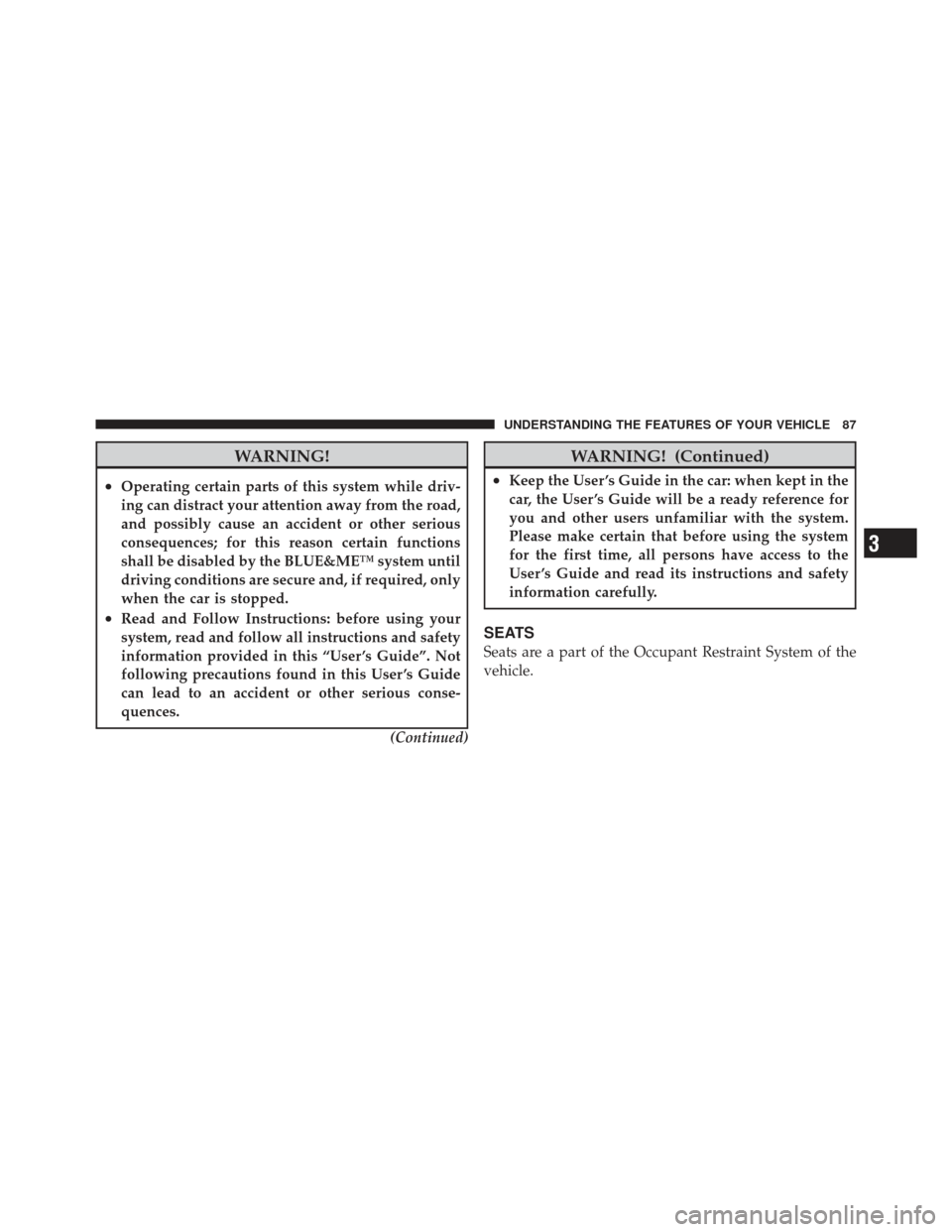

WARNING!
•Operating certain parts of this system while driv-
ing can distract your attention away from the road,
and possibly cause an accident or other serious
consequences; for this reason certain functions
shall be disabled by the BLUE&ME™ system until
driving conditions are secure and, if required, only
when the car is stopped.
•Read and Follow Instructions: before using your
system, read and follow all instructions and safety
information provided in this “User ’s Guide”. Not
following precautions found in this User ’s Guide
can lead to an accident or other serious conse-
quences.(Continued)
WARNING! (Continued)
•Keep the User ’s Guide in the car: when kept in the
car, the User ’s Guide will be a ready reference for
you and other users unfamiliar with the system.
Please make certain that before using the system
for the first time, all persons have access to the
User ’s Guide and read its instructions and safety
information carefully.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

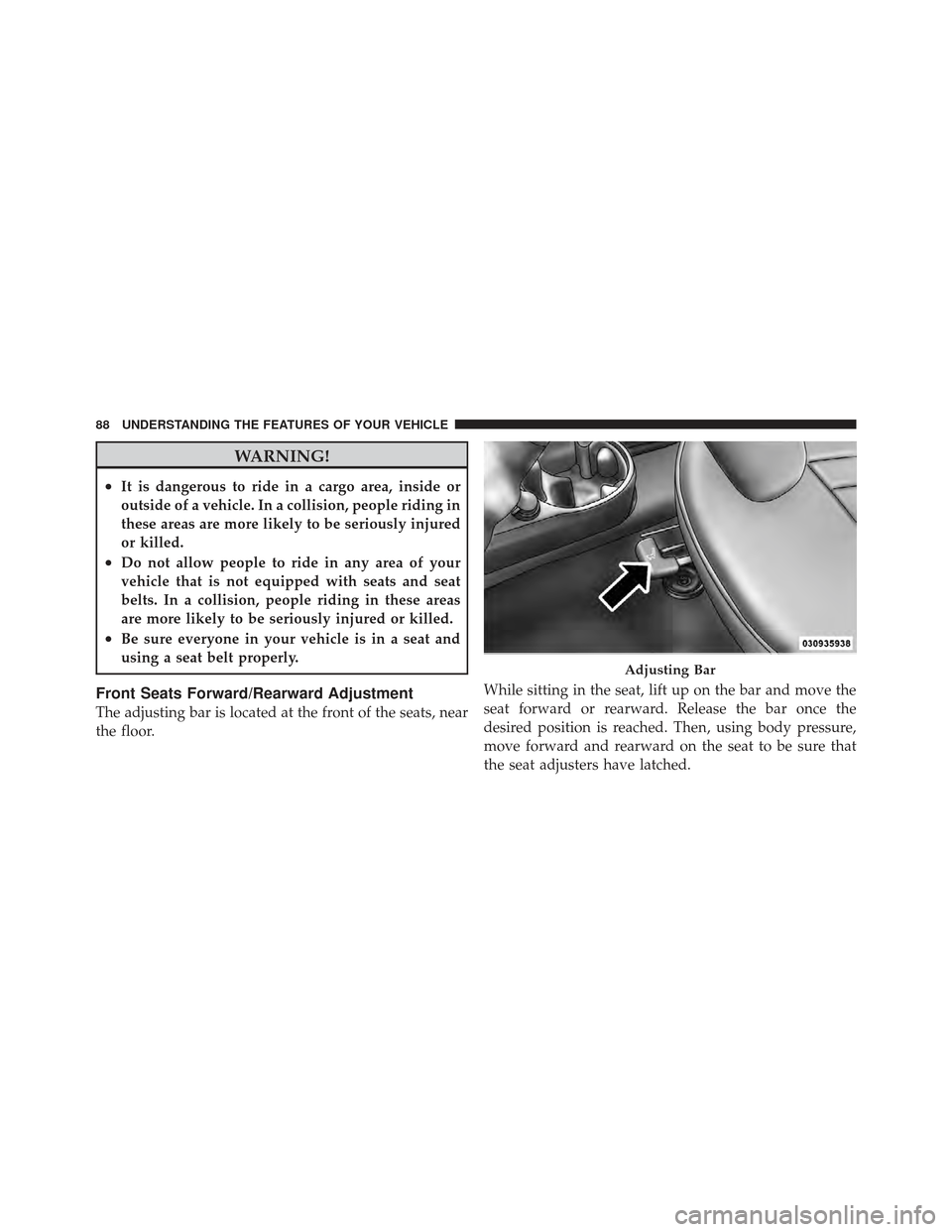

WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Front Seats Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.
Adjusting Bar
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
