INTRODUCTION/WELCOME
Welcome From Fiat.............2
CONTROLS AT A GLANCE
Driver Cockpit...............4
Instrument Cluster.............6
GETTING STARTED
Key Fo b...................8
Theft Alarm.................8
Power Door Locks.............8
Seat Belt...................9
Supplemental Restraint System (SRS) —
Air Bags...................9
Child Restraints...............10
Front Seats.................12
Rear Seats..................14
Tilt Steering Column............14
Heated Seats................15
OPERATING YOUR VEHICLE
Turn Signal/Lights/High Beam Lever.....16
Wiper/Washer Lever............17
Speed Control................18
Power Windows...............19
Manual Climate Controls..........20
Automatic Temperature Controls
(ATC)....................21
Rear Park Assist...............21
Sport Mode.................22
Manual Transmission.............22
Power Sunroof...............22
Power Convertible Top Operation.....23
Wind Buffeting...............24
Cold Weather Operation (Engine Block
Heater)...................25
ELECTRONICS
Your Vehicle's Sound System.........26
AM/FM Radio With CD Player And Sirius
XM™ Satellite Radio............28
BLUE&ME™ Hands-Free
Communication...............29
iPod®/USB/MP3 Control..........34
Electronic Vehicle Information
Center (EVIC)................35
Programmable Features...........35
Trip Button.................36
Power Outlet................37
UTILITY
Trailer Towing................38
Recreational Towing (Behind
Motorhome, Etc.)..............38
WHAT TO DO IN EMERGENCIES
24-Hour Roadside Assistance........39
Instrument Cluster Warning Lights.....39
If Your Engine Overheats..........42
Jacking And Tire Changing..........43
TIREFIT Kit.................49
Jump-Starting Procedure..........53
Shift Lever Override.............56
Towing A Disabled Vehicle..........56
Enhanced Accident Response System....57
Freeing A Stuck Vehicle...........58
Event Data Recorder (EDR).........59
MAINTAINING YOUR VEHICLE
Opening The Hood.............60
Engine Compartment............61
Fluids And Capacities............62
Maintenance Chart.............63
Fuses....................65
Tire Pressures................66
Wheel And Wheel Trim Care....... 67
Exterior Bulbs................67
CONSUMER ASSISTANCE
Fiat Customer Center............68
Assistance For The Hearing Impaired... 68
Publications Ordering............68
Reporting Safety Defects In The 50 United
States And Washington, D.C..........69
MOPAR ACCESSORIES
Authentic Accessories By MOPAR®.....70
INDEX.................. 71
FAQ(HowTo?)
Frequently Asked Questions.........73
TABLE OF CONTENTS
1

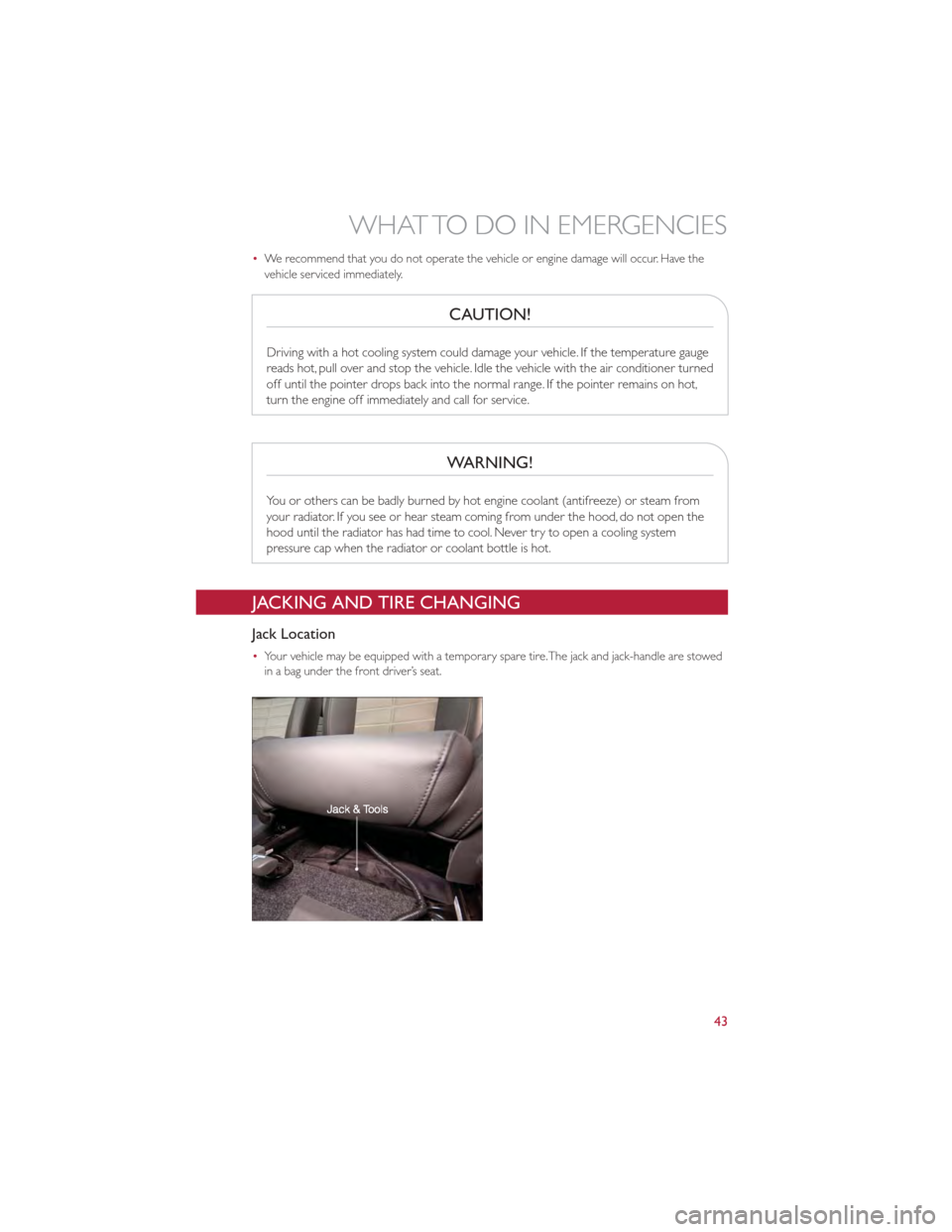

Page 45 of 80
•We recommend that you do not operate the vehicle or engine damage will occur. Have the
vehicle serviced immediately.
CAUTION!
Driving with a hot cooling system could damage your vehicle. If the temperature gauge
reads hot, pull over and stop the vehicle. Idle the vehicle with the air conditioner turned
off until the pointer drops back into the normal range. If the pointer remains on hot,
turn the engine off immediately and call for service.
WARNING!
You or others can be badly burned by hot engine coolant (antifreeze) or steam from
your radiator. If you see or hear steam coming from under the hood, do not open the
hood until the radiator has had time to cool. Never try to open a cooling system
pressure cap when the radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
Jack Location
•Your vehicle may be equipped with a temporary spare tire.The jack and jack-handle are stowed
in a bag under the front driver’s seat.
WHAT TO DO IN EMERGENCIES
43
Page 47 of 80
4. When the spare is clear, remove the knob orplastic molded nut by rotating it
counter-clockwise.
5. Tilt the retainer at the end of the cable and pull it through the center of the wheel.
Preparations For Jacking
1. Park the vehicle on a firm level surface, avoiding ice or slippery areas.
2. Turn on the Hazard Warning flashers.
3. Set the parking brake.
4. Place the shift lever in PARK (automatic transmission) or REVERSE (manual transmission).
5. Turn Off the ignition.
Block both the front and rear of the wheel
diagonally opposite the jacking position. For
example, if changing the right front tire, block the
left rear wheel.
NOTE:Passengers should not remain in the
vehicle while the vehicle is being jacked.
WHAT TO DO IN EMERGENCIES
45
Page 48 of 80
Jacking Instructions
NOTE:Refer to the “Compact Spare Tire”
section of the “Tires-General Information” under
“Starting And Operating” for information about
the spare tire, it's use, and operation.
1. Remove the scissors jack and tool bag from under the driver's seat.
2. Loosen, but do not remove, the wheel bolts by turning them to the left one turn while the
wheel is still on the ground.
NOTE: There are front and rear jacking locations on each side of the body (as indicated by the
triangular lift point symbol on the sill molding).
Do not raise the vehicle until you are sure the
jack is securely engaged.
3. Turn the jack screw to the left until the jackcan be placed under the jacking location. Once
the jack is positioned, turn the jack screw to
the right until the jack head is properly
engaged with the lift area closest to the wheel
to be changed.
WHAT TO DO IN EMERGENCIES
46

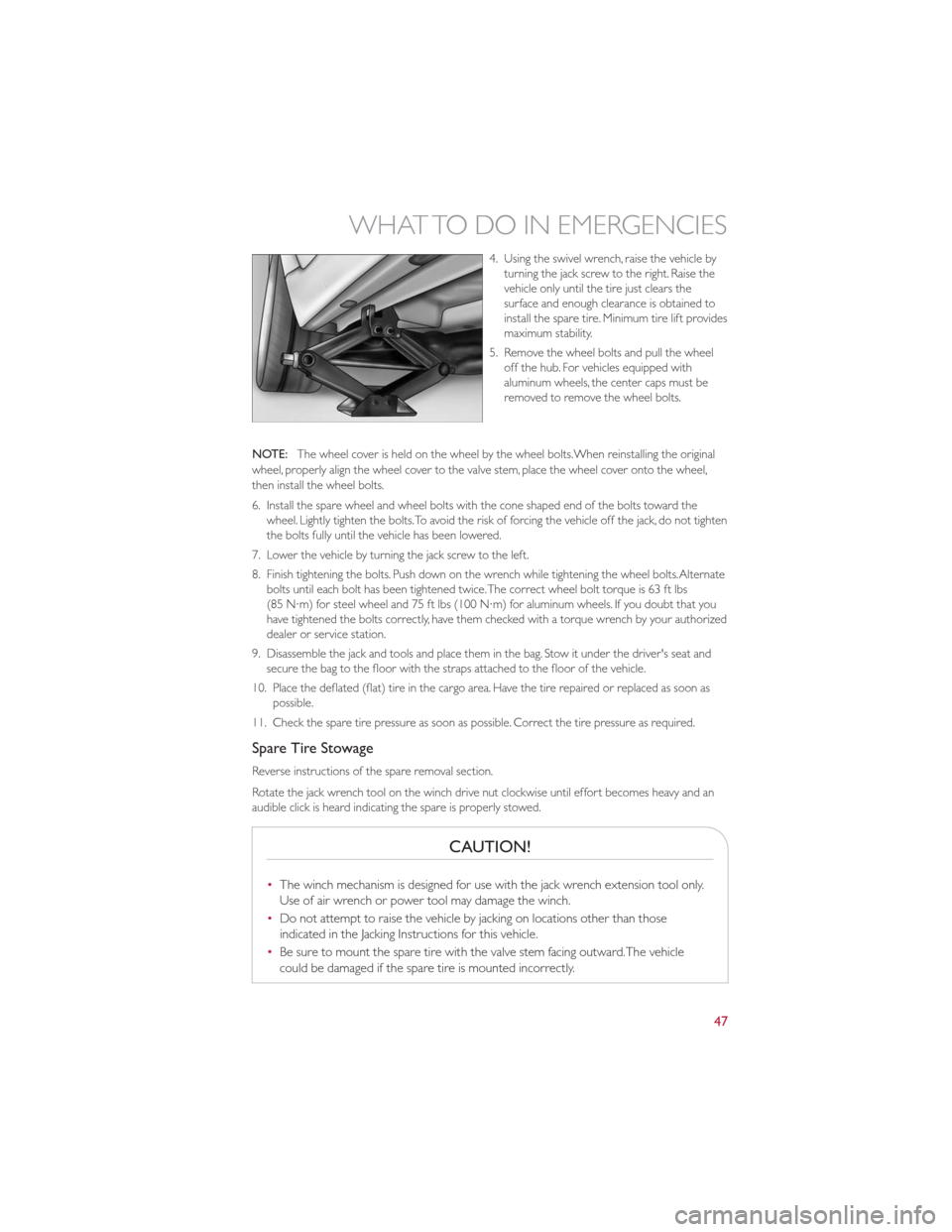

Page 49 of 80
4. Using the swivel wrench, raise the vehicle byturning the jack screw to the right. Raise the
vehicle only until the tire just clears the
surface and enough clearance is obtained to
install the spare tire. Minimum tire lift provides
maximum stability.
5. Remove the wheel bolts and pull the wheel off the hub. For vehicles equipped with
aluminum wheels, the center caps must be
removed to remove the wheel bolts.
NOTE: The wheel cover is held on the wheel by the wheel bolts.When reinstalling the original
wheel, properly align the wheel cover to the valve stem, place the wheel cover onto the wheel,
then install the wheel bolts.
6. Install the spare wheel and wheel bolts with the cone shaped end of the bolts toward the wheel. Lightly tighten the bolts.To avoid the risk of forcing the vehicle off the jack, do not tighten
the bolts fully until the vehicle has been lowered.
7. Lower the vehicle by turning the jack screw to the left.
8. Finish tightening the bolts. Push down on the wrench while tightening the wheel bolts.Alternate bolts until each bolt has been tightened twice.The correct wheel bolt torque is 63 ft lbs
(85 N·m) for steel wheel and 75 ft lbs (100 N·m) for aluminum wheels. If you doubt that you
have tightened the bolts correctly, have them checked with a torque wrench by your authorized
dealer or service station.
9. Disassemble the jack and tools and place them in the bag. Stow it under the driver's seat and secure the bag to the floor with the straps attached to the floor of the vehicle.
10. Place the deflated (flat) tire in the cargo area. Have the tire repaired or replaced as soon as possible.
11. Check the spare tire pressure as soon as possible. Correct the tire pressure as required.
Spare Tire Stowage
Reverse instructions of the spare removal section.
Rotate the jack wrench tool on the winch drive nut clockwise until effort becomes heavy and an
audible click is heard indicating the spare is properly stowed.
CAUTION!
• The winch mechanism is designed for use with the jack wrench extension tool only.
Use of air wrench or power tool may damage the winch.
• Do not attempt to raise the vehicle by jacking on locations other than those
indicated in the Jacking Instructions for this vehicle.
• Be sure to mount the spare tire with the valve stem facing outward.The vehicle
could be damaged if the spare tire is mounted incorrectly.
WHAT TO DO IN EMERGENCIES
47
Page 73 of 80
Air Conditioning..............20
Airbag ...................9
Airbag Light ................42
Anti-Lock Brake System (ABS) ......42
Arming Theft System (Security Alarm) . . . 8
Automatic Temperature Control (ATC) . . 21
Automatic Transmission Fluid Type ................62
Battery Charging System Light .........42
Jump Starting ..............53
Belts,Seat ..................9
BLUE&ME™ Hands-Free
Communication ..............29
Brake Fluid ................62
Brake System Warning Light ..............41
Bulb Replacement .............67
Changing A Flat Tire ............43
Charging System Light ...........42
Check Engine Light (Malfunction Indicator
Light) ...................42
Child Restraint ..............10
Child Restraint Tether Anchors ......10
ClimateControl ..............20
Clock Setting ...............29
Cooling System Coolant Capacity ............62
Cruise Control (Speed Control) .....18
Cruise Light ................18
Customer Assistance ...........68
Defects, Reporting .............69
Defroster,RearWindow..........20
Defroster,Windshield ...........20
Disarming,Theft System ..........8
Electronic Speed Control
(Cruise Control) .............18
Electronic Throttle Control Warning
Light ....................40
Electronic Vehicle Information Center
(EVIC)...................35
Electronics Your Vehicle's Sound System ......26Emergency, In Case of
Jacking .................43
Jump Starting ..............53
Towing .................56
Engine Compartment .............61
Fails to Start ..............25
Flooded, Starting ............25
Malfunction Indicator (Check Engine) . 42
Oil Selection ..............62
Overheating ..............42
Enhanced Accident Response Feature . . . 57
Exterior Lights ...............67
Flooded Engine Starting ..........25
Fluid Capacities ..............62
Fluids ...................62
Folding Rear Seat .............14
Freeing A Stuck Vehicle ..........58
FrontHeatedSeats ............15
Fuel Specifications ..............62
Gear Select Lever Override ........56
Hands-Free Communication -
BLUE&ME™ ...............29
Headlights High Beam ...............16
HeatedMirrors ............ 20,21
HeatedSeats ...............15
High Beam/Low Beam Select (Dimmer)
Switch ...................16
Hood Release ...............60
Instrument Cluster .............6
Indicators ................7
Ins
trument Cluster Warning Lights . . . 6,39
Intermittent Wipers (Delay Wipers) ....17
Introduction ................2
iPod
®Control ...............33
iPod®/USB/MP3Control .........34
Jack Location ...............43
JackOperation ............. 43,46
Jacking Instructions ............46
INDEX
71
Page 74 of 80
Jump Starting...............53
KeyFob ...................8
Lane Change Assist ............16
LATCH (Lower Anchors and Tether for
CHildren) .................10
Lights Engine Temperature Warning ......39
Turn Signal ...............16
Warning (Instrument Cluster
Description) ...............6
Maintenance Record ...........64
Maintenance Schedule ...........63
Malfunction Indicator Light
(Check Engine) ..............42
Manual Transmission ............22
Mirrors Heated ............... 20,21
MOPAR
®Accessories ...........70
Oil Pressure Light .............42
Oil, Engine Capacity ................62
Outlet Power .................37
Overheating, Engine ............42
Placard,Tire and Loading Information . . . 66
Power Outlet (Auxiliary Electrical Outlet) . . . 37
Sunroof .................22
Preparation for Jacking ...........45
Programmable Electronic Features ....35
RearSeat,Folding .............14
RecreationalTowing ............38
Replacement Bulbs ............67
Restraints, Child ..............10
SeatBelts ..................9
Seats ...................12 Adjustment ...............12
Heated .................15
RearFolding ..............14 Setting the Clock
.............29
ShiftLeverOverride ...........56
Signals,Turn ................16
SparkPlugs ................62
Speed Control (Cruise Control) .....18
SportMode ................22
Starting ColdWeather .............25
Engine Fails to Start ...........25
Steering Tilt Column ...............14
Steering Wheel Audio Controls ......31
StoreRadioPresets ............29
Stuck, Freeing ...............58
SunRoof .................22
Supplemental Restraint System - Airbag . . 9
Theft Alarm (Security Alarm) ........8
TheftSystemArming ............8
Theft System Disarming ..........8
Tilt Steering Column ...........14
TIREFIT ..................49
Tires Air Pressure ..............66
Changing ................43
Jacking .................43
Pressure Warning Light .........40
Towing ..................38 24-Hour Towing Assistance .......39
Disabled Vehicle .............56
Recreational ..............38
Trailer Towing ...............38
Transmission Fluid ..................62
Turn Signals ................16
USBPort ................ 33,34
Washer Rear ..................18
Washers,Windshield ...........17
Wind Buffeting ..............24
Windshield Washers ............17
Windshield Wipers ............17
Wiper,Rear ................18
INDEX
72
