Page 7 of 80
A. Turn Signal/Lights Lever pg. 16
B. Instrument Cluster pg. 6
C. Electronic Vehicle Information Center (EVIC)
Display pg. 35
D. Electronic Vehicle Information Center (EVIC)
Controls pg. 35
E. Wiper/Washer Lever pg. 17
F. Audio System pg. 28G. SWITCH PANEL
− Sport Function pg. 22
− Hazard Switch
− Rear Defrost
H. Climate Controls pg. 20
I. Passenger Power Window Switch
J. Transmission Gear Selector K. Driver Power Window Switch
L. Speed Control pg. 18
M. Hood Release
N. BLUE&ME™ Hands-Free Communication
pg. 29
O. Door Handle/Power Door Locks
P. Power Mirror Switches
CONTROLS AT A GLANCE
5
Page 22 of 80

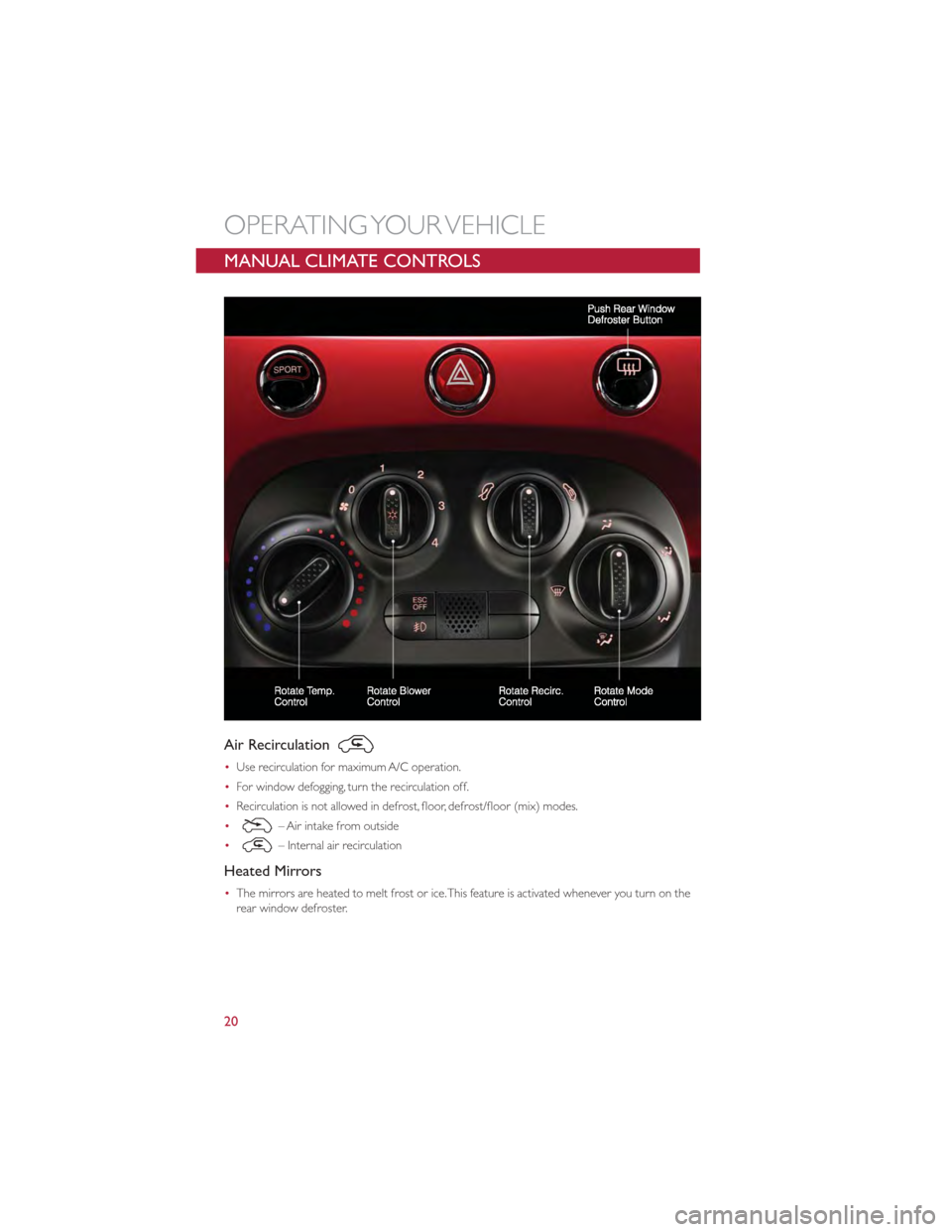

MANUAL CLIMATE CONTROLS
Air Recirculation
•Use recirculation for maximum A/C operation.
• For window defogging, turn the recirculation off.
• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.
•
– Air intake from outside
•
– Internal air recirculation
Heated Mirrors
• The mirrors are heated to melt frost or ice.This feature is activated whenever you turn on the
rear window defroster.
OPERATING YOUR VEHICLE
20
Page 23 of 80
AUTOMATIC TEMPERATURE CONTROLS (ATC)
Automatic Operation
•Push the AUTO button.
• Select the desired temperature by pushing the temperature control buttons.
• The system will maintain the set temperature automatically.
Air Recirculation
•Use recirculation for maximum A/C operation.
• For window defogging, turn the air recirculation button off.
Heated Mirrors
•The mirrors are heated to melt frost or ice.This feature is activated whenever you turn on the
rear window defroster.
REAR PARK ASSIST
•If an object is detected behind the rear bumper while the vehicle is in REVERSE, a chime will
sound.The chime rate will change depending on the distance of the object, getting faster as the
object gets closer to the bumper.The chime will become continuous when the distance
between the vehicle and the obstacle is less than 12 inches (30 cm).
• When the Instrument Cluster reads either “Clean Sensor” or “Blinded”, clean off the bumper
sensors to see if the condition is corrected.
OPERATING YOUR VEHICLE
21
Page 67 of 80
FUSES
Interior Fuses
•The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver's
side under the instrument panel.
Cavity Vehicle Fuse
Number Mini Fuse
Description
1 F12 7.5 Amp Brown Right Low Beam
2 F32
5 Amp Tan Front and Rear Ceiling Lights Trunk
and Door Courtesy Lights
3 F53 5 Amp Tan Instrument Panel Node
4 F38 20 Amp Yellow Central Door Locking
5 F36
10 Amp Red Diagnostic Socket, Car Radio,
Climate Control System
6 F43 20 Amp Yellow Bi-Directional Washer
7 F48 20 Amp Yellow Passenger Power Window
8 F13 7.5 Amp Brown Left Low Beam, Headlamp Leveling
9 F50 7.5 Amp Brown Airbag
10 F51
5 Amp Tan Car Radio Switch, Climate Control
System, Stop Light, Clutch
11 F37
5 Amp Tan Stop Light Switch, Instrument Panel
Node
12 F49
5 Amp Tan Exterior Mirror, GPS, Electric Mirror,
Parking Sensor
13 F31 5 Amp Tan Ignition, Climate Control
14 F47 20 Amp Yellow Driver Power Window
Underhood Fuses
•A second fuse panel is located on the drivers side of the engine compartment, next to the
battery.To access the fuses, press the release tabs and remove the cover.
• The ID number of the electrical component corresponding to each fuse can be found on the
back of the cover.
Cavity Maxi Fuse Mini FuseDescription
F01 60 Amp Blue Body Controller
F02 20 Amp Yellow Audio Amplifier
F03 20 Amp Yellow Ignition Switch
F04 40 Amp Orange Anti-Lock Brake Pump
F05 70 Amp Tan Electric Power Steering
F06 20 Amp Yellow Radiator Fan - Single Speed
F06 30 Amp Green Radiator Fan - Low Speed
F07 40 Amp Orange Radiator Fan - High Speed
F08 30 Amp Green Blower Motor
F09 10 Amp RedPowertrain
F10 10 Amp RedHorn
MAINTAINING YOUR VEHICLE
65
Page 68 of 80
Cavity Maxi FuseMini FuseDescription
F11 15 Amp BluePowertrain
F11 10 Amp Red Powertrain (Multiair – If Equipped)
F14 5 Amp TanHigh beam (Shutter)
F15 15 Amp BlueCigar Lighter
F16 7.5 Amp BrownTransmission
F17 25 Amp White Powertrain (Multiair – If Equipped)
F17 15 Amp BluePowertrain
F18 15 Amp BluePowertrain
F18 5 Amp Tan Powertrain (Multiair – If Equipped)
F19 7.5 Amp BrownAir Conditioning
F20 15 Amp Blue Heated Seats – If Equipped
F21 15 Amp BlueFuel Pump
F23 20 Amp YellowAnti-Lock Brake Valves
F24 7.5 Amp Brown Stability Control System
F30 15 Amp BlueFog Lamps
F82 30 Amp Green Sunroof/Convertible Top
F84 10 Amp RedTransmission
F85 15 Amp Blue Rear Defroster, Heated Mirrors
F87 5 Amp TanLights
F90 5 Amp TanHeated Mirrors
TIRE PRESSURES
•Check the inflation pressure of each tire, including the spare tire, at least monthly and inflate to
the recommended pressure for your vehicle.
• The tire pressures recommended for your vehicle are found on the “Tire and Loading
Information” label located on the driver’s side door opening.
NOTE:Refer to the Owner's Manual on the
DVD for more information regarding tire
warnings and instructions.
MAINTAINING YOUR VEHICLE
66
Page 72 of 80
AUTHENTIC ACCESSORIES BY MOPAR®
•The following highlights just some of the many Authentic FIAT Accessories by Mopar featuring a
fit, finish, and functionality specifically for your FIAT 500.
• In choosing Authentic Accessories you gain far more than expressive style, premium protection,
or extreme entertainment, you also benefit from enhancing your vehicle with accessories that
have been thoroughly tested and factory-approved.
• For the full line of Authentic FIAT Accessories by Mopar, visit your local FIAT dealership or
online at mopar.com.
EXTERIOR:
• Chrome Hood Spear •Chrome Exhaust Tip •Front End Cover
• Chrome Mirror Cover •Side Window Air Deflectors •Molded Splash Guards
• Chrome Lower Grill and
Fog Light Surrounds •
Body Side Molding •Vehicle Cover
• Chrome Fuel Door •Wheel Pocket Inserts •Locking Fuel Cap
INTERIOR:
• Door Sill Guards •Interior Appliques •Premium Carpet Floor Mats
• Chrome Shift Knob •Key Covers •Slush Mats
• Instrument Panel Graphics •Roadside Safety Kit •Cargo Organizer
ELECTRONICS:
• GPS Tracking System(s) •Remote Start •Sound System Upgrades
• Portable Navigation Systems •Wi-Fi •Interior/Ambient Lighting
• Rear Park Distance Sensors •iPod Connection Kit
CARRIERS:
• Roof Rack •Bike Carrier •Canoe Carrier
• Snowboard/Ski Carrier •Luggage Carrier •Hitch-mount Bike Carrier
MOPAR ACCESSORIES
70
Page 73 of 80
Air Conditioning..............20
Airbag ...................9
Airbag Light ................42
Anti-Lock Brake System (ABS) ......42
Arming Theft System (Security Alarm) . . . 8
Automatic Temperature Control (ATC) . . 21
Automatic Transmission Fluid Type ................62
Battery Charging System Light .........42
Jump Starting ..............53
Belts,Seat ..................9
BLUE&ME™ Hands-Free
Communication ..............29
Brake Fluid ................62
Brake System Warning Light ..............41
Bulb Replacement .............67
Changing A Flat Tire ............43
Charging System Light ...........42
Check Engine Light (Malfunction Indicator
Light) ...................42
Child Restraint ..............10
Child Restraint Tether Anchors ......10
ClimateControl ..............20
Clock Setting ...............29
Cooling System Coolant Capacity ............62
Cruise Control (Speed Control) .....18
Cruise Light ................18
Customer Assistance ...........68
Defects, Reporting .............69
Defroster,RearWindow..........20
Defroster,Windshield ...........20
Disarming,Theft System ..........8
Electronic Speed Control
(Cruise Control) .............18
Electronic Throttle Control Warning
Light ....................40
Electronic Vehicle Information Center
(EVIC)...................35
Electronics Your Vehicle's Sound System ......26Emergency, In Case of
Jacking .................43
Jump Starting ..............53
Towing .................56
Engine Compartment .............61
Fails to Start ..............25
Flooded, Starting ............25
Malfunction Indicator (Check Engine) . 42
Oil Selection ..............62
Overheating ..............42
Enhanced Accident Response Feature . . . 57
Exterior Lights ...............67
Flooded Engine Starting ..........25
Fluid Capacities ..............62
Fluids ...................62
Folding Rear Seat .............14
Freeing A Stuck Vehicle ..........58
FrontHeatedSeats ............15
Fuel Specifications ..............62
Gear Select Lever Override ........56
Hands-Free Communication -
BLUE&ME™ ...............29
Headlights High Beam ...............16
HeatedMirrors ............ 20,21
HeatedSeats ...............15
High Beam/Low Beam Select (Dimmer)
Switch ...................16
Hood Release ...............60
Instrument Cluster .............6
Indicators ................7
Ins
trument Cluster Warning Lights . . . 6,39
Intermittent Wipers (Delay Wipers) ....17
Introduction ................2
iPod
®Control ...............33
iPod®/USB/MP3Control .........34
Jack Location ...............43
JackOperation ............. 43,46
Jacking Instructions ............46
INDEX
71
Page 74 of 80
Jump Starting...............53
KeyFob ...................8
Lane Change Assist ............16
LATCH (Lower Anchors and Tether for
CHildren) .................10
Lights Engine Temperature Warning ......39
Turn Signal ...............16
Warning (Instrument Cluster
Description) ...............6
Maintenance Record ...........64
Maintenance Schedule ...........63
Malfunction Indicator Light
(Check Engine) ..............42
Manual Transmission ............22
Mirrors Heated ............... 20,21
MOPAR
®Accessories ...........70
Oil Pressure Light .............42
Oil, Engine Capacity ................62
Outlet Power .................37
Overheating, Engine ............42
Placard,Tire and Loading Information . . . 66
Power Outlet (Auxiliary Electrical Outlet) . . . 37
Sunroof .................22
Preparation for Jacking ...........45
Programmable Electronic Features ....35
RearSeat,Folding .............14
RecreationalTowing ............38
Replacement Bulbs ............67
Restraints, Child ..............10
SeatBelts ..................9
Seats ...................12 Adjustment ...............12
Heated .................15
RearFolding ..............14 Setting the Clock
.............29
ShiftLeverOverride ...........56
Signals,Turn ................16
SparkPlugs ................62
Speed Control (Cruise Control) .....18
SportMode ................22
Starting ColdWeather .............25
Engine Fails to Start ...........25
Steering Tilt Column ...............14
Steering Wheel Audio Controls ......31
StoreRadioPresets ............29
Stuck, Freeing ...............58
SunRoof .................22
Supplemental Restraint System - Airbag . . 9
Theft Alarm (Security Alarm) ........8
TheftSystemArming ............8
Theft System Disarming ..........8
Tilt Steering Column ...........14
TIREFIT ..................49
Tires Air Pressure ..............66
Changing ................43
Jacking .................43
Pressure Warning Light .........40
Towing ..................38 24-Hour Towing Assistance .......39
Disabled Vehicle .............56
Recreational ..............38
Trailer Towing ...............38
Transmission Fluid ..................62
Turn Signals ................16
USBPort ................ 33,34
Washer Rear ..................18
Washers,Windshield ...........17
Wind Buffeting ..............24
Windshield Washers ............17
Windshield Wipers ............17
Wiper,Rear ................18
INDEX
72
