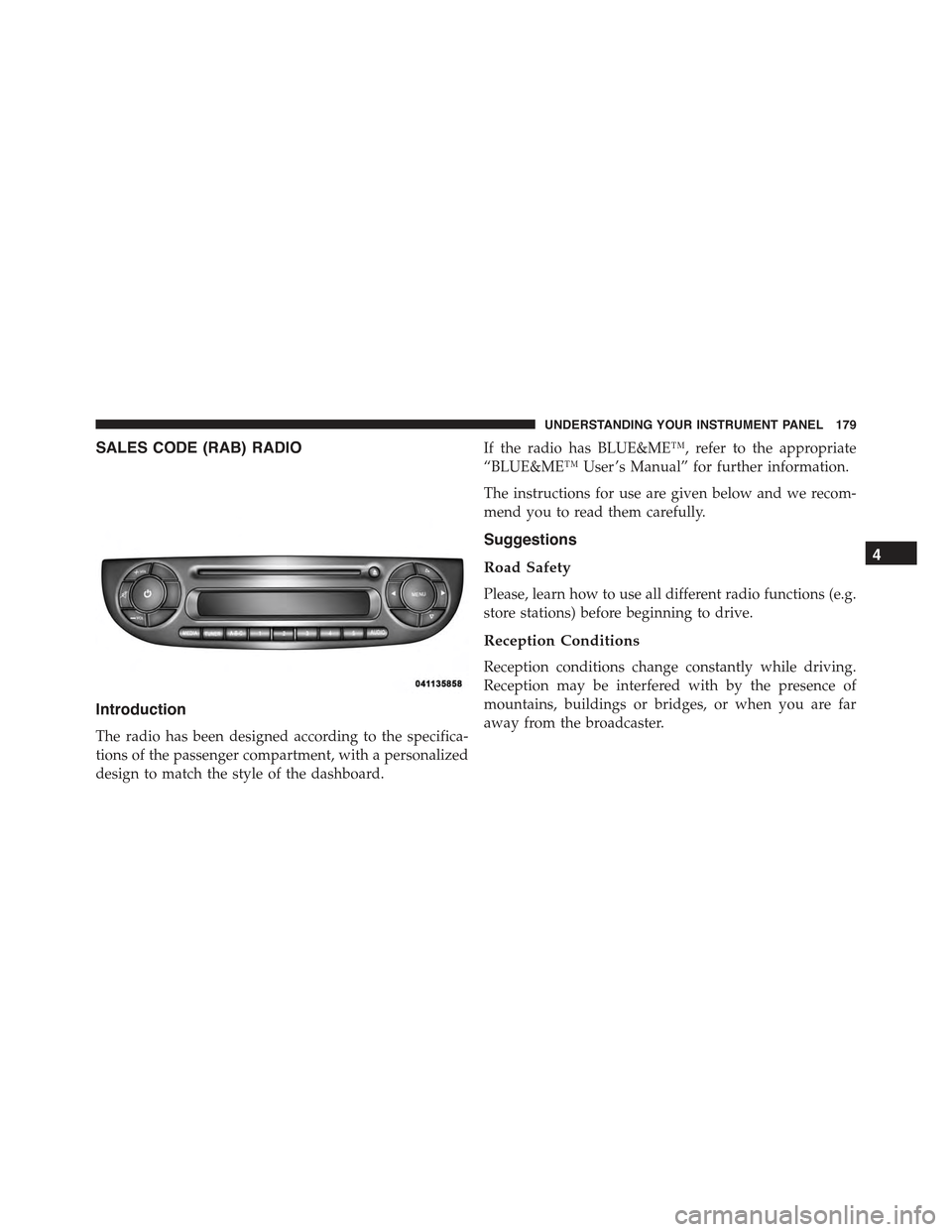

SALES CODE (RAB) RADIO
Introduction
The radio has been designed according to the specifica-
tions of the passenger compartment, with a personalized
design to match the style of the dashboard.
If the radio has BLUE&ME™, refer to the appropriate
“BLUE&ME™ User ’s Manual” for further information.
The instructions for use are given below and we recom-
mend you to read them carefully.
Suggestions
Road Safety
Please, learn how to use all different radio functions (e.g.
store stations) before beginning to drive.
Reception Conditions
Reception conditions change constantly while driving.
Reception may be interfered with by the presence of
mountains, buildings or bridges, or when you are far
away from the broadcaster.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

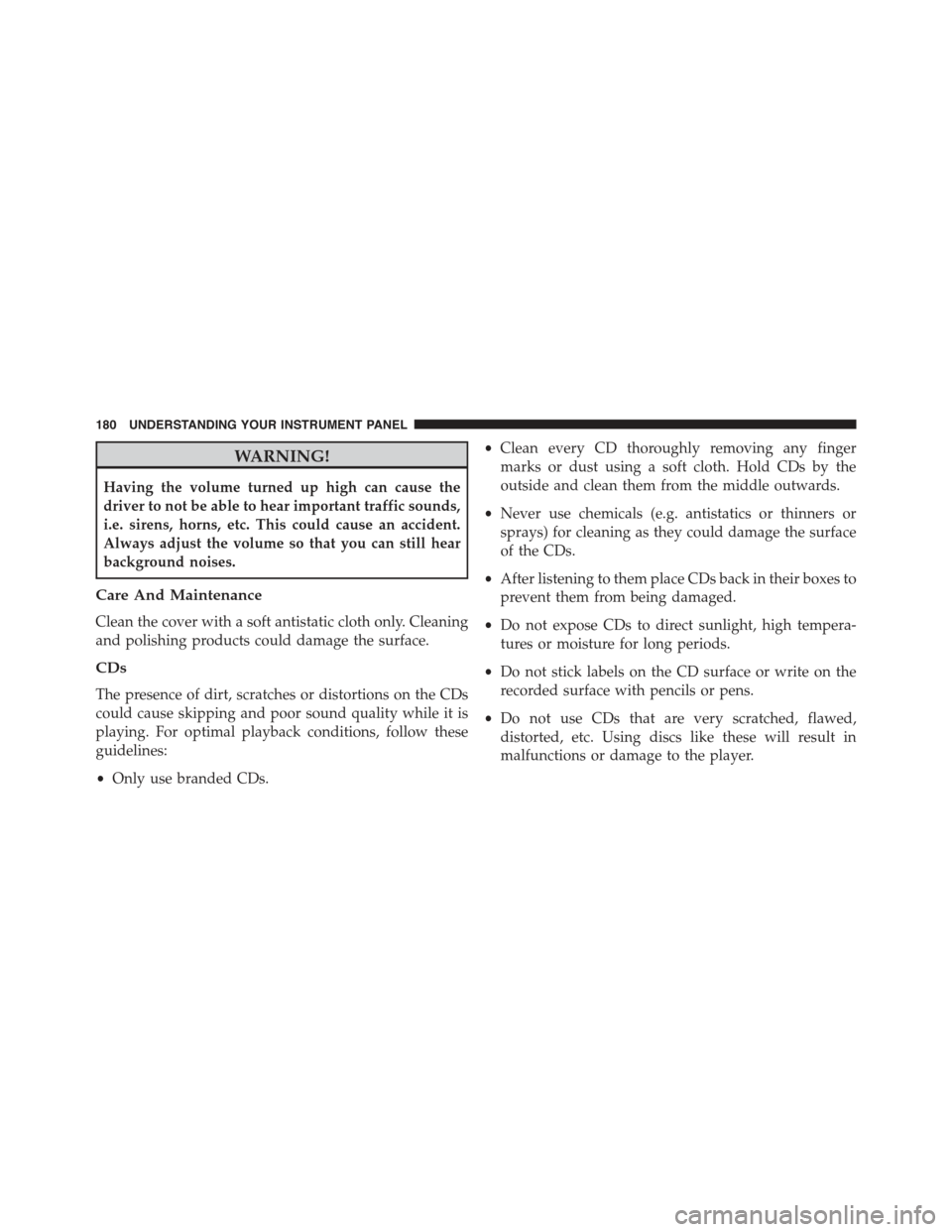

WARNING!
Having the volume turned up high can cause the
driver to not be able to hear important traffic sounds,
i.e. sirens, horns, etc. This could cause an accident.
Always adjust the volume so that you can still hear
background noises.
Care And Maintenance
Clean the cover with a soft antistatic cloth only. Cleaning
and polishing products could damage the surface.
CDs
The presence of dirt, scratches or distortions on the CDs
could cause skipping and poor sound quality while it is
playing. For optimal playback conditions, follow these
guidelines:
•Only use branded CDs.
•Clean every CD thoroughly removing any finger
marks or dust using a soft cloth. Hold CDs by the
outside and clean them from the middle outwards.
•Never use chemicals (e.g. antistatics or thinners or
sprays) for cleaning as they could damage the surface
of the CDs.
•After listening to them place CDs back in their boxes to
prevent them from being damaged.
•Do not expose CDs to direct sunlight, high tempera-
tures or moisture for long periods.
•Do not stick labels on the CD surface or write on the
recorded surface with pencils or pens.
•Do not use CDs that are very scratched, flawed,
distorted, etc. Using discs like these will result in
malfunctions or damage to the player.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

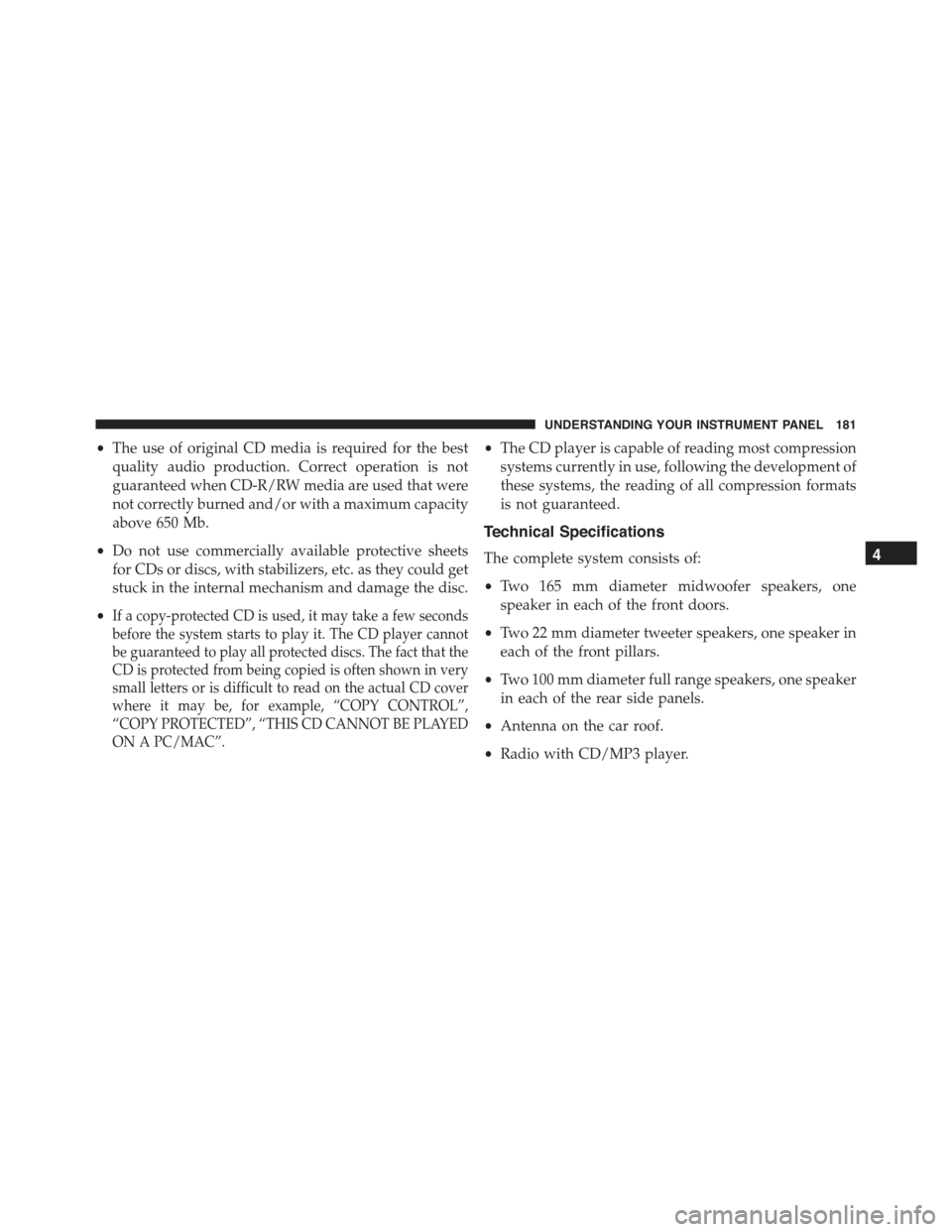

•The use of original CD media is required for the best
quality audio production. Correct operation is not
guaranteed when CD-R/RW media are used that were
not correctly burned and/or with a maximum capacity
above 650 Mb.
•Do not use commercially available protective sheets
for CDs or discs, with stabilizers, etc. as they could get
stuck in the internal mechanism and damage the disc.
•If a copy-protected CD is used, it may take a few seconds
before the system starts to play it. The CD player cannot
be guaranteed to play all protected discs. The fact that the
CD is protected from being copied is often shown in very
small letters or is difficult to read on the actual CD cover
where it may be, for example, “COPY CONTROL”,
“COPY PROTECTED”, “THIS CD CANNOT BE PLAYED
ON A PC/MAC”.
•The CD player is capable of reading most compression
systems currently in use, following the development of
these systems, the reading of all compression formats
is not guaranteed.
Technical Specifications
The complete system consists of:
•Two 165 mm diameter midwoofer speakers, one
speaker in each of the front doors.
•Two 22 mm diameter tweeter speakers, one speaker in
each of the front pillars.
•Two 100 mm diameter full range speakers, one speaker
in each of the rear side panels.
•Antenna on the car roof.
•Radio with CD/MP3 player.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

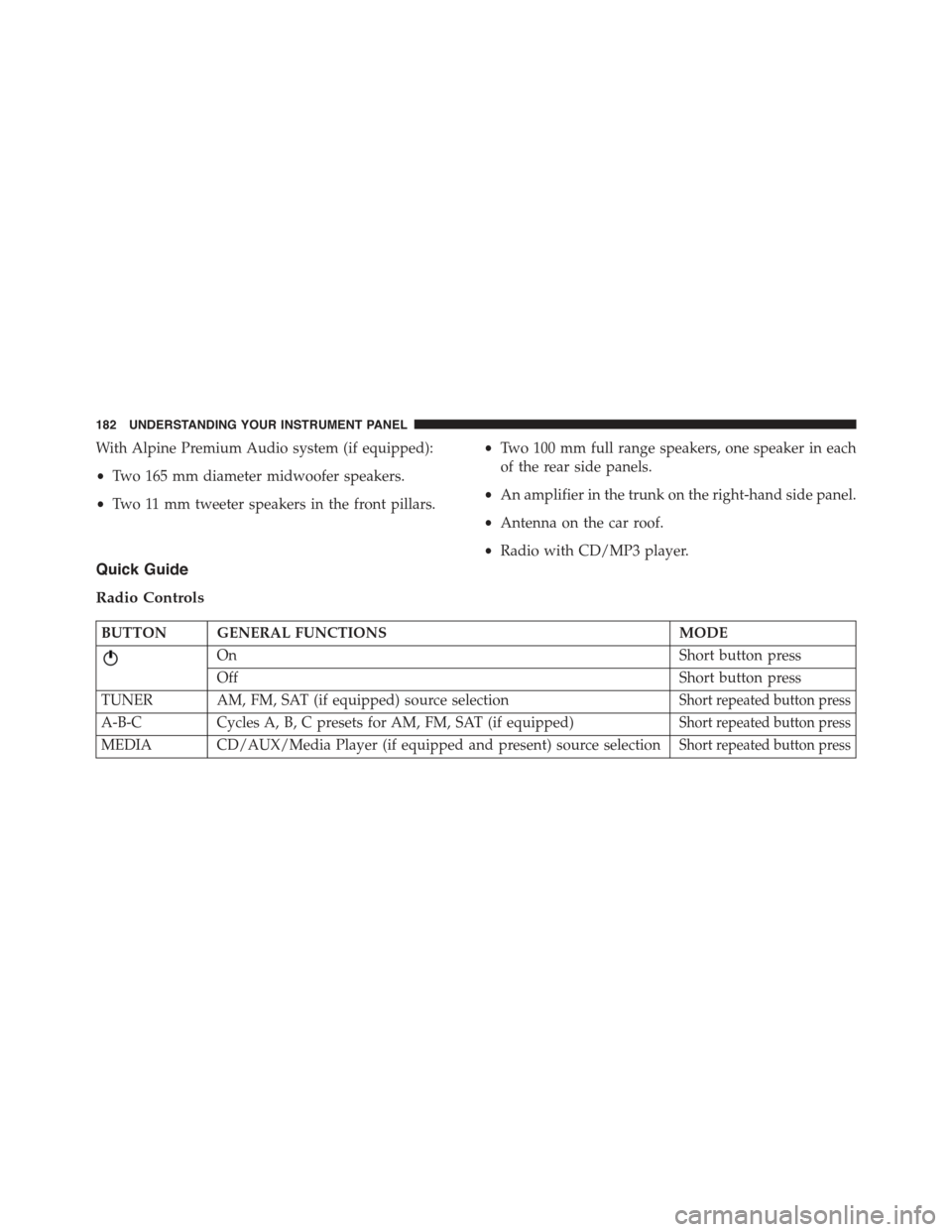

With Alpine Premium Audio system (if equipped):
•Two 165 mm diameter midwoofer speakers.
•Two 11 mm tweeter speakers in the front pillars.
•Two 100 mm full range speakers, one speaker in each
of the rear side panels.
•An amplifier in the trunk on the right-hand side panel.
•Antenna on the car roof.
•Radio with CD/MP3 player.
Quick Guide
Radio Controls
BUTTON GENERAL FUNCTIONSMODE
OnShort button press
OffShort button press
TUNER AM, FM, SAT (if equipped) source selectionShort repeated button press
A-B-CCycles A, B, C presets for AM, FM, SAT (if equipped)Short repeated button press
MEDIA CD/AUX/Media Player (if equipped and present) source selectionShort repeated button press
182 UNDERSTANDING YOUR INSTRUMENT PANEL

BUTTON GENERAL FUNCTIONSMODE
(Mute/
Pause Button)
Volume activation/deactivation (Mute/Pause) Short button press
AUDIO Audio adjustments: low tones (BASS),
high tones (TREBLE), left/right balance
(BALANCE), front/rear balance (FADER)
Menu activation: short button press
Adjustment type selection: pressor
Adjustment of values: pressor
(Informa-
tion Button)
Song, Artist, Album, Genre, Playlist, Folder
information (if available) in CD, Media Player
and Satellite (if so equipped); Toggles RBDS
information in FM
MENU Advanced functions adjustmentMenu activation: short button press
Adjustment type selection: pressor
Adjustment of values: pressor
+Vol/–Vol Volume adjustmentPress + button: volume increase
Press – button: volume decrease
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

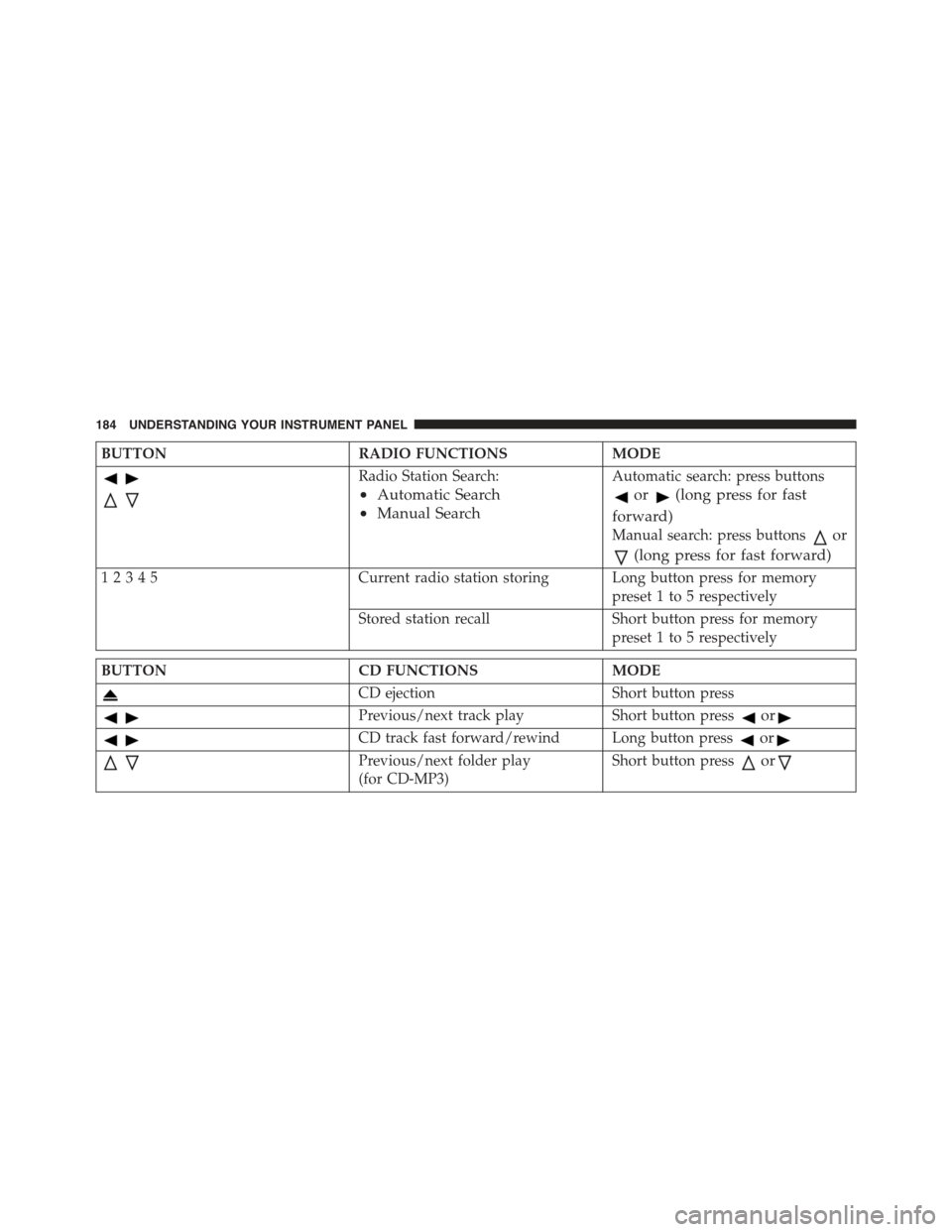

BUTTONRADIO FUNCTIONSMODE
Radio Station Search:
•Automatic Search
•Manual Search
Automatic search: press buttons
or(long press for fast
forward)
Manual search: press buttonsor
(long press for fast forward)
12345Current radio station storing Long button press for memory
preset 1 to 5 respectively
Stored station recall Short button press for memory
preset 1 to 5 respectively
BUTTONCD FUNCTIONSMODE
CD ejectionShort button press
Previous/next track playShort button pressor
CD track fast forward/rewind Long button pressor
Previous/next folder play
(for CD-MP3)
Short button pressor
184 UNDERSTANDING YOUR INSTRUMENT PANEL

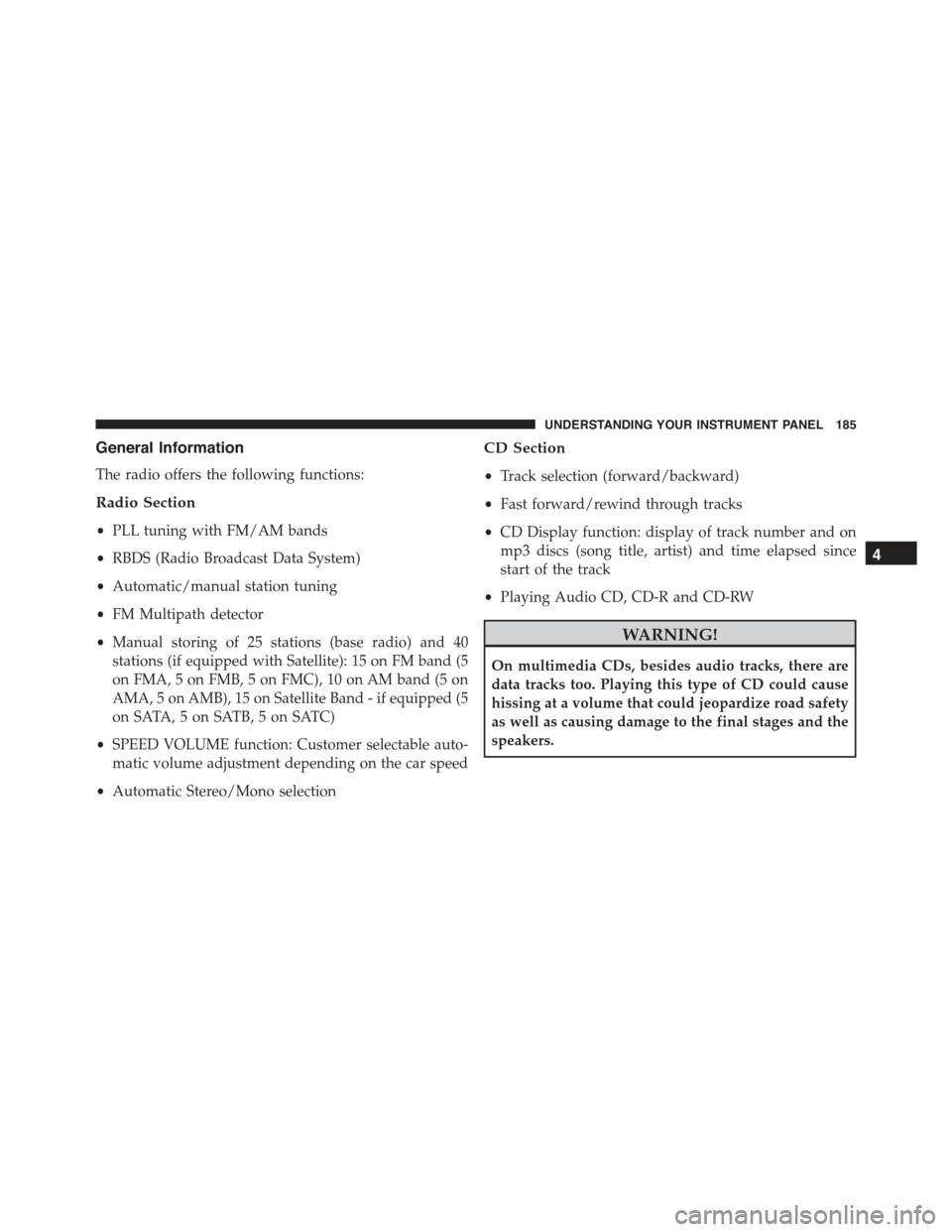

General Information
The radio offers the following functions:
Radio Section
•PLL tuning with FM/AM bands
•RBDS (Radio Broadcast Data System)
•Automatic/manual station tuning
•FM Multipath detector
•Manual storing of 25 stations (base radio) and 40
stations (if equipped with Satellite): 15 on FM band (5
on FMA, 5 on FMB, 5 on FMC), 10 on AM band (5 on
AMA, 5 on AMB), 15 on Satellite Band - if equipped (5
on SATA, 5 on SATB, 5 on SATC)
•SPEED VOLUME function: Customer selectable auto-
matic volume adjustment depending on the car speed
•Automatic Stereo/Mono selection
CD Section
•Track selection (forward/backward)
•Fast forward/rewind through tracks
•CD Display function: display of track number and on
mp3 discs (song title, artist) and time elapsed since
start of the track
•Playing Audio CD, CD-R and CD-RW
WARNING!
On multimedia CDs, besides audio tracks, there are
data tracks too. Playing this type of CD could cause
hissing at a volume that could jeopardize road safety
as well as causing damage to the final stages and the
speakers.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

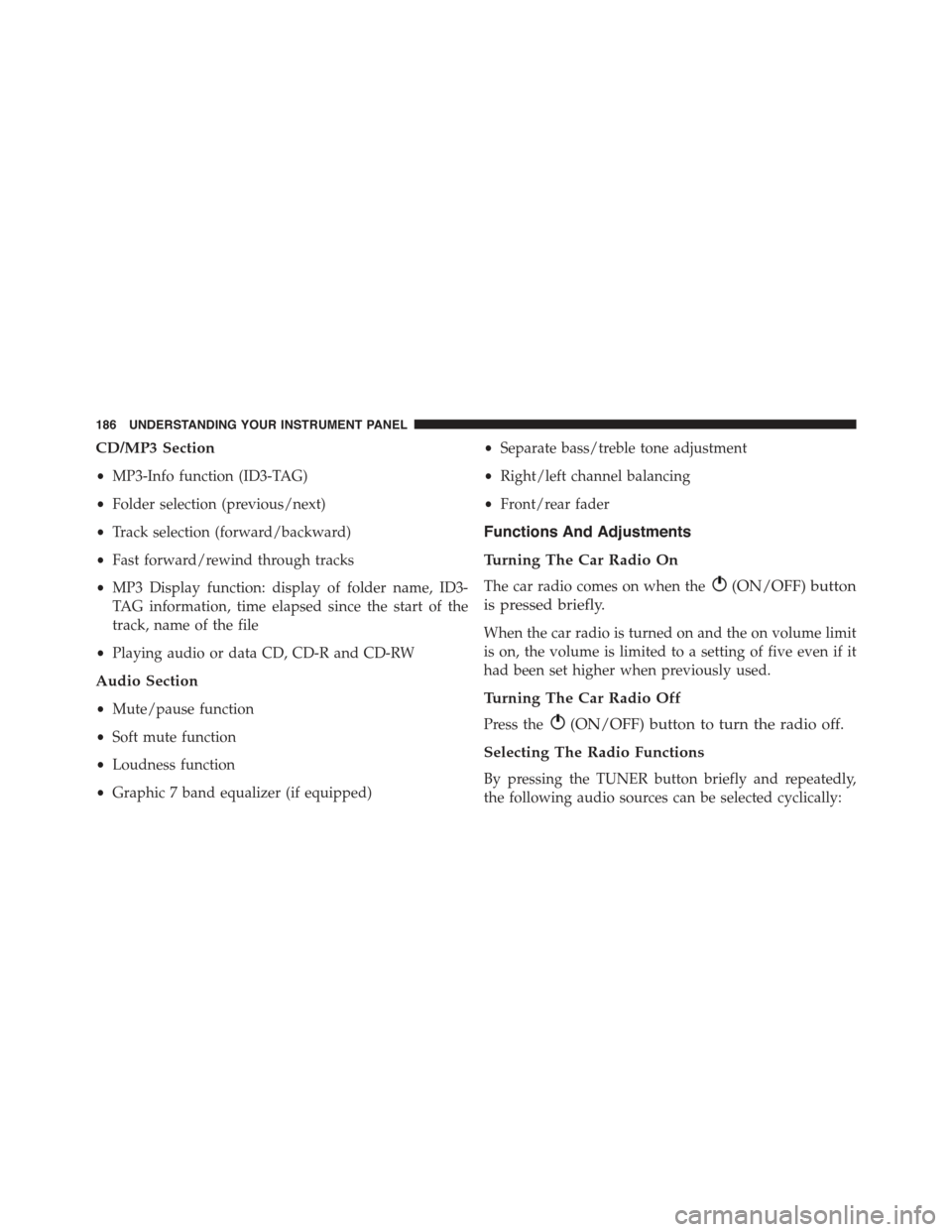

CD/MP3 Section
•MP3-Info function (ID3-TAG)
•Folder selection (previous/next)
•Track selection (forward/backward)
•Fast forward/rewind through tracks
•MP3 Display function: display of folder name, ID3-
TAG information, time elapsed since the start of the
track, name of the file
•Playing audio or data CD, CD-R and CD-RW
Audio Section
•Mute/pause function
•Soft mute function
•Loudness function
•Graphic 7 band equalizer (if equipped)
•Separate bass/treble tone adjustment
•Right/left channel balancing
•Front/rear fader
Functions And Adjustments
Turning The Car Radio On
The car radio comes on when the(ON/OFF) button
is pressed briefly.
When the car radio is turned on and the on volume limit
is on, the volume is limited to a setting of five even if it
had been set higher when previously used.
Turning The Car Radio Off
Press the(ON/OFF) button to turn the radio off.
Selecting The Radio Functions
By pressing the TUNER button briefly and repeatedly,
the following audio sources can be selected cyclically:
186 UNDERSTANDING YOUR INSTRUMENT PANEL

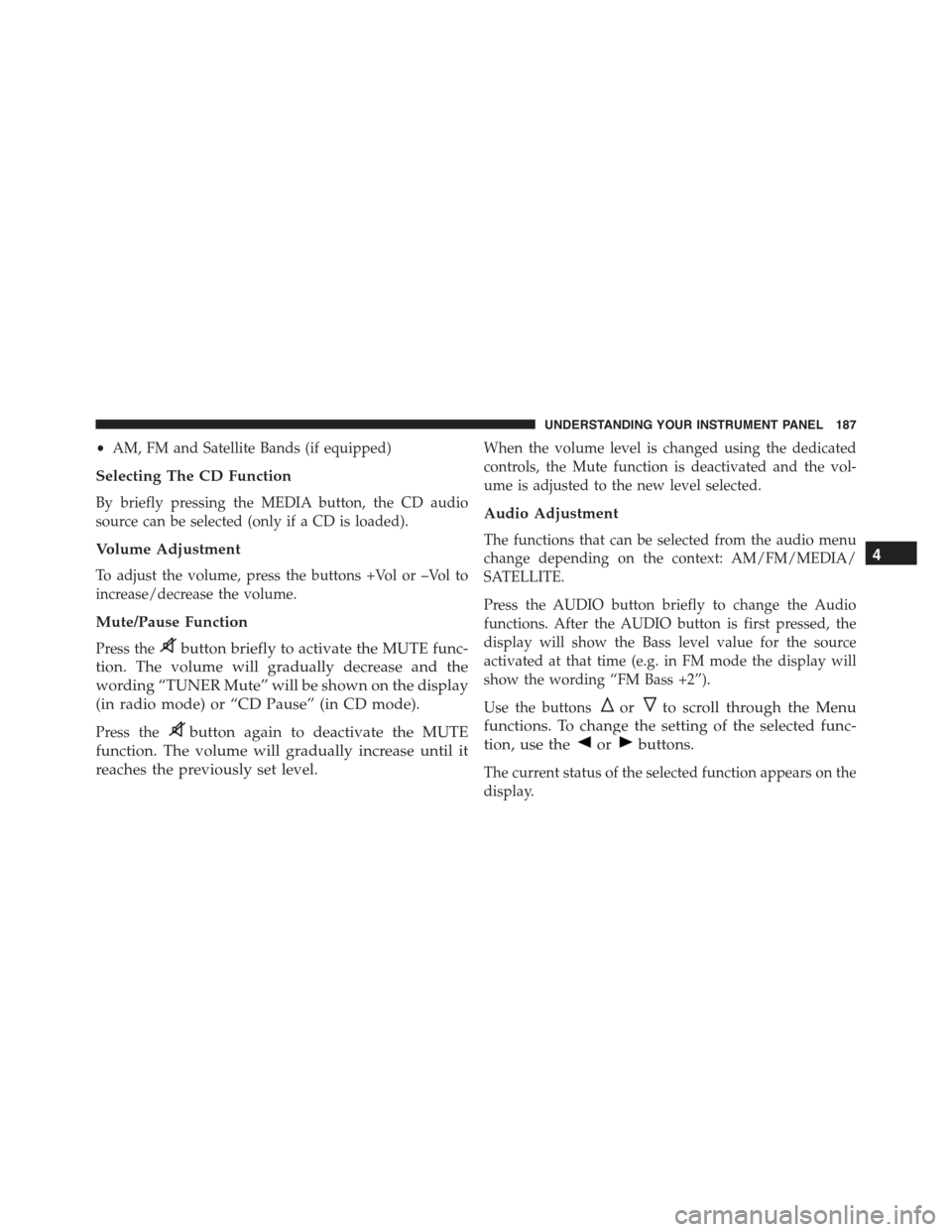

•AM, FM and Satellite Bands (if equipped)
Selecting The CD Function
By briefly pressing the MEDIA button, the CD audio
source can be selected (only if a CD is loaded).
Volume Adjustment
To adjust the volume, press the buttons +Vol or –Vol to
increase/decrease the volume.
Mute/Pause Function
Press thebutton briefly to activate the MUTE func-
tion. The volume will gradually decrease and the
wording “TUNER Mute” will be shown on the display
(in radio mode) or “CD Pause” (in CD mode).
Press thebutton again to deactivate the MUTE
function. The volume will gradually increase until it
reaches the previously set level.
When the volume level is changed using the dedicated
controls, the Mute function is deactivated and the vol-
ume is adjusted to the new level selected.
Audio Adjustment
The functions that can be selected from the audio menu
change depending on the context: AM/FM/MEDIA/
SATELLITE.
Press the AUDIO button briefly to change the Audio
functions. After the AUDIO button is first pressed, the
display will show the Bass level value for the source
activated at that time (e.g. in FM mode the display will
show the wording “FM Bass +2”).
Use the buttonsorto scroll through the Menu
functions. To change the setting of the selected func-
tion, use theorbuttons.
The current status of the selected function appears on the
display.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

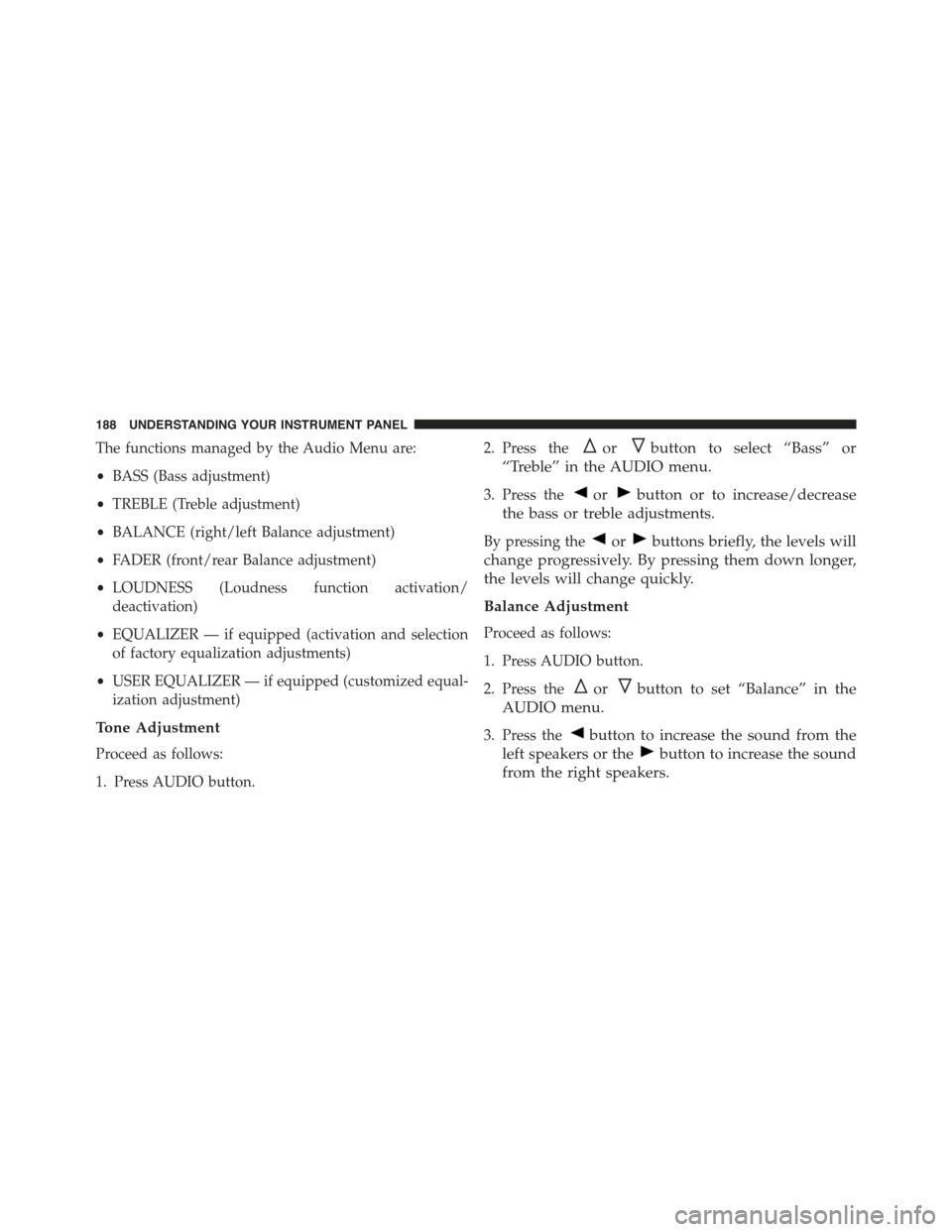

The functions managed by the Audio Menu are:
•BASS (Bass adjustment)
•TREBLE (Treble adjustment)
•BALANCE (right/left Balance adjustment)
•FADER (front/rear Balance adjustment)
•LOUDNESS (Loudness function activation/
deactivation)
•EQUALIZER — if equipped (activation and selection
of factory equalization adjustments)
•USER EQUALIZER — if equipped (customized equal-
ization adjustment)
Tone Adjustment
Proceed as follows:
1. Press AUDIO button.
2. Press theorbutton to select “Bass” or
“Treble” in the AUDIO menu.
3. Press theorbutton or to increase/decrease
the bass or treble adjustments.
By pressing theorbuttons briefly, the levels will
change progressively. By pressing them down longer,
the levels will change quickly.
Balance Adjustment
Proceed as follows:
1. Press AUDIO button.
2. Press theorbutton to set “Balance” in the
AUDIO menu.
3. Press thebutton to increase the sound from the
left speakers or thebutton to increase the sound
from the right speakers.
188 UNDERSTANDING YOUR INSTRUMENT PANEL
