FIAT 500C 2013 2.G Owners Manual

CavityMaxi
FuseMini Fuse Description
F2015 Amp
Blue
Heated Seats –
If Equipped
F2115 Amp
Blue
Fuel Pump
F2320 Amp
Yellow
Anti-Lock Brake
Valves
F247.5 Amp
Brown
Stability Control
System
F3015 Amp
Blue
Fog Lamps
F82 30 Amp
Green
Sunroof/
Convertible Top
F8410 Amp
Red
Transmission
CavityMaxi
FuseMini Fuse Description
F8515 Amp
Blue
Rear Defroster,
Heated Mirrors
F875 Amp
Ta n
Lights
F905 Amp
Ta n
Heated Mirrors
7
MAINTAINING YOUR VEHICLE 379

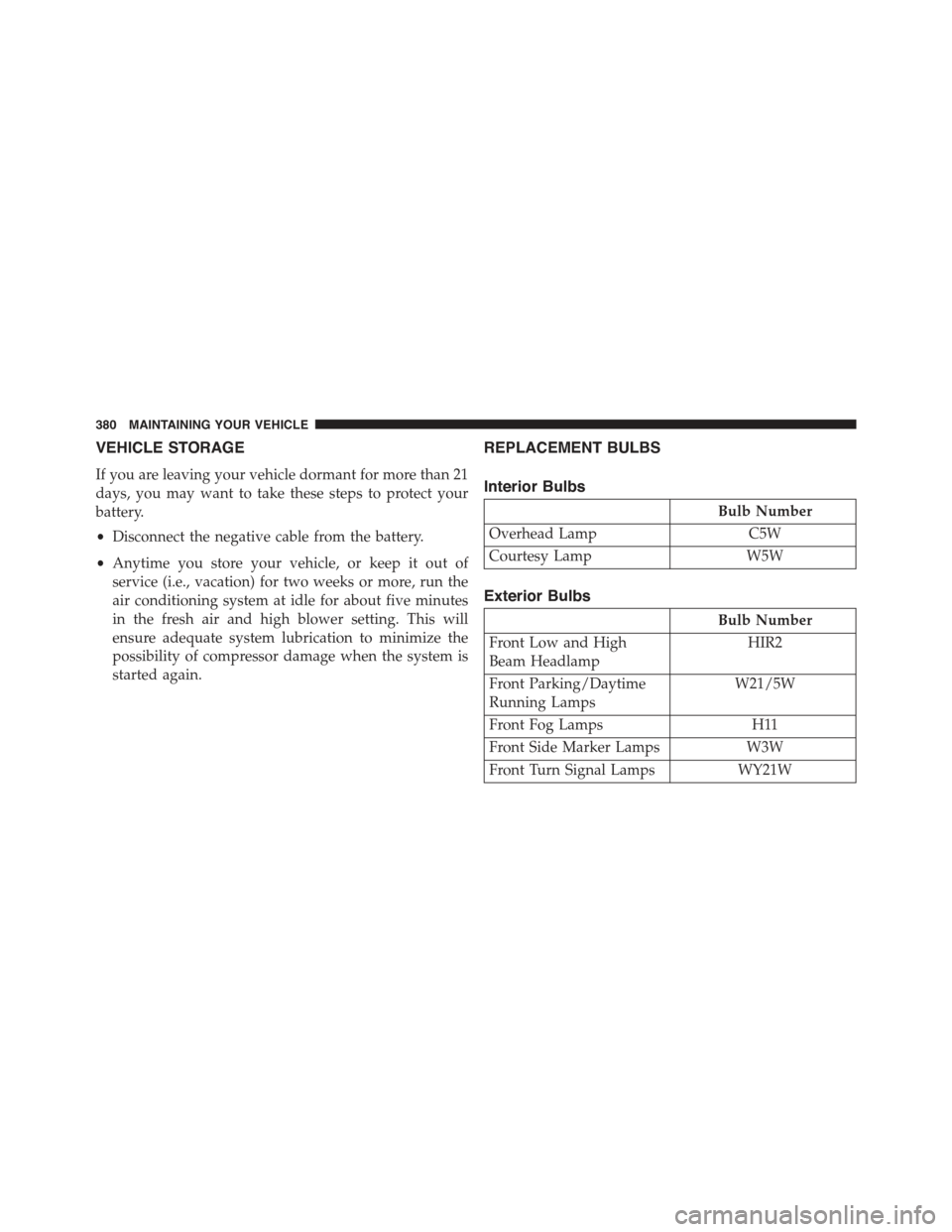

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead LampC5W
Courtesy LampW5W
Exterior Bulbs
Bulb Number
Front Low and High
Beam Headlamp
HIR2
Front Parking/Daytime
Running Lamps
W21/5W
Front Fog Lamps H11
Front Side Marker Lamps W3W
Front Turn Signal Lamps WY21W
380 MAINTAINING YOUR VEHICLE

Bulb Number
Side Direction LampsW5W
Rear Turn Signal LampsPY21W
Rear Side Marker LampsW3W
Rear Tail and Stop
Lamps
PY21W/5W
Rear Backup LampsW16W
Center High Mounted
Stop Lamp
W5W
License Plate Lamps LED (See Authorized
studio)
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized studio.
If a bulb needs to be replaced, visit your authorized
studio or refer to the applicable Service Manual.

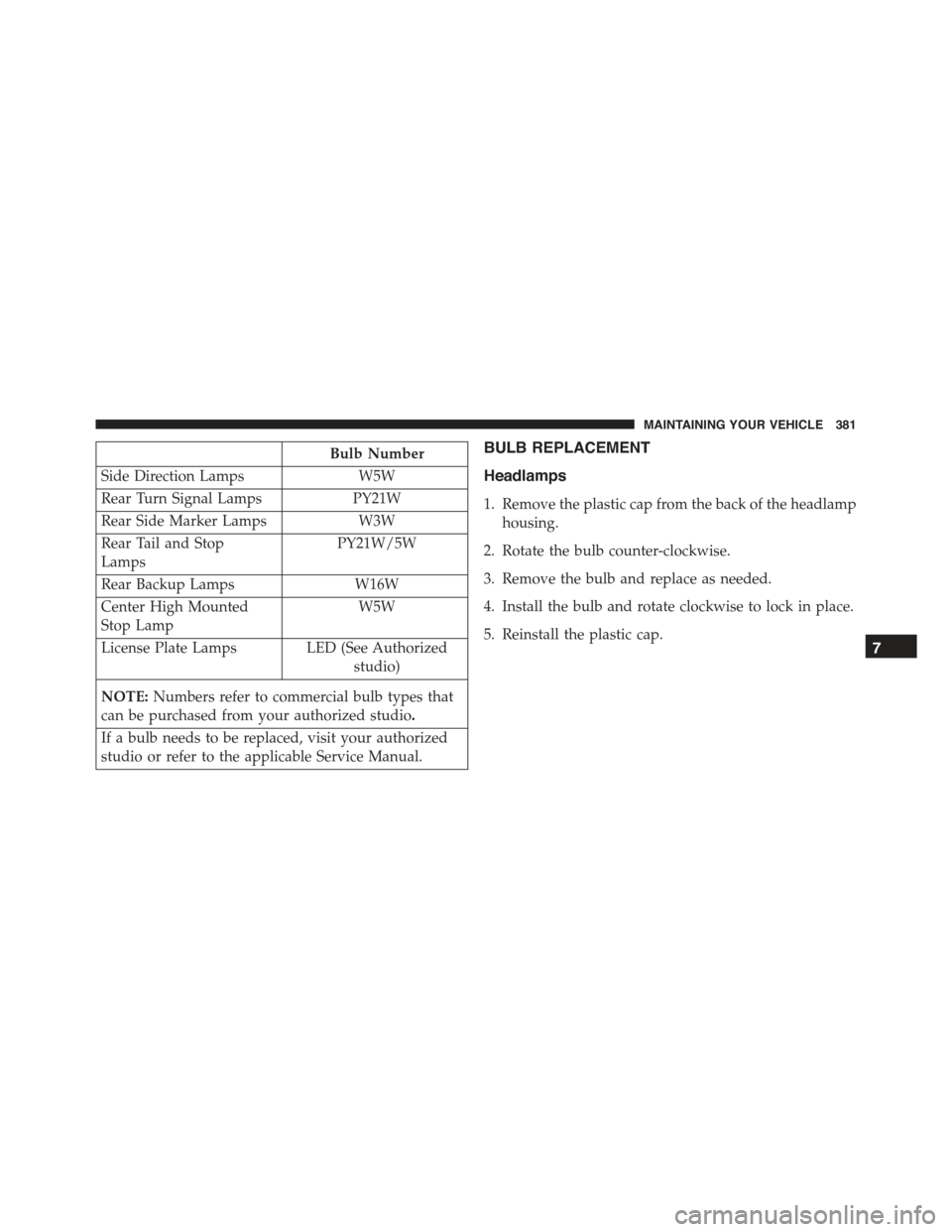

BULB REPLACEMENT
Headlamps
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.7
MAINTAINING YOUR VEHICLE 381

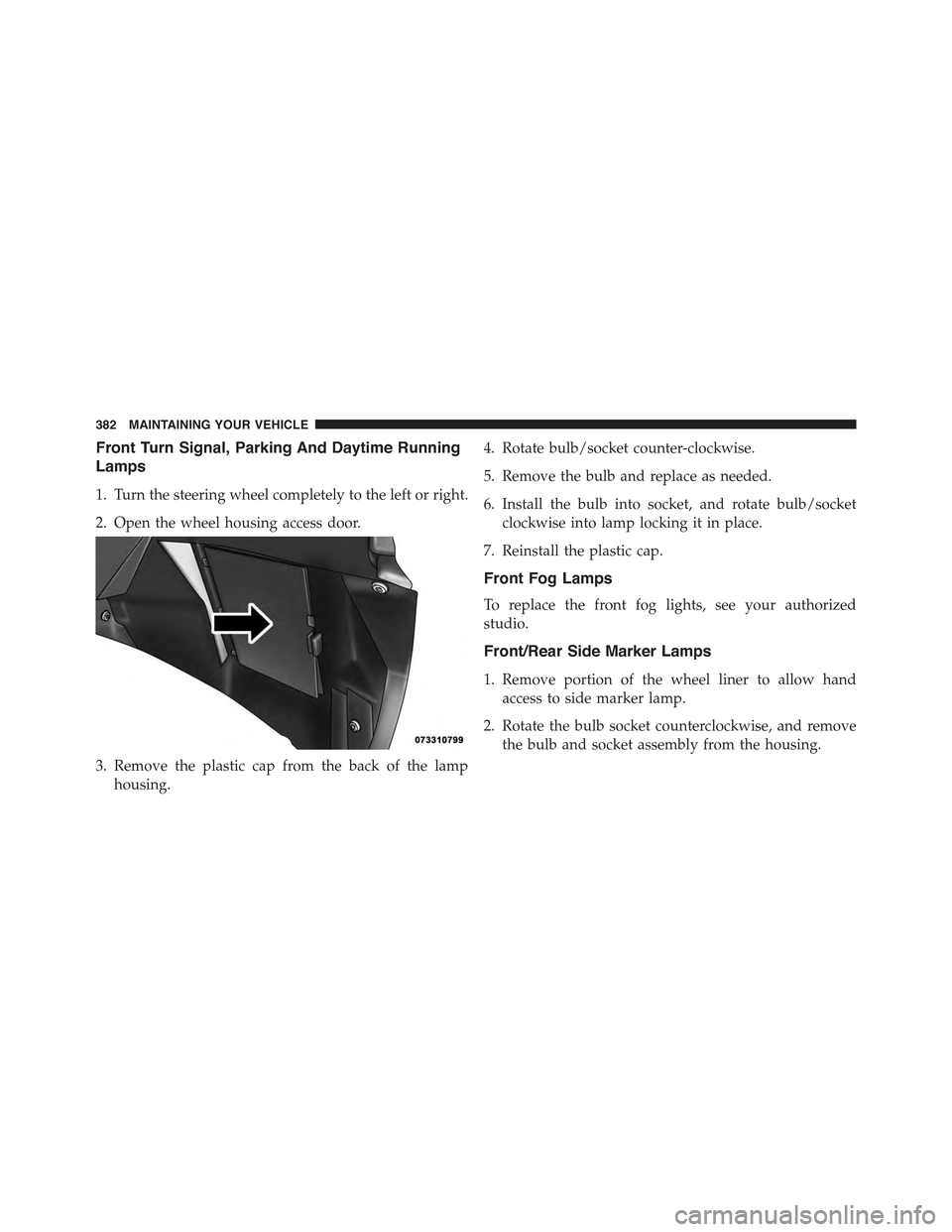

Front Turn Signal, Parking And Daytime Running
Lamps
1. Turn the steering wheel completely to the left or right.
2. Open the wheel housing access door.
3. Remove the plastic cap from the back of the lamp
housing.
4. Rotate bulb/socket counter-clockwise.
5. Remove the bulb and replace as needed.
6. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.
7. Reinstall the plastic cap.
Front Fog Lamps
To replace the front fog lights, see your authorized
studio.
Front/Rear Side Marker Lamps
1. Remove portion of the wheel liner to allow hand
access to side marker lamp.
2. Rotate the bulb socket counterclockwise, and remove
the bulb and socket assembly from the housing.
382 MAINTAINING YOUR VEHICLE

3. Pull the bulb from the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the wheel liner.

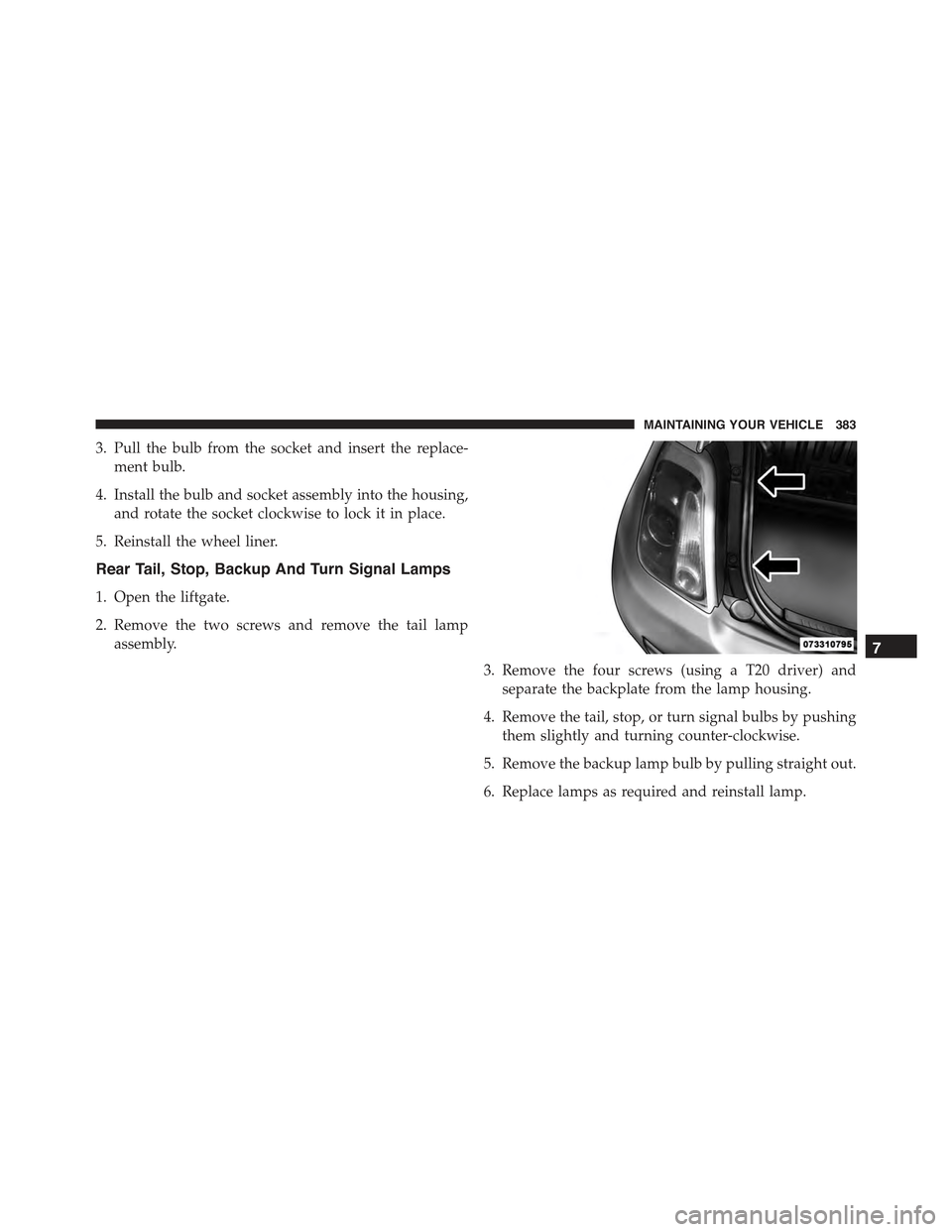

Rear Tail, Stop, Backup And Turn Signal Lamps
1. Open the liftgate.
2. Remove the two screws and remove the tail lamp
assembly.
3. Remove the four screws (using a T20 driver) and
separate the backplate from the lamp housing.
4. Remove the tail, stop, or turn signal bulbs by pushing
them slightly and turning counter-clockwise.
5. Remove the backup lamp bulb by pulling straight out.
6. Replace lamps as required and reinstall lamp.
7
MAINTAINING YOUR VEHICLE 383

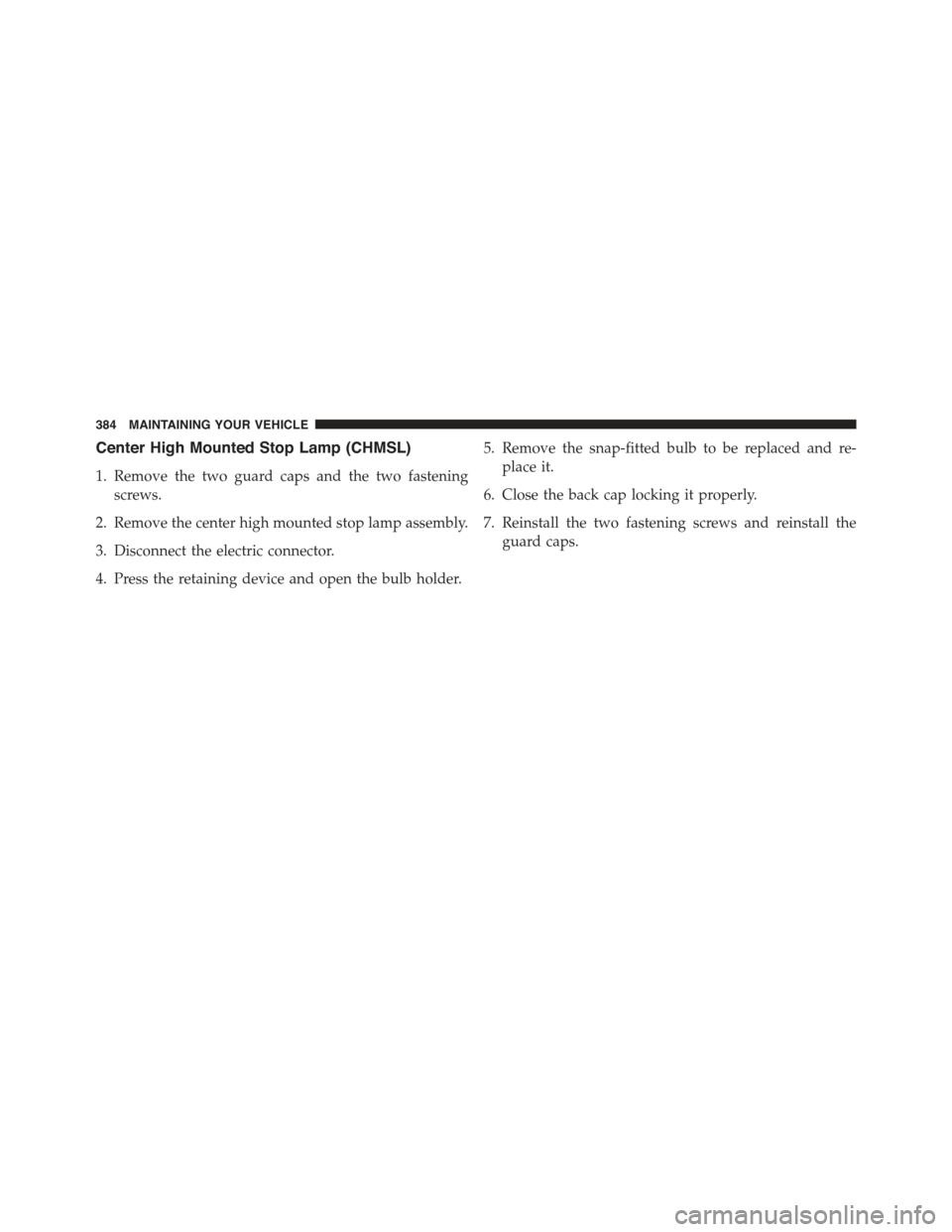

Center High Mounted Stop Lamp (CHMSL)
1. Remove the two guard caps and the two fastening
screws.
2. Remove the center high mounted stop lamp assembly.
3. Disconnect the electric connector.
4. Press the retaining device and open the bulb holder.
5. Remove the snap-fitted bulb to be replaced and re-
place it.
6. Close the back cap locking it properly.
7. Reinstall the two fastening screws and reinstall the
guard caps.
384 MAINTAINING YOUR VEHICLE

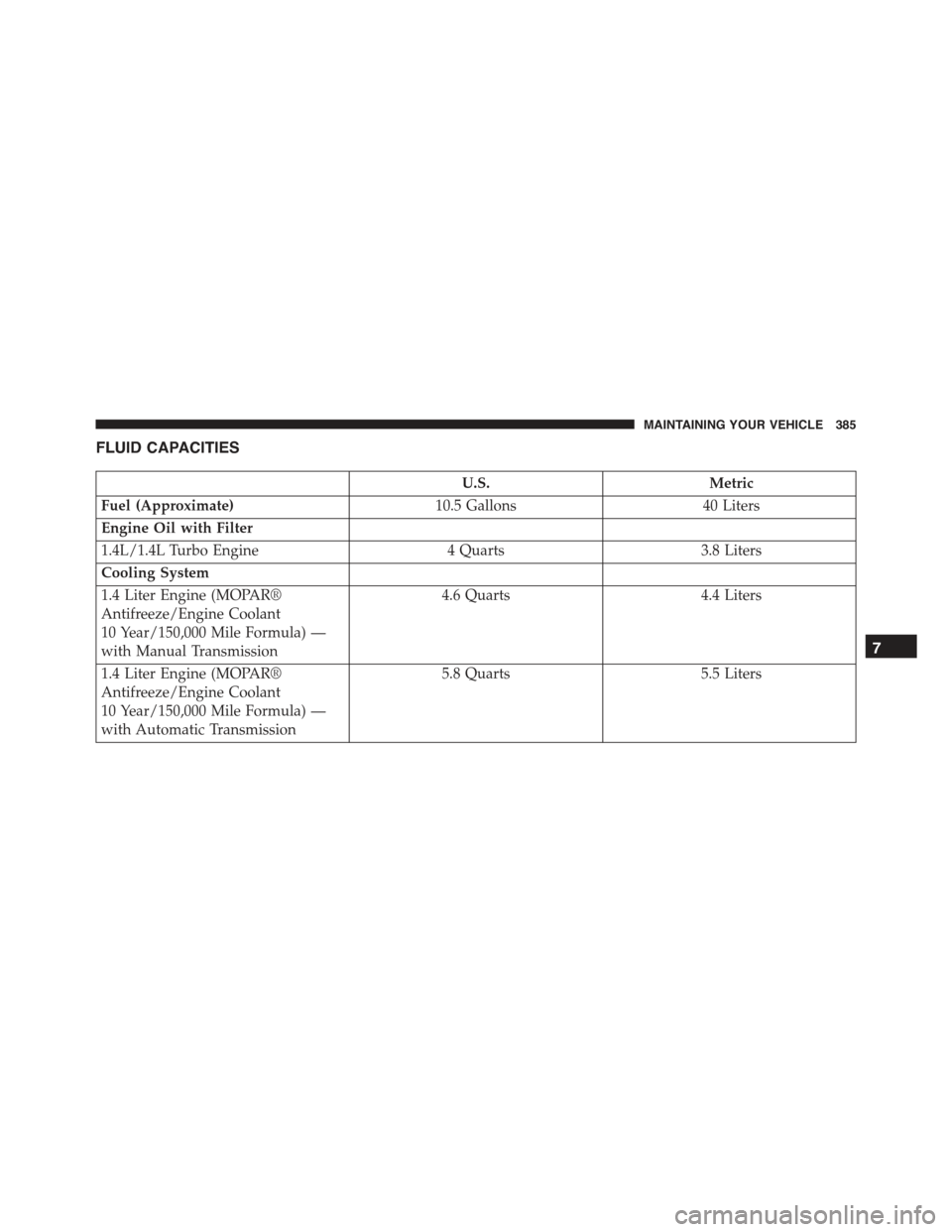

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)10.5 Gallons40 Liters
Engine Oil with Filter
1.4L/1.4L Turbo Engine4 Quarts3.8 Liters
Cooling System
1.4 Liter Engine (MOPAR®
Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) —
with Manual Transmission
4.6 Quarts4.4 Liters
1.4 Liter Engine (MOPAR®
Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) —
with Automatic Transmission
5.8 Quarts5.5 Liters
7
MAINTAINING YOUR VEHICLE 385

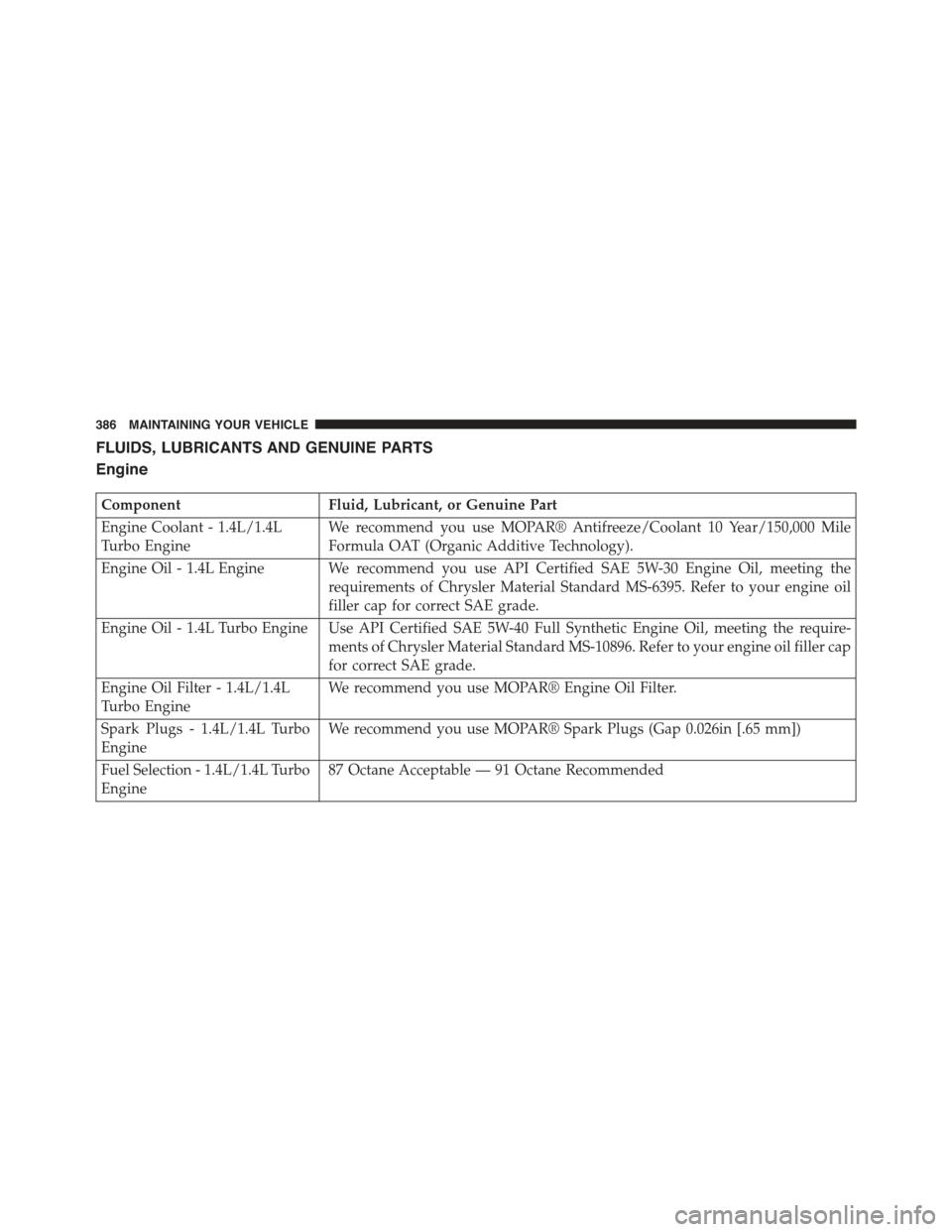

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant - 1.4L/1.4L
Turbo Engine
We recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology).
Engine Oil - 1.4L Engine We recommend you use API Certified SAE 5W-30 Engine Oil, meeting the
requirements of Chrysler Material Standard MS-6395. Refer to your engine oil
filler cap for correct SAE grade.
Engine Oil - 1.4L Turbo Engine Use API Certified SAE 5W-40 Full Synthetic Engine Oil, meeting the require-
ments of Chrysler Material Standard MS-10896. Refer to your engine oil filler cap
for correct SAE grade.
Engine Oil Filter - 1.4L/1.4L
Turbo Engine
We recommend you use MOPAR® Engine Oil Filter.
Spark Plugs - 1.4L/1.4L Turbo
Engine
We recommend you use MOPAR® Spark Plugs (Gap 0.026in [.65 mm])
Fuel Selection - 1.4L/1.4L Turbo
Engine
87 Octane Acceptable — 91 Octane Recommended

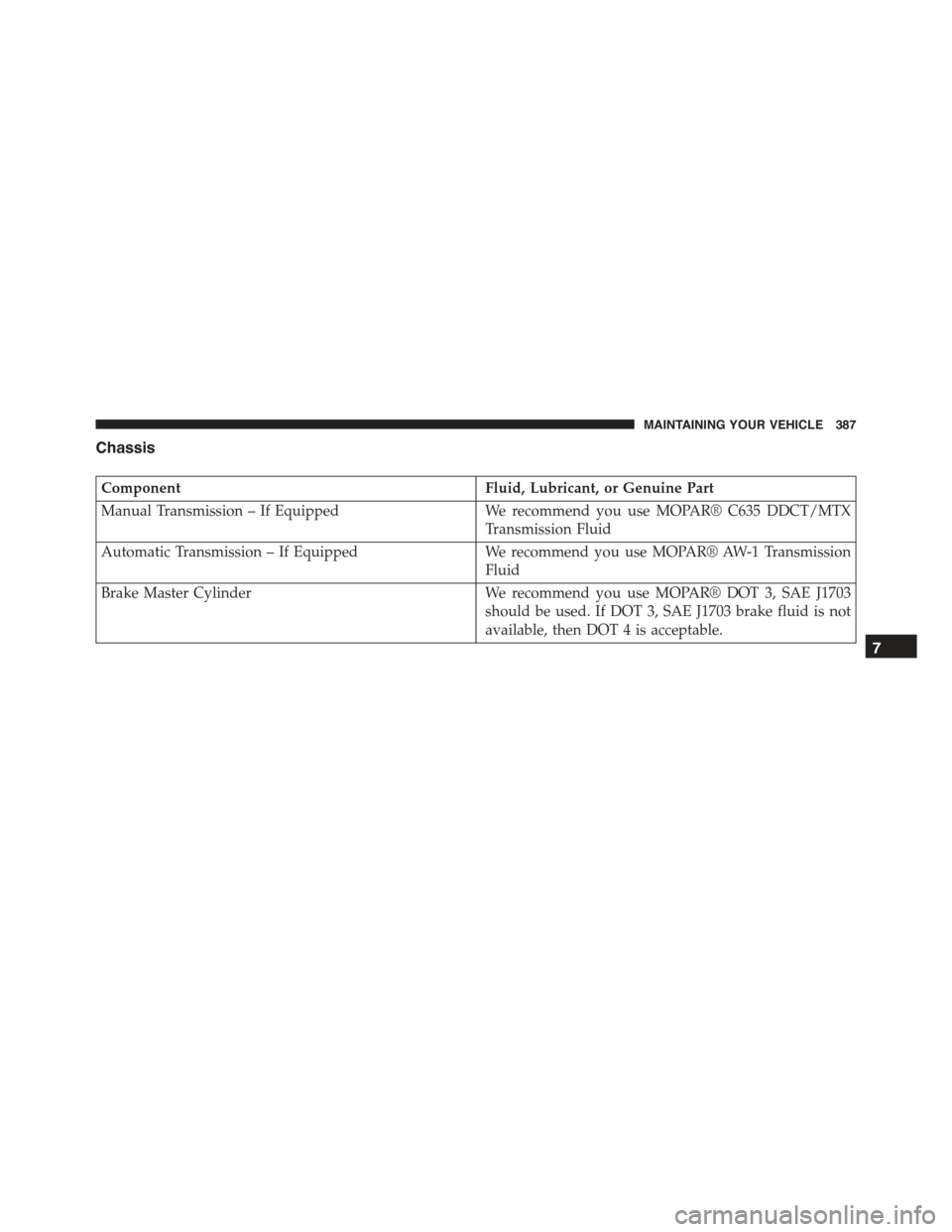

386 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If EquippedWe recommend you use MOPAR® C635 DDCT/MTX
Transmission Fluid
Automatic Transmission – If EquippedWe recommend you use MOPAR® AW-1 Transmission
Fluid
Brake Master CylinderWe recommend you use MOPAR® DOT 3, SAE J1703
should be used. If DOT 3, SAE J1703 brake fluid is not
available, then DOT 4 is acceptable.
7
MAINTAINING YOUR VEHICLE 387
