Page 271 of 438

FIAT 500C 2015 2.G Owners Manual WARNING!(Continued)
•Unequal tire pressures can cause steering prob-
lems. You could lose control of your vehicle.
• Unequal tire pressures from one side of the vehicle
to the other can cause the

Page 272 of 438

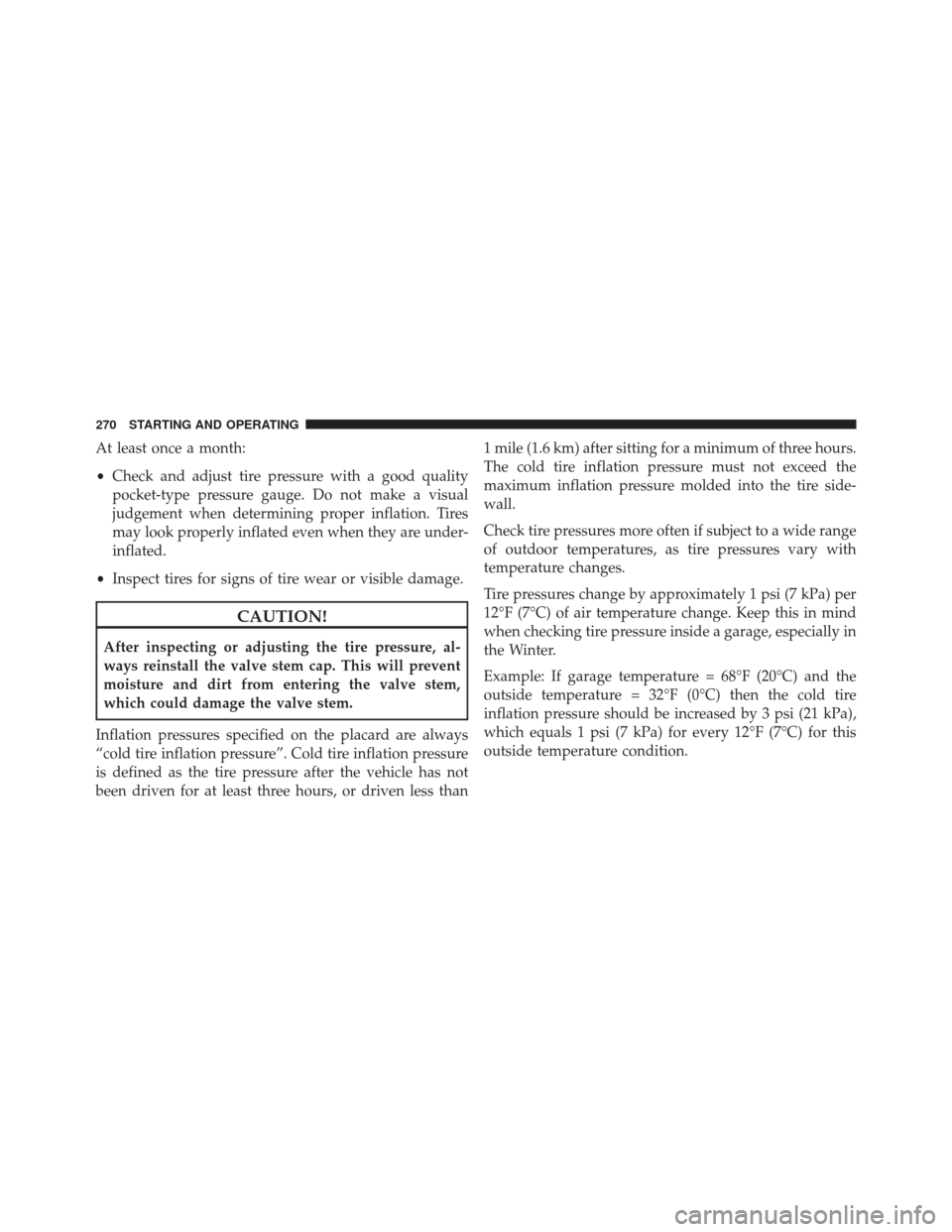

FIAT 500C 2015 2.G Owners Manual At least once a month:
•Check and adjust tire pressure with a good quality
pocket-type pressure gauge. Do not make a visual
judgement when determining proper inflation. Tires
may look properly infla

Page 273 of 438

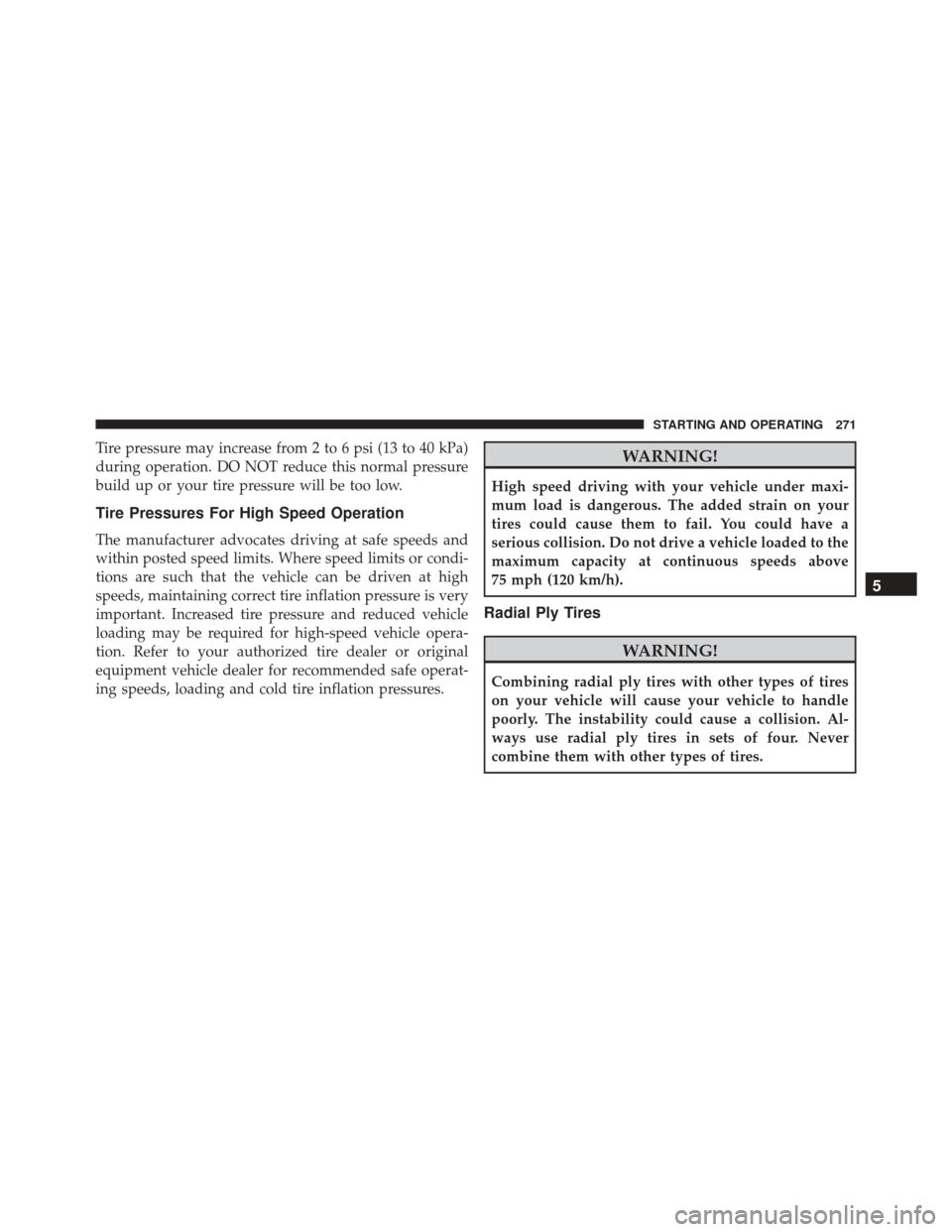

FIAT 500C 2015 2.G Owners Manual Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
during operation. DO NOT reduce this normal pressure
build up or your tire pressure will be too low.
Tire Pressures For High Speed Operation
T

Page 274 of 438

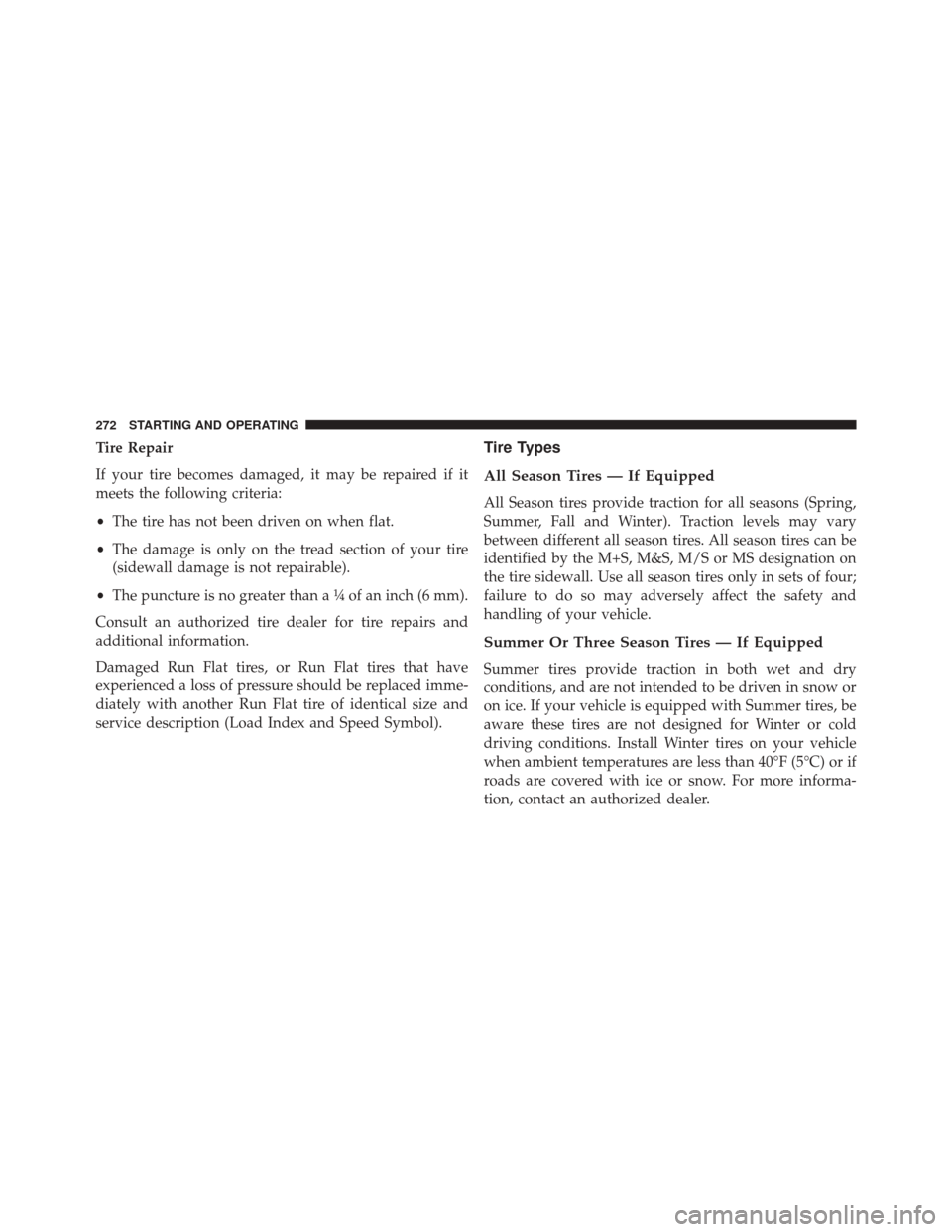

FIAT 500C 2015 2.G Owners Manual Tire Repair
If your tire becomes damaged, it may be repaired if it
meets the following criteria:
•The tire has not been driven on when flat.
• The damage is only on the tread section of your tire

Page 275 of 438

FIAT 500C 2015 2.G Owners Manual Summer tires do not contain the all season designation or
mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and ha

Page 276 of 438

FIAT 500C 2015 2.G Owners Manual While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
poorer than that of non-studded tires. Some states pro-
hibit studded tires; therefore, local

Page 277 of 438

FIAT 500C 2015 2.G Owners Manual equipment tire and wheel found on the front or rear axle
of your vehicle. This spare tire may be used in the tire
rotation for your vehicle. If your vehicle has this option,
refer to an authorized tir

Page 278 of 438

FIAT 500C 2015 2.G Owners Manual Full Size Spare — If Equipped
The full size spare is for temporary emergency use only.
This tire may look like the originally equipped tire on the
front or rear axle of your vehicle, but it is not.

Page 279 of 438

FIAT 500C 2015 2.G Owners Manual Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or
for longer than 30 seconds continuously without stop-
ping.
Refer to “Fr

Page 280 of 438

FIAT 500C 2015 2.G Owners Manual These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes a 1/16 of an inch (2 mm). When the tread is
worn to the tread wear indicators,
