phone FIAT 500C 2015 2.G Owners Manual
Page 29 of 438
Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:
1. Children 12 years old and under should always ridebuckled up in a vehicle with a rear seat.
2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat,
move the seat as far back as possible and use the
proper child restraint. (Refer to “Child Restraints”)
3. Children that are not big enough to wear the vehicle seat belt properly (Refer to Child Restraints) should
be secured in a vehicle with a rear seat in child
restraints or belt-positioning booster seats. Older chil-
dren who do not use child restraints or belt-
positioning booster seats should ride properly buckled
up in a vehicle with a rear seat.
4. Never allow children to slide the shoulder belt behind them or under their arm. 5. You should read the instructions provided with your
child restraint to make sure that you are using it
6. All occupants should always wear their lap and shoulder belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the Advanced Front
Air Bags room to inflate.
8. Do not lean against the door or window. If your vehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between occupants and the door and occupants could
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under If You Need Assistance.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
Page 92 of 438
BLUE&ME™ HANDS-FREE COMMUNICATION
Blue&Me™ Hands-Free Communication Overview
— If Equipped
Windows Mobile™-based FIAT BLUE&ME™ is a per-
sonal telematic system enabling you to use communica-
tion and entertainment applications expressly designed
for use in the car.
The BLUE&ME™ system installed on your car is
equipped with a hands-free kit, message reader and
media player, and it is preset for future installation of
The BLUE&ME™ system, fully integrated with voice
commands, buttons on the steering wheel and multifunc-
tion display messages, gives you the possibility of inter-
acting with your Bluetooth® wireless technology mobile
phone (even if you keep it in your pocket or bag) without
having to take your eyes off the road or remove your
hands from the steering wheel. To use voice commandsyou are not required to train the voice recognition system
to recognize your voice. This implies that the system is
nearly equally performing with different persons, i.e.: the
voice recognition system is of the “speaker independent”
With this system you can also play your favorite music
stored on USB device and select tracks and playback
modes with both voice commands or buttons on the
This device complies with Part 15 of the FCC rules
subject to the following two conditions:
This device may not cause harmful interference.
• This device must accept all interference received, in-
cluding interference that may cause undesired opera-
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 93 of 438
The Hands-Free Kit
The basic characteristic of this hands-free kit is voice
recognition with Bluetooth® wireless technology. With
this system you can make and receive calls safely and
securely by using either voice commands or buttons on
the steering wheel. This can be done under any driving
condition without ever having to take your eyes off the
road or remove your hands from the steering wheel, as
required by current laws.
Bluetooth® wireless technology enables wireless connec-
tion between your mobile phone and the hands-free kit
installed on your car.
To use the hands-free kit, you need a Bluetooth® wireless
technology enabled mobile phone. This hands-free kit
gives you the possibility of interacting vocally with your
mobile phone while driving, even if your mobile device
does not feature Voice Recognition. You can also interact
with your mobile phone manually and visually using thesteering wheel controls and the instrument panel multi-
function display. Please refer to the Fiat Blue & Me Radio
Supplement for further information.
Steering Wheel Hands Free Buttons
1 — Mute/ESC
3 — Phone Hang Up
2 — Phone/Main 4 — Voice Recognition (VR)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

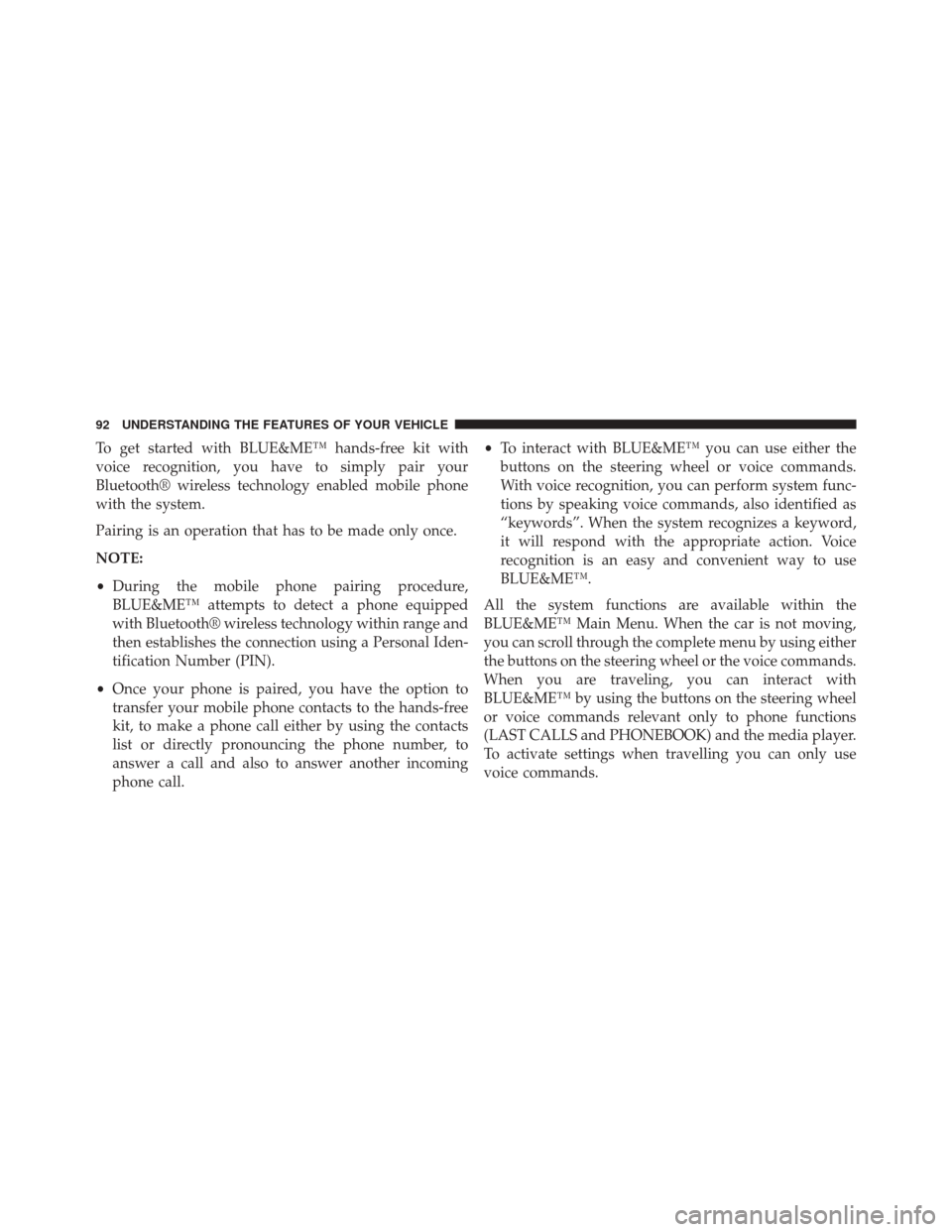

Page 94 of 438
To get started with BLUE&ME™ hands-free kit with
voice recognition, you have to simply pair your
Bluetooth® wireless technology enabled mobile phone
with the system.
Pairing is an operation that has to be made only once.
•During the mobile phone pairing procedure,
BLUE&ME™ attempts to detect a phone equipped
with Bluetooth® wireless technology within range and
then establishes the connection using a Personal Iden-
tification Number (PIN).
• Once your phone is paired, you have the option to
transfer your mobile phone contacts to the hands-free
kit, to make a phone call either by using the contacts
list or directly pronouncing the phone number, to
answer a call and also to answer another incoming
phone call. •
To interact with BLUE&ME™ you can use either the
buttons on the steering wheel or voice commands.
With voice recognition, you can perform system func-
tions by speaking voice commands, also identified as
“keywords”. When the system recognizes a keyword,
it will respond with the appropriate action. Voice
recognition is an easy and convenient way to use
All the system functions are available within the
BLUE&ME™ Main Menu. When the car is not moving,
you can scroll through the complete menu by using either
the buttons on the steering wheel or the voice commands.
When you are traveling, you can interact with
BLUE&ME™ by using the buttons on the steering wheel
or voice commands relevant only to phone functions
(LAST CALLS and PHONEBOOK) and the media player.
To activate settings when travelling you can only use
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

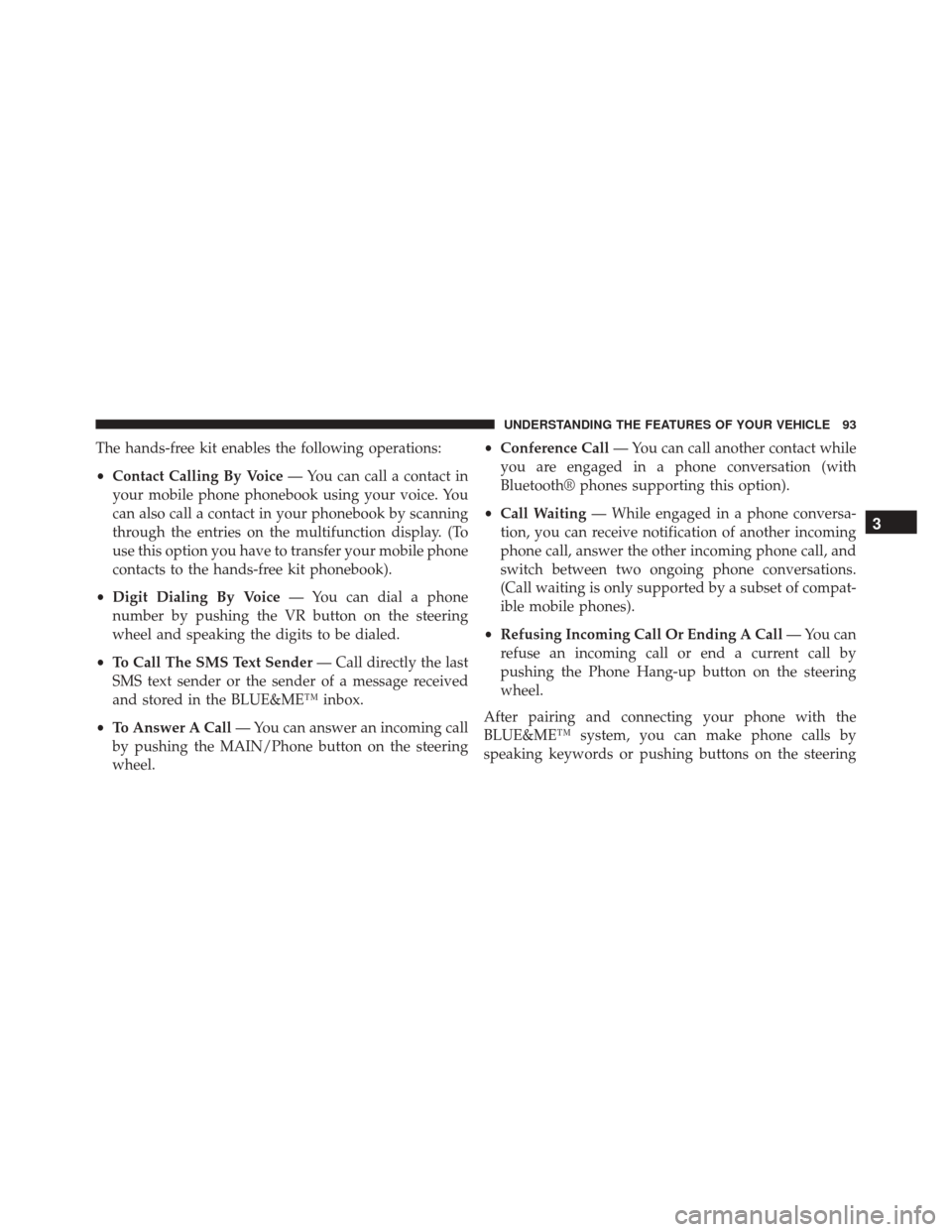

Page 95 of 438
The hands-free kit enables the following operations:
•Contact Calling By Voice — You can call a contact in
your mobile phone phonebook using your voice. You
can also call a contact in your phonebook by scanning
through the entries on the multifunction display. (To
use this option you have to transfer your mobile phone
contacts to the hands-free kit phonebook).
• Digit Dialing By Voice — You can dial a phone
number by pushing the VR button on the steering
wheel and speaking the digits to be dialed.
• To Call The SMS Text Sender — Call directly the last
SMS text sender or the sender of a message received
and stored in the BLUE&ME™ inbox.
• To Answer A Call — You can answer an incoming call
by pushing the MAIN/Phone button on the steering
Conference Call — You can call another contact while
you are engaged in a phone conversation (with
Bluetooth® phones supporting this option).
• Call Waiting — While engaged in a phone conversa-
tion, you can receive notification of another incoming
phone call, answer the other incoming phone call, and
switch between two ongoing phone conversations.
(Call waiting is only supported by a subset of compat-
ible mobile phones).
• Refusing Incoming Call Or Ending A Call — You can
refuse an incoming call or end a current call by
pushing the Phone Hang-up button on the steering
After pairing and connecting your phone with the
BLUE&ME™ system, you can make phone calls by
speaking keywords or pushing buttons on the steering
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

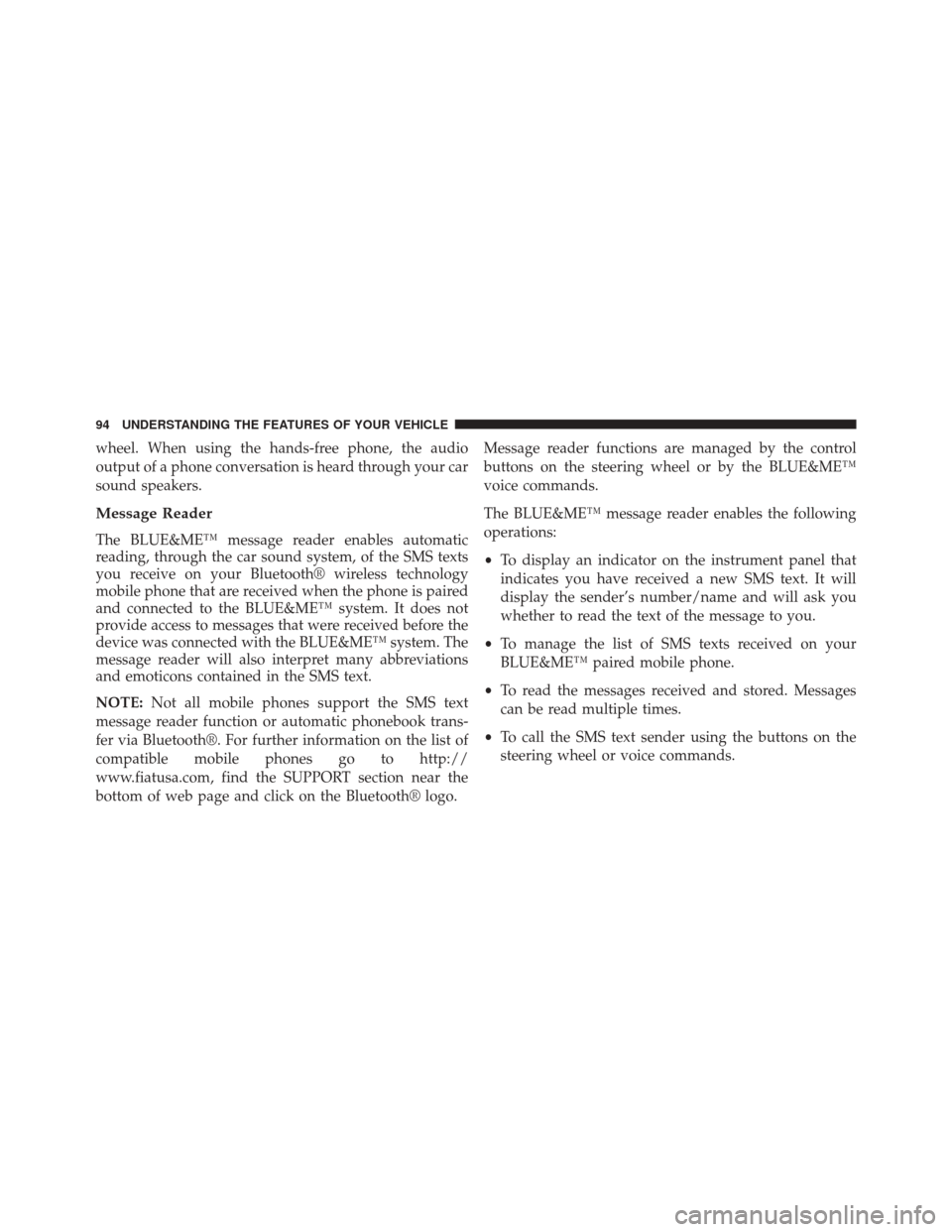

Page 96 of 438
wheel. When using the hands-free phone, the audio
output of a phone conversation is heard through your car
The BLUE&ME™ message reader enables automatic
reading, through the car sound system, of the SMS texts
you receive on your Bluetooth® wireless technology
mobile phone that are received when the phone is paired
and connected to the BLUE&ME™ system. It does not
provide access to messages that were received before the
device was connected with the BLUE&ME™ system. The
message reader will also interpret many abbreviations
and emoticons contained in the SMS text.
NOTE:Not all mobile phones support the SMS text
message reader function or automatic phonebook trans-
fer via Bluetooth®. For further information on the list of
compatible mobile phones go to http://
www.fiatusa.com, find the SUPPORT section near the
bottom of web page and click on the Bluetooth® logo. Message reader functions are managed by the control
buttons on the steering wheel or by the BLUE&ME™
The BLUE&ME™ message reader enables the following
To display an indicator on the instrument panel that
indicates you have received a new SMS text. It will
display the sender’s number/name and will ask you
whether to read the text of the message to you.
• To manage the list of SMS texts received on your
BLUE&ME™ paired mobile phone.
• To read the messages received and stored. Messages
can be read multiple times.
• To call the SMS text sender using the buttons on the
steering wheel or voice commands.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 130 of 438
In case of electrical failure the sunroof can be operated
with the hex wrench that is located in the glove box.
There is a plug located in the rear of the sunroof opening
at the center of the vehicle. Removing the plug reveals a
hex opening in the motor assembly of the sunroof. Insert
the hex wrench and turn, moving the sunroof to the
Sun Shade — If Equipped
For vehicles equipped with either a power sunroof or a
fixed glass roof, there is a sun shade that can be open or
closed. To open the sun shade push the tab and move the
shade to a full open position.
ELECTRICAL POWER OUTLETS
There is a standard 12 Volt (13 Amp) power outlet,
located in the floor console, for added convenience. This
power outlet can power mobile phones, electronics and
other low power devices.
Manual Sun Shade
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 132 of 438
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
• If this outlet is mishandled, it may cause an electric
shock and failure.
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
Power Outlet Fuse Location Underhood
F15 Fuse 15 A Blue Cigar Lighter Front Console 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

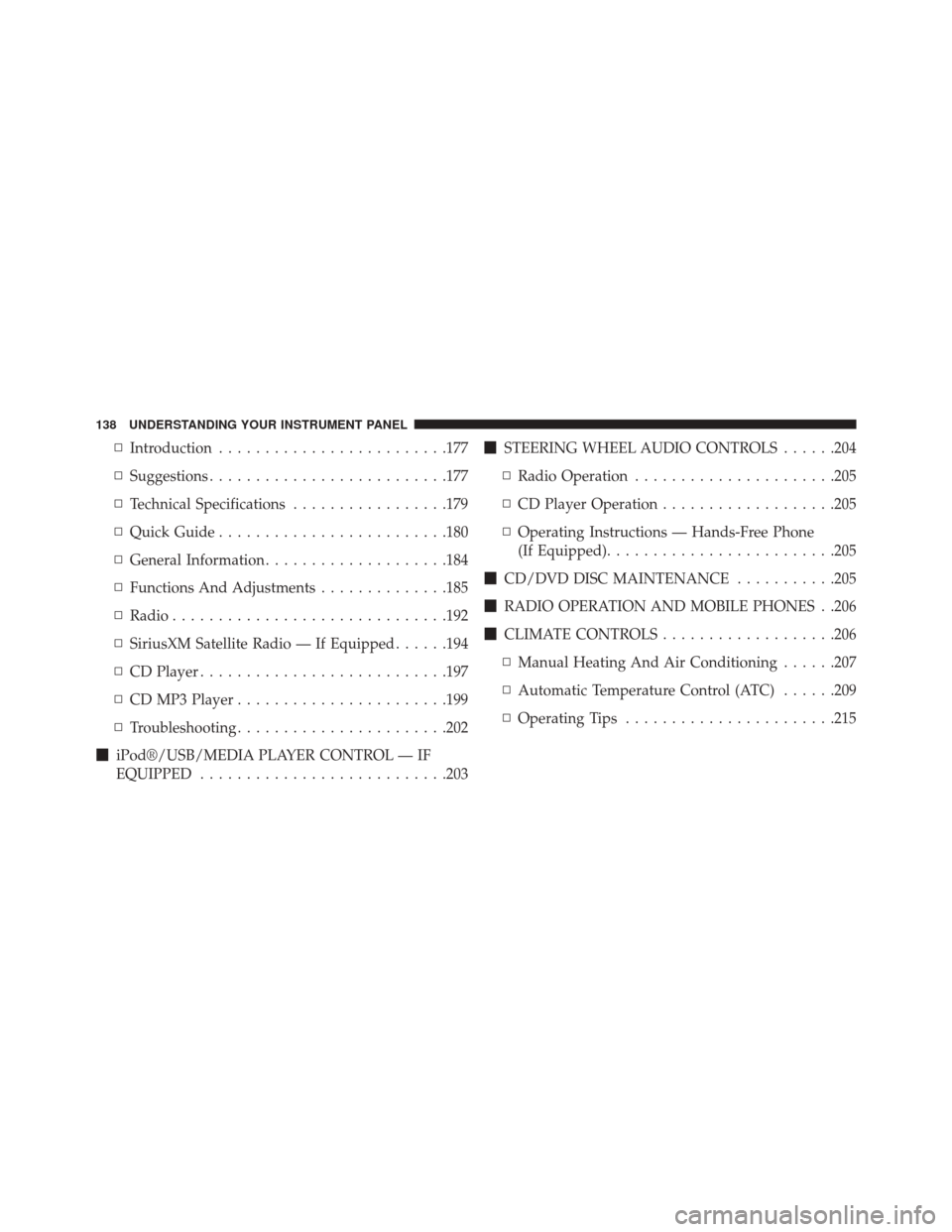

Page 140 of 438
▫Introduction ........................ .177
▫ Suggestions ......................... .177
▫ Technical Specifications .................179
▫ Quick Guide ........................ .180
▫ General Information ....................184
▫ Functions And Adjustments ..............185
▫ Radio ............................. .192
▫ SiriusXM Satellite Radio — If Equipped ......194
▫ CD Player .......................... .197
▫ CD MP3 Player ...................... .199
▫ Troubleshooting ...................... .202
iPod®/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED .......................... .203
STEERING WHEEL AUDIO CONTROLS ......204
▫ Radio Operation ..................... .205
▫ CD Player Operation ...................205
▫ Operating Instructions — Hands-Free Phone
(If Equipped) ........................ .205
CD/DVD DISC MAINTENANCE ...........205
RADIO OPERATION AND MOBILE PHONES . .206
CLIMATE CONTROLS ...................206
▫ Manual Heating And Air Conditioning ......207
▫ Automatic Temperature Control (ATC) ......209
▫ Operating Tips ...................... .215
138 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 192 of 438

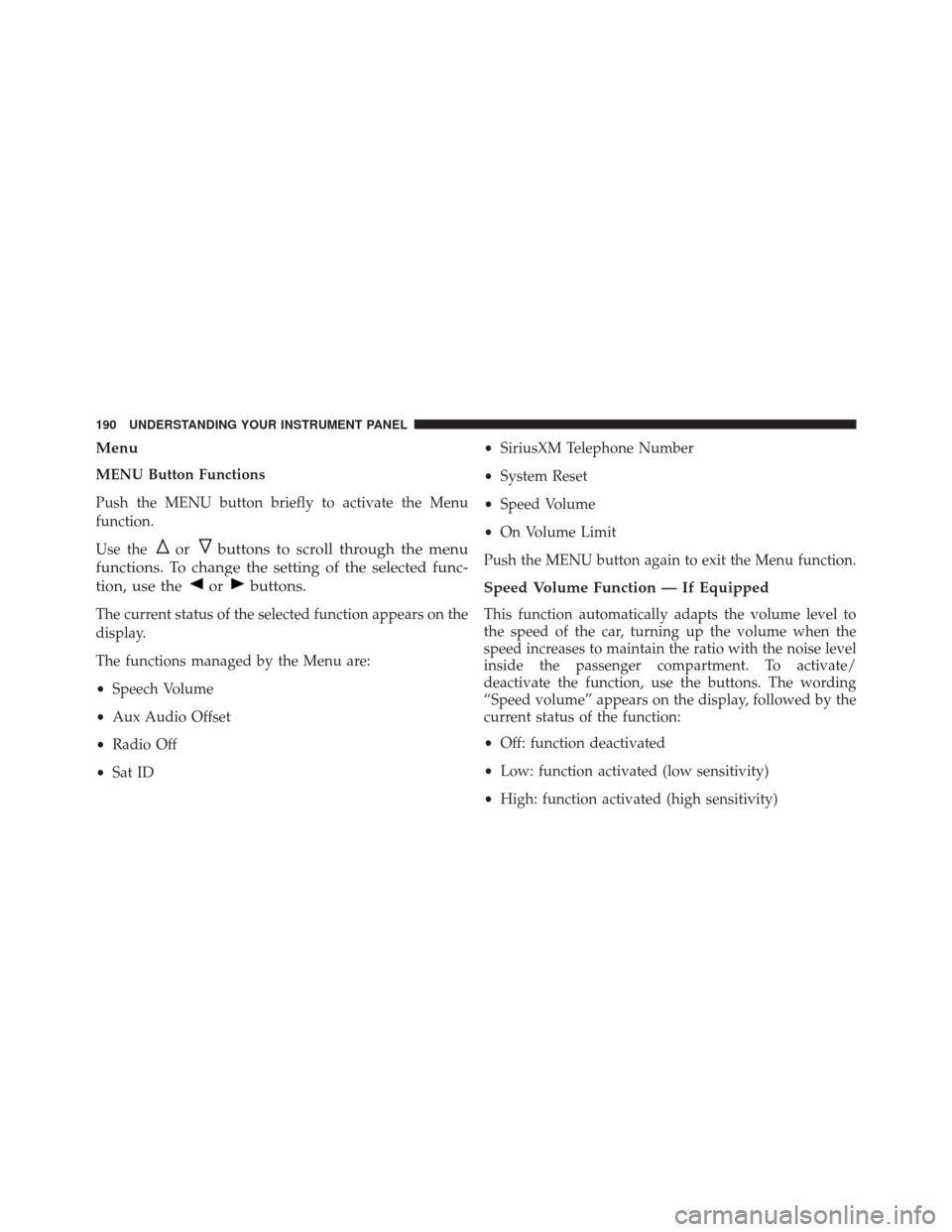

MENU Button Functions
Push the MENU button briefly to activate the Menu
orbuttons to scroll through the menu
functions. To change the setting of the selected func-
tion, use the
The current status of the selected function appears on the
The functions managed by the Menu are:
• Speech Volume
• Aux Audio Offset
• Radio Off
• Sat ID •
SiriusXM Telephone Number
• System Reset
• Speed Volume
• On Volume Limit
Push the MENU button again to exit the Menu function.
Speed Volume Function — If Equipped
This function automatically adapts the volume level to
the speed of the car, turning up the volume when the
speed increases to maintain the ratio with the noise level
inside the passenger compartment. To activate/
deactivate the function, use the buttons. The wording
“Speed volume” appears on the display, followed by the
current status of the function:
• Off: function deactivated
• Low: function activated (low sensitivity)
• High: function activated (high sensitivity)
190 UNDERSTANDING YOUR INSTRUMENT PANEL
