second, release, and the window will go down automati-
cally. To cancel the Auto-Down movement, operate the
switch in either the up or down direction and release the
switch.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting or open any window.
LIFTGATE
To unlock the liftgate, use the Remote Keyless Entry
(RKE) transmitter or activate the power door lock
switches located on the driver door handle.To open the liftgate, squeeze the liftgate release handle
and pull the liftgate open with one fluid motion.
Liftgate Handle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

WARNING!(Continued)
SABICs. The trim covering above the side win-
dows where the SABIC and its deployment path
are located should remain free from any obstruc-
tions.
• Your vehicle is equipped with SABICs. In order for
the SABICs to work as intended, do not install any
accessory items in your vehicle which could alter
the roof. Do not add an aftermarket sunroof to your
vehicle. Do not add roof racks that require perma-
nent attachments (bolts or screws) for installation
on the vehicle roof. Do not drill into the roof of the
vehicle for any reason.
The SABICs and SABs (“Side Air Bags”) are designed to
activate in certain side impacts. The Occupant Restraint
Controller (“ORC”) determines whether the deployment
of the Side Air Bags in a particular impact event is appropriate, based on the severity and type of collision.
The side impact sensors aid the ORC in determining the
appropriate response to impact events. The system is
calibrated to deploy the Side Air Bags on the impact side
of the vehicle during impacts that require Side Air Bag
occupant protection. In side impacts, the Side Air Bags
deploy independently; a left side impact deploys the left
Side Air Bags only and a right-side impact deploys the
right Side Air Bags only. Vehicle damage by itself is not a
good indicator of whether or not Side Air Bags should
have deployed.
The Side Air Bags will not deploy in all side collisions,
including some collisions at certain angles, or some side
collisions that do not impact the area of the passenger
compartment. The Side Air Bags may deploy during
angled or offset frontal collisions where the Advanced
Front Air Bags deploy.
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫To Vary The Speed Setting ...............118
▫ To Accelerate For Passing ................119
 REAR PARK ASSIST — IF EQUIPPED ........120
▫ Rear Park Assist Sensors ................120
▫ Rear Park Assist Warning Display ..........121
▫ Rear Park Assist Display ................121
▫ Rear Park Assist Audible Alerts ...........121
▫ Failure Indications .....................123
▫ Cleaning The Rear Park Assist System .......123
▫ Park Assist System Usage Precautions .......124
 POWER SUNROOF — IF EQUIPPED ........126
▫ To Open ........................... .127
▫ To Close ........................... .127▫
Pinch Protect Feature ...................127
▫ Wind Buffeting ...................... .127
▫ Emergency Operation ...................128
▫ Sun Shade — If Equipped ...............128
 ELECTRICAL POWER OUTLETS ...........128
 CIGAR LIGHTER — IF EQUIPPED ..........131
 CUPHOLDERS ....................... .132
 STORAGE ........................... .133
▫ Glove Compartment ...................133
 CARGO AREA FEATURES ................133
 REAR WINDOW FEATURES ..............135
▫ Rear Window Defroster .................135
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

POWER SUNROOF — IF EQUIPPED
The power sunroof roof switch is located in the overhead
console.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Never leave the Key
Fob in or near the vehicle, or in a location acces-
sible to children. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
• In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passen-
gers are properly secured.
• Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object to project through the sunroof opening.
Injury may result.
Power Sunroof Switch
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

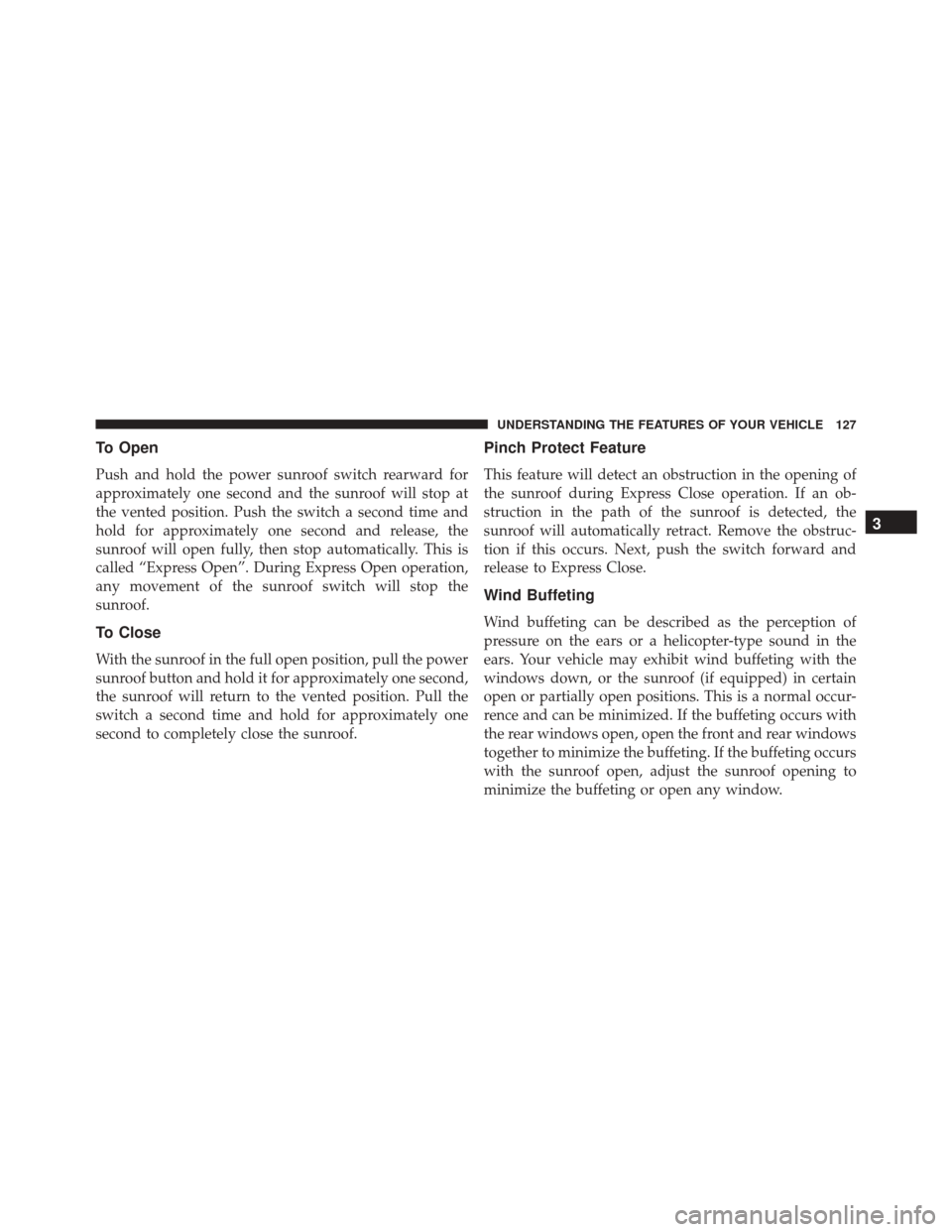

To Open
Push and hold the power sunroof switch rearward for
approximately one second and the sunroof will stop at
the vented position. Push the switch a second time and
hold for approximately one second and release, the
sunroof will open fully, then stop automatically. This is
called “Express Open”. During Express Open operation,
any movement of the sunroof switch will stop the
sunroof.
To Close
With the sunroof in the full open position, pull the power
sunroof button and hold it for approximately one second,
the sunroof will return to the vented position. Pull the
switch a second time and hold for approximately one
second to completely close the sunroof.
Pinch Protect Feature
This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the
sunroof will automatically retract. Remove the obstruc-
tion if this occurs. Next, push the switch forward and
release to Express Close.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

Emergency Operation
In case of electrical failure the sunroof can be operated
with the hex wrench that is located in the glove box.
There is a plug located in the rear of the sunroof opening
at the center of the vehicle. Removing the plug reveals a
hex opening in the motor assembly of the sunroof. Insert
the hex wrench and turn, moving the sunroof to the
desired location.
Sun Shade — If Equipped
For vehicles equipped with either a power sunroof or a
fixed glass roof, there is a sun shade that can be open or
closed. To open the sun shade push the tab and move the
shade to a full open position.
ELECTRICAL POWER OUTLETS
There is a standard 12 Volt (13 Amp) power outlet,
located in the floor console, for added convenience. This
power outlet can power mobile phones, electronics and
other low power devices.
Manual Sun Shade
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

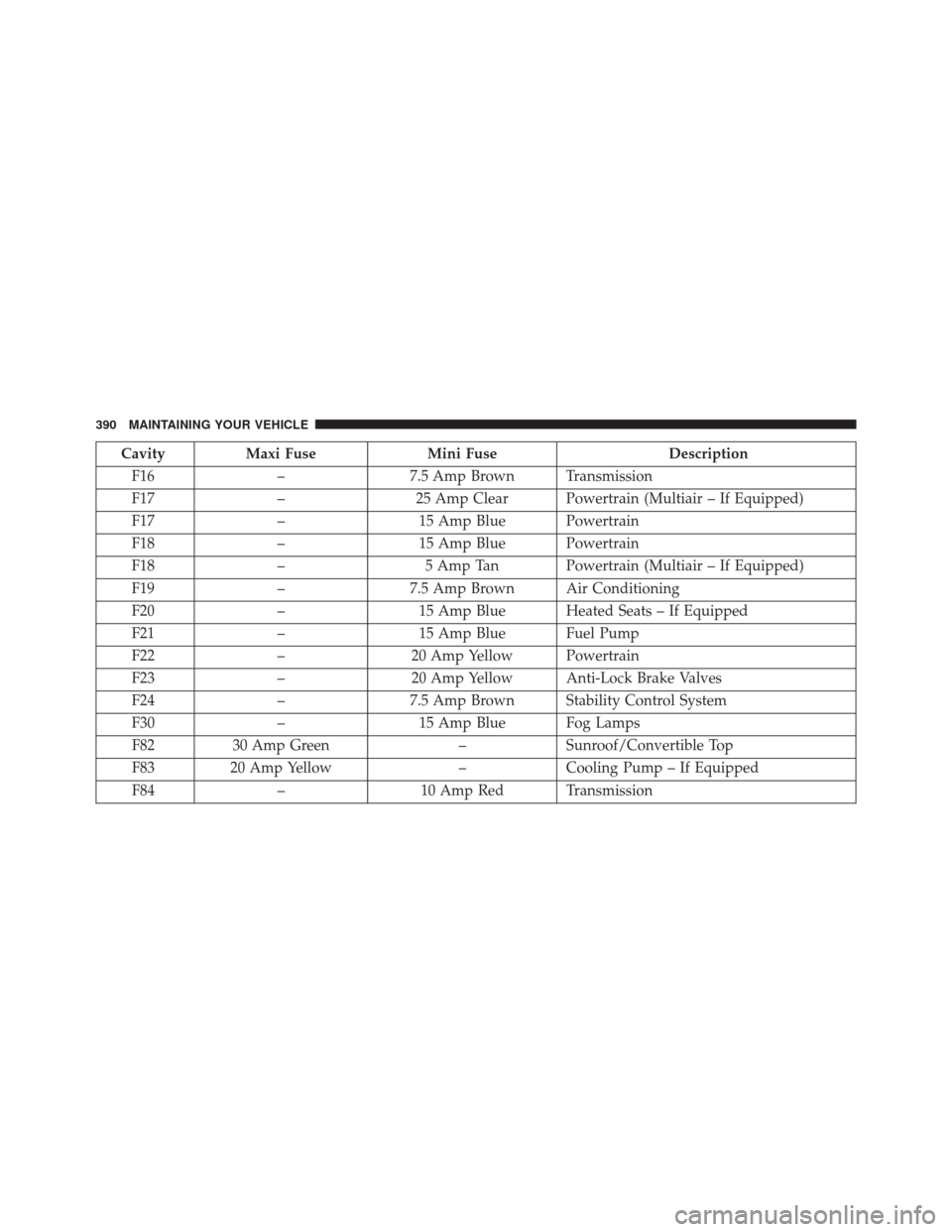

CavityMaxi Fuse Mini Fuse Description
F16 –7.5 Amp Brown Transmission
F17 –25 Amp Clear Powertrain (Multiair – If Equipped)
F17 –15 Amp Blue Powertrain
F18 –15 Amp Blue Powertrain
F18 – 5 Amp Tan Powertrain (Multiair – If Equipped)
F19 –7.5 Amp Brown Air Conditioning
F20 –15 Amp Blue Heated Seats – If Equipped
F21 –15 Amp Blue Fuel Pump
F22 –20 Amp Yellow Powertrain
F23 –20 Amp Yellow Anti-Lock Brake Valves
F24 –7.5 Amp Brown Stability Control System
F30 –15 Amp Blue Fog Lamps
F82 30 Amp Green –Sunroof/Convertible Top
F83 20 Amp Yellow –Cooling Pump – If Equipped
F84 –10 Amp Red Transmission
390 MAINTAINING YOUR VEHICLE

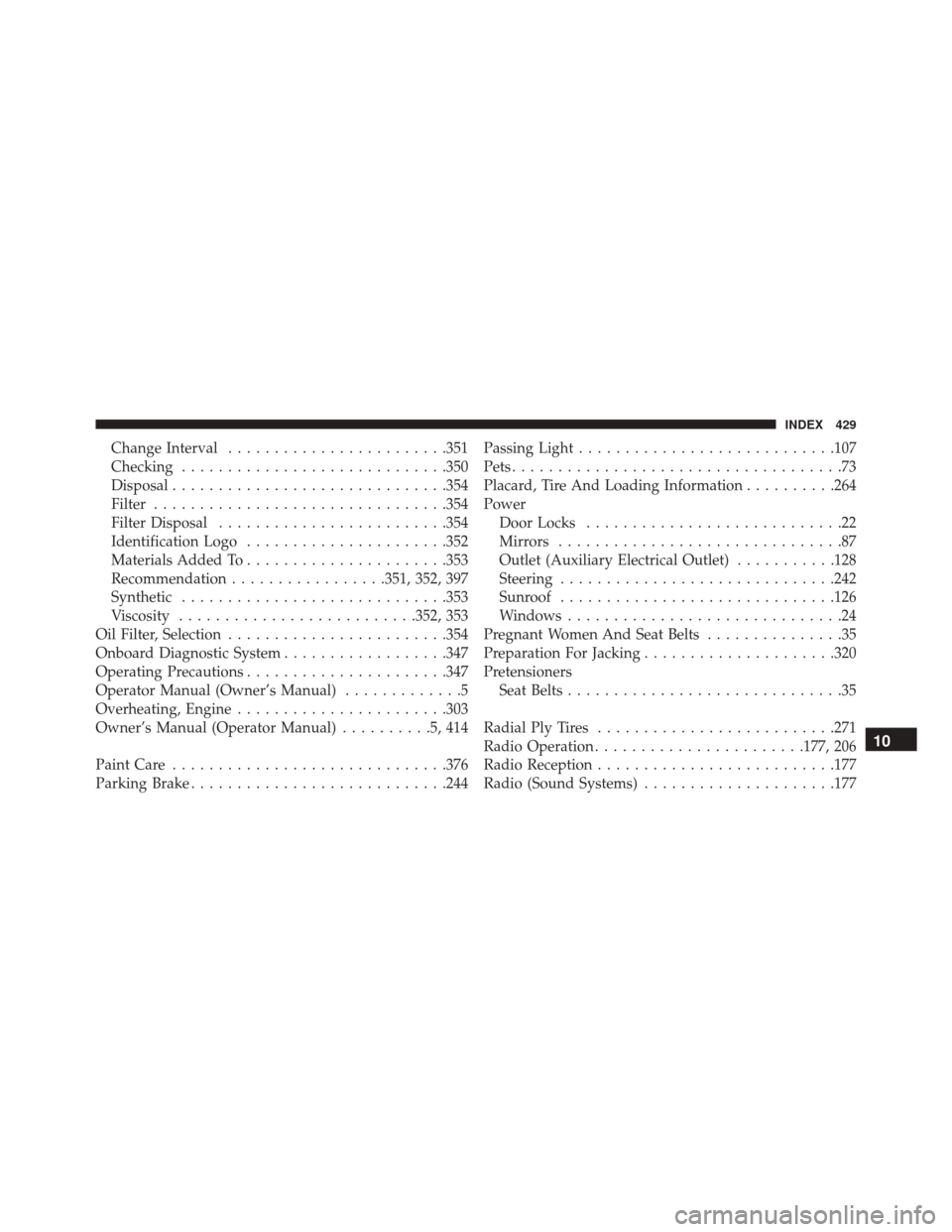

Change Interval....................... .351
Checking ............................ .350
Disposal ............................. .354
Filter ............................... .354
Filter Disposal ........................ .354
Identification Logo ..................... .352
Materials Added To ..................... .353
Recommendation .................351, 352, 397
Synthetic ............................ .353
Viscosity ......................... .352, 353
Oil Filter, Selection ....................... .354
Onboard Diagnostic System ..................347
Operating Precautions ..................... .347
Operator Manual (Owner’s Manual) .............5
Overheating, Engine ...................... .303
Owner’s Manual (Operator Manual) ..........5,414
Paint Care ............................. .376
Parking Brake ........................... .244Passing Light
........................... .107
Pets ....................................73
Placard, Tire And Loading Information ..........264
Power Door Locks ............................22
Mirrors ...............................87
Outlet (Auxiliary Electrical Outlet) ...........128
Steering ............................. .242
Sunroof ............................. .126
Windows ..............................24
Pregnant Women And Seat Belts ...............35
Preparation For Jacking .....................320
Pretensioners Seat Belts ..............................35
Radial Ply Tires ......................... .271
Radio Operation ...................... .177, 206
Radio Reception ......................... .177
Radio (Sound Systems) .....................177
