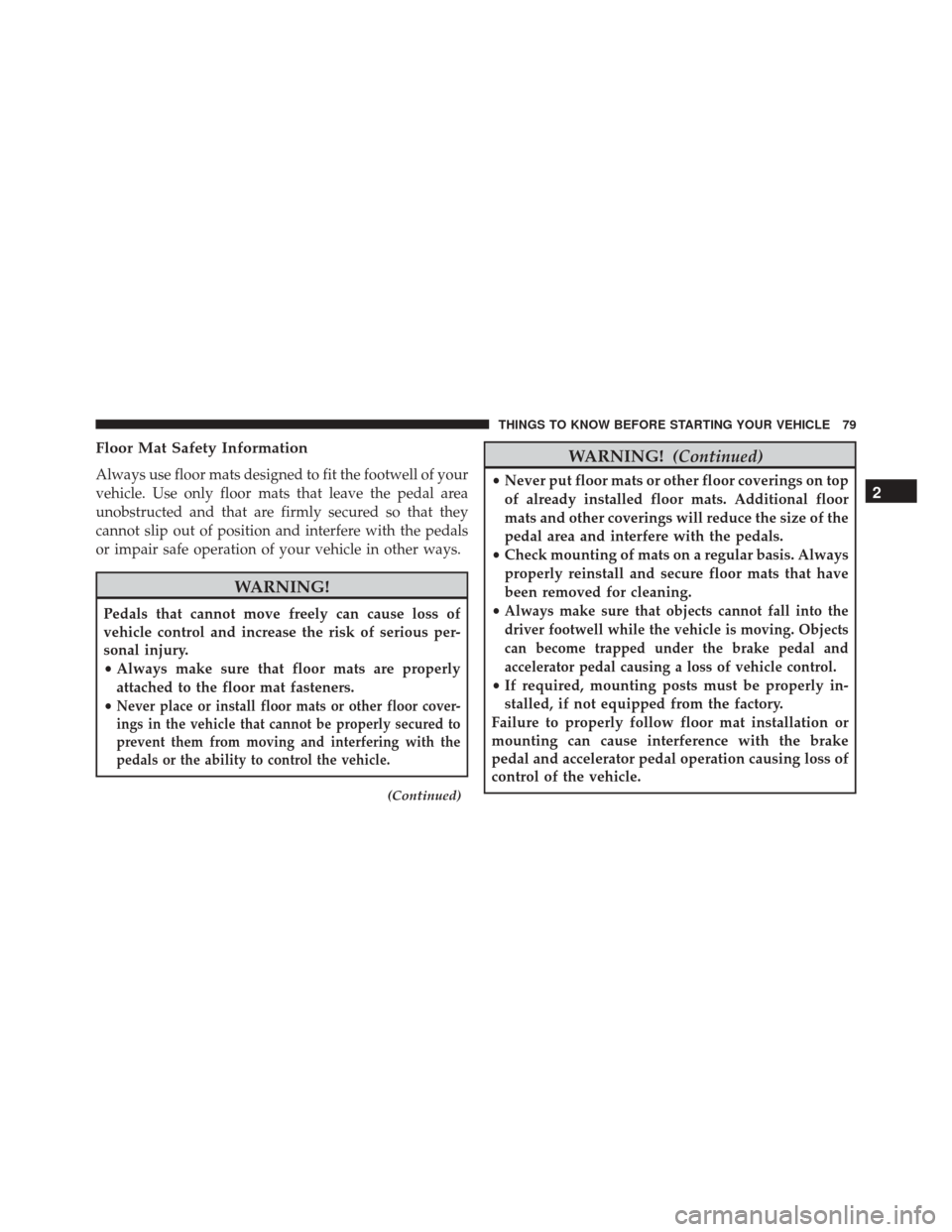

Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
•
Never place or install floor mats or other floor cover-
ings in the vehicle that cannot be properly secured to
prevent them from moving and interfering with the
pedals or the ability to control the vehicle.
(Continued)
WARNING! (Continued)
•Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
•
Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Objects
can become trapped under the brake pedal and
accelerator pedal causing a loss of vehicle control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel bolts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

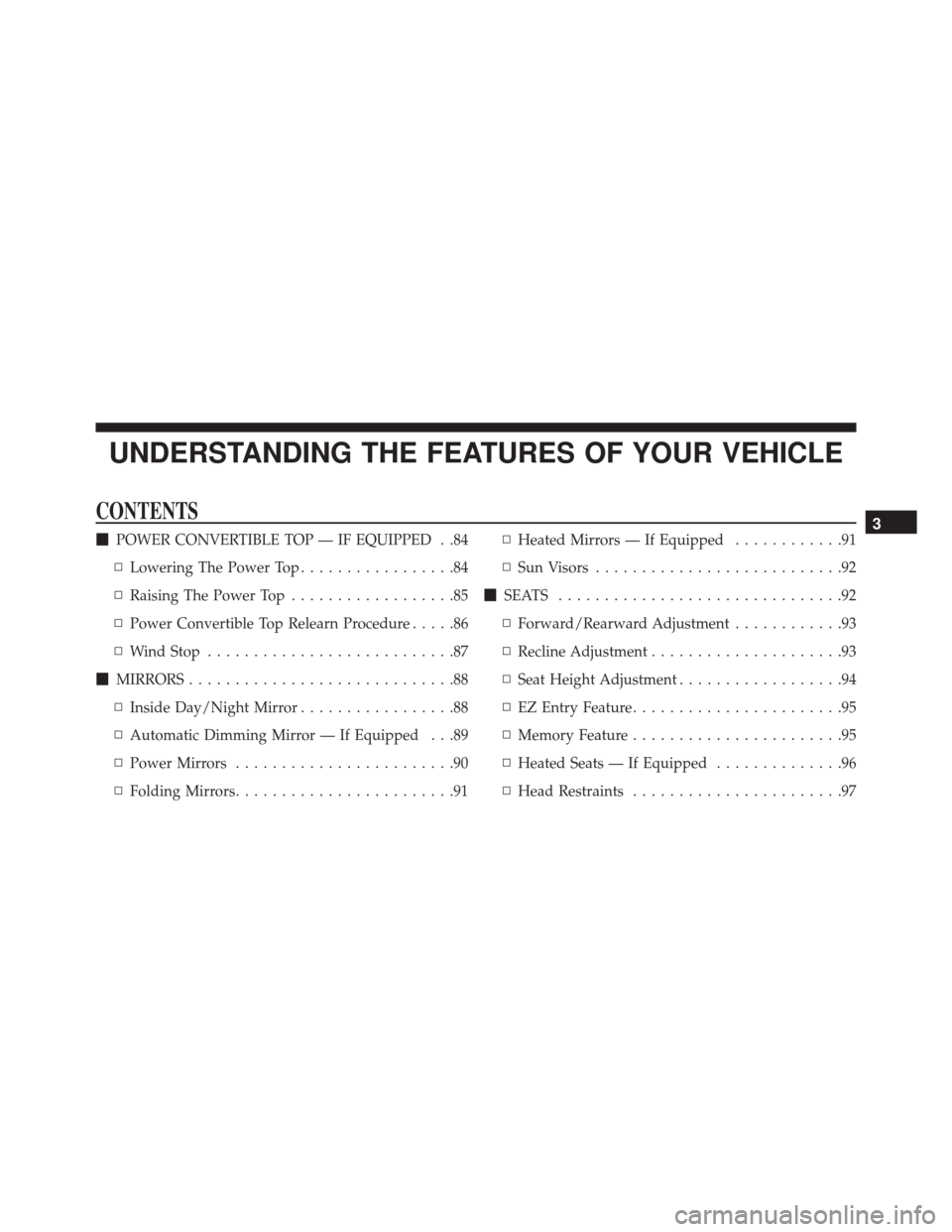

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
POWER CONVERTIBLE TOP — IF EQUIPPED . .84
▫ Lowering The Power Top .................84
▫ Raising The Power Top ..................85
▫ Power Convertible Top Relearn Procedure .....86
▫ Wind Stop ...........................87
 MIRRORS .............................88
▫ Inside Day/Night Mirror .................88
▫ Automatic Dimming Mirror — If Equipped . . .89
▫ Power Mirrors ........................90
▫ Folding Mirrors ........................91 ▫
Heated Mirrors — If Equipped ............91
▫ Sun Visors ...........................92
 SEATS ...............................92
▫ Forward/Rearward Adjustment ............93
▫ Recline Adjustment .....................93
▫ Seat Height Adjustment ..................94
▫ EZ Entry Feature .......................95
▫ Memory Feature .......................95
▫ Heated Seats — If Equipped ..............96
▫ Head Restraints .......................973

TO OPEN AND CLOSE THE HOOD .........101
 LIGHTS ............................ .103
▫ Multifunction Lever ...................103
▫ Headlights ......................... .103
▫ High Beams ........................ .104
▫ Flash-To-Pass ....................... .104
▫ Parking Lights ...................... .104
▫ Daytime Running Lights ................105
▫ Turn Signals ........................ .105
▫ Lane Change Assist ...................106
▫ Follow Me Home/Headlight Delay .........106
▫ Interior Lights ...................... .106
▫ Fog Lights — If Equipped ...............108
WINDSHIELD WIPERS AND WASHERS ......108
▫ Front Windshield Wiper Operation .........109
▫ Rear Windshield Wiper .................111
 TILT STEERING COLUMN — IF EQUIPPED . . .112
 ELECTRONIC SPEED CONTROL ...........113
▫ To Activate ..........................114
▫ To Set A Desired Speed .................114
▫ To Deactivate .........................114
▫ To Resume Speed ......................114
▫ To Vary The Speed Setting ...............115
▫ To Accelerate For Passing ...............116
 REAR PARK ASSIST — IF EQUIPPED ........117
▫ Rear Park Assist Sensors .................117
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

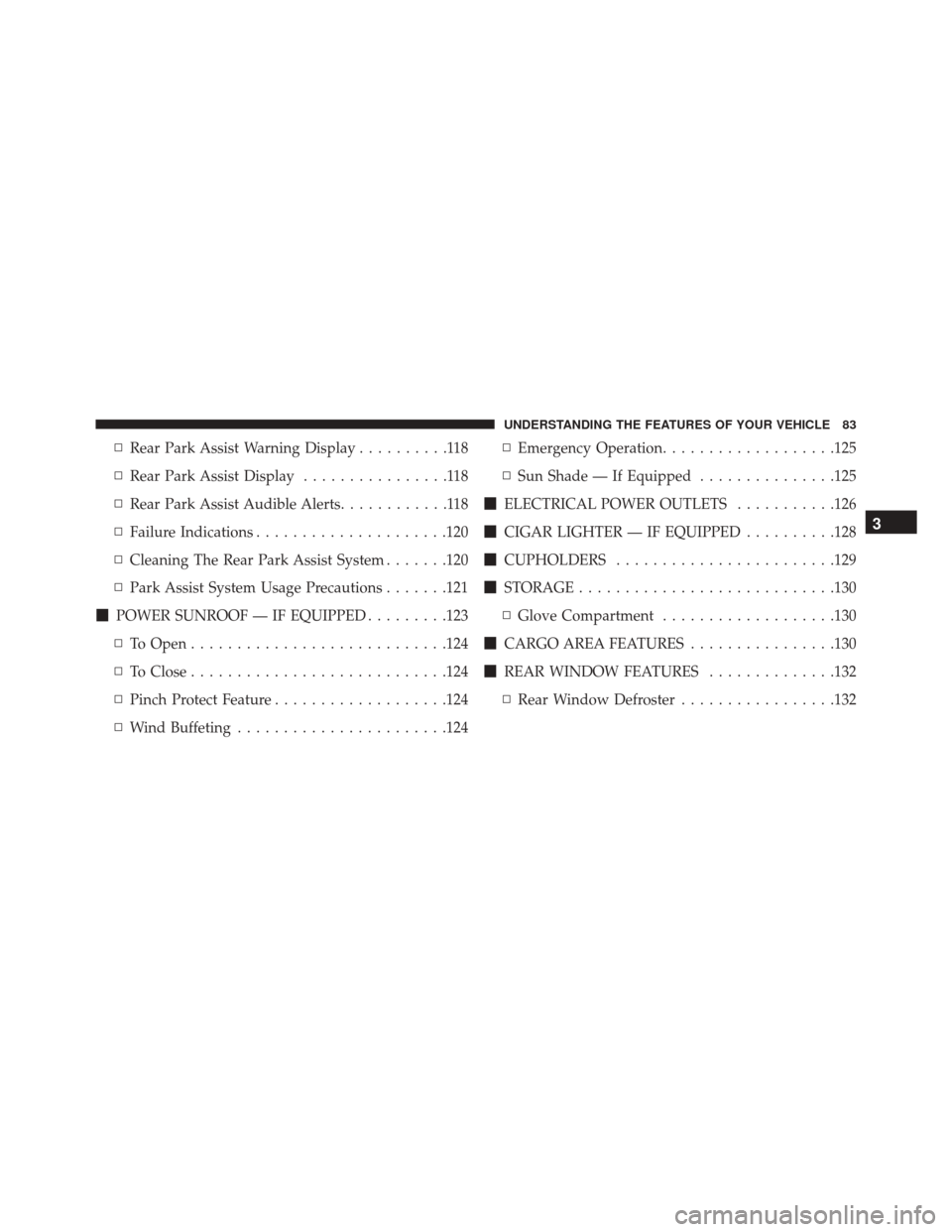

▫Rear Park Assist Warning Display ..........118
▫ Rear Park Assist Display ................118
▫ Rear Park Assist Audible Alerts ............118
▫ Failure Indications .....................120
▫ Cleaning The Rear Park Assist System .......120
▫ Park Assist System Usage Precautions .......121
 POWER SUNROOF — IF EQUIPPED .........123
▫ To Open ........................... .124
▫ To Close ........................... .124
▫ Pinch Protect Feature ...................124
▫ Wind Buffeting ...................... .124▫
Emergency Operation ...................125
▫ Sun Shade — If Equipped ...............125
 ELECTRICAL POWER OUTLETS ...........126
 CIGAR LIGHTER — IF EQUIPPED ..........128
 CUPHOLDERS ....................... .129
 STORAGE ........................... .130
▫ Glove Compartment ...................130
 CARGO AREA FEATURES ................130
 REAR WINDOW FEATURES ..............132
▫ Rear Window Defroster .................132
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

POWER CONVERTIBLE TOP — IF EQUIPPED
On vehicles equipped with a power convertible top, the
power convertible top switch is located on the overhead
console. The switch contains two buttons. The passenger
side button, is used to open the power top, and the driver
side button, is used to close the power top.NOTE:
•
The power top buttons will operate when the ignition
switch is turned to the ACC/ON/RUN position.
•
The power top can be remotely operated with the key
fob. Refer to “Opening Power Top Remote Function” in
“Things To Know Before Starting” for more information.
Lowering The Power Top
Auto Open
Push the top open button approximately one second for
the three-quarter open/spoiler position. Push the top
open button for approximately one second a second time
to fully open the convertible top.
Power Convertible Top Switch
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

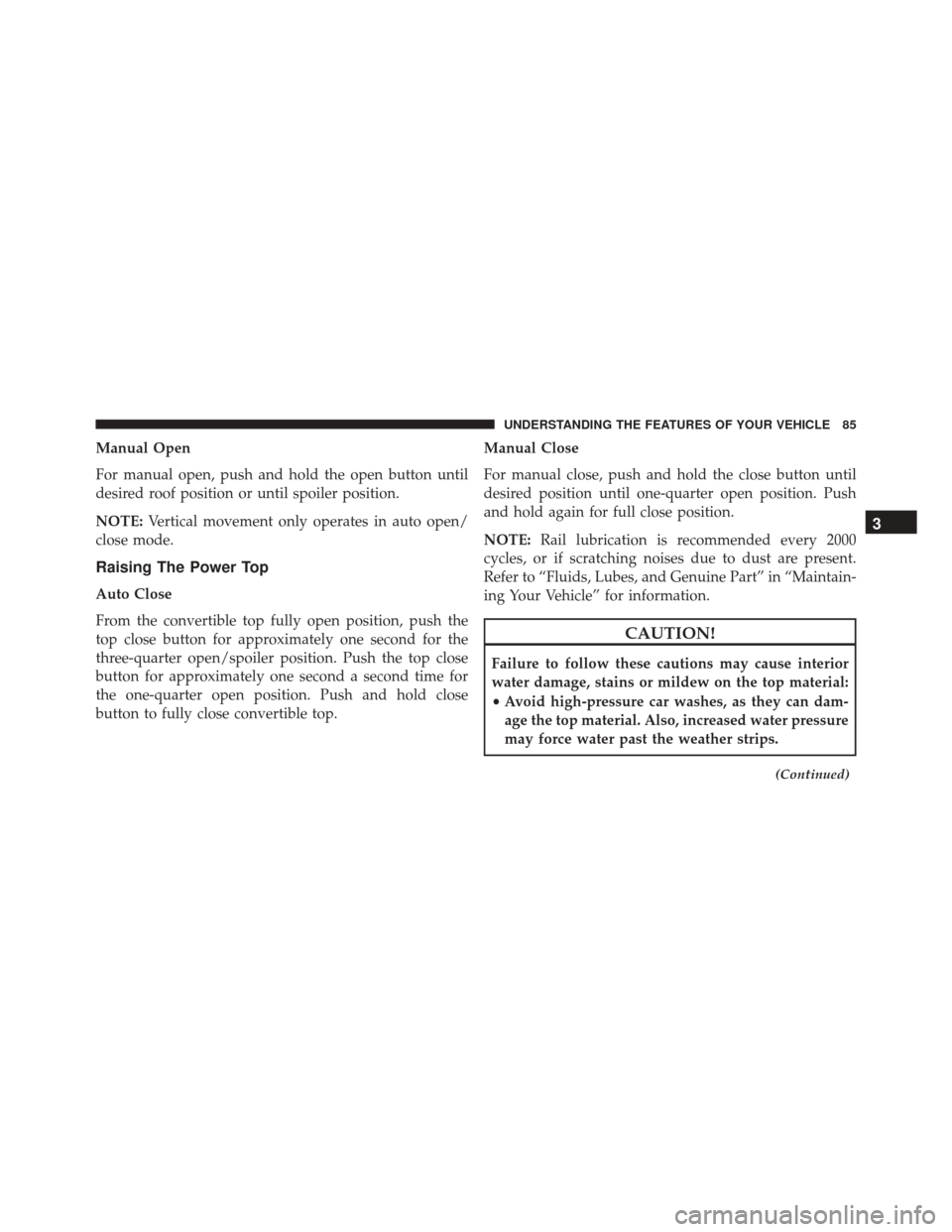

Manual Open
For manual open, push and hold the open button until
desired roof position or until spoiler position.
NOTE:Vertical movement only operates in auto open/
close mode.
Raising The Power Top
Auto Close
From the convertible top fully open position, push the
top close button for approximately one second for the
three-quarter open/spoiler position. Push the top close
button for approximately one second a second time for
the one-quarter open position. Push and hold close
button to fully close convertible top. Manual Close
For manual close, push and hold the close button until
desired position until one-quarter open position. Push
and hold again for full close position.
NOTE:
Rail lubrication is recommended every 2000
cycles, or if scratching noises due to dust are present.
Refer to “Fluids, Lubes, and Genuine Part” in “Maintain-
ing Your Vehicle” for information.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
• Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pressure
may force water past the weather strips.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

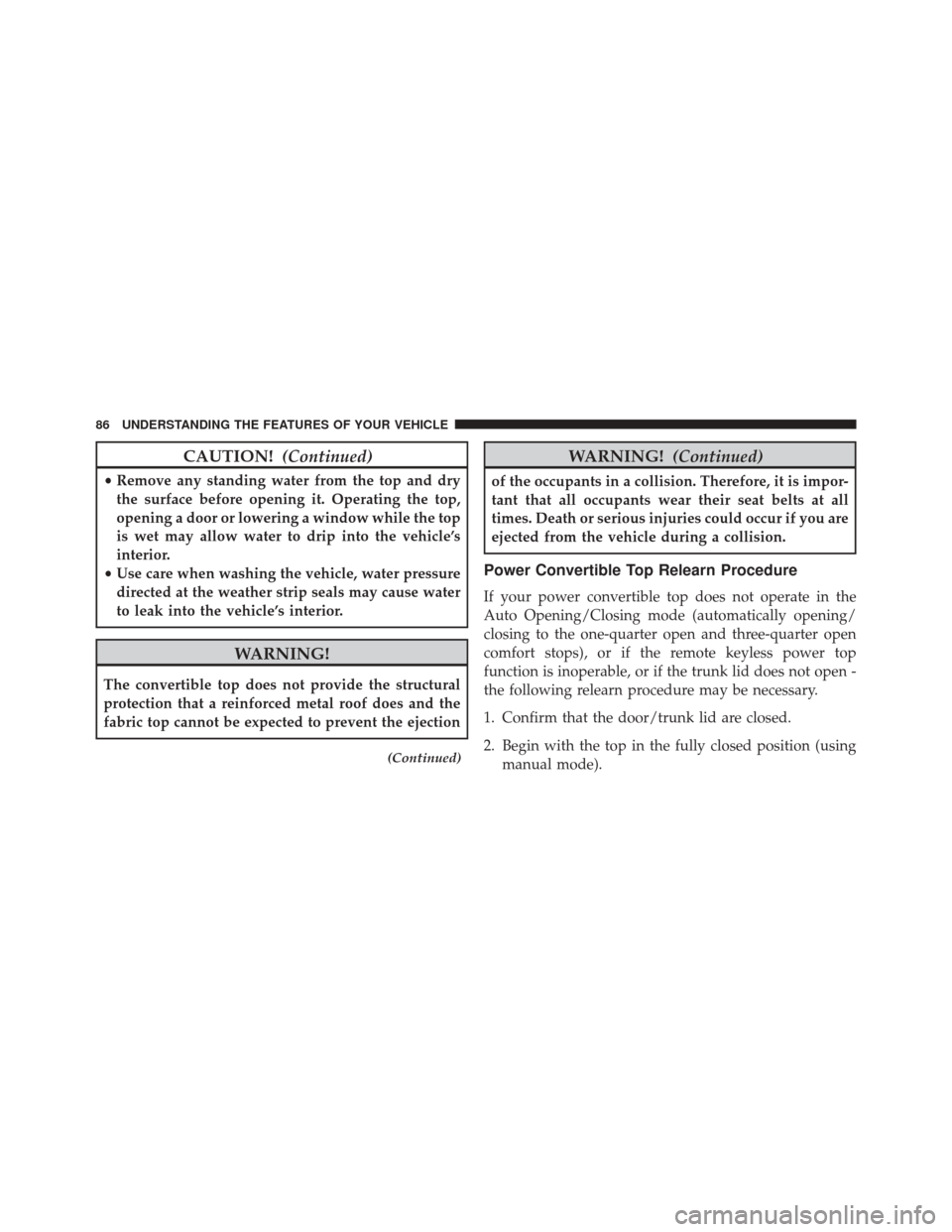

CAUTION!(Continued)
•Remove any standing water from the top and dry
the surface before opening it. Operating the top,
opening a door or lowering a window while the top
is wet may allow water to drip into the vehicle’s
interior.
• Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicle’s interior.
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
(Continued)
WARNING! (Continued)
of the occupants in a collision. Therefore, it is impor-
tant that all occupants wear their seat belts at all
times. Death or serious injuries could occur if you are
ejected from the vehicle during a collision.
Power Convertible Top Relearn Procedure
If your power convertible top does not operate in the
Auto Opening/Closing mode (automatically opening/
closing to the one-quarter open and three-quarter open
comfort stops), or if the remote keyless power top
function is inoperable, or if the trunk lid does not open -
the following relearn procedure may be necessary.
1. Confirm that the door/trunk lid are closed.
2. Begin with the top in the fully closed position (using
manual mode).
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

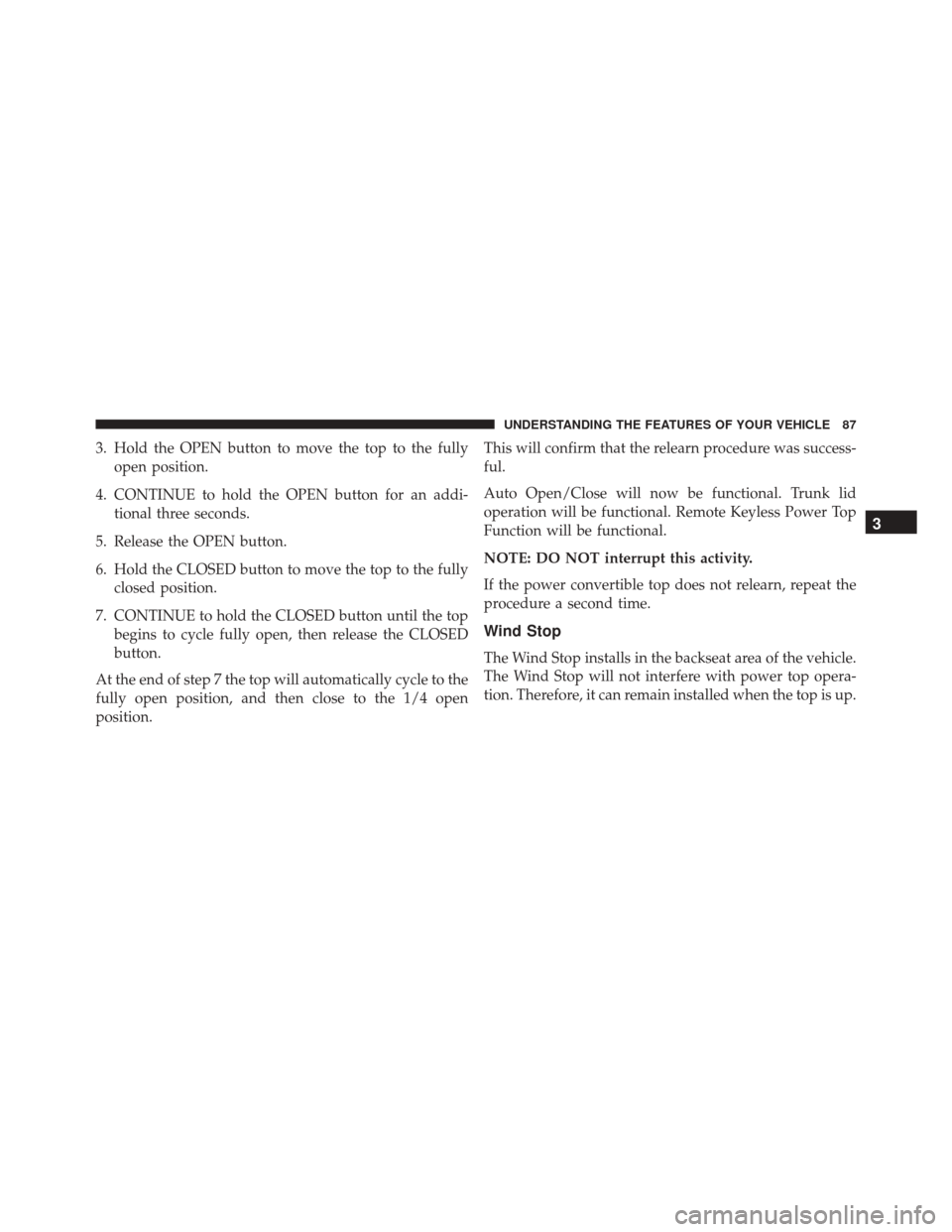

3. Hold the OPEN button to move the top to the fullyopen position.
4. CONTINUE to hold the OPEN button for an addi- tional three seconds.
5. Release the OPEN button.
6. Hold the CLOSED button to move the top to the fully closed position.
7. CONTINUE to hold the CLOSED button until the top begins to cycle fully open, then release the CLOSED
button.
At the end of step 7 the top will automatically cycle to the
fully open position, and then close to the 1/4 open
position. This will confirm that the relearn procedure was success-
ful.
Auto Open/Close will now be functional. Trunk lid
operation will be functional. Remote Keyless Power Top
Function will be functional.
NOTE: DO NOT interrupt this activity.
If the power convertible top does not relearn, repeat the
procedure a second time.
Wind Stop
The Wind Stop installs in the backseat area of the vehicle.
The Wind Stop will not interfere with power top opera-
tion. Therefore, it can remain installed when the top is up.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).
Adjusting Rearview Mirror
