USB FIAT 500C 2017 2.G Owners Manual

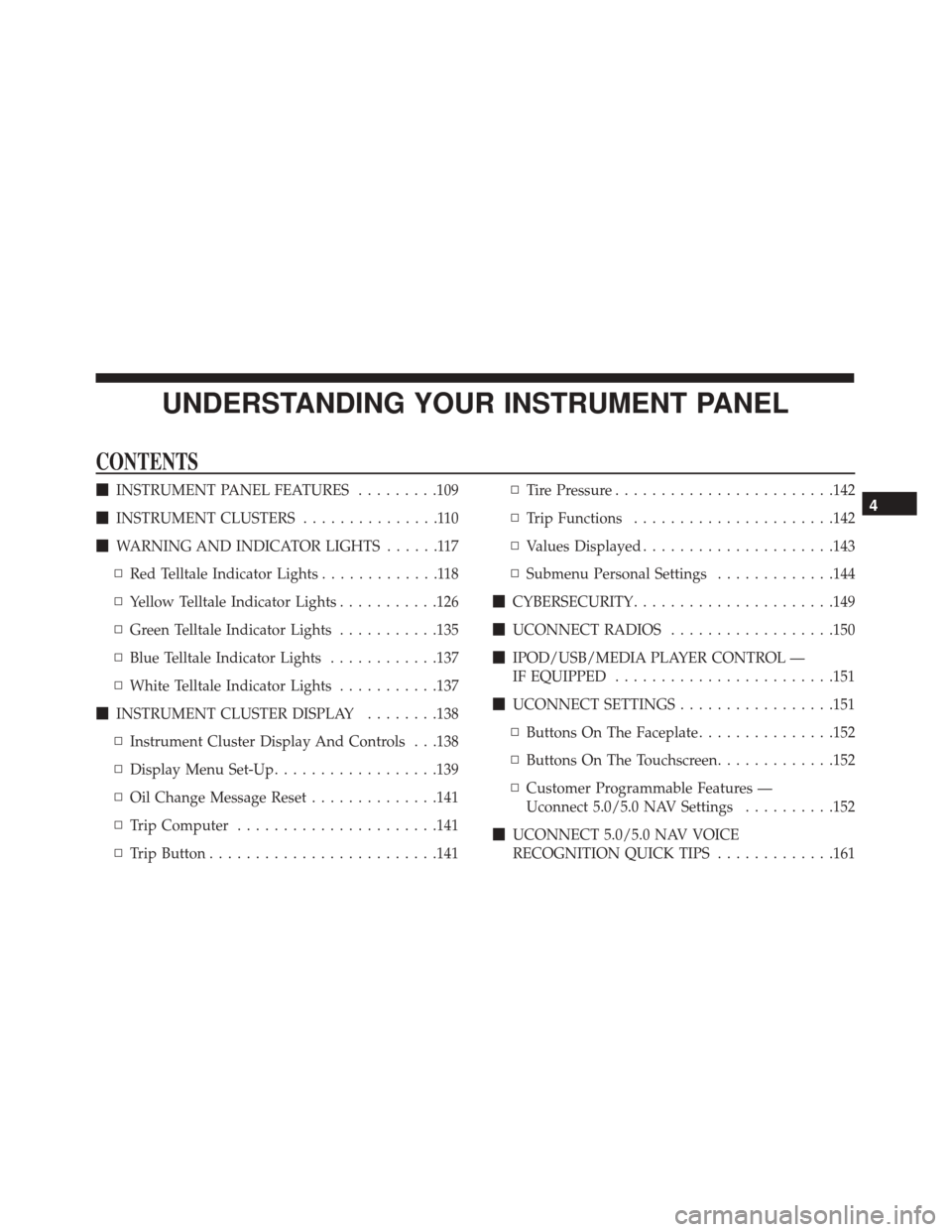

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES .........109
 INSTRUMENT CLUSTERS ...............110
 WARNING AND INDICATOR LIGHTS ......117
▫ Red Telltale Indicator Lights .............118
▫ Yellow Telltale Indicator Lights ...........126
▫ Green Telltale Indicator Lights ...........135
▫ Blue Telltale Indicator Lights ............137
▫ White Telltale Indicator Lights ...........137
 INSTRUMENT CLUSTER DISPLAY ........138
▫ Instrument Cluster Display And Controls . . .138
▫ Display Menu Set-Up ..................139
▫ Oil Change Message Reset ..............141
▫ Trip Computer ..................... .141
▫ Trip Button ........................ .141▫
Tire Pressure ....................... .142
▫ Trip Functions ..................... .142
▫ Values Displayed .....................143
▫ Submenu Personal Settings .............144
 CYBERSECURITY ..................... .149
 UCONNECT RADIOS ..................150
 IPOD/USB/MEDIA PLAYER CONTROL —
IF EQUIPPED ....................... .151
 UCONNECT SETTINGS .................151
▫ Buttons On The Faceplate ...............152
▫ Buttons On The Touchscreen .............152
▫ Customer Programmable Features —
Uconnect 5.0/5.0 NAV Settings ..........152
 UCONNECT 5.0/5.0 NAV VOICE
RECOGNITION QUICK TIPS .............1614

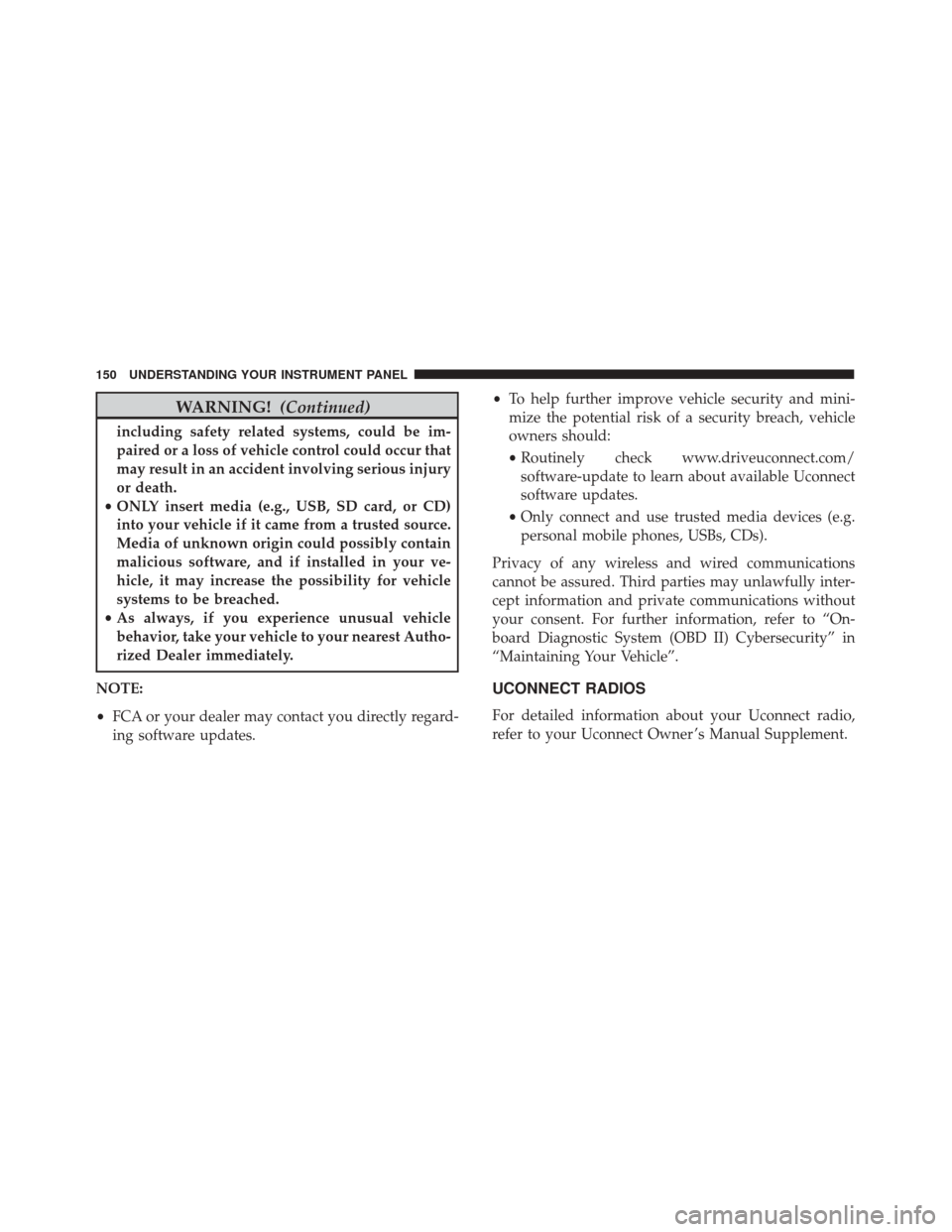

WARNING!(Continued)
including safety related systems, could be im-
paired or a loss of vehicle control could occur that
may result in an accident involving serious injury
or death.
• ONLY insert media (e.g., USB, SD card, or CD)
into your vehicle if it came from a trusted source.
Media of unknown origin could possibly contain
malicious software, and if installed in your ve-
hicle, it may increase the possibility for vehicle
systems to be breached.
• As always, if you experience unusual vehicle
behavior, take your vehicle to your nearest Autho-
rized Dealer immediately.
NOTE:
• FCA or your dealer may contact you directly regard-
ing software updates. •
To help further improve vehicle security and mini-
mize the potential risk of a security breach, vehicle
owners should:
• Routinely check www.driveuconnect.com/
software-update to learn about available Uconnect
software updates.
• Only connect and use trusted media devices (e.g.
personal mobile phones, USBs, CDs).
Privacy of any wireless and wired communications
cannot be assured. Third parties may unlawfully inter-
cept information and private communications without
your consent. For further information, refer to “On-
board Diagnostic System (OBD II) Cybersecurity” in
“Maintaining Your Vehicle”.
UCONNECT RADIOS
For detailed information about your Uconnect radio,
refer to your Uconnect Owner ’s Manual Supplement.
150 UNDERSTANDING YOUR INSTRUMENT PANEL

IPOD/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED
This feature allows an iPod or external USB device to be
plugged into the USB or AUX port, located in the center
console.
UCONNECT SETTINGS
The Uconnect system uses a combination of buttons on
the touchscreen and buttons on the faceplate located on
the center of the instrument panel that allow you to
access and change the customer programmable fea-
tures. Many features can vary by vehicle.
USB/AUX Port
1 — Auxiliary Cable Jack
2 — USB Connector
Uconnect 5.0/5.0 NAV Buttons On The TouchscreenAnd Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate
4
UNDERSTANDING YOUR INSTRUMENT PANEL 151

Radio
Use your voice to quickly get to the AM, FM or
SiriusXM Satellite Radio stations you would like to
hear. (Subscription or included SiriusXM Satellite Radio
trial required.)
Push the VR button
. After the beep, say
•Tune to ninety-five-point-five FM
• Tune to Satellite Channel Hits 1
TIP: At any time, if you are not sure of what to say or
want to learn a Voice Command, push the VR button
and say “Help.”The system will provide you
with a list of commands. Media
Uconnect offers connections via USB, Bluetooth and
Auxiliary ports (If Equipped). Voice operation is only
available for connected USB and iPod devices.
Push the VR button
. After the beep, say one of the
following commands and follow the prompts to
switch your media source or choose an artist.
• Change source to Bluetooth
• Change source to iPod
Uconnect 5.0/5.0 NAV Radio
4
UNDERSTANDING YOUR INSTRUMENT PANEL 163

•Change source to USB
• Play artist Beethoven;Play album Greatest Hits;
Play song Moonlight Sonata; Play genreClassical
TIP: Press the “Browse” button on the touchscreen to
see all of the music on your iPod or USB device. Your
Voice Command must match exactlyhow the artist,
album, song and genre information is displayed.Voice Text Reply
Uconnect will announce incomingtext messages. Push the
PHONE button
and say Listen.(Must have com-
patible mobile phone paired to Uconnect system.)
1.Once an incoming text message is read to you, push the
PHONE button
. After the beep, say... “Reply.”
2. Listen to the Uconnect prompts. After the beep,
repeat one of the pre-defined messages and follow
the system prompts.
PRE-DEFINED VOICE TEXT REPLY RESPONSES
Yes. Stuck in traffic. See you later.No. Start without me.I’ll be late.
Okay. Where are you?I will be

minutes late.
Call me. Are you there
yet?
I’ll call you later. I need
directions. See you in
of minutes.
I’m on my way. Can’t talk right
now.
I’m lost. Thanks.
Uconnect 5.0/5.0 NAV Media
164 UNDERSTANDING YOUR INSTRUMENT PANEL
