Fuel System Cautions
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
•The use of leaded gasoline is prohibited by Federal
law. Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.
• An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.
• The use of fuel additives, which are now being sold
as octane enhancers, is not recommended. Most of
these products contain high concentrations of metha-
nol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or
additives is not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty. NOTE:
Intentional tampering with the emissions control
system can result in civil penalties being assessed against
you.Carbon Monoxide Warnings
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon mon-
oxide poisoning:
• Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle
is stopped in an open area with the engine running
for more than a short period, adjust the ventilation
system to force fresh, outside air into the vehicle.
• Guard against carbon monoxide with proper main-
tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal condi-
tions repaired promptly. Until repaired, drive with
all side windows fully open.
9
TECHNICAL SPECIFICATIONS 285

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 10.5 Gallons40 Liters
Engine Oil with Filter
1.4 Liter Turbo Engine 4 Quarts3.8 Liters
Cooling System
1.4 Liter Turbo Engine (Mopar Antifreeze/Engine Coolant 10
Year/150,000 Mile (240,000 km) Formula) — with Manual Trans-
mission 4.6 Quarts
4.4 Liters
1.4 Liter Turbo Engine (Mopar Antifreeze/Engine Coolant 10
Year/150,000 Mile (240,000 km) Formula) — with Automatic
Transmission 5.8 Quarts
5.5 Liters
286 TECHNICAL SPECIFICATIONS

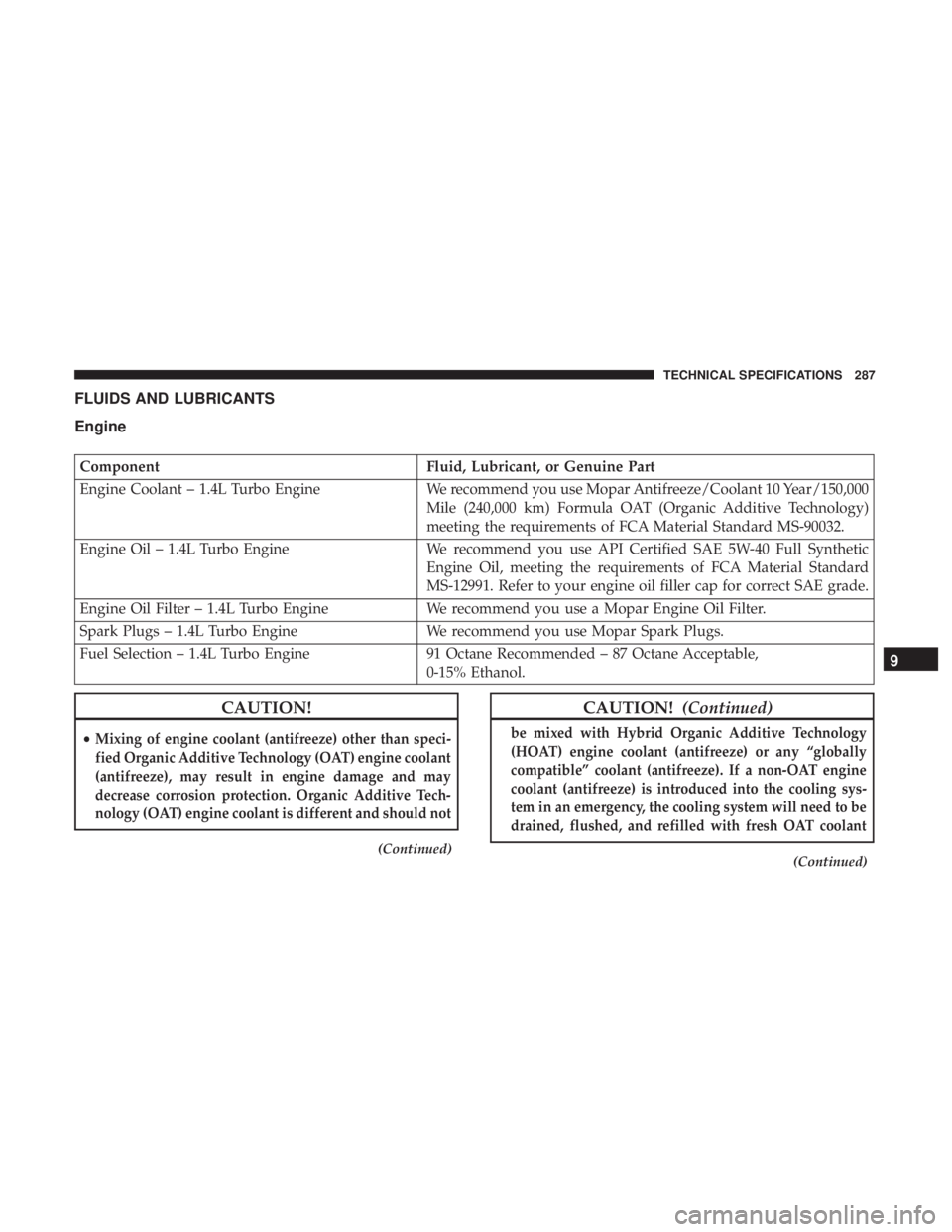

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant – 1.4L Turbo Engine We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000
Mile (240,000 km) Formula OAT (Organic Additive Technology)
meeting the requirements of FCA Material Standard MS-90032.
Engine Oil – 1.4L Turbo Engine We recommend you use API Certified SAE 5W-40 Full Synthetic
Engine Oil, meeting the requirements of FCA Material Standard
MS-12991. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter – 1.4L Turbo Engine We recommend you use a Mopar Engine Oil Filter.
Spark Plugs – 1.4L Turbo Engine We recommend you use Mopar Spark Plugs.
Fuel Selection – 1.4L Turbo Engine 91 Octane Recommended – 87 Octane Acceptable,
0-15% Ethanol.
CAUTION!
•Mixing of engine coolant (antifreeze) other than speci-
fied Organic Additive Technology (OAT) engine coolant
(antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Tech-
nology (OAT) engine coolant is different and should not
(Continued)
CAUTION! (Continued)
be mixed with Hybrid Organic Additive Technology
(HOAT) engine coolant (antifreeze) or any “globally
compatible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling sys-
tem in an emergency, the cooling system will need to be
drained, flushed, and refilled with fresh OAT coolant
(Continued)
9
TECHNICAL SPECIFICATIONS 287

CAUTION!(Continued)
(conforming to MS.90032), by an authorized dealer as
soon as possible.
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
(Continued)
CAUTION! (Continued)
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
Chassis
Component Fluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped We recommend you use Mopar C635 DDCT/MTX Transmission
Fluid.
Automatic Transmission – If Equipped Use only Mopar AW-1 Automatic Transmission Fluid or equivalent.
Failure to use the correct fluid may affect the function or perfor-
mance of your transmission.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703. If DOT 3,
SAE J1703 brake fluid is not available, then DOT 4 is acceptable.
DOT 4 Brake fluid must be replaced every 24 months regardless of
mileage.
Convertible Top Rails – If Equipped We recommend you use Berulub FR 43.
