FIAT 500E 2013 2.G Owners Manual

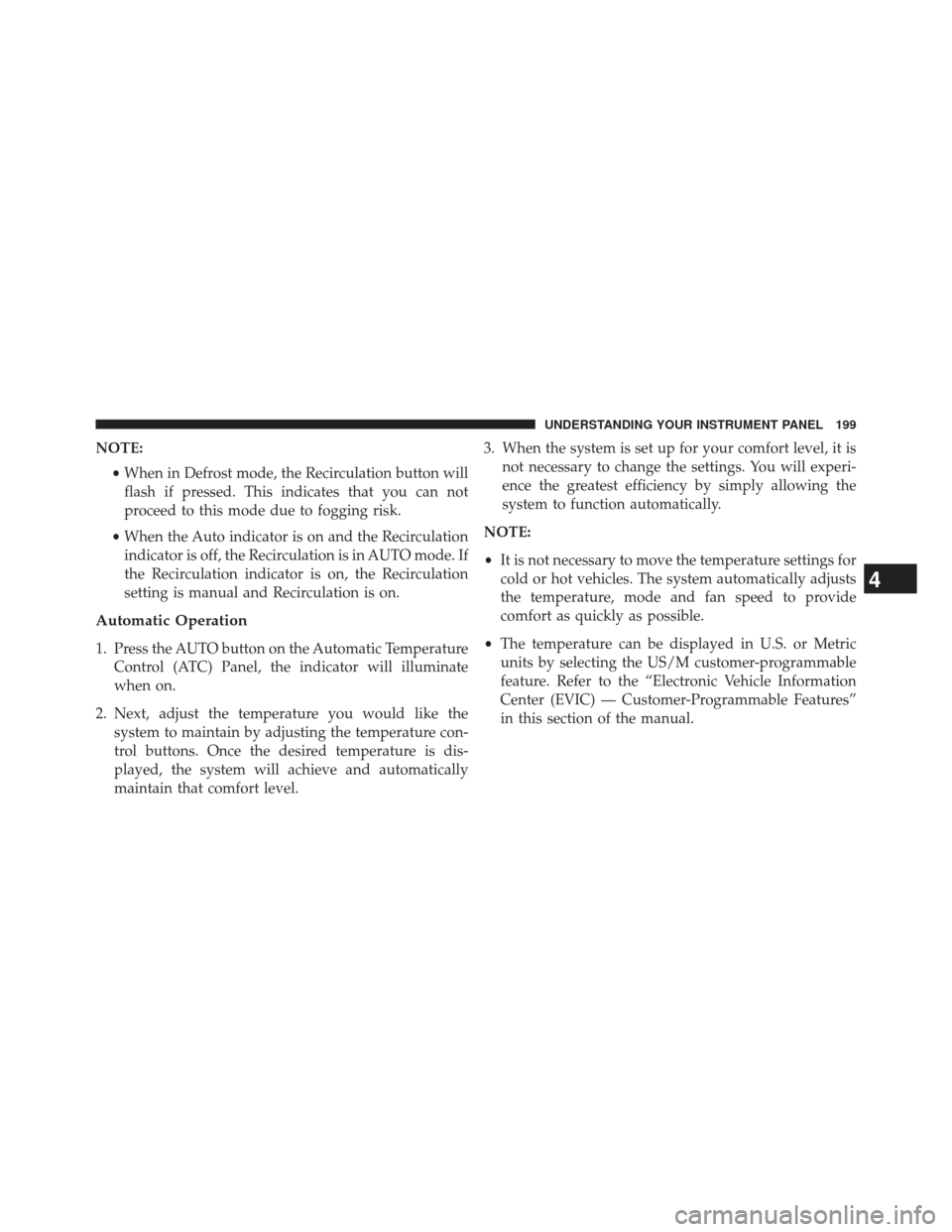

NOTE:•When in Defrost mode, the Recirculation button will
flash if pressed. This indicates that you can not
proceed to this mode due to fogging risk.
• When the Auto indicator is on and the Recirculation
indicator is off, the Recirculation is in AUTO mode. If
the Recirculation indicator is on, the Recirculation
setting is manual and Recirculation is on.
Automatic Operation
1. Press the AUTO button on the Automatic Temperature Control (ATC) Panel, the indicator will illuminate
when on.
2. Next, adjust the temperature you would like the system to maintain by adjusting the temperature con-
trol buttons. Once the desired temperature is dis-
played, the system will achieve and automatically
maintain that comfort level. 3. When the system is set up for your comfort level, it is
not necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically.
NOTE:
• It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode and fan speed to provide
comfort as quickly as possible.
• The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
feature. Refer to the “Electronic Vehicle Information
Center (EVIC) — Customer-Programmable Features”
in this section of the manual.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 199

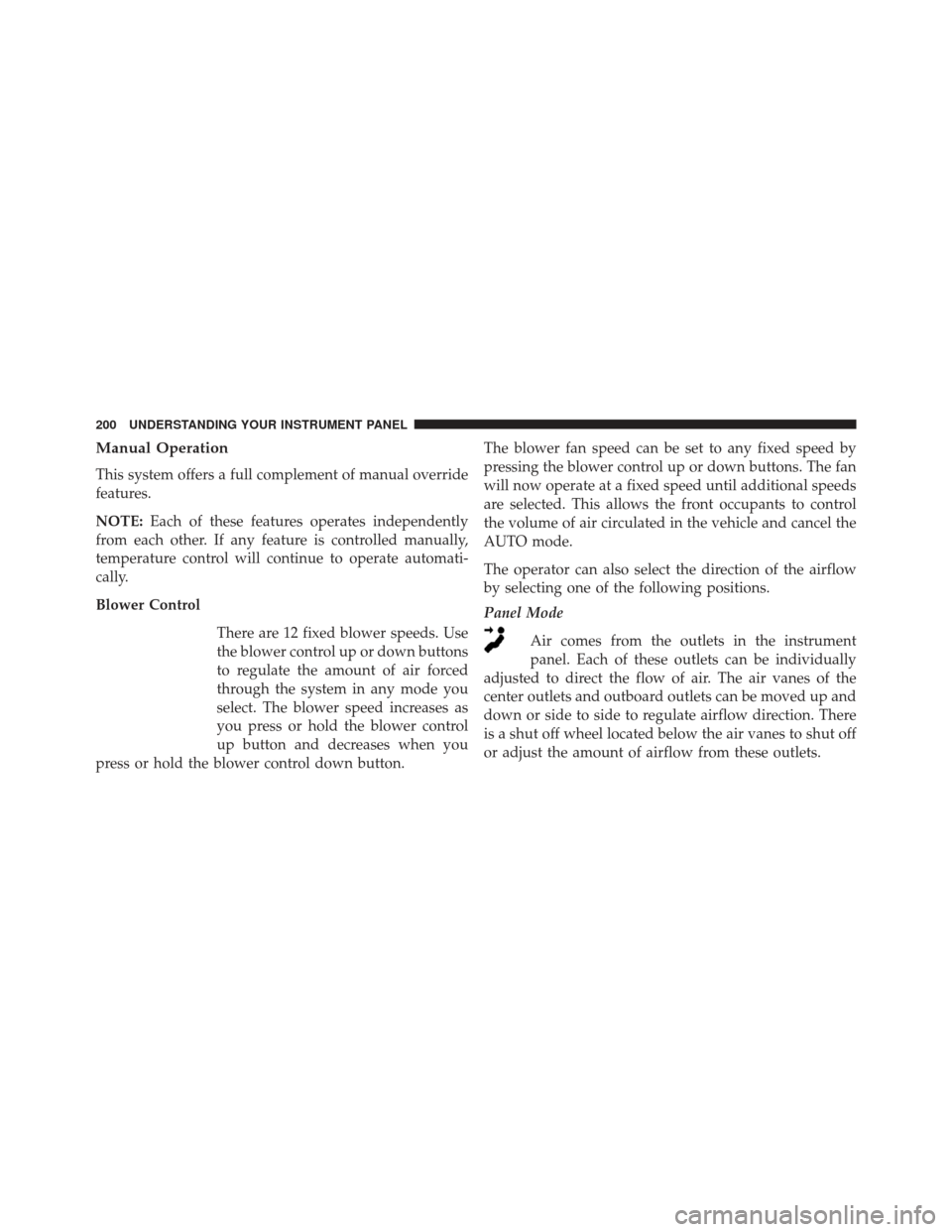

Manual Operation
This system offers a full complement of manual override
features.
NOTE:Each of these features operates independently
from each other. If any feature is controlled manually,
temperature control will continue to operate automati-
cally.
Blower Control
There are 12 fixed blower speeds. Use
the blower control up or down buttons
to regulate the amount of air forced
through the system in any mode you
select. The blower speed increases as
you press or hold the blower control
up button and decreases when you
press or hold the blower control down button. The blower fan speed can be set to any fixed speed by
pressing the blower control up or down buttons. The fan
will now operate at a fixed speed until additional speeds
are selected. This allows the front occupants to control
the volume of air circulated in the vehicle and cancel the
AUTO mode.
The operator can also select the direction of the airflow
by selecting one of the following positions.
Panel Mode
Air comes from the outlets in the instrument
panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the
center outlets and outboard outlets can be moved up and
down or side to side to regulate airflow direction. There
is a shut off wheel located below the air vanes to shut off
or adjust the amount of airflow from these outlets.
200 UNDERSTANDING YOUR INSTRUMENT PANEL

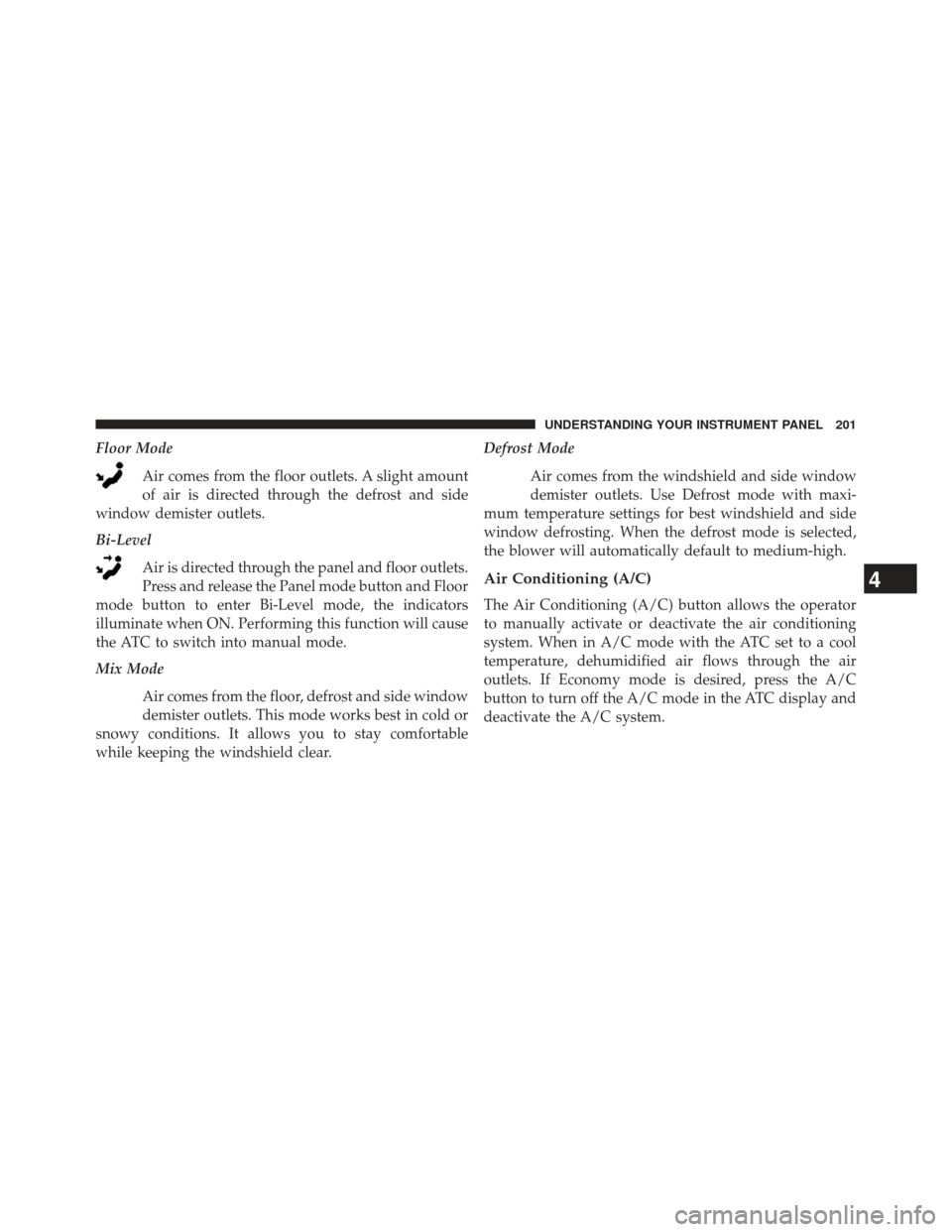

Floor ModeAir comes from the floor outlets. A slight amount
of air is directed through the defrost and side
window demister outlets.
Bi-Level
Air is directed through the panel and floor outlets.
Press and release the Panel mode button and Floor
mode button to enter Bi-Level mode, the indicators
illuminate when ON. Performing this function will cause
the ATC to switch into manual mode.
Mix Mode
Air comes from the floor, defrost and side window
demister outlets. This mode works best in cold or
snowy conditions. It allows you to stay comfortable
while keeping the windshield clear. Defrost Mode
Air comes from the windshield and side window
demister outlets. Use Defrost mode with maxi-
mum temperature settings for best windshield and side
window defrosting. When the defrost mode is selected,
the blower will automatically default to medium-high.
Air Conditioning (A/C)
The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When in A/C mode with the ATC set to a cool
temperature, dehumidified air flows through the air
outlets. If Economy mode is desired, press the A/C
button to turn off the A/C mode in the ATC display and
deactivate the A/C system.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 201

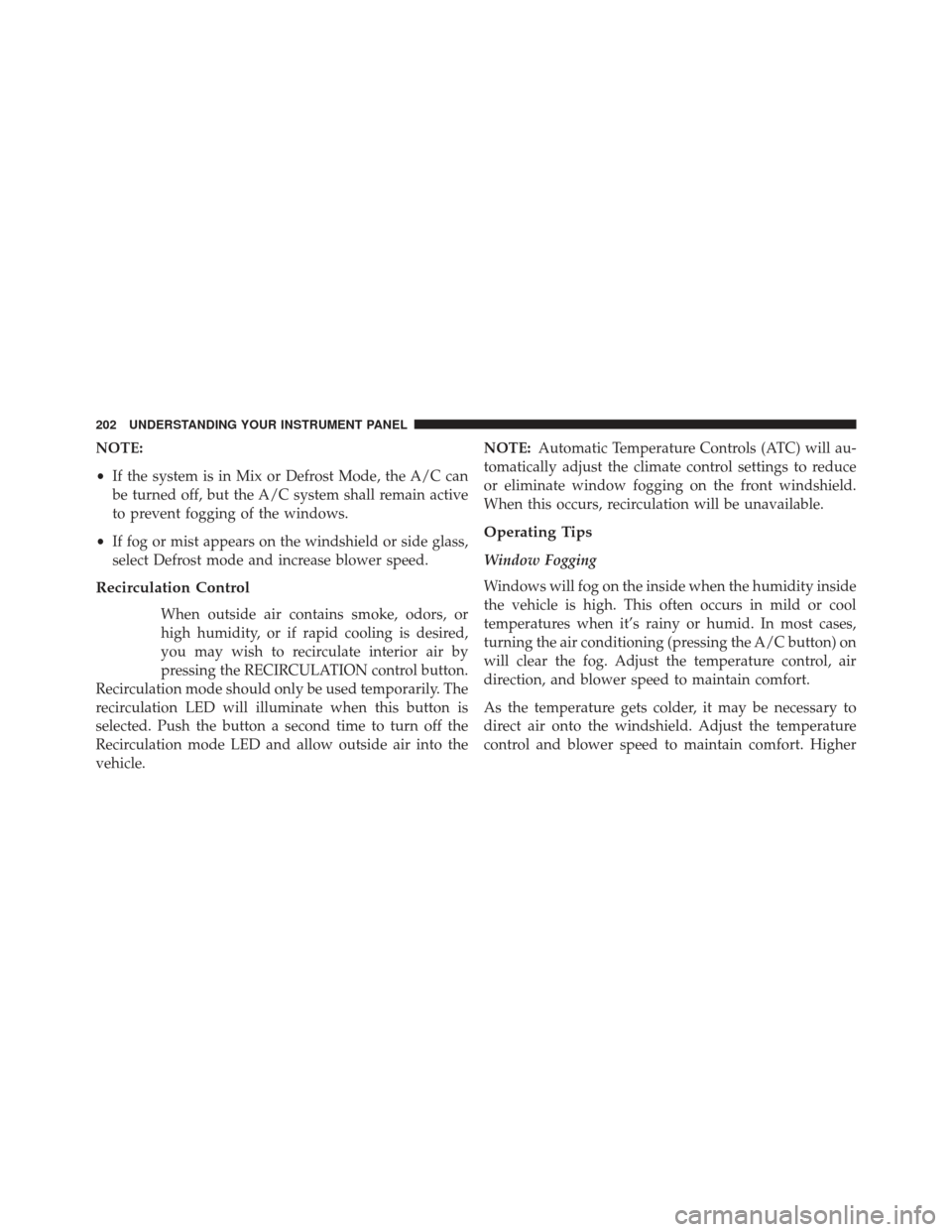

NOTE:
•If the system is in Mix or Defrost Mode, the A/C can
be turned off, but the A/C system shall remain active
to prevent fogging of the windows.
• If fog or mist appears on the windshield or side glass,
select Defrost mode and increase blower speed.
Recirculation Control
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button.
Recirculation mode should only be used temporarily. The
recirculation LED will illuminate when this button is
selected. Push the button a second time to turn off the
Recirculation mode LED and allow outside air into the
vehicle. NOTE:
Automatic Temperature Controls (ATC) will au-
tomatically adjust the climate control settings to reduce
or eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.
Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the A/C button) on
will clear the fog. Adjust the temperature control, air
direction, and blower speed to maintain comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
202 UNDERSTANDING YOUR INSTRUMENT PANEL

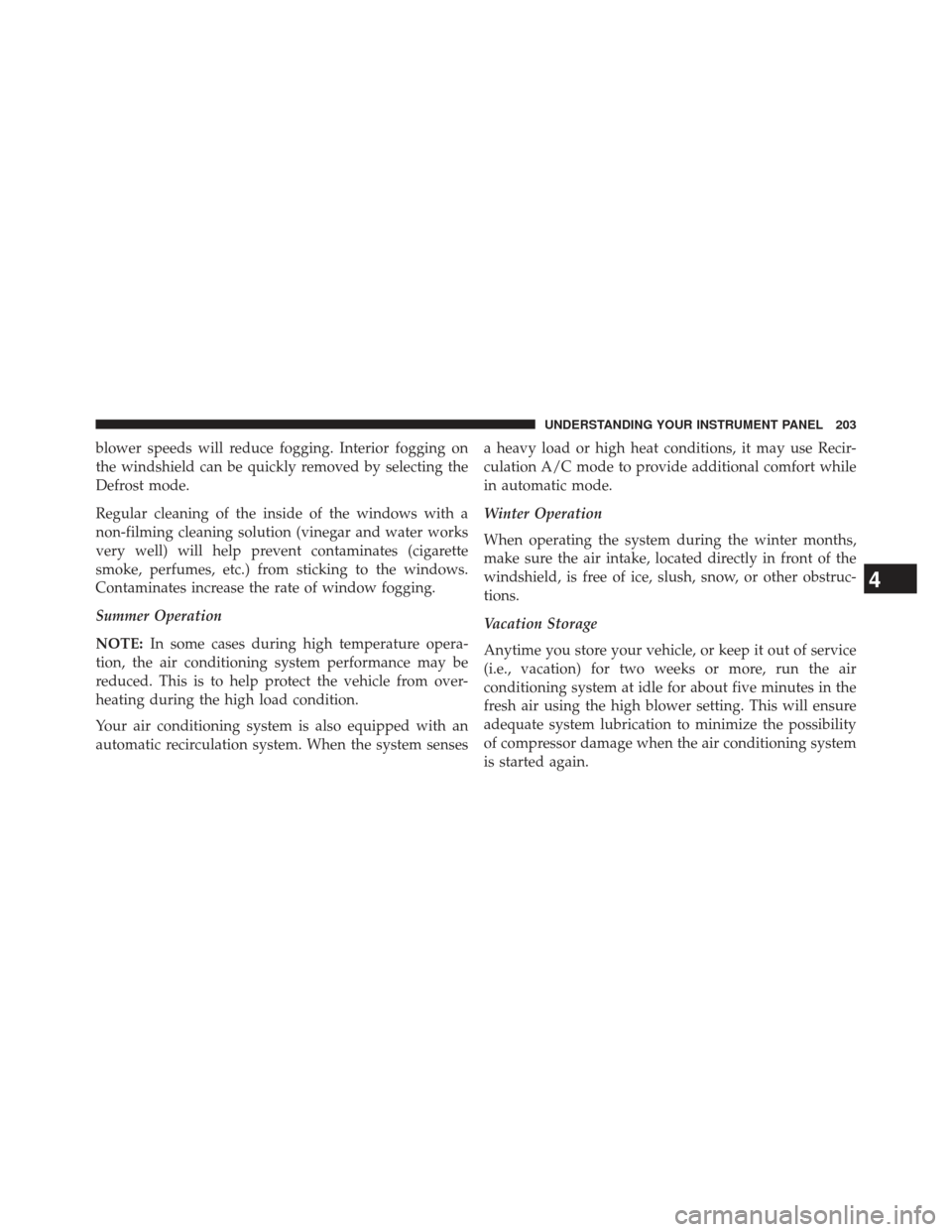

blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
Defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
NOTE:In some cases during high temperature opera-
tion, the air conditioning system performance may be
reduced. This is to help protect the vehicle from over-
heating during the high load condition.
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses a heavy load or high heat conditions, it may use Recir-
culation A/C mode to provide additional comfort while
in automatic mode.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air using the high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the air conditioning system
is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 203

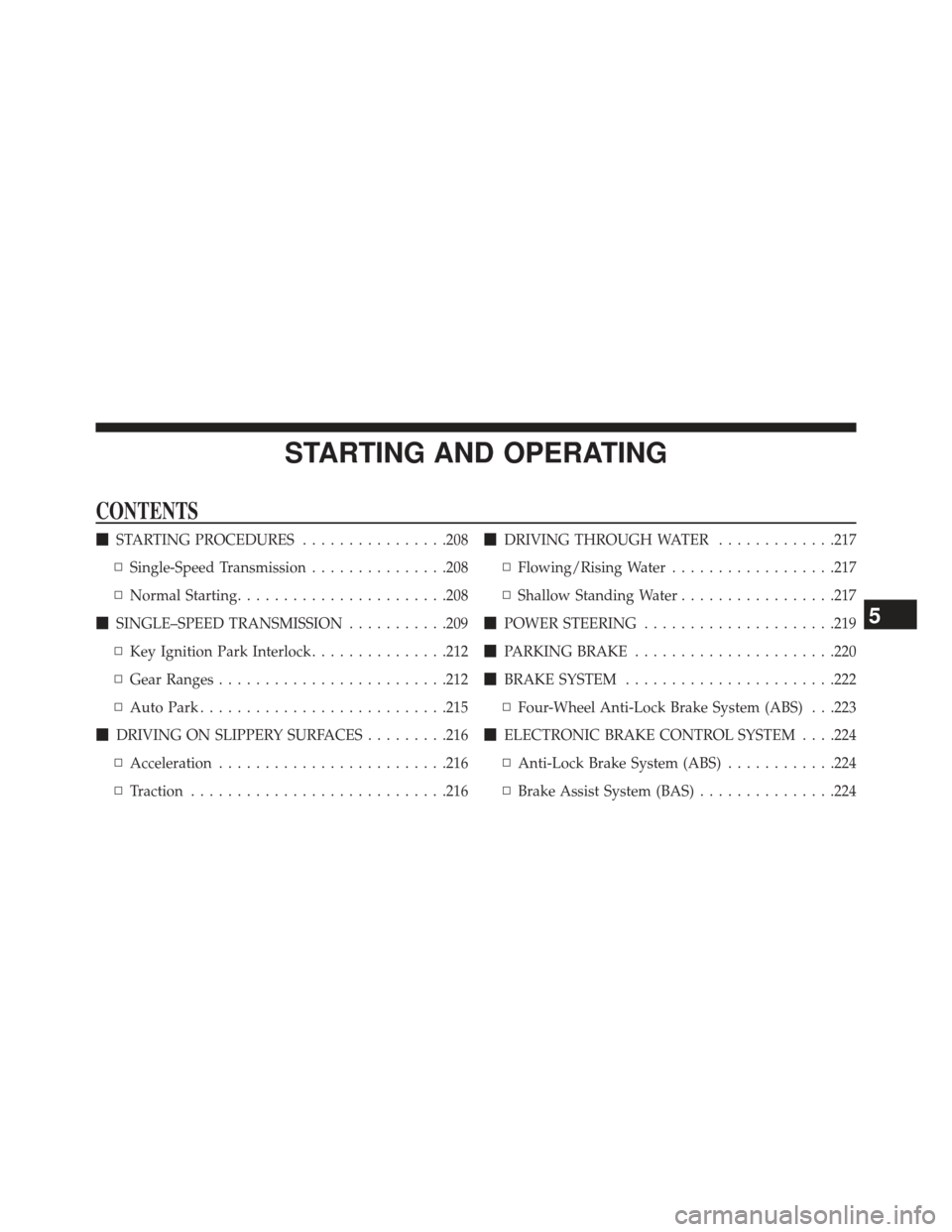

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................208
▫ Single-Speed Transmission ...............208
▫ Normal Starting ...................... .208
 SINGLE–SPEED TRANSMISSION ...........209
▫ Key Ignition Park Interlock ...............212
▫ Gear Ranges ........................ .212
▫ Auto Park .......................... .215
 DRIVING ON SLIPPERY SURFACES .........216
▫ Acceleration ........................ .216
▫ Traction ........................... .216
DRIVING THROUGH WATER .............217
▫ Flowing/Rising Water ..................217
▫ Shallow Standing Water .................217
 POWER STEERING .....................219
 PARKING BRAKE ..................... .220
 BRAKE SYSTEM ...................... .222
▫ Four-Wheel Anti-Lock Brake System (ABS) . . .223
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .224
▫ Anti-Lock Brake System (ABS) ............224
▫ Brake Assist System (BAS) ...............224
5

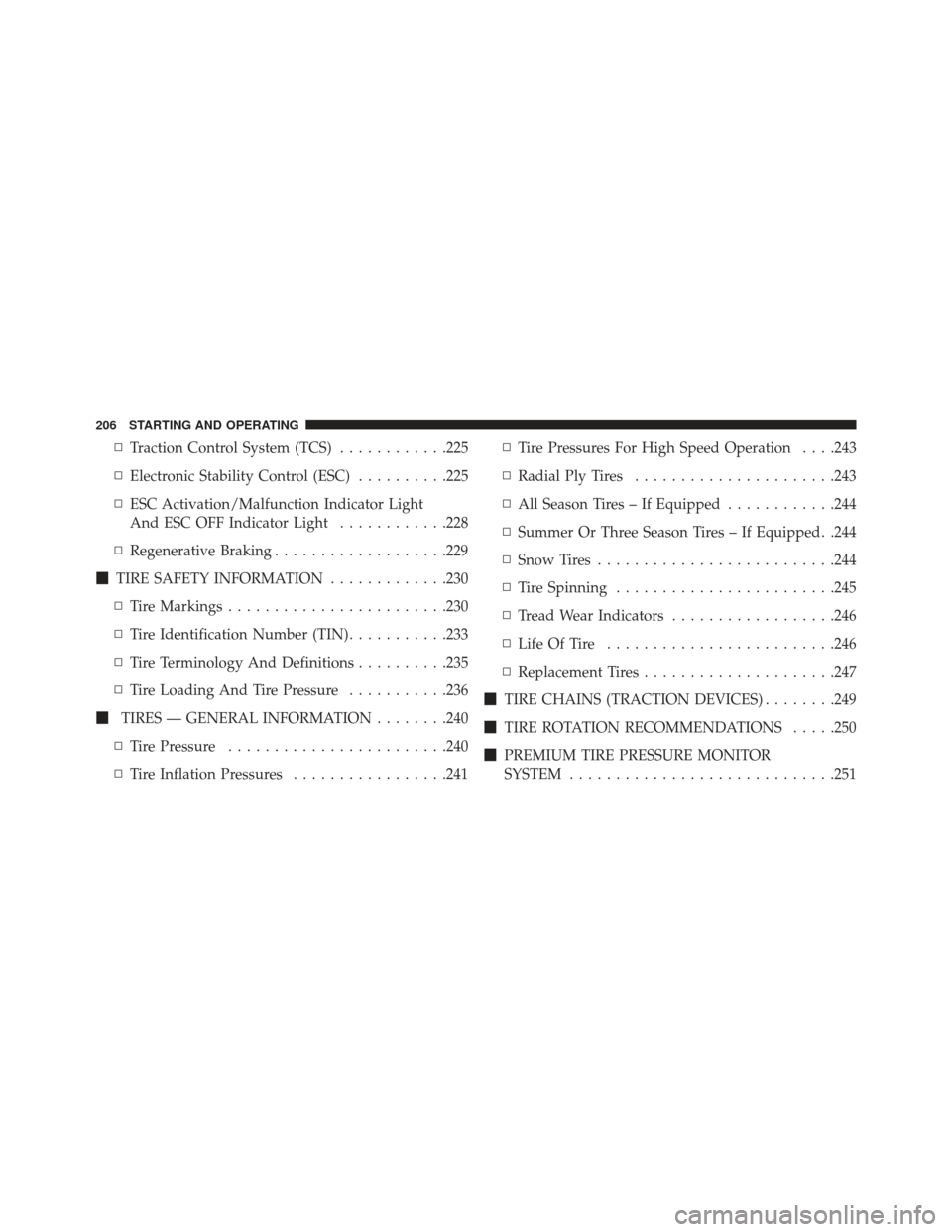

▫Traction Control System (TCS) ............225
▫ Electronic Stability Control (ESC) ..........225
▫ ESC Activation/Malfunction Indicator Light
And ESC OFF Indicator Light ............228
▫ Regenerative Braking ...................229
 TIRE SAFETY INFORMATION .............230
▫ Tire Markings ....................... .230
▫ Tire Identification Number (TIN) ...........233
▫ Tire Terminology And Definitions ..........235
▫ Tire Loading And Tire Pressure ...........236
 TIRES — GENERAL INFORMATION ........240
▫ Tire Pressure ....................... .240
▫ Tire Inflation Pressures .................241 ▫
Tire Pressures For High Speed Operation . . . .243
▫ Radial Ply Tires ..................... .243
▫ All Season Tires – If Equipped ............244
▫ Summer Or Three Season Tires – If Equipped. .244
▫ Snow Tires ......................... .244
▫ Tire Spinning ....................... .245
▫ Tread Wear Indicators ..................246
▫ Life Of Tire ........................ .246
▫ Replacement Tires .....................247
 TIRE CHAINS (TRACTION DEVICES) ........249
 TIRE ROTATION RECOMMENDATIONS .....250
 PREMIUM TIRE PRESSURE MONITOR
SYSTEM ............................ .251
206 STARTING AND OPERATING

▫Premium TPM System ..................254
▫ Tire Pressure Monitoring Low Pressure
Warnings .......................... .254
▫ TPMS Warning ...................... .256
▫ General Information ....................258
 TRAILER TOWING .....................258
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................258 ▫
Towing This Vehicle Behind Another Vehicle . .258
 EXTENDING YOUR DRIVING RANGE PER
CHARGE ............................ .259
▫ Driver Behavior Gauge ..................260
▫ Range Projection ..................... .261
5
STARTING AND OPERATING 207

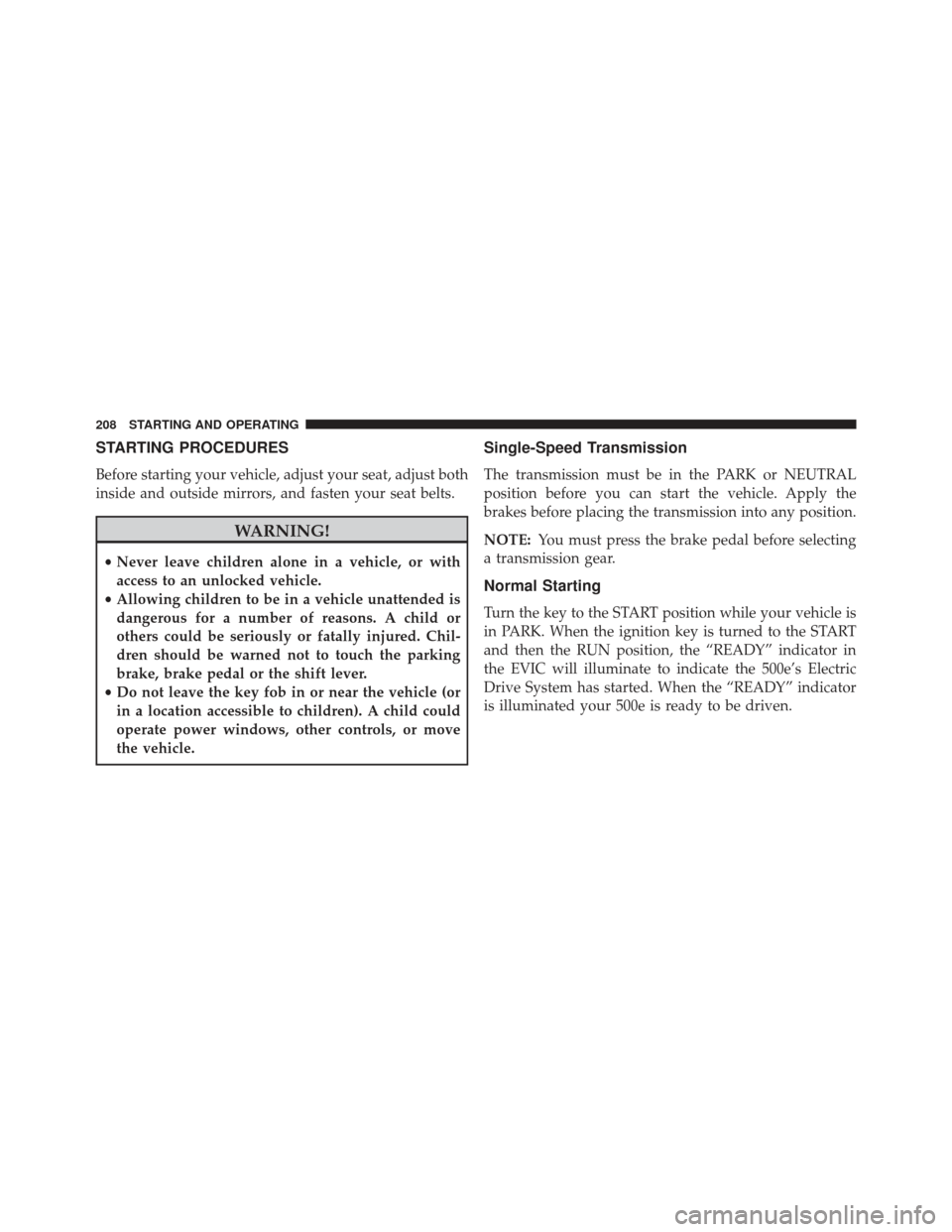

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the key fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Single-Speed Transmission
The transmission must be in the PARK or NEUTRAL
position before you can start the vehicle. Apply the
brakes before placing the transmission into any position.
NOTE: You must press the brake pedal before selecting
a transmission gear.
Normal Starting
Turn the key to the START position while your vehicle is
in PARK. When the ignition key is turned to the START
and then the RUN position, the “READY” indicator in
the EVIC will illuminate to indicate the 500e’s Electric
Drive System has started. When the “READY” indicator
is illuminated your 500e is ready to be driven.
208 STARTING AND OPERATING
