FIAT 500E 2013 2.G Manual PDF

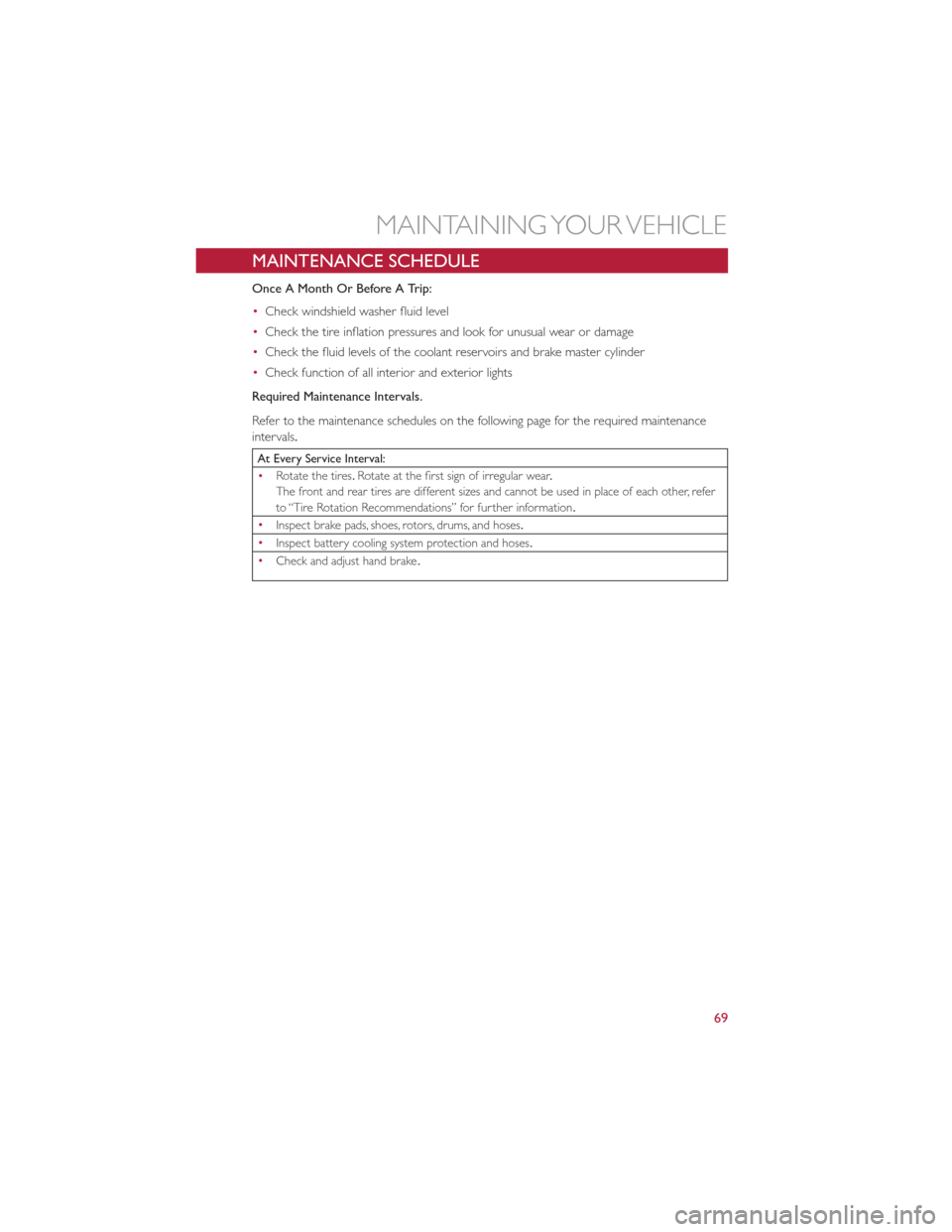

MAINTENANCE SCHEDULE
Once A Month Or Before A Trip:
•Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual wear or damage
• Check the fluid levels of the coolant reservoirs and brake master cylinder
• Check function of all interior and exterior lights
Required Maintenance Intervals.
Refer to the maintenance schedules on the following page for the required maintenance
intervals.
At Every Service Interval:
• Rotate the tires. Rotate at the first sign of irregular wear .
The front and rear tires are different sizes and cannot be used in place of each other, refer
to “Tire Rotation Recommendations” for further information .
• Inspect brake pads, shoes, rotors, drums, and hoses .
• Inspect battery cooling system protection and hoses .
• Check and adjust hand brake .
MAINTAINING YOUR VEHICLE
69

Maintenance ChartRefer to the Maintenance Schedules on the following pages for the required maintenance intervals.Mileage or time passed (whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV joints. XX X X X
Inspect front suspension, tie rod ends and
boot seals, and replace if necessary .
XXXXXXX
Inspect the brake linings, parking brake
function. XXXXXXX
Additional Maintenance
Replace cabin air filter . XXXXXXX
Clean and lube sun roof tracks .XXXXXXX
Flush and replace the Power Electronics and
Battery Thermal Loop Systems at 10 years or
150,000 miles (240,000 km) whichever
comes first. XX
WARNING!
•
You can be badly injured working on or around an electric motor vehicle .Do only service work for which you have the knowledge and
the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic .
•Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance .
This could cause an accident .
MAINTAINING YOUR VEHICLE
70

FUSES
Interior Fuses
•The interior fuse panel is part of the Body Control Module (BCM) and is located on the
driver's side under the instrument panel.
Cavity Vehicle
Fuse
Number Mini Fuse
Description
1 F12 7.5 Amp Brown Right Low Beam
2 F32 5 Amp Tan Front and Rear Ceiling Lights Trunk and Door
Courtesy Lights
3 F53 5 Amp Tan Instrument Panel Node
4 F38 20 Amp Yellow Central Door Locking
5 F36 10 Amp Red Diagnostic Socket, Car Radio, Climate Control
System, Tire Pressure Monitor, TCU and CTM
6 F43 20 Amp Yellow Bi-Directional Washer
7 F48 20 Amp Yellow Passenger Power Window
8 F13 7.5 Amp Brown Left Low Beam
9 F50 7.5 Amp Brown Airbag
10 F51 5 Amp Tan Car Radio Switch, Climate Control System,
Stop Light, Exterior Mirrors, Sunroof Switch,
GPS (option) and CTM
11 F37 5 Amp Tan Stop Light Switch, Instrument Panel Node
12 F49 5 Amp Tan Exterior Mirror, GPS, Electric Mirror, Parking
Sensor, Sunroof Switch
13 F31 5 Amp Tan Ignition, Climate Control, RDU and EVCU
14 F47 20 Amp Yellow Driver Power Window
MAINTAINING YOUR VEHICLE
71

Power Distribution Center #1
•The Power Distribution Center #1 is located on the right side of the underhood
compartment. To access the fuses, remove locking screw and slide cover off.
• The ID number of the electrical component corresponding to each fuse can be found on
thebackofthecover .
Cavity Maxi Fuse Mini Fuse Description
F01 60 Amp BlueBody Control Module (BCM)
F02 20 Amp Yellow HiFi Amplifier
F03 20 Amp Yellow Ignition Switch
F04 40 Amp Orange Brake System Module Pump
F05 70 Amp Tan Electric Power Steering (EPS)
F06 60 Amp Blue Radiator Fan
F07 40 Amp Orange Regen Brake Module
F08 40 Amp Orange HVAC
F09 5 Amp TanAir Electric Heater
Charge Indicator
F10 10 Amp Red Horn
F11 10 Amp Red
Electronic Vehicle Control Unit (EVCU)
F145 Amp Tan High beam (Shutter)
F15 15 Amp Blue Cigar Lighter
F16 10 Amp RedHumidity Sensor
VPAM
AC Compressor
F18 5 Amp Tan
Electronic Vehicle Control Unit (EVCU)
F1910 Amp Red HVAC
F20 15 Amp Blue Heated Seats – If Equipped
F23 25 Amp Clear Anti-Lock Brake Valves
F24 7.5 Amp BrownEPS
YAW Sensor
F30 15 Amp Blue Fog Lamps
F81 30 Amp Green Electronic Shifter (ESM)
F82 30 Amp Green Sunroof
F84 25 Amp Clear Regen Brake Module
F85
30 Amp GreenRear Window Heater
F87 5 Amp Tan Electronic Shifter (ESM)
F90 5 Amp Tan Heated Mirrors
MAINTAINING YOUR VEHICLE
72

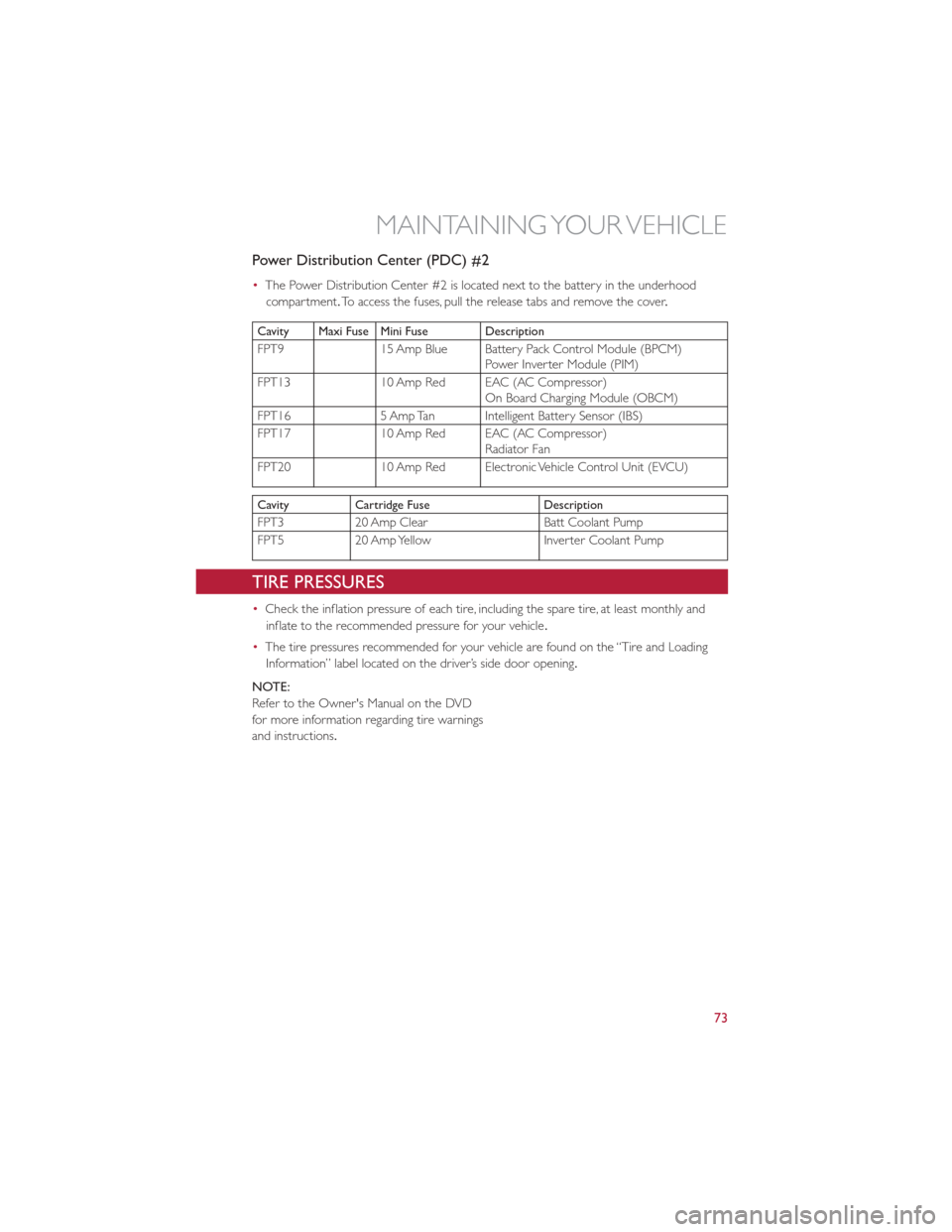

Power Distribution Center (PDC) #2
•The Power Distribution Center #2 is located next to the battery in the underhood
compartment. To access the fuses, pull the release tabs and remove the cover .
Cavity Maxi Fuse Mini Fuse Description
FPT915 Amp Blue Battery Pack Control Module (BPCM)
Power Inverter Module (PIM)
FPT13 10 Amp Red EAC (AC Compressor)
On Board Charging Module (OBCM)
FPT16 5 Amp Tan Intelligent Battery Sensor (IBS)
FPT17 10 Amp Red EAC (AC Compressor)
Radiator Fan
FPT20 10 Amp Red Electronic Vehicle Control Unit (EVCU)
CavityCartridge Fuse Description
FPT320 Amp Clear Batt Coolant Pump
FPT5 20 Amp Yellow Inverter Coolant Pump
TIRE PRESSURES
•Check the inflation pressure of each tire, including the spare tire, at least monthly and
inflate to the recommended pressure for your vehicle .
• The tire pressures recommended for your vehicle are found on the “Tire and Loading
Information” label located on the driver’s side door opening.
NOTE:
Refer to the Owner's Manual on the DVD
for more information regarding tire warnings
and instructions.
MAINTAINING YOUR VEHICLE
73

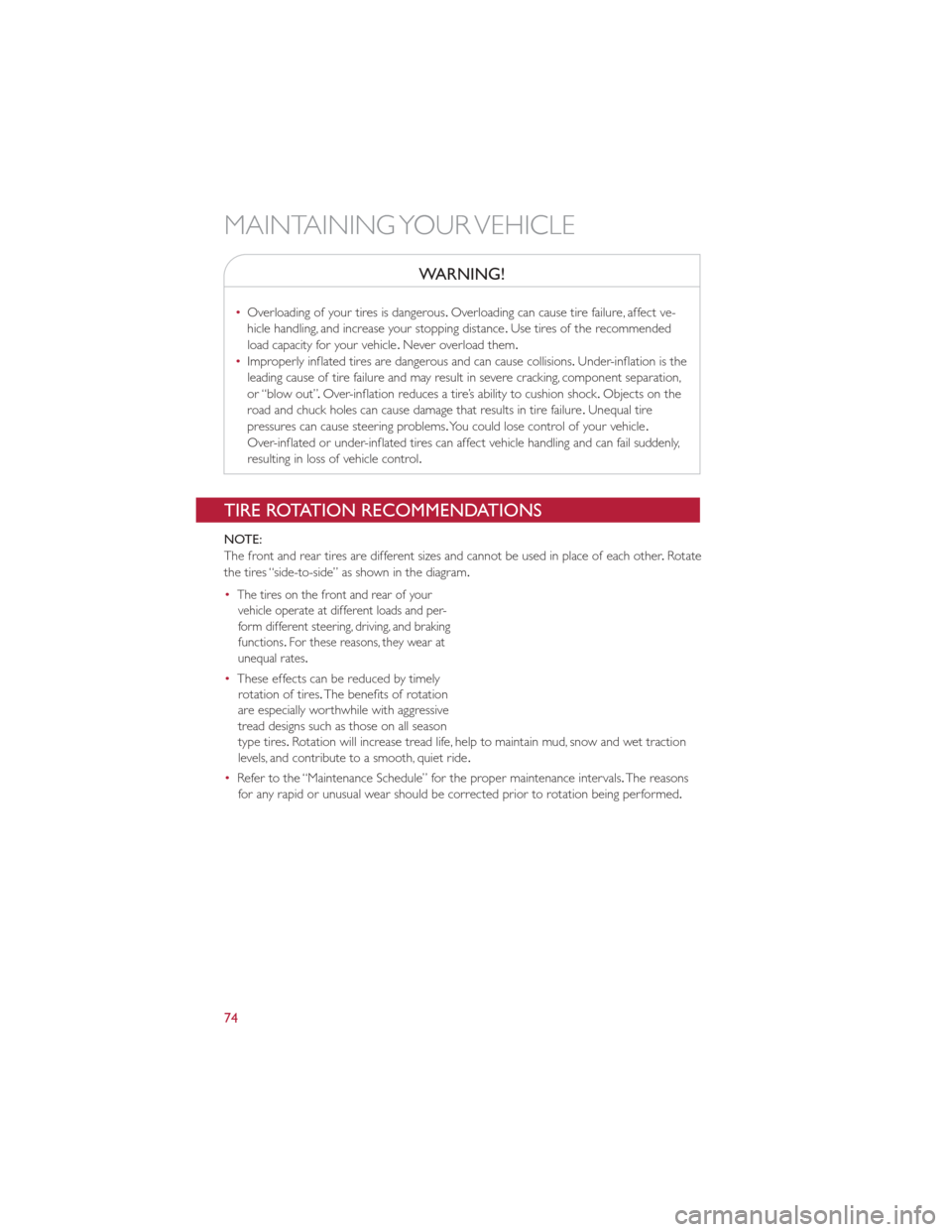

WARNING!
•Overloading of your tires is dangerous. Overloading can cause tire failure, affect ve-
hicle handling, and increase your stopping distance .Use tires of the recommended
load capacity for your vehicle .Never overload them.
• Improperly inflated tires are dangerous and can cause collisions. Under-inflation is the
leading cause of tire failure and may result in severe cracking, component separation,
or “blow out” .Over-inflation reduces a tire’s ability to cushion shock .Objects on the
road and chuck holes can cause damage that results in tire failure .Unequal tire
pressures can cause steering problems. You could lose control of your vehicle.
Over-inflated or under-inflated tires can affect vehicle handling and can fail suddenly,
resulting in loss of vehicle control.
TIRE ROTATION RECOMMENDATIONS
NOTE:
The front and rear tires are different sizes and cannot be used in place of each other .Rot ate
the tires “side-to-side” as shown in the diagram.
•
The tires on the front and rear of your vehicle operate at different loads and per-
form different steering, driving, and braking
functions. For these reasons, they wear at
unequal rates.
• These effects can be reduced by timely
rotation of tires. The benefits of rotation
are especially worthwhile with aggressive
tread designs such as those on all season
type tires. Rotation will increase tread life, help to maintain mud, snow and wet traction
levels, and contribute to a smooth, quiet ride .
• Refer to the “Maintenance Schedule” for the proper maintenance intervals. The reasons
for any rapid or unusual wear should be corrected prior to rotation being performed.
MAINTAINING YOUR VEHICLE
74

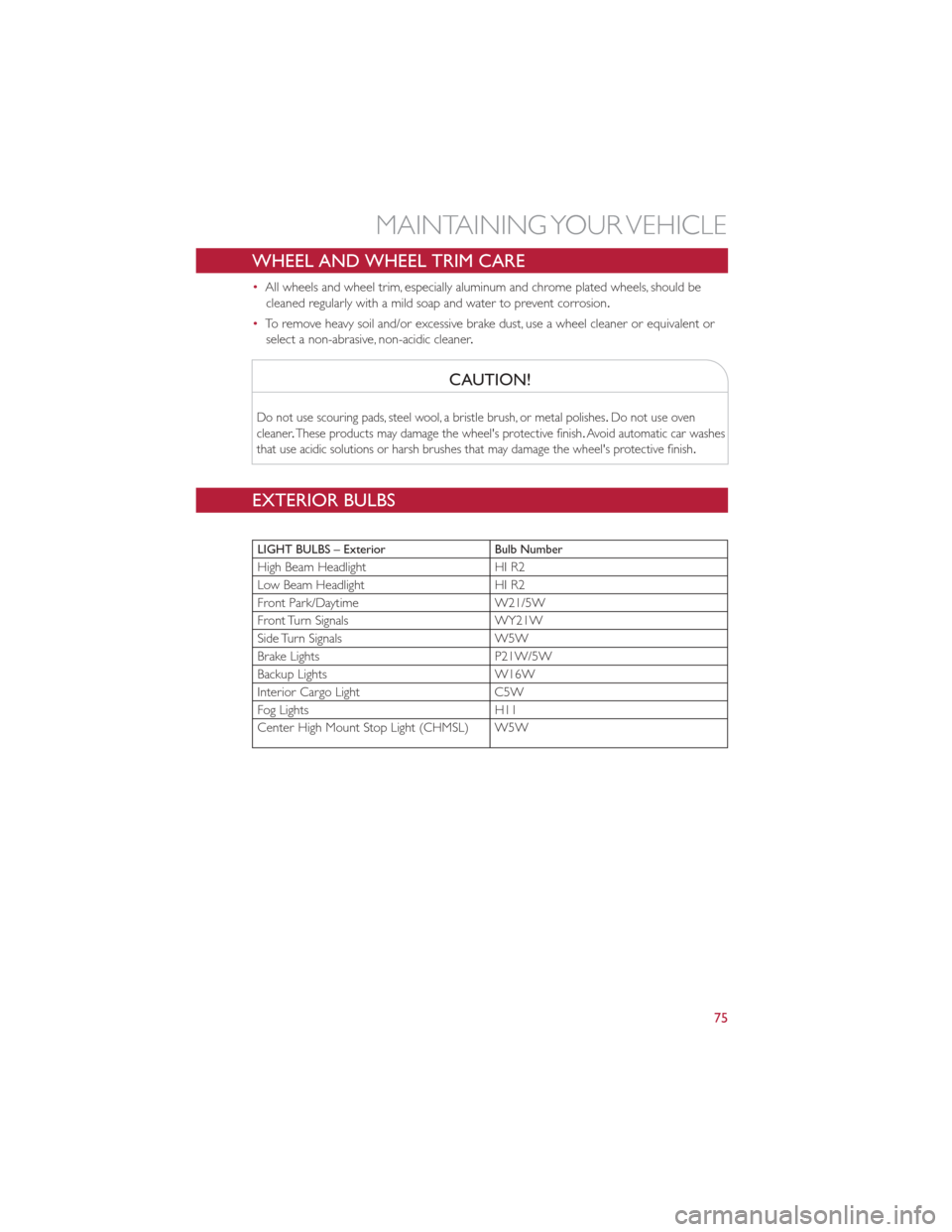

WHEEL AND WHEEL TRIM CARE
•All wheels and wheel trim, especially aluminum and chrome plated wheels, should be
cleaned regularly with a mild soap and water to prevent corrosion.
• To remove heavy soil and/or excessive brake dust, use a wheel cleaner or equivalent or
select a non-abrasive, non-acidic cleaner .
CAUTION!
Do not use scouring pads, steel wool, a bristle brush, or metal polishes .Do not use oven
cleaner .These products may damage the wheel's protective finish .Avoid automatic car washes
that use acidic solutions or harsh brushes that may damage the wheel's protective finish .
EXTERIOR BULBS
LIGHT BULBS – ExteriorBulb Number
High Beam HeadlightHI R2
Low Beam Headlight HI R2
Front Park/Daytime W21/5W
Front Turn Signals WY21W
Side Turn Signals W5W
Brake Lights P21W/5W
Backup Lights W16W
Interior Cargo Light C5W
Fog Lights H11
Center High Mount Stop Light (CHMSL) W5W
MAINTAINING YOUR VEHICLE
75

FIAT CUSTOMER CENTER
P.O .Box 21–8004
Auburn Hills, MI 48321–8004
Phone: 1-888-242-6342
ASSISTANCE FOR THE HEARING IMPAIRED
•To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommunication Devices for the Deaf ) equipment at its customer center .Any hearing or
speech impaired customer, who has access to a TDD or a conventional teletypewriter (TTY)
in the United States, can communicate with the manufacturer by dialing 1–800–380–CHRY .
Canadian residents with hearing difficulties that require assistance can use the special needs
relay service offered by Bell Canada .For TTY teletypewriter users, dial 711 and for Voice
callers, dial 1–800–855–0511 to connect with a Bell Relay Service operator .
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain, or emit,
chemicals known to the State of California to cause cancer and birth defects, or other
reproductive harm.In addition, certain fluids contained in vehicles and certain products of
component wear contain, or emit, chemicals known to the State of California to cause
cancer and birth defects, or other reproductive harm .
PUBLICATIONS ORDERING
•If you are the first registered retail owner of your vehicle, you may obtain one free
printed copy of the Owner's Manual, Warranty Booklet or Radio Manuals on your DVD
by calling 1–888–242–6342 (U .S.) or 1–800–387–1143 (Canada) or by contacting your
studio .
• Replacement English User Guide kits or DVDs may be purchased by visiting
www .techauthority .com or by calling 1–800–890–4038 (U .S.) or 1–800–387–1143
(Canada). Visa, Master Card, American Express and Discover orders are accepted.
If you prefer mailing your order, please call the above numbers for an order form.
NOTE:
A street address is required when ordering manuals (no P .O.Boxes).
CUSTOMER ASSISTANCE
76

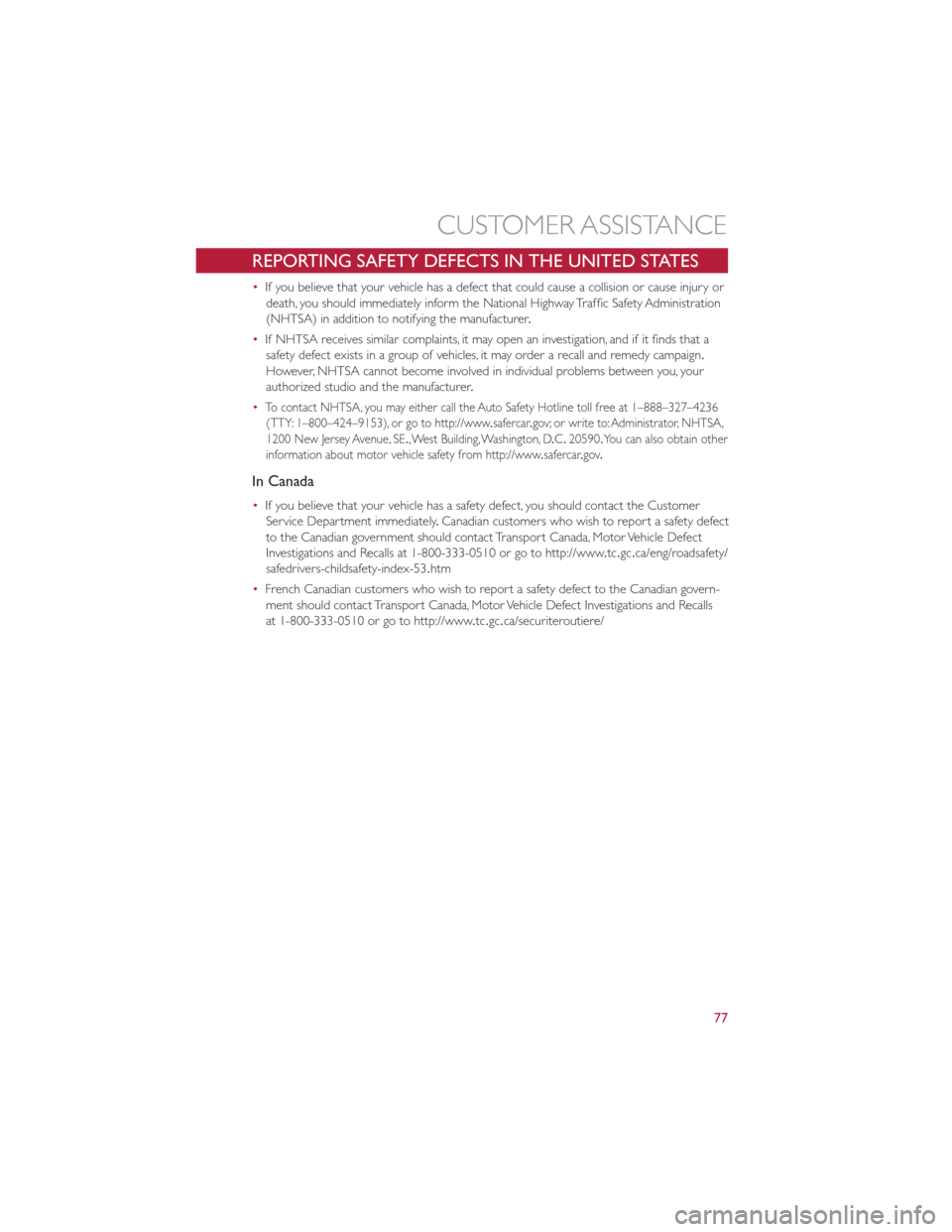

REPORTING SAFETY DEFECTS IN THE UNITED STATES
•If you believe that your vehicle has a defect that could cause a collision or cause injury or
death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying the manufacturer .
• If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign .
However, NHTSA cannot become involved in individual problems between you, your
authorized studio and the manufacturer .
•
To contact NHTSA, you may either call the Auto Safety Hotline toll free at 1–888–327–4236 (TTY: 1–800–424–9153), or go to http://www .safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE., West Building, Washington, D .C.20590. You can also obtain other
information about motor vehicle safety from http://www .safercar.gov.
In Canada
•If you believe that your vehicle has a safety defect, you should contact the Customer
Service Department immediately .Canadian customers who wish to report a safety defect
to the Canadian government should contact Transport Canada, Motor Vehicle Defect
Investigations and Recalls at 1-800-333-0510 or go to http://www .tc.gc .ca/eng/roadsafety/
safedrivers-childsafety-index-53.htm
• French Canadian customers who wish to report a safety defect to the Canadian govern-
ment should contact Transport Canada, Motor Vehicle Defect Investigations and Recalls
at 1-800-333-0510 or go to http://www .tc.gc .ca/securiteroutiere/
CUSTOMER ASSISTANCE
77

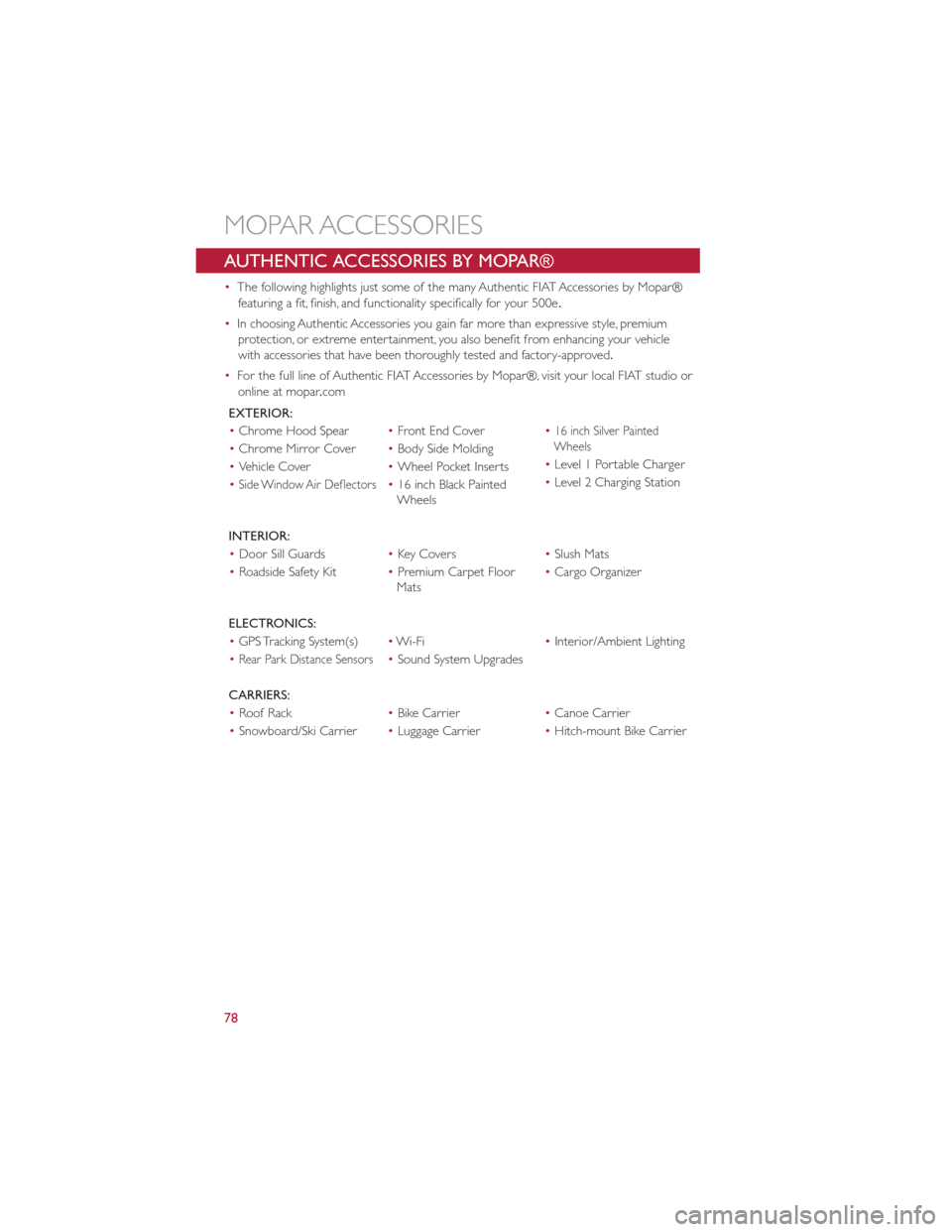

AUTHENTIC ACCESSORIES BY MOPAR®
•The following highlights just some of the many Authentic FIAT Accessories by Mopar®
featuring a fit, finish, and functionality specifically for your 500e .
• In choosing Authentic Accessories you gain far more than expressive style, premium
protection, or extreme entertainment, you also benefit from enhancing your vehicle
with accessories that have been thoroughly tested and factory-approved.
• For the full line of Authentic FIAT Accessories by Mopar®, visit your local FIAT studio or
online at mopar .com
EXTERIOR:
• Chrome Hood Spear •Front End Cover •
16 inch Silver Painted
Wheels
• Chrome Mirror Cover •Body Side Molding
•Level 1 Portable Charger
• Vehicle Cover •Wheel Pocket Inserts
•Level 2 Charging Station
•
Side Window Air Deflectors• 16 inch Black Painted
Wheels
INTERIOR:
• Door Sill Guards •Key Covers •Slush Mats
• Roadside Safety Kit •Premium Carpet Floor
Mats •
Cargo Organizer
ELECTRONICS:
• GPS Tracking System(s) •Wi-Fi •Interior/Ambient Lighting
•
Rear Park Distance Sensors• Sound System Upgrades
CARRIERS:
• Roof Rack •Bike Carrier •Canoe Carrier
• Snowboard/Ski Carrier •Luggage Carrier •Hitch-mount Bike Carrier
MOPAR ACCESSORIES
78
