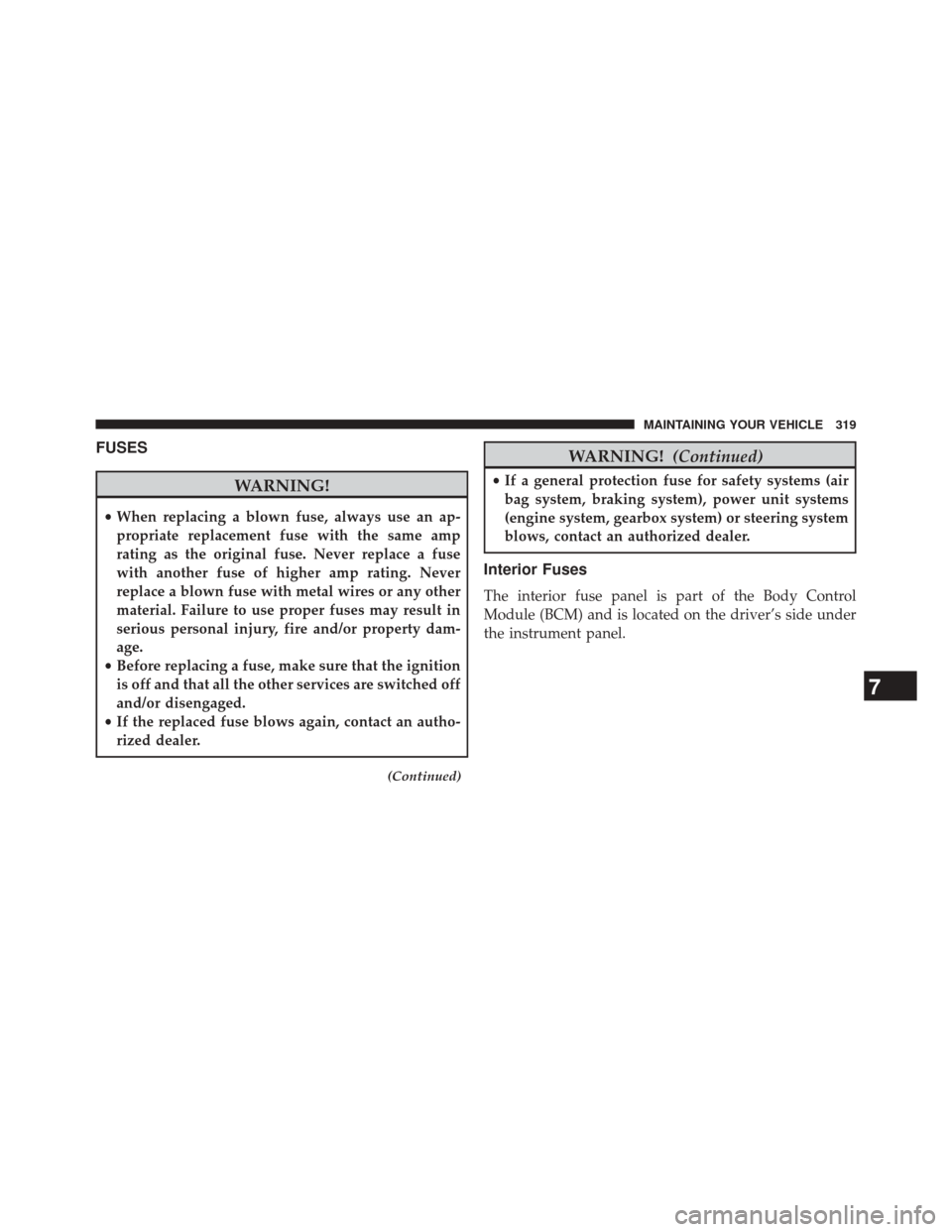

FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
• Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
WARNING! (Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
7
MAINTAINING YOUR VEHICLE 319

CavityVehicle
Fuse
Number Mini
Fuse Description
1 F12 7.5 Amp
Brown Right Low Beam
2 F32 5 Amp Ta nFront and Rear
Ceiling Lights
Trunk and Door
Courtesy Lights
3 F53 5 Amp Ta nInstrument Panel
Node
4 F38 20 Amp YellowCentral Door
Locking

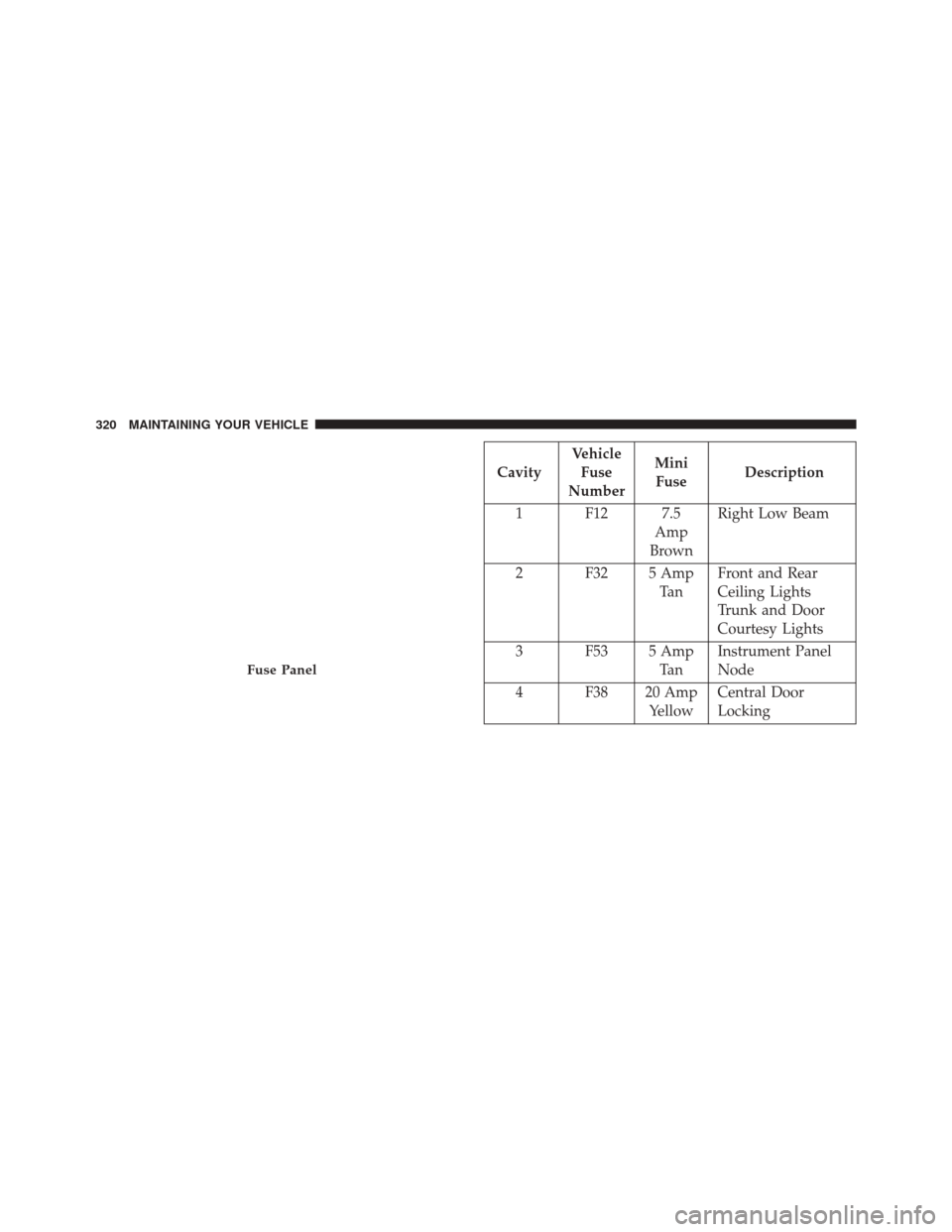

Fuse Panel
320 MAINTAINING YOUR VEHICLE

CavityVehicle
Fuse
Number Mini
Fuse Description
5 F36 10 Amp RedDiagnostic Socket,
Car Radio, Climate
Control System,
Tire Pressure Moni-
tor, TCU and CTM
6 F43 20 Amp YellowBi-Directional
Washer
7 F48 20 Amp YellowPassenger Power
Window
8 F13 7.5 Amp
Brown Left Low Beam
9 F50 7.5 Amp
Brown AirbagCavity
Vehicle
Fuse
Number Mini
Fuse Description
10 F51 5 Amp Ta nCar Radio Switch,
Climate Control
System, Stop Light,
Exterior Mirrors,
Sunroof Switch,
GPS (option) and
CTM
11 F37 5 Amp Ta nStop Light Switch,
Instrument Panel
Node
12 F49 5 Amp Ta nExterior Mirror,
GPS, Electric Mir-
ror, Parking Sensor,
Sunroof Switch
7
MAINTAINING YOUR VEHICLE 321

CavityVehicle
Fuse
Number Mini
Fuse Description
13 F31 5 Amp Ta nIgnition, Climate
Control, RDU and
EVCU
14 F47 20 Amp YellowDriver Power
Window

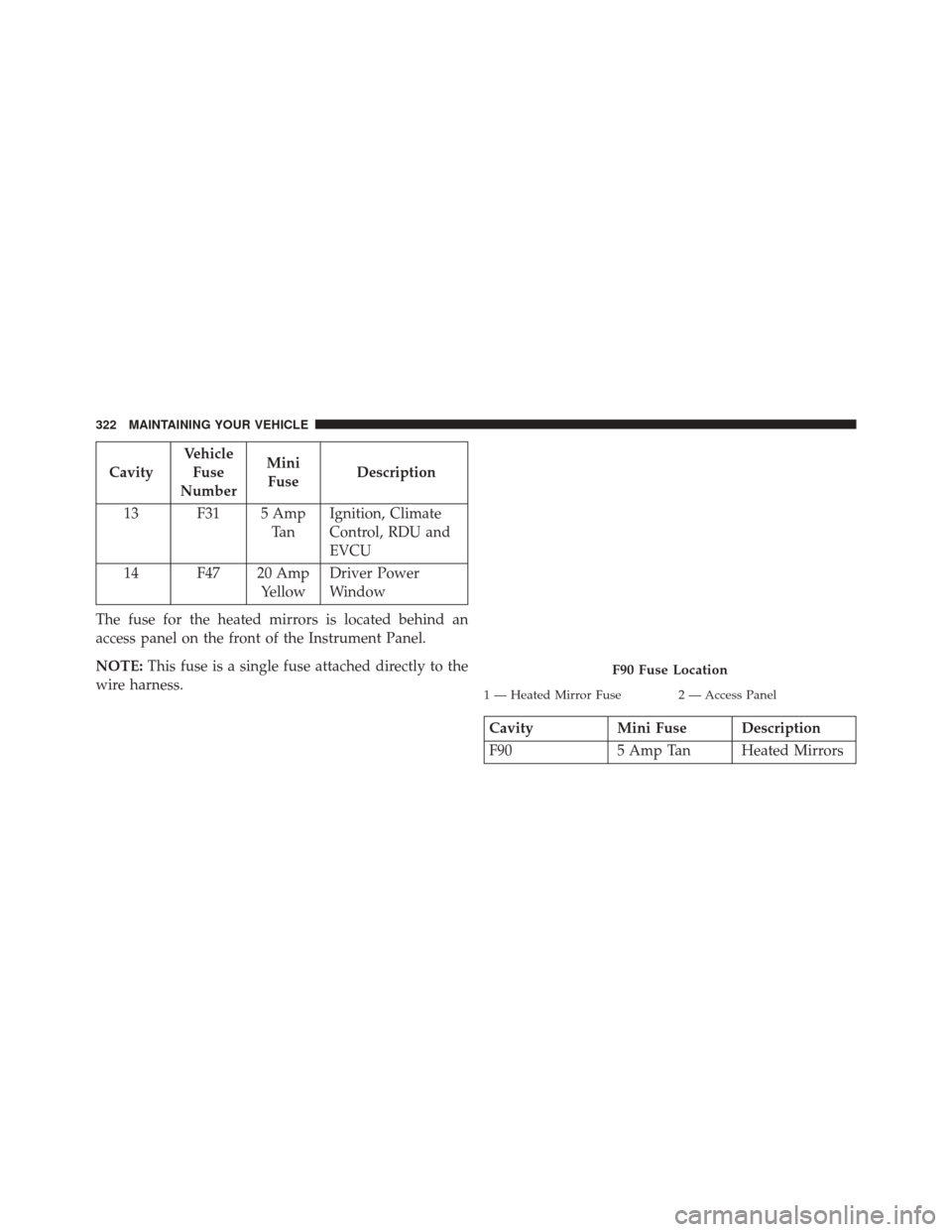

The fuse for the heated mirrors is located behind an
access panel on the front of the Instrument Panel.
NOTE: This fuse is a single fuse attached directly to the
wire harness.
1 — Heated Mirror Fuse 2 — Access Panel
Cavity Mini Fuse Description
F90 5 Amp Tan Heated Mirrors
F90 Fuse Location
322 MAINTAINING YOUR VEHICLE

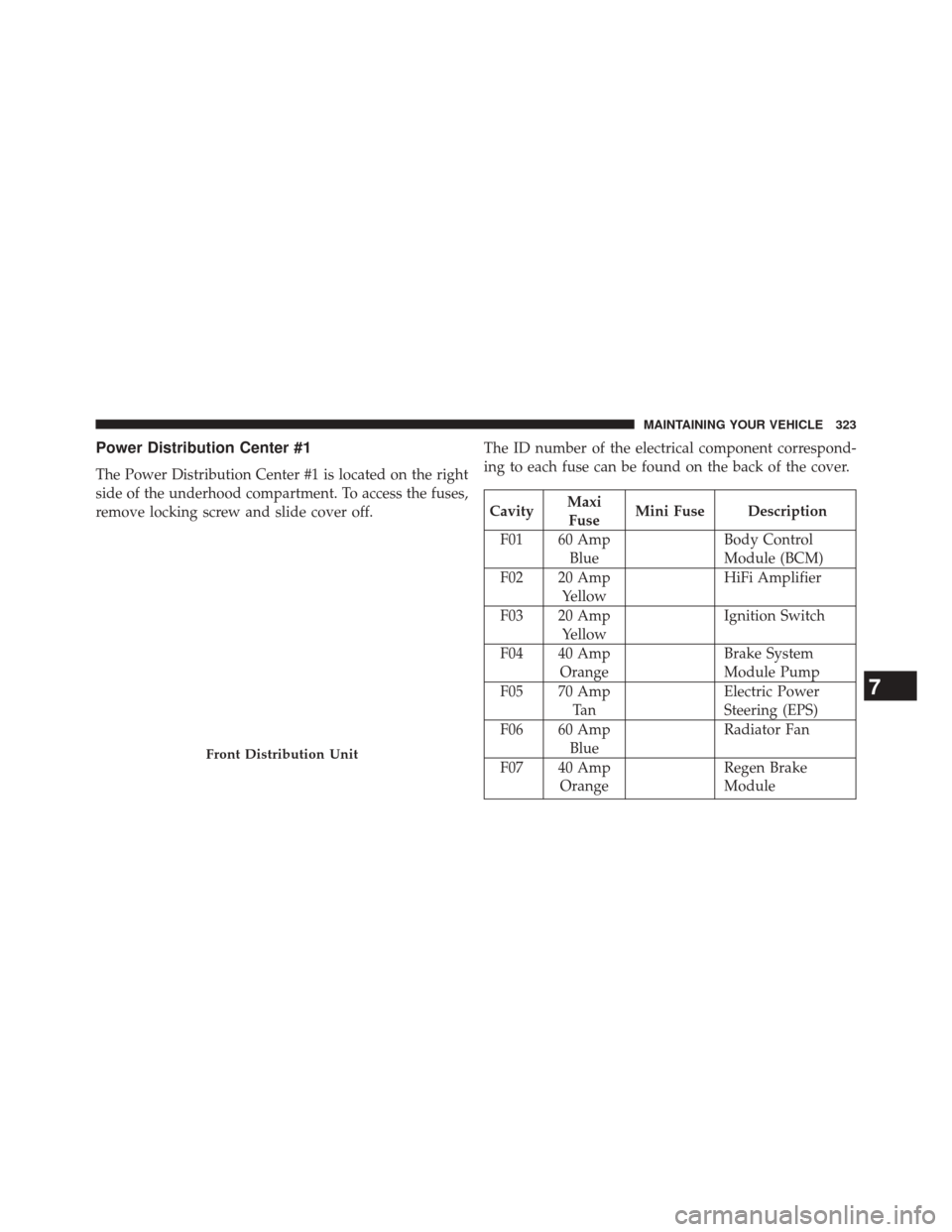

Power Distribution Center #1
The Power Distribution Center #1 is located on the right
side of the underhood compartment. To access the fuses,
remove locking screw and slide cover off.The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Cavity
Maxi
Fuse Mini Fuse Description
F01 60 Amp Blue Body Control
Module (BCM)
F02 20 Amp Yellow HiFi Amplifier
F03 20 Amp Yellow Ignition Switch
F04 40 Amp Orange Brake System
Module Pump
F05 70 Amp Ta n Electric Power
Steering (EPS)
F06 60 Amp Blue Radiator Fan
F07 40 Amp Orange Regen Brake
Module
Front Distribution Unit
7
MAINTAINING YOUR VEHICLE 323

CavityMaxi
Fuse Mini Fuse Description
F08 40 Amp Orange HVAC
F09 5 Amp
Ta n Air Electric Heater
Charge Indicator
F10 10 Amp
Red Horn
F11 10 Amp
Red Electronic Vehicle
Control Unit
(EVCU)
F14 5 Amp
Ta n High Beam
(Shutter)
F15 15 Amp
Blue Cigar Lighter
F16 10 Amp
Red Humidity Sensor
VPAM
AC CompressorCavity
Maxi
Fuse Mini Fuse Description
F18 5 Amp
Ta n Electronic Vehicle
Control Unit
(EVCU)
F19 10 Amp
Red HVAC
F20 15 Amp
Blue Heated Seats –
If Equipped
F23 25 Amp
Clear Anti-Lock Brake
Valves
F24 7.5 Amp
Brown EPS
YAW Sensor
F30 15 Amp
Blue Fog Lamps
F81 30 Amp Green Electronic Shifter
(ESM)
324 MAINTAINING YOUR VEHICLE

CavityMaxi
Fuse Mini Fuse Description
F82 30 Amp Green Sunroof
F84 25 Amp
Clear Regen Brake
Module
F85 30 Amp Green Rear Window
Heater
F87 5 Amp
Ta n Electronic Shifter
(ESM)

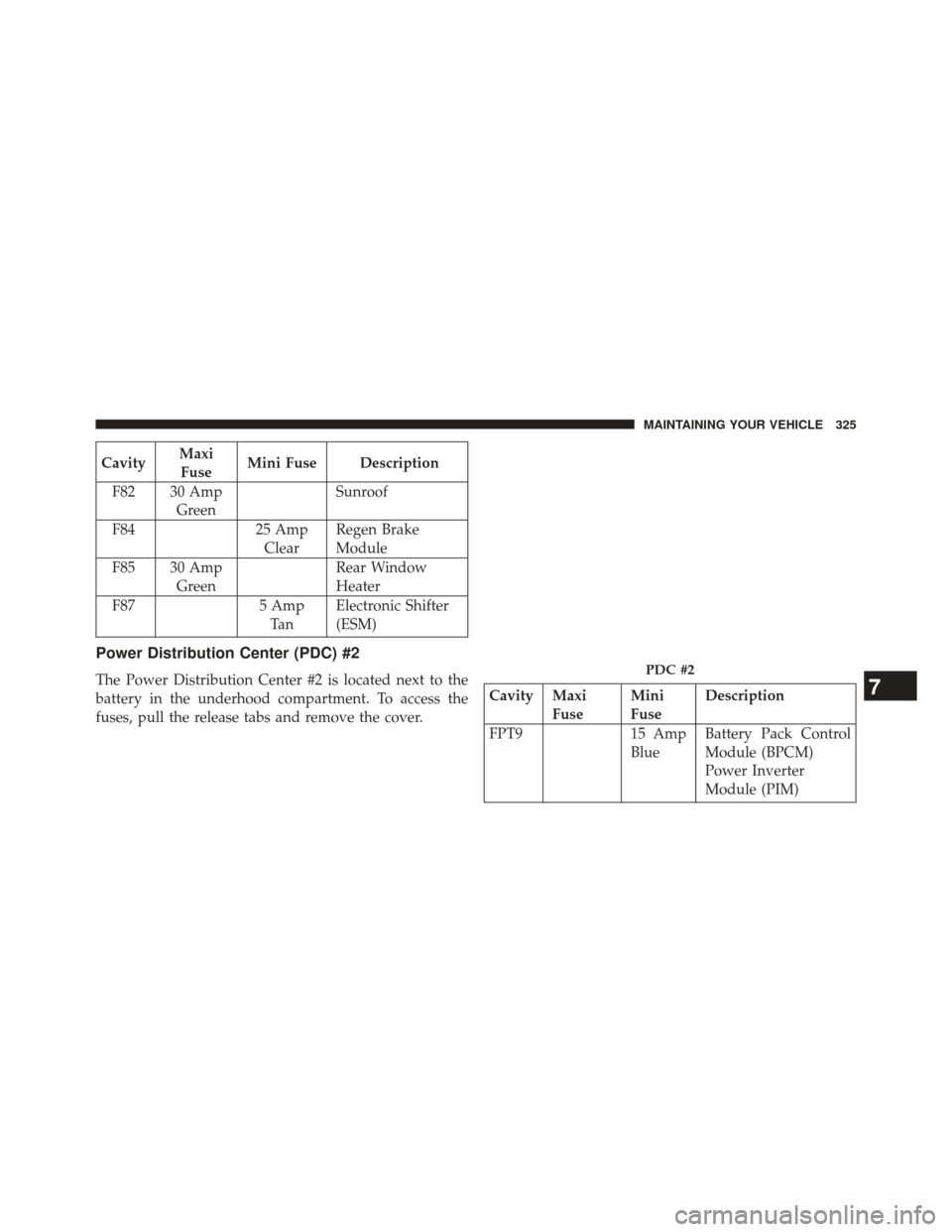

Power Distribution Center (PDC) #2
The Power Distribution Center #2 is located next to the
battery in the underhood compartment. To access the
fuses, pull the release tabs and remove the cover.
Cavity Maxi
Fuse Mini
FuseDescription
FPT9 15 Amp
Blue Battery Pack Control
Module (BPCM)
Power Inverter
Module (PIM)
PDC #2
7
MAINTAINING YOUR VEHICLE 325

Cavity MaxiFuse Mini
FuseDescription
FPT13 10 Amp
Red
EAC (AC Compressor)
On Board Charging
Module (OBCM)
FPT16 5 Amp
Ta n Intelligent Battery
Sensor (IBS)
FPT17 10 Amp
Red
EAC (AC Compressor)
Radiator Fan
FPT20 10 Amp
Red
Electronic Vehicle
Control Unit (EVCU)
Cavity Cartridge Fuse Description
FPT3 25 Amp White Battery Coolant
Pump
FPT5 20 Amp Lt. Blue Inverter Coolant
Pump
VEHICLE STORAGE
The preferred way of storing your vehicle for a long
period of time is to leave it attached to a Level 1 or Level
2 charger. The vehicle has a wake-up feature that will
wake the system every 3 weeks and do a maintenance
charge on the 12 Volt battery and also top off the high
voltage battery if necessary.
Anytime you store your vehicle, or keep it out of service
(e.g., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the air conditioning system
is started again.
326 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead Lamp C5W
Courtesy Lamp W5W
Exterior Bulbs
Bulb Number
Front Low and High
Beam Headlamp HIR2
Front Parking/Daytime
Running Lamps W21/5W
Front Fog Lamps H11
Front Side Marker Lamps W3W
Front Turn Signal Lamps WY21W
Bulb Number
Side Direction Lamps W5W
Rear Turn Signal Lamps PY21W
Rear Side Marker Lamps W3W
Rear Tail and Stop
Lamps PY21W/5W
Rear Backup Lamps W16W
Center High Mounted
Stop Lamp LED (See Authorized
dealer)
License Plate Lamps LED (See Authorized dealer)
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
