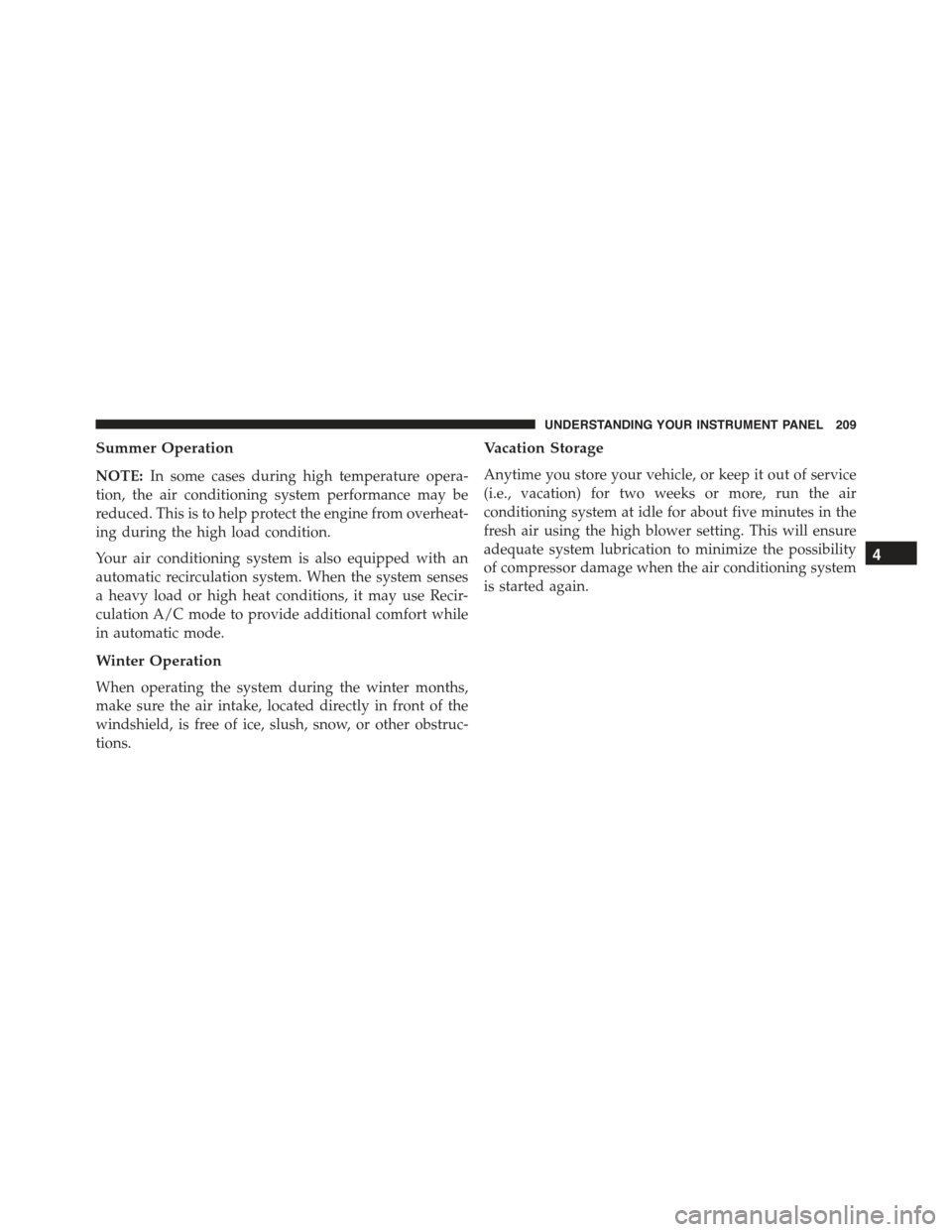

Summer Operation
NOTE:In some cases during high temperature opera-
tion, the air conditioning system performance may be
reduced. This is to help protect the engine from overheat-
ing during the high load condition.
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use Recir-
culation A/C mode to provide additional comfort while
in automatic mode.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air using the high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the air conditioning system
is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 209

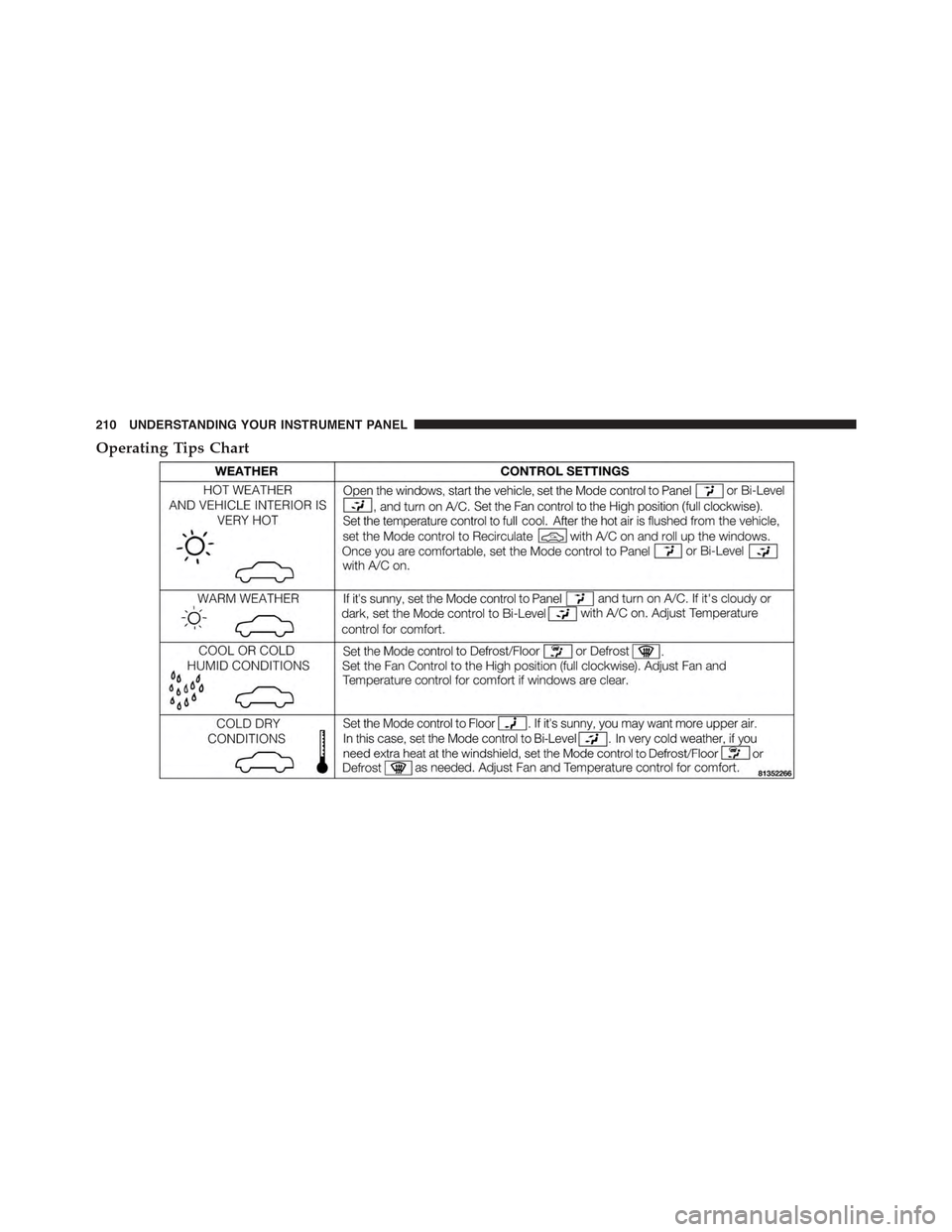

Operating Tips Chart
210 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
!STARTING PROCEDURES................214
▫Single-Speed Transmission...............214
▫Normal Starting.......................214
!SINGLE–SPEED TRANSMISSION...........215
▫Key Ignition Park Interlock...............218
▫Gear Ranges.........................218
▫Auto Park...........................221
!DRIVING ON SLIPPERY SURFACES.........222
▫Acceleration.........................222
▫Traction............................223
!DRIVING THROUGH WATER.............223
▫Flowing/Rising Water..................223
▫Shallow Standing Water.................224
!POWER STEERING.....................225
!PARKING BRAKE......................226
!BRAKE SYSTEM.......................228
!ELECTRONIC BRAKE CONTROL SYSTEM . . . .228
▫Four-Wheel Anti-Lock Brake System (ABS) . . .228
▫Brake Assist System (BAS)...............230
▫Traction Control System (TCS)............231
5

▫Electronic Stability Control (ESC)..........231
▫ESC Activation/Malfunction Indicator Light
And ESC OFF Indicator Light............233
▫Regenerative Braking System (RBS).........234
!TIRE SAFETY INFORMATION.............235
▫Tire Markings........................235
▫Tire Identification Number (TIN)...........239
▫Tire Terminology And Definitions..........240
▫Tire Loading And Tire Pressure...........242
!TIRES — GENERAL INFORMATION........247
▫Tire Pressure........................247
▫Tire Inflation Pressures.................249
▫Tire Pressures For High Speed Operation . . . .250
▫Radial Ply Tires......................250
▫Tire Types...........................251
▫Run Flat Tires — If Equipped.............253
▫Spare Tires — If Equipped...............253
▫Tire Spinning........................256
▫Tread Wear Indicators..................257
▫Life Of Tire.........................257
▫Replacement Tires.....................258
!TIRE CHAINS (TRACTION DEVICES)........260
!TIRE ROTATION RECOMMENDATIONS.....261
!PREMIUM TIRE PRESSURE MONITOR
SYSTEM.............................262
▫Premium TPM System..................265
212 STARTING AND OPERATING

▫Tire Pressure Monitoring Low Pressure
Warnings...........................265
▫TPMS Warning.......................266
▫General Information....................269
!TRAILER TOWING.....................269
!RECREATIONAL TOWING
(BEHIND MOTORHOME, ETC.)............270
▫Towing This Vehicle Behind Another Vehicle . .270
!EXTENDING YOUR DRIVING RANGE PER
CHARGE.............................270
▫Driver Behavior Gauge..................271
▫Range Projection......................272
5
STARTING AND OPERATING 213

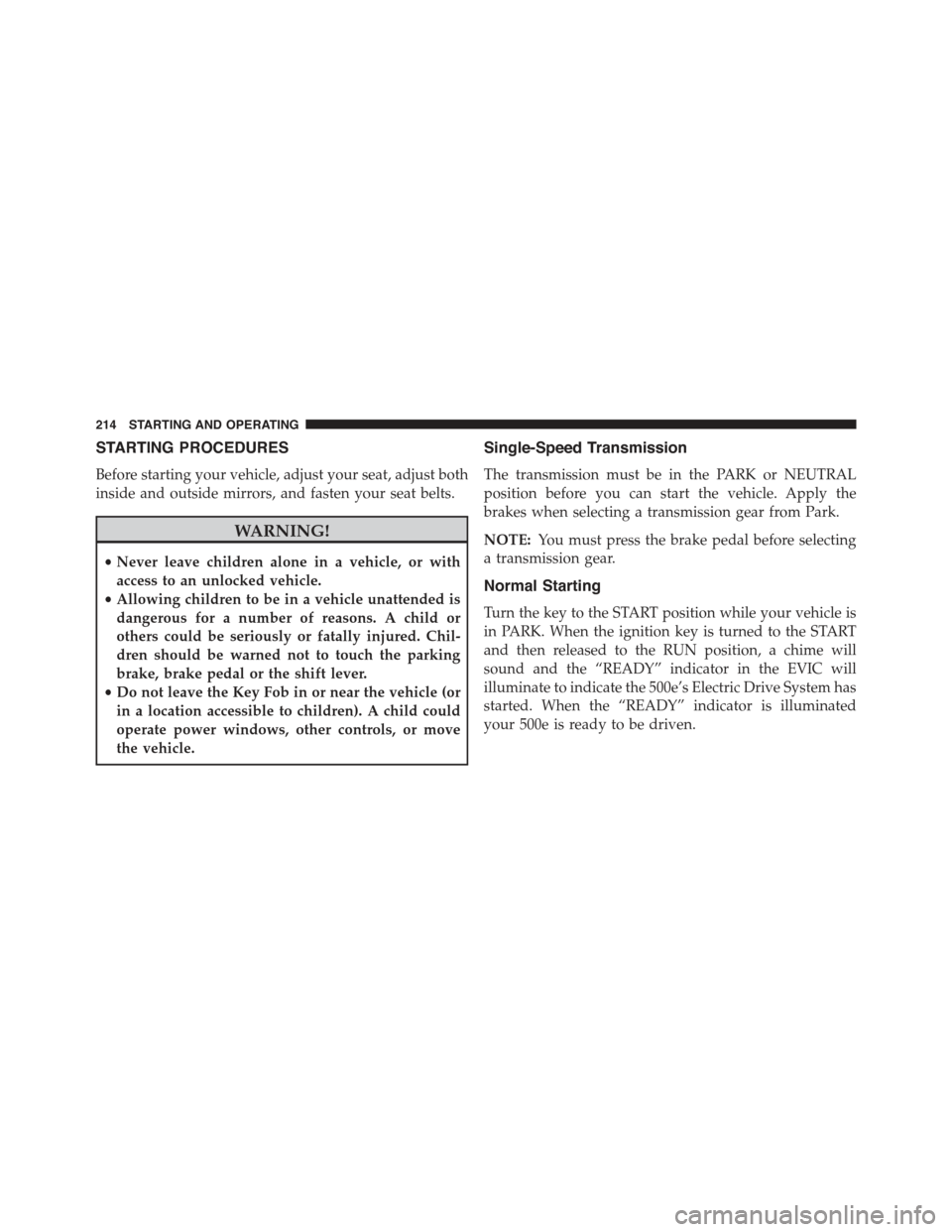

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Single-Speed Transmission
The transmission must be in the PARK or NEUTRAL
position before you can start the vehicle. Apply the
brakes when selecting a transmission gear from Park.
NOTE:You must press the brake pedal before selecting
a transmission gear.
Normal Starting
Turn the key to the START position while your vehicle is
in PARK. When the ignition key is turned to the START
and then released to the RUN position, a chime will
sound and the “READY” indicator in the EVIC will
illuminate to indicate the 500e’s Electric Drive System has
started. When the “READY” indicator is illuminated
your 500e is ready to be driven.
214 STARTING AND OPERATING

NOTE:
•If the key is held in the START position for more than
10 seconds “READY” mode will not be achieved.
Return the key to OFF position, and then back to the
START position and hold for less than 10 seconds to
achieve “READY”.
•If the “READY” indicator fails to illuminate after you
have followed the normal starting procedure contact
your authorized dealer.
SINGLE–SPEED TRANSMISSION
Your 500e uses a Single-Speed Transmission to direct the
output from the electric motor. The single-speed trans-
mission is operated using push-buttons instead of a
traditional shift lever.

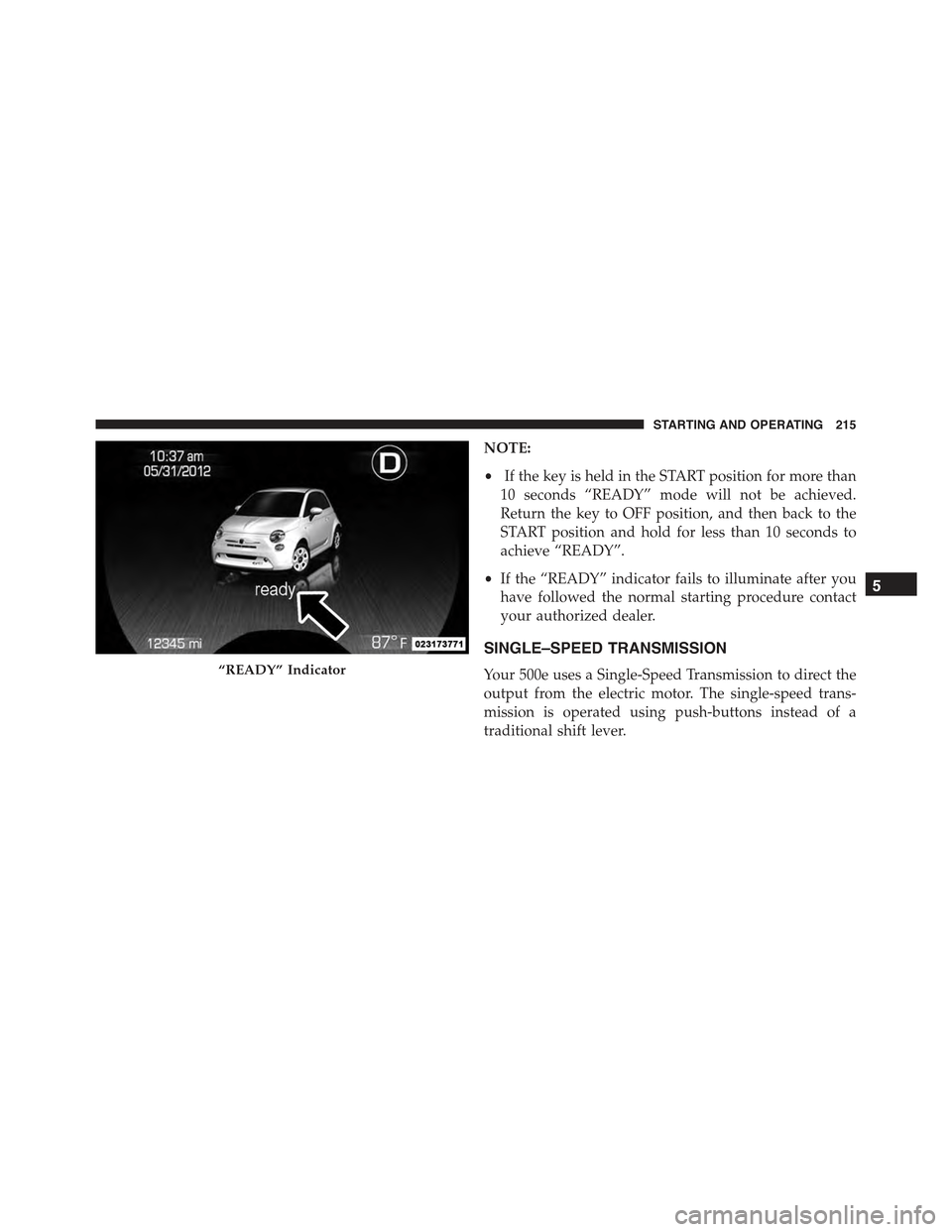

“READY” Indicator
5
STARTING AND OPERATING 215

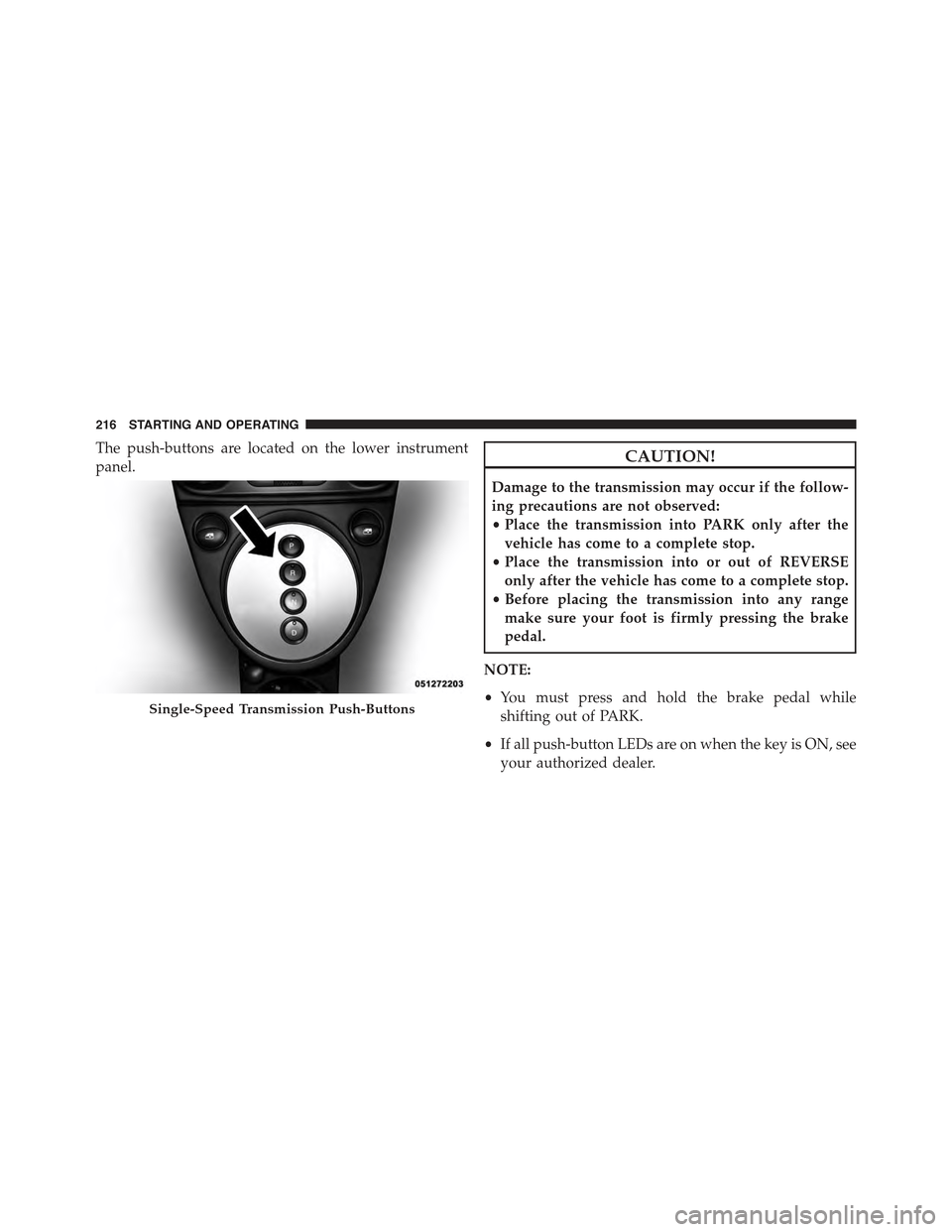

The push-buttons are located on the lower instrument
panel.CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Place the transmission into PARK only after the
vehicle has come to a complete stop.
•Place the transmission into or out of REVERSE
only after the vehicle has come to a complete stop.
•Before placing the transmission into any range
make sure your foot is firmly pressing the brake
pedal.
NOTE:
•You must press and hold the brake pedal while
shifting out of PARK.
•If all push-button LEDs are on when the key is ON, see
your authorized dealer.
Single-Speed Transmission Push-Buttons
216 STARTING AND OPERATING

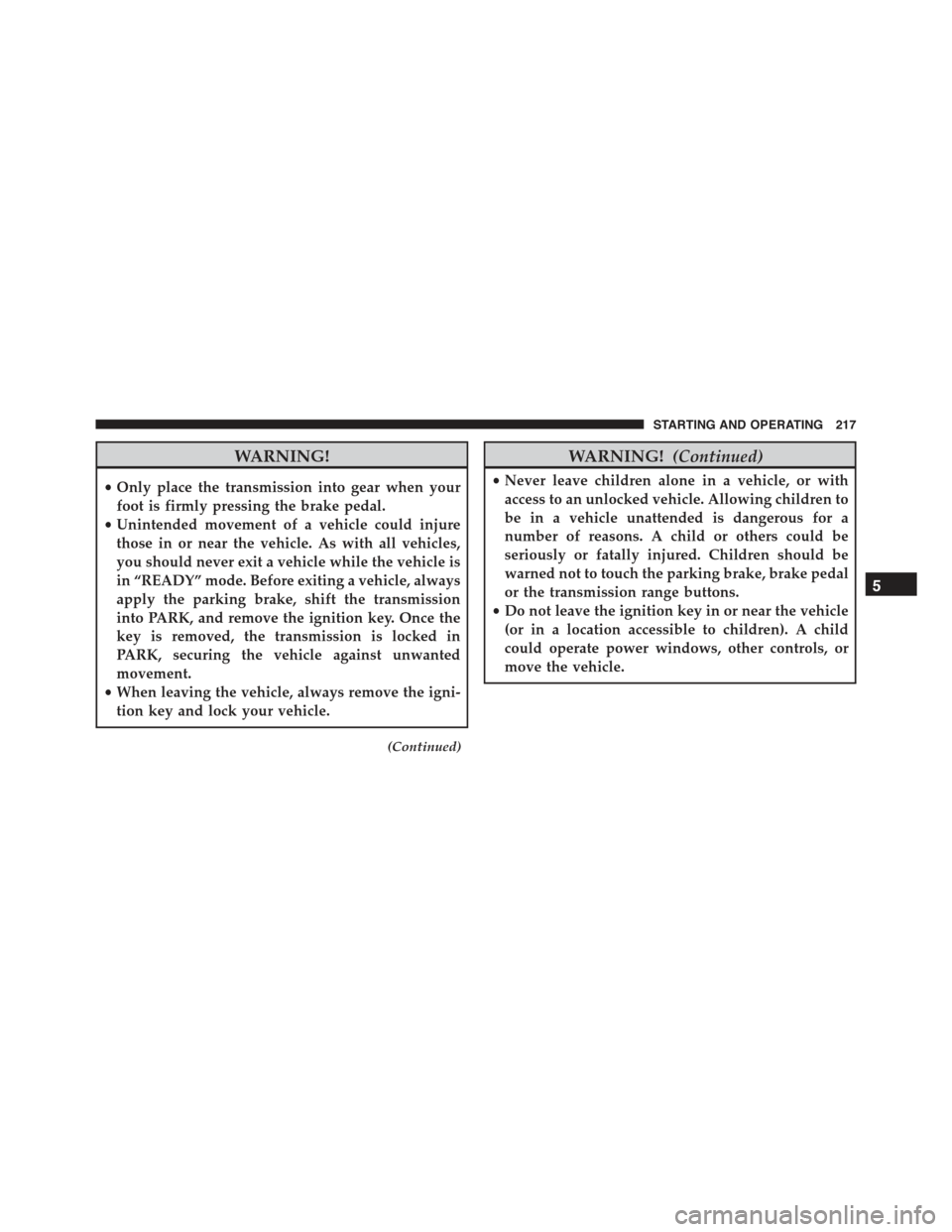

WARNING!
•Only place the transmission into gear when your
foot is firmly pressing the brake pedal.
•Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the vehicle is
in “READY” mode. Before exiting a vehicle, always
apply the parking brake, shift the transmission
into PARK, and remove the ignition key. Once the
key is removed, the transmission is locked in
PARK, securing the vehicle against unwanted
movement.
•When leaving the vehicle, always remove the igni-
tion key and lock your vehicle.
(Continued)
WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the transmission range buttons.
•Do not leave the ignition key in or near the vehicle
(or in a location accessible to children). A child
could operate power windows, other controls, or
move the vehicle.
5
STARTING AND OPERATING 217

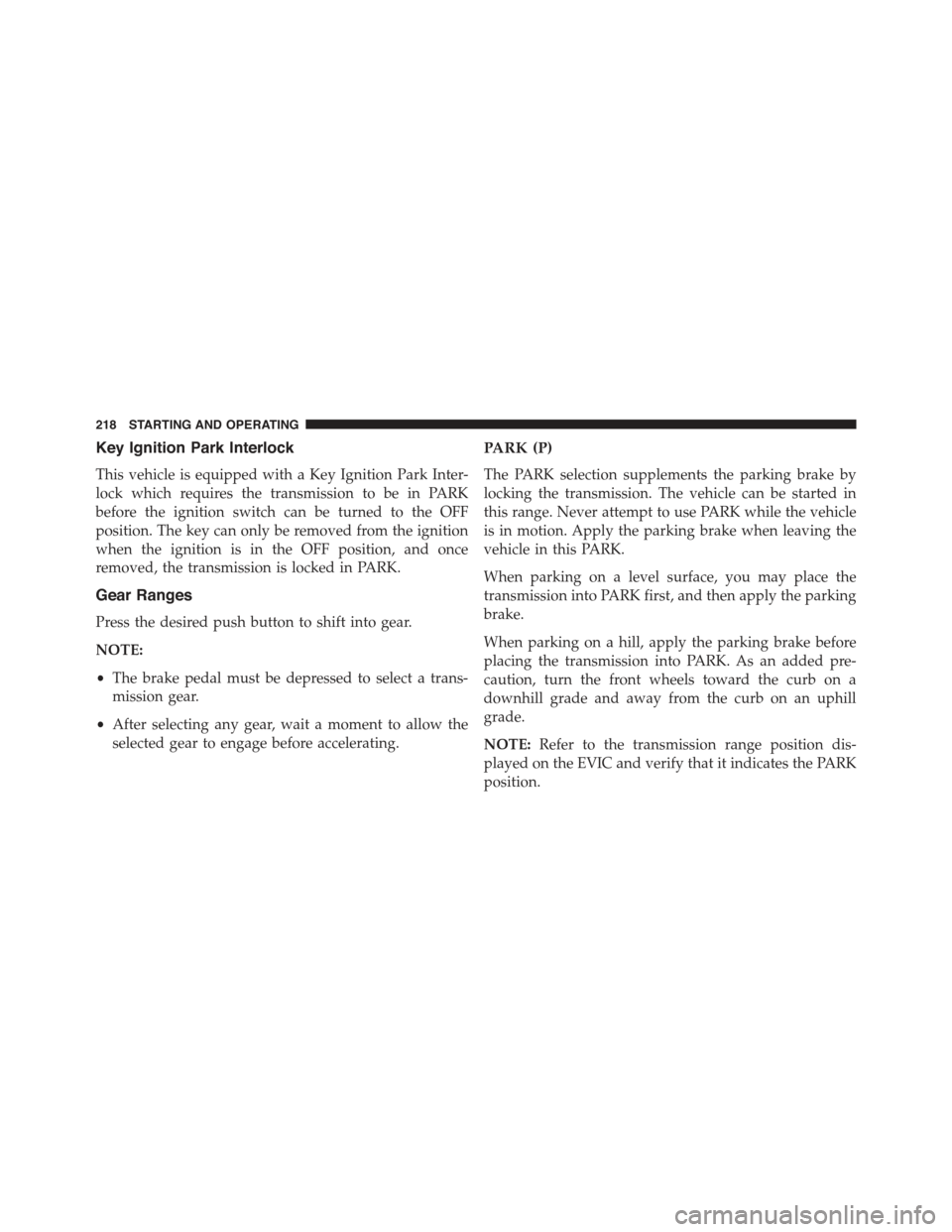

Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the transmission to be in PARK
before the ignition switch can be turned to the OFF
position. The key can only be removed from the ignition
when the ignition is in the OFF position, and once
removed, the transmission is locked in PARK.
Gear Ranges
Press the desired push button to shift into gear.
NOTE:
•The brake pedal must be depressed to select a trans-
mission gear.
•After selecting any gear, wait a moment to allow the
selected gear to engage before accelerating.
PARK (P)
The PARK selection supplements the parking brake by
locking the transmission. The vehicle can be started in
this range. Never attempt to use PARK while the vehicle
is in motion. Apply the parking brake when leaving the
vehicle in this PARK.
When parking on a level surface, you may place the
transmission into PARK first, and then apply the parking
brake.
When parking on a hill, apply the parking brake before
placing the transmission into PARK. As an added pre-
caution, turn the front wheels toward the curb on a
downhill grade and away from the curb on an uphill
grade.
NOTE:Refer to the transmission range position dis-
played on the EVIC and verify that it indicates the PARK
position.
