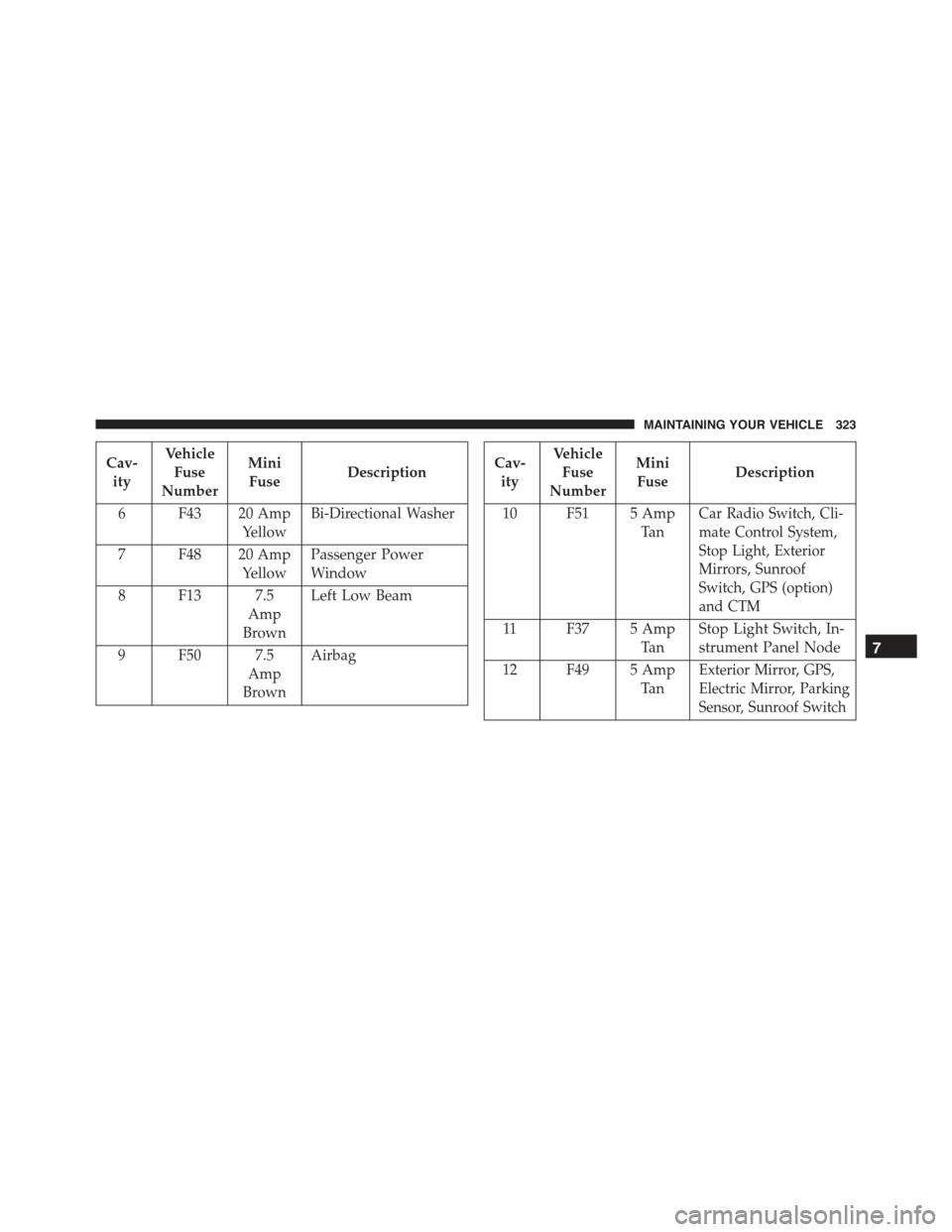

Cav-
ity
Vehicle
Fuse
Number
Mini
FuseDescription
6 F43 20 Amp
Yellow
Bi-Directional Washer
7 F48 20 Amp
Yellow
Passenger Power
Window
8 F13 7.5
Amp
Brown
Left Low Beam
9 F50 7.5
Amp
Brown
Airbag
Cav-
ity
Vehicle
Fuse
Number
Mini
FuseDescription
10 F51 5 Amp
Ta n
Car Radio Switch, Cli-
mate Control System,
Stop Light, Exterior
Mirrors, Sunroof
Switch, GPS (option)
and CTM
11 F37 5 Amp
Ta n
Stop Light Switch, In-
strument Panel Node
12 F49 5 Amp
Ta n
Exterior Mirror, GPS,
Electric Mirror, Parking
Sensor, Sunroof Switch
7
MAINTAINING YOUR VEHICLE 323

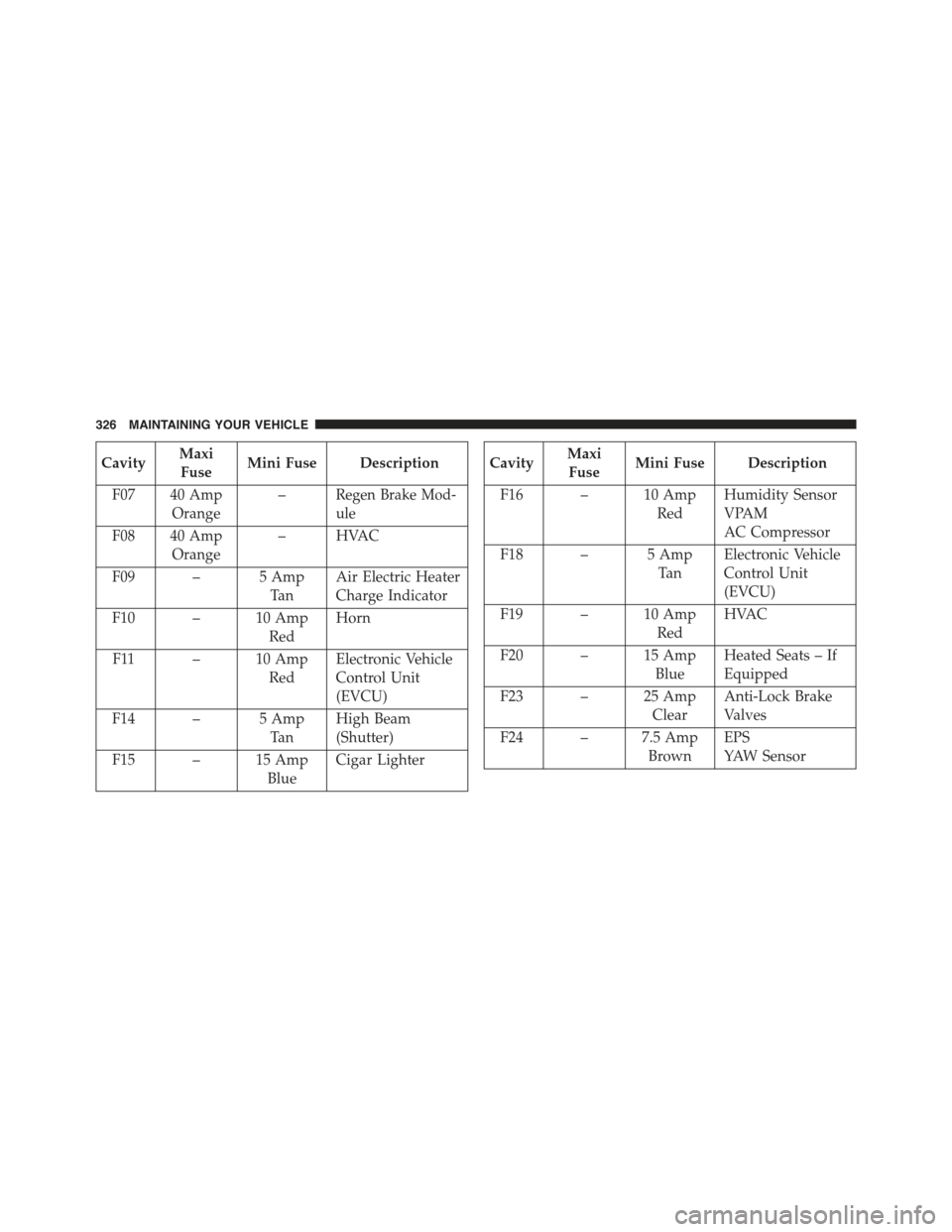

CavityMaxi
FuseMini Fuse Description
F07 40 Amp
Orange
–Regen Brake Mod-
ule
F08 40 Amp
Orange
–HVAC
F09 – 5 Amp
Ta n
Air Electric Heater
Charge Indicator
F10 – 10 Amp
Red
Horn
F11 – 10 Amp
Red
Electronic Vehicle
Control Unit
(EVCU)
F14 – 5 Amp
Ta n
High Beam
(Shutter)
F15 – 15 Amp
Blue
Cigar Lighter
CavityMaxi
FuseMini Fuse Description
F16 – 10 Amp
Red
Humidity Sensor
VPAM
AC Compressor
F18 – 5 Amp
Ta n
Electronic Vehicle
Control Unit
(EVCU)
F19 – 10 Amp
Red
HVAC
F20 – 15 Amp
Blue
Heated Seats – If
Equipped
F23 – 25 Amp
Clear
Anti-Lock Brake
Valves
F24 – 7.5 Amp
Brown
EPS
YAW Sensor
326 MAINTAINING YOUR VEHICLE

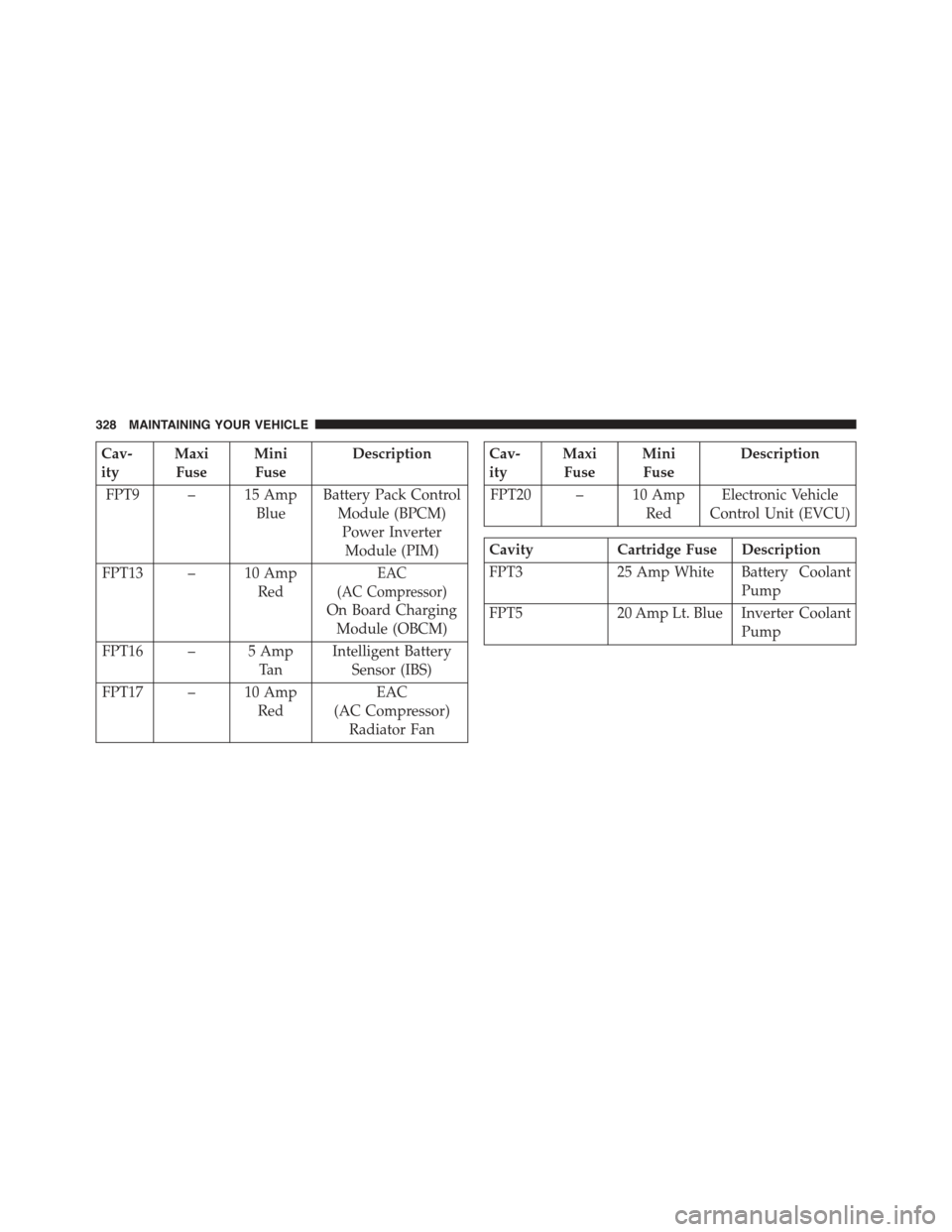

Cav-
ity
Maxi
Fuse
Mini
Fuse
Description
FPT9 – 15 Amp
Blue
Battery Pack Control
Module (BPCM)
Power Inverter
Module (PIM)
FPT13 – 10 Amp
Red
EAC
(AC Compressor)
On Board Charging
Module (OBCM)
FPT16 – 5 Amp
Ta n
Intelligent Battery
Sensor (IBS)
FPT17 – 10 Amp
Red
EAC
(AC Compressor)
Radiator Fan
Cav-
ity
Maxi
Fuse
Mini
Fuse
Description
FPT20 – 10 Amp
Red
Electronic Vehicle
Control Unit (EVCU)
CavityCartridge Fuse Description
FPT325 Amp White Battery Coolant
Pump
FPT520 Amp Lt. Blue Inverter Coolant
Pump
328 MAINTAINING YOUR VEHICLE
