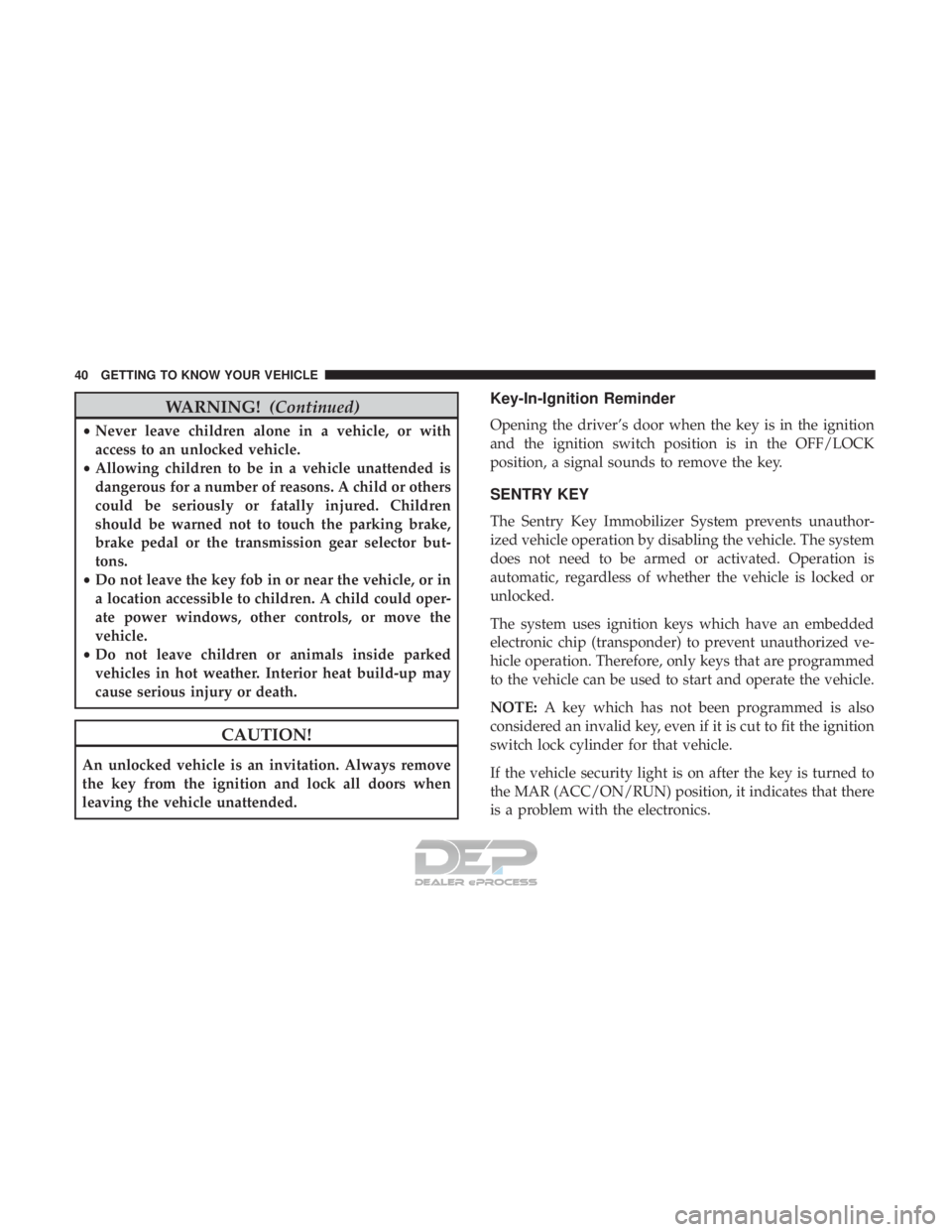

WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector but-
tons.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children. A child could oper-
ate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all doors when
leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is in the OFF/LOCK
position, a signal sounds to remove the key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the vehicle. The system
does not need to be armed or activated. Operation is
automatic, regardless of whether the vehicle is locked or
unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized ve-
hicle operation. Therefore, only keys that are programmed
to the vehicle can be used to start and operate the vehicle.
NOTE: A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the ignition
switch lock cylinder for that vehicle.
If the vehicle security light is on after the key is turned to
the MAR (ACC/ON/RUN) position, it indicates that there
is a problem with the electronics.
40 GETTING TO KNOW YOUR VEHICLE

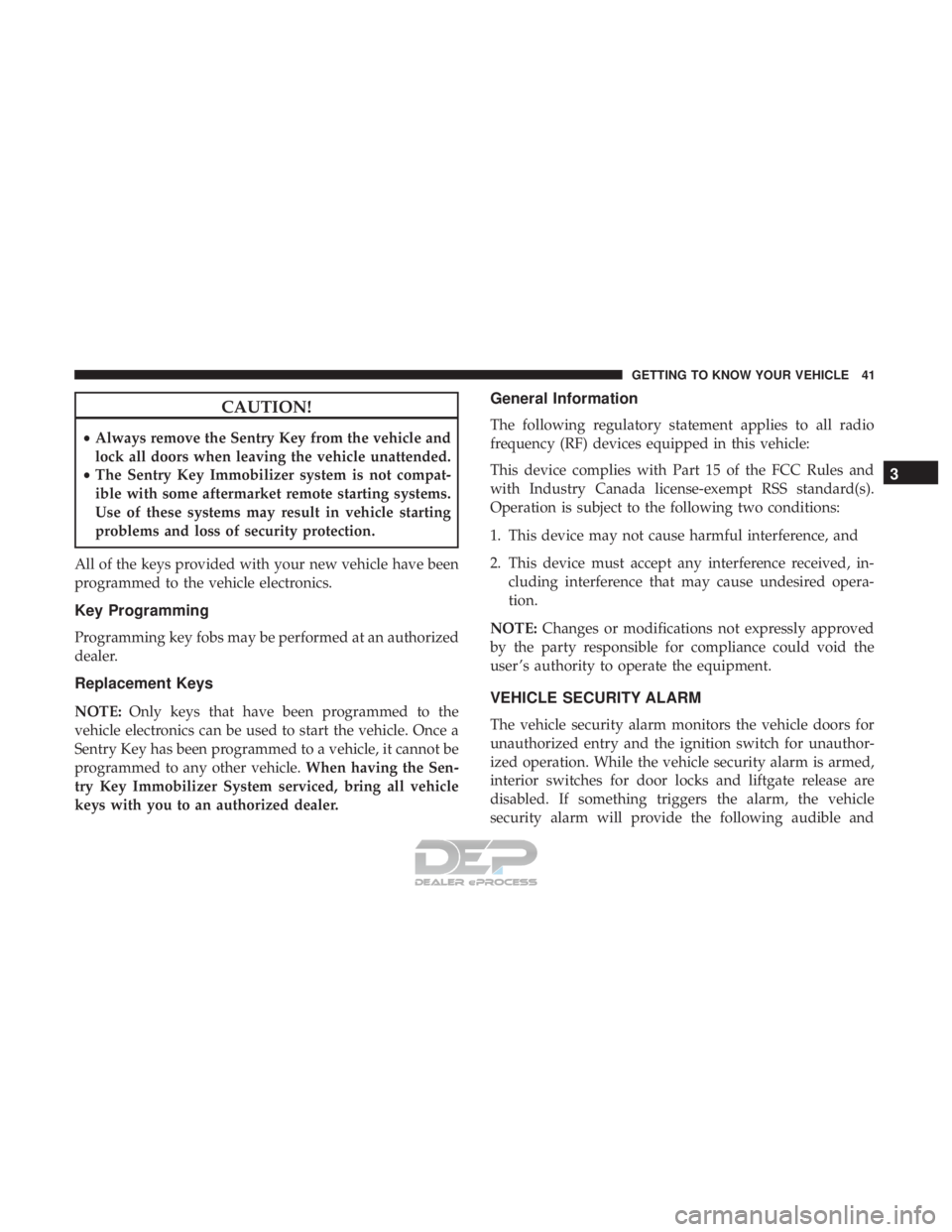

CAUTION!
•Always remove the Sentry Key from the vehicle and
lock all doors when leaving the vehicle unattended.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have been
programmed to the vehicle electronics.
Key Programming
Programming key fobs may be performed at an authorized
dealer.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once a
Sentry Key has been programmed to a vehicle, it cannot be
programmed to any other vehicle. When having the Sen-
try Key Immobilizer System serviced, bring all vehicle
keys with you to an authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM
The vehicle security alarm monitors the vehicle doors for
unauthorized entry and the ignition switch for unauthor-
ized operation. While the vehicle security alarm is armed,
interior switches for door locks and liftgate release are
disabled. If something triggers the alarm, the vehicle
security alarm will provide the following audible and
3
GETTING TO KNOW YOUR VEHICLE 41

CAUTION!

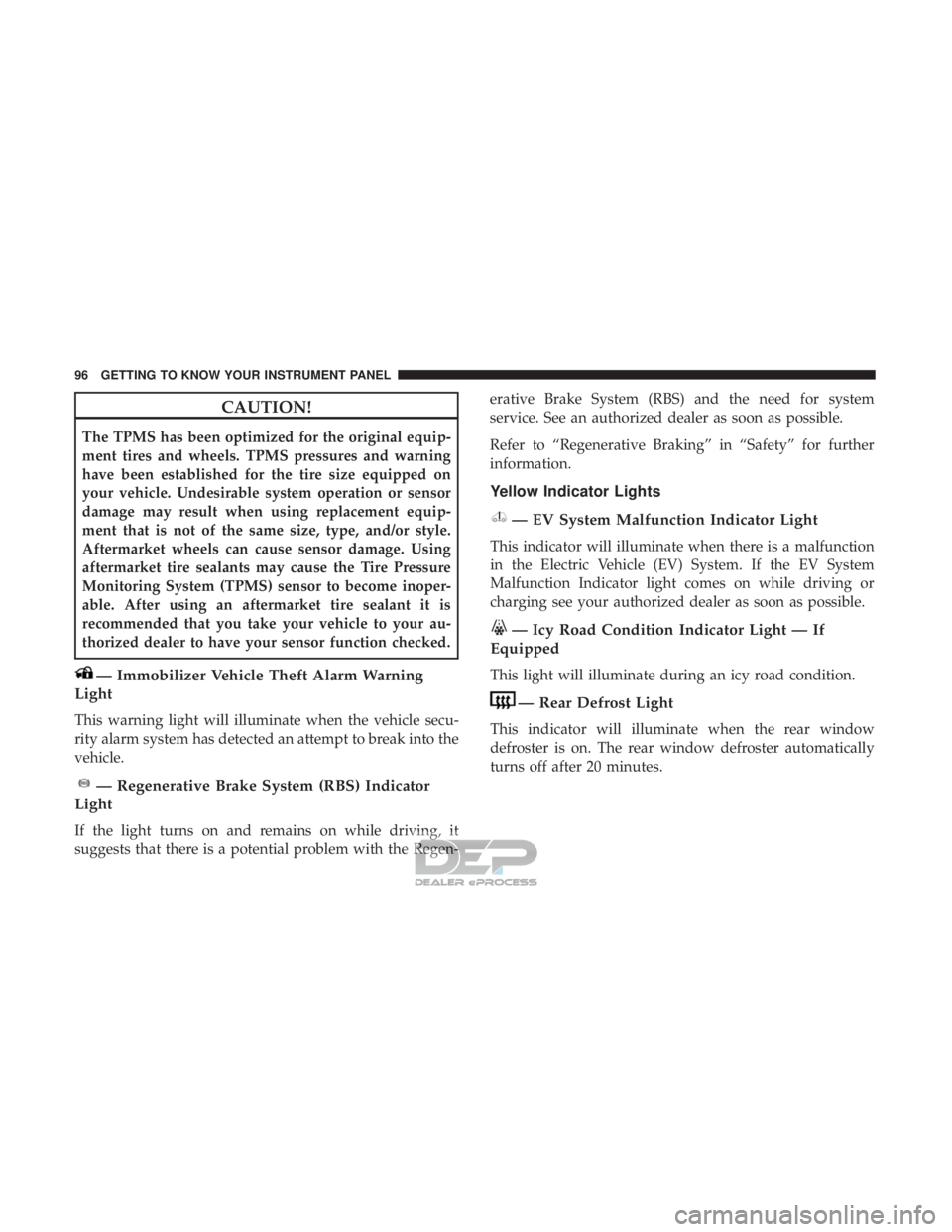

The TPMS has been optimized for the original equip-
ment tires and wheels. TPMS pressures and warning
have been established for the tire size equipped on
your vehicle. Undesirable system operation or sensor
damage may result when using replacement equip-
ment that is not of the same size, type, and/or style.
Aftermarket wheels can cause sensor damage. Using
aftermarket tire sealants may cause the Tire Pressure
Monitoring System (TPMS) sensor to become inoper-
able. After using an aftermarket tire sealant it is
recommended that you take your vehicle to your au-
thorized dealer to have your sensor function checked.
— Immobilizer Vehicle Theft Alarm Warning
Light
This warning light will illuminate when the vehicle secu-
rity alarm system has detected an attempt to break into the
vehicle.
— Regenerative Brake System (RBS) Indicator
Light
If the light turns on and remains on while driving, it
suggests that there is a potential problem with the Regen- erative Brake System (RBS) and the need for system
service. See an authorized dealer as soon as possible.
Refer to “Regenerative Braking” in “Safety” for further
information.
Yellow Indicator Lights
— EV System Malfunction Indicator Light
This indicator will illuminate when there is a malfunction
in the Electric Vehicle (EV) System. If the EV System
Malfunction Indicator light comes on while driving or
charging see your authorized dealer as soon as possible.
— Icy Road Condition Indicator Light — If
Equipped
This light will illuminate during an icy road condition.
— Rear Defrost Light
This indicator will illuminate when the rear window
defroster is on. The rear window defroster automatically
turns off after 20 minutes.
96 GETTING TO KNOW YOUR INSTRUMENT PANEL

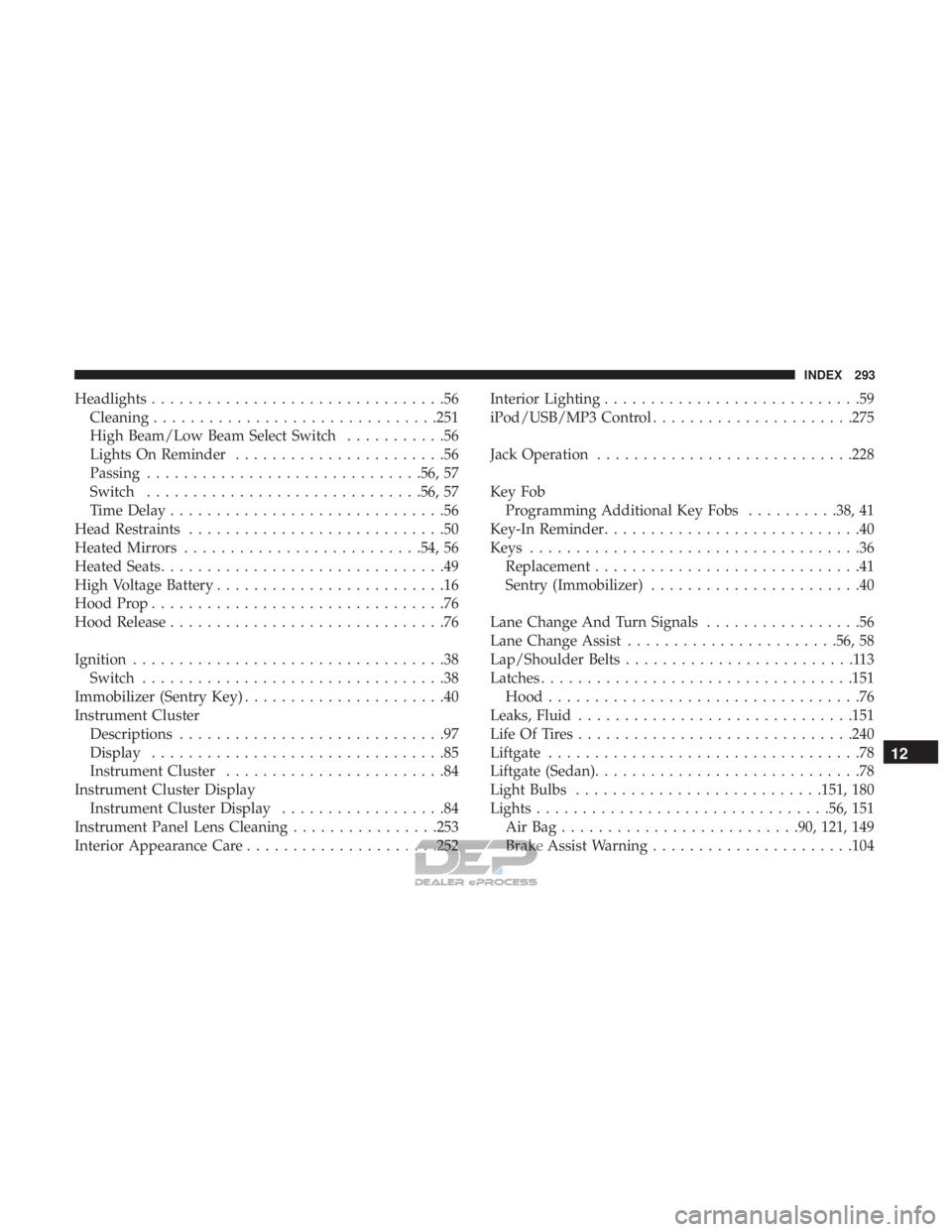

Headlights................................56
Cleaning ...............................251
High Beam/Low Beam Select Switch ...........56
Lights On Reminder .......................56
Passing ............................. .56, 57
Switch ............................. .56, 57
Time Delay ..............................56
Head Restraints ............................50
Heated Mirrors ..........................54, 56
Heated Seats ...............................49
High Voltage Battery .........................16
Hood Prop ................................76
Hood Release ..............................76
Ignition ..................................38
Switch .................................38
Immobilizer (Sentry Key) ......................40
Instrument Cluster Descriptions .............................97
Display ................................85
Instrument Cluster ........................84
Instrument Cluster Display Instrument Cluster Display ..................84
Instrument Panel Lens Cleaning ................253
Interior Appearance Care .....................252 Interior Lighting
............................59
iPod/USB/MP3 Control ..................... .275
Jack Operation ............................228
Key Fob Programming Additional Key Fobs ..........38, 41
Key-In Reminder ............................40
Keys ....................................36
Replacement .............................41
Sentry (Immobilizer) .......................40
Lane Change And Turn Signals .................56
Lane Change Assist .......................56, 58
Lap/Shoulder Belts .........................113
Latches ................................. .151
Hood ..................................76
Leaks, Fluid ............................. .151
Life Of Tires ............................. .240
Liftgate ..................................78
Liftgate (Sedan) .............................78
Light Bulbs .......................... .151, 180
Lights ............................... .56, 151
AirBag......................... .90, 121, 149
Brake Assist

Warning ..................... .104
12
INDEX 293

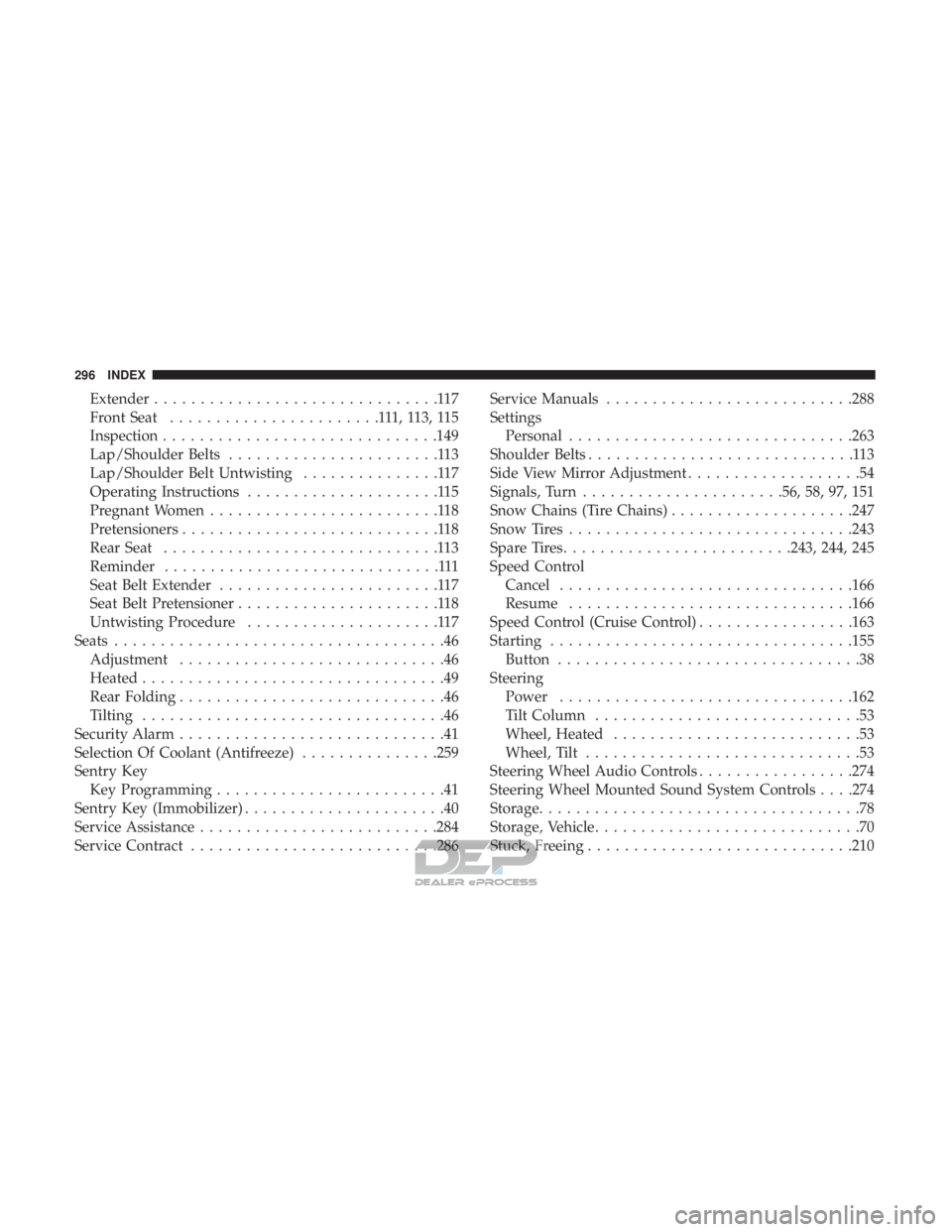

Extender...............................117
Front Seat .......................111,113,115
Inspection ............................. .149
Lap/Shoulder Belts .......................113
Lap/Shoulder Belt Untwisting ...............117
Operating Instructions .....................115
Pregnant Women .........................118
Pretensioners ............................118
Rear Seat ..............................113
Reminder ..............................111
Seat Belt Extender ........................117
Seat Belt Pretensioner ......................118
Untwisting Procedure .....................117
Seats ....................................46
Adjustment .............................46
Heated .................................49
Rear Folding .............................46
Tilting .................................46
Security Alarm .............................41
Selection Of Coolant (Antifreeze) ...............259
Sentry Key Key Programming .........................41
Sentry Key (Immobilizer) ......................40
Service Assistance ..........................284
Service Contract .......................... .286Service Manuals
.......................... .288
Settings Personal ...............................263
Shoulder Belts .............................113
Side View Mirror Adjustment ...................54
Signals, Turn ..................... .56, 58, 97, 151
Snow Chains (Tire Chains) ....................247
Snow Tires ...............................243
Spare Tires ........................ .243, 244, 245
Speed Control Cancel ............................... .166
Resume ...............................166
Speed Control (Cruise Control) .................163
Starting .................................155
Button .................................38
Steering Power ............................... .162
Tilt Column .............................53
Wheel, Heated ...........................53
Wheel, Tilt ..............................53
Steering Wheel Audio Controls .................274
Steering Wheel

Mounted Sound System Controls . . . .274
Storage ...................................78
Storage, Vehicle .............................70
Stuck, Freeing ............................ .210
