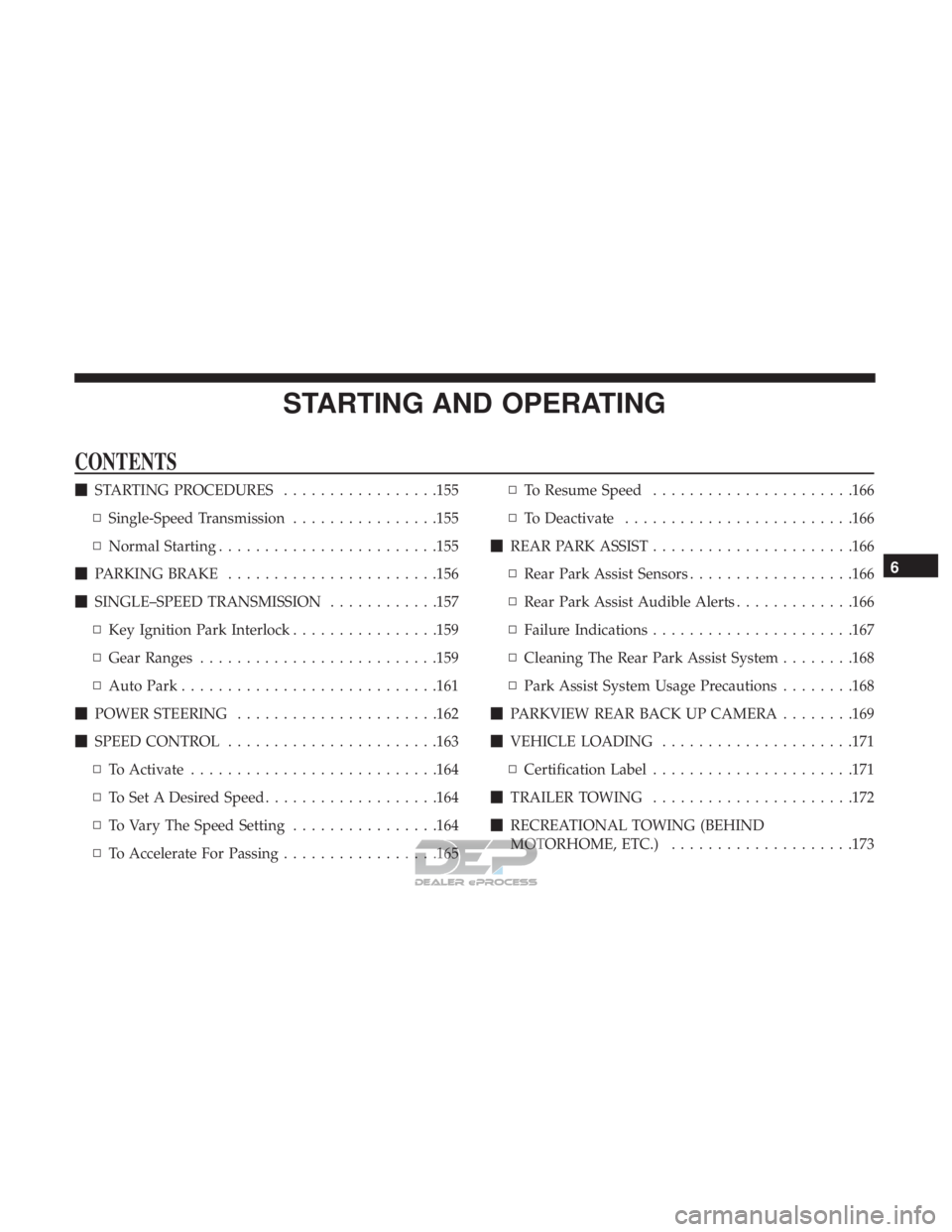

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES .................155
▫ Single-Speed Transmission ................155
▫ Normal Starting ........................155
 PARKING BRAKE .......................156
 SINGLE–SPEED TRANSMISSION ............157
▫ Key Ignition Park Interlock ................159
▫ Gear Ranges ..........................159
▫ Auto Park ............................161
 POWER STEERING ..................... .162
 SPEED CONTROL .......................163
▫ To Activate .......................... .164
▫ To Set A Desired Speed ...................164
▫ To Vary The Speed Setting ................164
▫ To Accelerate For Passing .................165 ▫
To Resume Speed ..................... .166
▫ To Deactivate ........................ .166
 REAR PARK ASSIST ..................... .166
▫ Rear Park Assist Sensors ..................166
▫ Rear Park Assist Audible Alerts .............166
▫ Failure Indications ..................... .167
▫ Cleaning The Rear Park Assist System ........168
▫ Park Assist System Usage Precautions ........168
 PARKVIEW REAR BACK UP CAMERA ........169
 VEHICLE LOADING .....................171
▫ Certification Label ..................... .171
 TRAILER TOWING ..................... .172
 RECREA TIONAL

TOWING (BEHIND
MOTORHOME, ETC.) ....................173
6

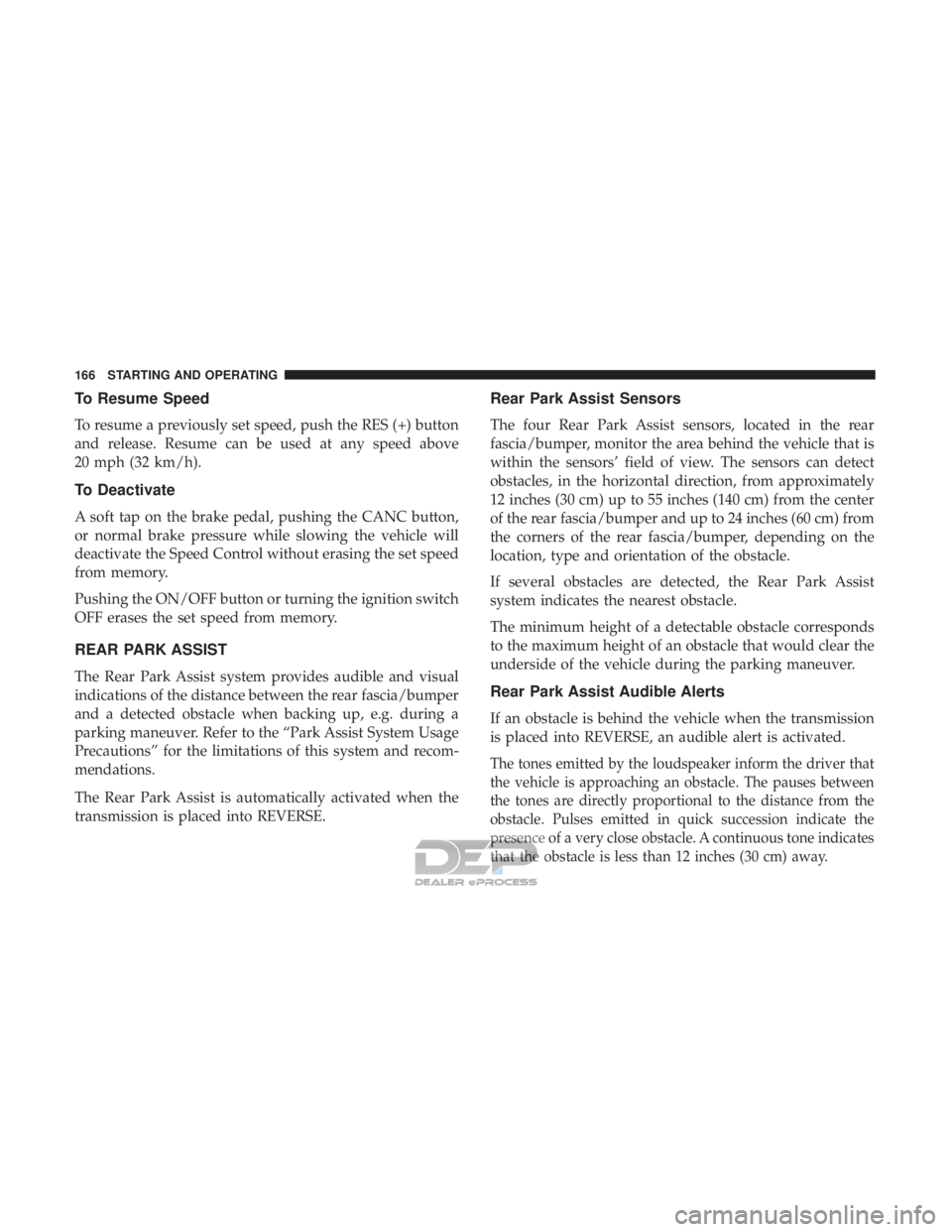

To Resume Speed
To resume a previously set speed, push the RES (+) button
and release. Resume can be used at any speed above
20 mph (32 km/h).
To Deactivate
A soft tap on the brake pedal, pushing the CANC button,
or normal brake pressure while slowing the vehicle will
deactivate the Speed Control without erasing the set speed
from memory.
Pushing the ON/OFF button or turning the ignition switch
OFF erases the set speed from memory.
REAR PARK ASSIST
The Rear Park Assist system provides audible and visual
indications of the distance between the rear fascia/bumper
and a detected obstacle when backing up, e.g. during a
parking maneuver. Refer to the “Park Assist System Usage
Precautions” for the limitations of this system and recom-
mendations.
The Rear Park Assist is automatically activated when the
transmission is placed into REVERSE.
Rear Park Assist Sensors
The four Rear Park Assist sensors, located in the rear
fascia/bumper, monitor the area behind the vehicle that is
within the sensors’ field of view. The sensors can detect
obstacles, in the horizontal direction, from approximately
12 inches (30 cm) up to 55 inches (140 cm) from the center
of the rear fascia/bumper and up to 24 inches (60 cm) from
the corners of the rear fascia/bumper, depending on the
location, type and orientation of the obstacle.
If several obstacles are detected, the Rear Park Assist
system indicates the nearest obstacle.
The minimum height of a detectable obstacle corresponds
to the maximum height of an obstacle that would clear the
underside of the vehicle during the parking maneuver.
Rear Park Assist Audible Alerts
If an obstacle is behind the vehicle when the transmission
is placed into REVERSE, an audible alert is activated.
The tones emitted by the loudspeaker inform the driver that
the vehicle is approaching an obstacle. The pauses between
the tones are directly proportional to the distance from the
obstacle. Pulses emitted in quick succession indicate the
presence of a very close obstacle. A continuous tone indicates
that the obstacle is less than 12 inches (30 cm) away.
166 STARTING AND OPERATING

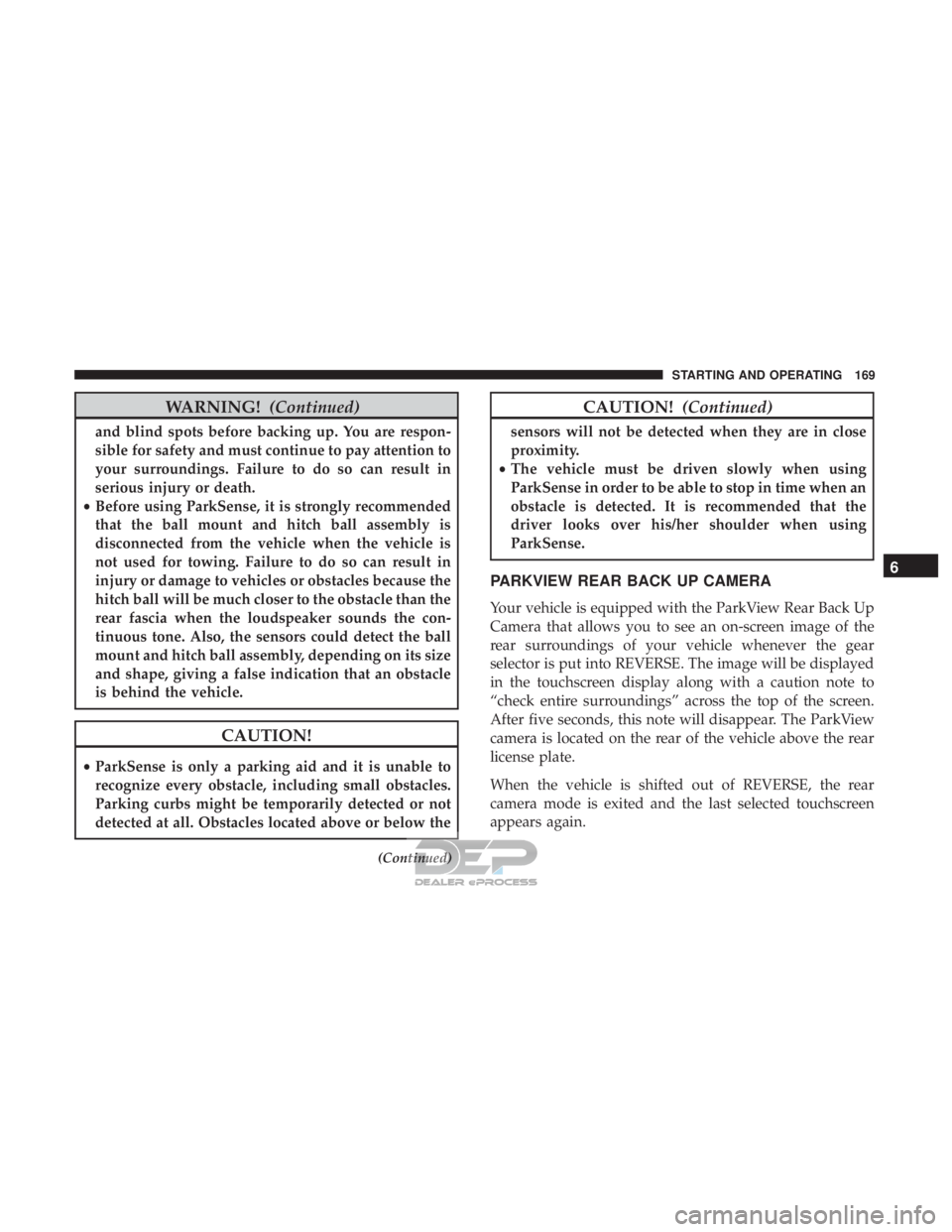

WARNING!(Continued)
and blind spots before backing up. You are respon-
sible for safety and must continue to pay attention to
your surroundings. Failure to do so can result in
serious injury or death.
• Before using ParkSense, it is strongly recommended
that the ball mount and hitch ball assembly is
disconnected from the vehicle when the vehicle is
not used for towing. Failure to do so can result in
injury or damage to vehicles or obstacles because the
hitch ball will be much closer to the obstacle than the
rear fascia when the loudspeaker sounds the con-
tinuous tone. Also, the sensors could detect the ball
mount and hitch ball assembly, depending on its size
and shape, giving a false indication that an obstacle
is behind the vehicle.
CAUTION!
•ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
(Continued)
CAUTION! (Continued)
sensors will not be detected when they are in close
proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the
driver looks over his/her shoulder when using
ParkSense.
PARKVIEW REAR BACK UP CAMERA
Your vehicle is equipped with the ParkView Rear Back Up
Camera that allows you to see an on-screen image of the
rear surroundings of your vehicle whenever the gear
selector is put into REVERSE. The image will be displayed
in the touchscreen display along with a caution note to
“check entire surroundings” across the top of the screen.
After five seconds, this note will disappear. The ParkView
camera is located on the rear of the vehicle above the rear
license plate.
When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the last selected touchscreen
appears again.
6
STARTING AND OPERATING 169
