lug pattern FIAT 500E 2019 Owners Manual

Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice.After 25 miles (40 km), check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated against
the wheel.
WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts/bolts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.
FLUID CAPACITIES
Systems
U.S.Metric
Power Electronics Cooling System 3.6 Quarts3.4 Liters
Battery Thermal Management Cooling System 7.0 Quarts6.6 Liters
Single-Speed Transmission 0.8 Quart750 ml

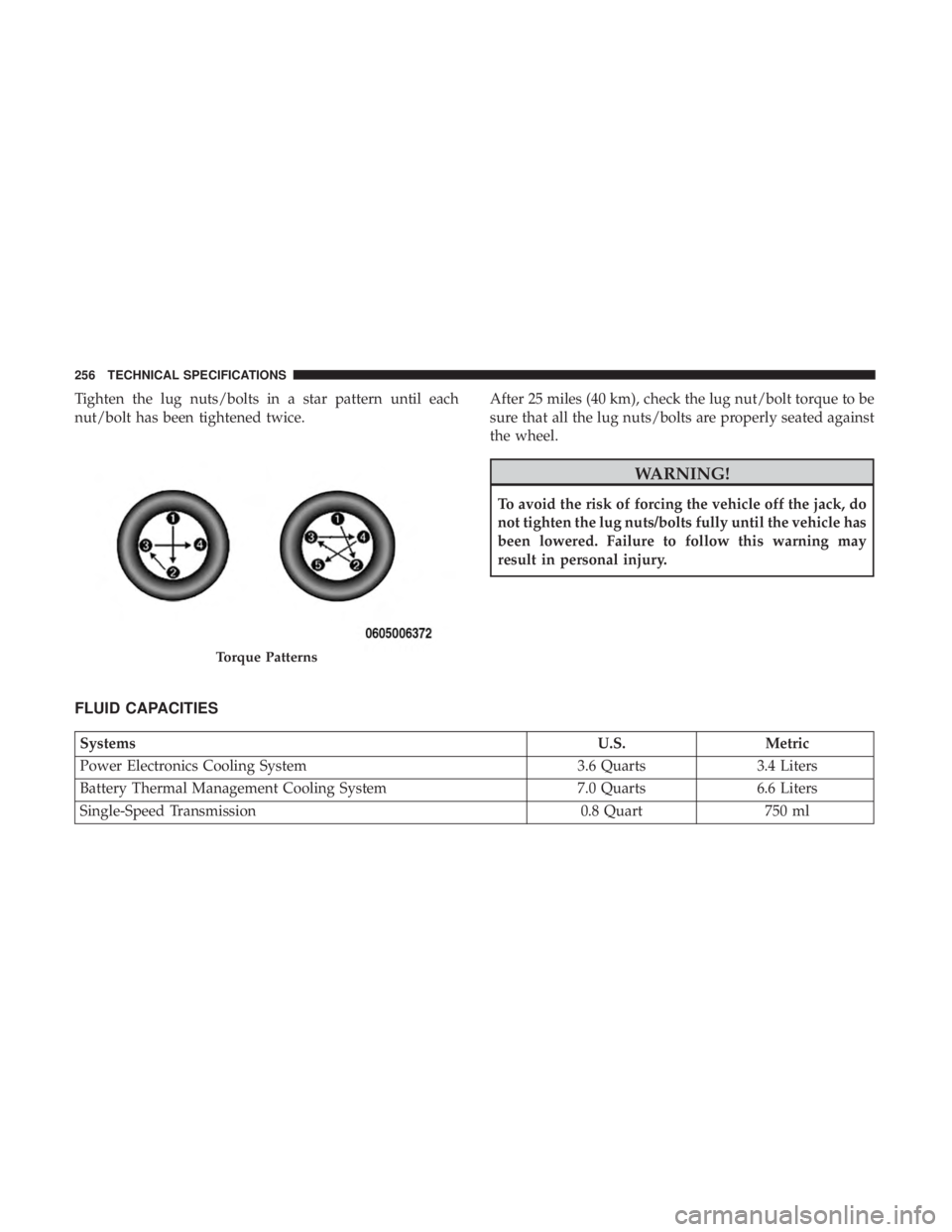

Torque Patterns
256 TECHNICAL SPECIFICATIONS
