FIAT 500L 2014 2.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Ignition Switch ........................12
 SENTRY KEY® .........................13
▫ Replacement Keys .....................14
▫ General Information ....................14

VEHICLE SECURITY ALARM — IF EQUIPPED . . .15
▫ To Arm The System ....................15
▫ To Disarm The System ...................16
▫ Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped ..........................16
REMOTE KEYLESS ENTRY (RKE) ............18
▫ To Unlock The Doors And Liftgate ..........19
▫ To Lock The Doors And Liftgate ............19
▫ Replacing The Battery In The Key With Remote
Control ..............................19
▫ Programming Additional Transmitters ........20
▫ Request For Additional Remote Controls ......20
▫ General Information ....................20
 DOOR LOCKS .........................21
▫ Doors Lock With One Or More Doors Open . . .23
2

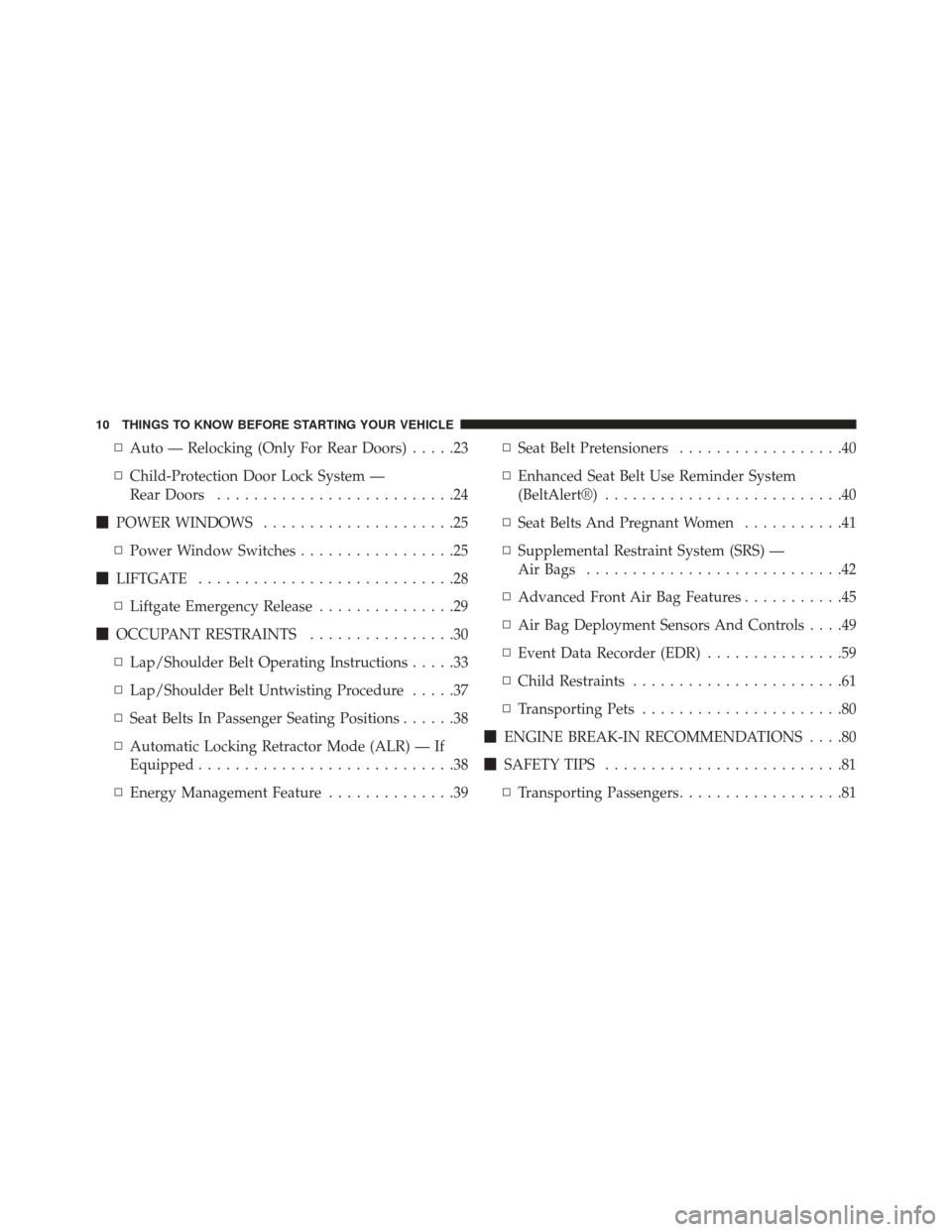

▫Auto — Relocking (Only For Rear Doors) .....23
▫ Child-Protection Door Lock System —
Rear Doors ..........................24
 POWER WINDOWS .....................25
▫ Power Window Switches .................25
 LIFTGATE ............................28
▫ Liftgate Emergency Release ...............29
 OCCUPANT RESTRAINTS ................30
▫ Lap/Shoulder Belt Operating Instructions .....33
▫ Lap/Shoulder Belt Untwisting Procedure .....37
▫ Seat Belts In Passenger Seating Positions ......38
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................38
▫ Energy Management Feature ..............39▫
Seat Belt Pretensioners ..................40
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................40
▫ Seat Belts And Pregnant Women ...........41
▫ Supplemental Restraint System (SRS) —
Air Bags ............................42
▫ Advanced Front Air Bag Features ...........45
▫ Air Bag Deployment Sensors And Controls ....49
▫ Event Data Recorder (EDR) ...............59
▫ Child Restraints .......................61
▫ Transporting Pets ......................80
 ENGINE BREAK-IN RECOMMENDATIONS ....80
 SAFETY TIPS ..........................81
▫ Transporting Passengers ..................81
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

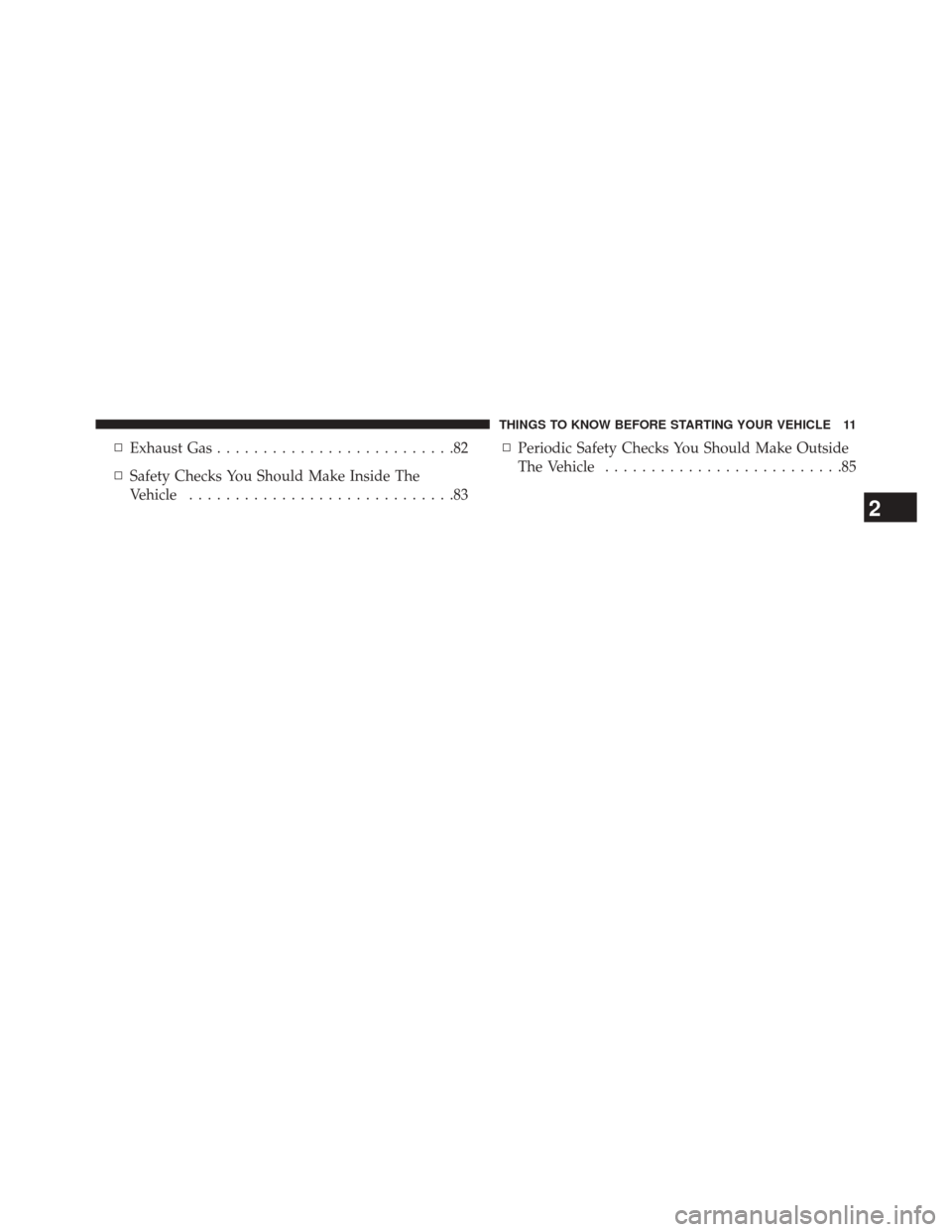

▫Exhaust Gas ..........................82
▫ Safety Checks You Should Make Inside The
Vehicle .............................83 ▫
Periodic Safety Checks You Should Make Outside
The Vehicle ..........................85
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The key fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key simply press the mechanical key release button.The vehicle is supplied with a code card containing key
code numbers to order duplicate keys, and the autho-
rized dealer that sold you your new vehicle has the key
code numbers for your vehicle locks.
Ignition Switch
The ignition switch can be turned to three different
positions:
•
STOP: engine off, key can be removed. Some electrical
devices (e.g. sound system, central door locking sys-
tem, etc.) can operate;
• AVV: engine start-up;
• MAR: driving position. All electrical devices are en-
abled.
The ignition switch is fitted with a safety system that
requires the ignition key to be turned back to STOP if the
engine does not start, before the starting operation can be
repeated.
Mechanical Key Release Button
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.

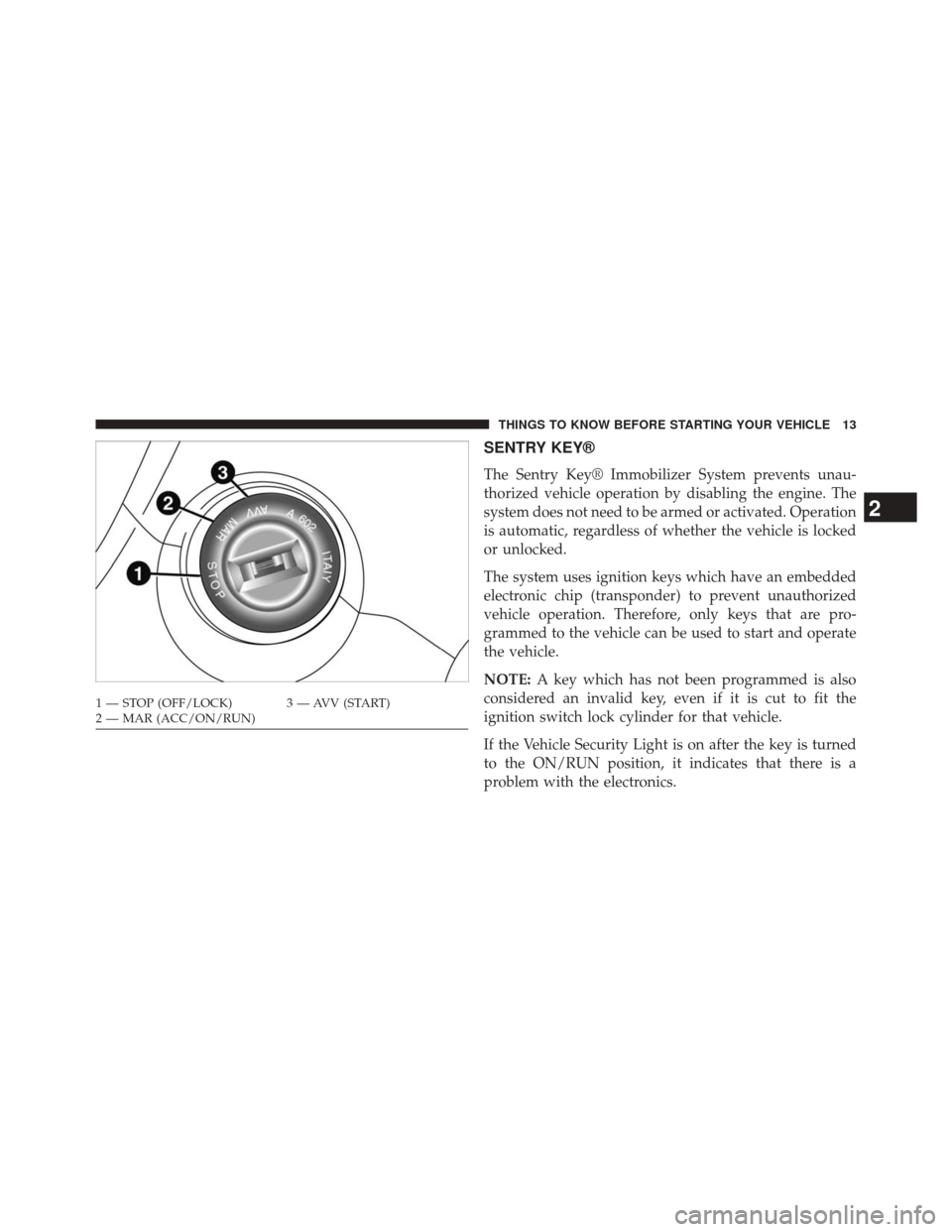

1 — STOP (OFF/LOCK) 3 — AVV (START)
2 — MAR (ACC/ON/RUN)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

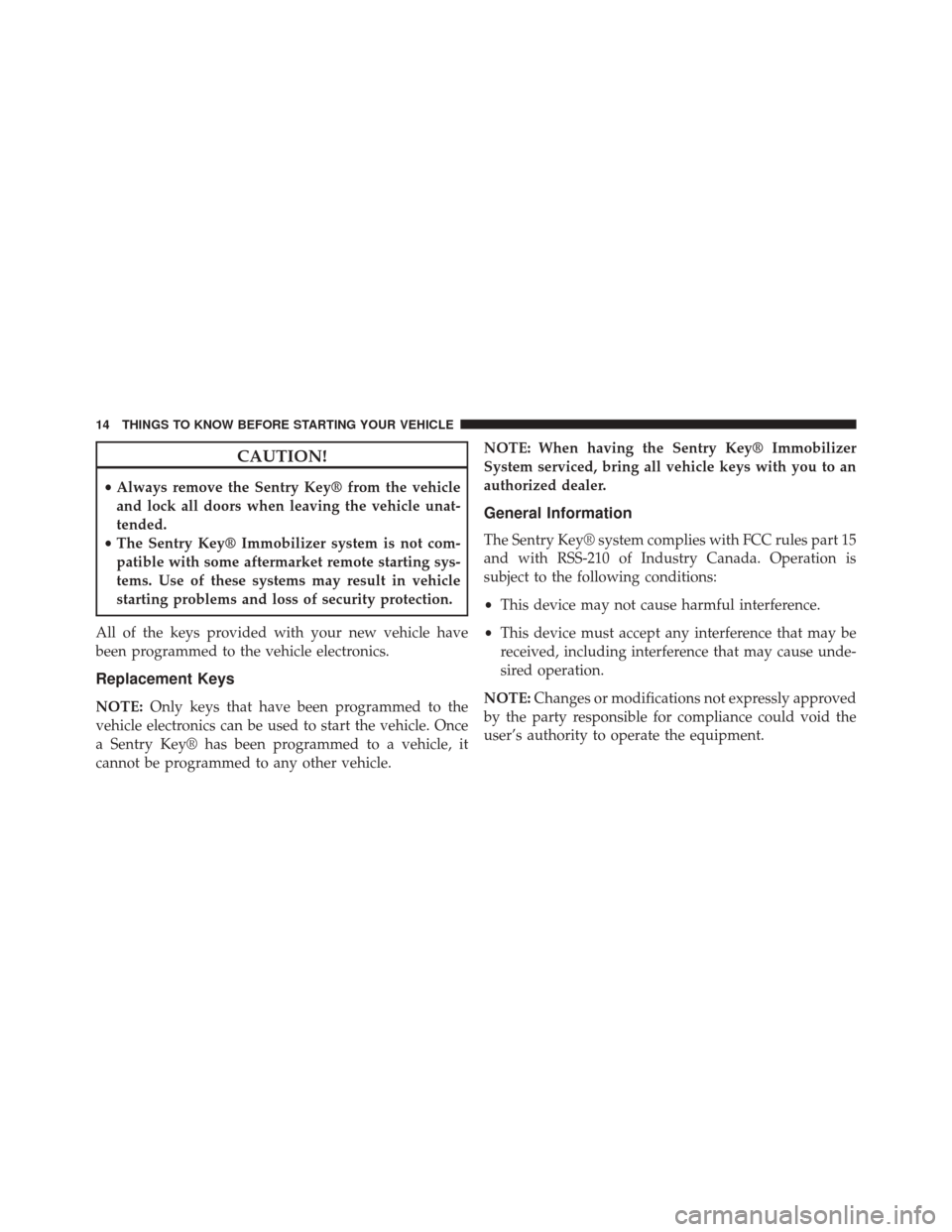

CAUTION!
•Always remove the Sentry Key® from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
• The Sentry Key® Immobilizer system is not com-
patible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key® has been programmed to a vehicle, it
cannot be programmed to any other vehicle. NOTE: When having the Sentry Key® Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
General Information
The Sentry Key® system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•
This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

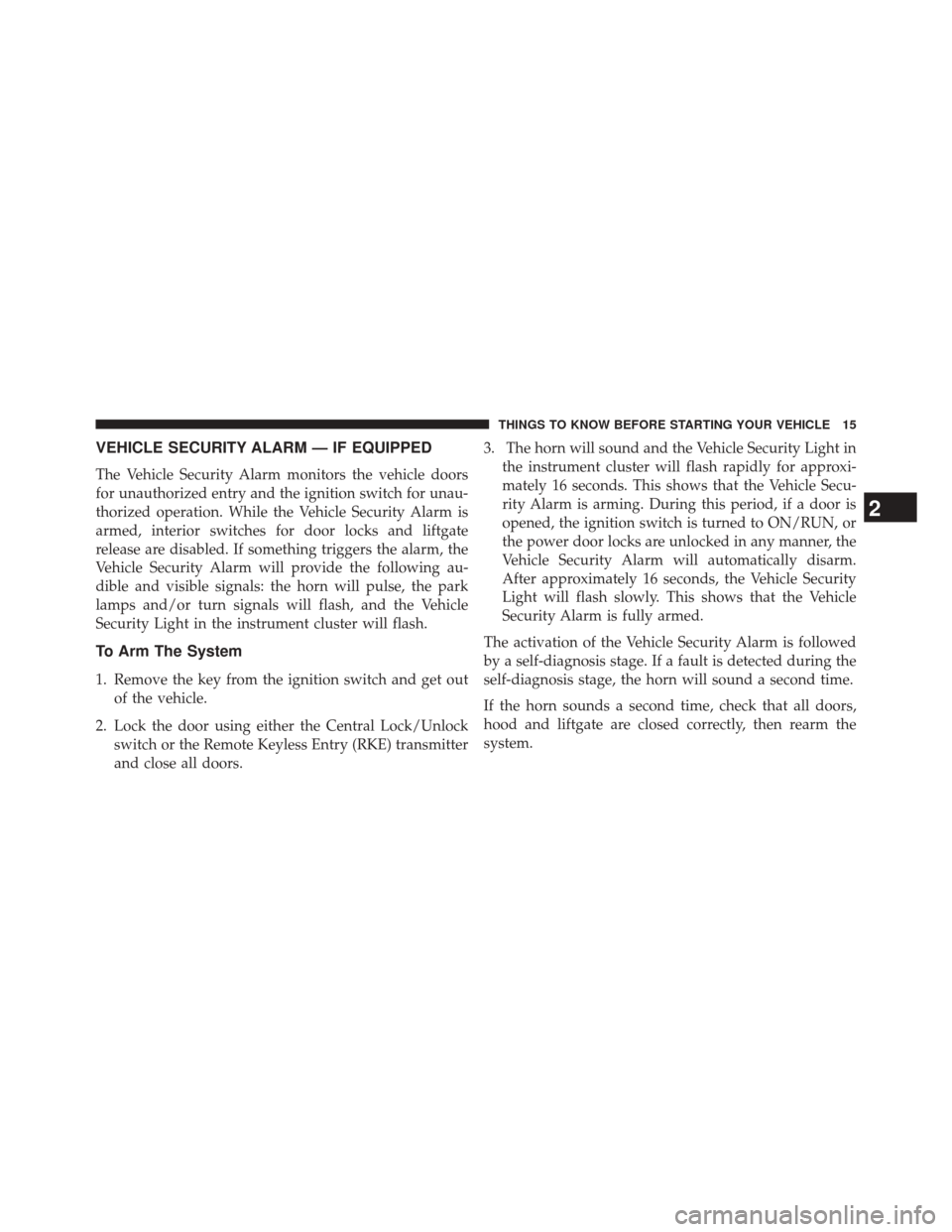

VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and liftgate
release are disabled. If something triggers the alarm, the
Vehicle Security Alarm will provide the following au-
dible and visible signals: the horn will pulse, the park
lamps and/or turn signals will flash, and the Vehicle
Security Light in the instrument cluster will flash.
To Arm The System
1. Remove the key from the ignition switch and get outof the vehicle.
2. Lock the door using either the Central Lock/Unlock switch or the Remote Keyless Entry (RKE) transmitter
and close all doors. 3. The horn will sound and the Vehicle Security Light in
the instrument cluster will flash rapidly for approxi-
mately 16 seconds. This shows that the Vehicle Secu-
rity Alarm is arming. During this period, if a door is
opened, the ignition switch is turned to ON/RUN, or
the power door locks are unlocked in any manner, the
Vehicle Security Alarm will automatically disarm.
After approximately 16 seconds, the Vehicle Security
Light will flash slowly. This shows that the Vehicle
Security Alarm is fully armed.
The activation of the Vehicle Security Alarm is followed
by a self-diagnosis stage. If a fault is detected during the
self-diagnosis stage, the horn will sound a second time.
If the horn sounds a second time, check that all doors,
hood and liftgate are closed correctly, then rearm the
system.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

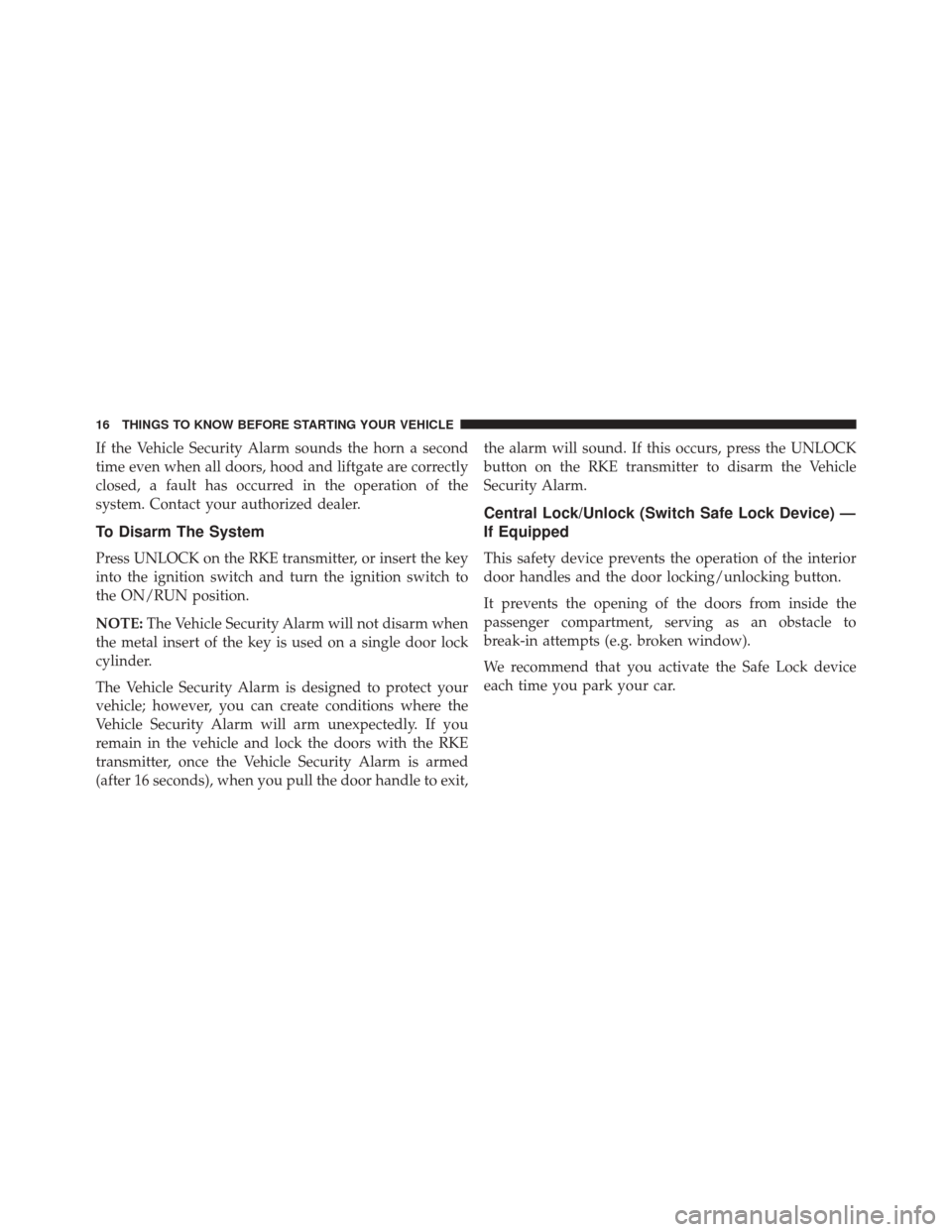

If the Vehicle Security Alarm sounds the horn a second
time even when all doors, hood and liftgate are correctly
closed, a fault has occurred in the operation of the
system. Contact your authorized dealer.
To Disarm The System
Press UNLOCK on the RKE transmitter, or insert the key
into the ignition switch and turn the ignition switch to
the ON/RUN position.
NOTE:The Vehicle Security Alarm will not disarm when
the metal insert of the key is used on a single door lock
cylinder.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, once the Vehicle Security Alarm is armed
(after 16 seconds), when you pull the door handle to exit, the alarm will sound. If this occurs, press the UNLOCK
button on the RKE transmitter to disarm the Vehicle
Security Alarm.
Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped
This safety device prevents the operation of the interior
door handles and the door locking/unlocking button.
It prevents the opening of the doors from inside the
passenger compartment, serving as an obstacle to
break-in attempts (e.g. broken window).
We recommend that you activate the Safe Lock device
each time you park your car.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Activating The Safe Lock Device
The Safe Lock device is enabled on all the doors by
quickly double-pressing the LOCK button on the RKE
transmitter.
The direction indicators flash three times and the LED
above the button flashes to indicate that the Safe Lock
device has been activated. If one or more of the doors are
not closed correctly, the Safe Lock device will not acti-
vate, preventing a person from getting stuck inside the
passenger compartment by entering the car through, and
then closing, the open door.
Deactivating The Safe Lock Device
The Safe Lock device deactivates automatically:
•carrying out the door unlocking operation (pressing
the UNLOCK button on the RKE transmitter;
• by turning the ignition key to the MAR position.
Safe Lock Device Location
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system.NOTE:The line of transmission must not be blocked with
metal objects.
Remote Keyless Entry Transmitter With Mechanical Key
Release Button
