FIAT 500L 2015 2.G Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

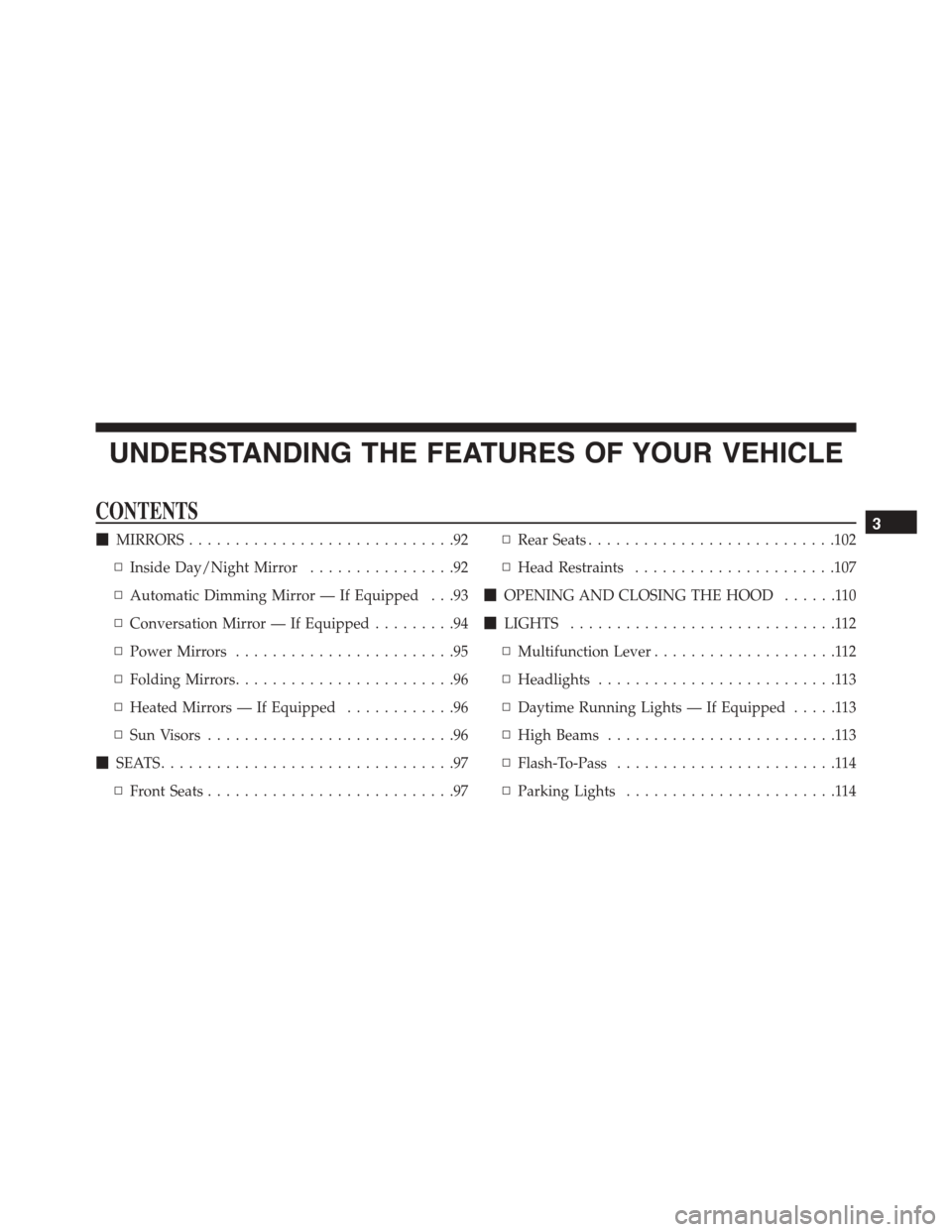

CONTENTS
!MIRRORS.............................92
▫Inside Day/Night Mirror................92
▫Automatic Dimming Mirror — If Equipped . . .93
▫Conversation Mirror — If Equipped.........94
▫Power Mirrors........................95
▫Folding Mirrors........................96
▫Heated Mirrors — If Equipped............96
▫Sun Visors...........................96
!SEATS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
▫Front Seats...........................97
▫Rear Seats...........................102
▫Head Restraints......................107
!OPENING AND CLOSING THE HOOD......110
!LIGHTS.............................112
▫Multifunction Lever....................112
▫Headlights..........................113
▫Daytime Running Lights — If Equipped.....113
▫High Beams.........................113
▫Flash-To-Pass........................114
▫Parking Lights.......................114
3

▫Turn Signals.........................114
▫Lane Change Assist....................114
▫Follow Me Home/Headlight Delay.........114
▫Front Fog Lights — If Equipped...........115
▫Interior Lights.......................115
!WINDSHIELD WIPERS AND WASHERS......118
▫Front Windshield Wiper Operation.........118
▫Rear Window Wiper/Washer.............121
!TILT/TELESCOPING STEERING COLUMN . . .122
!ELECTRONIC SPEED CONTROL...........123
▫To Activate..........................125
▫To Set A Desired Speed.................125
▫To Deactivate........................125
▫To Resume Speed.....................126
▫To Vary The Speed Setting...............126
▫To Accelerate For Passing................127
!REAR PARK ASSIST — IF EQUIPPED........128
▫Rear Park Assist Sensors................129
▫Rear Park Assist Audible Alerts...........129
▫Failure Indications.....................131
▫Cleaning The Rear Park Assist System.......132
▫Park Assist System Usage Precautions.......132
!PARKVIEW® REAR BACK UP CAMERA —
IF EQUIPPED.........................134
!GARAGE DOOR OPENER — IF EQUIPPED . . .136
▫Before You Begin Programming HomeLink® . .137
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

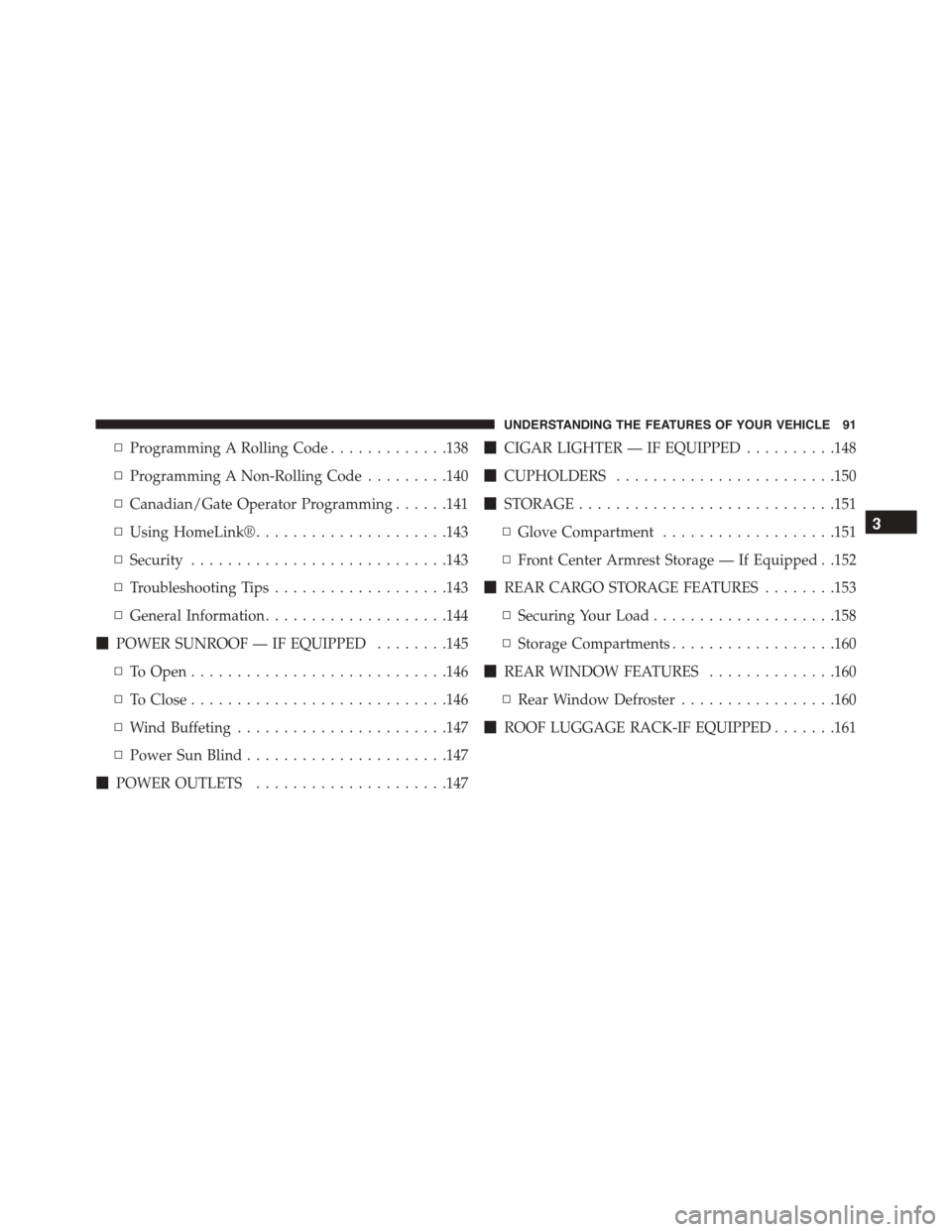

▫Programming A Rolling Code.............138
▫Programming A Non-Rolling Code.........140
▫Canadian/Gate Operator Programming......141
▫Using HomeLink®.....................143
▫Security............................143
▫Troubleshooting Tips...................143
▫General Information....................144
!POWER SUNROOF — IF EQUIPPED........145
▫To Open............................146
▫To Close............................146
▫Wind Buffeting.......................147
▫Power Sun Blind......................147
!POWER OUTLETS.....................147
!CIGAR LIGHTER — IF EQUIPPED..........148
!CUPHOLDERS........................150
!STORAGE............................151
▫Glove Compartment...................151
▫Front Center Armrest Storage — If Equipped . .152
!REAR CARGO STORAGE FEATURES........153
▫Securing Your Load....................158
▫Storage Compartments..................160
!REAR WINDOW FEATURES..............160
▫Rear Window Defroster.................160
!ROOF LUGGAGE RACK-IF EQUIPPED.......161
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

MIRRORS

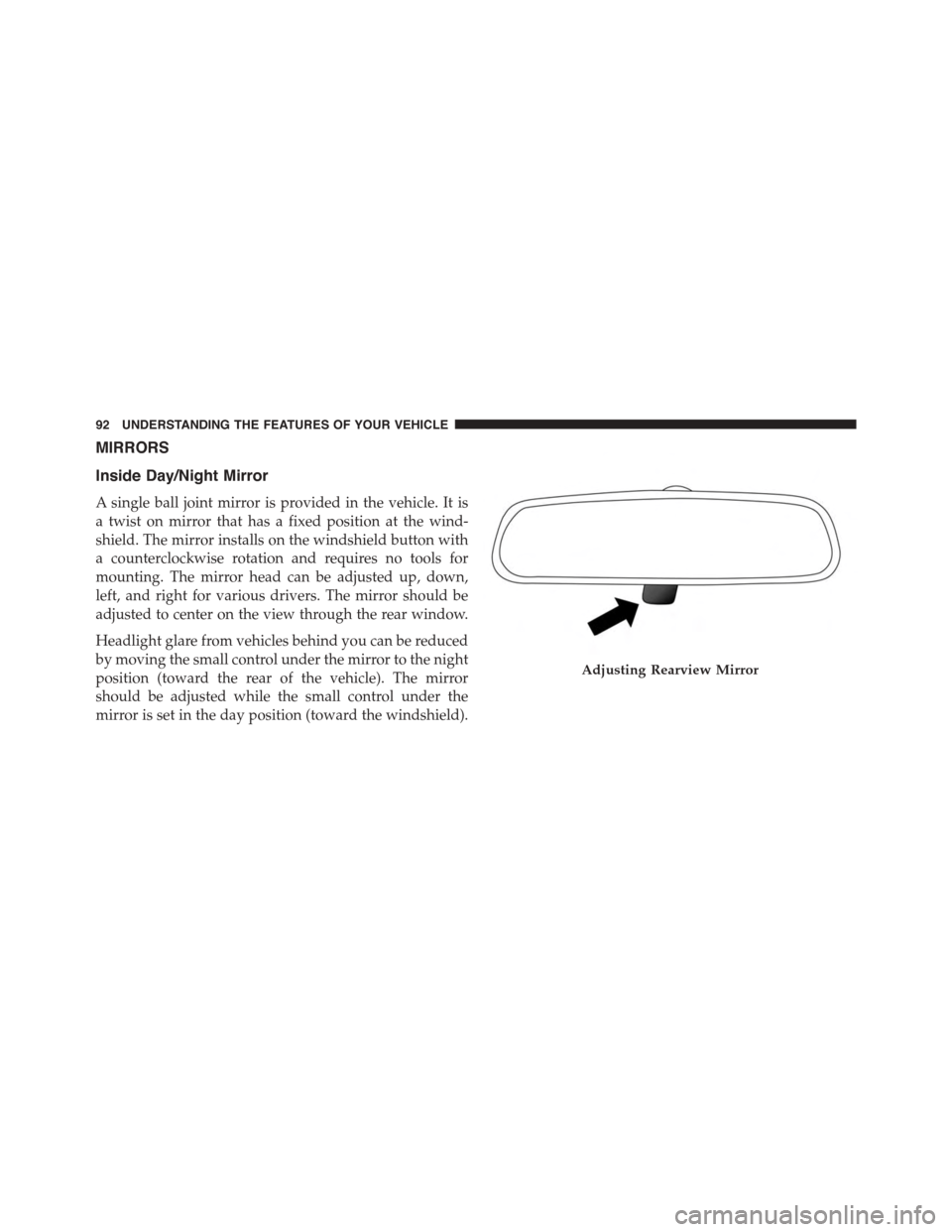

Inside Day/Night Mirror
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while the small control under the
mirror is set in the day position (toward the windshield).
Adjusting Rearview Mirror
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

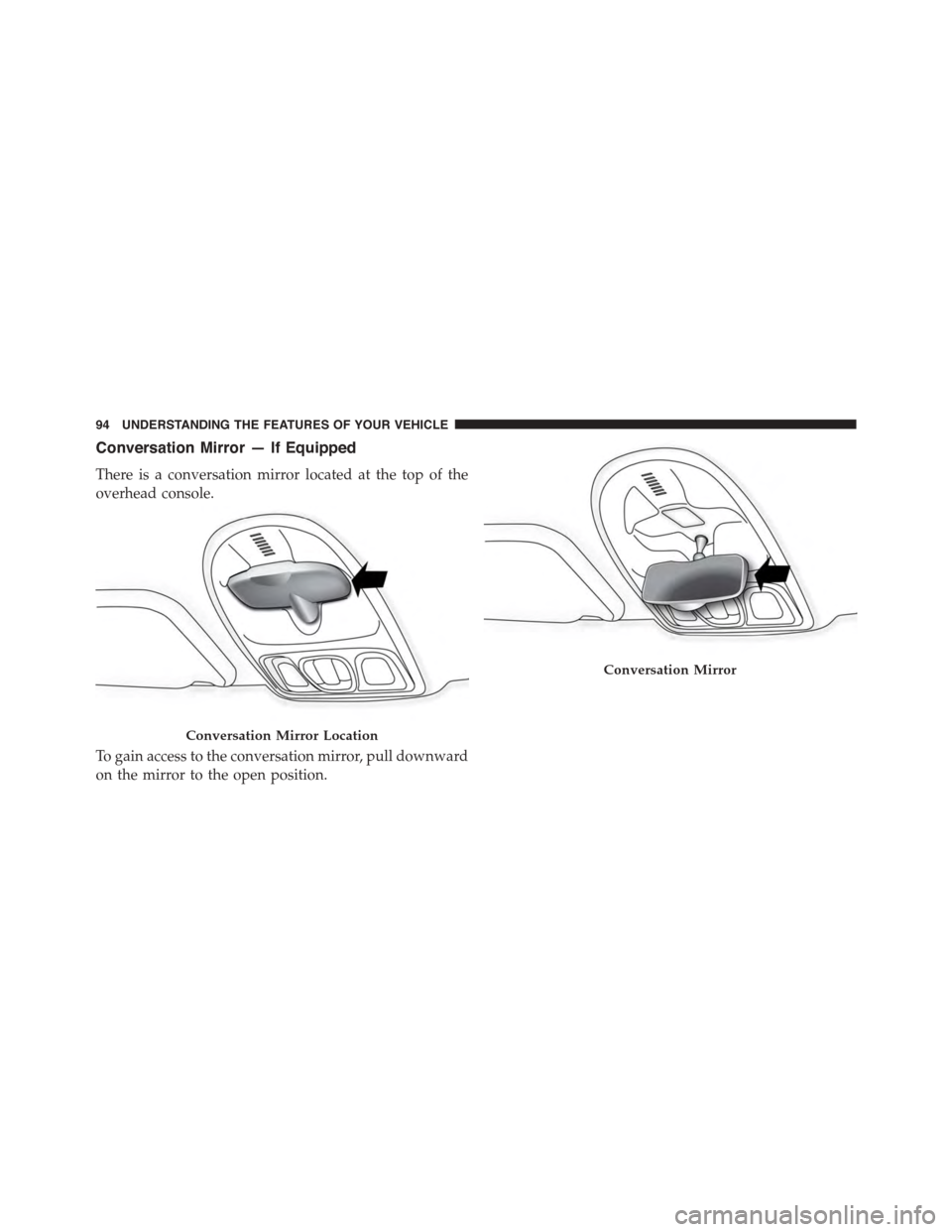

Conversation Mirror — If Equipped
There is a conversation mirror located at the top of the
overhead console.
To gain access to the conversation mirror, pull downward
on the mirror to the open position.
Conversation Mirror Location
Conversation Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel. To adjust a mirror, turn the control knob
toward the left or right mirror positions indicated. Tilt the
control wand in the direction you want the mirror to
move. When you are finished adjusting the mirror, turn
the control to the center position to prevent accidentally
moving a mirror.
Power Mirror Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, normal
and full rearward.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster.
Sun Visors
The driver and passenger sun visors are located on the
headliner, near the front windshield. The sun visor can be
rotated downward or up against the door glass. Both sun
visors are equipped with illuminated courtesy mirrors.
Sun Visor “Slide-On-Rod” Feature
The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.
Sun Visor (Driver Side Shown)
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

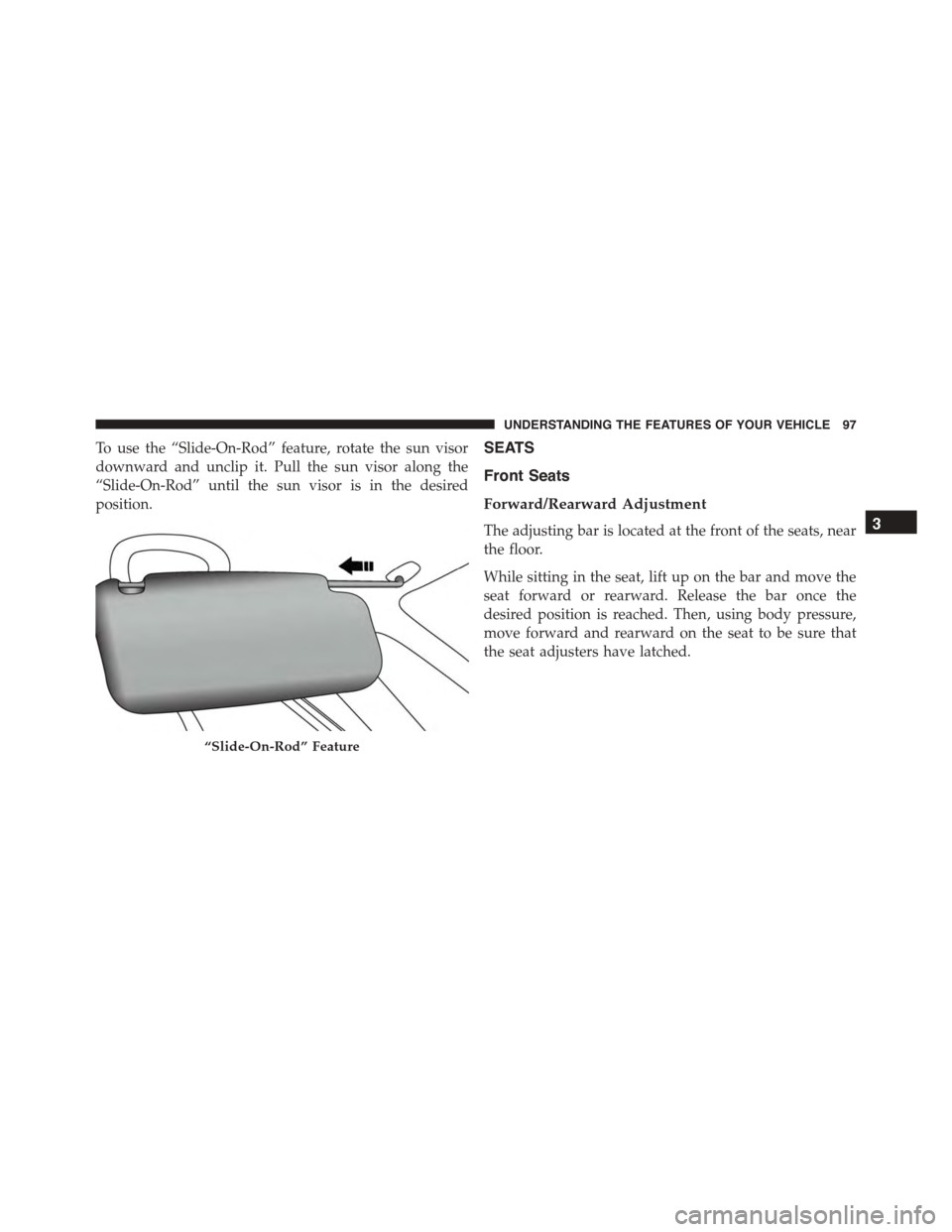

To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired
position.
SEATS
Front Seats
Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.
“Slide-On-Rod” Feature
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Seat Height Adjustment
The seat height adjustment lever is located on the out-
board side of the seat. Pull upward on the lever to raise
the seat height or push downward on the lever to lower
the seat height.
Adjusting Bar
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
