THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............11
▫ Ignition Switch ........................12
▫ Locking Doors With A Key ................13
▫ Key-In-Ignition Reminder ................14
SENTRY KEY ..........................14
▫ Replacement Keys .....................15
▫ General Information ....................15
VEHICLE SECURITY ALARM ..............15
▫ To Arm The System ....................16
▫ To Disarm The System ...................16 ▫
Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped ..........................17
REMOTE KEYLESS ENTRY (RKE) ............18
▫ To Unlock The Doors And Liftgate ..........19
▫ To Lock The Doors And Liftgate ............19
▫ Programming Additional Transmitters ........19
▫ Request For Additional Remote Controls ......20
▫ Replacing The Battery In The Key With Remote
Control ..............................20
▫ General Information ....................21
2
Page 12 of 476
DOOR LOCKS .........................22
▫ Doors Lock With One Or More Doors Open . . .24
▫ Auto — Relocking (Only For Rear Doors) .....24
▫ Child-Protection Door Lock System —
Rear Doors ..........................25
▫ To Engage Or Disengage The Child-Protection
Door Lock System ......................25
POWER WINDOWS .....................26
▫ Power Window Switches .................26
▫ Wind Buffeting .......................28
LIFTGATE ............................29
▫ Liftgate Emergency Release ...............29
OCCUPANT RESTRAINT SYSTEMS ..........31▫
Important Safety Precautions ..............31
▫ Seat Belt Systems ......................32
▫ Supplemental Restraint System (SRS) ........43
▫ Child Restraints .......................59
▫ Transporting Pets ......................80
ENGINE BREAK-IN RECOMMENDATIONS ....80
SAFETY TIPS ..........................81
▫ Transporting Passengers ..................81
▫ Exhaust Gas ..........................82
▫ Safety Checks You Should Make Inside The
Vehicle .............................83
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ..........................84
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 13 of 476

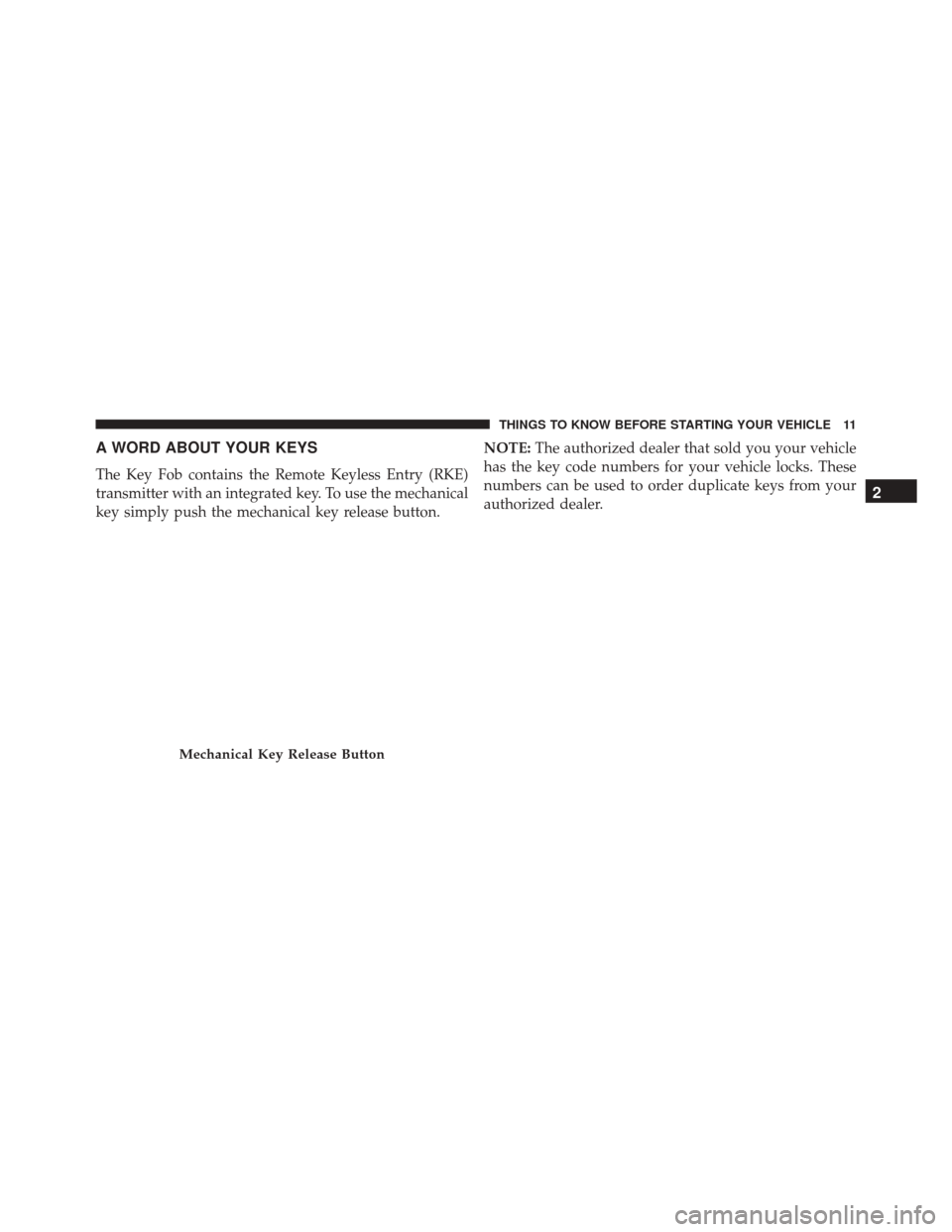

A WORD ABOUT YOUR KEYS
The Key Fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key simply push the mechanical key release button.NOTE:
The authorized dealer that sold you your vehicle
has the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer.
Mechanical Key Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
Page 14 of 476

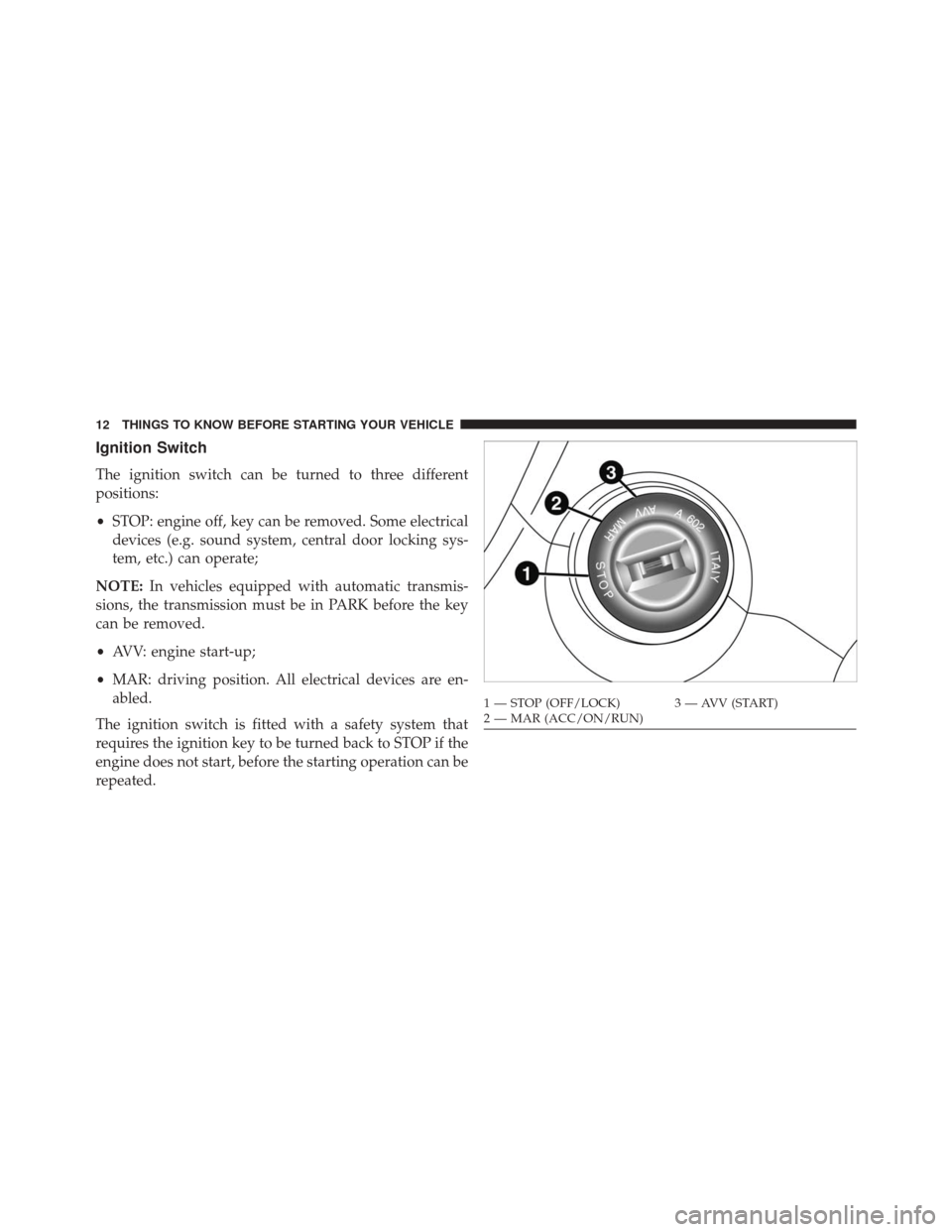

Ignition Switch
The ignition switch can be turned to three different
positions:
•STOP: engine off, key can be removed. Some electrical
devices (e.g. sound system, central door locking sys-
tem, etc.) can operate;
NOTE: In vehicles equipped with automatic transmis-
sions, the transmission must be in PARK before the key
can be removed.
• AVV: engine start-up;
• MAR: driving position. All electrical devices are en-
abled.
The ignition switch is fitted with a safety system that
requires the ignition key to be turned back to STOP if the
engine does not start, before the starting operation can be
repeated.
1 — STOP (OFF/LOCK) 3 — AVV (START)
2 — MAR (ACC/ON/RUN)
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 476

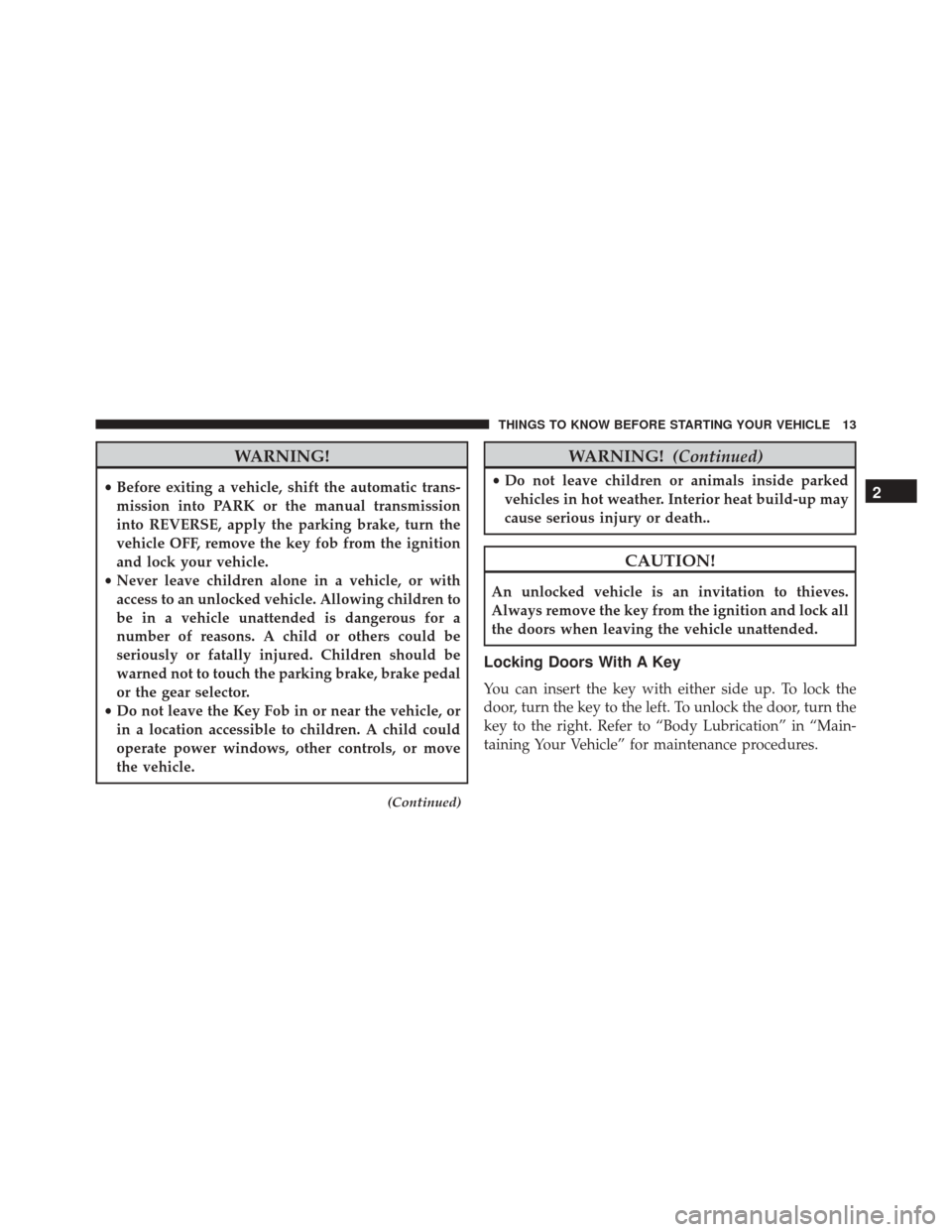

WARNING!
•Before exiting a vehicle, shift the automatic trans-
mission into PARK or the manual transmission
into REVERSE, apply the parking brake, turn the
vehicle OFF, remove the key fob from the ignition
and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
(Continued)
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death..
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
the doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn the
key to the right. Refer to “Body Lubrication” in “Main-
taining Your Vehicle” for maintenance procedures.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
Page 16 of 476

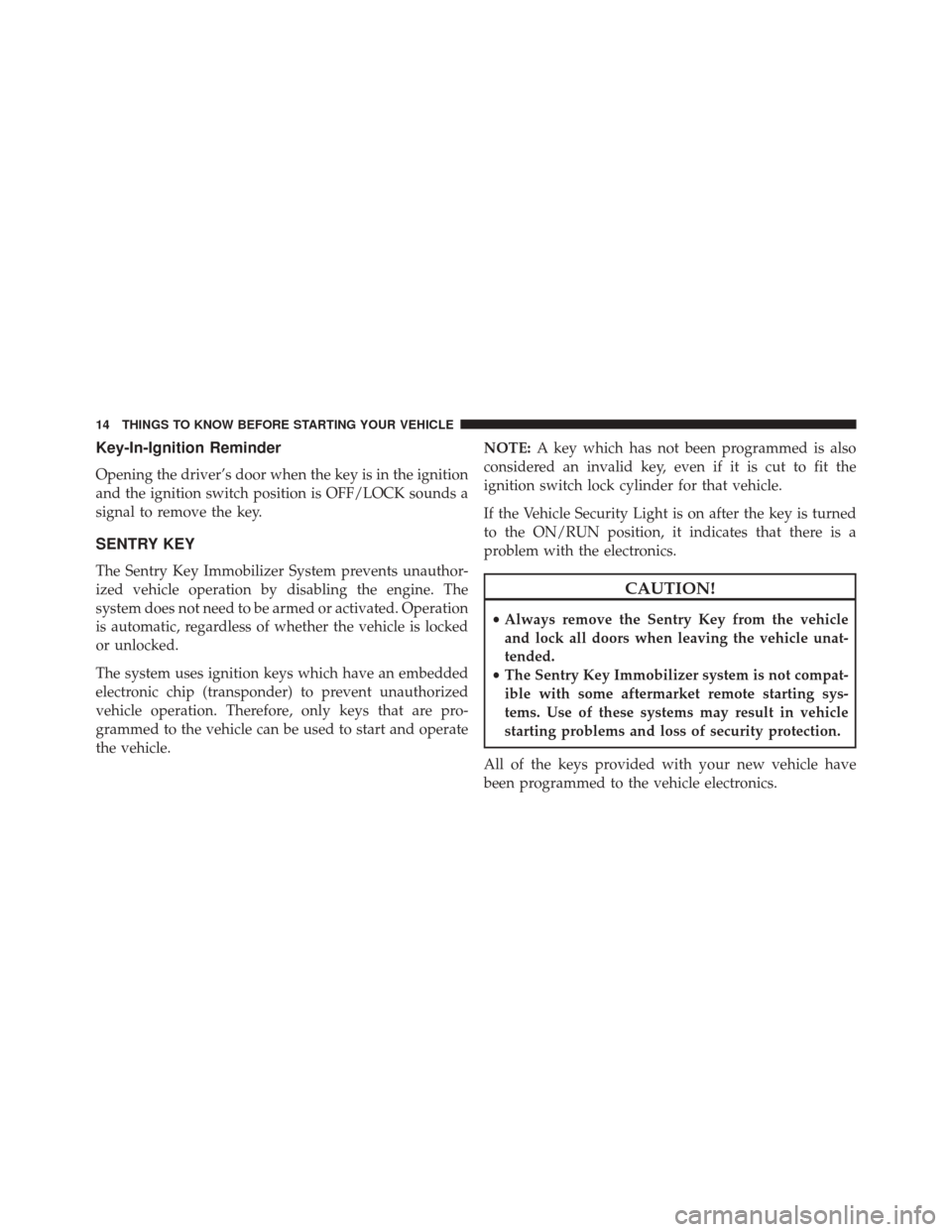

Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is OFF/LOCK sounds a
signal to remove the key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.NOTE:
A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 476
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
NOTE: When having the Sentry Key Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and 2. This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and liftgate
release are disabled. If something triggers the alarm, the
Vehicle Security Alarm will provide the following au-
dible and visible signals: the horn will pulse, the park
lamps and/or turn signals will flash, and the Vehicle
Security Light on the instrument panel will flash.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
Page 18 of 476

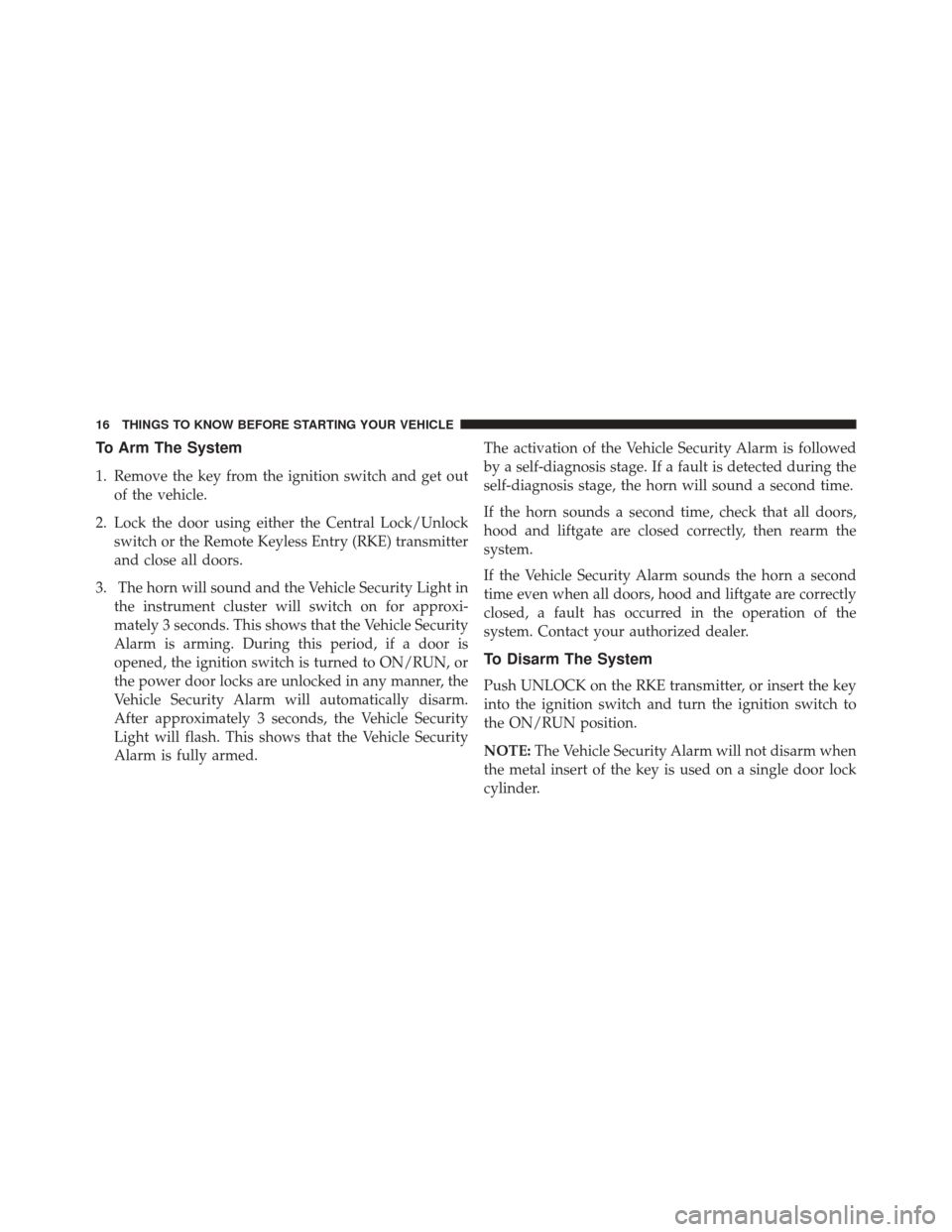

To Arm The System
1. Remove the key from the ignition switch and get outof the vehicle.
2. Lock the door using either the Central Lock/Unlock switch or the Remote Keyless Entry (RKE) transmitter
and close all doors.
3. The horn will sound and the Vehicle Security Light in the instrument cluster will switch on for approxi-
mately 3 seconds. This shows that the Vehicle Security
Alarm is arming. During this period, if a door is
opened, the ignition switch is turned to ON/RUN, or
the power door locks are unlocked in any manner, the
Vehicle Security Alarm will automatically disarm.
After approximately 3 seconds, the Vehicle Security
Light will flash. This shows that the Vehicle Security
Alarm is fully armed. The activation of the Vehicle Security Alarm is followed
by a self-diagnosis stage. If a fault is detected during the
self-diagnosis stage, the horn will sound a second time.
If the horn sounds a second time, check that all doors,
hood and liftgate are closed correctly, then rearm the
system.
If the Vehicle Security Alarm sounds the horn a second
time even when all doors, hood and liftgate are correctly
closed, a fault has occurred in the operation of the
system. Contact your authorized dealer.
To Disarm The System
Push UNLOCK on the RKE transmitter, or insert the key
into the ignition switch and turn the ignition switch to
the ON/RUN position.
NOTE:
The Vehicle Security Alarm will not disarm when
the metal insert of the key is used on a single door lock
cylinder.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 19 of 476

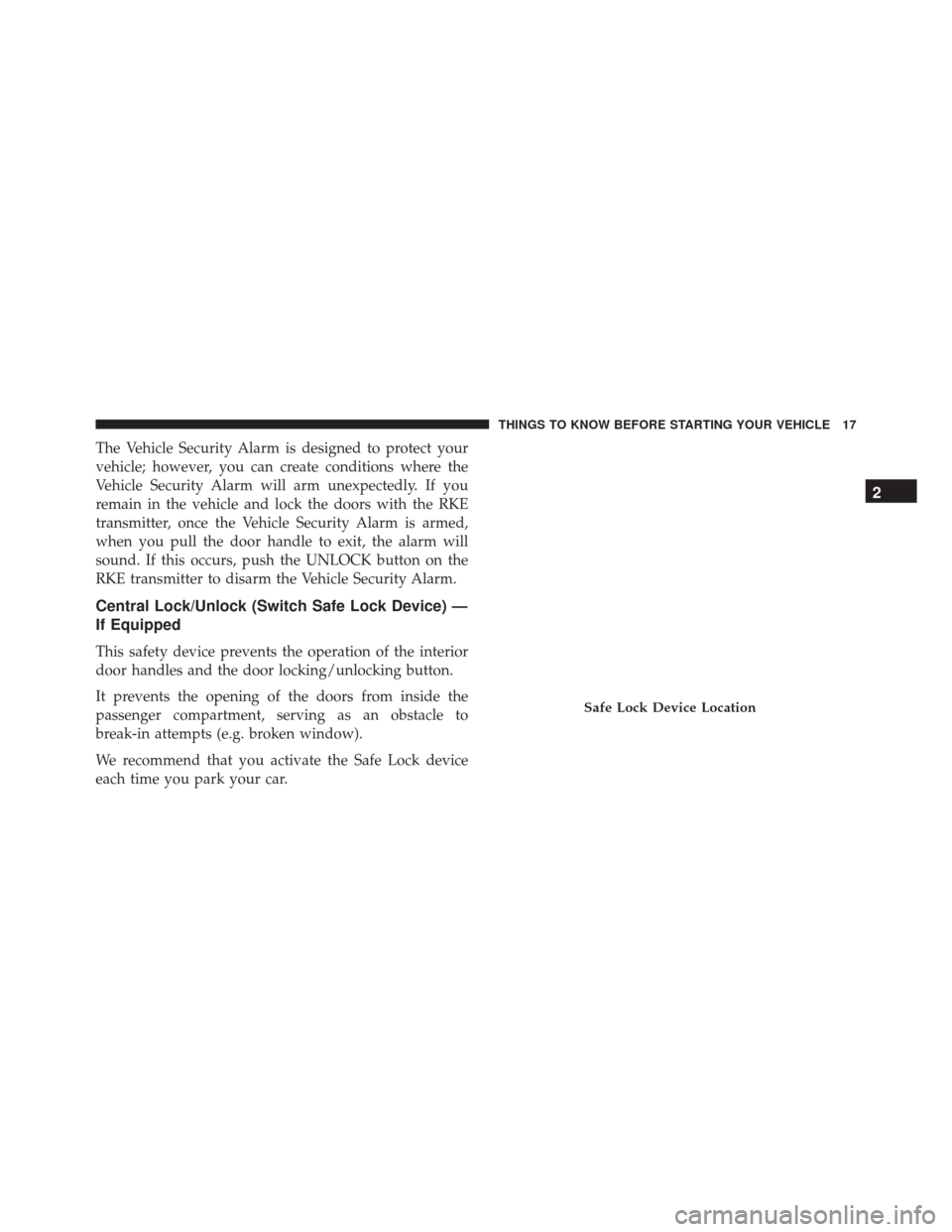

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, once the Vehicle Security Alarm is armed,
when you pull the door handle to exit, the alarm will
sound. If this occurs, push the UNLOCK button on the
RKE transmitter to disarm the Vehicle Security Alarm.
Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped
This safety device prevents the operation of the interior
door handles and the door locking/unlocking button.
It prevents the opening of the doors from inside the
passenger compartment, serving as an obstacle to
break-in attempts (e.g. broken window).
We recommend that you activate the Safe Lock device
each time you park your car.
Safe Lock Device Location
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
Page 20 of 476

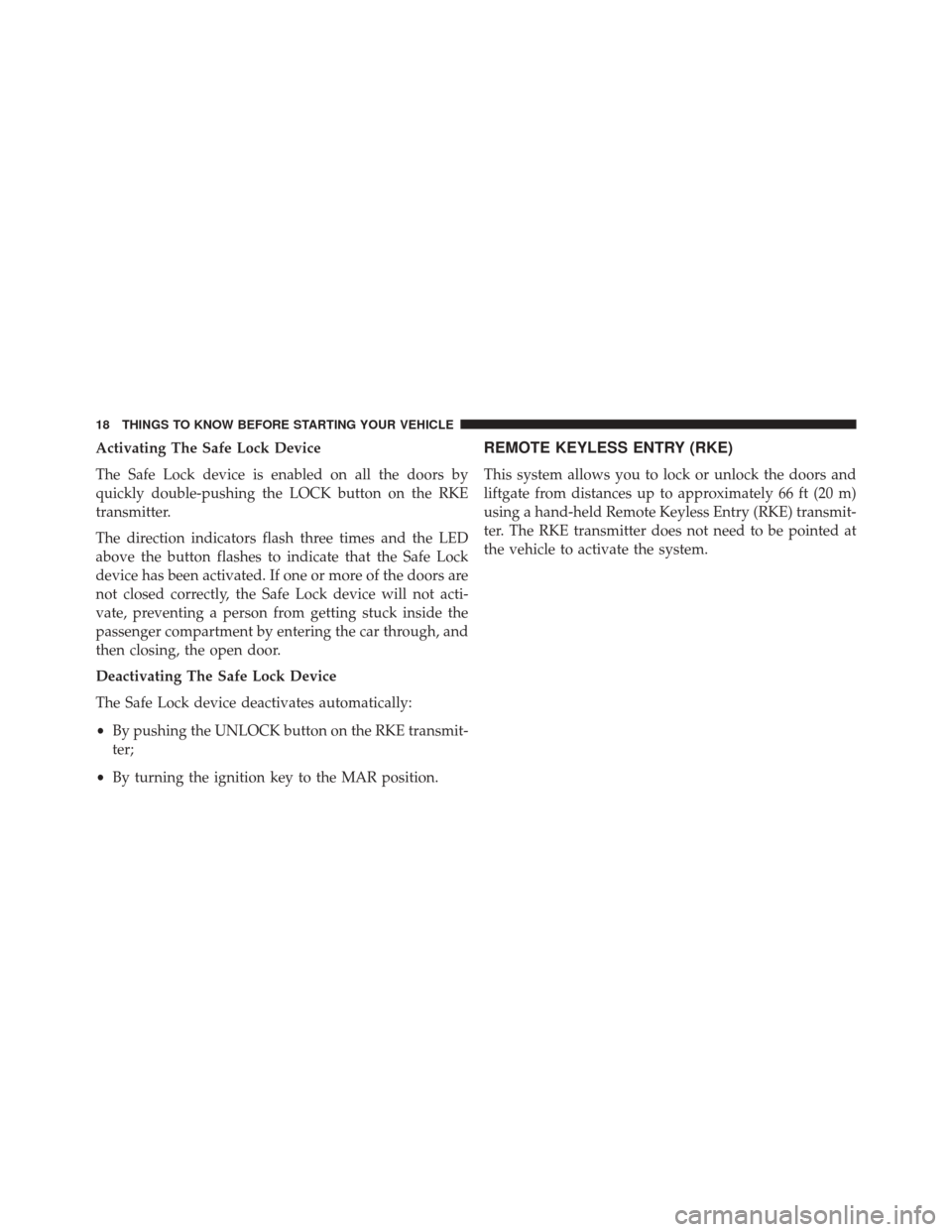

Activating The Safe Lock Device
The Safe Lock device is enabled on all the doors by
quickly double-pushing the LOCK button on the RKE
transmitter.
The direction indicators flash three times and the LED
above the button flashes to indicate that the Safe Lock
device has been activated. If one or more of the doors are
not closed correctly, the Safe Lock device will not acti-
vate, preventing a person from getting stuck inside the
passenger compartment by entering the car through, and
then closing, the open door.
Deactivating The Safe Lock Device
The Safe Lock device deactivates automatically:
•By pushing the UNLOCK button on the RKE transmit-
ter;
• By turning the ignition key to the MAR position.REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
