FIAT 500L 2016 2.G Owners Manual

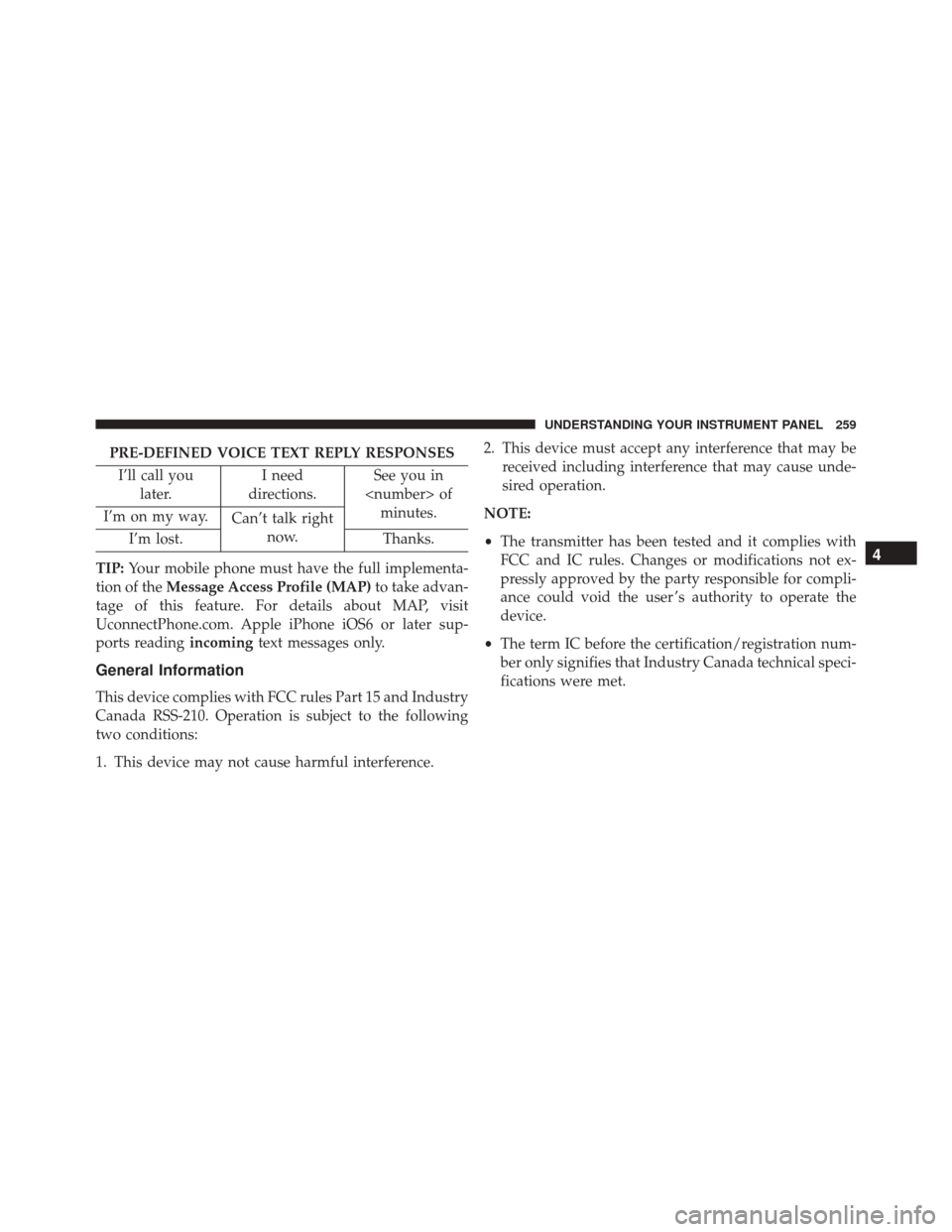

PRE-DEFINED VOICE TEXT REPLY RESPONSESI’ll call you later. I need
directions. See you in
of minutes.
I’m on my way. Can’t talk right
now.
I’m lost. Thanks.
TIP: Your mobile phone must have the full implementa-
tion of the Message Access Profile (MAP) to take advan-
tage of this feature. For details about MAP, visit
UconnectPhone.com. Apple iPhone iOS6 or later sup-
ports reading incomingtext messages only.
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference. 2. This device must accept any interference that may be
received including interference that may cause unde-
sired operation.
NOTE:
• The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
• The term IC before the certification/registration num-
ber only signifies that Industry Canada technical speci-
fications were met.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 259

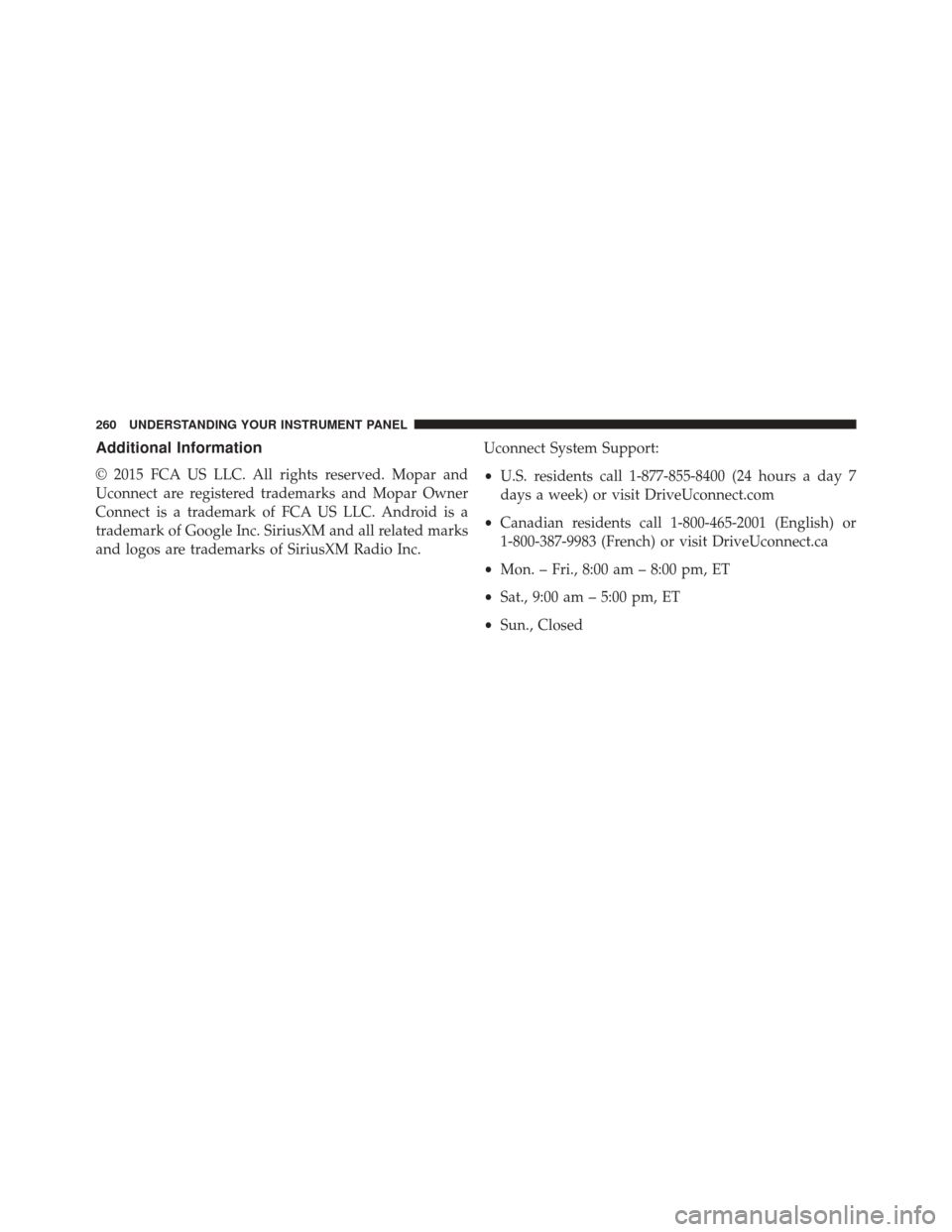

Additional Information
© 2015 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. Android is a
trademark of Google Inc. SiriusXM and all related marks
and logos are trademarks of SiriusXM Radio Inc.Uconnect System Support:
•
U.S. residents call 1-877-855-8400 (24 hours a day 7
days a week) or visit DriveUconnect.com
• Canadian residents call 1-800-465-2001 (English) or
1-800-387-9983 (French) or visit DriveUconnect.ca
• Mon. – Fri., 8:00 am – 8:00 pm, ET
• Sat., 9:00 am – 5:00 pm, ET
• Sun., Closed
260 UNDERSTANDING YOUR INSTRUMENT PANEL

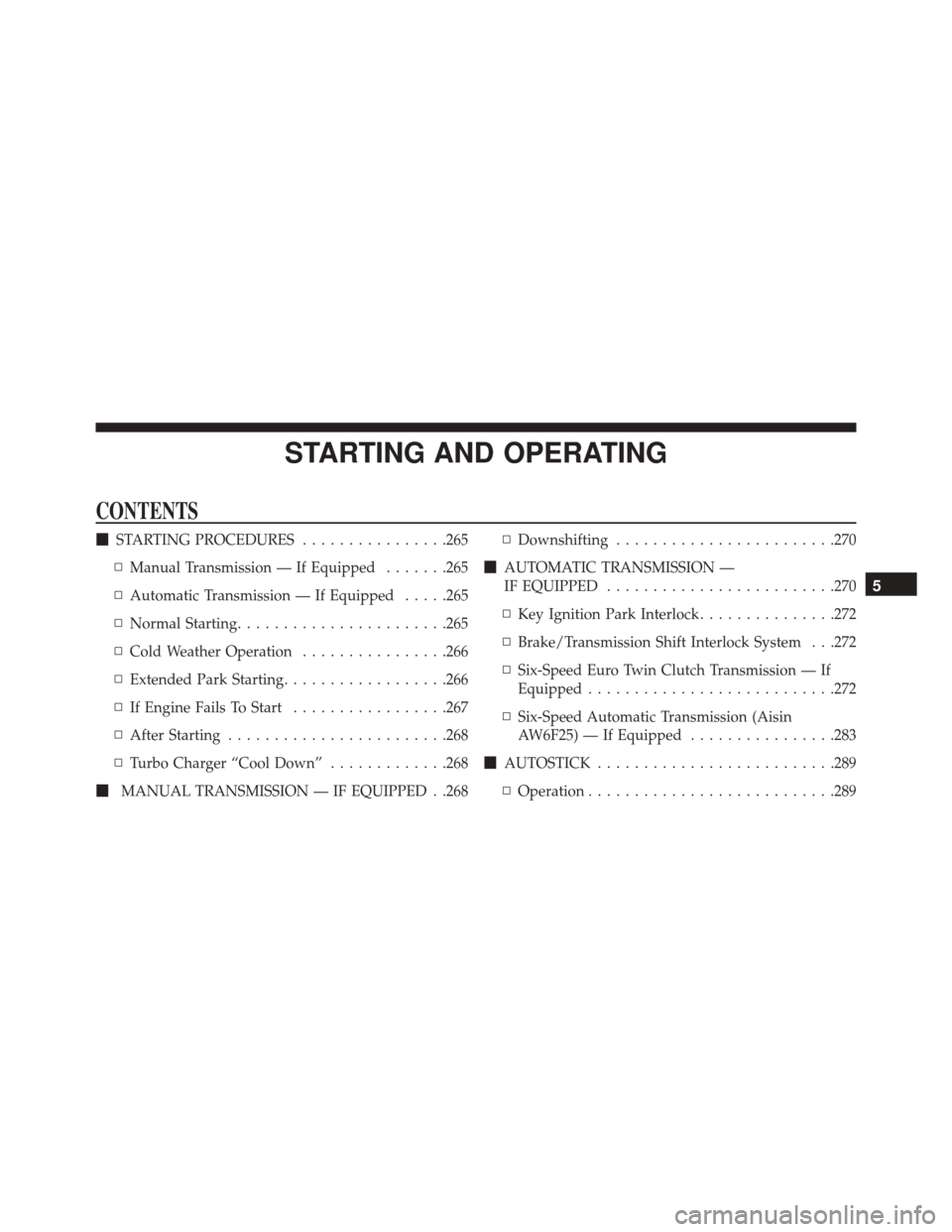

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................265
▫ Manual Transmission — If Equipped .......265
▫ Automatic Transmission — If Equipped .....265
▫ Normal Starting ...................... .265
▫ Cold Weather Operation ................266
▫ Extended Park Starting ..................266
▫ If Engine Fails To Start .................267
▫ After Starting ....................... .268
▫ Turbo Charger “Cool Down” .............268
 MANUAL TRANSMISSION — IF EQUIPPED . .268 ▫
Downshifting ....................... .270
 AUTOMATIC TRANSMISSION —
IF EQUIPPED ........................ .270
▫ Key Ignition Park Interlock ...............272
▫ Brake/Transmission Shift Interlock System . . .272
▫ Six-Speed Euro Twin Clutch Transmission — If
Equipped .......................... .272
▫ Six-Speed Automatic Transmission (Aisin
AW6F25) — If Equipped ................283
 AUTOSTICK ......................... .289
▫ Operation .......................... .289
5

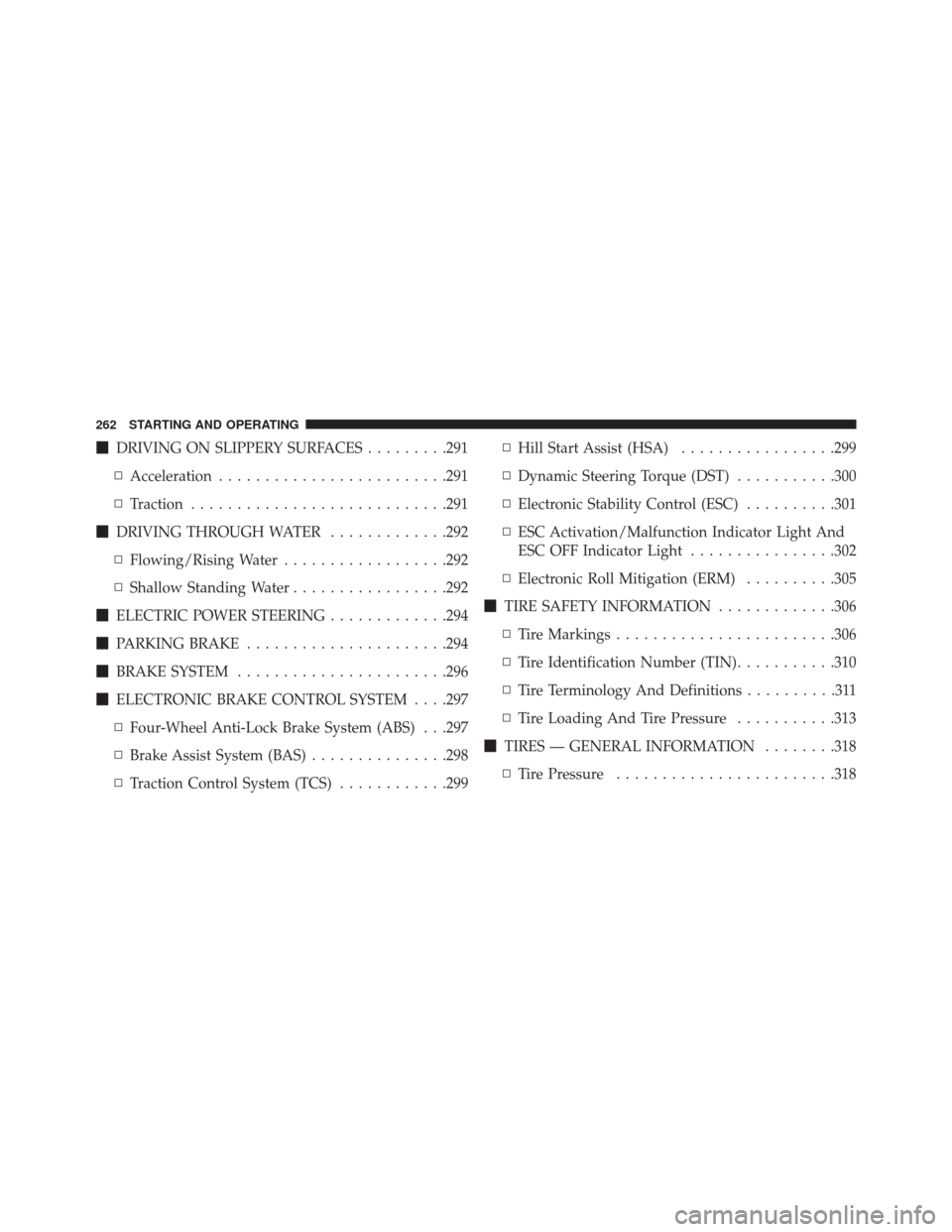

DRIVING ON SLIPPERY SURFACES .........291
▫ Acceleration ........................ .291
▫ Traction ........................... .291
 DRIVING THROUGH WATER .............292
▫ Flowing/Rising Water ..................292
▫ Shallow Standing Water .................292
 ELECTRIC POWER STEERING .............294
 PARKING BRAKE ..................... .294
 BRAKE SYSTEM ...................... .296
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .297
▫ Four-Wheel Anti-Lock Brake System (ABS) . . .297
▫ Brake Assist System (BAS) ...............298
▫ Traction Control System (TCS) ............299▫
Hill Start Assist (HSA) .................299
▫ Dynamic Steering Torque (DST) ...........300
▫ Electronic Stability Control (ESC) ..........301
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................302
▫ Electronic Roll Mitigation (ERM) ..........305
 TIRE SAFETY INFORMATION .............306
▫ Tire Markings ....................... .306
▫ Tire Identification Number (TIN) ...........310
▫ Tire Terminology And Definitions ..........311
▫ Tire Loading And Tire Pressure ...........313
 TIRES — GENERAL INFORMATION ........318
▫ Tire Pressure ....................... .318
262 STARTING AND OPERATING

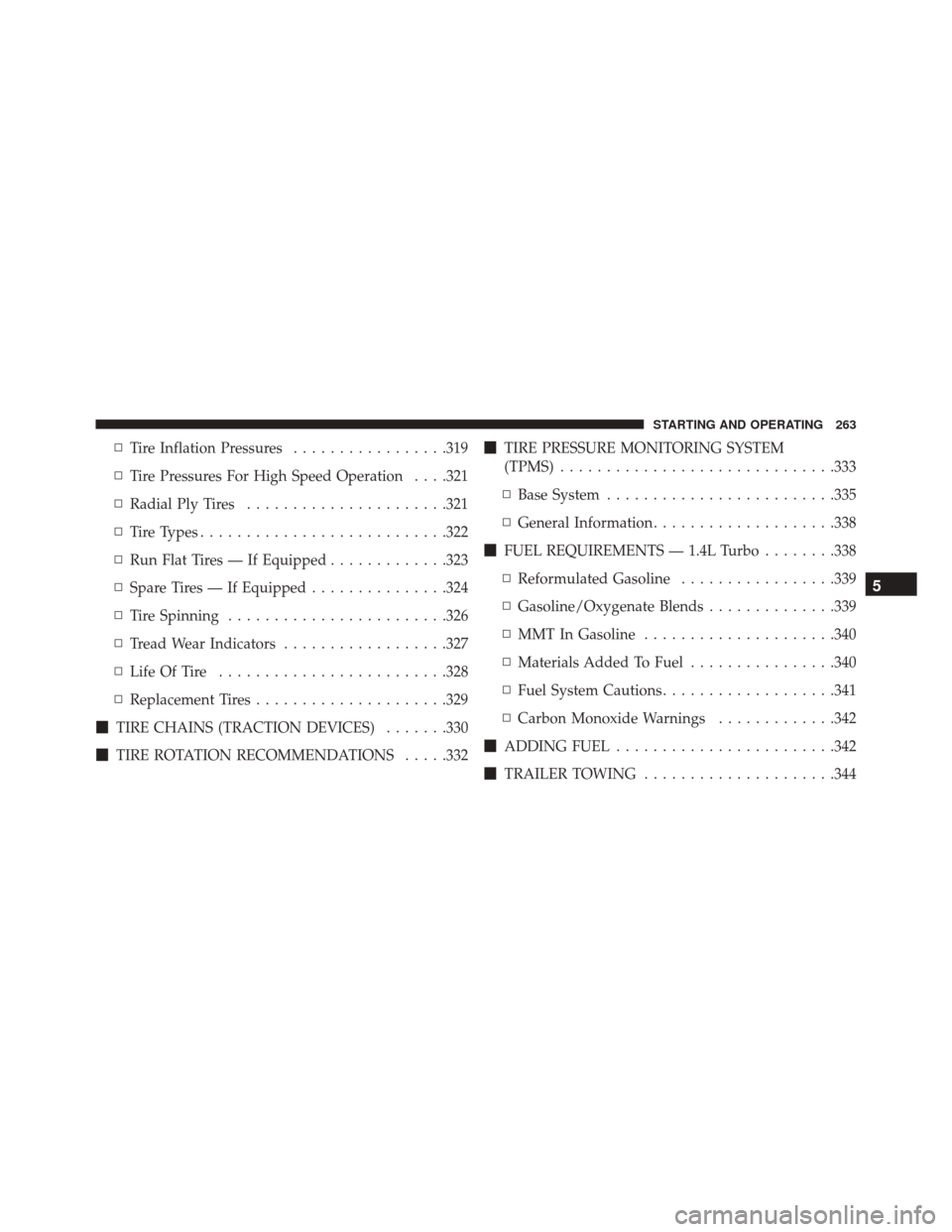

▫Tire Inflation Pressures .................319
▫ Tire Pressures For High Speed Operation . . . .321
▫ Radial Ply Tires ..................... .321
▫ Tire Types .......................... .322
▫ Run Flat Tires — If Equipped .............323
▫ Spare Tires — If Equipped ...............324
▫ Tire Spinning ....................... .326
▫ Tread Wear Indicators ..................327
▫ Life Of Tire ........................ .328
▫ Replacement Tires .....................329
 TIRE CHAINS (TRACTION DEVICES) .......330
 TIRE ROTATION RECOMMENDATIONS .....332
TIRE PRESSURE MONITORING SYSTEM
(TPMS) ............................. .333
▫ Base System ........................ .335
▫ General Information ....................338
 FUEL REQUIREMENTS — 1.4L Turbo ........338
▫ Reformulated Gasoline .................339
▫ Gasoline/Oxygenate Blends ..............339
▫ MMT In Gasoline .....................340
▫ Materials Added To Fuel ................340
▫ Fuel System Cautions ...................341
▫ Carbon Monoxide Warnings .............342
 ADDING FUEL ....................... .342
 TRAILER TOWING .....................344
5
STARTING AND OPERATING 263

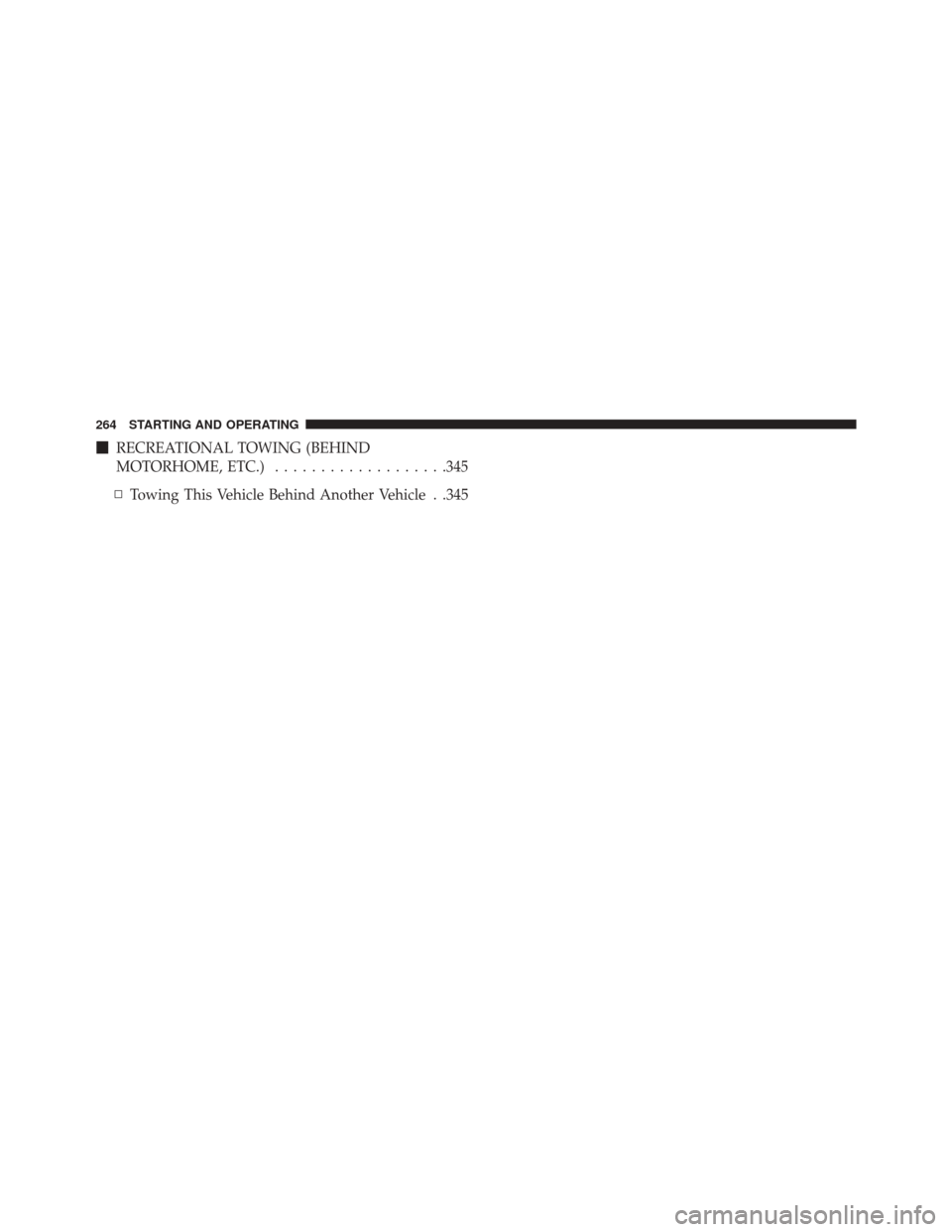

RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................345
▫ Towing This Vehicle Behind Another Vehicle . .345
264 STARTING AND OPERATING

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Manual Transmission — If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL, and press the clutch pedal before starting the
vehicle. This vehicle is equipped with a clutch interlock-
ing ignition system. It will not start unless the clutch
pedal is pressed to the floor.
Automatic Transmission — If Equipped
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Depress the
brake pedal before shifting to any driving gear.
NOTE: You must press the brake pedal before shifting
out of PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
5
STARTING AND OPERATING 265

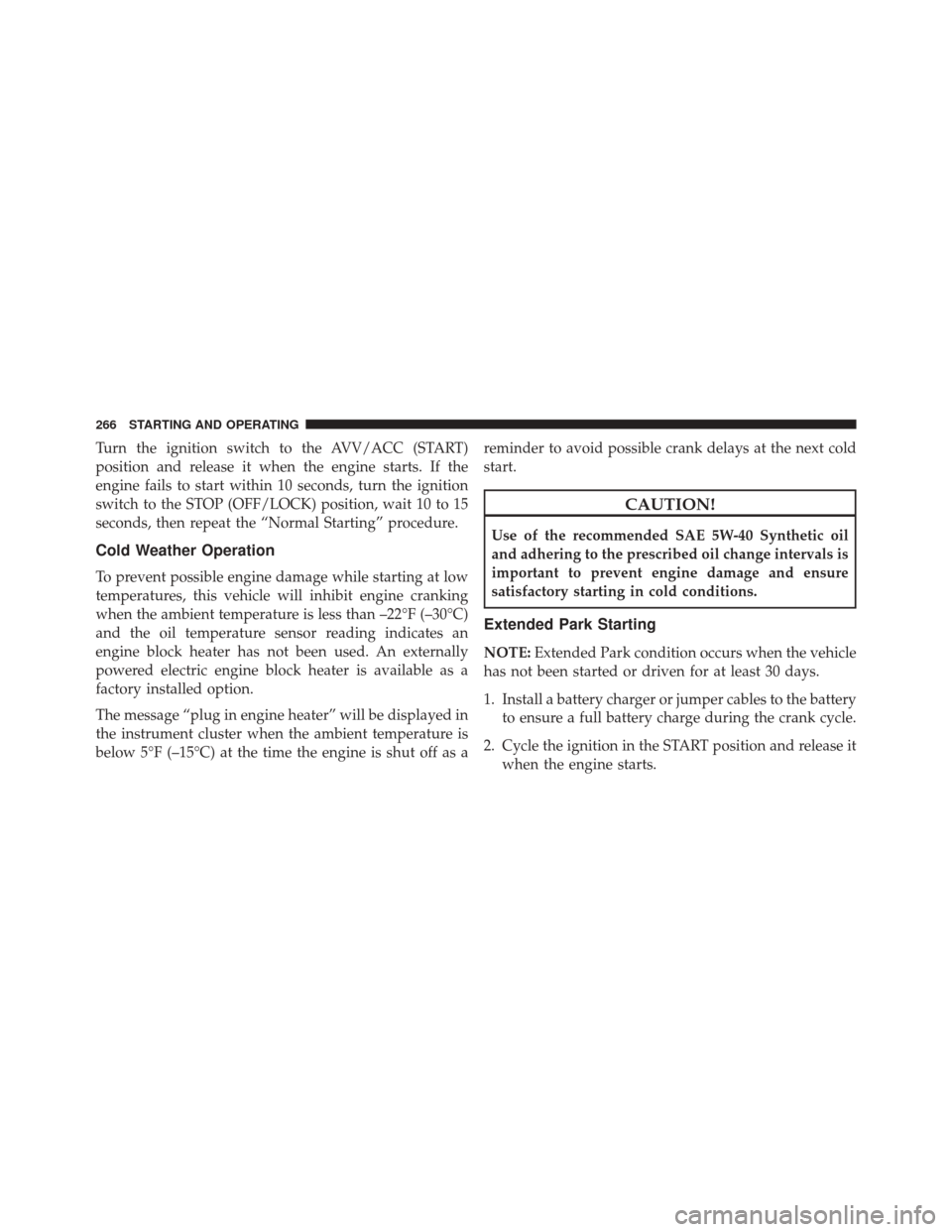

Turn the ignition switch to the AVV/ACC (START)
position and release it when the engine starts. If the
engine fails to start within 10 seconds, turn the ignition
switch to the STOP (OFF/LOCK) position, wait 10 to 15
seconds, then repeat the “Normal Starting” procedure.
Cold Weather Operation
To prevent possible engine damage while starting at low
temperatures, this vehicle will inhibit engine cranking
when the ambient temperature is less than –22°F (–30°C)
and the oil temperature sensor reading indicates an
engine block heater has not been used. An externally
powered electric engine block heater is available as a
factory installed option.
The message “plug in engine heater” will be displayed in
the instrument cluster when the ambient temperature is
below 5°F (–15°C) at the time the engine is shut off as areminder to avoid possible crank delays at the next cold
start.
CAUTION!
Use of the recommended SAE 5W-40 Synthetic oil
and adhering to the prescribed oil change intervals is
important to prevent engine damage and ensure
satisfactory starting in cold conditions.
Extended Park Starting
NOTE:
Extended Park condition occurs when the vehicle
has not been started or driven for at least 30 days.
1. Install a battery charger or jumper cables to the battery to ensure a full battery charge during the crank cycle.
2. Cycle the ignition in the START position and release it when the engine starts.
266 STARTING AND OPERATING

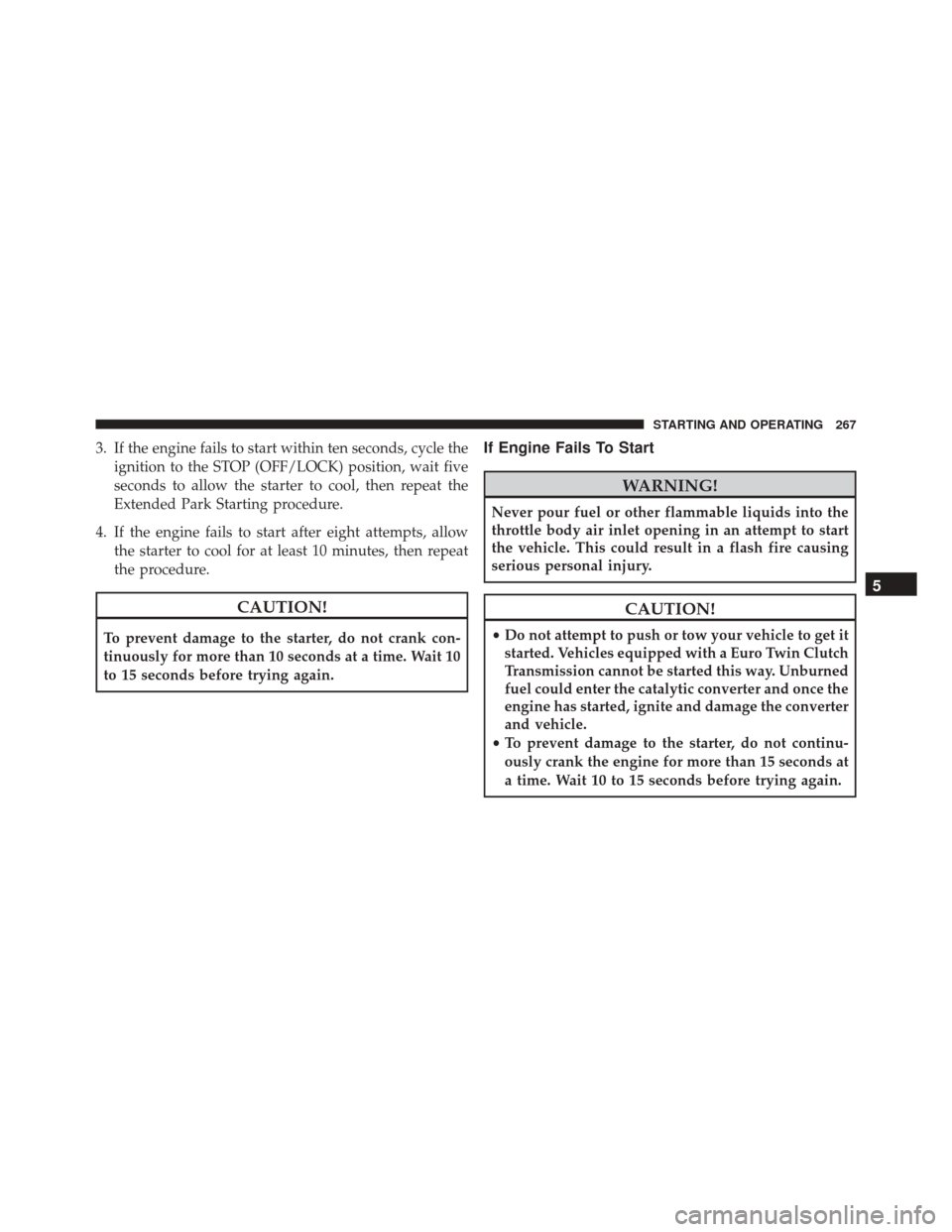

3. If the engine fails to start within ten seconds, cycle theignition to the STOP (OFF/LOCK) position, wait five
seconds to allow the starter to cool, then repeat the
Extended Park Starting procedure.
4. If the engine fails to start after eight attempts, allow the starter to cool for at least 10 minutes, then repeat
the procedure.
CAUTION!
To prevent damage to the starter, do not crank con-
tinuously for more than 10 seconds at a time. Wait 10
to 15 seconds before trying again.
If Engine Fails To Start
WARNING!
Never pour fuel or other flammable liquids into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in a flash fire causing
serious personal injury.
CAUTION!
•Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with a Euro Twin Clutch
Transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• To prevent damage to the starter, do not continu-
ously crank the engine for more than 15 seconds at
a time. Wait 10 to 15 seconds before trying again.
5
STARTING AND OPERATING 267

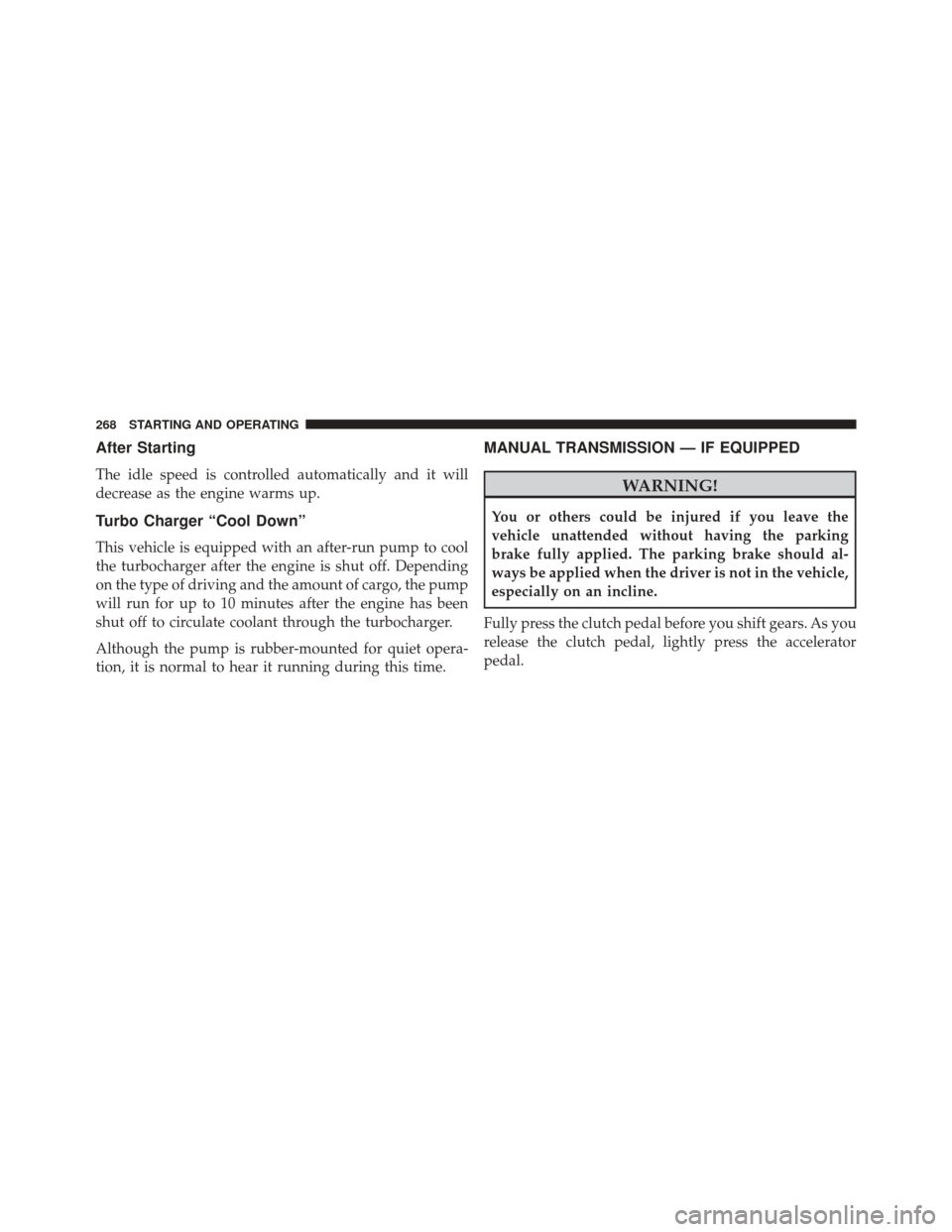

After Starting
The idle speed is controlled automatically and it will
decrease as the engine warms up.
Turbo Charger “Cool Down”
This vehicle is equipped with an after-run pump to cool
the turbocharger after the engine is shut off. Depending
on the type of driving and the amount of cargo, the pump
will run for up to 10 minutes after the engine has been
shut off to circulate coolant through the turbocharger.
Although the pump is rubber-mounted for quiet opera-
tion, it is normal to hear it running during this time.
MANUAL TRANSMISSION — IF EQUIPPED
WARNING!
You or others could be injured if you leave the
vehicle unattended without having the parking
brake fully applied. The parking brake should al-
ways be applied when the driver is not in the vehicle,
especially on an incline.
Fully press the clutch pedal before you shift gears. As you
release the clutch pedal, lightly press the accelerator
pedal.
268 STARTING AND OPERATING
