NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
DOOR LOCKS
Push the central lock/unlock button located on the
instrument panel, in the switch bank below the radio.
The button has an LED that indicates whether the doors
are locked or unlocked.
• LED ON: Doors locked. Pushing the central lock/
unlock button once will unlock all doors. The LED
will switch off once the doors are unlocked.
• LED OFF: doors unlocked. Pushing the central lock/
unlock button once will lock all doors. The LED will
switch on once the doors are locked. Once the doors have been locked with the key fob, it
will no longer be possible to unlock them by pressing
central lock/unlock button.
Central Lock/Unlock Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
Page 22 of 370

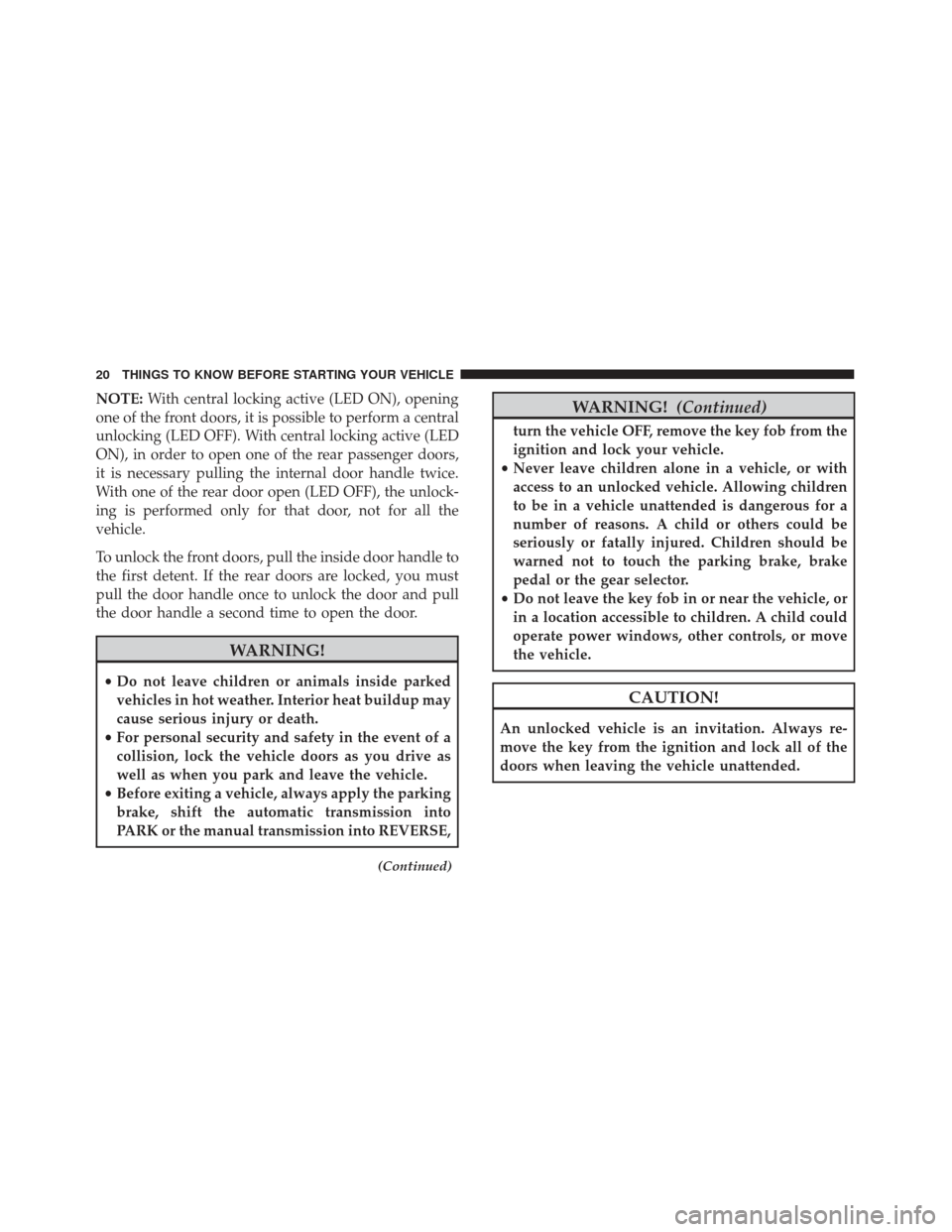

NOTE:With central locking active (LED ON), opening
one of the front doors, it is possible to perform a central
unlocking (LED OFF). With central locking active (LED
ON), in order to open one of the rear passenger doors,
it is necessary pulling the internal door handle twice.
With one of the rear door open (LED OFF), the unlock-
ing is performed only for that door, not for all the
vehicle.
To unlock the front doors, pull the inside door handle to
the first detent. If the rear doors are locked, you must
pull the door handle once to unlock the door and pull
the door handle a second time to open the door.
WARNING!
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.
• For personal security and safety in the event of a
collision, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
• Before exiting a vehicle, always apply the parking
brake, shift the automatic transmission into
PARK or the manual transmission into REVERSE,
(Continued)
WARNING! (Continued)
turn the vehicle OFF, remove the key fob from the
ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
CAUTION!
An unlocked vehicle is an invitation. Always re-
move the key from the ignition and lock all of the
doors when leaving the vehicle unattended.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 23 of 370

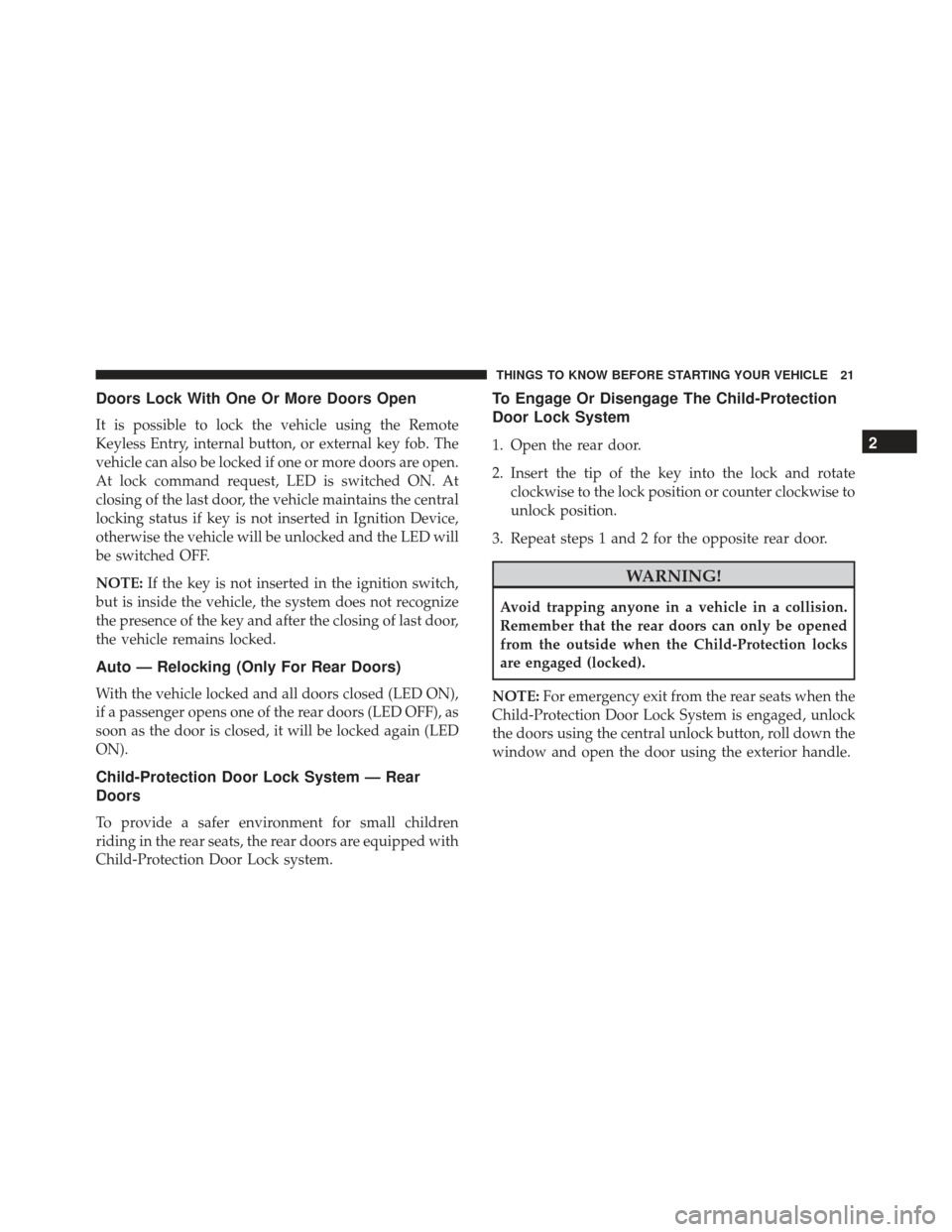

Doors Lock With One Or More Doors Open
It is possible to lock the vehicle using the Remote
Keyless Entry, internal button, or external key fob. The
vehicle can also be locked if one or more doors are open.
At lock command request, LED is switched ON. At
closing of the last door, the vehicle maintains the central
locking status if key is not inserted in Ignition Device,
otherwise the vehicle will be unlocked and the LED will
be switched OFF.
NOTE:If the key is not inserted in the ignition switch,
but is inside the vehicle, the system does not recognize
the presence of the key and after the closing of last door,
the vehicle remains locked.
Auto — Relocking (Only For Rear Doors)
With the vehicle locked and all doors closed (LED ON),
if a passenger opens one of the rear doors (LED OFF), as
soon as the door is closed, it will be locked again (LED
ON).
Child-Protection Door Lock System — Rear
Doors
To provide a safer environment for small children
riding in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.
To Engage Or Disengage The Child-Protection
Door Lock System
1. Open the rear door.
2. Insert the tip of the key into the lock and rotate clockwise to the lock position or counter clockwise to
unlock position.
3. Repeat steps 1 and 2 for the opposite rear door.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks
are engaged (locked).
NOTE: For emergency exit from the rear seats when the
Child-Protection Door Lock System is engaged, unlock
the doors using the central unlock button, roll down the
window and open the door using the exterior handle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
Page 24 of 370
POWER WINDOWS
Power Window Switches
The power window controls are located on the driver’s
door trim panel. There is a single switch on the front
passenger door, which operate the front passenger
window and a single switch on each rear door that
operates the rear passenger door window. The window
controls will operate only when the ignition switch is in
the ON/RUN position.NOTE:
The power window switches will remain active
for up to three minutes after the ignition switch is
cycled to the OFF position. Opening either front door
will cancel this feature.
WARNING!
Never leave children unattended in a vehicle, and
do not let children play with power windows. Do
not leave the key fob in or near the vehicle, or in a
location accessible to children. Occupants, particu-
larly unattended children, can become entrapped
by the windows while operating the power window
switches. Such entrapment may result in serious
injury or death.
Auto-Down
The window switches have an Auto-Down feature.
Push the window switch for approximately one second,
release, and the window will go down automatically. To
cancel the Auto-Down movement, operate the switch in
either the up or down direction and release the switch.
Power Switch Panel
1 — Driver And Passenger Front Window Switches
2 — Window Lockout Switch
3 — Driver And Passenger Rear Window Switches 22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 25 of 370

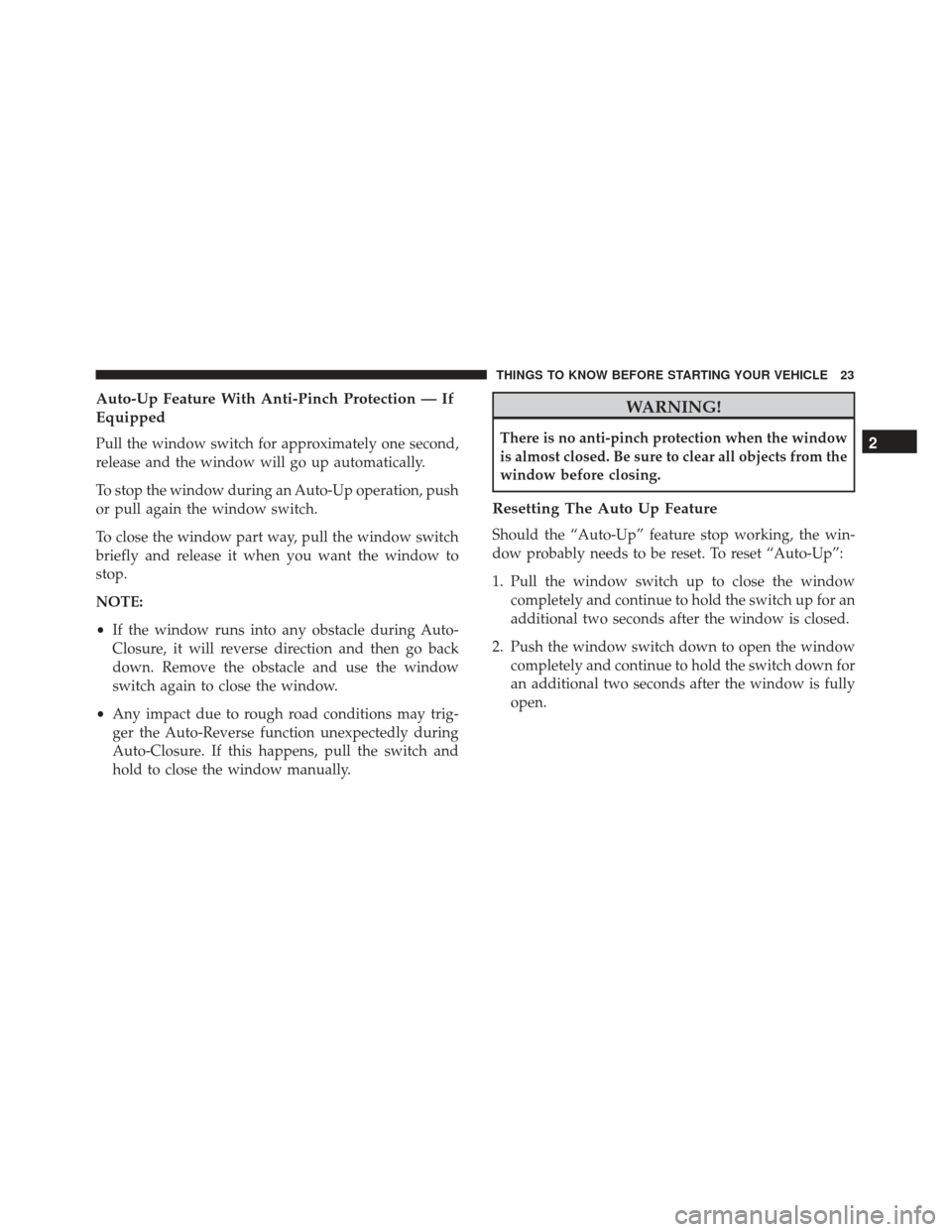

Auto-Up Feature With Anti-Pinch Protection — If
Equipped
Pull the window switch for approximately one second,
release and the window will go up automatically.
To stop the window during an Auto-Up operation, push
or pull again the window switch.
To close the window part way, pull the window switch
briefly and release it when you want the window to
stop.
NOTE:
•If the window runs into any obstacle during Auto-
Closure, it will reverse direction and then go back
down. Remove the obstacle and use the window
switch again to close the window.
• Any impact due to rough road conditions may trig-
ger the Auto-Reverse function unexpectedly during
Auto-Closure. If this happens, pull the switch and
hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting The Auto Up Feature
Should the “Auto-Up” feature stop working, the win-
dow probably needs to be reset. To reset “Auto-Up”:
1. Pull the window switch up to close the window
completely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the window switch down to open the window completely and continue to hold the switch down for
an additional two seconds after the window is fully
open.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
Page 26 of 370
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal
occurrence and can be minimized. If the buffeting
occurs with the sunroof open, adjust the sunroof open-
ing to minimize the buffeting or open any window.
LIFTGATE
To unlock the liftgate, use the Remote Keyless Entry key
fob or activate the central locking button located on the
instrument panel below the radio.
To open the liftgate, push the liftgate electronic release
and pull the liftgate open with one fluid motion.
WARNING!
•Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
(Continued)
WARNING!(Continued)
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
Do not use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.

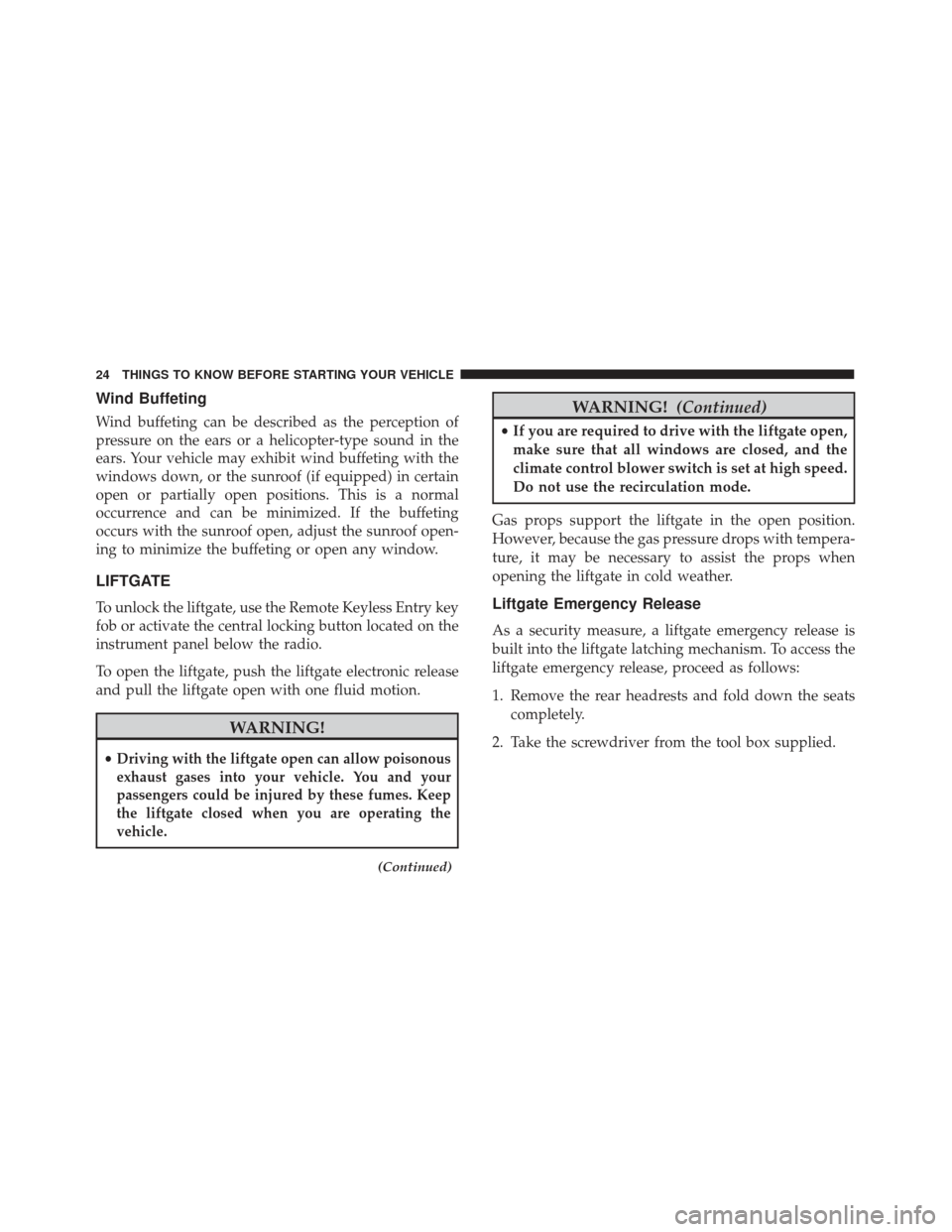

Liftgate Emergency Release
As a security measure, a liftgate emergency release is
built into the liftgate latching mechanism. To access the
liftgate emergency release, proceed as follows:
1. Remove the rear headrests and fold down the seats completely.
2. Take the screwdriver from the tool box supplied.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 27 of 370

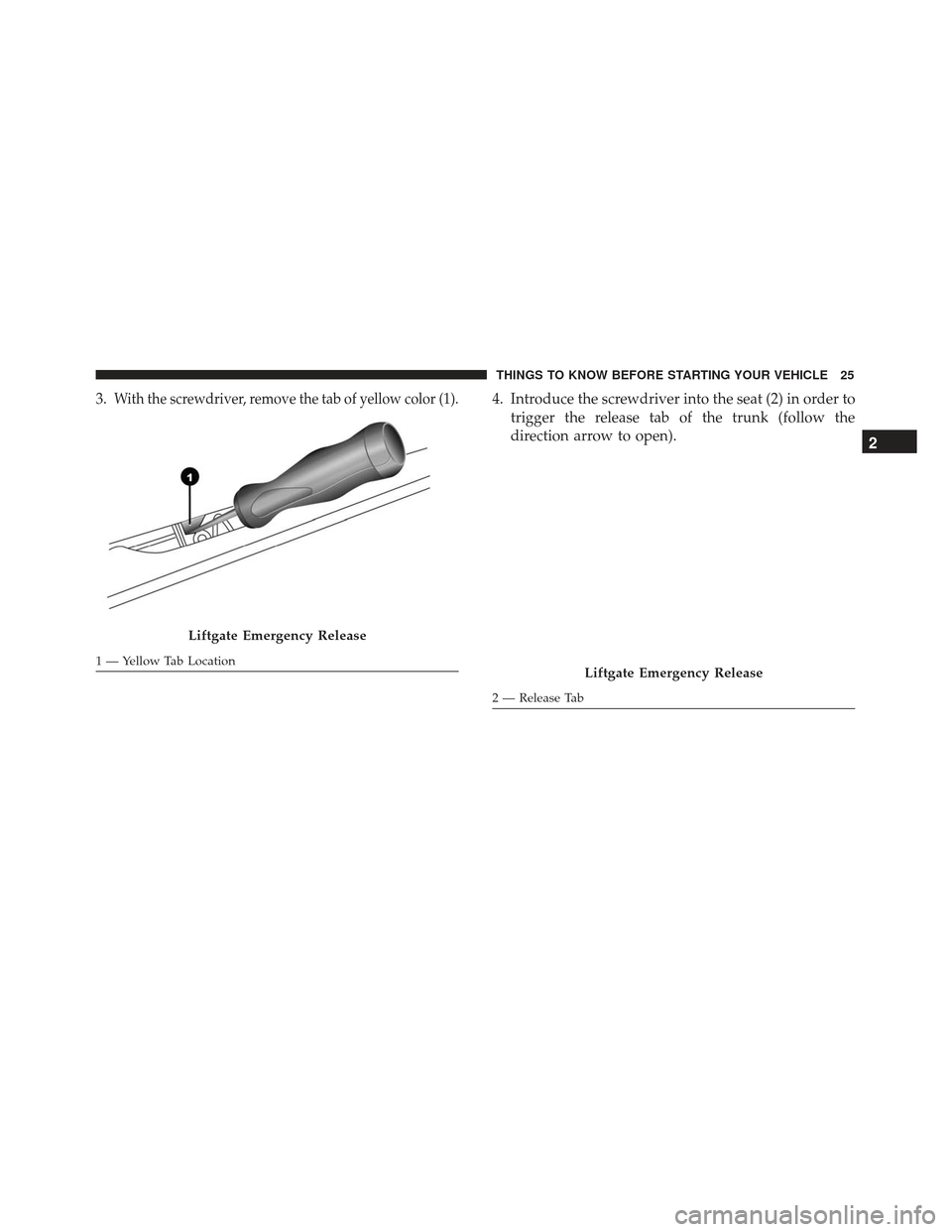

3.With the screwdriver, remove the tab of yellow color (1).4. Introduce the screwdriver into the seat (2) in order totrigger the release tab of the trunk (follow the
direction arrow to open).
Liftgate Emergency Release
1 — Yellow Tab LocationLiftgate Emergency Release
2 — Release Tab
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
Page 28 of 370

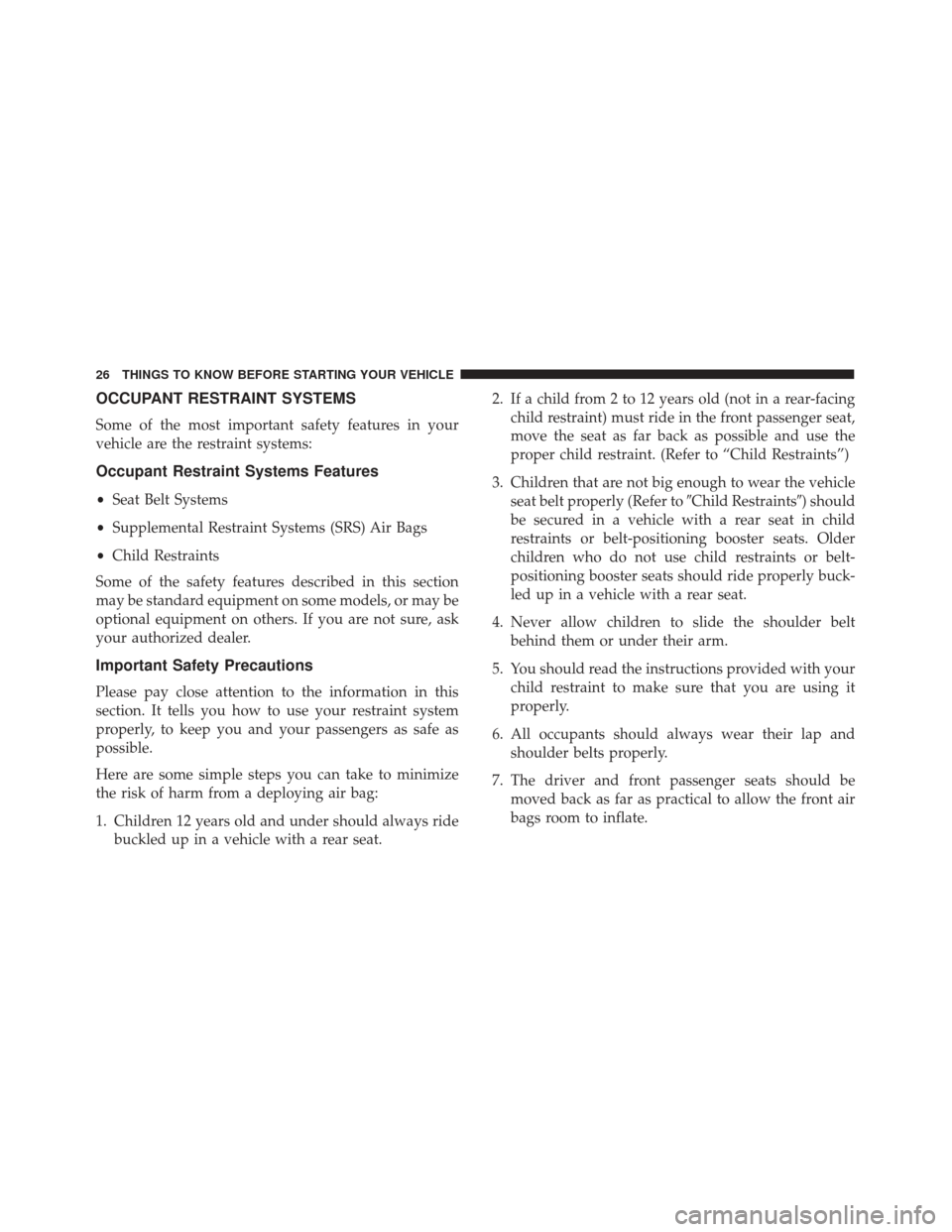

OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your
vehicle are the restraint systems:
Occupant Restraint Systems Features
•Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Some of the safety features described in this section
may be standard equipment on some models, or may be
optional equipment on others. If you are not sure, ask
your authorized dealer.
Important Safety Precautions
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
Here are some simple steps you can take to minimize
the risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride buckled up in a vehicle with a rear seat. 2. If a child from 2 to 12 years old (not in a rear-facing
child restraint) must ride in the front passenger seat,
move the seat as far back as possible and use the
proper child restraint. (Refer to “Child Restraints”)
3. Children that are not big enough to wear the vehicle seat belt properly (Refer to Child Restraints) should
be secured in a vehicle with a rear seat in child
restraints or belt-positioning booster seats. Older
children who do not use child restraints or belt-
positioning booster seats should ride properly buck-
led up in a vehicle with a rear seat.
4. Never allow children to slide the shoulder belt behind them or under their arm.
5. You should read the instructions provided with your child restraint to make sure that you are using it
properly.
6. All occupants should always wear their lap and shoulder belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the front air
bags room to inflate.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 29 of 370

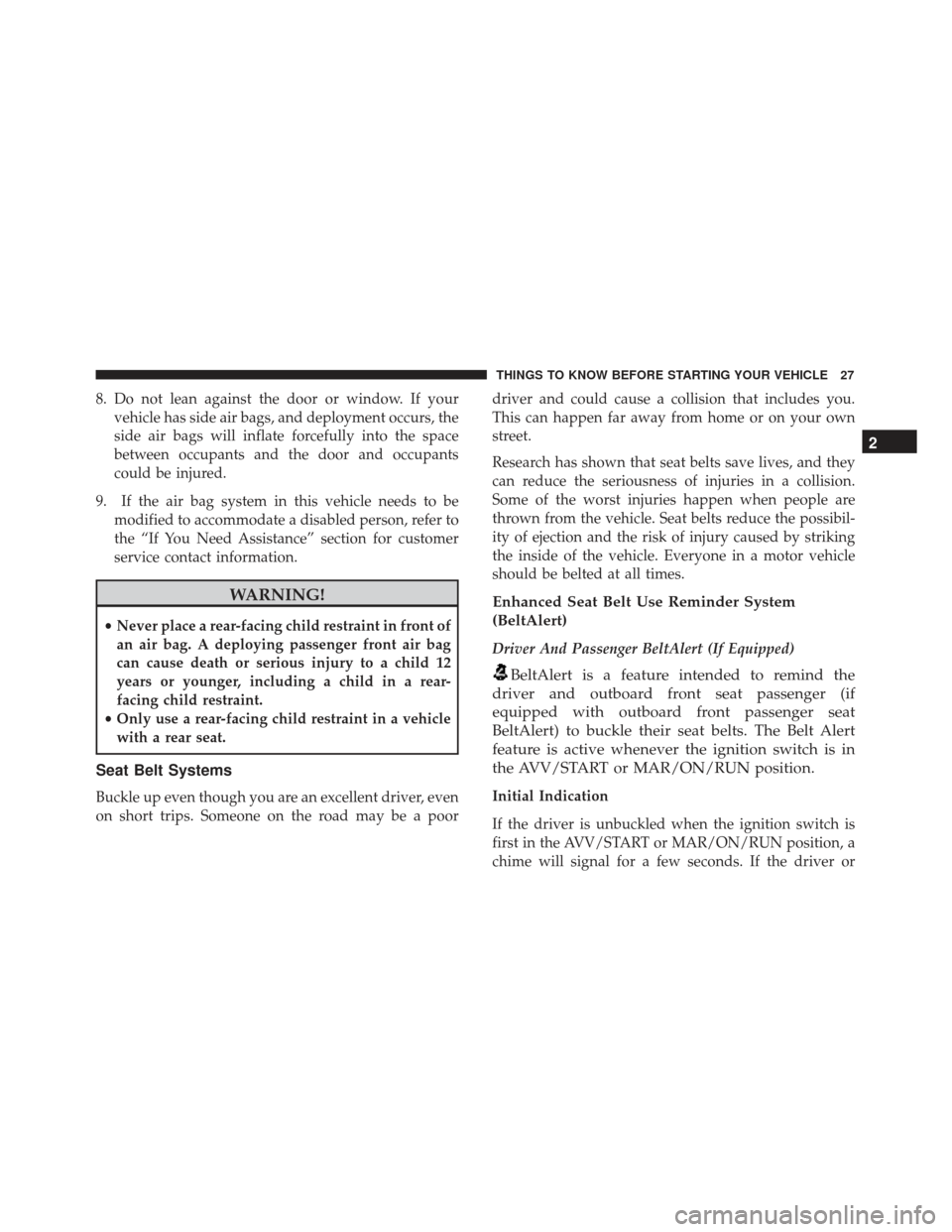

8. Do not lean against the door or window. If yourvehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between occupants and the door and occupants
could be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, refer to
the “If You Need Assistance” section for customer
service contact information.
WARNING!
•Never place a rear-facing child restraint in front of
an air bag. A deploying passenger front air bag
can cause death or serious injury to a child 12
years or younger, including a child in a rear-
facing child restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
Seat Belt Systems
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver and could cause a collision that includes you.
This can happen far away from home or on your own
street.
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibil-
ity of ejection and the risk of injury caused by striking
the inside of the vehicle. Everyone in a motor vehicle
should be belted at all times.
Enhanced Seat Belt Use Reminder System
(BeltAlert)
Driver And Passenger BeltAlert (If Equipped)
BeltAlert is a feature intended to remind the
driver and outboard front seat passenger (if
equipped with outboard front passenger seat
BeltAlert) to buckle their seat belts. The Belt Alert
feature is active whenever the ignition switch is in
the AVV/START or MAR/ON/RUN position.
Initial Indication
If the driver is unbuckled when the ignition switch is
first in the AVV/START or MAR/ON/RUN position, a
chime will signal for a few seconds. If the driver or
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
Page 30 of 370

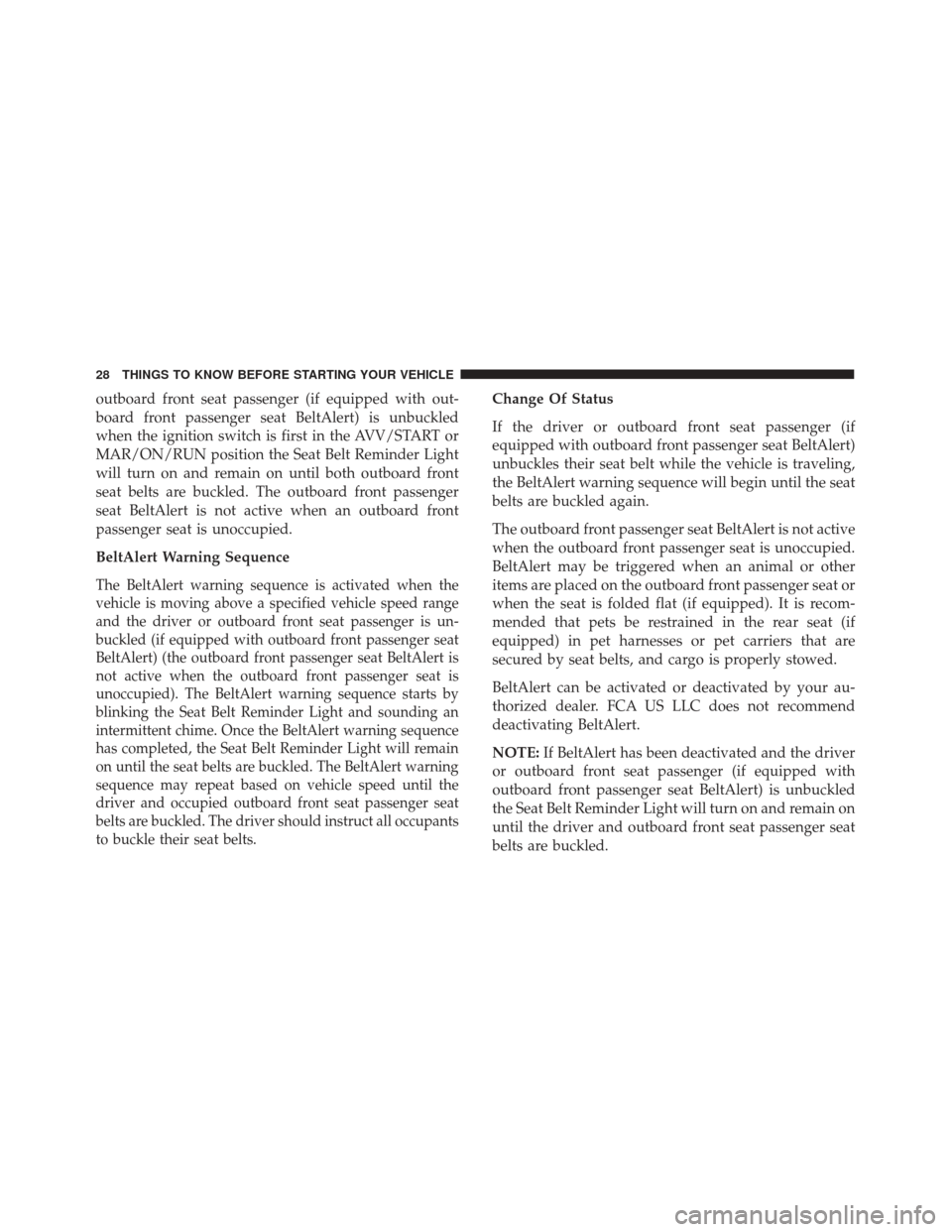

outboard front seat passenger (if equipped with out-
board front passenger seat BeltAlert) is unbuckled
when the ignition switch is first in the AVV/START or
MAR/ON/RUN position the Seat Belt Reminder Light
will turn on and remain on until both outboard front
seat belts are buckled. The outboard front passenger
seat BeltAlert is not active when an outboard front
passenger seat is unoccupied.
BeltAlert Warning Sequence
The BeltAlert warning sequence is activated when the
vehicle is moving above a specified vehicle speed range
and the driver or outboard front seat passenger is un-
buckled (if equipped with outboard front passenger seat
BeltAlert) (the outboard front passenger seat BeltAlert is
not active when the outboard front passenger seat is
unoccupied). The BeltAlert warning sequence starts by
blinking the Seat Belt Reminder Light and sounding an
intermittent chime. Once the BeltAlert warning sequence
has completed, the Seat Belt Reminder Light will remain
on until the seat belts are buckled. The BeltAlert warning
sequence may repeat based on vehicle speed until the
driver and occupied outboard front seat passenger seat
belts are buckled. The driver should instruct all occupants
to buckle their seat belts.
Change Of Status
If the driver or outboard front seat passenger (if
equipped with outboard front passenger seat BeltAlert)
unbuckles their seat belt while the vehicle is traveling,
the BeltAlert warning sequence will begin until the seat
belts are buckled again.
The outboard front passenger seat BeltAlert is not active
when the outboard front passenger seat is unoccupied.
BeltAlert may be triggered when an animal or other
items are placed on the outboard front passenger seat or
when the seat is folded flat (if equipped). It is recom-
mended that pets be restrained in the rear seat (if
equipped) in pet harnesses or pet carriers that are
secured by seat belts, and cargo is properly stowed.
BeltAlert can be activated or deactivated by your au-
thorized dealer. FCA US LLC does not recommend
deactivating BeltAlert.
NOTE:If BeltAlert has been deactivated and the driver
or outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) is unbuckled
the Seat Belt Reminder Light will turn on and remain on
until the driver and outboard front seat passenger seat
belts are buckled.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
