When the power steering is on, the
steering wheel effort is lighter, making
parking easier: therefore, this function is
particularly useful for driving in city
centres.
WARNING
32)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could adversely affect
performance and safety, invalidate the
warranty and also result in the car not
meeting type-approval requirements.
33)Before performing any maintenance
operations, always turn off the engine and
remove the key from the ignition to lock the
steering column (especially when the car
wheels are not touching the ground). If this
is not possible (for example if the key
needs to be turned to MAR or the engine
must be running), remove the main fuse
that protects the electric power steering.
VERSION WITH LPG
SYSTEM
34) 35) 36)
16) 17) 18) 19) 20) 21) 22)
INTRODUCTION
The LPG version features two fuel
supply systems: one for petrol and one
for LPG.
PASSIVE SAFETY /
ACTIVE SAFETY
If the car is parked for a long time or
needs to moved in an emergency
(because of a fault or an accident),
proceed as follows:
undo the fixing devices A fig. 52,
then remove the cover B;
close the LPG cock rotating the ring
nut C fig. 53 clockwise. Refit the cover
and retighten the fastening devices A.LPG TANK
The car has a (pressurised) tank A fig.
54 for storing LPG in a liquid state
located in the spare wheel
compartment with suitable protection.
LPG tank certification
The LPG tank is certified in accordance
with the regulations in force.
52F0Y0424C
53F0Y0720C
54F0Y0423C
39

SETUP MENU
The Setup Menu includes the following
items:
Speedometer
Trip
Vehicle info
Audio
Telephone (for versions/markets,
where provided)
Navigation (for versions/markets,
where provided)
Alerts
Vehicle Settings
When the ignition key is turned to the
MAR-ON position, the display shows
the last Menu option active before
the engine was switched off.
NOTE With theUconnect™system,
some Menu items are shown and
managed on the display of the latter
and not on the instrument panel display
(refer to the Multimedia chapter or to
the supplement available online).
Vehicle Settings
This menu item allows you to change
the settings for:
"Display"
"Safety / Assistance"
"Safety"
“Oil level reset” (0.9 TwinAir Turbo
versions only)
Display
By selecting item "Display" you can
access the settings/information
regarding: “Dimmer” (for versions/
markets, where provided), “Screen
Setup”, “See phone”, “See navigation”,
“Reset trip B automatic".
Safety / Assistance
By selecting “Safety / Assistance" you
can access the settings/information
regarding: “City Brake Control” (for
versions/markets, where provided),
“Parking sensor volume”, “Buzzer
volume”.
Safety
By selecting item "Security" you can
access the settings/information
regarding: “Hill Holder” (for versions/
markets, where provided), “Passenger
AIRBAG” (for versions/markets, where
provided), “Seat belt buzzer”, “Speed
beep”.
Oil level reset
(0.9 TwinAir Turbo versions only)
By selecting this item you can reset the
engine oil top-up warning, which
appears about every 8000 km.
Proceed as follows to reset this warning
after topping up the engine oil:
briefly press theOKbutton on the
steering wheel: the display will show"Oil level reset";
pressto select "Yes" and reset
the top-up warning, or press
to
select “No” of you do not wish to reset
the warning.
IMPORTANT Failure to top up the
engine oil could result in a low level,
which could prevent normal car
operation and even cause it to stop.
TRIP COMPUTER
The Trip computer is used to display
information on car operation when the
key is turned to MAR.
The Trip computer comprises:
Instantaneous info(except LPG
and Natural Power versions): display of
“Range” and “Instantaneous
consumption" parameters
"Trip A" displays the following
values: “Travel Distance”, “Travel time”,
“Average fuel consumption” and
“Average speed”
"Trip B" displays the following
values: “Travel Distance”, “Travel time”,
“Average fuel consumption” and
“Average speed”
48
KNOWING THE INSTRUMENT PANEL
“Trip A” and “Trip B” monitor the car's
"complete missions" (trips) separately
from each other. The “Trip B” function
may be excluded.

WARNING LIGHTS AND MESSAGES
IMPORTANT The warning light switches on together with a dedicated message and/or acoustic signal on the instrument panel,
when applicable. These indications are concise and precautionary and, as such, must not be considered as exhaustive and/or
an alternative to the information contained in this Owner Handbook, which you are advised to read carefully in all cases. In
the event of a failure indication, always refer to the contents of this chapter.
IMPORTANT The failure indicators which are shown on the display are divided into two categories: very serious and less
serious failures. Very serious failures are indicated by a repeated and prolonged warning “cycle”. Less serious failures are
indicated by a limited "warning" cycle. The display cycle of both categories can be interrupted. The instrument panel warning
light will stay on until the cause of the failure is eliminated.

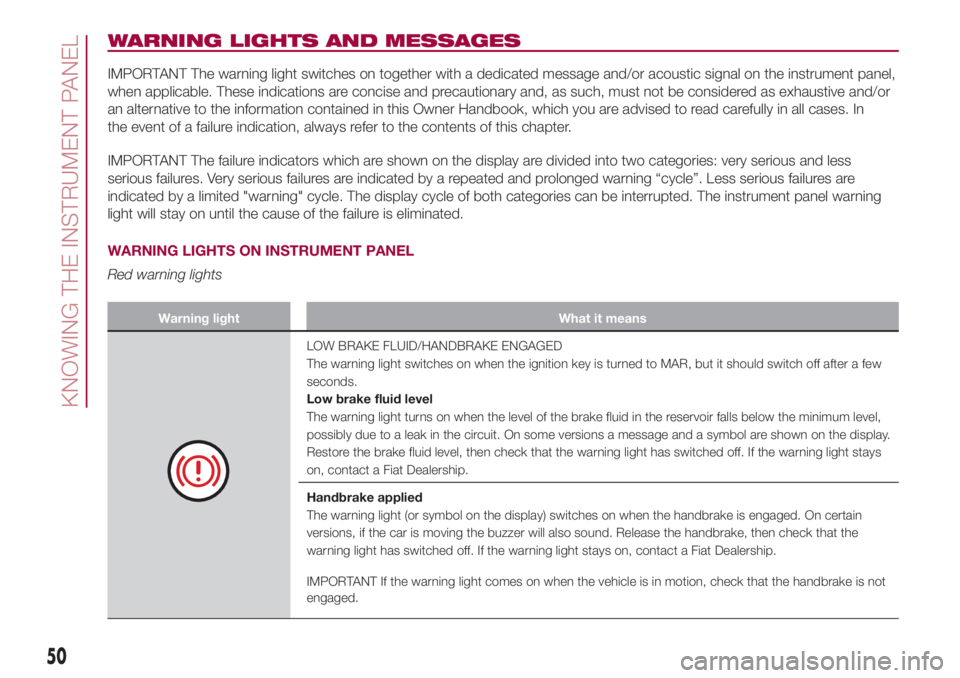

WARNING LIGHTS ON INSTRUMENT PANEL
Red warning lights
Warning light What it means
LOW BRAKE FLUID/HANDBRAKE ENGAGED
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
Low brake fluid level
The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum level,
possibly due to a leak in the circuit. On some versions a message and a symbol are shown on the display.
Restore the brake fluid level, then check that the warning light has switched off. If the warning light stays
on, contact a Fiat Dealership.
Handbrake applied
The warning light (or symbol on the display) switches on when the handbrake is engaged. On certain
versions, if the car is moving the buzzer will also sound. Release the handbrake, then check that the
warning light has switched off. If the warning light stays on, contact a Fiat Dealership.
IMPORTANT If the warning light comes on when the vehicle is in motion, check that the handbrake is not
engaged.
50
KNOWING THE INSTRUMENT PANEL

Warning light What it means

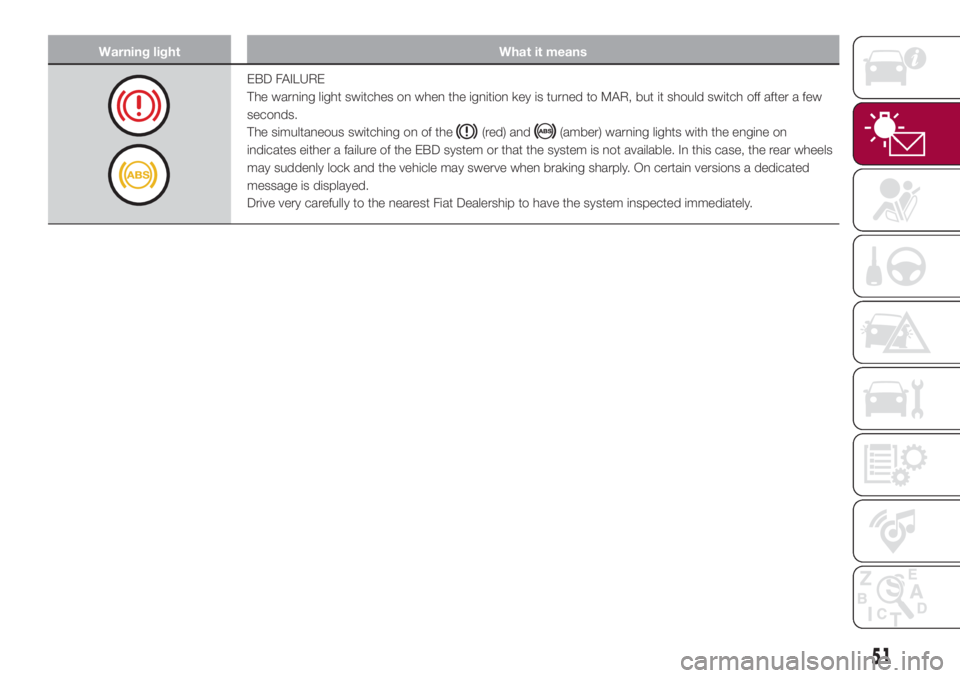

EBD FAILURE
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
The simultaneous switching on of the
(red) and(amber) warning lights with the engine on
indicates either a failure of the EBD system or that the system is not available. In this case, the rear wheels
may suddenly lock and the vehicle may swerve when braking sharply. On certain versions a dedicated
message is displayed.
Drive very carefully to the nearest Fiat Dealership to have the system inspected immediately.
51

Warning light What it means

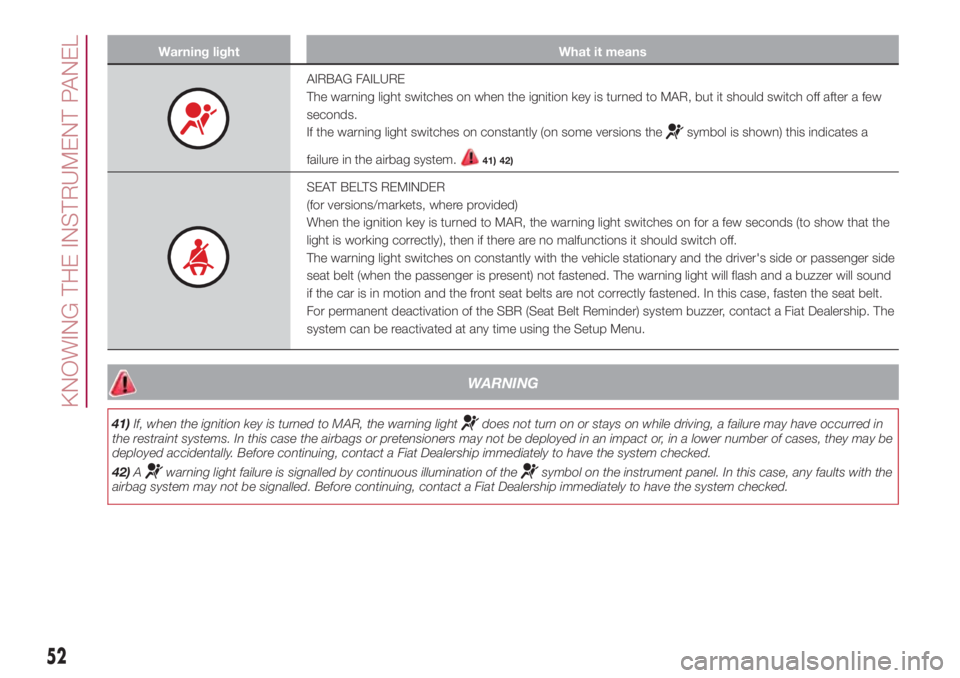

AIRBAG FAILURE
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
If the warning light switches on constantly (on some versions the
symbol is shown) this indicates a
failure in the airbag system.
41) 42)
SEAT BELTS REMINDER
(for versions/markets, where provided)
When the ignition key is turned to MAR, the warning light switches on for a few seconds (to show that the
light is working correctly), then if there are no malfunctions it should switch off.
The warning light switches on constantly with the vehicle stationary and the driver's side or passenger side
seat belt (when the passenger is present) not fastened. The warning light will flash and a buzzer will sound
if the car is in motion and the front seat belts are not correctly fastened. In this case, fasten the seat belt.
For permanent deactivation of the SBR (Seat Belt Reminder) system buzzer, contact a Fiat Dealership. The
system can be reactivated at any time using the Setup Menu.
WARNING
41)If, when the ignition key is turned to MAR, the warning lightdoes not turn on or stays on while driving, a failure may have occurred in
the restraint systems. In this case the airbags or pretensioners may not be deployed in an impact or, in a lower number of cases, they may be
deployed accidentally. Before continuing, contact a Fiat Dealership immediately to have the system checked.
42)A
warning light failure is signalled by continuous illumination of thesymbol on the instrument panel. In this case, any faults with the
airbag system may not be signalled. Before continuing, contact a Fiat Dealership immediately to have the system checked.
52
KNOWING THE INSTRUMENT PANEL

Warning light What it means

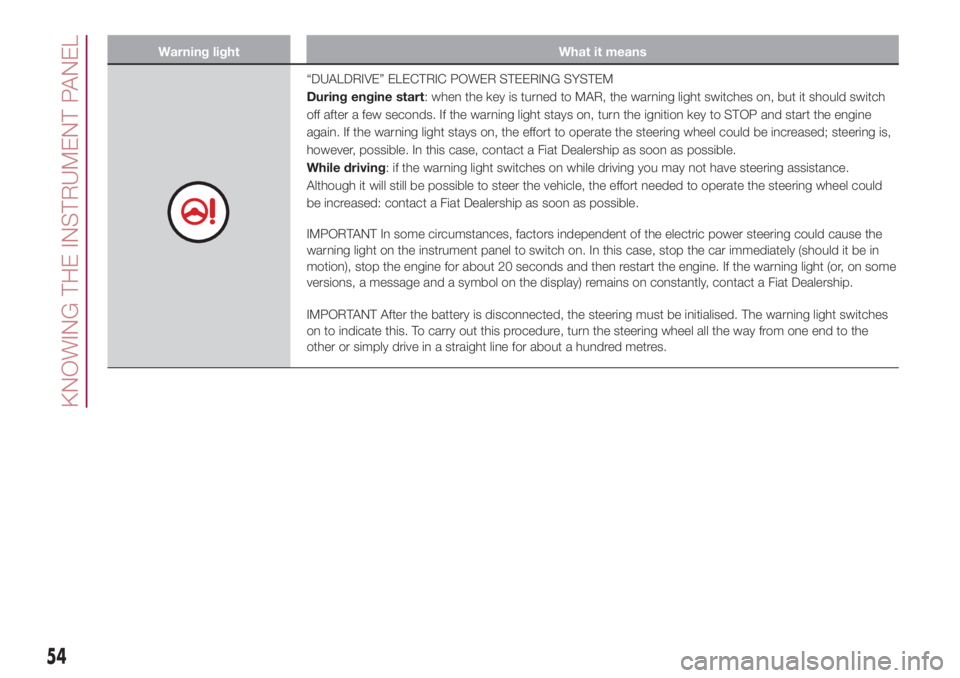

“DUALDRIVE” ELECTRIC POWER STEERING SYSTEM
During engine start: when the key is turned to MAR, the warning light switches on, but it should switch
off after a few seconds. If the warning light stays on, turn the ignition key to STOP and start the engine
again. If the warning light stays on, the effort to operate the steering wheel could be increased; steering is,
however, possible. In this case, contact a Fiat Dealership as soon as possible.
While driving: if the warning light switches on while driving you may not have steering assistance.
Although it will still be possible to steer the vehicle, the effort needed to operate the steering wheel could
be increased: contact a Fiat Dealership as soon as possible.
IMPORTANT In some circumstances, factors independent of the electric power steering could cause the
warning light on the instrument panel to switch on. In this case, stop the car immediately (should it be in
motion), stop the engine for about 20 seconds and then restart the engine. If the warning light (or, on some
versions, a message and a symbol on the display) remains on constantly, contact a Fiat Dealership.
IMPORTANT After the battery is disconnected, the steering must be initialised. The warning light switches
on to indicate this. To carry out this procedure, turn the steering wheel all the way from one end to the
other or simply drive in a straight line for about a hundred metres.
54
KNOWING THE INSTRUMENT PANEL

Amber warning lights
Warning light What it means
iTPMS
(for versions/markets, where provided)
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
iTPMS failure/iTPMS temporarily deactivated
The warning light flashes for about 75 seconds and then stays on constantly to indicate that the system is
temporarily deactivated or faulty. The system will go back to normal operation when the operating
conditions will allow it. If this is not the case, carry out the “Reset” procedure after restoring the normal
operating conditions. If the malfunction warning persists, contact a Fiat Dealership as soon as possible.
Tyre pressure low
The warning light switches on constantly to indicate that the tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring. In these cases, optimal tyre duration and fuel
consumption may not be guaranteed. It is advisable to restore the correct pressure value (see the "Wheels"
paragraph in the "Technical specifications" section). Once the normal operating conditions of the vehicle
are restored, carry out the "Reset" procedure.
IMPORTANT Do not continue driving with one or more flat tyres as the car handling may be compromised.
Stop the vehicle, avoiding sharp braking and steering.
55

Warning light What it means
ESC SYSTEM
(for versions/markets, where provided)
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
ESC system activation
Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in
critical stability and grip conditions.
ESC system failure
If the warning light does not switch off, or if it stays on with the engine running, a failure was found on the
ESC system. Contact a Fiat Dealership as soon as possible.
Hill Holder failure
The warning light turns on to indicate a Hill Holder system failure. Contact a Fiat Dealership as soon as
possible
ASR SYSTEM DEACTIVATION
The warning light comes on if the ASR system is deactivated (see "Active safety systems" point of the
"Safety" system).
FUEL RESERVE
The warning light comes on when the amount of fuel in the tank is 7.5 litres or less.
IMPORTANT The warning light will flash to indicate a system failure. If this is the case, go to a Fiat
Dealership to have the system checked.
57

Warning light What it means
INJECTION/EOBD SYSTEM FAILURE
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
If the warning light remains on, or it switches on while driving, the injection system is not working properly.
Warning light constantly on: signals a malfunction in the supply/ignition system which could cause high
exhaust emissions, a possible loss of performance, poor driveability and high consumption. Under these
conditions, the vehicle can continue travelling at moderate speed but without demanding excessive effort
from the engine or high speed. Prolonged use of the car with the warning light on fixed may cause
damage: contact a Fiat Dealership as soon as possible.
The warning light switches off if the malfunction disappears, but is still stored by the system.
Warning light flashing (petrol engines only): signals that the catalytic converter is probably damaged.
Release the accelerator pedal to lower the speed of the engine until the warning light stops flashing.
Continue the journey at moderate speed, trying to avoid driving conditions that may cause further flashing
and contact a Fiat Dealership as soon as possible.
28)
WARNING
28)If, when the ignition key is turned to MAR, the warning light does not switch on, switches on constantly or flashes while driving, contact a
Fiat Dealership as soon as possible. The exhaust emission levels may be checked by the traffic control authorities using the appropriate
equipment. Comply with the laws and regulations of the country where you are driving.
58
KNOWING THE INSTRUMENT PANEL

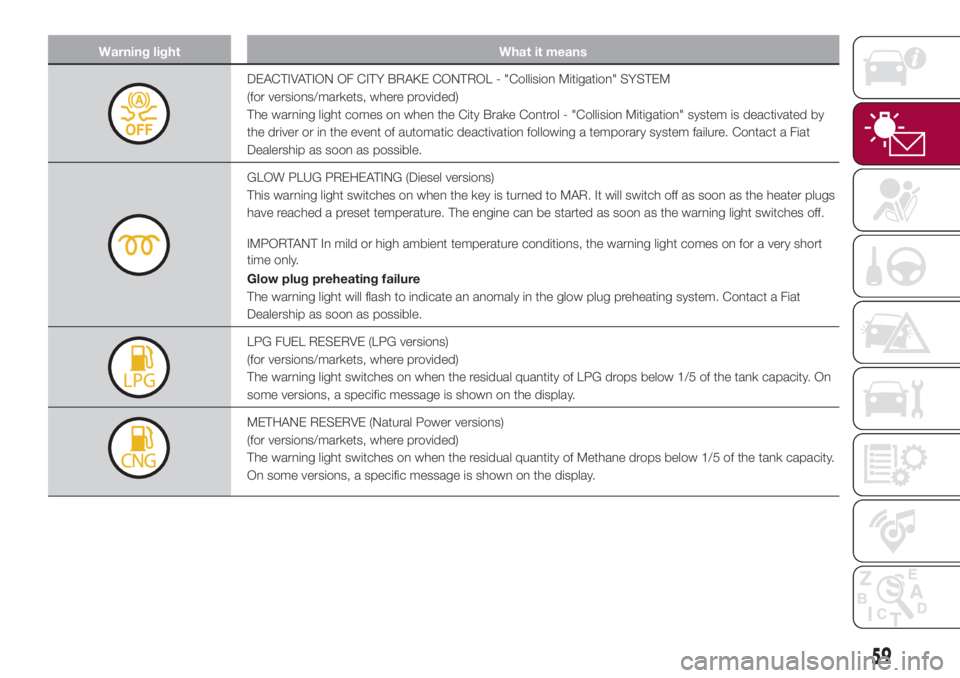

Warning light What it means
DEACTIVATION OF CITY BRAKE CONTROL - "Collision Mitigation" SYSTEM
(for versions/markets, where provided)
The warning light comes on when the City Brake Control - "Collision Mitigation" system is deactivated by
the driver or in the event of automatic deactivation following a temporary system failure. Contact a Fiat
Dealership as soon as possible.
GLOW PLUG PREHEATING (Diesel versions)
This warning light switches on when the key is turned to MAR. It will switch off as soon as the heater plugs
have reached a preset temperature. The engine can be started as soon as the warning light switches off.
IMPORTANT In mild or high ambient temperature conditions, the warning light comes on for a very short
time only.
Glow plug preheating failure
The warning light will flash to indicate an anomaly in the glow plug preheating system. Contact a Fiat
Dealership as soon as possible.
LPG FUEL RESERVE (LPG versions)
(for versions/markets, where provided)
The warning light switches on when the residual quantity of LPG drops below 1/5 of the tank capacity. On
some versions, a specific message is shown on the display.
METHANE RESERVE (Natural Power versions)
(for versions/markets, where provided)
The warning light switches on when the residual quantity of Methane drops below 1/5 of the tank capacity.
On some versions, a specific message is shown on the display.
59
