service schedule FIAT 500L LIVING 2014 2.G Owners Manual

Warnings volume
(Adjusting the alert/warning acoustic signal
volume)
With this function the volume of the buzzer which
accompanies the display of any failure/warning can be
adjusted to 8 levels.
To set the desired volume, proceed as follows:
❒press button
briefly. The volume “level” set
previously flashes on the display;
❒press
or
to make your choice;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Seat belt buzzer
(SBR buzzer reactivation)
This function can only be displayed after a Fiat
Dealership has deactivated the SBR system (see
paragraph “SBR system” in the “Safety” chapter).
To reactivate this function, proceed as follows:
❒press thebutton briefly; "Off" will flash on the
display. Press the
or
button and "On"
will appear;
❒press the
button briefly to return to the
submenu screen or hold the button down
to return to the main menu screen without saving.Service (Scheduled servicing)
With this function it is possible to view information
on mileage or time intervals for servicing.
To consult this display, proceed as follows:
❒press button
briefly. The display shows the
service interval in kilometres (km) or miles (mi)
according to the previous setting (see the "Units of
measurement" paragraph);
❒press the
button briefly to return to the menu
screen or hold it down to return to the standard
screen.
18GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
NoteThe “Scheduled Servicing Plan” includes car
maintenance at fixed intervals, refer to the
"Maintenance and care" chapter. This message is
displayed automatically - when the key is turned to
MAR-ON - 2,000 km (or equivalent value in miles)
before these deadlines and reappears every 200
km (or equivalent value in miles). Below 200 km
servicing indications are more frequent. The display
will be in km or mi depending on the measurement
unit settings. When one of the next scheduled
deadlines is approaching, the word “Service” will
appear on the display, followed by the number of
kilometres or miles left, when the key is turned to
MAR-ON. Contact a Fiat Dealership. The operations
in the “Scheduled servicing plan” will be performed
and the message will be reset.

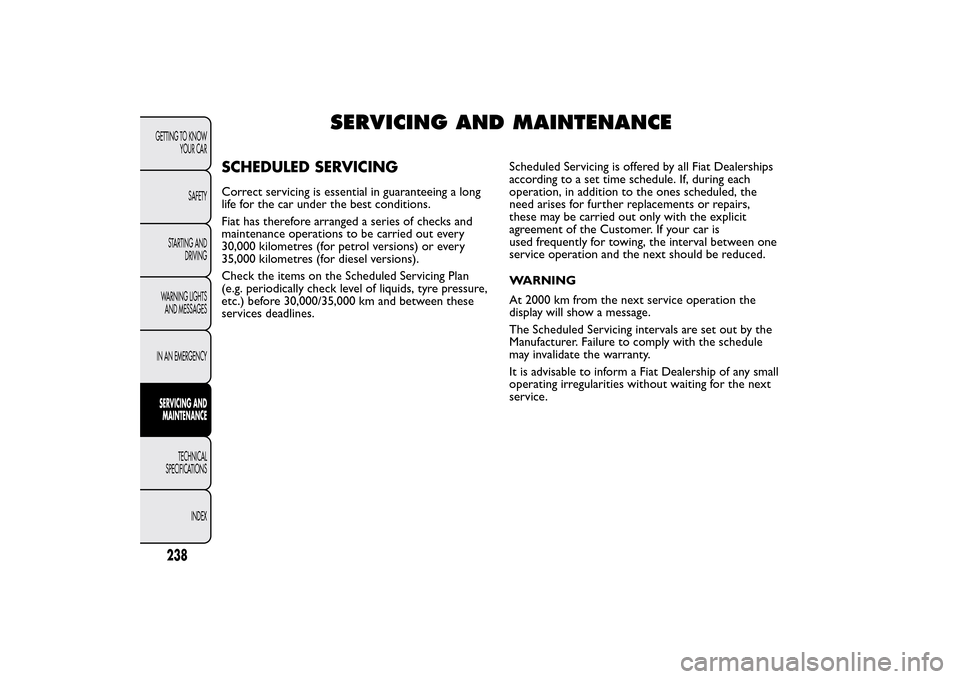

SERVICING AND MAINTENANCE
SCHEDULED SERVICINGCorrect servicing is essential in guaranteeing a long
life for the car under the best conditions.
Fiat has therefore arranged a series of checks and
maintenance operations to be carried out every
30,000 kilometres (for petrol versions) or every
35,000 kilometres (for diesel versions).
Check the items on the Scheduled Servicing Plan
(e.g. periodically check level of liquids, tyre pressure,
etc.) before 30,000/35,000 km and between these
services deadlines.Scheduled Servicing is offered by all Fiat Dealerships
according to a set time schedule. If, during each
operation, in addition to the ones scheduled, the
need arises for further replacements or repairs,
these may be carried out only with the explicit
agreement of the Customer. If your car is
used frequently for towing, the interval between one
service operation and the next should be reduced.
WARNING
At 2000 km from the next service operation the
display will show a message.
The Scheduled Servicing intervals are set out by the
Manufacturer. Failure to comply with the schedule
may invalidate the warranty.
It is advisable to inform a Fiat Dealership of any small
operating irregularities without waiting for the next
service.
