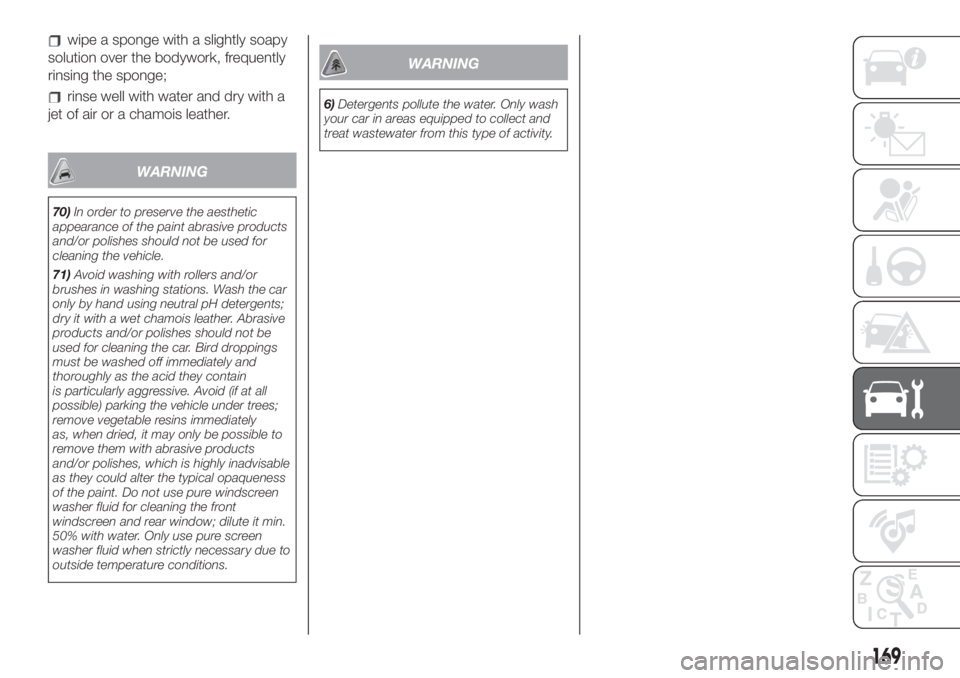

wipe a sponge with a slightly soapy
solution over the bodywork, frequently
rinsing the sponge;
rinse well with water and dry with a
jet of air or a chamois leather.
WARNING
70)In order to preserve the aesthetic
appearance of the paint abrasive products
and/or polishes should not be used for
cleaning the vehicle.
71)Avoid washing with rollers and/or
brushes in washing stations. Wash the car
only by hand using neutral pH detergents;
dry it with a wet chamois leather. Abrasive
products and/or polishes should not be
used for cleaning the car. Bird droppings
must be washed off immediately and
thoroughly as the acid they contain
is particularly aggressive. Avoid (if at all
possible) parking the vehicle under trees;
remove vegetable resins immediately
as, when dried, it may only be possible to
remove them with abrasive products
and/or polishes, which is highly inadvisable
as they could alter the typical opaqueness
of the paint. Do not use pure windscreen
washer fluid for cleaning the front
windscreen and rear window; dilute it min.
50% with water. Only use pure screen
washer fluid when strictly necessary due to
outside temperature conditions.
WARNING
6)Detergents pollute the water. Only wash
your car in areas equipped to collect and
treat wastewater from this type of activity.
169

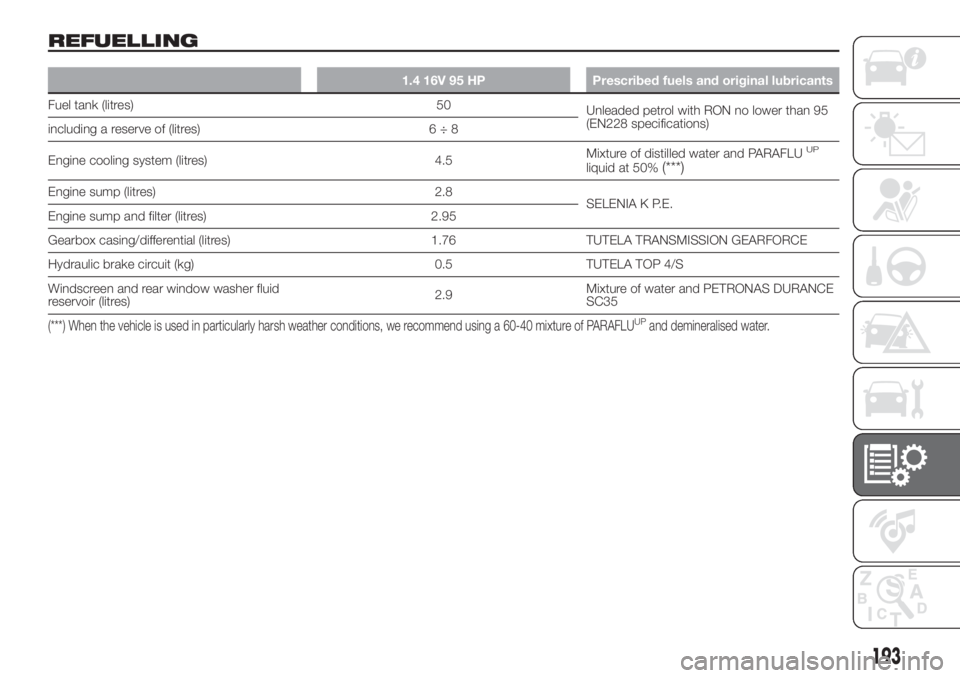

REFUELLING
1.4 16V 95 HP Prescribed fuels and original lubricants
Fuel tank (litres) 50
Unleaded petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 6 ÷ 8
Engine cooling system (litres) 4.5Mixture of distilled water and PARAFLU
UP
liquid at 50%(***)
Engine sump (litres) 2.8
SELENIA K P.E.
Engine sump and filter (litres) 2.95
Gearbox casing/differential (litres) 1.76 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.5 TUTELA TOP 4/S
Windscreen and rear window washer fluid
reservoir (litres)2.9Mixture of water and PETRONAS DURANCE
SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
193

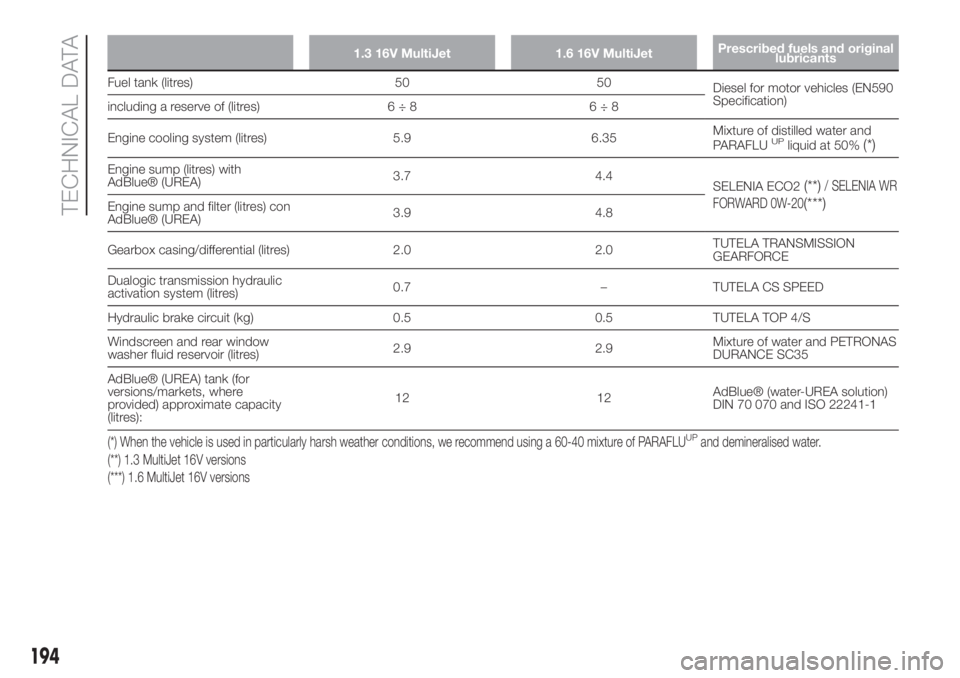

1.3 16V MultiJet 1.6 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN590
Specification)
including a reserve of (litres) 6 ÷ 8 6 ÷ 8
Engine cooling system (litres) 5.9 6.35Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump (litres) with
AdBlue® (UREA)3.7 4.4
SELENIA ECO2
(**)/ SELENIA WR
FORWARD 0W-20
(***)Engine sump and filter (litres) con
AdBlue® (UREA)3.9 4.8
Gearbox casing/differential (litres) 2.0 2.0TUTELA TRANSMISSION
GEARFORCE
Dualogic transmission hydraulic
activation system (litres)0.7 – TUTELA CS SPEED
Hydraulic brake circuit (kg) 0.5 0.5 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.9 2.9Mixture of water and PETRONAS
DURANCE SC35
AdBlue® (UREA) tank (for
versions/markets, where
provided) approximate capacity
(litres):12 12AdBlue® (water-UREA solution)
DIN 70 070 and ISO 22241-1
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) 1.3 MultiJet 16V versions
(***) 1.6 MultiJet 16V versions
194
TECHNICAL DATA

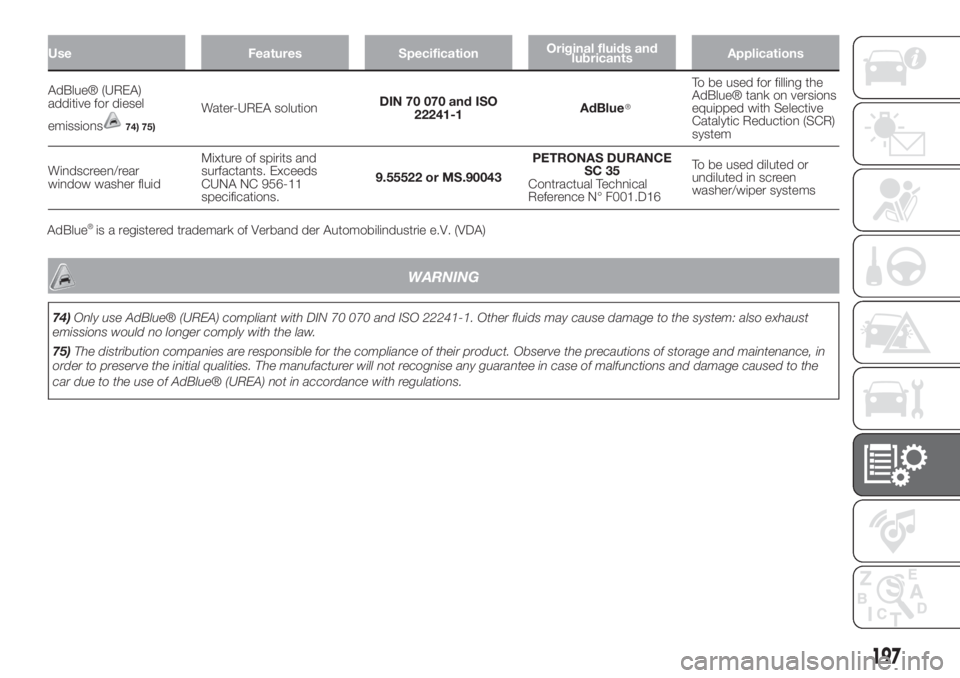

Use Features SpecificationOriginal fluids and
lubricantsApplications
AdBlue® (UREA)
additive for diesel
emissions
74) 75)
Water-UREA solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
AdBlue® tank on versions
equipped with Selective
Catalytic Reduction (SCR)
system
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
WARNING
74)Only use AdBlue® (UREA) compliant with DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also exhaust
emissions would no longer comply with the law.
75)The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and maintenance, in
order to preserve the initial qualities. The manufacturer will not recognise any guarantee in case of malfunctions and damage caused to the
car due to the use of AdBlue® (UREA) not in accordance with regulations.
197
AdBlue®is a registered trademark of Verband der Automobilindustrie e.V. (VDA)
®

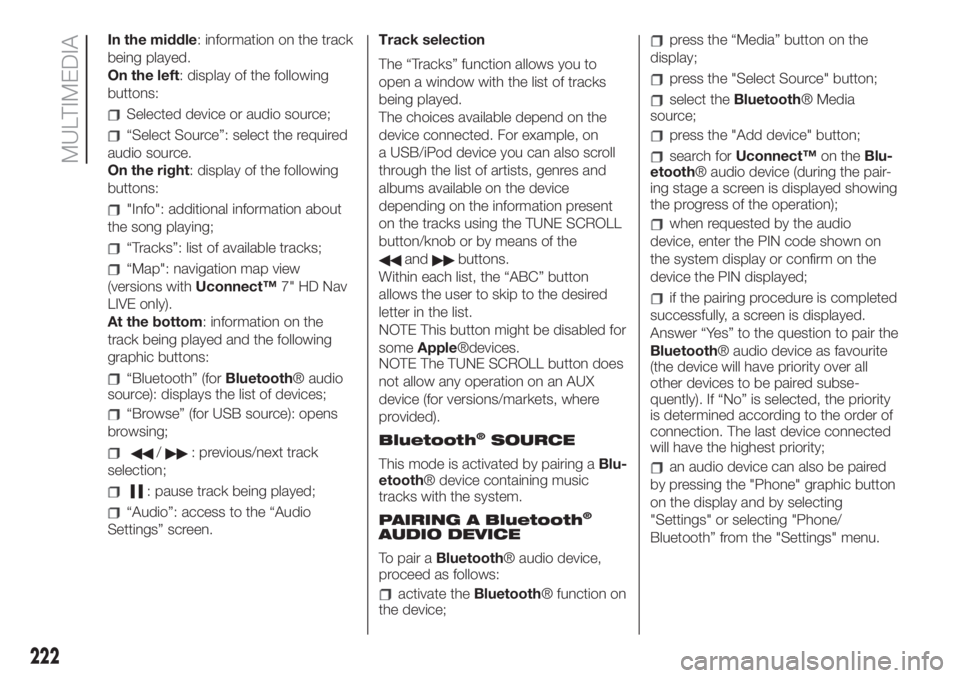

In the middle: information on the track
being played.
On the left: display of the following
buttons:
Selected device or audio source;
“Select Source”: select the required
audio source.
On the right: display of the following
buttons:
"Info": additional information about
the song playing;
“Tracks”: list of available tracks;
“Map": navigation map view
(versions withUconnect™7" HD Nav
LIVE only).
At the bottom: information on the
track being played and the following
graphic buttons:
“Bluetooth” (forBluetooth® audio
source): displays the list of devices;
“Browse” (for USB source): opens
browsing;
/: previous/next track
selection;
: pause track being played;
“Audio”: access to the “Audio
Settings” screen.Track selection
The “Tracks” function allows you to
open a window with the list of tracks
being played.
The choices available depend on the
device connected. For example, on
a USB/iPod device you can also scroll
through the list of artists, genres and
albums available on the device
depending on the information present
on the tracks using the TUNE SCROLL
button/knob or by means of the
andbuttons.
Within each list, the “ABC” button
allows the user to skip to the desired
letter in the list.
NOTE This button might be disabled for
someApple®devices.
NOTE The TUNE SCROLL button does
not allow any operation on an AUX
device (for versions/markets, where
provided).
Bluetooth
®SOURCE
This mode is activated by pairing aBlu-
etooth® device containing music
tracks with the system.
PAIRING A Bluetooth
®
AUDIO DEVICE
To pair aBluetooth® audio device,
proceed as follows:
activate theBluetooth® function on
the device;
press the “Media” button on the
display;
press the "Select Source" button;
select theBluetooth® Media
source;
press the "Add device" button;
search forUconnect™on theBlu-
etooth® audio device (during the pair-
ing stage a screen is displayed showing
the progress of the operation);
when requested by the audio
device, enter the PIN code shown on
the system display or confirm on the
device the PIN displayed;
if the pairing procedure is completed
successfully, a screen is displayed.
Answer “Yes” to the question to pair the
Bluetooth® audio device as favourite
(the device will have priority over all
other devices to be paired subse-
quently). If “No” is selected, the priority
is determined according to the order of
connection. The last device connected
will have the highest priority;
an audio device can also be paired
by pressing the "Phone" graphic button
on the display and by selecting
"Settings" or selecting "Phone/
Bluetooth” from the "Settings" menu.
222
MULTIMEDIA

INDEX

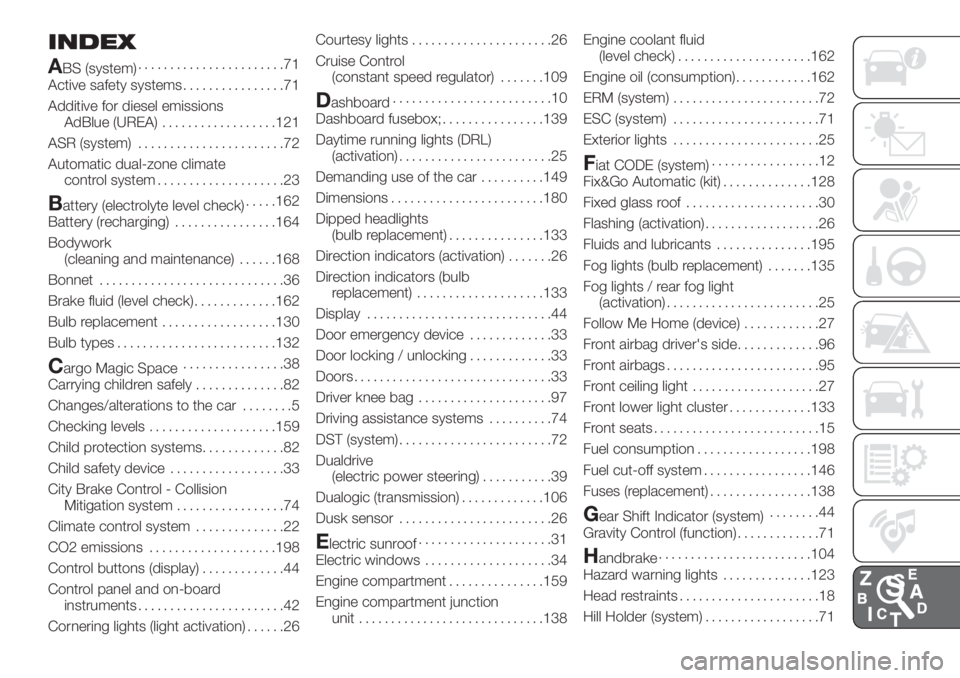

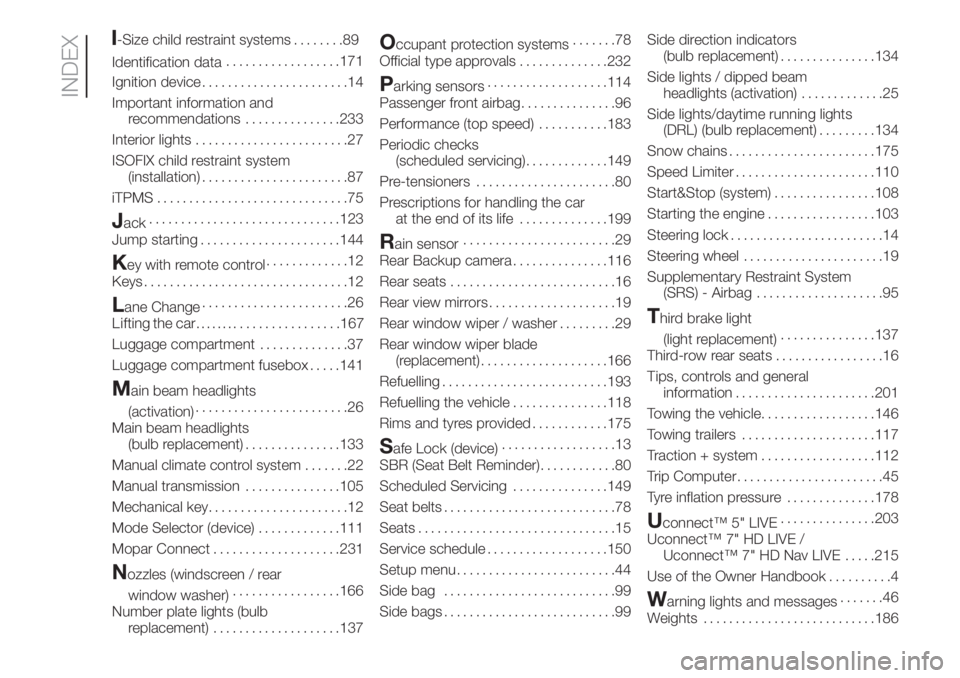

A
