FIAT 500X 2014 2.G Owners Manual

To apply the EPB manually, pull up on the switch
momentarily. You may hear a slight whirring sound
from the back of the vehicle while the EPB engages.
Once the parking brake is fully engaged, the BRAKE
warning lamp in the instrument cluster and an indica-
tor on the switch will illuminate. If your foot is on the
brake pedal while you apply the EPB, you may notice a
small amount of brake pedal movement. The EPB can
be applied even when the ignition switch is in the OFF
mode but the BRAKE warning lamp will not illuminate,
however, it can only be released when the ignition is in
the RUN mode.NOTE:
The EPB fault lamp will illuminate if the EPB
switch is held for longer than 20 seconds in either the
released or applied position. The light will extinguish
upon releasing the switch.
If the Auto Park Brake feature is enabled, the EPB will
automatically engage whenever the transmission is
placed into PARK, or with a manual transmission, when
the ignition switch is in the STOP/OFF position. If your
foot is on the brake pedal, you may notice a small
amount of brake pedal movement while the EPB is
engaging.
The EPB will be automatically released if the driver ’s
seat belt is buckled and driver’s intention to start (in
forward or reverse direction) is recognized by the
system
To release the EPB manually, the ignition must be in the
RUN mode. Put your foot on the brake pedal, then push
the EPB switch down momentarily. You may hear a
slight whirring sound from the back of the vehicle while
the parking brake disengages. You may also notice a
small amount of movement in the brake pedal. Once the
EPB is fully disengaged, the BRAKE warning lamp in
the instrument cluster and the LED indicator on the
switch will extinguish.
Electric Park Brake Switch7
STARTING AND OPERATING 219

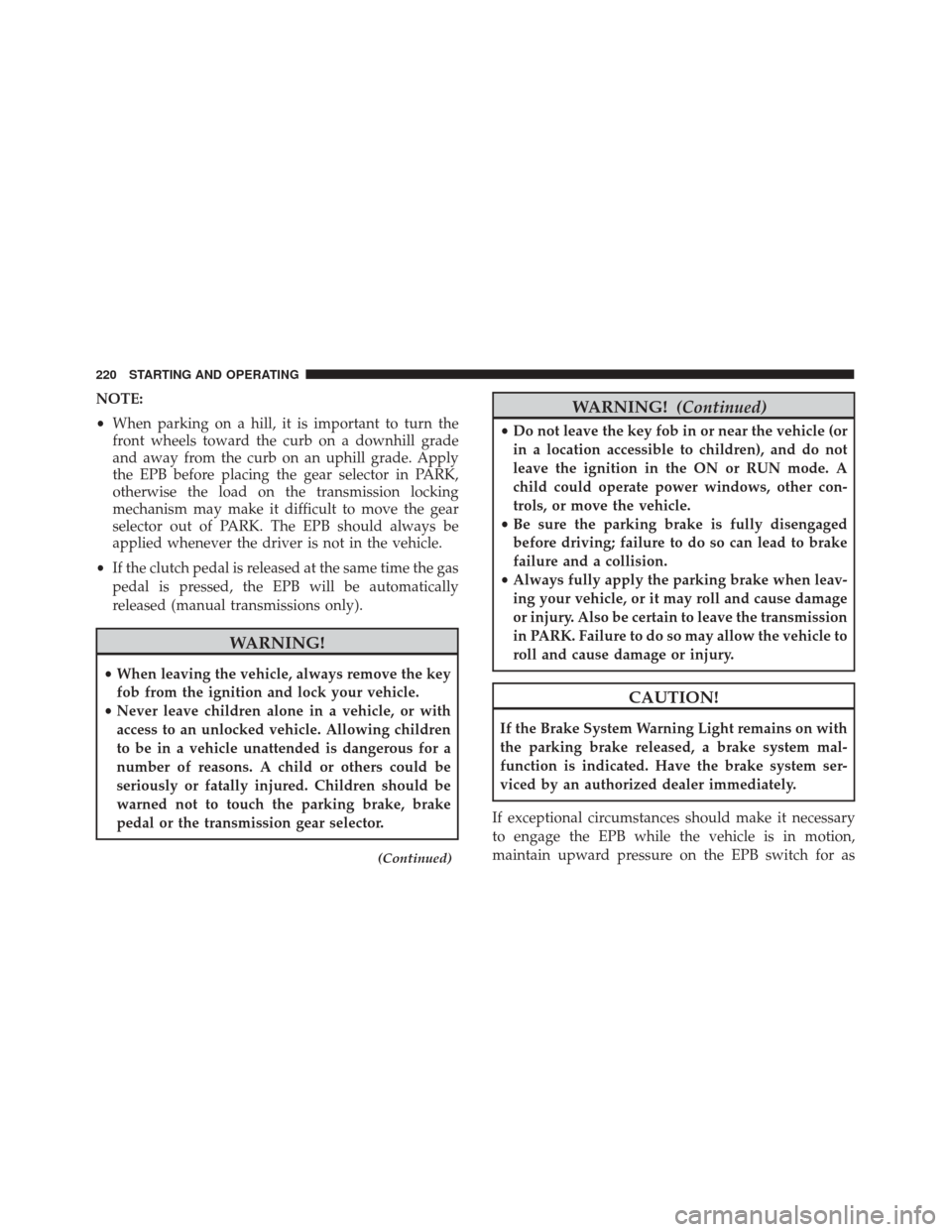

NOTE:
•When parking on a hill, it is important to turn the
front wheels toward the curb on a downhill grade
and away from the curb on an uphill grade. Apply
the EPB before placing the gear selector in PARK,
otherwise the load on the transmission locking
mechanism may make it difficult to move the gear
selector out of PARK. The EPB should always be
applied whenever the driver is not in the vehicle.
• If the clutch pedal is released at the same time the gas
pedal is pressed, the EPB will be automatically
released (manual transmissions only).
WARNING!
• When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the transmission gear selector.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition in the ON or RUN mode. A
child could operate power windows, other con-
trols, or move the vehicle.
• Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and a collision.
• Always fully apply the parking brake when leav-
ing your vehicle, or it may roll and cause damage
or injury. Also be certain to leave the transmission
in PARK. Failure to do so may allow the vehicle to
roll and cause damage or injury.
CAUTION!
If the Brake System Warning Light remains on with
the parking brake released, a brake system mal-
function is indicated. Have the brake system ser-
viced by an authorized dealer immediately.
If exceptional circumstances should make it necessary
to engage the EPB while the vehicle is in motion,
maintain upward pressure on the EPB switch for as
220 STARTING AND OPERATING

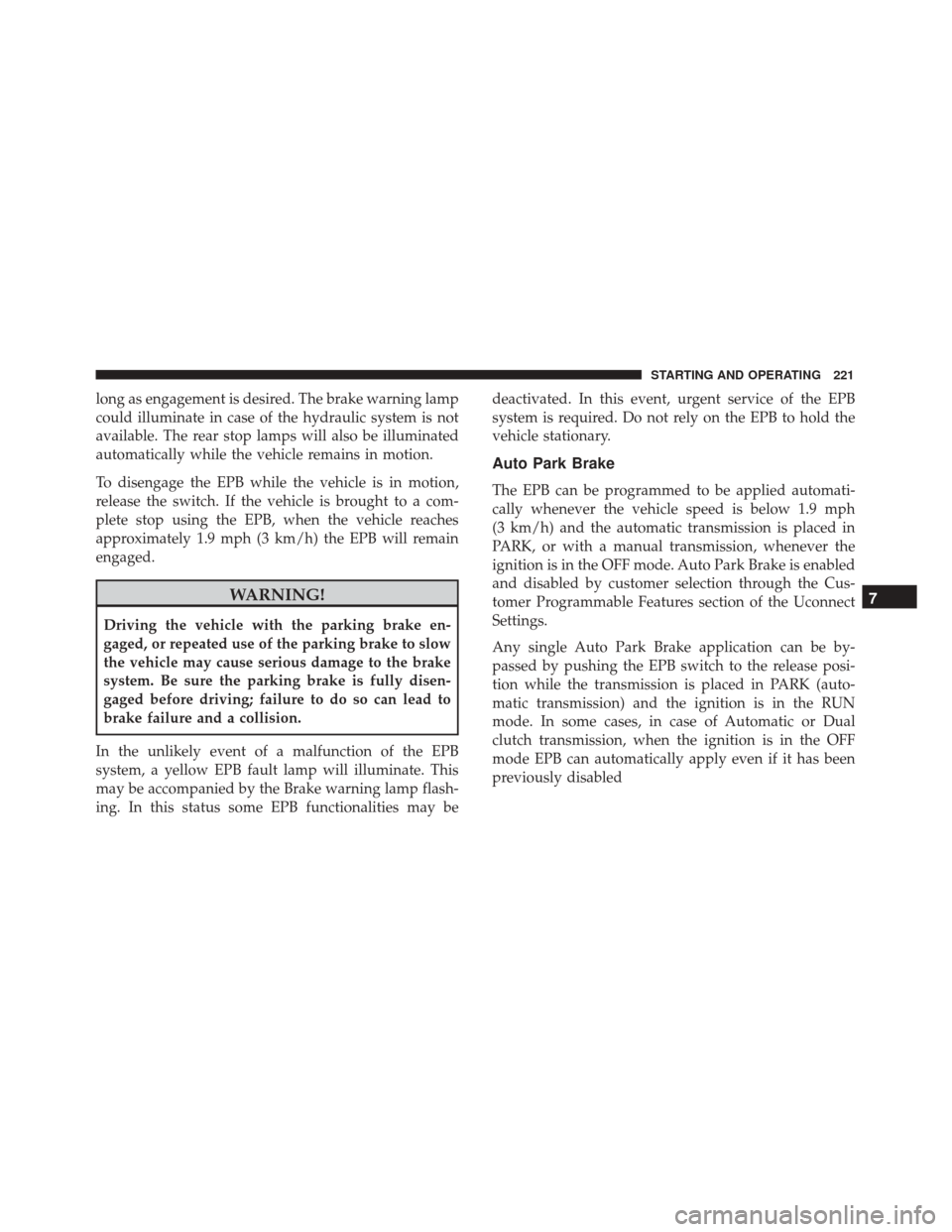

long as engagement is desired. The brake warning lamp
could illuminate in case of the hydraulic system is not
available. The rear stop lamps will also be illuminated
automatically while the vehicle remains in motion.
To disengage the EPB while the vehicle is in motion,
release the switch. If the vehicle is brought to a com-
plete stop using the EPB, when the vehicle reaches
approximately 1.9 mph (3 km/h) the EPB will remain
engaged.
WARNING!
Driving the vehicle with the parking brake en-
gaged, or repeated use of the parking brake to slow
the vehicle may cause serious damage to the brake
system. Be sure the parking brake is fully disen-
gaged before driving; failure to do so can lead to
brake failure and a collision.
In the unlikely event of a malfunction of the EPB
system, a yellow EPB fault lamp will illuminate. This
may be accompanied by the Brake warning lamp flash-
ing. In this status some EPB functionalities may be deactivated. In this event, urgent service of the EPB
system is required. Do not rely on the EPB to hold the
vehicle stationary.
Auto Park Brake
The EPB can be programmed to be applied automati-
cally whenever the vehicle speed is below 1.9 mph
(3 km/h) and the automatic transmission is placed in
PARK, or with a manual transmission, whenever the
ignition is in the OFF mode. Auto Park Brake is enabled
and disabled by customer selection through the Cus-
tomer Programmable Features section of the Uconnect
Settings.
Any single Auto Park Brake application can be by-
passed by pushing the EPB switch to the release posi-
tion while the transmission is placed in PARK (auto-
matic transmission) and the ignition is in the RUN
mode. In some cases, in case of Automatic or Dual
clutch transmission, when the ignition is in the OFF
mode EPB can automatically apply even if it has been
previously disabled
7
STARTING AND OPERATING 221

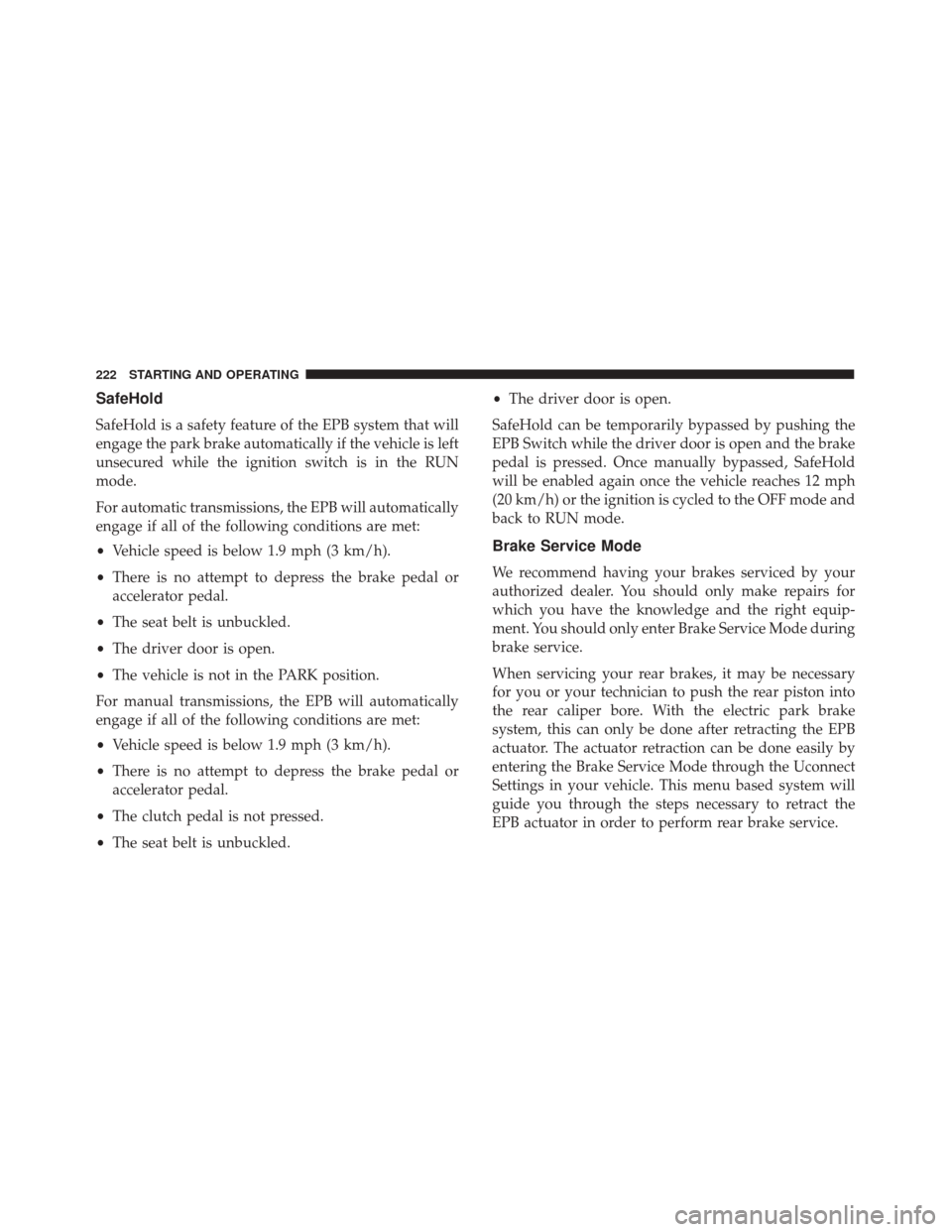

SafeHold
SafeHold is a safety feature of the EPB system that will
engage the park brake automatically if the vehicle is left
unsecured while the ignition switch is in the RUN
mode.
For automatic transmissions, the EPB will automatically
engage if all of the following conditions are met:
•Vehicle speed is below 1.9 mph (3 km/h).
• There is no attempt to depress the brake pedal or
accelerator pedal.
• The seat belt is unbuckled.
• The driver door is open.
• The vehicle is not in the PARK position.
For manual transmissions, the EPB will automatically
engage if all of the following conditions are met:
• Vehicle speed is below 1.9 mph (3 km/h).
• There is no attempt to depress the brake pedal or
accelerator pedal.
• The clutch pedal is not pressed.
• The seat belt is unbuckled. •
The driver door is open.
SafeHold can be temporarily bypassed by pushing the
EPB Switch while the driver door is open and the brake
pedal is pressed. Once manually bypassed, SafeHold
will be enabled again once the vehicle reaches 12 mph
(20 km/h) or the ignition is cycled to the OFF mode and
back to RUN mode.
Brake Service Mode
We recommend having your brakes serviced by your
authorized dealer. You should only make repairs for
which you have the knowledge and the right equip-
ment. You should only enter Brake Service Mode during
brake service.
When servicing your rear brakes, it may be necessary
for you or your technician to push the rear piston into
the rear caliper bore. With the electric park brake
system, this can only be done after retracting the EPB
actuator. The actuator retraction can be done easily by
entering the Brake Service Mode through the Uconnect
Settings in your vehicle. This menu based system will
guide you through the steps necessary to retract the
EPB actuator in order to perform rear brake service.
222 STARTING AND OPERATING

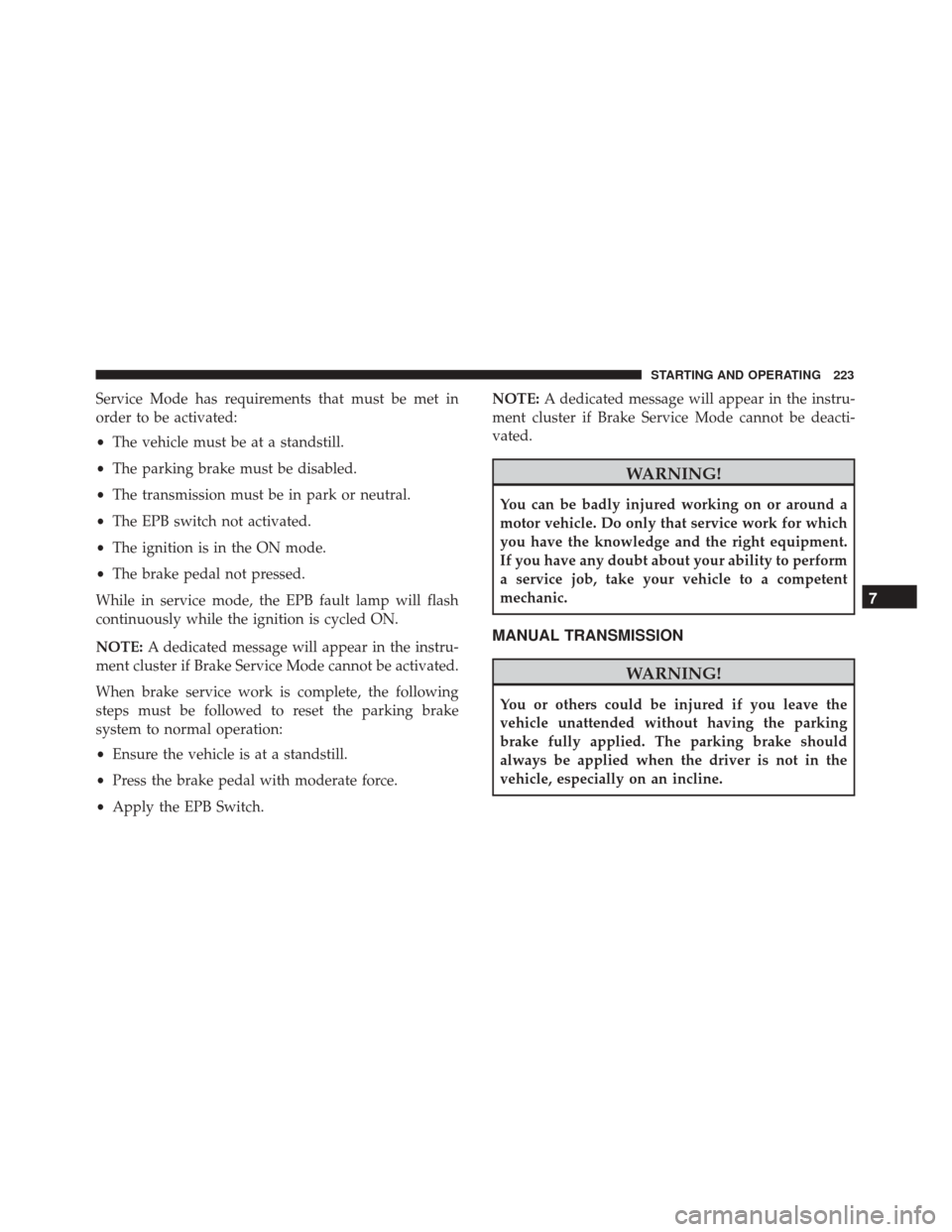

Service Mode has requirements that must be met in
order to be activated:
•The vehicle must be at a standstill.
• The parking brake must be disabled.
• The transmission must be in park or neutral.
• The EPB switch not activated.
• The ignition is in the ON mode.
• The brake pedal not pressed.
While in service mode, the EPB fault lamp will flash
continuously while the ignition is cycled ON.
NOTE: A dedicated message will appear in the instru-
ment cluster if Brake Service Mode cannot be activated.
When brake service work is complete, the following
steps must be followed to reset the parking brake
system to normal operation:
• Ensure the vehicle is at a standstill.
• Press the brake pedal with moderate force.
• Apply the EPB Switch. NOTE:
A dedicated message will appear in the instru-
ment cluster if Brake Service Mode cannot be deacti-
vated.
WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment.
If you have any doubt about your ability to perform
a service job, take your vehicle to a competent
mechanic.
MANUAL TRANSMISSION
WARNING!
You or others could be injured if you leave the
vehicle unattended without having the parking
brake fully applied. The parking brake should
always be applied when the driver is not in the
vehicle, especially on an incline.
7
STARTING AND OPERATING 223

CAUTION!
Never drive with your foot resting on the clutch
pedal, or attempt to hold the vehicle on a hill with
the clutch pedal partially engaged, as this will cause
abnormal wear on the clutch.
NOTE: During cold weather, you may experience in-
creased effort in shifting until the transmission fluid
warms up. This is normal.
To shift the gears, press the clutch pedal to the floor and
put the gear selector to the desired position (the dia-
gram for the engagement of the gears is displayed on
the handle of the lever). To engage REVERSE gear from the NEUTRAL position
lift the REVERSE ring, located below the knob and
simultaneously move the lever to the left and then
forward.
Shifting
Fully press the clutch pedal before shifting gears. As
you release the clutch pedal, lightly press the accelera-
tor pedal.
You should always use first gear when starting from a
standing position.
REVERSE Ring
224 STARTING AND OPERATING

Recommended Vehicle Shift Speeds
To utilize your manual transmission efficiently for fuel
economy and performance, it should be upshifted as
listed in the recommended shift speed chart. Shift at thevehicle speeds listed for acceleration. When heavily
loaded or pulling a trailer, these recommended up-shift
speeds may not apply.
Manual Transmission Shift Speeds in MPH (KM/H)
All Engines Gear Selection 2 to 3 3 to 44 to 5 5 to 6
Accel. 24 (39)34 (55)47 (76) 56 (90)
Cruise 19 (31)27 (43)37 (60) 41 (66)
Downshifting
Moving from a high gear down to a lower gear is
recommended to preserve brakes when driving down
steep hills. In addition, downshifting at the right time
provides better acceleration when you desire to resume
speed. Downshift progressively. Do not skip gears to
avoid overspeeding the engine and clutch.
WARNING!
Do not downshift for additional engine braking on
a slippery surface. The drive wheels could lose their
grip, and the vehicle could skid.
CAUTION!
•Skipping gears and downshifting into lower
gears at higher vehicle speeds can damage the
engine and clutch systems, Any attempt to shift
into lower gear with clutch pedal depressed may
result damage to the clutch system. Shifting into
lower gear and releasing the clutch may result in
engine damage.
• When descending a hill, be very careful to down-
shift one gear at a time to prevent overspeeding
the engine which can cause engine damage,
and/or clutch damage, even if the clutch pedal is
pressed. If transfer case is in low range the vehicle
(Continued)
7
STARTING AND OPERATING 225

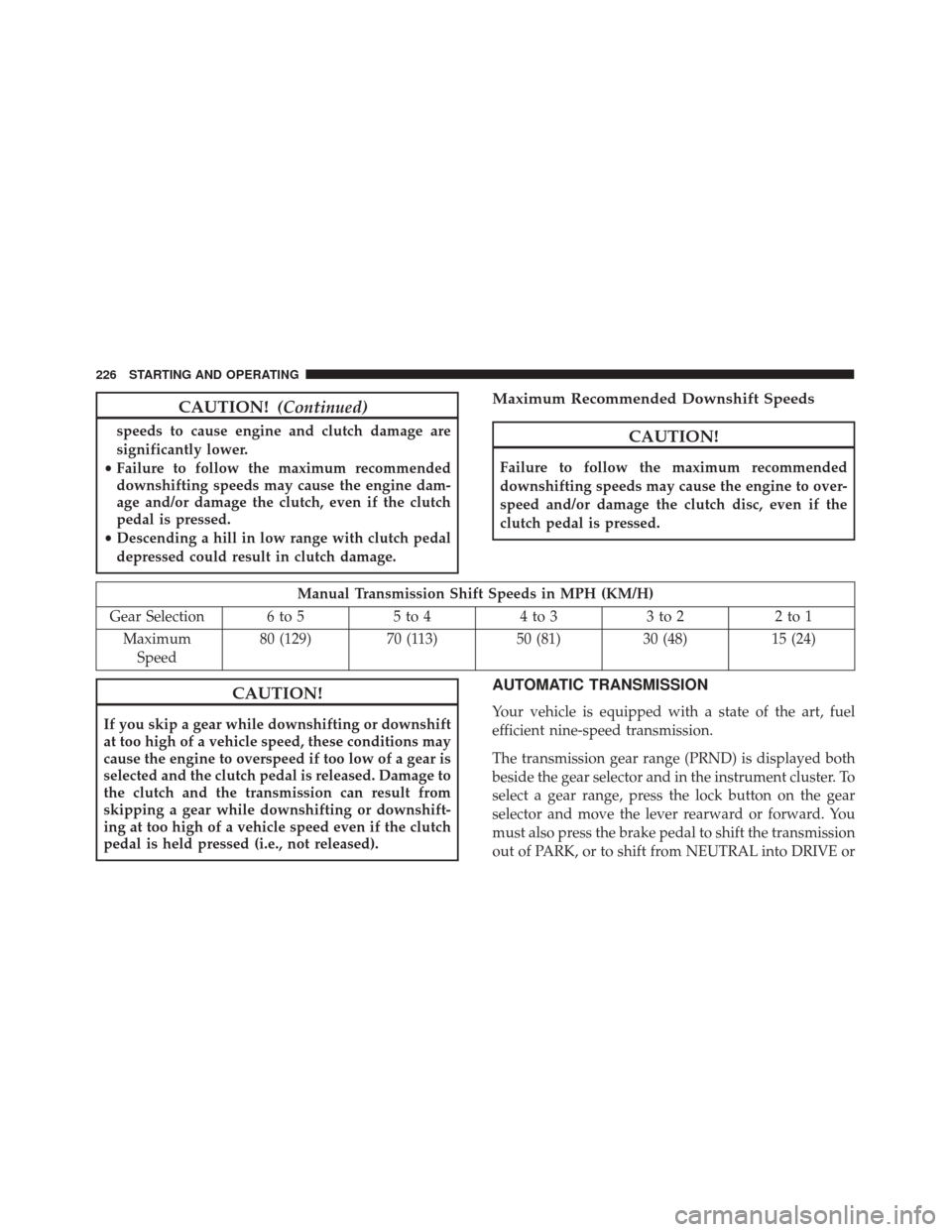

CAUTION!(Continued)
speeds to cause engine and clutch damage are
significantly lower.
• Failure to follow the maximum recommended
downshifting speeds may cause the engine dam-
age and/or damage the clutch, even if the clutch
pedal is pressed.
• Descending a hill in low range with clutch pedal
depressed could result in clutch damage.
Maximum Recommended Downshift Speeds
CAUTION!
Failure to follow the maximum recommended
downshifting speeds may cause the engine to over-
speed and/or damage the clutch disc, even if the
clutch pedal is pressed.
Manual Transmission Shift Speeds in MPH (KM/H)
Gear Selection 6 to 5 5 to 44 to 3 3 to 2 2 to 1
Maximum Speed 80 (129)
70 (113) 50 (81)30 (48) 15 (24)
CAUTION!
If you skip a gear while downshifting or downshift
at too high of a vehicle speed, these conditions may
cause the engine to overspeed if too low of a gear is
selected and the clutch pedal is released. Damage to
the clutch and the transmission can result from
skipping a gear while downshifting or downshift-
ing at too high of a vehicle speed even if the clutch
pedal is held pressed (i.e., not released).
AUTOMATIC TRANSMISSION
Your vehicle is equipped with a state of the art, fuel
efficient nine-speed transmission.
The transmission gear range (PRND) is displayed both
beside the gear selector and in the instrument cluster. To
select a gear range, press the lock button on the gear
selector and move the lever rearward or forward. You
must also press the brake pedal to shift the transmission
out of PARK, or to shift from NEUTRAL into DRIVE or
226 STARTING AND OPERATING

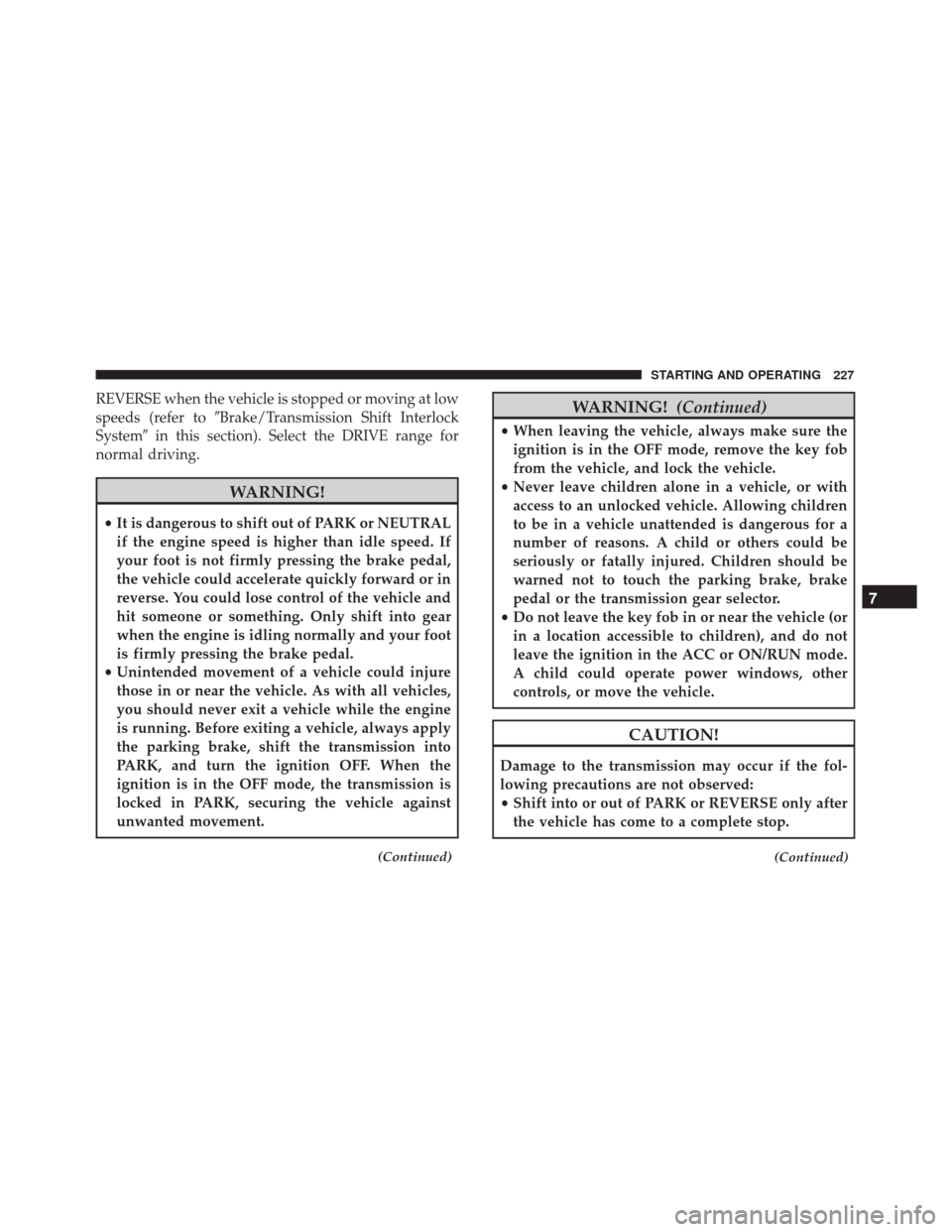

REVERSE when the vehicle is stopped or moving at low
speeds (refer toBrake/Transmission Shift Interlock
System in this section). Select the DRIVE range for
normal driving.
WARNING!
• It is dangerous to shift out of PARK or NEUTRAL
if the engine speed is higher than idle speed. If
your foot is not firmly pressing the brake pedal,
the vehicle could accelerate quickly forward or in
reverse. You could lose control of the vehicle and
hit someone or something. Only shift into gear
when the engine is idling normally and your foot
is firmly pressing the brake pedal.
• Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine
is running. Before exiting a vehicle, always apply
the parking brake, shift the transmission into
PARK, and turn the ignition OFF. When the
ignition is in the OFF mode, the transmission is
locked in PARK, securing the vehicle against
unwanted movement.
(Continued)
WARNING! (Continued)
•When leaving the vehicle, always make sure the
ignition is in the OFF mode, remove the key fob
from the vehicle, and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition in the ACC or ON/RUN mode.
A child could operate power windows, other
controls, or move the vehicle.
CAUTION!
Damage to the transmission may occur if the fol-
lowing precautions are not observed:
• Shift into or out of PARK or REVERSE only after
the vehicle has come to a complete stop.
(Continued)
7
STARTING AND OPERATING 227

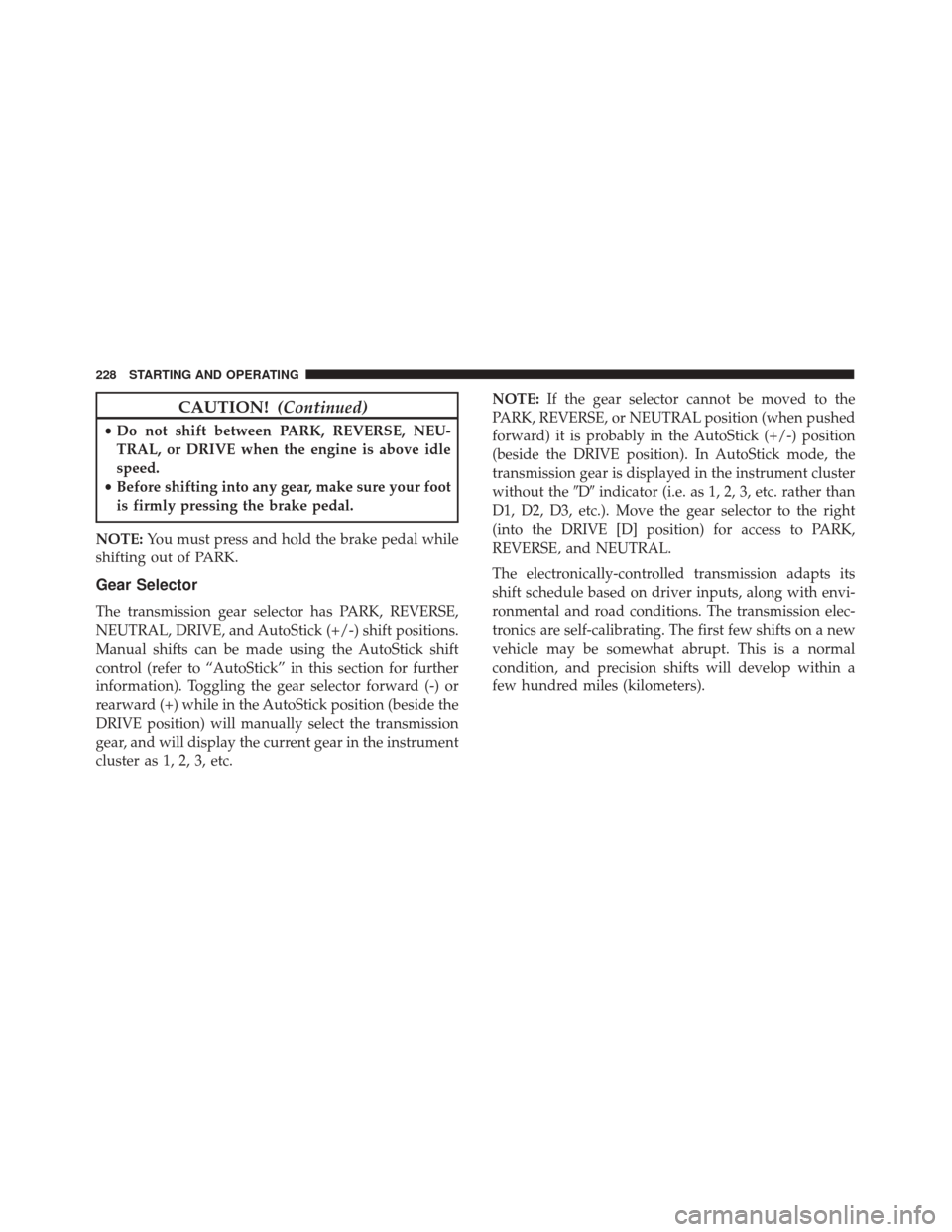

CAUTION!(Continued)
•Do not shift between PARK, REVERSE, NEU-
TRAL, or DRIVE when the engine is above idle
speed.
• Before shifting into any gear, make sure your foot
is firmly pressing the brake pedal.
NOTE: You must press and hold the brake pedal while
shifting out of PARK.
Gear Selector
The transmission gear selector has PARK, REVERSE,
NEUTRAL, DRIVE, and AutoStick (+/-) shift positions.
Manual shifts can be made using the AutoStick shift
control (refer to “AutoStick” in this section for further
information). Toggling the gear selector forward (-) or
rearward (+) while in the AutoStick position (beside the
DRIVE position) will manually select the transmission
gear, and will display the current gear in the instrument
cluster as 1, 2, 3, etc. NOTE:
If the gear selector cannot be moved to the
PARK, REVERSE, or NEUTRAL position (when pushed
forward) it is probably in the AutoStick (+/-) position
(beside the DRIVE position). In AutoStick mode, the
transmission gear is displayed in the instrument cluster
without the Dindicator (i.e. as 1, 2, 3, etc. rather than
D1, D2, D3, etc.). Move the gear selector to the right
(into the DRIVE [D] position) for access to PARK,
REVERSE, and NEUTRAL.
The electronically-controlled transmission adapts its
shift schedule based on driver inputs, along with envi-
ronmental and road conditions. The transmission elec-
tronics are self-calibrating. The first few shifts on a new
vehicle may be somewhat abrupt. This is a normal
condition, and precision shifts will develop within a
few hundred miles (kilometers).
228 STARTING AND OPERATING
