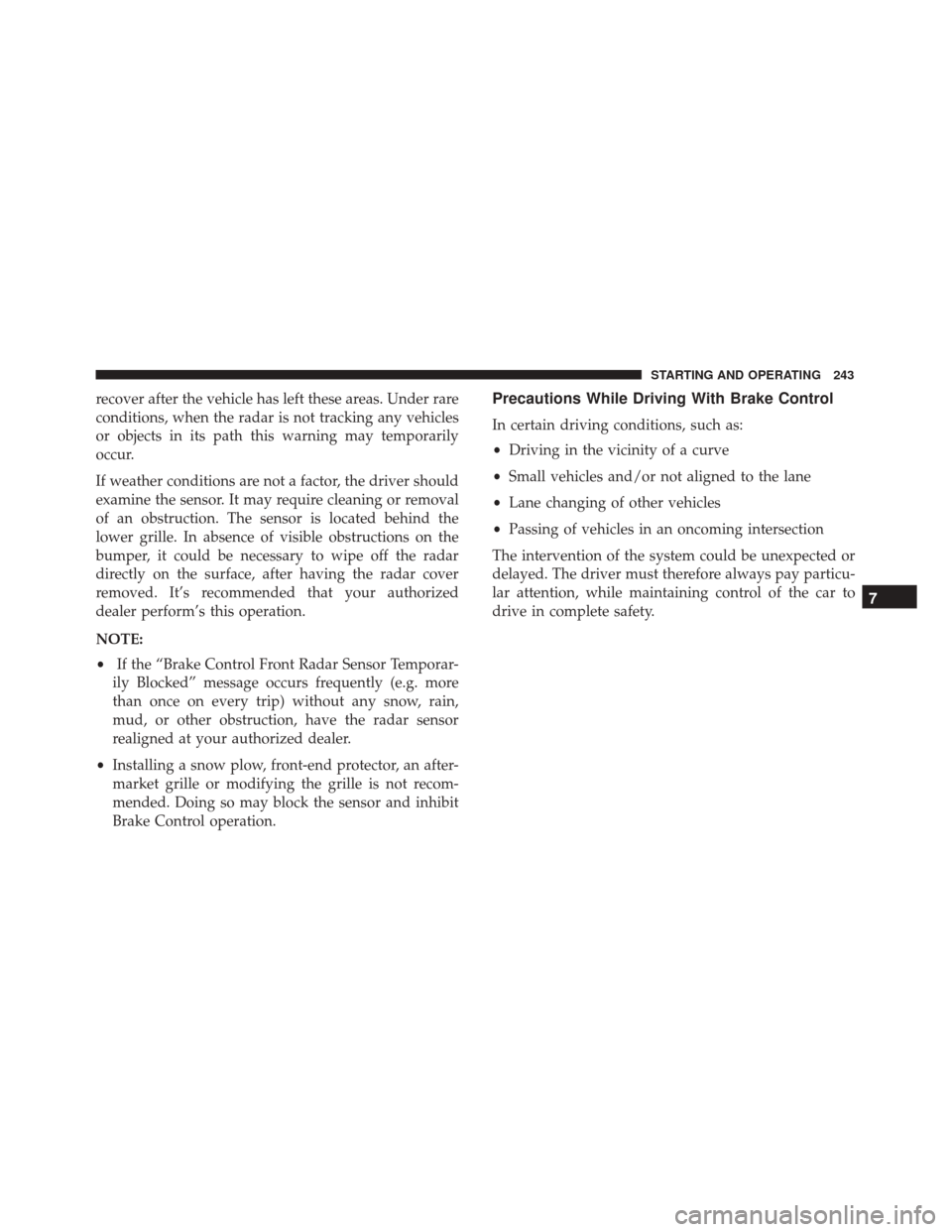

recover after the vehicle has left these areas. Under rare
conditions, when the radar is not tracking any vehicles
or objects in its path this warning may temporarily
occur.
If weather conditions are not a factor, the driver should
examine the sensor. It may require cleaning or removal
of an obstruction. The sensor is located behind the
lower grille. In absence of visible obstructions on the
bumper, it could be necessary to wipe off the radar
directly on the surface, after having the radar cover
removed. It’s recommended that your authorized
dealer perform’s this operation.
NOTE:
•If the “Brake Control Front Radar Sensor Temporar-
ily Blocked” message occurs frequently (e.g. more
than once on every trip) without any snow, rain,
mud, or other obstruction, have the radar sensor
realigned at your authorized dealer.
• Installing a snow plow, front-end protector, an after-
market grille or modifying the grille is not recom-
mended. Doing so may block the sensor and inhibit
Brake Control operation.Precautions While Driving With Brake Control
In certain driving conditions, such as:
• Driving in the vicinity of a curve
• Small vehicles and/or not aligned to the lane
• Lane changing of other vehicles
• Passing of vehicles in an oncoming intersection
The intervention of the system could be unexpected or
delayed. The driver must therefore always pay particu-
lar attention, while maintaining control of the car to
drive in complete safety.
7
STARTING AND OPERATING 243
Page 246 of 476

Driving In The Vicinity Of A Curve
Entering or exiting a large curve, the system could
detect the presence of a vehicle that is in front of the car,
but that does not preside in the same lane. In cases such
as this, the system might respond.Small Vehicles And/Or Not Aligned To The Lane
The system is not able to detect the presence of vehicles
that are in front of the car but placed outside the field of
action of the radar sensor and could therefore not react
in the presence of small vehicles such as bicycles or
motorcycles.
Driving In The Vicinity Of A Curve
Small Vehicles And/Or Not Aligned To The Lane
244 STARTING AND OPERATING
Page 247 of 476

Lane Changing Of Other Vehicles
Vehicles that suddenly change lane, while standing in
the traffic lane of their car and inside the field of action
of the radar sensor may cause the intervention of the
system.Passing Of Vehicles In An Oncoming Intersection
The system could temporarily react to a vehicle that
crossed the range of the radar sensor, in an oncoming
intersection.
Lane Changing Of Other Vehicles
Passing Of Vehicles In An Oncoming Intersection
7
STARTING AND OPERATING 245
Page 249 of 476

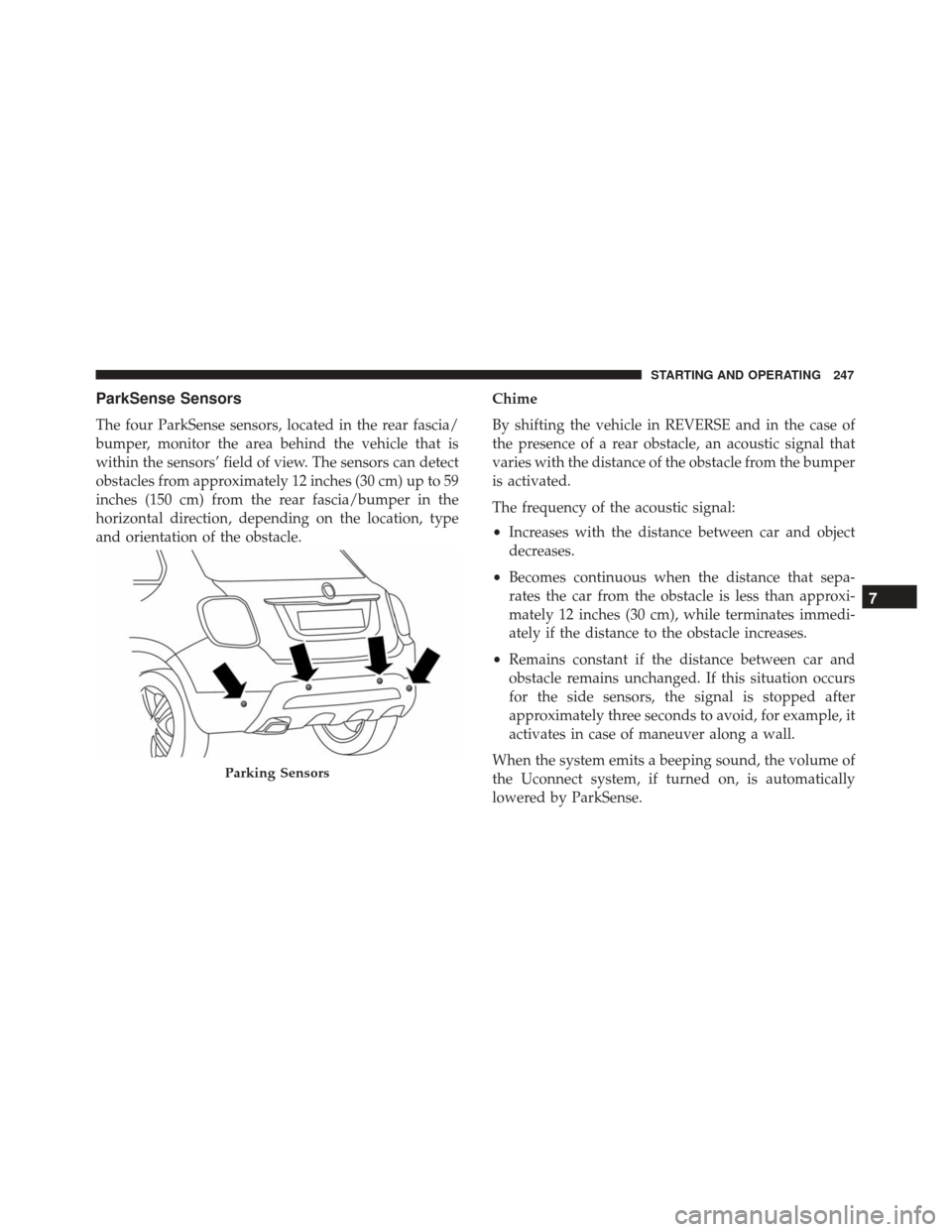

ParkSense Sensors
The four ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is
within the sensors’ field of view. The sensors can detect
obstacles from approximately 12 inches (30 cm) up to 59
inches (150 cm) from the rear fascia/bumper in the
horizontal direction, depending on the location, type
and orientation of the obstacle.Chime
By shifting the vehicle in REVERSE and in the case of
the presence of a rear obstacle, an acoustic signal that
varies with the distance of the obstacle from the bumper
is activated.
The frequency of the acoustic signal:
•
Increases with the distance between car and object
decreases.
• Becomes continuous when the distance that sepa-
rates the car from the obstacle is less than approxi-
mately 12 inches (30 cm), while terminates immedi-
ately if the distance to the obstacle increases.
• Remains constant if the distance between car and
obstacle remains unchanged. If this situation occurs
for the side sensors, the signal is stopped after
approximately three seconds to avoid, for example, it
activates in case of maneuver along a wall.
When the system emits a beeping sound, the volume of
the Uconnect system, if turned on, is automatically
lowered by ParkSense.
Parking Sensors
7
STARTING AND OPERATING 247
Page 250 of 476

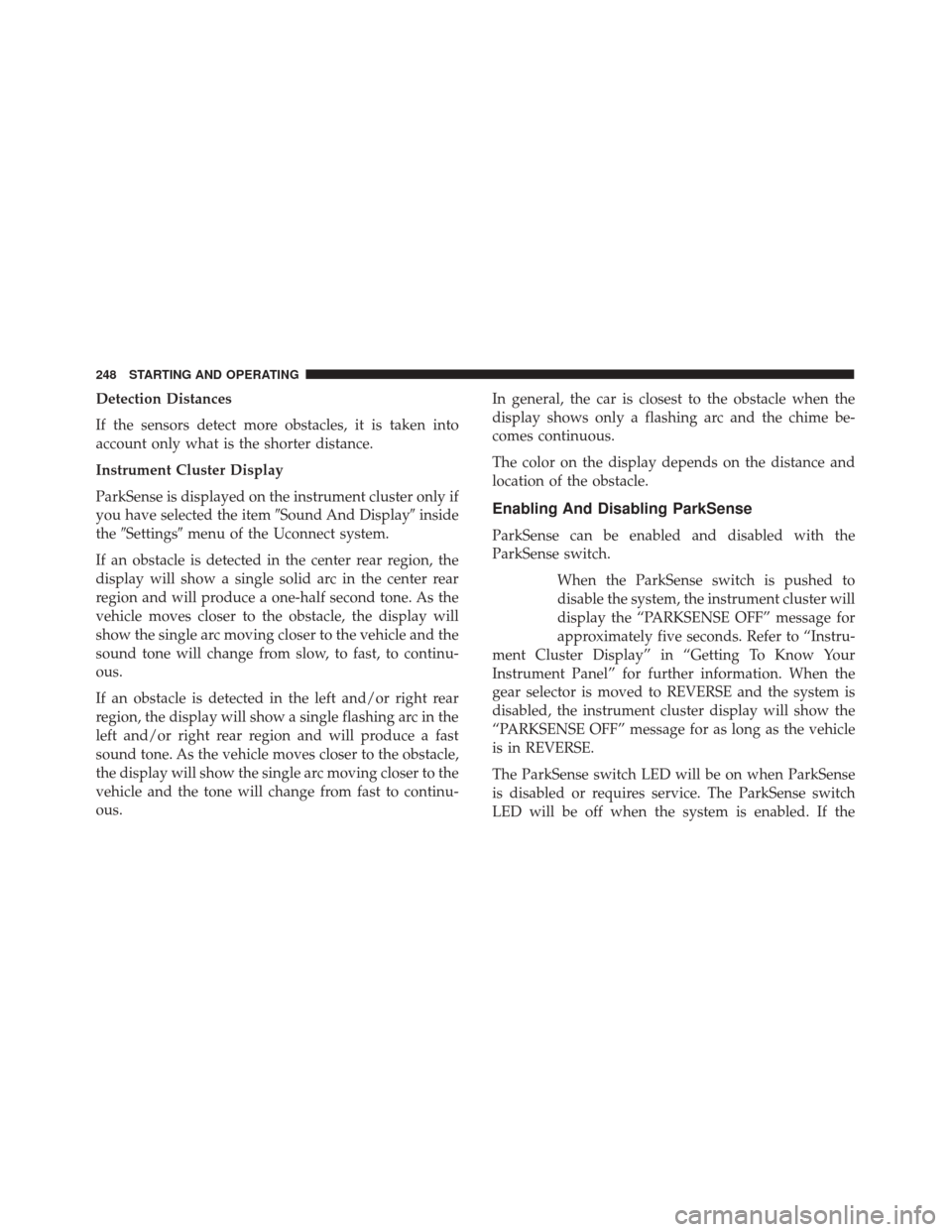

Detection Distances
If the sensors detect more obstacles, it is taken into
account only what is the shorter distance.
Instrument Cluster Display
ParkSense is displayed on the instrument cluster only if
you have selected the itemSound And Displayinside
the Settings menu of the Uconnect system.
If an obstacle is detected in the center rear region, the
display will show a single solid arc in the center rear
region and will produce a one-half second tone. As the
vehicle moves closer to the obstacle, the display will
show the single arc moving closer to the vehicle and the
sound tone will change from slow, to fast, to continu-
ous.
If an obstacle is detected in the left and/or right rear
region, the display will show a single flashing arc in the
left and/or right rear region and will produce a fast
sound tone. As the vehicle moves closer to the obstacle,
the display will show the single arc moving closer to the
vehicle and the tone will change from fast to continu-
ous. In general, the car is closest to the obstacle when the
display shows only a flashing arc and the chime be-
comes continuous.
The color on the display depends on the distance and
location of the obstacle.
Enabling And Disabling ParkSense
ParkSense can be enabled and disabled with the
ParkSense switch.
When the ParkSense switch is pushed to
disable the system, the instrument cluster will
display the “PARKSENSE OFF” message for
approximately five seconds. Refer to “Instru-
ment Cluster Display” in “Getting To Know Your
Instrument Panel” for further information. When the
gear selector is moved to REVERSE and the system is
disabled, the instrument cluster display will show the
“PARKSENSE OFF” message for as long as the vehicle
is in REVERSE.
The ParkSense switch LED will be on when ParkSense
is disabled or requires service. The ParkSense switch
LED will be off when the system is enabled. If the
248 STARTING AND OPERATING
Page 251 of 476

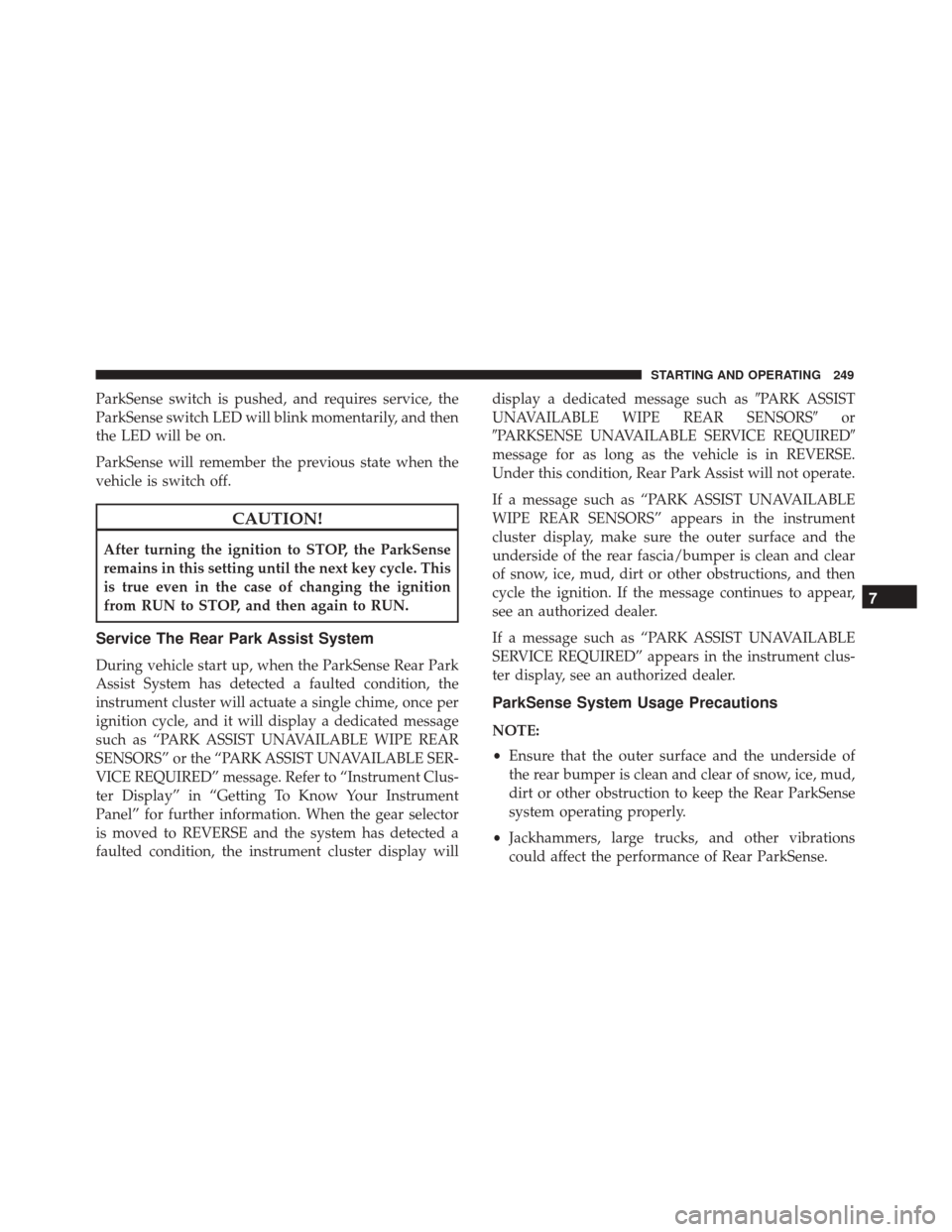

ParkSense switch is pushed, and requires service, the
ParkSense switch LED will blink momentarily, and then
the LED will be on.
ParkSense will remember the previous state when the
vehicle is switch off.
CAUTION!
After turning the ignition to STOP, the ParkSense
remains in this setting until the next key cycle. This
is true even in the case of changing the ignition
from RUN to STOP, and then again to RUN.
Service The Rear Park Assist System
During vehicle start up, when the ParkSense Rear Park
Assist System has detected a faulted condition, the
instrument cluster will actuate a single chime, once per
ignition cycle, and it will display a dedicated message
such as “PARK ASSIST UNAVAILABLE WIPE REAR
SENSORS” or the “PARK ASSIST UNAVAILABLE SER-
VICE REQUIRED” message. Refer to “Instrument Clus-
ter Display” in “Getting To Know Your Instrument
Panel” for further information. When the gear selector
is moved to REVERSE and the system has detected a
faulted condition, the instrument cluster display willdisplay a dedicated message such as
PARK ASSIST
UNAVAILABLE WIPE REAR SENSORS or
PARKSENSE UNAVAILABLE SERVICE REQUIRED
message for as long as the vehicle is in REVERSE.
Under this condition, Rear Park Assist will not operate.
If a message such as “PARK ASSIST UNAVAILABLE
WIPE REAR SENSORS” appears in the instrument
cluster display, make sure the outer surface and the
underside of the rear fascia/bumper is clean and clear
of snow, ice, mud, dirt or other obstructions, and then
cycle the ignition. If the message continues to appear,
see an authorized dealer.
If a message such as “PARK ASSIST UNAVAILABLE
SERVICE REQUIRED” appears in the instrument clus-
ter display, see an authorized dealer.
ParkSense System Usage Precautions
NOTE:
• Ensure that the outer surface and the underside of
the rear bumper is clean and clear of snow, ice, mud,
dirt or other obstruction to keep the Rear ParkSense
system operating properly.
• Jackhammers, large trucks, and other vibrations
could affect the performance of Rear ParkSense.
7
STARTING AND OPERATING 249
Page 252 of 476

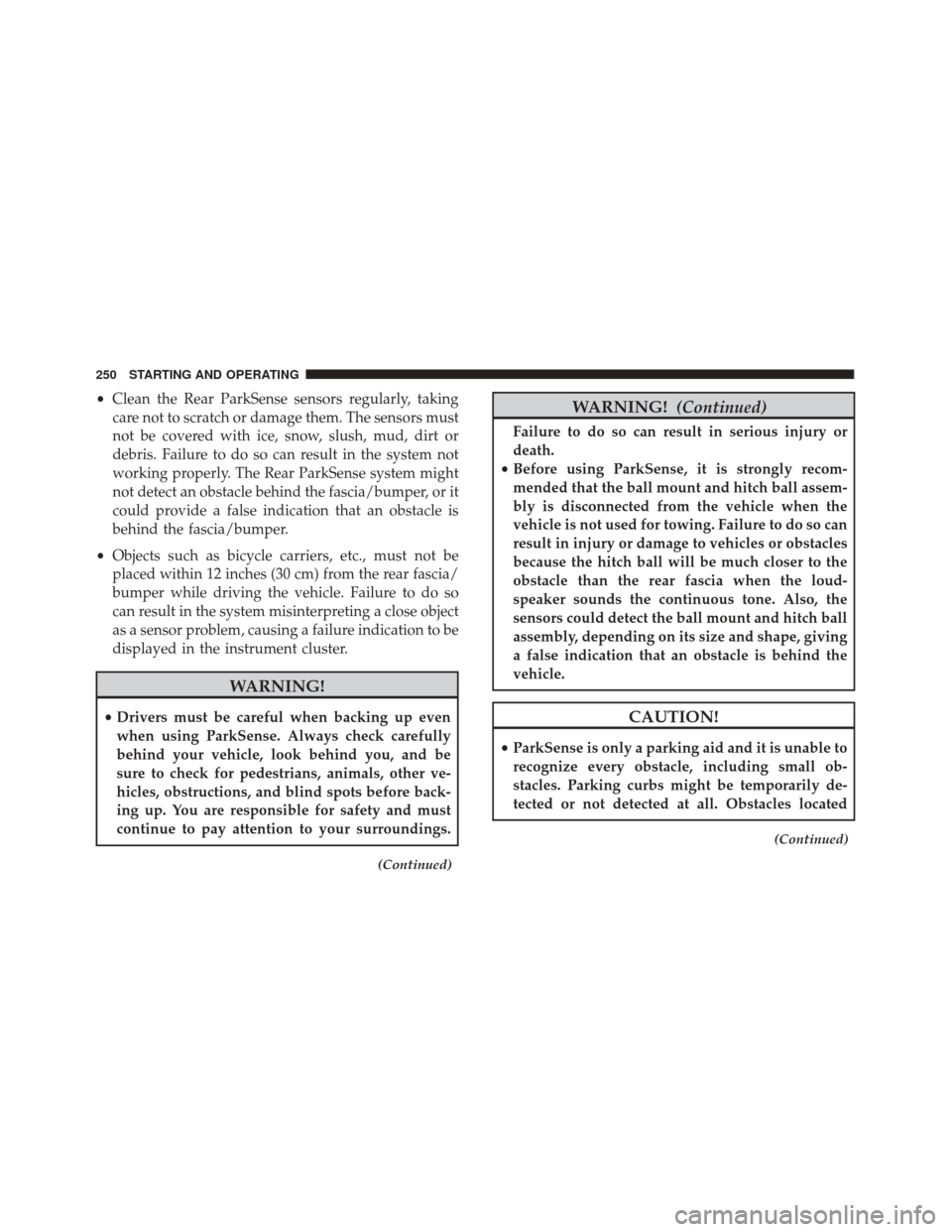

•Clean the Rear ParkSense sensors regularly, taking
care not to scratch or damage them. The sensors must
not be covered with ice, snow, slush, mud, dirt or
debris. Failure to do so can result in the system not
working properly. The Rear ParkSense system might
not detect an obstacle behind the fascia/bumper, or it
could provide a false indication that an obstacle is
behind the fascia/bumper.
• Objects such as bicycle carriers, etc., must not be
placed within 12 inches (30 cm) from the rear fascia/
bumper while driving the vehicle. Failure to do so
can result in the system misinterpreting a close object
as a sensor problem, causing a failure indication to be
displayed in the instrument cluster.
WARNING!
• Drivers must be careful when backing up even
when using ParkSense. Always check carefully
behind your vehicle, look behind you, and be
sure to check for pedestrians, animals, other ve-
hicles, obstructions, and blind spots before back-
ing up. You are responsible for safety and must
continue to pay attention to your surroundings.
(Continued)
WARNING! (Continued)
Failure to do so can result in serious injury or
death.
• Before using ParkSense, it is strongly recom-
mended that the ball mount and hitch ball assem-
bly is disconnected from the vehicle when the
vehicle is not used for towing. Failure to do so can
result in injury or damage to vehicles or obstacles
because the hitch ball will be much closer to the
obstacle than the rear fascia when the loud-
speaker sounds the continuous tone. Also, the
sensors could detect the ball mount and hitch ball
assembly, depending on its size and shape, giving
a false indication that an obstacle is behind the
vehicle.
CAUTION!
• ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small ob-
stacles. Parking curbs might be temporarily de-
tected or not detected at all. Obstacles located
(Continued)
250 STARTING AND OPERATING
Page 253 of 476

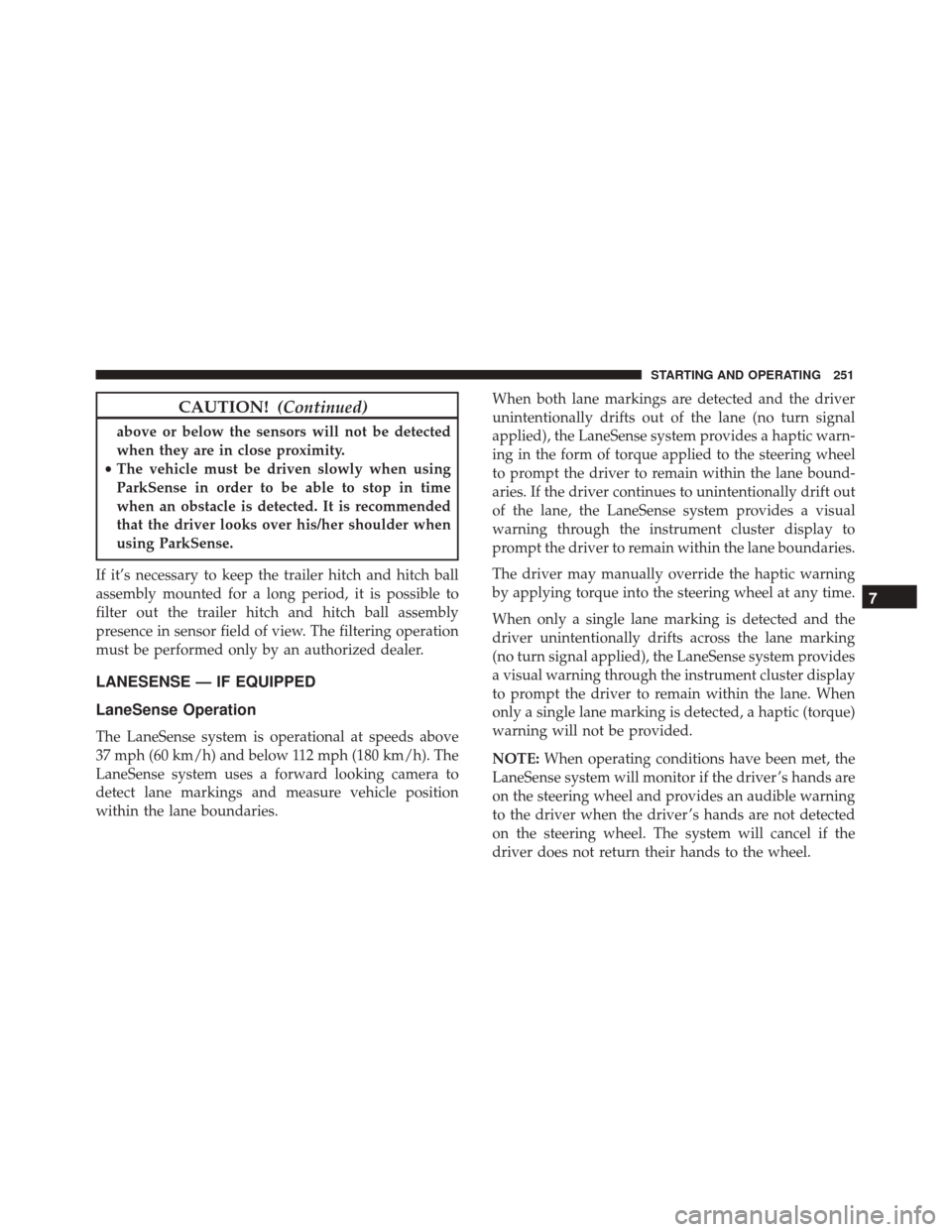

CAUTION!(Continued)
above or below the sensors will not be detected
when they are in close proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time
when an obstacle is detected. It is recommended
that the driver looks over his/her shoulder when
using ParkSense.
If it’s necessary to keep the trailer hitch and hitch ball
assembly mounted for a long period, it is possible to
filter out the trailer hitch and hitch ball assembly
presence in sensor field of view. The filtering operation
must be performed only by an authorized dealer.
LANESENSE — IF EQUIPPED
LaneSense Operation
The LaneSense system is operational at speeds above
37 mph (60 km/h) and below 112 mph (180 km/h). The
LaneSense system uses a forward looking camera to
detect lane markings and measure vehicle position
within the lane boundaries. When both lane markings are detected and the driver
unintentionally drifts out of the lane (no turn signal
applied), the LaneSense system provides a haptic warn-
ing in the form of torque applied to the steering wheel
to prompt the driver to remain within the lane bound-
aries. If the driver continues to unintentionally drift out
of the lane, the LaneSense system provides a visual
warning through the instrument cluster display to
prompt the driver to remain within the lane boundaries.
The driver may manually override the haptic warning
by applying torque into the steering wheel at any time.
When only a single lane marking is detected and the
driver unintentionally drifts across the lane marking
(no turn signal applied), the LaneSense system provides
a visual warning through the instrument cluster display
to prompt the driver to remain within the lane. When
only a single lane marking is detected, a haptic (torque)
warning will not be provided.
NOTE:
When operating conditions have been met, the
LaneSense system will monitor if the driver ’s hands are
on the steering wheel and provides an audible warning
to the driver when the driver ’s hands are not detected
on the steering wheel. The system will cancel if the
driver does not return their hands to the wheel.
7
STARTING AND OPERATING 251

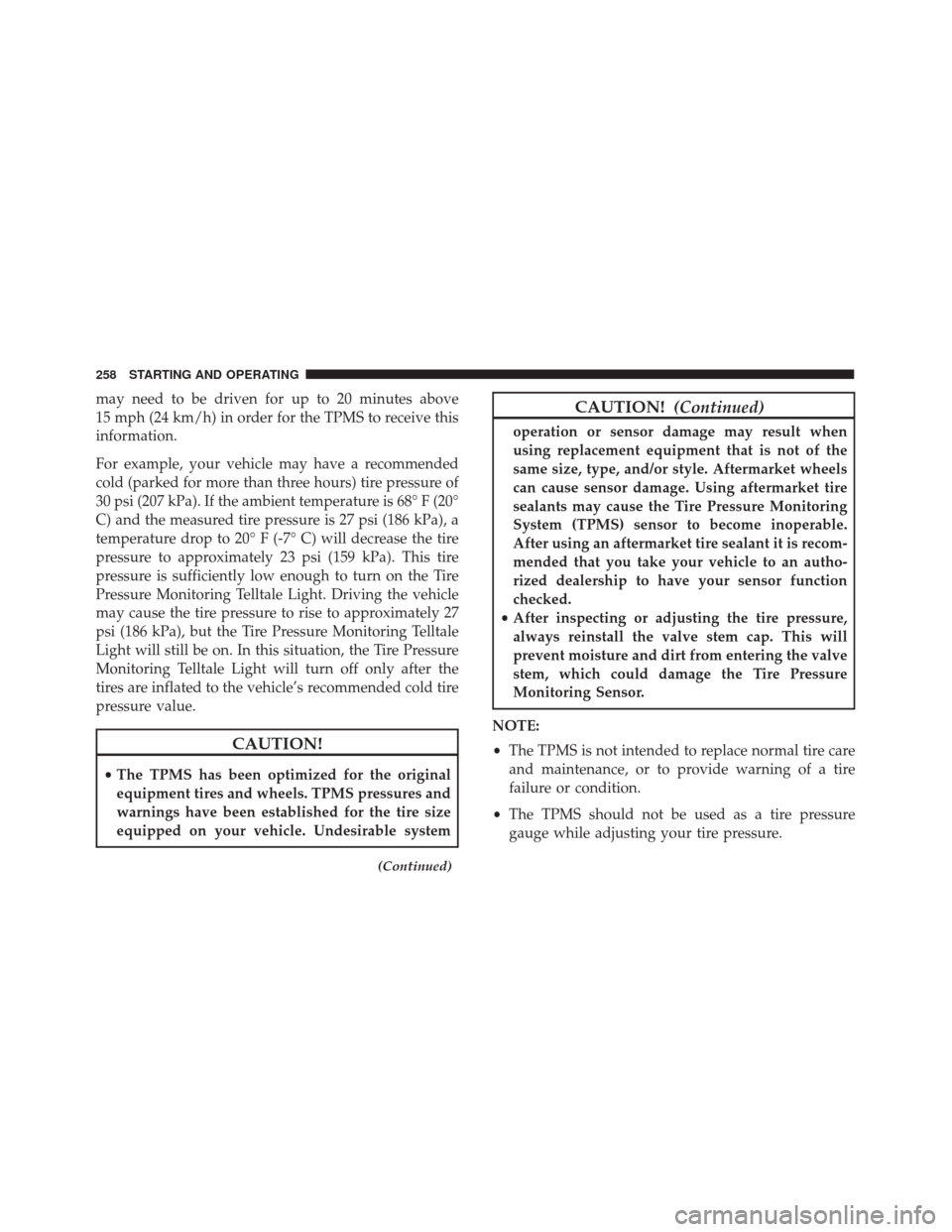

Page 260 of 476

may need to be driven for up to 20 minutes above
15 mph (24 km/h) in order for the TPMS to receive this
information.
For example, your vehicle may have a recommended
cold (parked for more than three hours) tire pressure of
30 psi (207 kPa). If the ambient temperature is 68° F (20°
C) and the measured tire pressure is 27 psi (186 kPa), a
temperature drop to 20° F (-7° C) will decrease the tire
pressure to approximately 23 psi (159 kPa). This tire
pressure is sufficiently low enough to turn on the Tire
Pressure Monitoring Telltale Light. Driving the vehicle
may cause the tire pressure to rise to approximately 27
psi (186 kPa), but the Tire Pressure Monitoring Telltale
Light will still be on. In this situation, the Tire Pressure
Monitoring Telltale Light will turn off only after the
tires are inflated to the vehicle’s recommended cold tire
pressure value.
CAUTION!
•The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warnings have been established for the tire size
equipped on your vehicle. Undesirable system
(Continued)
CAUTION! (Continued)
operation or sensor damage may result when
using replacement equipment that is not of the
same size, type, and/or style. Aftermarket wheels
can cause sensor damage. Using aftermarket tire
sealants may cause the Tire Pressure Monitoring
System (TPMS) sensor to become inoperable.
After using an aftermarket tire sealant it is recom-
mended that you take your vehicle to an autho-
rized dealership to have your sensor function
checked.
• After inspecting or adjusting the tire pressure,
always reinstall the valve stem cap. This will
prevent moisture and dirt from entering the valve
stem, which could damage the Tire Pressure
Monitoring Sensor.
NOTE:
• The TPMS is not intended to replace normal tire care
and maintenance, or to provide warning of a tire
failure or condition.
• The TPMS should not be used as a tire pressure
gauge while adjusting your tire pressure.
258 STARTING AND OPERATING

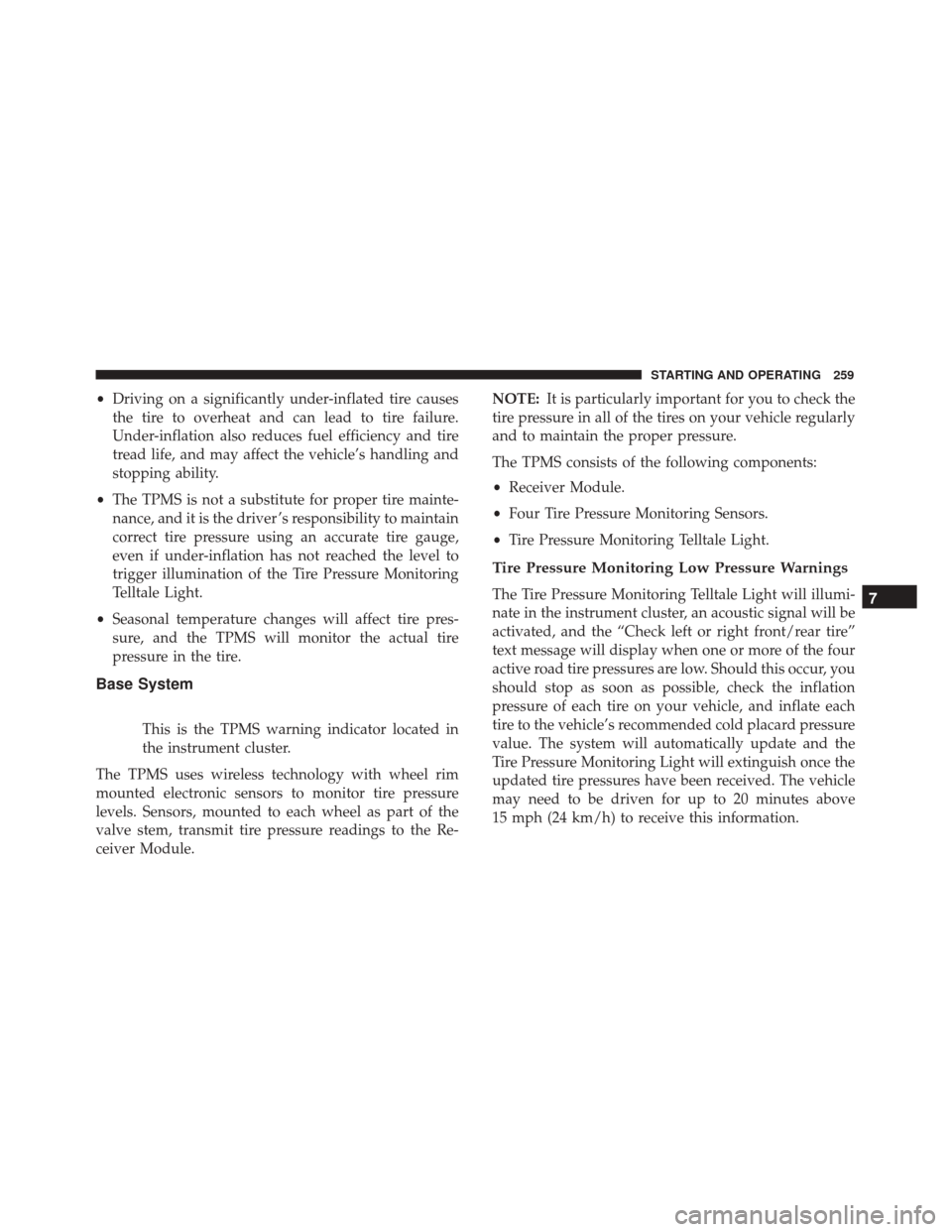

Page 261 of 476

•Driving on a significantly under-inflated tire causes
the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and
stopping ability.
• The TPMS is not a substitute for proper tire mainte-
nance, and it is the driver ’s responsibility to maintain
correct tire pressure using an accurate tire gauge,
even if under-inflation has not reached the level to
trigger illumination of the Tire Pressure Monitoring
Telltale Light.
• Seasonal temperature changes will affect tire pres-
sure, and the TPMS will monitor the actual tire
pressure in the tire.
Base System
This is the TPMS warning indicator located in
the instrument cluster.
The TPMS uses wireless technology with wheel rim
mounted electronic sensors to monitor tire pressure
levels. Sensors, mounted to each wheel as part of the
valve stem, transmit tire pressure readings to the Re-
ceiver Module. NOTE:
It is particularly important for you to check the
tire pressure in all of the tires on your vehicle regularly
and to maintain the proper pressure.
The TPMS consists of the following components:
• Receiver Module.
• Four Tire Pressure Monitoring Sensors.
• Tire Pressure Monitoring Telltale Light.
Tire Pressure Monitoring Low Pressure Warnings
The Tire Pressure Monitoring Telltale Light will illumi-
nate in the instrument cluster, an acoustic signal will be
activated, and the “Check left or right front/rear tire”
text message will display when one or more of the four
active road tire pressures are low. Should this occur, you
should stop as soon as possible, check the inflation
pressure of each tire on your vehicle, and inflate each
tire to the vehicle’s recommended cold placard pressure
value. The system will automatically update and the
Tire Pressure Monitoring Light will extinguish once the
updated tire pressures have been received. The vehicle
may need to be driven for up to 20 minutes above
15 mph (24 km/h) to receive this information.7
STARTING AND OPERATING 259
