FIAT 500X 2016 2.G Owner's Guide

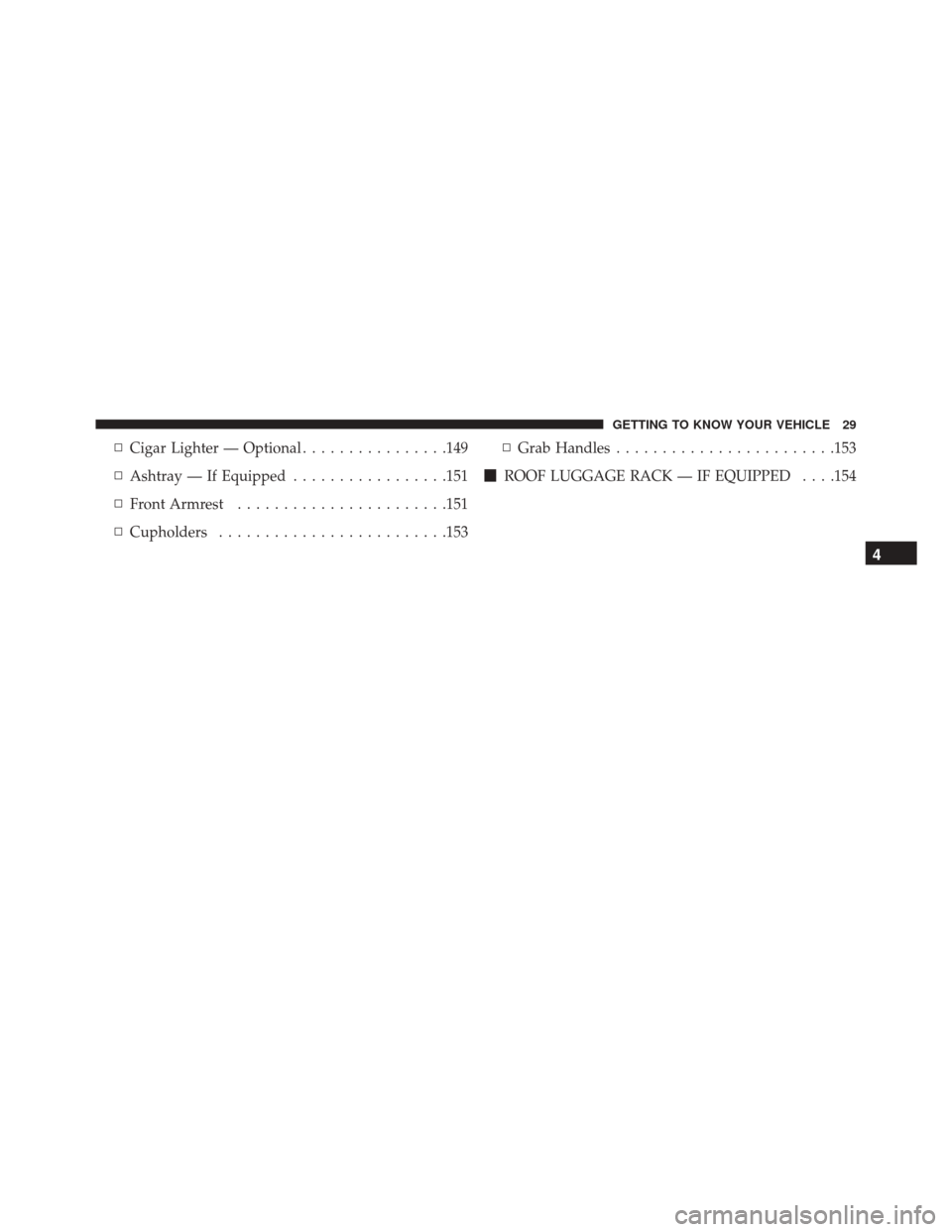

▫Cigar Lighter — Optional ................149
▫ Ashtray — If Equipped .................151
▫ Front Armrest ...................... .151
▫ Cupholders ........................ .153▫
Grab Handles ....................... .153
 ROOF LUGGAGE RACK — IF EQUIPPED . . . .154
4
GETTING TO KNOW YOUR VEHICLE 29

KEYS
Mechanical Key Fob
The metal insert of the Key Fob operates:
•The Ignition System
• Driver’s Door Lock
Mechanical Key Fob
1 — Mechanical Key
2 — Door Lock Button
3 — Door Unlock Button
4 — Panic Button
5 — Mechanical Key Button (Open/Close)
30 GETTING TO KNOW YOUR VEHICLE

Electronic Key Fob
On versions equipped withKeyless Enter-N-Go,the car
is equipped with an Electronic Key Fob.
The Key Fob with Remote Control contains a Remote
Keyless Entry (RKE) transmitter. The RKE system allows
you to lock or unlock the doors and liftgate or activate the
Panic Alarm from distances up to approximately 66 ft (20
m) using a handheld Key Fob with a RKE transmitter.
The RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE: In the ON/RUN position, the trunk release
button is disabled. Only the UNLOCK button is enabled.
Keyless Enter-N-Go Key Fob
1 — Door Lock Button
2 — Remote Start Button
3 — Panic Button
4 — Emergency Key
5 — Door Unlock Button
4
GETTING TO KNOW YOUR VEHICLE 31

Key Fob Operation
Unlocking Doors And Liftgate
The driver ’s door may be unlocked by inserting the
vehicle key into the exterior driver’s door lock cylinder.
To unlock all the doors, push the interior power door
UNLOCK button on the door panel.
Push and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice
within five seconds to unlock all doors and the liftgate.
The turn signal lights will flash to acknowledge the
unlock signal. The illuminated entry system will also
turn on.
1st Press Of Key Fob Unlocks
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
Emergency Key Release/Removal
1 — Emergency Key Release Button
2 — Emergency Key 32 GETTING TO KNOW YOUR VEHICLE

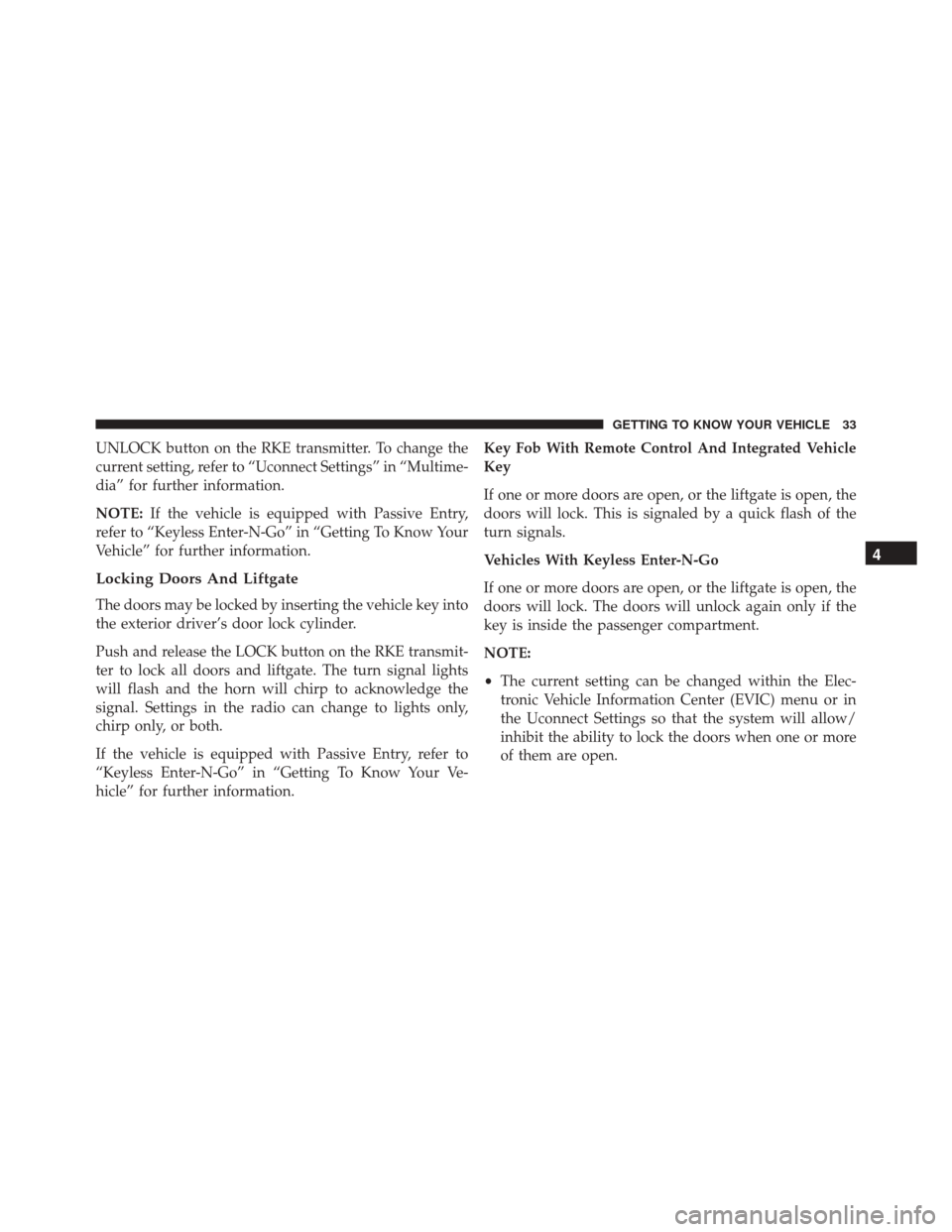

UNLOCK button on the RKE transmitter. To change the
current setting, refer to “Uconnect Settings” in “Multime-
dia” for further information.
NOTE:If the vehicle is equipped with Passive Entry,
refer to “Keyless Enter-N-Go” in “Getting To Know Your
Vehicle” for further information.
Locking Doors And Liftgate
The doors may be locked by inserting the vehicle key into
the exterior driver’s door lock cylinder.
Push and release the LOCK button on the RKE transmit-
ter to lock all doors and liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the
signal. Settings in the radio can change to lights only,
chirp only, or both.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go” in “Getting To Know Your Ve-
hicle” for further information. Key Fob With Remote Control And Integrated Vehicle
Key
If one or more doors are open, or the liftgate is open, the
doors will lock. This is signaled by a quick flash of the
turn signals.
Vehicles With Keyless Enter-N-Go
If one or more doors are open, or the liftgate is open, the
doors will lock. The doors will unlock again only if the
key is inside the passenger compartment.
NOTE:
•
The current setting can be changed within the Elec-
tronic Vehicle Information Center (EVIC) menu or in
the Uconnect Settings so that the system will allow/
inhibit the ability to lock the doors when one or more
of them are open.
4
GETTING TO KNOW YOUR VEHICLE 33

•Refer to “Electronic Vehicle Information Center
(EVIC)” in “Getting To Know Your Instrument Panel”
or “Uconnect Settings” in “Multimedia” for further
information.
Replacing The Battery In The Key Fob With
Remote Control
The recommended replacement battery is one CR2032
battery.
NOTE:
• Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
Key Fob With Remote Control
1. Separating RKE halves requires screw removal (if equipped) and gently prying the two halves of the RKE transmitter apart using a screwdriver or similar
tool. Make sure not to damage the seal during re-
moval.
Integrated Vehicle Key Battery Removal
34 GETTING TO KNOW YOUR VEHICLE

2. Remove the battery by turning the back cover over(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar surface. Then,
replace the battery.
When replacing the battery, match the + sign on the
battery to the + sign on the inside of the battery clip,
located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with rubbing
alcohol.
Integrated Vehicle Key Battery Removal
1 — RKE Transmitter
2 — Battery Flap
3 — Battery
4
GETTING TO KNOW YOUR VEHICLE 35

Separating Keyless Enter-N-Go Transmitter Case
1. Remove the emergency key by sliding the mechanicallatch on the back of the RKE transmitter sideways
with your thumb. Then, pull the key out with your
other hand.
2. Separating RKE halves requires screw removal (if equipped) and gently prying the two halves of the
RKE transmitter apart with the emergency key. Make
sure not to damage the seal during removal.
3. Remove the battery by turning the back cover over(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar surface. Then,
replace the battery.
When replacing the battery, match the + sign on the
battery to the + sign on the inside of the battery clip,
Separating Keyless Enter-N-Go Transmitter Case
36 GETTING TO KNOW YOUR VEHICLE

located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with rubbing
alcohol.
To assemble the RKE transmitter case, snap the two
halves together and insert the emergency key.Request For Additional Keys
NOTE:Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in the OFF
position.
Duplication of Key Fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
Keyless Enter-N-Go Battery
4
GETTING TO KNOW YOUR VEHICLE 37

NOTE:When having the Sentry Key Immobilizer System
serviced, bring all vehicle keys with you to an authorized
dealer.
IGNITION SWITCH
Operation
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a Key Fob with a Remote Keyless Entry (RKE)
transmitter and an Integrated Mechanical Key Ignition.
The keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Push Button Ignition.
Mechanical Key
The Mechanical Key has three operating positions, two
with detents and one that is spring-loaded. The detent
positions are STOP/OFF, MAR/RUN, and AVV/START.
The AVV/START position is a spring-loaded momentary contact position. When released from the AVV/START
position, the switch automatically returns to the MAR/
RUN position.
1 — STOP/OFF
•
The engine is stopped.Integrated Mechanical Key Ignition
38 GETTING TO KNOW YOUR VEHICLE
