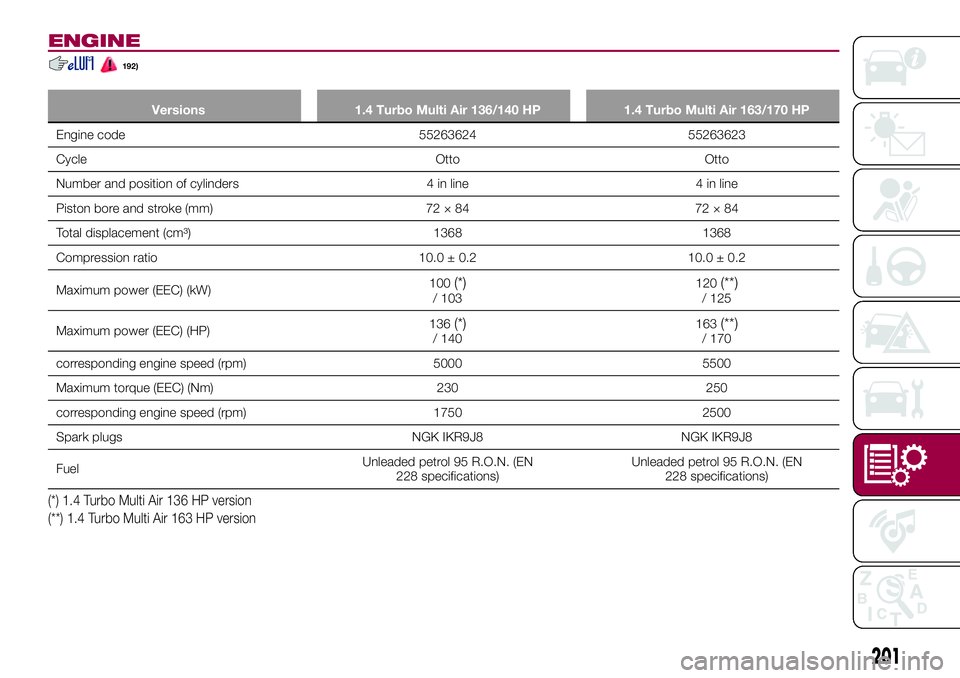

ENGINE
192)
Versions 1.4 Turbo Multi Air 136/140 HP 1.4 Turbo Multi Air 163/170 HP
Engine code 55263624 55263623
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 72 × 84
Total displacement (cm³) 1368 1368
Compression ratio 10.0 ± 0.2 10.0 ± 0.2
Maximum power (EEC) (kW)100
(*)/ 103120(**)/ 125
Maximum power (EEC) (HP)136
(*)/ 140163(**)/ 170
corresponding engine speed (rpm) 5000 5500
Maximum torque (EEC) (Nm) 230 250
corresponding engine speed (rpm) 1750 2500
Spark plugs NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)Unleaded petrol 95 R.O.N. (EN
228 specifications)
(*) 1.4 Turbo Multi Air 136 HP version
(**) 1.4 Turbo Multi Air 163 HP version
201

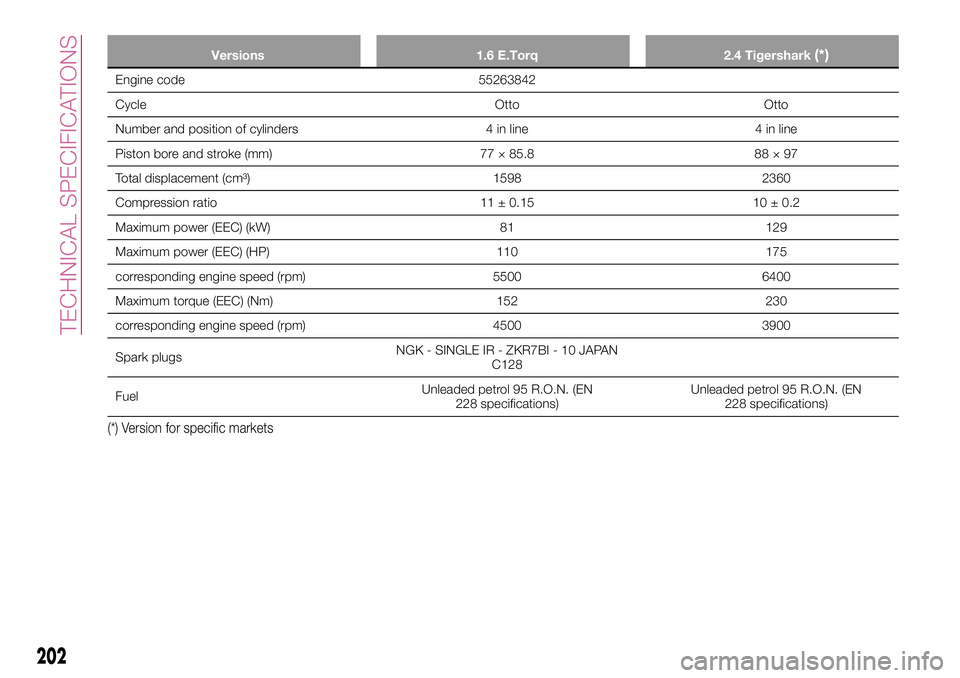

Versions 1.6 E.Torq 2.4 Tigershark(*)
Engine code 55263842
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 77 × 85.8 88 × 97
Total displacement (cm³) 1598 2360
Compression ratio 11 ± 0.15 10 ± 0.2
Maximum power (EEC) (kW) 81 129
Maximum power (EEC) (HP) 110 175
corresponding engine speed (rpm) 5500 6400
Maximum torque (EEC) (Nm) 152 230
corresponding engine speed (rpm) 4500 3900
Spark plugsNGK - SINGLE IR - ZKR7BI - 10 JAPAN
C128
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)Unleaded petrol 95 R.O.N. (EN
228 specifications)
(*) Version for specific markets
202
TECHNICAL SPECIFICATIONS

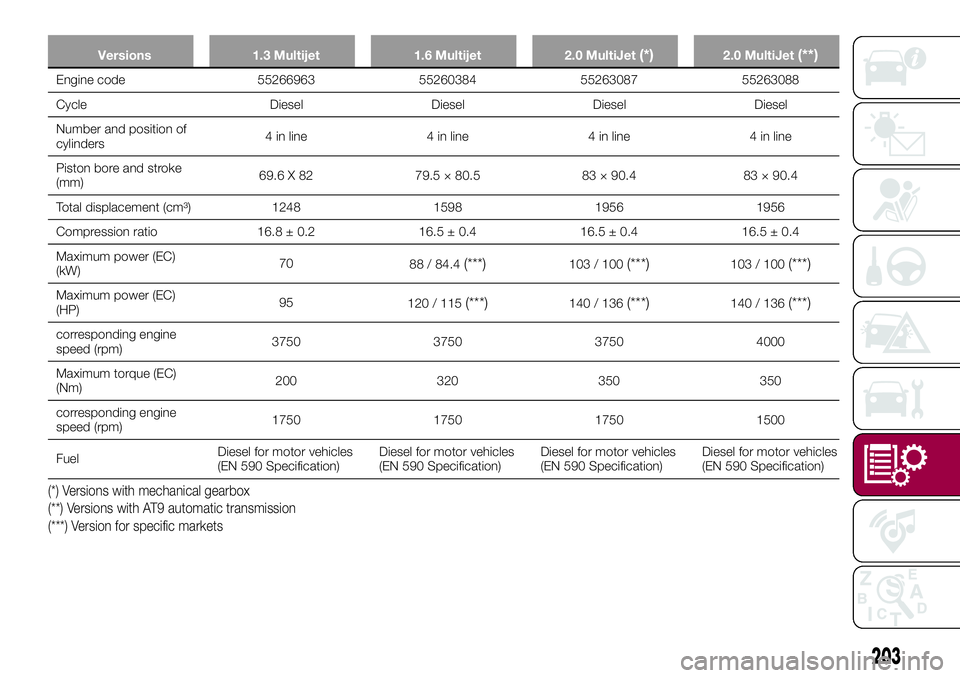

Versions 1.3 Multijet 1.6 Multijet 2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963 55260384 55263087 55263088
Cycle Diesel Diesel Diesel Diesel
Number and position of
cylinders4 in line 4 in line 4 in line 4 in line
Piston bore and stroke
(mm)69.6 X 82 79.5 × 80.5 83 × 90.4 83 × 90.4
Total displacement (cm³) 1248 1598 1956 1956
Compression ratio 16.8 ± 0.2 16.5 ± 0.4 16.5 ± 0.4 16.5 ± 0.4
Maximum power (EC)
(kW)70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP)95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm)3750 3750 3750 4000
Maximum torque (EC)
(Nm)200 320 350 350
corresponding engine
speed (rpm)1750 1750 1750 1500
FuelDiesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
203
