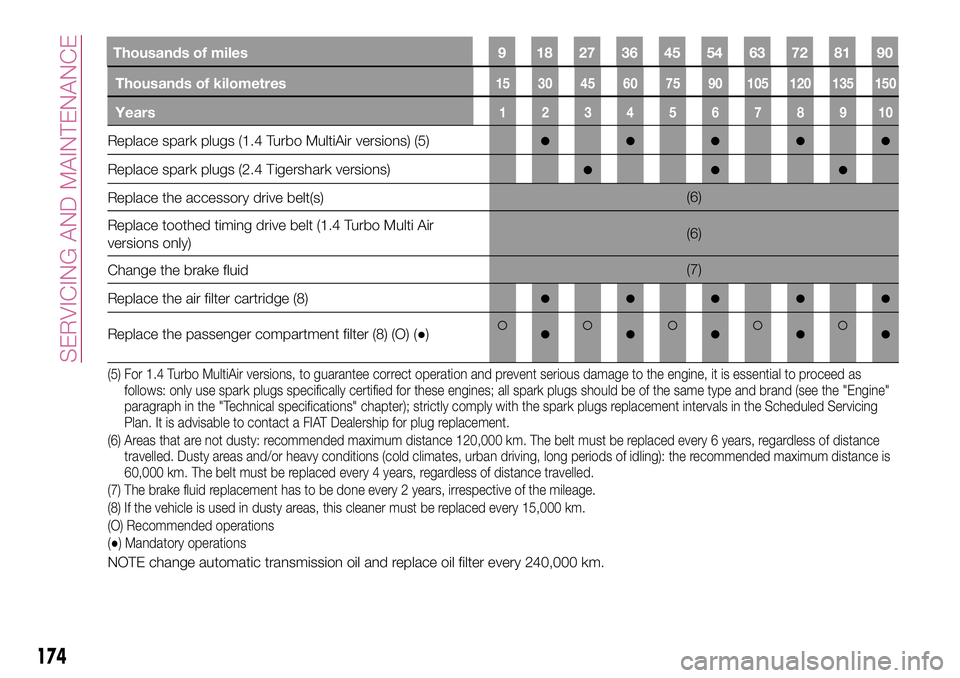

Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Replace spark plugs (1.4 Turbo MultiAir versions) (5)●●●●●
Replace spark plugs (2.4 Tigershark versions)●●●
Replace the accessory drive belt(s)(6)
Replace toothed timing drive belt (1.4 Turbo Multi Air
versions only)(6)
Change the brake fluid(7)
Replace the air filter cartridge (8)
●●●●●
Replace the passenger compartment filter (8) (O) (●)●●●●●
(5) For 1.4 Turbo MultiAir versions, to guarantee correct operation and prevent serious damage to the engine, it is essential to proceed as
follows: only use spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine"
paragraph in the "Technical specifications" chapter); strictly comply with the spark plugs replacement intervals in the Scheduled Servicing
Plan. It is advisable to contact a FIAT Dealership for plug replacement.
(6) Areas that are not dusty: recommended maximum distance 120,000 km. The belt must be replaced every 6 years, regardless of distance
travelled. Dusty areas and/or heavy conditions (cold climates, urban driving, long periods of idling): the recommended maximum distance is
60,000 km. The belt must be replaced every 4 years, regardless of distance travelled.
(7) The brake fluid replacement has to be done every 2 years, irrespective of the mileage.
(8) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(O) Recommended operations
(●) Mandatory operations
NOTE change automatic transmission oil and replace oil filter every 240,000 km.
174
SERVICING AND MAINTENANCE
Thousands of miles 9 18 27 36 45 54 63 72 81 90

176
SERVICING AND MAINTENANCE

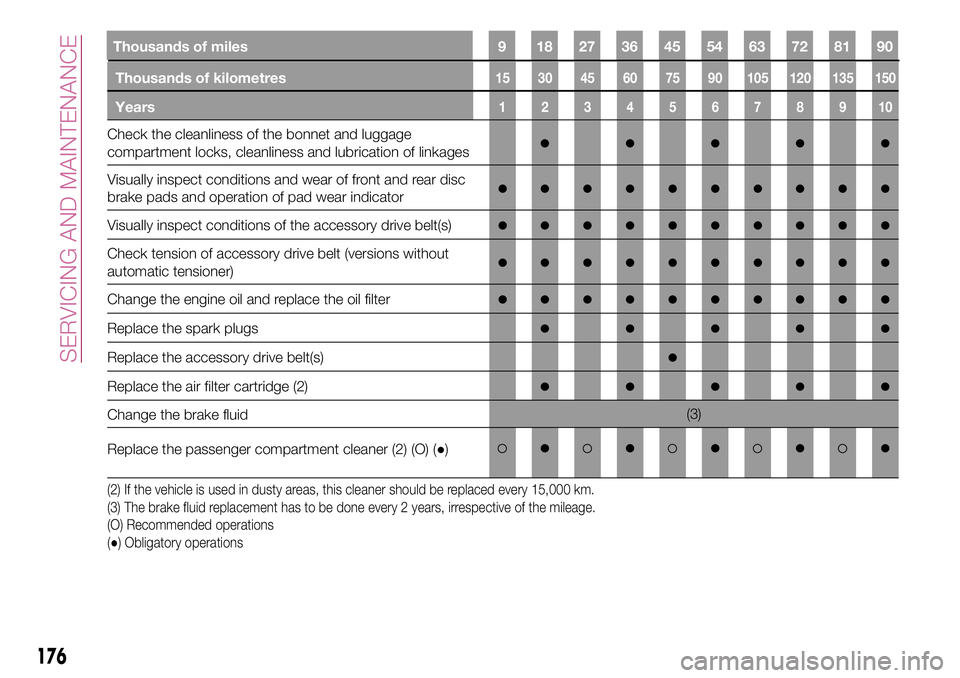

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check the cleanliness of the bonnet and luggage
compartment locks, cleanliness and lubrication of linkages●●●●●
Visually inspect conditions and wear of front and rear disc
brake pads and operation of pad wear indicator●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●●●●●●●●●●
Check tension of accessory drive belt (versions without
automatic tensioner)●●●●●●●●●●
Change the engine oil and replace the oil filter●●●●●●●●●●
Replace the spark plugs●●●●●
Replace the accessory drive belt(s)●
Replace the air filter cartridge (2)●●●●●
Change the brake fluid(3)
Replace the passenger compartment cleaner (2) (O) (●)
●●●●●
(2) If the vehicle is used in dusty areas, this cleaner should be replaced every 15,000 km.
(3) The brake fluid replacement has to be done every 2 years, irrespective of the mileage.
(O) Recommended operations
(●) Obligatory operations
