technical specifications FIAT 500X 2018 Owner handbook (in English)

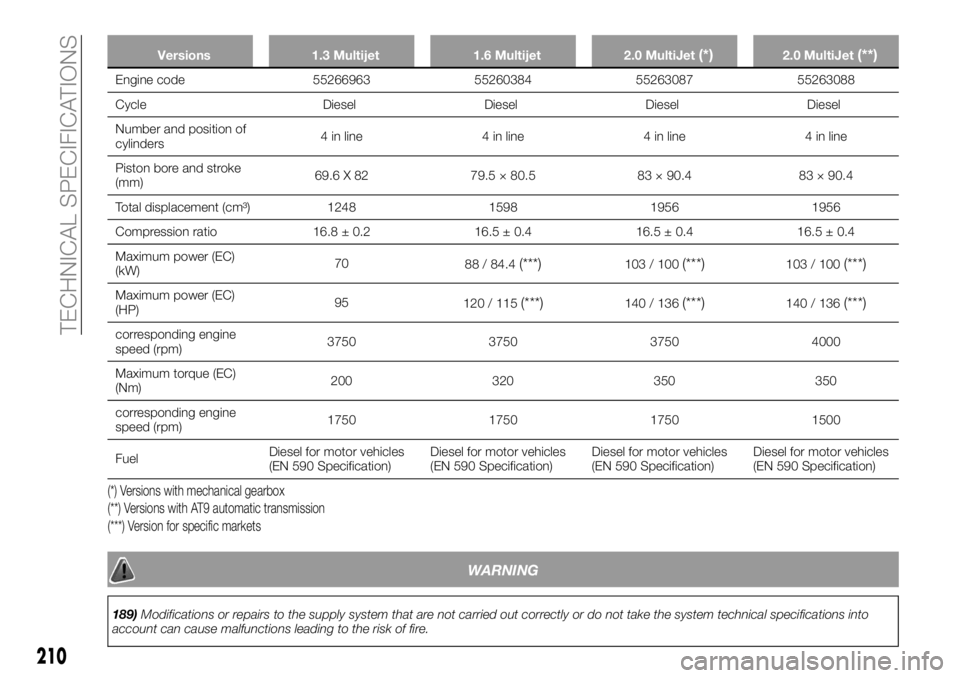

Versions1.3 Multijet 1.6 Multijet2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963552603845526308755263088
Cycle DieselDieselDieselDiesel
Number and position of
cylinders 4 in line
4 in line4 in line4 in line
Piston bore and stroke
(mm) 69.6 X 82
79.5 × 80.5 83 × 90.483 × 90.4
Total displacement (cm³) 1248159819561956
Compression ratio 16.8 ± 0.216.5 ± 0.416.5 ± 0.416.5 ± 0.4
Maximum power (EC)
(kW) 70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP) 95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm) 3750 3750 3750 4000
Maximum torque (EC)
(Nm) 200 320 350 350
corresponding engine
speed (rpm) 1750 1750 1750 1500
Fuel Diesel for motor vehicles
(EN 590 Specification) Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
WARNING
189)
Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
210
TECHNICAL SPECIFICATIONS

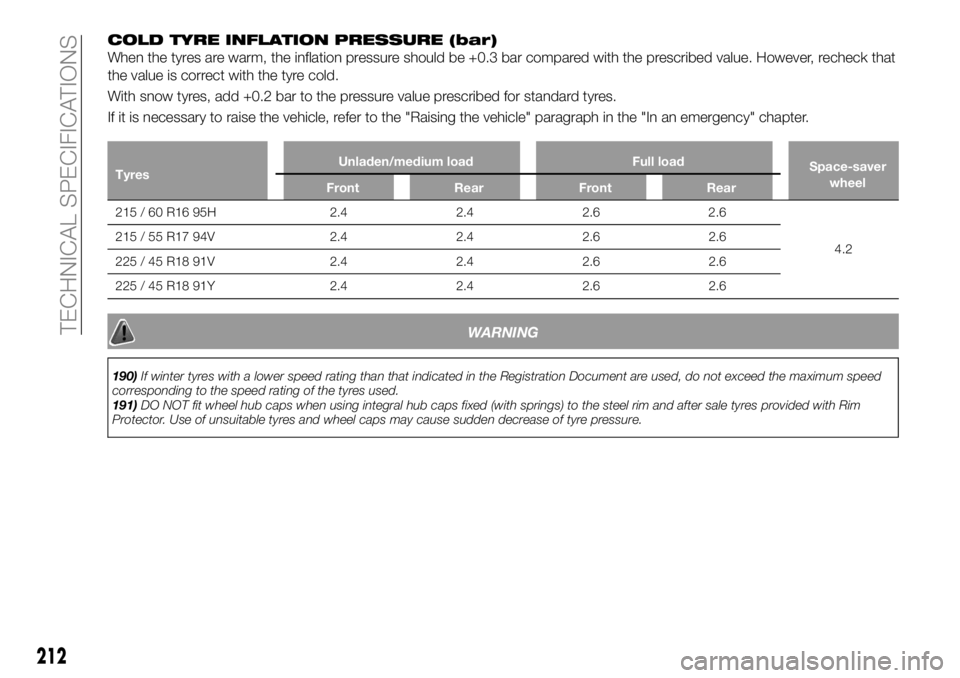

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value. However, recheck that
the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
TyresUnladen/medium load Full load
Space-saver
wheel
Front Rear Front Rear
215 / 60 R16 95H 2.42.42.62.6
4.2
215

/ 55 R17 94V 2.42.42.62.6
225 / 45 R18 91V 2.42.42.62.6
225 / 45 R18 91Y 2.42.42.62.6
WARNING
190)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
191) DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
212
TECHNICAL SPECIFICATIONS

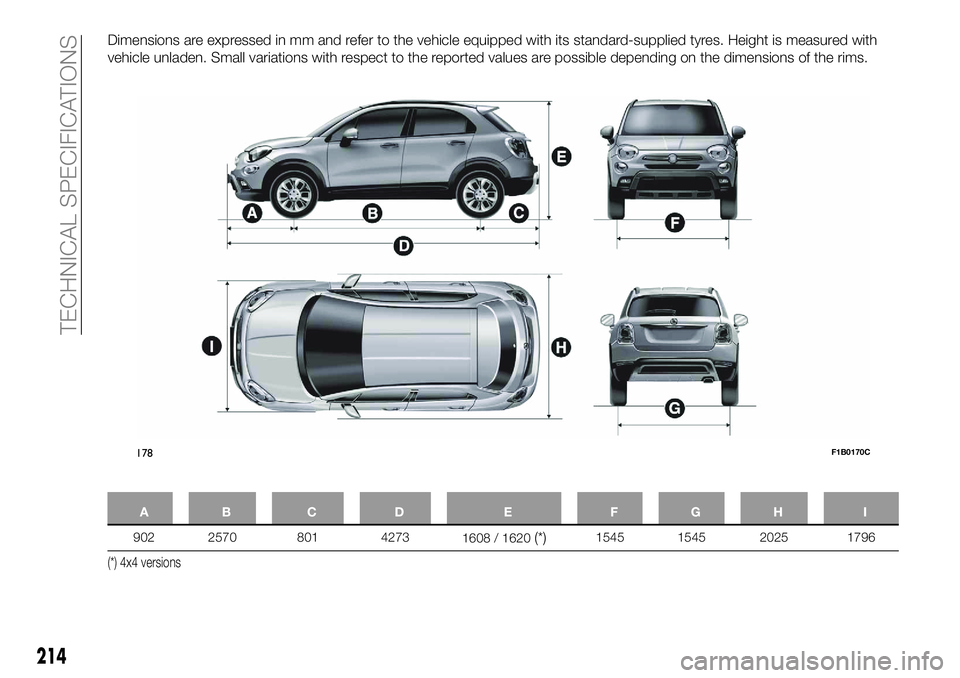

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
902 2570 801 4273 1608
/ 1620(*)1545 1545 2025 1796
(*) 4x4 versions
178F1B0170C
214
TECHNICAL SPECIFICATIONS

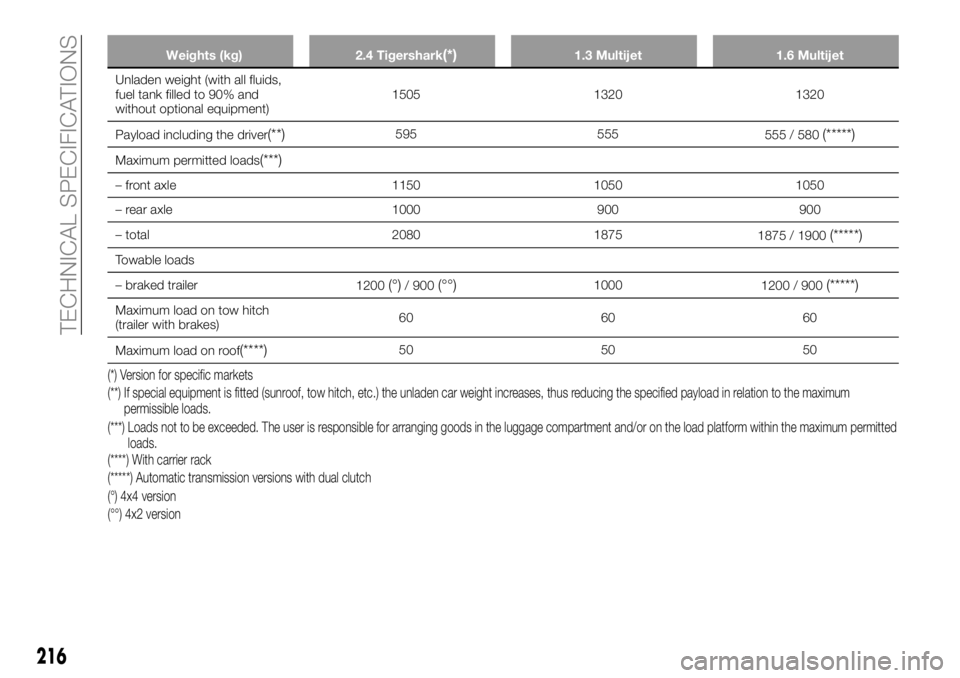

Weights (kg)2.4 Tigershark(*)1.3 Multijet 1.6 Multijet
Unladen weight (with all fluids,
fuel
tank filled to 90% and
without optional equipment) 1505 1320 1320
Payload including the driver
(**)595 555
555 / 580(*****)
Maximum permitted loads(***)
– front axle 115010501050
– rear axle 1000900900
– total 20801875
1875 / 1900
(*****)
Towable loads
– braked trailer 1200
(°)/ 900(°°)10001200 / 900(*****)
Maximum load on tow hitch
(trailer with brakes) 60 60 60
Maximum load on roof
(****)50 5050
(*) Version for specific markets
(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(*****) Automatic transmission versions with dual clutch (***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
(°) 4x4 version
(°°) 4x2 version (****) With carrier rack
216
TECHNICAL SPECIFICATIONS

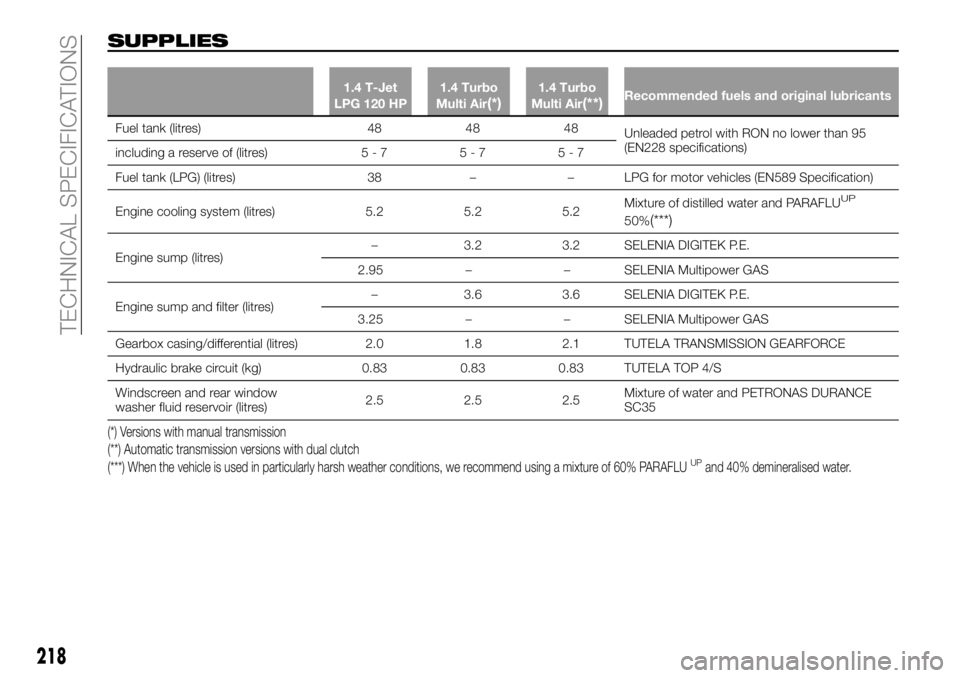

SUPPLIES
1.4 T-Jet
LPG 120 HP 1.4 Turbo
Multi Air(*)1.4 Turbo
Multi Air(**)Recommended fuels and original lubricants
Fuel tank (litres) 484848
Unleaded
petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 7 5 - 7 5 - 7
Fuel tank (LPG) (litres) 38 – – LPG for motor vehicles (EN589 Specification)
Engine cooling system (litres) 5.2 5.2 5.2 Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres)– 3.2 3.2 SELENIA DIGITEK P.E.
2.95 –– SELENIA Multipower GAS
Engine sump and filter (litres) – 3.6 3.6 SELENIA DIGITEK P.E.
3.25 – – SELENIA Multipower GAS
Gearbox casing/differential (litres) 2.0 1.8 2.1 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5 2.5 2.5 Mixture of water and PETRONAS DURANCE
SC35
(*) Versions with manual transmission
(**) Automatic transmission versions with dual clutch
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU
UPand 40% demineralised water.
218
TECHNICAL SPECIFICATIONS

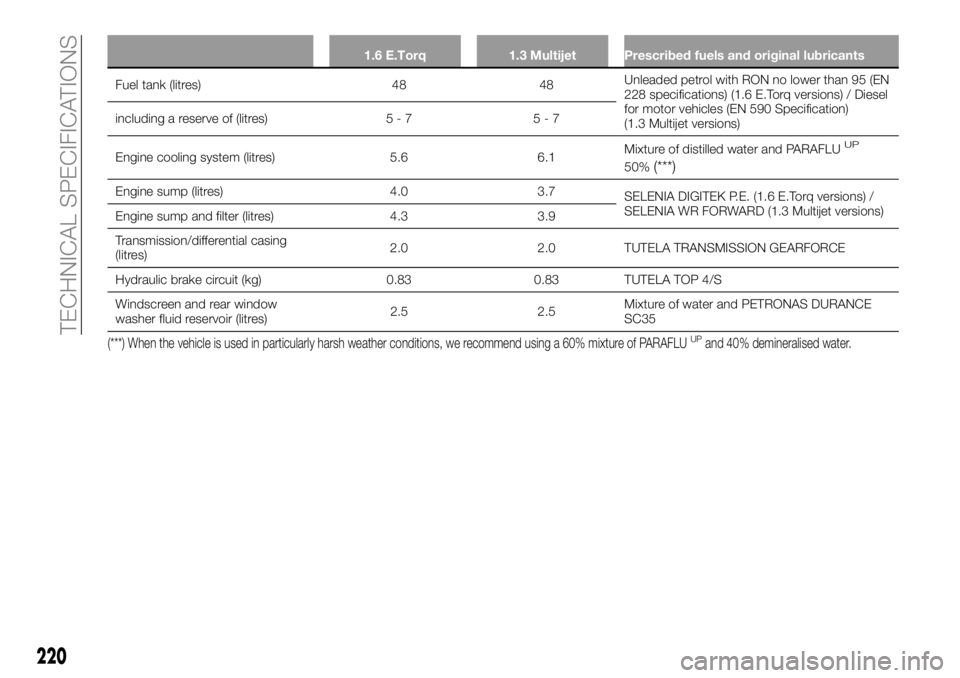

1.6 E.Torq1.3 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 4848Unleaded
petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.6 6.1 Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres)
4.03.7
SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD (1.3 Multijet versions)
Engine sump and filter (litres) 4.33.9
Transmission/differential casing
(litres) 2.0
2.0TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.830.83TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5
2.5Mixture of water and PETRONAS DURANCE
SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised water.
220
TECHNICAL SPECIFICATIONS

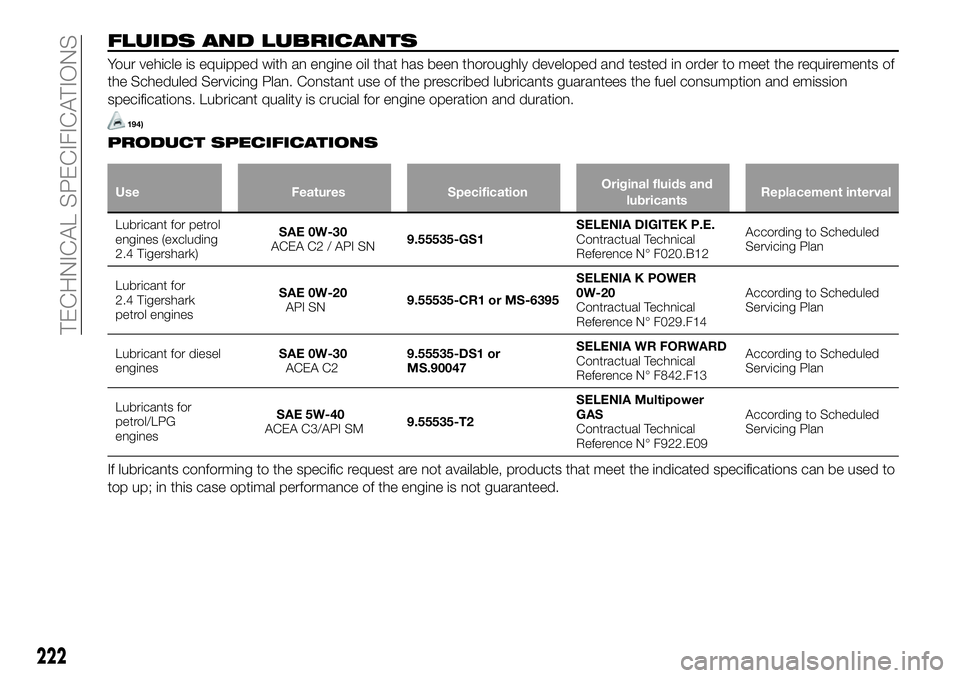

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
UseFeaturesSpecificationOriginal fluids and
lubricants Replacement interval
Lubricant for petrol
engines
(excluding
2.4 Tigershark) SAE 0W-30
ACEA C2 / API SN 9.55535-GS1 SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for
2.4 Tigershark
petrol engines SAE 0W-20
API SN 9.55535-CR1 or MS-6395 SELENIA K POWER
0W-20
Contractual Technical
Reference N° F029.F14According to Scheduled
Servicing Plan
Lubricant for diesel
engines SAE 0W-30
ACEA C2 9.55535-DS1 or
MS.90047 SELENIA WR FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG
engines SAE 5W-40
ACEA C3/API SM 9.55535-T2 SELENIA Multipower
GAS
Contractual Technical
Reference N° F922.E09According to Scheduled
Servicing Plan
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
222
TECHNICAL SPECIFICATIONS
194)

UseFeaturesSpecificationOriginal fluids and
lubricants Applications
Lubricants and
gr
eases for drive
transmission SAE 75W-90 API
GL5 grade synthetic
lubricant.
9.55550-DA6TUTELA
TRANSMISSION B-5X
Contractual Technical
Reference N° F006.A14 Transfer unit (PTU -
4x4 versions)
SAE 75W-90 API
GL5 grade synthetic
lubricant. 9.55550-DA7TUTELA
TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference N° F007.A14Rear differential
(4x4 versions)
Brake fluid Synthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704. 9.55597 or MS.90039
TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiators Red protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.
9.55523 or MS.90032
PARAFLU
UP
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLU
UP(**)
Windscreen/rear
window washer fluid
Mixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.
9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%
PARAFLUUPand 40% demineralised water.
IMPORTANT
104)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by
the warranty.
224
TECHNICAL SPECIFICATIONS

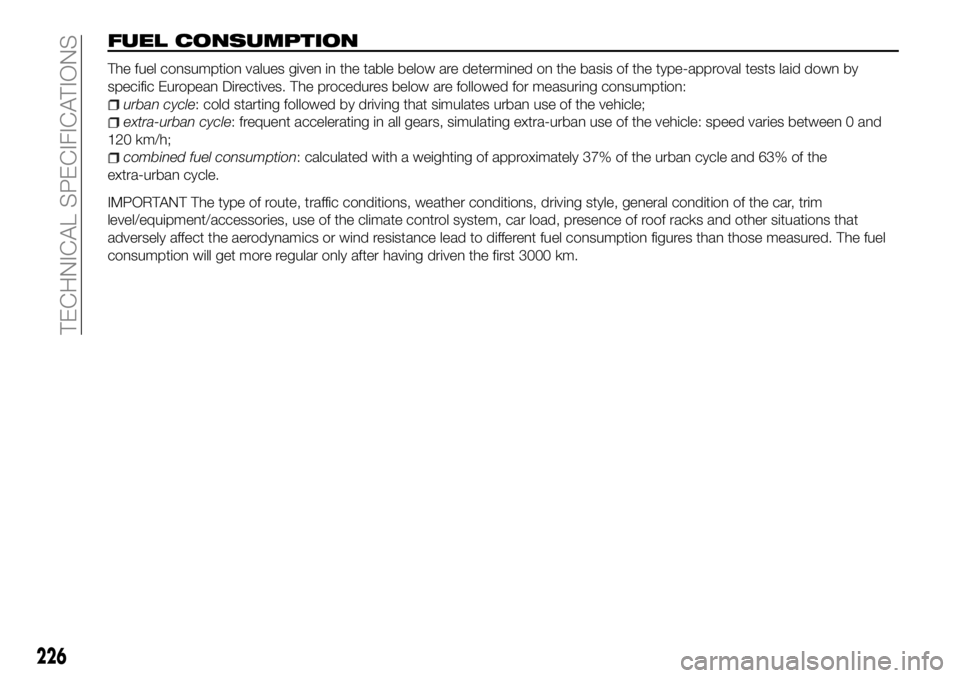

FUEL CONSUMPTION
The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives. The procedures below are followed for measuring consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the vehicle: speed varies between 0 and
120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the
extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption figures than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
226
TECHNICAL SPECIFICATIONS

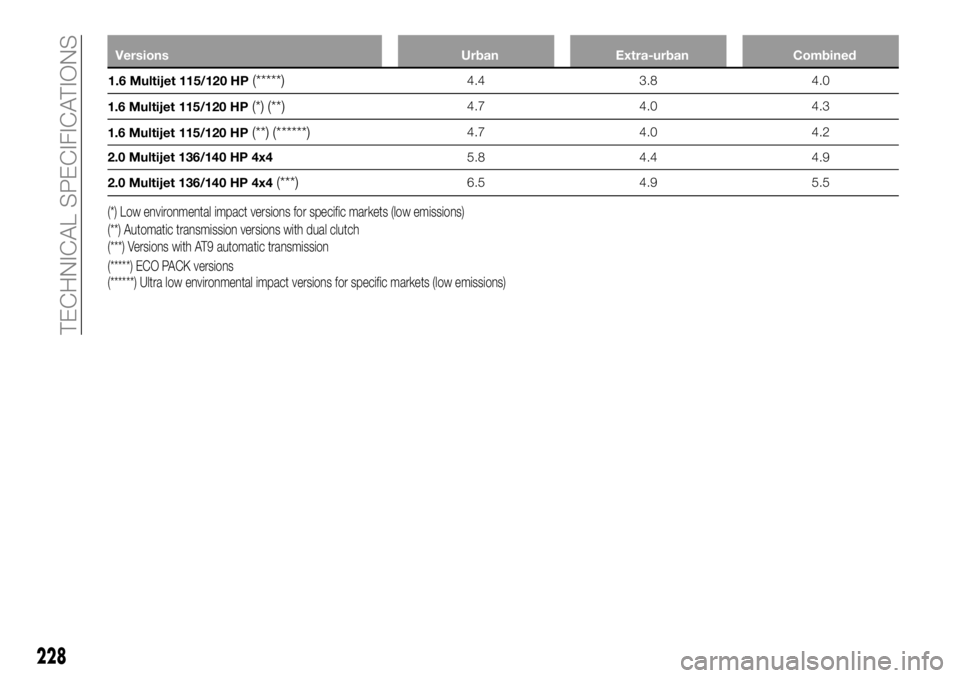

VersionsUrbanExtra-urban Combined
1.6 Multijet 115/120 HP
(*****)4.4 3.84.0
1.6 Multijet 115/120 HP
(*) (**)4.7 4.04.3
1.6 Multijet 115/120 HP
(**) (******)4.7 4.04.2
2.0 Multijet 136/140 HP 4x4 5.84.44.9
2.0 Multijet 136/140 HP 4x4
(***)6.5 4.95.5
(*****) ECO PACK versions (*) Low environmental impact versions for specific markets (low emissions)
(**) Automatic transmission versions with dual clutch
(******) Ultra low environmental impact versions for specific markets (low emissions) (***) Versions with AT9 automatic transmission
228
