ENGINE
189)
Versions1.4 T-Jet LPG 120 HP 1.4 Turbo Multi Air
136/140 HP 1.4 Turbo Multi Air
163/170 HP
Engine code 552777015526362455263623
Cycle
OttoOttoOtto
Number and position of
cylinders 4 in line
4 in line4 in line
Piston bore and stroke (mm) 72 × 8472 × 8472 × 84
Total displacement (cm³) 136813681368
Compression ratio 9.8 ± 0.210.0 ± 0.210.0 ± 0.2
LPG PETROL
Maximum power (EC) (kW) 8888 100
(*)/ 103 120(**)/ 125
Maximum power (EEC) (HP) 120 120 136
(*)/ 140163(**)/ 170
corresponding engine speed
(rpm) 5000 5000 5000 5500
Maximum torque (EEC) (Nm) 215 215 230 250
corresponding engine speed
(rpm) 2500 2500 1750 2500
Spark plugs NGK IKR9J8 NGK IKR9J8 NGK IKR9J8
Fuel LPG for motor
vehicles
(EN589 Specification) Unleaded petrol
95 R.O.N.
(EN228 specifications) Unleaded petrol 95 R.O.N.
(EN228 specifications) Unleaded petrol 95 R.O.N.
(EN228 specifications)
(*) 1.4 Turbo Multi Air 136 HP version
(**) 1.4 Turbo Multi Air 163 HP version
208
TECHNICAL SPECIFICATIONS

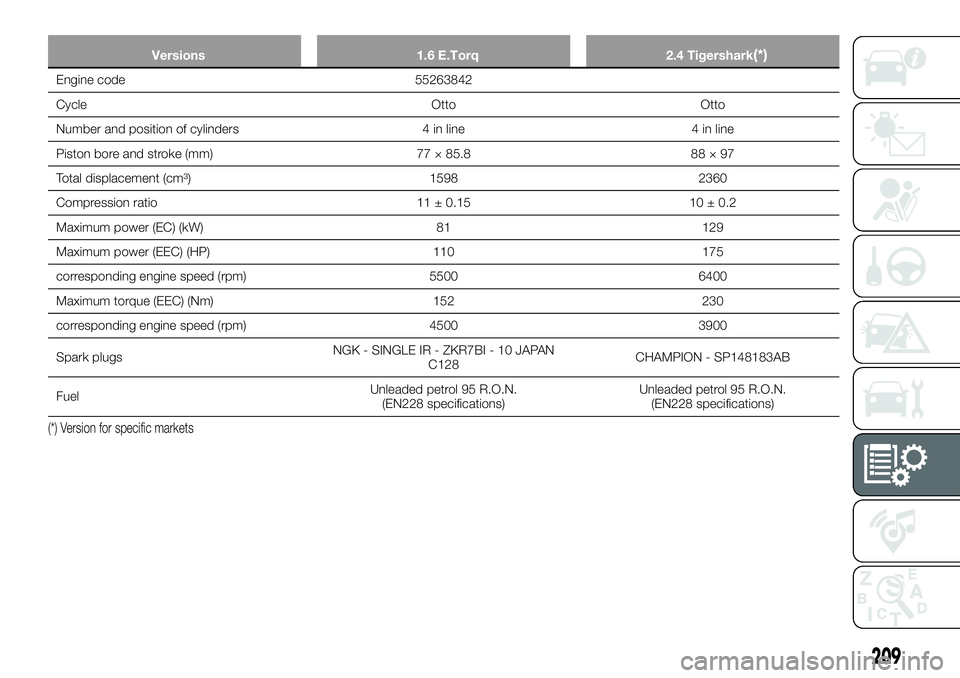

Versions1.6 E.Torq2.4 Tigershark(*)
Engine code 55263842
Cycle OttoOtto
Number and position of cylinders 4 in line4 in line
Piston bore and stroke (mm) 77 × 85.888 × 97
Total displacement (cm³) 15982360
Compression ratio 11 ± 0.1510 ± 0.2
Maximum power (EC) (kW) 81129
Maximum power (EEC) (HP) 110175
corresponding engine speed (rpm) 55006400
Maximum torque (EEC) (Nm) 152230
corresponding engine speed (rpm) 45003900
Spark plugs NGK - SINGLE IR - ZKR7BI - 10 JAPAN
C128 CHAMPION - SP148183AB
Fuel Unleaded petrol 95 R.O.N.
(EN228 specifications) Unleaded petrol 95 R.O.N.
(EN228 specifications)
(*) Version for specific markets
209

Versions1.3 Multijet 1.6 Multijet2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963552603845526308755263088
Cycle DieselDieselDieselDiesel
Number and position of
cylinders 4 in line
4 in line4 in line4 in line
Piston bore and stroke
(mm) 69.6 X 82
79.5 × 80.5 83 × 90.483 × 90.4
Total displacement (cm³) 1248159819561956
Compression ratio 16.8 ± 0.216.5 ± 0.416.5 ± 0.416.5 ± 0.4
Maximum power (EC)
(kW) 70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP) 95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm) 3750 3750 3750 4000
Maximum torque (EC)
(Nm) 200 320 350 350
corresponding engine
speed (rpm) 1750 1750 1750 1500
Fuel Diesel for motor vehicles
(EN 590 Specification) Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
WARNING
189)
Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
210
