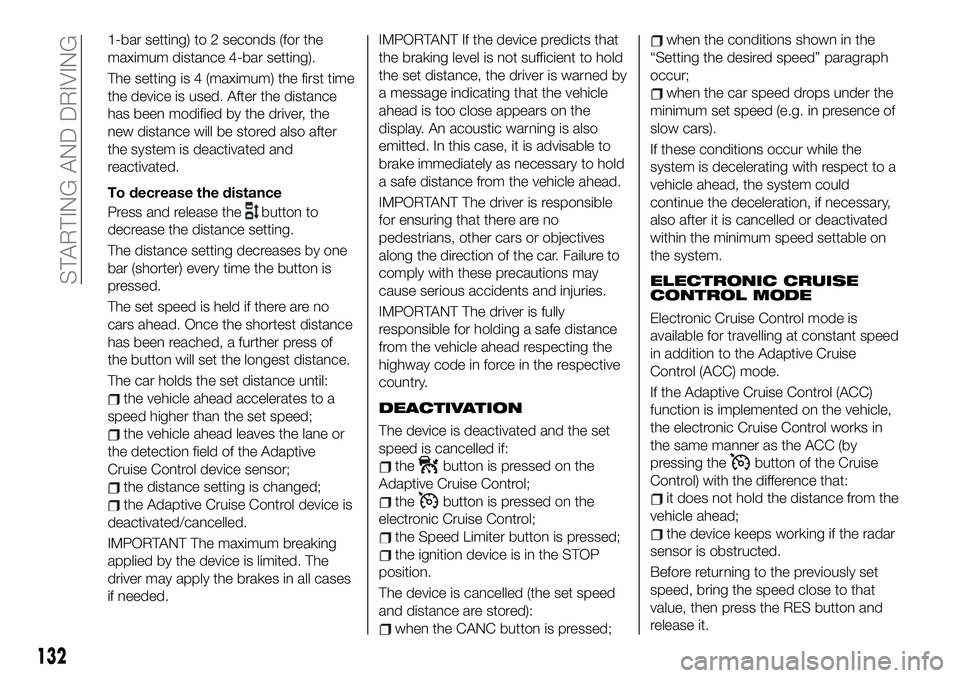

1-bar setting) to 2 seconds (for the
maximum distance 4-bar setting).
The setting is 4 (maximum) the first time
the device is used. After the distance
has been modified by the driver, the
new distance will be stored also after
the system is deactivated and
reactivated.
To decrease the distance
Press and release the
button to
decrease the distance setting.
The distance setting decreases by one
bar (shorter) every time the button is
pressed.
The set speed is held if there are no
cars ahead. Once the shortest distance
has been reached, a further press of
the button will set the longest distance.
The car holds the set distance until:
the vehicle ahead accelerates to a
speed higher than the set speed;
the vehicle ahead leaves the lane or
the detection field of the Adaptive
Cruise Control device sensor;
the distance setting is changed;
the Adaptive Cruise Control device is
deactivated/cancelled.
IMPORTANT The maximum breaking
applied by the device is limited. The
driver may apply the brakes in all cases
if needed.IMPORTANT If the device predicts that
the braking level is not sufficient to hold
the set distance, the driver is warned by
a message indicating that the vehicle
ahead is too close appears on the
display. An acoustic warning is also
emitted. In this case, it is advisable to
brake immediately as necessary to hold
a safe distance from the vehicle ahead.
IMPORTANT The driver is responsible
for ensuring that there are no
pedestrians, other cars or objectives
along the direction of the car. Failure to
comply with these precautions may
cause serious accidents and injuries.
IMPORTANT The driver is fully
responsible for holding a safe distance
from the vehicle ahead respecting the
highway code in force in the respective
country.
DEACTIVATION
The device is deactivated and the set
speed is cancelled if:
thebutton is pressed on the
Adaptive Cruise Control;
thebutton is pressed on the
electronic Cruise Control;
the Speed Limiter button is pressed;
the ignition device is in the STOP
position.
The device is cancelled (the set speed
and distance are stored):
when the CANC button is pressed;
when the conditions shown in the
“Setting the desired speed” paragraph
occur;
when the car speed drops under the
minimum set speed (e.g. in presence of
slow cars).
If these conditions occur while the
system is decelerating with respect to a
vehicle ahead, the system could
continue the deceleration, if necessary,
also after it is cancelled or deactivated
within the minimum speed settable on
the system.
ELECTRONIC CRUISE
CONTROL MODE
Electronic Cruise Control mode is
available for travelling at constant speed
in addition to the Adaptive Cruise
Control (ACC) mode.
If the Adaptive Cruise Control (ACC)
function is implemented on the vehicle,
the electronic Cruise Control works in
the same manner as the ACC (by
pressing the
button of the Cruise
Control) with the difference that:
it does not hold the distance from the
vehicle ahead;
the device keeps working if the radar
sensor is obstructed.
Before returning to the previously set
speed, bring the speed close to that
value, then press the RES button and
release it.
132
STARTING AND DRIVING

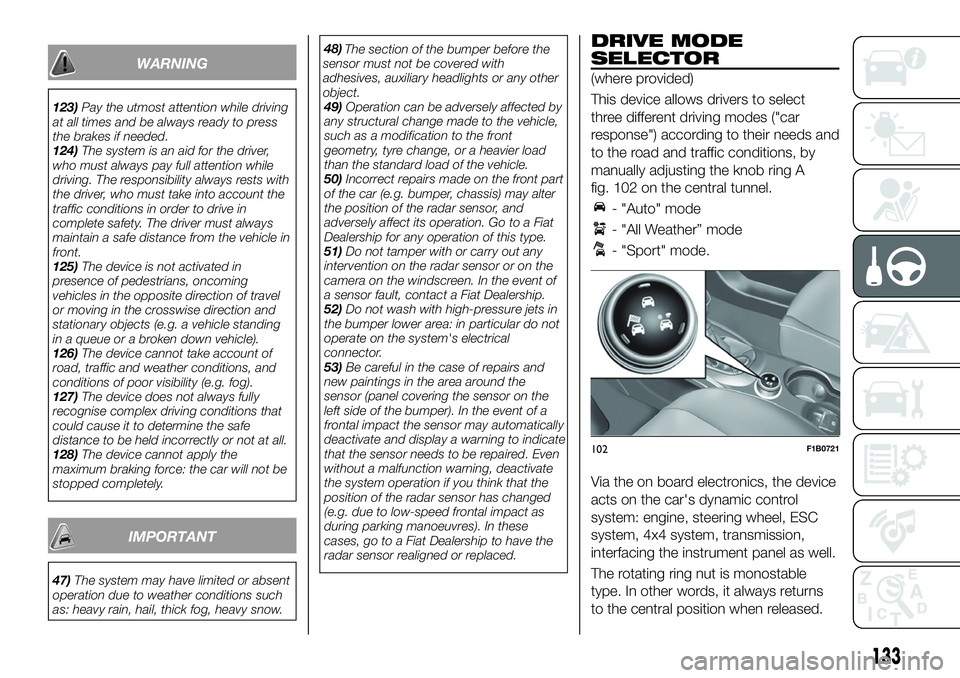

WARNING
123)Pay the utmost attention while driving
at all times and be always ready to press
the brakes if needed.
124)The system is an aid for the driver,
who must always pay full attention while
driving. The responsibility always rests with
the driver, who must take into account the
traffic conditions in order to drive in
complete safety. The driver must always
maintain a safe distance from the vehicle in
front.
125)The device is not activated in
presence of pedestrians, oncoming
vehicles in the opposite direction of travel
or moving in the crosswise direction and
stationary objects (e.g. a vehicle standing
in a queue or a broken down vehicle).
126)The device cannot take account of
road, traffic and weather conditions, and
conditions of poor visibility (e.g. fog).
127)The device does not always fully
recognise complex driving conditions that
could cause it to determine the safe
distance to be held incorrectly or not at all.
128)The device cannot apply the
maximum braking force: the car will not be
stopped completely.
IMPORTANT
47)The system may have limited or absent
operation due to weather conditions such
as: heavy rain, hail, thick fog, heavy snow.48)
49)Operation can be adversely affected by
any structural change made to the vehicle,
such as a modification to the front
geometry, tyre change, or a heavier load
than the standard load of the vehicle.
50)Incorrect repairs made on the front part
of the car (e.g. bumper, chassis) may alter
the position of the radar sensor, and
adversely affect its operation. Go to a Fiat
Dealership for any operation of this type.
51)Do not tamper with or carry out any
intervention on the radar sensor or on the
camera on the windscreen. In the event of
a sensor fault, contact a Fiat Dealership.
52)Do not wash with high-pressure jets in
the bumper lower area: in particular do not
operate on the system's electrical
connector.
53)Be careful in the case of repairs and
new paintings in the area around the
sensor (panel covering the sensor on the
left side of the bumper). In the event of a
frontal impact the sensor may automatically
deactivate and display a warning to indicate
that the sensor needs to be repaired. Even
without a malfunction warning, deactivate
the system operation if you think that the
position of the radar sensor has changed
(e.g. due to low-speed frontal impact as
during parking manoeuvres). In these
cases, go to a Fiat Dealership to have the
radar sensor realigned or replaced.
DRIVE MODE
SELECTOR
(where provided)
This device allows drivers to select
three different driving modes ("car
response") according to their needs and
to the road and traffic conditions, by
manually adjusting the knob ring A
fig. 102 on the central tunnel.
- "Auto" mode
- "All Weather” mode
- "Sport" mode.
Via the on board electronics, the device
acts on the car's dynamic control
system: engine, steering wheel, ESC
system, 4x4 system, transmission,
interfacing the instrument panel as well.
The rotating ring nut is monostable
type. In other words, it always returns
to the central position when released.
102F1B0721
133

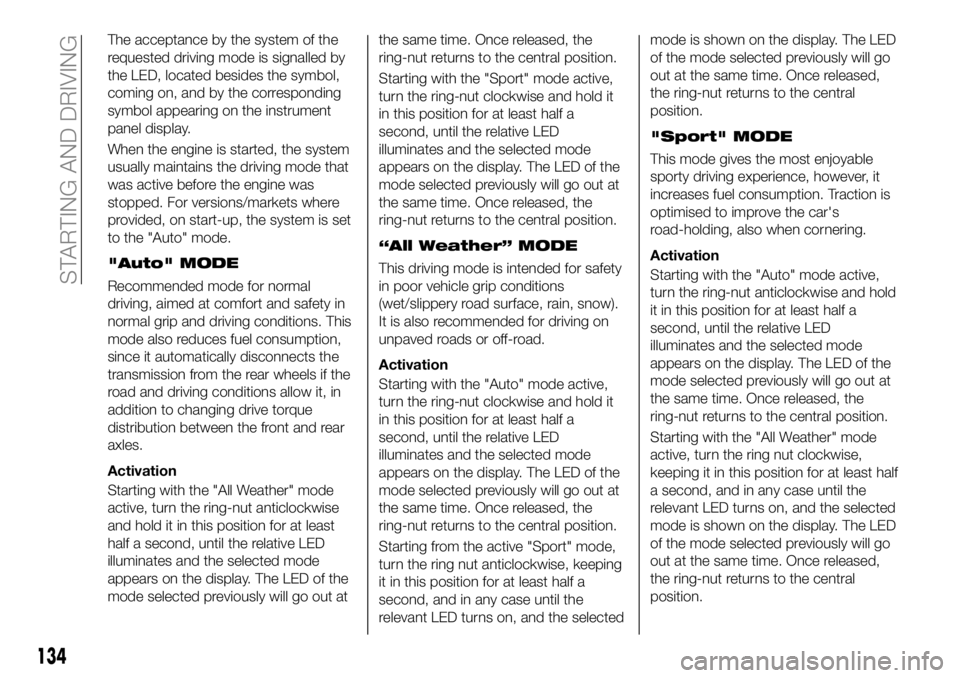

The section of the bumper before the
sensor must not be covered with
adhesives, auxiliary headlights or any other
object.

The acceptance by the system of the
requested driving mode is signalled by
the LED, located besides the symbol,
coming on, and by the corresponding
symbol appearing on the instrument
panel display.
When the engine is started, the system
usually maintains the driving mode that
was active before the engine was
stopped. For versions/markets where
provided, on start-up, the system is set
to the "Auto" mode.
"Auto" MODE
Recommended mode for normal
driving, aimed at comfort and safety in
normal grip and driving conditions. This
mode also reduces fuel consumption,
since it automatically disconnects the
transmission from the rear wheels if the
road and driving conditions allow it, in
addition to changing drive torque
distribution between the front and rear
axles.
Activation
Starting with the "All Weather" mode
active, turn the ring-nut anticlockwise
and hold it in this position for at least
half a second, until the relative LED
illuminates and the selected mode
appears on the display. The LED of the
mode selected previously will go out atthe same time. Once released, the
ring-nut returns to the central position.
Starting with the "Sport" mode active,
turn the ring-nut clockwise and hold it
in this position for at least half a
second, until the relative LED
illuminates and the selected mode
appears on the display. The LED of the
mode selected previously will go out at
the same time. Once released, the
ring-nut returns to the central position.
“All Weather” MODE
This driving mode is intended for safety
in poor vehicle grip conditions
(wet/slippery road surface, rain, snow).
It is also recommended for driving on
unpaved roads or off-road.
Activation
Starting with the "Auto" mode active,
turn the ring-nut clockwise and hold it
in this position for at least half a
second, until the relative LED
illuminates and the selected mode
appears on the display. The LED of the
mode selected previously will go out at
the same time. Once released, the
ring-nut returns to the central position.
Starting from the active "Sport" mode,
turn the ring nut anticlockwise, keeping
it in this position for at least half a
second, and in any case until the
relevant LED turns on, and the selectedmode is shown on the display. The LED
of the mode selected previously will go
out at the same time. Once released,
the ring-nut returns to the central
position.
"Sport" MODE
This mode gives the most enjoyable
sporty driving experience, however, it
increases fuel consumption. Traction is
optimised to improve the car's
road-holding, also when cornering.
Activation
Starting with the "Auto" mode active,
turn the ring-nut anticlockwise and hold
it in this position for at least half a
second, until the relative LED
illuminates and the selected mode
appears on the display. The LED of the
mode selected previously will go out at
the same time. Once released, the
ring-nut returns to the central position.
Starting with the "All Weather" mode
active, turn the ring nut clockwise,
keeping it in this position for at least half
a second, and in any case until the
relevant LED turns on, and the selected
mode is shown on the display. The LED
of the mode selected previously will go
out at the same time. Once released,
the ring-nut returns to the central
position.
134
STARTING AND DRIVING

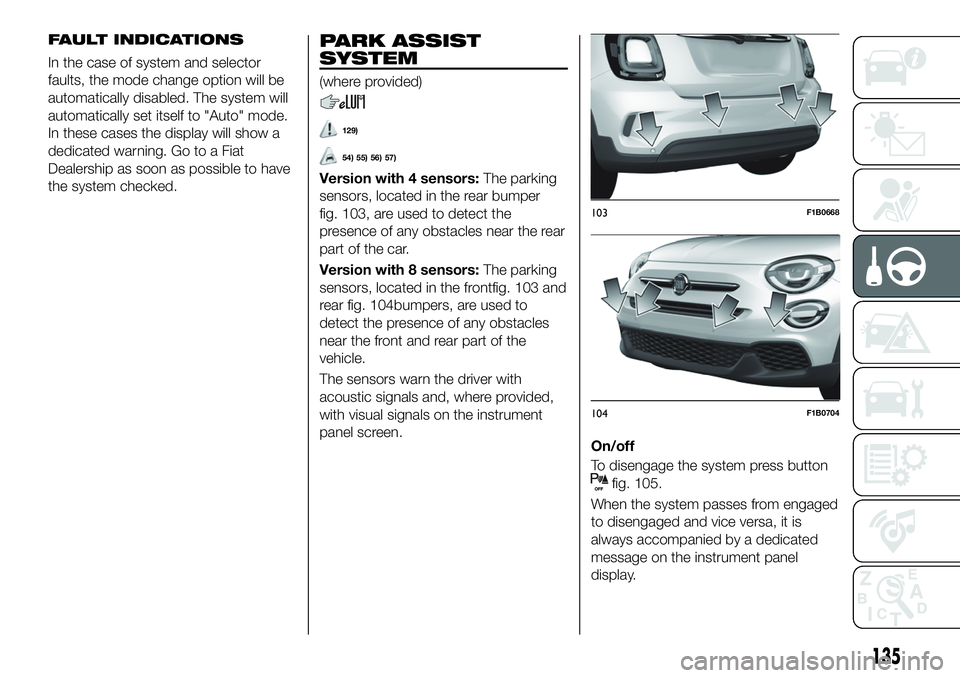

FAULT INDICATIONS
In the case of system and selector
faults, the mode change option will be
automatically disabled. The system will
automatically set itself to "Auto" mode.
In these cases the display will show a
dedicated warning. Go to a Fiat
Dealership as soon as possible to have
the system checked.
PARK ASSIST
SYSTEM
(where provided)
129)
54) 55) 56) 57)
Version with 4 sensors:The parking
sensors, located in the rear bumper
fig. 103, are used to detect the
presence of any obstacles near the rear
part of the car.
Version with 8 sensors:The parking
sensors, located in the frontfig. 103 and
rear fig. 104bumpers, are used to
detect the presence of any obstacles
near the front and rear part of the
vehicle.
The sensors warn the driver with
acoustic signals and, where provided,
with visual signals on the instrument
panel screen.
On/off
To disengage the system press button
fig. 105.
When the system passes from engaged
to disengaged and vice versa, it is
always accompanied by a dedicated
message on the instrument panel
display.
103F1B0668
104F1B0704
135

55)Have interventions on the bumper in
the area of the sensors carried out only by
a Fiat Dealership. Interventions on the
bumper that are not carried out properly
may compromise the operation of the
parking sensors.
56)Only have the bumpers repainted or
any retouches to the paintwork in the area
of the sensors carried out by a Fiat
Dealership. Incorrect paint application
could affect the operation of the parking
sensors.
57)The rear sensors may provide a false
reading, interpreting the tow hook ball
assembly and the respective attachment as
an obstacle in the area behind the car.LANE ASSIST
SYSTEM (lane
crossing warning)

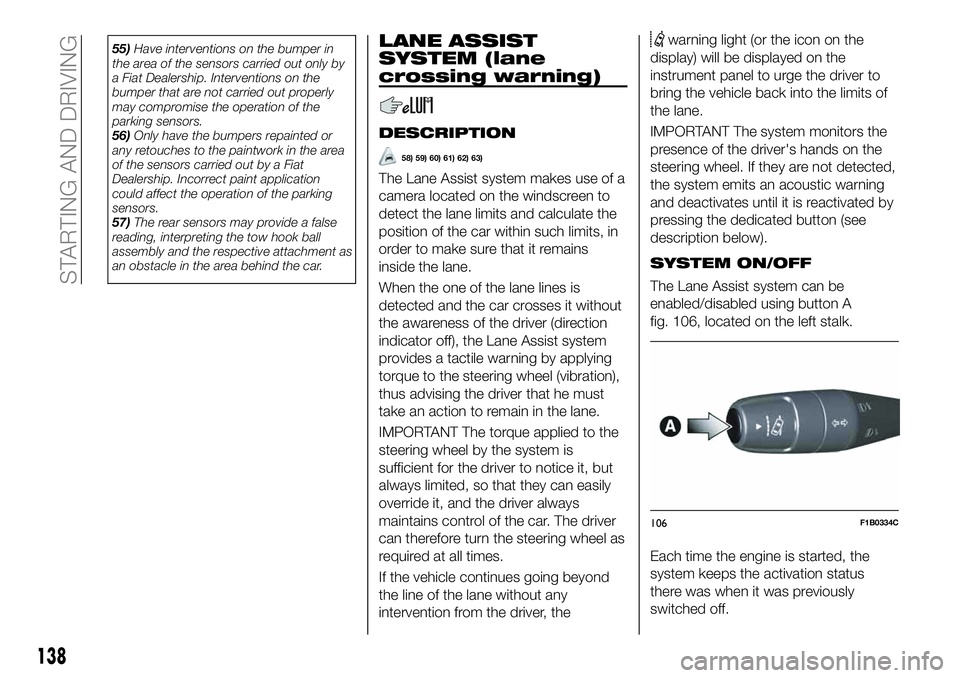

DESCRIPTION
58) 59) 60) 61) 62) 63)
The Lane Assist system makes use of a
camera located on the windscreen to
detect the lane limits and calculate the
position of the car within such limits, in
order to make sure that it remains
inside the lane.
When the one of the lane lines is
detected and the car crosses it without
the awareness of the driver (direction
indicator off), the Lane Assist system
provides a tactile warning by applying
torque to the steering wheel (vibration),
thus advising the driver that he must
take an action to remain in the lane.
IMPORTANT The torque applied to the
steering wheel by the system is
sufficient for the driver to notice it, but
always limited, so that they can easily
override it, and the driver always
maintains control of the car. The driver
can therefore turn the steering wheel as
required at all times.
If the vehicle continues going beyond
the line of the lane without any
intervention from the driver, the
warning light (or the icon on the
display) will be displayed on the
instrument panel to urge the driver to
bring the vehicle back into the limits of
the lane.
IMPORTANT The system monitors the
presence of the driver's hands on the
steering wheel. If they are not detected,
the system emits an acoustic warning
and deactivates until it is reactivated by
pressing the dedicated button (see
description below).
SYSTEM ON/OFF
The Lane Assist system can be
enabled/disabled using button A
fig. 106, located on the left stalk.
Each time the engine is started, the
system keeps the activation status
there was when it was previously
switched off.
106F1B0334C
138
STARTING AND DRIVING

On some versions, a dedicated
message appears on the display when
it is activated and deactivated.
Activation conditions
Once switched on, the system
becomes active only if the following
conditions are met:
the driver always keeps at least one
hand on the steering wheel;
vehicle speed ranges between
60 km/h and 180 km/h;
one of the lane lines is perfectly
visible;
there are suitable visibility conditions;
the road is straight or with wide
radius bends;
a suitable distance is kept from the
vehicle in front;
the direction indicator (for leaving the
lane) is not active;
NOTE The system does not apply the
vibration to the steering wheel every
time a safety system is activated
(brakes, ABS, ASR system, ESC
system, Full Brake Control system,
etc.).
IMPORTANT
58)Projecting loads on the roof of the
vehicle may interfere with the correct
operation of the camera. Before starting
make sure the load is correctly positioned,
in order not to cover the camera operating
range.
59)If the windscreen must be replaced due
to scratches, chipping or breakage, contact
exclusively a Fiat Dealership. Do not
replace the windscreen on your own, risk of
malfunction! It is advisable to replace the
windscreen if it is damaged in the area of
the camera.
60)Do not tamper with nor operate on the
camera. Do not close the openings in the
aesthetic cover located under the interior
rear view mirror. In the event of a failure of
the camera, contact a Fiat Dealership.
61)Do not cover the operating range of the
camera with stickers or other objects. Also
pay attention to other objects on the
bonnet (e.g. a layer of snow) and make
sure they do not interfere with the camera.
62)The camera may have limited or absent
operation due to weather conditions such
as: heavy rain, hail, thick fog, heavy snow,
formation of ice layers on the windscreen.63)Camera operation may also be
compromised by the presence of dust,
condensation, dirt or ice on the
windscreen, by traffic conditions (e.g.
vehicles that are driving not aligned with
yours, vehicle driving in a transverse or
opposite way on the same lane, bend with
a small radius of curvature), by road
surface conditions and by driving
conditions (e.g. off-road driving). Make sure
the windscreen is always clean. Use
specific detergents and clean cloths to
avoid scratching the windscreen. The
camera operation may also be limited or
absent in some driving, traffic and road
surface conditions.
139

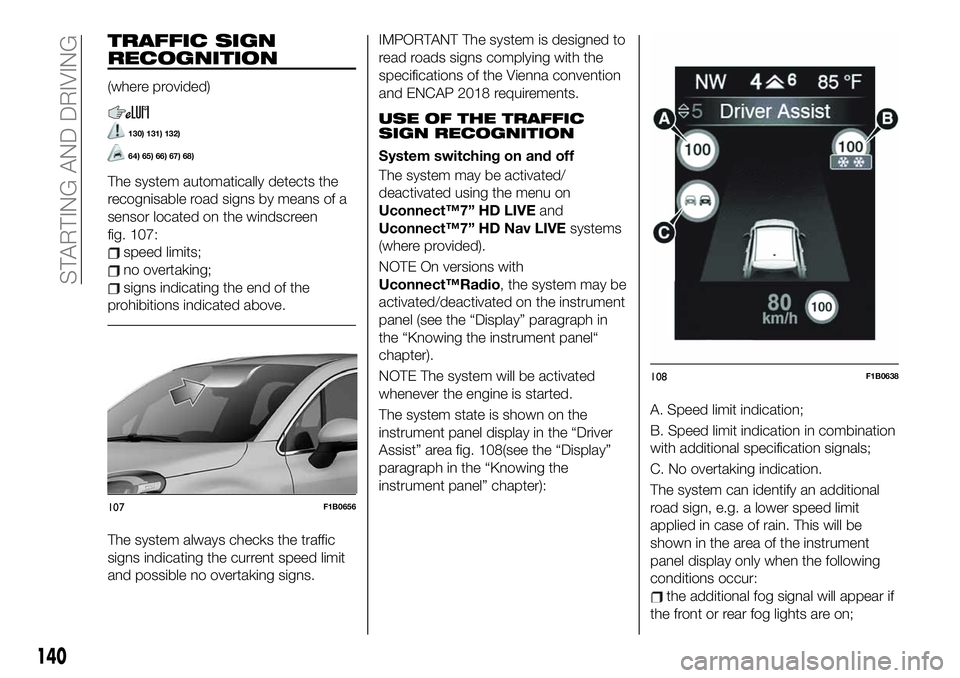

TRAFFIC SIGN
RECOGNITION
(where provided)
130) 131) 132)
64) 65) 66) 67) 68)
The system automatically detects the
recognisable road signs by means of a
sensor located on the windscreen
fig. 107:
speed limits;
no overtaking;
signs indicating the end of the
prohibitions indicated above.
The system always checks the traffic
signs indicating the current speed limit
and possible no overtaking signs.
IMPORTANT The system is designed to
read roads signs complying with the
specifications of the Vienna convention
and ENCAP 2018 requirements.
USE OF THE TRAFFIC
SIGN RECOGNITION
System switching on and off
The system may be activated/
deactivated using the menu on
Uconnect™7” HD LIVEand
Uconnect™7” HD Nav LIVEsystems
(where provided).
NOTE On versions with
Uconnect™Radio, the system may be
activated/deactivated on the instrument
panel (see the “Display” paragraph in
the “Knowing the instrument panel“
chapter).
NOTE The system will be activated
whenever the engine is started.
The system state is shown on the
instrument panel display in the “Driver
Assist” area fig. 108(see the “Display”
paragraph in the “Knowing the
instrument panel” chapter):A. Speed limit indication;
B. Speed limit indication in combination
with additional specification signals;
C. No overtaking indication.
The system can identify an additional
road sign, e.g. a lower speed limit
applied in case of rain. This will be
shown in the area of the instrument
panel display only when the following
conditions occur:
the additional fog signal will appear if
the front or rear fog lights are on;
107F1B0656
108F1B0638
140
STARTING AND DRIVING

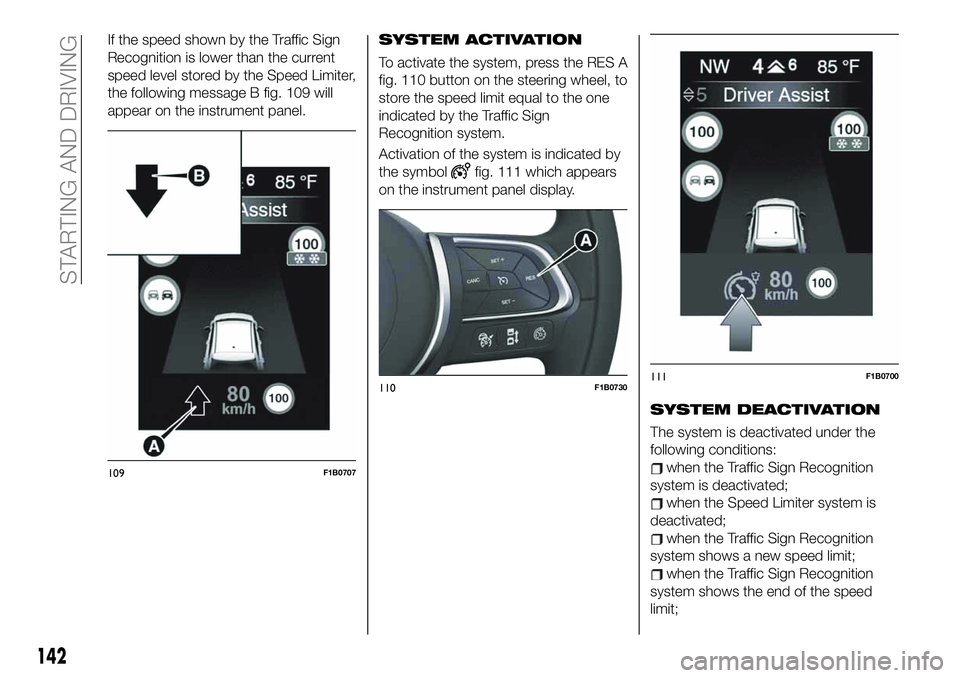

If the speed shown by the Traffic Sign
Recognition is lower than the current
speed level stored by the Speed Limiter,
the following message B fig. 109 will
appear on the instrument panel.SYSTEM ACTIVATION
To activate the system, press the RES A
fig. 110 button on the steering wheel, to
store the speed limit equal to the one
indicated by the Traffic Sign
Recognition system.
Activation of the system is indicated by
the symbol
fig. 111 which appears
on the instrument panel display.
SYSTEM DEACTIVATION
The system is deactivated under the
following conditions:
when the Traffic Sign Recognition
system is deactivated;
when the Speed Limiter system is
deactivated;
when the Traffic Sign Recognition
system shows a new speed limit;
when the Traffic Sign Recognition
system shows the end of the speed
limit;
109F1B0707
110F1B0730111F1B0700
142
STARTING AND DRIVING

when the Traffic Sign Recognition
system cannot display any speed limit.
EXCEEDING THE
PROGRAMMED SPEED
By fully depressing the accelerator
pedal, the programmed speed can be
exceeded even with the system active
(e.g. in the event of overtaking).
The system is disabled until the speed
drops below the set limit, after which it
activates again automatically.
FLASHING OF
PROGRAMMED SPEED
The programmed speed flashes in the
following cases:
when the accelerator pedal has been
fully depressed and the car has
exceeded the programmed speed;
activating the system after setting a
limit below the effective speed of the
car;
when the device cannot reduce the
speed of the vehicle due to the gradient
of the road;
in the event of sharp acceleration.

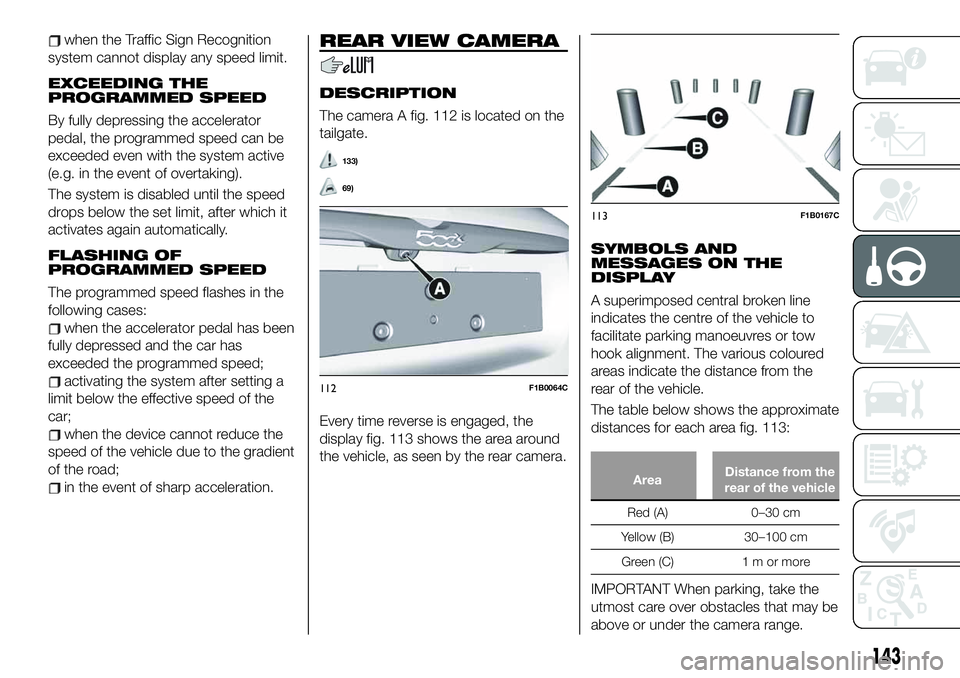

REAR VIEW CAMERA
DESCRIPTION
The camera A fig. 112 is located on the
tailgate.
133)
69)
Every time reverse is engaged, the
display fig. 113 shows the area around
the vehicle, as seen by the rear camera.
SYMBOLS AND
MESSAGES ON THE
DISPLAY
A superimposed central broken line
indicates the centre of the vehicle to
facilitate parking manoeuvres or tow
hook alignment. The various coloured
areas indicate the distance from the
rear of the vehicle.
The table below shows the approximate
distances for each area fig. 113:
AreaDistance from the
rear of the vehicle
Red (A) 0–30 cm
Yellow (B) 30–100 cm
Green (C) 1 m or more
IMPORTANT When parking, take the
utmost care over obstacles that may be
above or under the camera range.
112F1B0064C
113F1B0167C
143

TOPPING UP AdBlue® DIESEL
EMISSIONS ADDITIVE
(Diesel versions only)
(where provided)
71)
Preliminary conditions
AdBlue® freezes at temperatures lower
than -11°C. If the car stands for a long
time at this temperature refilling could
be difficult.
Proceed as follows:
park the car on flat ground and stop
the engine by setting the start device in
the OFF position;
open the fuel flap A fig. 117, then
undo and remove the cap B (blue) from
the AdBlue® filler.Proceed as follows:
insert the AdBlue® nozzle in the filler,
start refilling and stop refilling at the first
shut-off (the shut-off indicates that the
AdBlue® tank is full). Do not proceed
with the refilling, to prevent spillage of
AdBlue®;
extract the nozzle.
Refilling with containers
Proceed as follows:
check the expiration date;
read the advice for use on the label
before pouring the content of the bottle
into the AdBlue® tank;
if systems which cannot be screwed
in (e.g. tanks) are used for refilling, after
the indication appears on the
instrument panel display (see “Warning
lights and messages" paragraph in the
“Knowing the instrument panel”
chapter), fill the AdBlue® tank with no
more than 7.5 litres;
if containers which can be screwed
to the filler are used, the reservoir is full
when the AdBlue® level in the container
stops pouring out. Do not proceed
further.
Operations after refilling
Proceed as follows:
fit the cap B fig. 117back on the
AdBlue® filler by turning it clockwise
and screwing it completely;
set the ignition device to MAR (it is
not necessary to start the engine);
wait for the indication on the
instrument panel to switch off before
moving the car. The indication may stay
on for a few seconds to approximately
half a minute. If the engine is started
and the car is moved, the indication will
remain on for longer. This will not
compromise engine operation;
if the AdBlue® was topped up when
the tank was empty, see the “Refuelling
” paragraph in the “Technical
Specifications” chapter and wait for
2 minutes before starting the engine.
IMPORTANT If AdBlue® is spilled out of
the filler neck, clean up well the area
and proceed to filling up again. If the
liquid crystallises, eliminate it with a
sponge and warm water.
IMPORTANT
DO NOT EXCEED THE MAXIMUM
LEVEL: this could cause damage to
the reservoir. AdBlue® freezes at
under -11 °C. Although the system
is designed to operate below the
freezing point of the AdBlue®, it is
advisable not to fill the tank beyond
the maximum level because if the
AdBlue® freezes the system can be
damaged. Follow the instructions in
this paragraph.
117
Refilling
with
nozzles
5IF
TZTUFN
XBT
EFTJHOFE
JO
DPNQMJBODF

XJUI
*40

OP[[MF
DBQBDJUZ

M
NJO

3FGJMMJOH
BU
TUBUJPOT
XJUI
IJHIFS
GMPX

SBUFT
JT
QPTTJCMF

CVU
UIF
OP[[MF
DPVME
TIVU

PGG
BOE
UIF
BNPVOU
JOUSPEVDFE
JOUP
UIF

UBOL
NBZ
WBSZ
F1B0694
148
STARTING AND DRIVING
