GETTING TO KNOW YOUR CAR
In-depth knowledge of your new vehicle
starts here.
The booklet that you are reading simply
and directly explains how it is made and
how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see immediately what is
described here for yourself.DASHBOARD...............10
THE KEYS.................11
IGNITION DEVICE............12
FIAT CODE.................14
ALARM...................14
DOORS...................15
SEATS....................19
HEAD RESTRAINTS...........21
STEERING WHEEL............23
REAR VIEW MIRRORS.........23
EXTERIOR LIGHTS............25
INTERIOR LIGHTS............29
WINDSCREEN/REAR WINDOW
WIPER...................30
CLIMATE CONTROL SYSTEM.....34
ELECTRIC WINDOWS..........39
ELECTRIC SUNROOF..........40
BONNET..................42
BOOT....................43
9

THE KEYS
KEY WITH REMOTE
CONTROL
1)
1)
Metal insert A fig. 3 of the key operates:
the ignition device;
the driver's door lock.
Press button B to open/close the metal
insert.
1)
ELECTRONIC KEY(versions with "Keyless Go" system)
On versions equipped with "Keyless
Go" system, the vehicle features an
electronic key A fig. 4, of which two
copies are provided.
Locking door and boot
Briefly press the
or "FIAT" button:
locking of doors and boot with roof light
off and single flash of direction
indicators (where provided).
Rapidly press the
button twice to
open the luggage compartment
remotely (where provided).
The direction indicators will flash twice
to indicate that the boot has been
opened.Lights switching on (key with
remote control only)
Pressing button
you can remotely
control the switching on of the side and
main beam headlights, for a maximum
of 90 seconds.
Pressing the
button again the
lights switched on previously switch off
(if the parking light function was already
active it will remain so). If, when
90 seconds have passed, button
is
pressed, the main beam headlights and
the side lights will stay on for a further
30 seconds.
REQUEST FOR
ADDITIONAL KEYS
Should a new key with remote control
or a new electronic key be necessary,
go to a Fiat Dealership, taking an ID
document and the vehicle ownership
documents.
WARNING
1)Press button B only with the key away
from your body, especially your eyes and
from objects which could get damaged
(e.g. your clothes). Do not leave the key
unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.
3F1B0007C
4F1B0008C
11

IMPORTANT
1)The electronic components inside the
key may be damaged if the key is subjected
to strong shocks. In order to ensure
complete efficiency of the electronic
devices inside the key, it should never be
exposed to direct sunlight.
IMPORTANT
1)Used batteries may be harmful to the
environment if not disposed of correctly.
They must be disposed of as specified by
law in the special containers or taken to a
Fiat Dealership, which will take care of their
disposal.
IGNITION DEVICE
Versions with key without remote
control
The key can be turned to three different
positions fig. 5:
STOP: engine off, key can be
removed, steering column locked (with
key removed). Some electrical devices
(e.g. central door locking system, alarm,
etc.) are still available;
MAR: driving position. All electrical
devices are available;
AVV: engine starting.
2) 3)
Versions with electronic key
("Keyless Go" system)
To activate the ignition device fig. 6 the
electronic key must be inside the
passenger compartment.The ignition device activates also if the
electronic key is inside the boot or on
the rear shelf.
The ignition device has the following
possible states:
STOP: engine off, steering locked.
Some electrical devices (e.g. central
door locking system, alarm, etc.) are
still available;
MAR: driving position. All electrical
devices are available. This state can be
entered by pressing the ignition device
button once, without pressing the brake
pedal (versions with automatic
transmission) or the clutch pedal
(versions with manual gearbox);
AVV: engine starting.
NOTE The ignition device does NOT
activate if the electronic key is inside the
boot and this is open.
5F1B0642
6F1B0014C
12
GETTING TO KNOW YOUR CAR

the vehicle is locked correctly by pulling
the door handle within 2 seconds. The
doors will not be unlocked again.
IMPORTANT Do not simultaneously
lock and unlock by pulling the handle
(see fig. 11 ).
Driver side door emergency
opening
If the electronic key does not work (e.g.
because its battery is flat), the
emergency metal insert inside the key
can anyway be used to operate the
lock, unlocking the driver side door.
To extract the metal insert, proceed as
follows:
press point A fig. 12 and pull out the
metal insert B;
insert the metal insert in the driver
side door lock and turn it to unlock the
door.
Locking/unlocking the tailgate
Approaching the tailgate with a valid
electronic key, press the opening button
fig. 13 underneath the tailgate handle to
unlock the tailgate.
NOTE If there is an alarm system, the
latter will be temporarily disabled only
for the boot area. After closing the boot,
the alarm system will be reactivated
again.The tailgate can be locked by pressing
the button B fig. 13 on the electronic
key or by pressing the button
on the
inside door panel.
NOTE The tailgate door lock also
performs a central locking of the doors.
Boot opening is disabled while the car
is moving.
While travelling, if the tailgate is closed
correctly, it will be locked automatically
when the car speed is faster than
20 km/h together with the doors
("Autoclose" function). This function can
also be disabled using the menu on the
instrument panel.
11F1B0251C
12F1B0020C13F1B0747
17
It is therefore possible to check whether

Backrest angle adjustment
Push switch B forwards or backwards
to adjust the backrest in the
corresponding direction.
Electric lumbar adjustment
Use the joystick C to actuate the
lumbar area device until the maximum
driving comfort is achieved.
IMPORTANT The electrical adjustment
is only allowed when the ignition device
is turned to MAR and for about
20 minutes after it is turned to STOP.
With the ignition device in the STOP
position, the electric adjustment of the
seats is immediately blocked when the
car is locked from the outside.
FRONT SEAT ELECTRIC
HEATING
(where provided)
With ignition device in the MAR
position, press buttons
fig. 18 on the
dashboard.You can select two heating levels:
“minimum heating”: one orange LED
lit on the buttons;
"maximum heating": two orange
LEDs lit on the buttons.
After selecting one heating level, you
need to wait for a few minutes until
warm air flows into the compartment.
When the "maximum heating" setting is
selected, the heater produces a
boosted heat level for the first minutes
of operation.
IMPORTANT To preserve the battery
charge, this function cannot be
activated when the engine is off.
Auto On Comfort
(where provided)
The electric heated driver seat is
switched on automatically to "maximum
heating" whenever the engine is startedand the outside temperature is lower
than 4.4°C. This function can be
activated and deactivated using the
Uconnect™system Menu.
REAR SEATS
Partial extension of the boot (1/3 or
2/3)
13)
6)
remove the rear shelf;
completely lower the rear seat head
restraints;
move the seat belt to the side,
making sure that it is fully extended and
not twisted;
operate release device A fig. 19 to
fold the required backrest section. After
release a red mark is visible.
Accompany the backrest during folding.
18F1B0739
19F1B0027C
20
GETTING TO KNOW YOUR CAR

To adjust rotate ring nut A fig. 30.
Position 0: 1 or 2 occupants on
front seats;
Position 1: 4 or 5 occupants
Position 2: 4 or 5 occupants+ load
in the boot
Position 3: driver + maximum
admissible load stowed only in the
luggage compartment.
IMPORTANT Check the headlight
alignment each time the weight of the
load transported changes.INSTRUMENT PANEL AND
CONTROL BUTTON
GRAPHIC BRIGHTNESS
ADJUSTMENT
With side lights or headlights on, turn
ring nut B fig. 30 upwards to increase
light brightness of the instrument panel
and of the control button graphics, or
turn the ring nut downwards to
decrease it.
WARNING
18)The daytime running lights are an
alternative to the dipped headlights for
driving during the daytime in countries
where it is compulsory to have lights on
during the day; where it is not compulsory,
the use of daytime running lights is
permitted.
19)Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of
daytime running lights is governed by the
highway code of the country in which you
are driving. Comply with legal
requirements.
INTERIOR LIGHTS
FRONT ROOF LIGHT
Switch A fig. 31 is used to switch on/off
the roof light bulbs.
Switch A positions:
central position: lights B and E
switch on/off when the doors are
opened/closed;
pressed to the left (OFF): lights B and
E are always switched off;
pressed to the right (): lights B
and E are always switched on.
The lights switch on/off gradually.
Switch C switches light B on/off.
Switch D switches light E on/off.
30F1B0207C
31F1B0041C
29
HEADLIGHT ALIGNMENT
ADJUSTMENT
Headlight alignment corrector
The headlight alignment corrector
operates with ignition device at MAR
and dipped headlights on.

device by trying to open it. If it is not
perfectly closed, do not try to press the
bonnet lid down but open it and repeat
the procedure.
IMPORTANT Always check that the
bonnet is closed correctly to prevent it
from opening while the vehicle is
travelling.
WARNING
23)Perform these operations only when
the car is stationary.
24)The bonnet may drop suddenly if the
supporting rod is not positioned correctly.
25)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the electric parking brake is
engaged.
26)For safety reasons, the bonnet must
always be properly closed while the car is
travelling. Therefore, make sure that the
bonnet is properly closed and that the lock
is engaged. If you discover that the bonnet
is not perfectly closed during travel, stop
immediately and close the bonnet in the
correct manner.

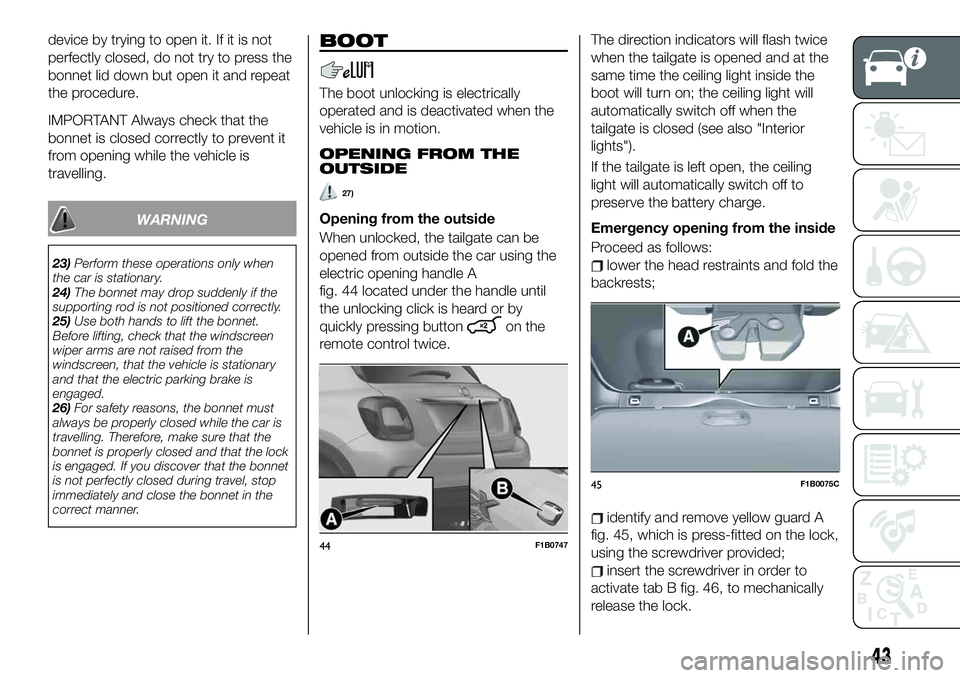

BOOT
The boot unlocking is electrically
operated and is deactivated when the
vehicle is in motion.
OPENING FROM THE
OUTSIDE
27)
Opening from the outside
When unlocked, the tailgate can be
opened from outside the car using the
electric opening handle A
fig. 44 located under the handle until
the unlocking click is heard or by
quickly pressing button
on the
remote control twice.The direction indicators will flash twice
when the tailgate is opened and at the
same time the ceiling light inside the
boot will turn on; the ceiling light will
automatically switch off when the
tailgate is closed (see also "Interior
lights").
If the tailgate is left open, the ceiling
light will automatically switch off to
preserve the battery charge.
Emergency opening from the inside
Proceed as follows:
lower the head restraints and fold the
backrests;
identify and remove yellow guard A
fig. 45, which is press-fitted on the lock,
using the screwdriver provided;
insert the screwdriver in order to
activate tab B fig. 46, to mechanically
release the lock.
44F1B0747
45F1B0075C
43

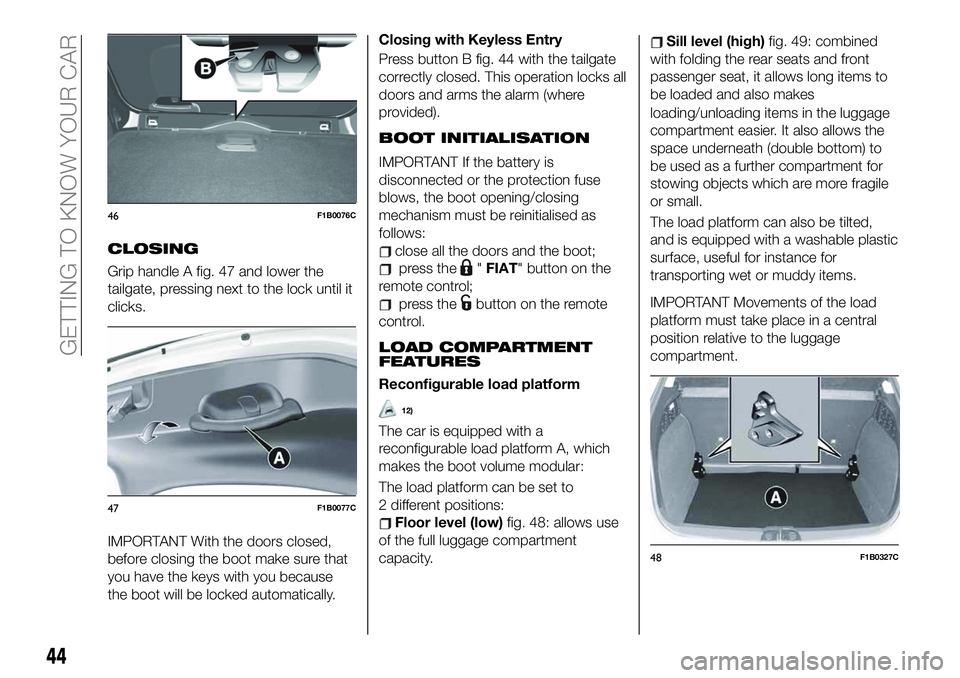

CLOSING
Grip handle A fig. 47 and lower the
tailgate, pressing next to the lock until it
clicks.
IMPORTANT With the doors closed,
before closing the boot make sure that
you have the keys with you because
the boot will be locked automatically.
Closing with Keyless Entry
Press button B fig. 44 with the tailgate
correctly closed. This operation locks all
doors and arms the alarm (where
provided).
BOOT INITIALISATION
IMPORTANT If the battery is
disconnected or the protection fuse
blows, the boot opening/closing
mechanism must be reinitialised as
follows:
close all the doors and the boot;
press the"FIAT" button on the
remote control;
press thebutton on the remote
control.
LOAD COMPARTMENT
FEATURES
Reconfigurable load platform
12)
The car is equipped with a
reconfigurable load platform A, which
makes the boot volume modular:
The load platform can be set to
2 different positions:
Floor level (low)fig. 48: allows use
of the full luggage compartment
capacity.
Sill level (high)fig. 49: combined
with folding the rear seats and front
passenger seat, it allows long items to
be loaded and also makes
loading/unloading items in the luggage
compartment easier. It also allows the
space underneath (double bottom) to
be used as a further compartment for
stowing objects which are more fragile
or small.
The load platform can also be tilted,
and is equipped with a washable plastic
surface, useful for instance for
transporting wet or muddy items.
IMPORTANT Movements of the load
platform must take place in a central
position relative to the luggage
compartment.
46F1B0076C
47F1B0077C
48F1B0327C
44
GETTING TO KNOW YOUR CAR

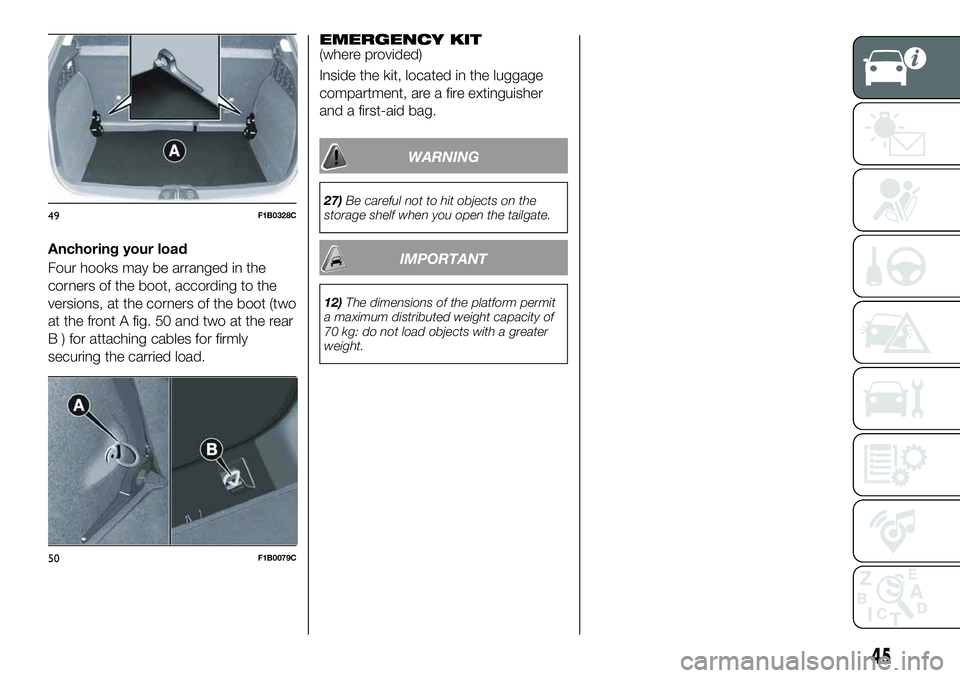

Anchoring your load
Four hooks may be arranged in the
corners of the boot, according to the
versions, at the corners of the boot (two
at the front A fig. 50 and two at the rear
B ) for attaching cables for firmly
securing the carried load.
EMERGENCY KIT(where provided)
Inside the kit, located in the luggage
compartment, are a fire extinguisher
and a first-aid bag.
WARNING
27)Be careful not to hit objects on the
storage shelf when you open the tailgate.
IMPORTANT
12)The dimensions of the platform permit
a maximum distributed weight capacity of
70 kg: do not load objects with a greater
weight.
49F1B0328C
50F1B0079C
45

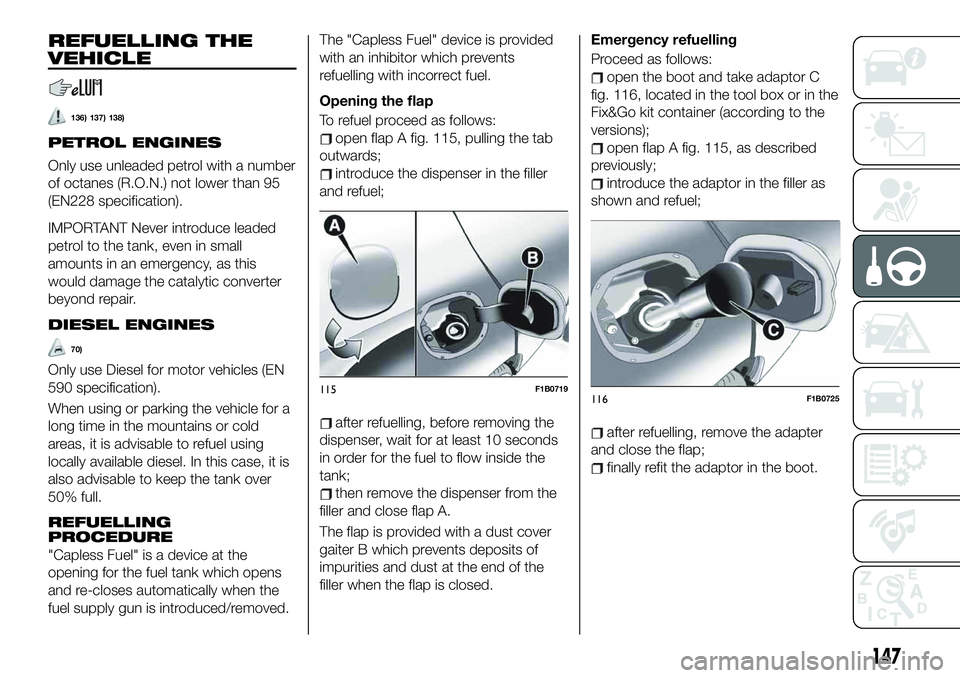

REFUELLING THE
VEHICLE
136) 137) 138)
PETROL ENGINES
Only use unleaded petrol with a number
of octanes (R.O.N.) not lower than 95
(EN228 specification).
IMPORTANT Never introduce leaded
petrol to the tank, even in small
amounts in an emergency, as this
would damage the catalytic converter
beyond repair.
DIESEL ENGINES
70)
Only use Diesel for motor vehicles (EN
590 specification).
When using or parking the vehicle for a
long time in the mountains or cold
areas, it is advisable to refuel using
locally available diesel. In this case, it is
also advisable to keep the tank over
50% full.
REFUELLING
PROCEDURE
"Capless Fuel" is a device at the
opening for the fuel tank which opens
and re-closes automatically when the
fuel supply gun is introduced/removed.The "Capless Fuel" device is provided
with an inhibitor which prevents
refuelling with incorrect fuel.
Opening the flap
To refuel proceed as follows:
open flap A fig. 115, pulling the tab
outwards;
introduce the dispenser in the filler
and refuel;
after refuelling, before removing the
dispenser, wait for at least 10 seconds
in order for the fuel to flow inside the
tank;
then remove the dispenser from the
filler and close flap A.
The flap is provided with a dust cover
gaiter B which prevents deposits of
impurities and dust at the end of the
filler when the flap is closed.Emergency refuelling
Proceed as follows:
open the boot and take adaptor C
fig. 116, located in the tool box or in the
Fix&Go kit container (according to the
versions);
open flap A fig. 115, as described
previously;
introduce the adaptor in the filler as
shown and refuel;
after refuelling, remove the adapter
and close the flap;
finally refit the adaptor in the boot.
115F1B0719116F1B0725
147
