SCHEDULED SERVICING PLAN (1.0, 1.3 and 1.4 Turbo Multi Air versions)
WARNING: Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note.
Warning: simply restarting the maintenance from the start of the plan may cause the allowed interval to be exceeded for some
operations!
Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary. Check quick tyre repair kit recharge
conditions/expiry date (if provided)
●●●●●●●●●●
Check operation of lighting system (headlamps, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, instrument panel warning lights,
etc.)
●●●●●●●●●●
Check and, if necessary, top up fluid levels(1)●●●●●●●●●●
Check the fuel/engine management systems operation,
emissions and engine oil deterioration using the diagnosis
equipment (where provided)(2)
●●●●●●●●●●
Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
(2) If the engine oil quality detected by the vehicle diagnostics is lower than 20%, it is advisable to replace the engine oil and engine filter in order to avoid another
service operation after a short time.
180
SERVICING AND MAINTENANCE

SCHEDULED SERVICING PLAN (1.6 E.Torq versions)
WARNING: Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note.
Warning: simply restarting the maintenance from the start of the plan may cause the allowed interval to be exceeded for some
operations!
Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary. Check quick tyre repair kit recharge
conditions/expiry date (if provided)
●●●●●●●●●●
Check operation of lighting system (headlamps, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, instrument panel warning lights,
etc.)
●●●●●●●●●●
Check and, if necessary, top up fluid levels(1)●●●●●●●●●●
Use the diagnosis socket to check the fuel/engine control
system operation, emissions and the engine oil
deterioration (2)
●●●●●●●●●●
Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
(2) If the engine oil quality detected by the vehicle diagnostics is lower than 20%, it is advisable to replace the engine oil and engine filter in order to avoid another
service operation after a short time.
184
SERVICING AND MAINTENANCE

SCHEDULED SERVICING PLAN (Diesel versions)
WARNING: Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note.
Warning: simply restarting the maintenance from the start of the plan may cause the allowed interval to be exceeded for some
operations!
Thousands of miles12 24 36 48 60 72 84 96 108 120
Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary. Check quick tyre repair kit recharge
conditions/expiry date (if provided)
●●●●●●●●●●
Check operation of lighting system (headlamps, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, instrument panel warning lights,
etc.)
●●●●●●●●●●
Check and, if necessary, top up fluid levels(1) (2)●●●●●●●●●●
Use the diagnosis socket to check the fuel/engine control
system operation, emissions and the engine oil
deterioration (3)
●●●●●●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
(2) Consumption of AdBlue® (UREA) emissions additive depends on the condition of use of the vehicle and is indicated by a warning light and message on the
instrument panel (for versions/markets, where provided).
(3) If the engine oil quality detected by the vehicle diagnostics is lower than 20%, it is advisable to replace the engine oil and engine filter in order to avoid another
service operation after a short time.
187

Thousands of miles12 24 36 48 60 72 84 96 108 120
Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years12345678910
Check oil level of electro-hydraulic actuator and top up, if
necessary (1.6 Multijet versions with dual-clutch automatic
transmission)(5)
●
Check rear differential fluid level (2.0 Multijet 4x4 versions)●●
Change engine oil and replace oil filter(6)
Replace accessory drive belt/s(4)
Replace toothed timing drive belt (excluding 1.3 Multijet
16V versions)(4)
Replace fuel filter cartridge(7)
●●●
Replace air cleaner cartridge(8)●●●●●
Change the brake fluid(9)
(5) Check to be carried out every year for cars on the road in countries with particularly severe climates (cold countries).
(6) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message in the instrument panel. In any case, it must never exceed 2 years. Where the car is used mostly in urban settings you need to replace the engine oil
filter every year. (4) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the
mileage.
(7) If the vehicle runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km
(8) If the vehicle is used in dusty areas, this cleaner must be replaced every 20,000 km.
(9) The brake fluid replacement has to be done every two years, irrespective of the mileage.
189

REGULAR CHECKS
Every1,000km or before long trips
check and, if necessary, top up:
engine coolant level;
brake fluid level;
windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system
(headlights, direction indicators, hazard
warning lights, etc.);
operation of windscreen
washer/wiper system and
positioning/wear of windscreen/rear
window wiper blades;
check and top up AdBlue® (UREA)
diesel emissions additive level (where
provided).
Every3,000km, check and top up if
required: engine oil level.
DEMANDING USE OF THE
CAR
If the car is used mainly under one of
the following conditions:
law enforcement (or security service),
taxi service;
towing a trailer or caravan;
dusty roads;
short, repeated journeys (less than
7-8 Km) at sub-zero outdoor
temperatures;
engine often idling or driving long
distances at low speeds or long periods
of inactivity;the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
check front disc brake pad condition
and wear;
check cleanliness of bonnet and
luggage compartment locks,
cleanliness and lubrication of linkage;
visually inspect conditions of: engine,
gearbox, transmission, pipes and hoses
(exhaust/fuel system/brakes) and
rubber elements (gaiters/sleeves/
bushes, etc.);
check battery charge and battery
fluid level (electrolyte);
visually inspect conditions of the
accessory drive belts;
check and, if necessary, change
engine oil and replace oil filter;
check and, if necessary, replace
pollen filter;
check and, if necessary, replace air
cleaner;
restore AdBlue® (UREA) Diesel
emissions additive level (where
provided), when the warning light
comes on or the message on the
instrument panel appears.
191

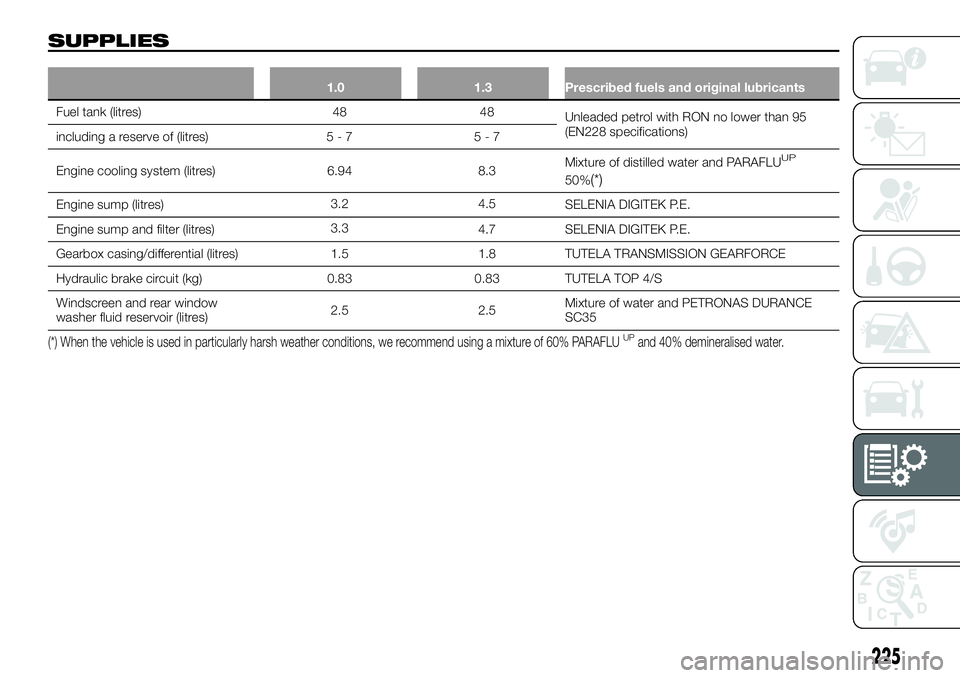

SUPPLIES
1.0 1.3 Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Unleaded petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 6.94 8.3Mixture of distilled water and PARAFLU
UP
50%(*)
Engine
sump
(OLWUHV) SELENIA DIGITEK P.E.
Engine
sump
and
filter
(OLWUHV)
4.SELENIA DIGITEK P.E.
Gearbox casing/differential (litres) 1.5 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
225

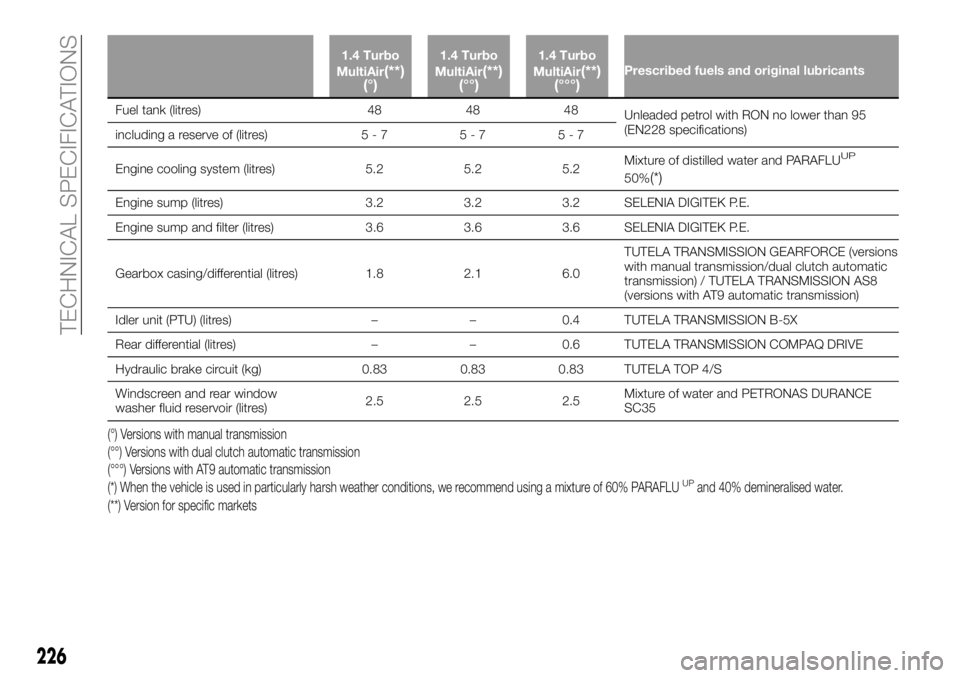

1.4 Turbo
MultiAir(**)
(°)1.4 Turbo
MultiAir(**)
(°°)1.4 Turbo
MultiAir(**)
(°°°)Prescribed fuels and original lubricants
Fuel tank (litres) 48 48 48
Unleaded petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 7 5 - 7 5 - 7
Engine cooling system (litres) 5.2 5.2 5.2Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump (litres) 3.2 3.2 3.2 SELENIA DIGITEK P.E.
Engine sump and filter (litres) 3.6 3.6 3.6 SELENIA DIGITEK P.E.
Gearbox casing/differential (litres) 1.8 2.1 6.0TUTELA TRANSMISSION GEARFORCE (versions
with manual transmission/dual clutch automatic
transmission) / TUTELA TRANSMISSION AS8
(versions with AT9 automatic transmission)
Idler unit (PTU) (litres) – – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
(**) Version for specific markets (°) Versions with manual transmission
(°°) Versions with dual clutch automatic transmission
(°°°) Versions with AT9 automatic transmission
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU
UPand 40% demineralised water.
226
TECHNICAL SPECIFICATIONS

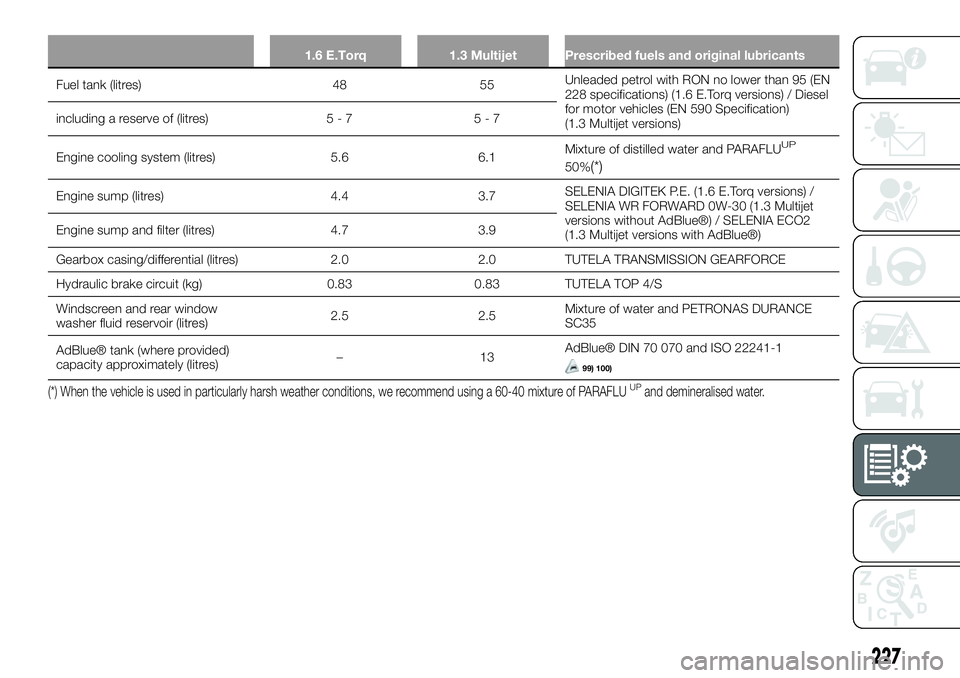

1.6 E.Torq 1.3 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 48 55Unleaded petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions) including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.6 6.1Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump (litres) 4.4 3.7SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD 0W-30 (1.3 Multijet
versions without AdBlue®) / SELENIA ECO2
(1.3 Multijet versions with AdBlue®) Engine sump and filter (litres) 4.7 3.9
Gearbox casing/differential (litres) 2.0 2.0 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
AdBlue® tank (where provided)
capacity approximately (litres)–13AdBlue® DIN 70 070 and ISO 22241-1
99) 100)
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
227

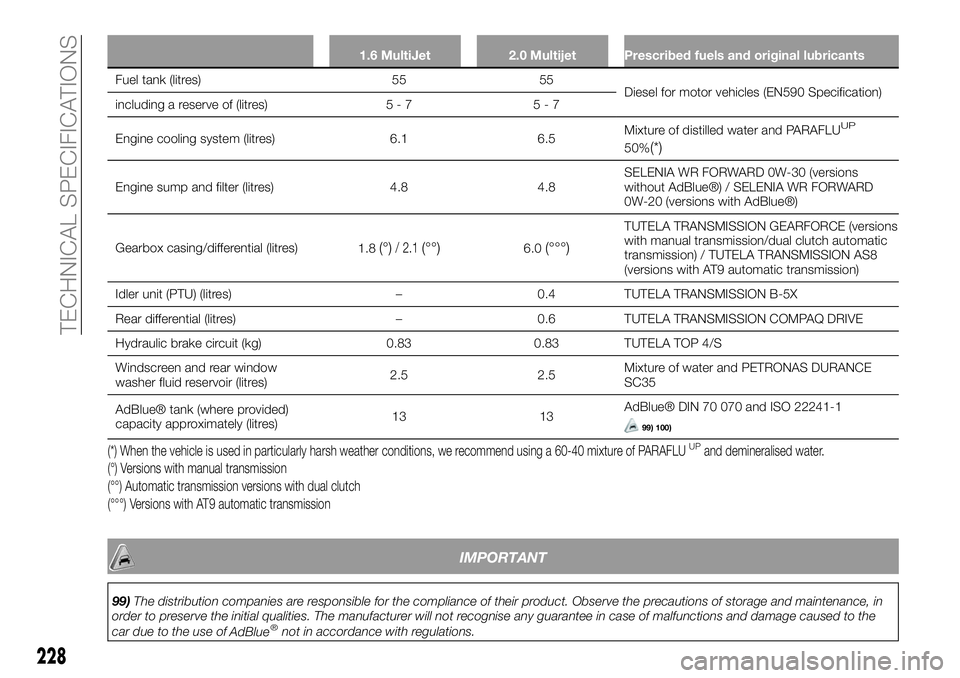

1.6 MultiJet 2.0 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 55 55
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 6.1 6.5Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump and filter (litres) 4.8 4.8SELENIA WR FORWARD 0W-30 (versions
without AdBlue®) / SELENIA WR FORWARD
0W-20 (versions with AdBlue®)
Gearbox casing/differential (litres)
1.8
(°)/ 2.1(°°)6.0(°°°)
TUTELA TRANSMISSION GEARFORCE (versions
with manual transmission/dual clutch automatic
transmission) / TUTELA TRANSMISSION AS8
(versions with AT9 automatic transmission)
Idler unit (PTU) (litres) – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
AdBlue® tank (where provided)
capacity approximately (litres)13 13AdBlue® DIN 70 070 and ISO 22241-1
99) 100)
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(°) Versions with manual transmission
(°°) Automatic transmission versions with dual clutch
(°°°) Versions with AT9 automatic transmission
IMPORTANT
99)
228
TECHNICAL SPECIFICATIONS
The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and maintenance, in
order to preserve the initial qualities. The manufacturer will not recognise any guarantee in case of malfunctions and damage caused to the
car due to the use of not in accordance with regulations.
AdBlue
®
