SEATS
FRONT SEATS WITH
MANUAL ADJUSTMENT
11)
4)
Longitudinal adjustment
Lift lever A fig. 15 and push the seat
forwards or backwards.
12)
IMPORTANT Carry out the adjustment
while sitting on the seat involved (driver
side or passenger side).
Height adjustment
Move lever B upwards or downwards to
achieve the required height.
IMPORTANT Carry out the adjustment
while sitting on the seat involved (driver
side or passenger side).
Backrest angle adjustment
Move lever C to adjust the backrest
angle, accompanying it with the
movement of the torso (operate the
lever until the desired position is
reached, then release it).
Electric lumbar adjustment
When the ignition device is at MAR,
press button A fig. 16 to adjust the
lumbar area support, until the maximum
driving comfort is achieved.
ELECTRICALLY
ADJUSTABLE FRONT
SEATS
(where provided)
5)
The buttons for electrical seat
adjustment are on the outer side of the
seat, near the floor.
These buttons can be used to adjust
the height, the lengthwise position in
relation to the vehicle and the angle of
the backrest.
Height adjustment
Use the front or rear part of the switch
A fig. 17 to modify the height and/or the
angle of the seat cushion.
Longitudinal adjustment
Push switch A forwards or backwards
to move the seat in the corresponding
direction.
15F1B0019C
16F1B0016C
17F1B0018C
19

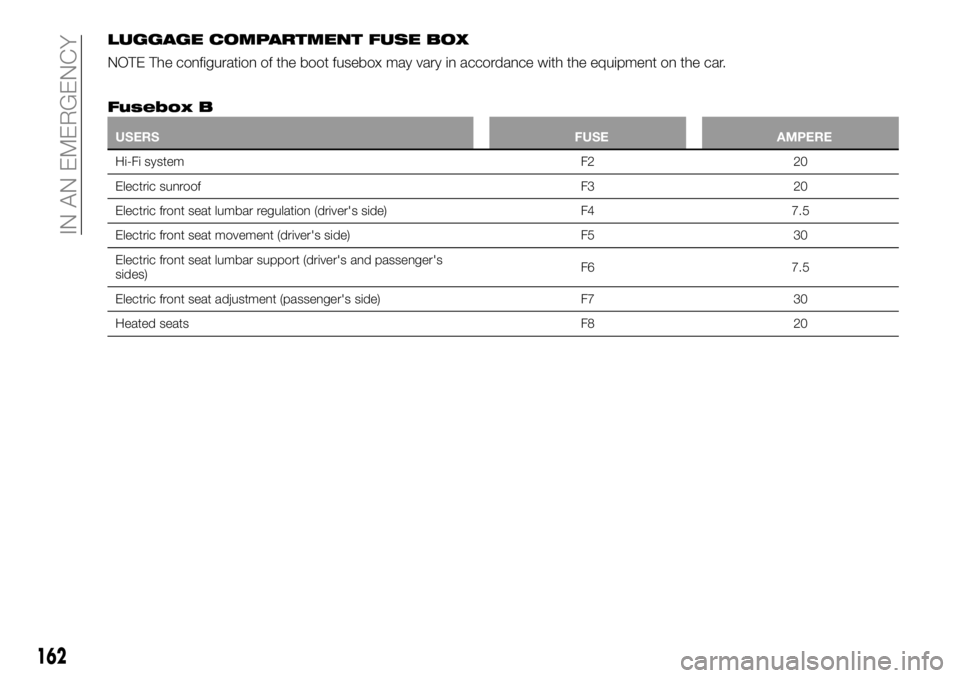

LUGGAGE COMPARTMENT FUSE BOX
NOTE The configuration of the boot fusebox may vary in accordance with the equipment on the car.
Fusebox B
USERSFUSE AMPERE
Hi-Fi system F2 20
Electric sunroof F3 20
Electric front seat lumbar regulation (driver's side) F4 7.5
Electric front seat movement (driver's side) F5 30
Electric front seat lumbar support (driver's and passenger's
sides)F6 7.5
Electric front seat adjustment (passenger's side) F7 30
Heated seats F8 20
162
IN AN EMERGENCY
