spark plugs replace FIAT 500X 2019 Owner handbook (in English)

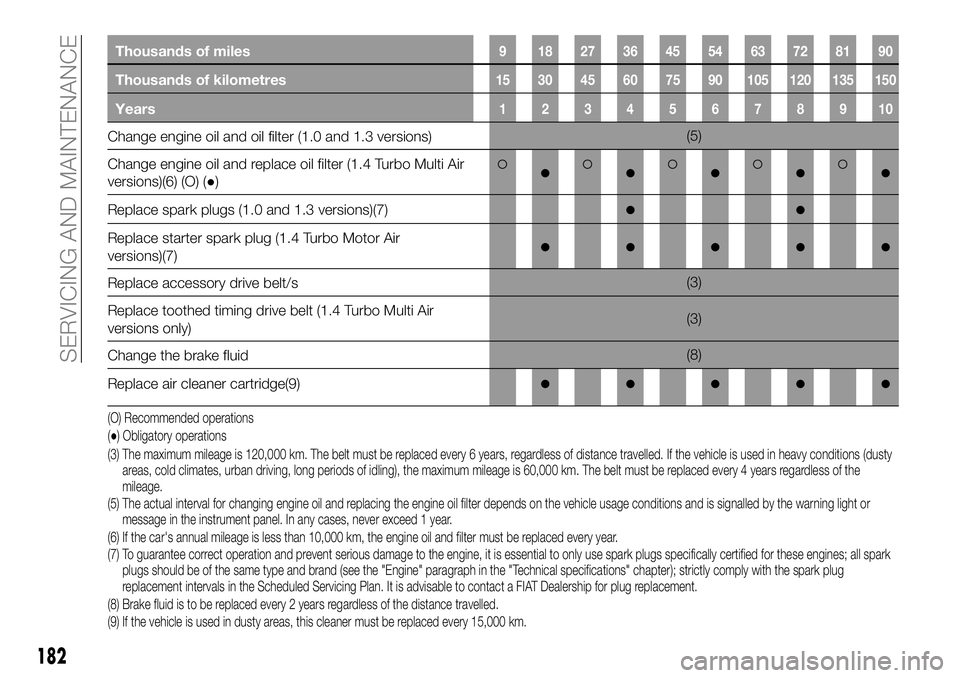

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Change engine oil and oil filter (1.0 and 1.3 versions)(5)
Change engine oil and replace oil filter (1.4 Turbo Multi Air
versions)(6) (O) (●)
●●●●●
Replace spark plugs (1.0 and 1.3 versions)(7)●●
Replace starter spark plug (1.4 Turbo Motor Air
versions)(7)●●●●●
Replace accessory drive belt/s(3)
Replace toothed timing drive belt (1.4 Turbo Multi Air
versions only)(3)
Change the brake fluid(8)
Replace air cleaner cartridge(9)
●●●●●
(5) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message in the instrument panel. In any cases, never exceed 1 year.
(6) If the car's annual mileage is less than 10,000 km, the engine oil and filter must be replaced every year. (O) Recommended operations
(●) Obligatory operations
(7) To guarantee correct operation and prevent serious damage to the engine, it is essential to only use spark plugs specifically certified for these engines; all spark
plugs should be of the same type and brand (see the "Engine" paragraph in the "Technical specifications" chapter); strictly comply with the spark plug
replacement intervals in the Scheduled Servicing Plan. It is advisable to contact a FIAT Dealership for plug replacement. (3) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the
mileage.
(8) Brake fluid is to be replaced every 2 years regardless of the distance travelled.
(9) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
182
SERVICING AND MAINTENANCE

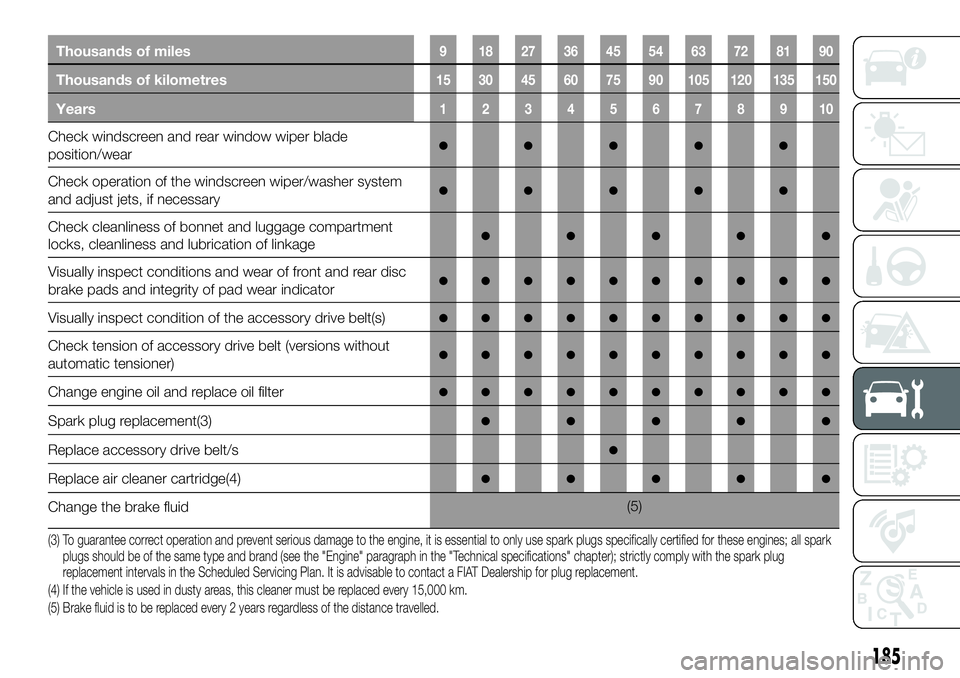

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check windscreen and rear window wiper blade
position/wear●●●●●
Check operation of the windscreen wiper/washer system
and adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage compartment
locks, cleanliness and lubrication of linkage●●●●●
Visually inspect conditions and wear of front and rear disc
brake pads and integrity of pad wear indicator●●●●●●●●●●
Visually inspect condition of the accessory drive belt(s)●●●●●●●●●●
Check tension of accessory drive belt (versions without
automatic tensioner)●●●●●●●●●●
Change engine oil and replace oil filter●●●●●●●●●●
Spark plug replacement(3)●●●●●
Replace accessory drive belt/s●
Replace air cleaner cartridge(4)●●●●●
Change the brake fluid(5)
(3) To guarantee correct operation and prevent serious damage to the engine, it is essential to only use spark plugs specifically certified for these engines; all spark
plugs should be of the same type and brand (see the "Engine" paragraph in the "Technical specifications" chapter); strictly comply with the spark plug
replacement intervals in the Scheduled Servicing Plan. It is advisable to contact a FIAT Dealership for plug replacement.
(4) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(5) Brake fluid is to be replaced every 2 years regardless of the distance travelled.
185
