fuse box FIAT 600 2007 1.G Owners Manual

19GETTING TO KNOW YOUR CAR

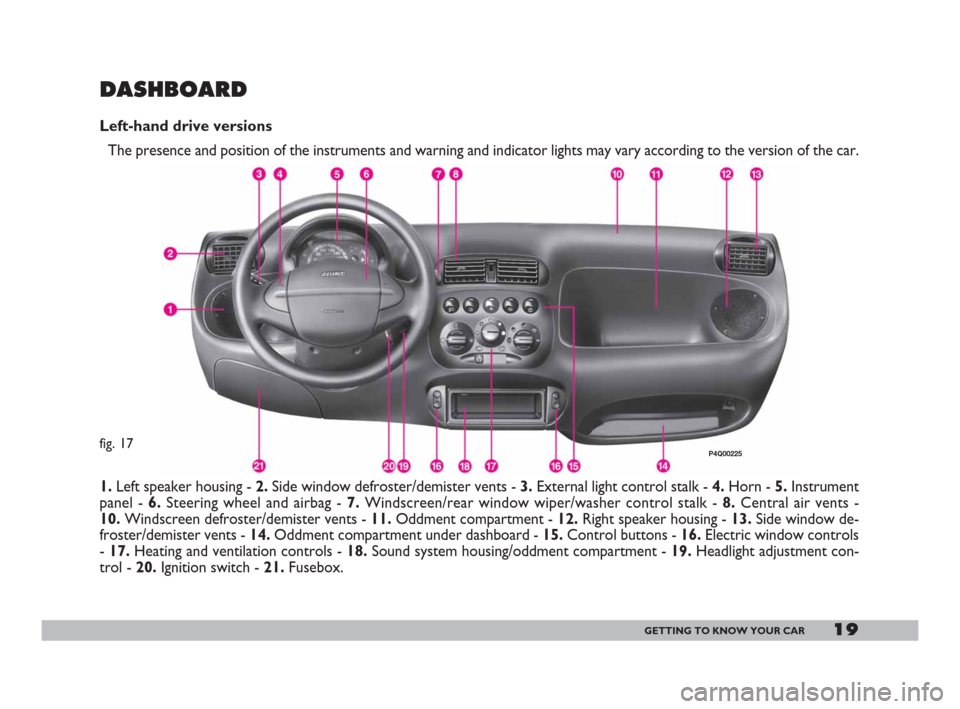

DASHBOARD
Left-hand drive versions
The presence and position of the instruments and warning and indicator lights may vary according to the version of the car.
1.Left speaker housing - 2.Side window defroster/demister vents - 3.External light control stalk - 4.Horn - 5.Instrument
panel - 6.Steering wheel and airbag - 7.Windscreen/rear window wiper/washer control stalk - 8.Central air vents -
10.Windscreen defroster/demister vents - 11.Oddment compartment - 12.Right speaker housing - 13.Side window de-
froster/demister vents - 14.Oddment compartment under dashboard - 15.Control buttons - 16.Electric window controls
- 17.Heating and ventilation controls - 18.Sound system housing/oddment compartment - 19.Headlight adjustment con-
trol - 20.Ignition switch - 21.Fusebox.
P4Q00225fig. 17
001-069 Seicento GB 22-11-2007 10:49 Pagina 19

98IN AN EMERGENCY

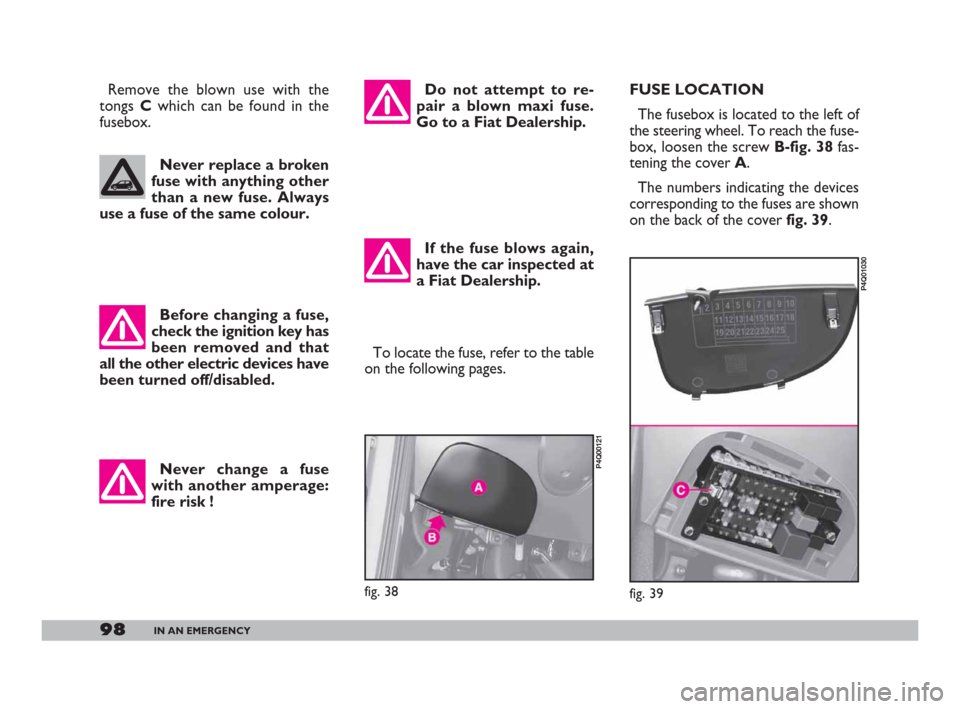

Never change a fuse
with another amperage:
fire risk !To locate the fuse, refer to the table
on the following pages. Do not attempt to re-
pair a blown maxi fuse.
Go to a Fiat Dealership.
If the fuse blows again,
have the car inspected at
a Fiat Dealership.
fig. 38
P4Q00121
fig. 39
P4Q01030
Remove the blown use with the
tongs Cwhich can be found in the
fusebox.
Never replace a broken
fuse with anything other
than a new fuse. Always
use a fuse of the same colour.
Before changing a fuse,
check the ignition key has
been removed and that
all the other electric devices have
been turned off/disabled. FUSE LOCATION
The fusebox is located to the left of
the steering wheel. To reach the fuse-
box, loosen the screw B-fig. 38 fas-
tening the cover A.
The numbers indicating the devices
corresponding to the fuses are shown
on the back of the cover fig. 39.
083-104 Seicento GB 22-11-2007 10:50 Pagina 98

99IN AN EMERGENCY

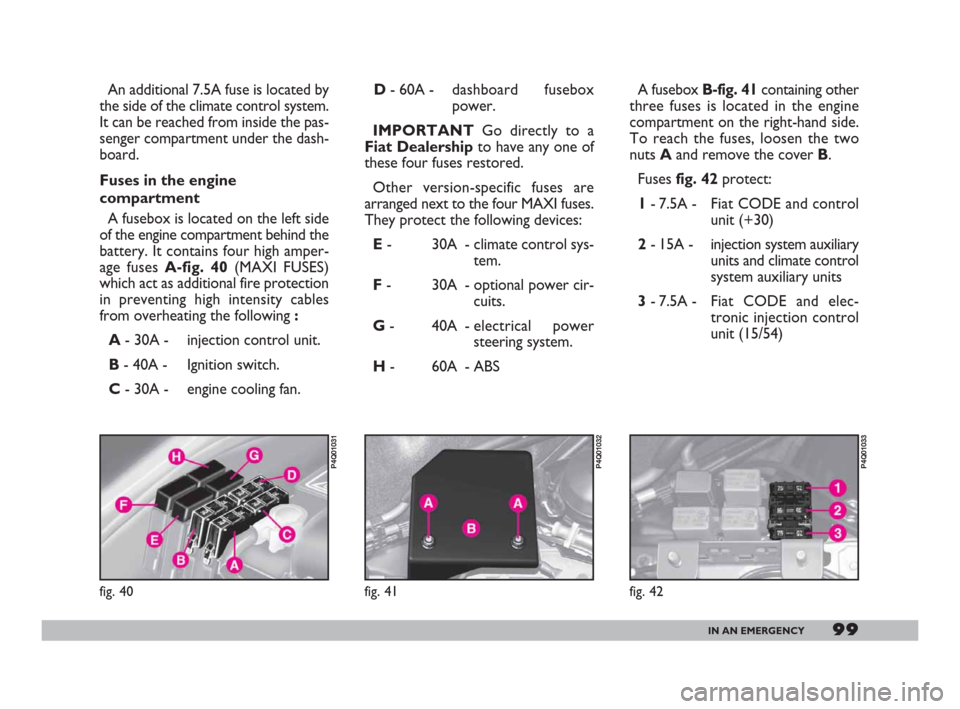

An additional 7.5A fuse is located by
the side of the climate control system.
It can be reached from inside the pas-
senger compartment under the dash-
board.
Fuses in the engine
compartment
A fusebox is located on the left side
of the engine compartment behind the
battery. It contains four high amper-
age fuses A-fig. 40 (MAXI FUSES)
which act as additional fire protection
in preventing high intensity cables
from overheating the following :
A- 30A - injection control unit.
B- 40A - Ignition switch.
C- 30A - engine cooling fan.D- 60A -dashboard fusebox
power.
IMPORTANT Go directly to a
Fiat Dealershipto have any one of
these four fuses restored.
Other version-specific fuses are
arranged next to the four MAXI fuses.
They protect the following devices:
E - 30A - climate control sys-
tem.
F - 30A - optional power cir-
cuits.
G - 40A - electrical power
steering system.
H - 60A - ABSA fusebox B-fig. 41 containing other
three fuses is located in the engine
compartment on the right-hand side.
To reach the fuses, loosen the two
nuts A and remove the cover B.
Fuses fig. 42 protect:
1 - 7.5A -Fiat CODE and control
unit (+30)
2 - 15A -injection system auxiliary
units and climate control
system auxiliary units
3 - 7.5A -Fiat CODE and elec-
tronic injection control
unit (15/54)
fig. 40
P4Q01031
fig. 41
P4Q01032
fig. 42
P4Q01033
083-104 Seicento GB 22-11-2007 10:50 Pagina 99

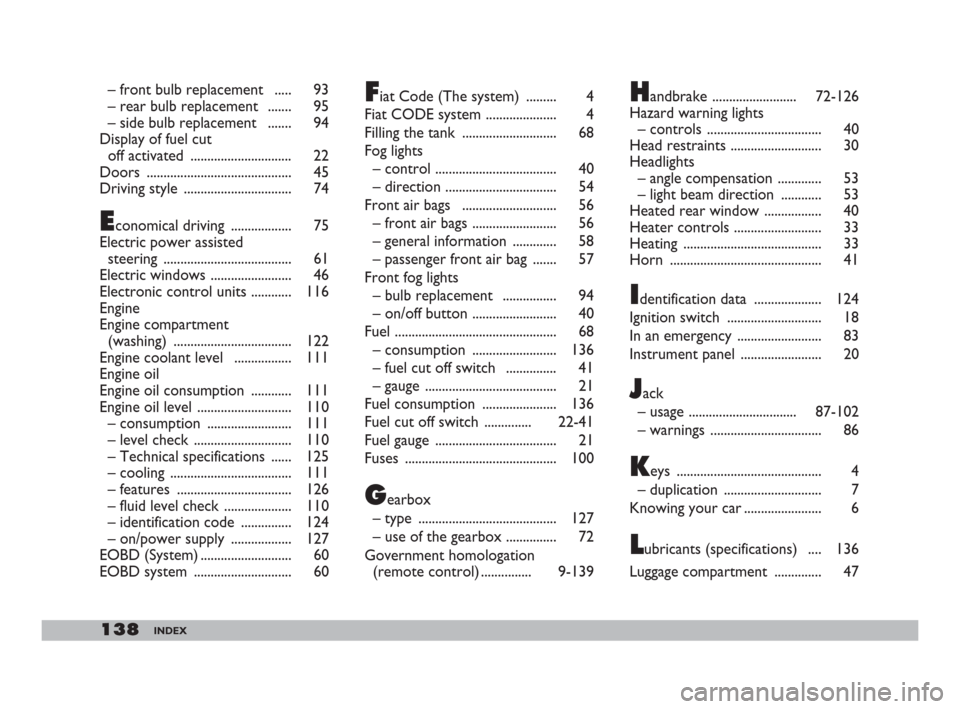

138INDEX
– front bulb replacement ..... 93
– rear bulb replacement ....... 95
– side bulb replacement ....... 94
Display of fuel cut
off activated .............................. 22
Doors ........................................... 45
Driving style ................................ 74
Economical driving .................. 75
Electric power assisted
steering ...................................... 61
Electric windows ........................ 46
Electronic control units ............ 116
Engine
Engine compartment
(washing) ................................... 122
Engine coolant level ................. 111
Engine oil
Engine oil consumption ............ 111
Engine oil level ............................ 110
– consumption ......................... 111
– level check ............................. 110
– Technical specifications ...... 125
– cooling .................................... 111
– features .................................. 126
– fluid level check .................... 110
– identification code ............... 124
– on/power supply .................. 127
EOBD (System) ........................... 60
EOBD system ............................. 60
Fiat Code (The system) ......... 4
Fiat CODE system ..................... 4
Filling the tank ............................ 68
Fog lights
– control .................................... 40
– direction ................................. 54
Front air bags ............................ 56
– front air bags ......................... 56
– general information ............. 58
– passenger front air bag ....... 57
Front fog lights
– bulb replacement ................ 94
– on/off button ......................... 40
Fuel ................................................ 68
– consumption ......................... 136
– fuel cut off switch ............... 41
– gauge ....................................... 21
Fuel consumption ...................... 136
Fuel cut off switch .............. 22-41
Fuel gauge .................................... 21
Fuses ............................................. 100
Gearbox
– type ......................................... 127
– use of the gearbox ............... 72
Government homologation
(remote control) ............... 9-139
Handbrake ......................... 72-126
Hazard warning lights
– controls .................................. 40
Head restraints ........................... 30
Headlights
– angle compensation ............. 53
– light beam direction ............ 53
Heated rear window ................. 40
Heater controls .......................... 33
Heating ......................................... 33
Horn ............................................. 41
Identification data .................... 124
Ignition switch ............................ 18
In an emergency ......................... 83
Instrument panel ........................ 20
Jack
– usage ................................ 87-102
– warnings ................................. 86
Keys ........................................... 4
– duplication ............................. 7
Knowing your car ....................... 6
Lubricants (specifications) .... 136
Luggage compartment .............. 47
