spark plugs replace FIAT BRAVO 2009 2.G Owners Manual

194
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
Thousands of km
Check exhaust emissions (petrol versions)
Check emissions/fumes (1.9 Multijet 8V - 1.9 Multijet 16V versions)
Check operation of engine control systems
(by means of test interface)
Replace accessory drive belt/s
Replace toothed timing belt (petrol versions) (*)
Replace toothed timing belt (1.9 Multijet 8Vversions) (*)
Replace toothed timing belt (1.9 Multijet 16Vversions) (*)
Replace spark plugs (petrol versions) 1
Replace fuel filter (1.9 Multijet 8V - 1.9 Multijet 16V versions)
Replace air filter cartridge (petrol versions)
Replace air filter cartridge (1.9 Multijet 8V - 1.9 Multijet 16V versions)
Replace engine oil and oil filter (petrol versions)
(or every 24 months) 2
Change engine oil and oil filter (
1.9 Multijet 8V - 1.9 Multijet 16V
versionswithout DPF) (or every 24 months)
Change engine oil and oil filter
(1.9 Multijet 8V - 1.9 Multijet 16V versionswith DPF) (**) 2
Change brake fluidr (or every 24 months)
Change pollen filter (or every 15 months)
(*) Irrespective of mileage, the timing drive belt must be replace every 4 years for heavy duty applications, cold climates, town use, long
periods idling) or at least every 5 years.
(**) The engine oil and oil filter should be changed depending on their actual condition, which is indicated by a warning light/message on the control panel or at
least every 2 years.
1For 1.4 T-JET versions, in order to ensure correct operation and avoid significant damages to the engine, it is mandatory:
- to use spark plugs specifically certified for the T-JET engine only, of the same type and brand (see paragraph “Engine”);
- to replace the plugs as often as required by the Programmed Maintenance Plan;
- we recommend to refer to the Fiat Dealership.
2If the car is used mainly on urban routes or if the yearly kilometres travelled are less than 10,000 km, the engine oil and filter must be changed every 12 months.
30 60 90 120 150 180
●● ● ●● ●
●● ● ●● ●
●● ● ●● ●
●
●
●
●
●● ● ●● ●
●●●
●●●
●●●
●● ● ●● ●
●● ● ●● ●
●●●
●●●
●●●●●●
191-212 BRAVO GB:191-212 BRAVO GB 11-11-2009 10:56 Pagina 194

240
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

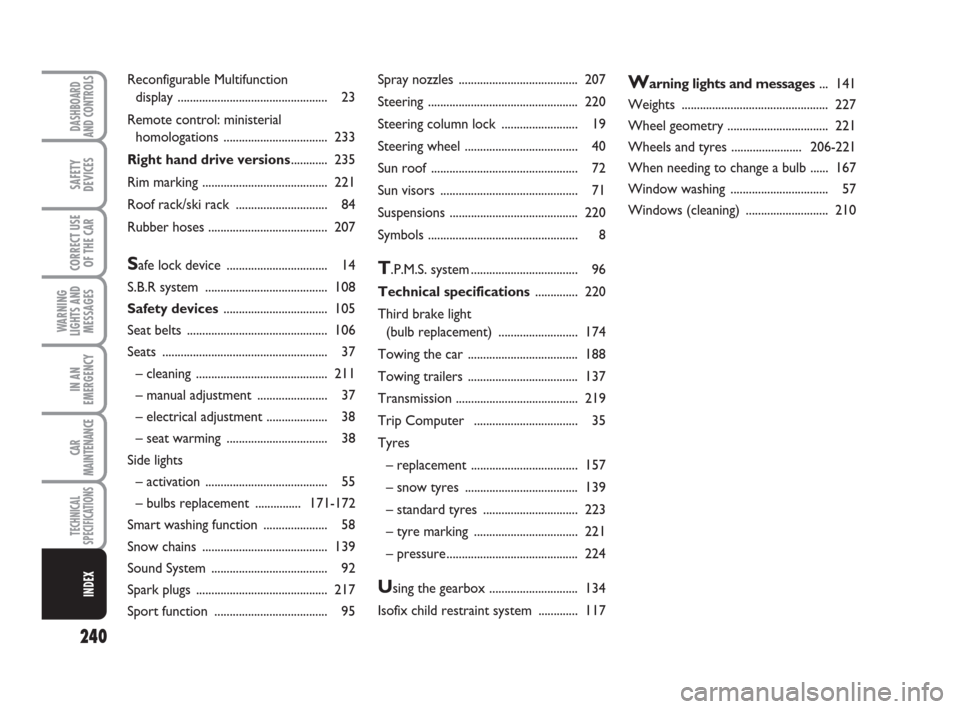

Spray nozzles ....................................... 207
Steering ................................................. 220
Steering column lock ......................... 19
Steering wheel ..................................... 40
Sun roof ................................................ 72
Sun visors ............................................. 71
Suspensions .......................................... 220
Symbols ................................................. 8
T.P.M.S. system................................... 96
Technical specifications .............. 220
Third brake light
(bulb replacement) .......................... 174
Towing the car .................................... 188
Towing trailers .................................... 137
Transmission ........................................ 219
Trip Computer .................................. 35
Tyres
– replacement ................................... 157
– snow tyres ..................................... 139
– standard tyres ............................... 223
– tyre marking .................................. 221
– pressure ........................................... 224
Using the gearbox ............................. 134
Isofix child restraint system ............. 117
Warning lights and messages... 141
Weights ................................................ 227
Wheel geometry ................................. 221
Wheels and tyres .......................206-221
When needing to change a bulb ...... 167
Window washing ................................ 57
Windows (cleaning) ........................... 210 Reconfigurable Multifunction
display ................................................. 23
Remote control: ministerial
homologations .................................. 233
Right hand drive versions............ 235
Rim marking ......................................... 221
Roof rack/ski rack .............................. 84
Rubber hoses ....................................... 207
Safe lock device ................................. 14
S.B.R system ........................................ 108
Safety devices.................................. 105
Seat belts .............................................. 106
Seats ...................................................... 37
– cleaning ........................................... 211
– manual adjustment ....................... 37
– electrical adjustment .................... 38
– seat warming ................................. 38
Side lights
– activation ........................................ 55
– bulbs replacement ...............171-172
Smart washing function ..................... 58
Snow chains ......................................... 139
Sound System ...................................... 92
Spark plugs ........................................... 217
Sport function ..................................... 95
238-244 BRAVO GB.qxd 11-11-2009 10:57 Pagina 240
